How to Install and Configure LED Display with Mctrl300 / Mctrl600 and T3 / T6 with NovaLCT, Viplex E

How to Install and Configure LED Display with Mctrl300 / Mctrl600 and T3 / T6 with NovaLCT, Viplex E

Publish Time : May 17 2019

Currently we received many emails which need support for their LED display installation and control system configuration. Because they can not get well after sales service from suppliers. We are very glad to help them to install the LED display correctly and configure LED display in working conditions. Therefore we will introduce and clarify in several articles.

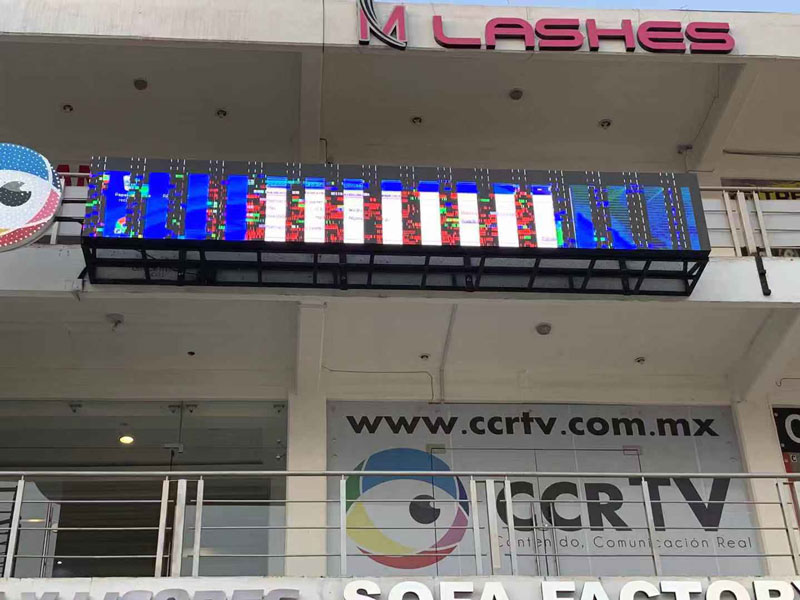

install the LED display

Normally we will provide “Support File” when we send LED display to the clients. It will help them for the installation and configuration. Novastar control system occupy about 80% control system market in LED display industry. So we will go to introduce their synchronous system Mctrl300 / Mctrl600 and asynchronous system T3 card (TB3) and T6 card (TB6).

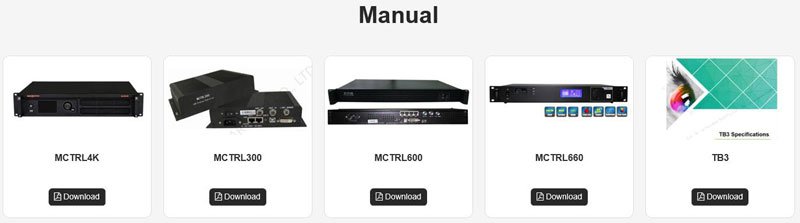

 synchronous system

For the synchronous system Mctrl300 / Mctrl600, below is installation and configuration steps.
1)Please install LED cabinets base on our connection diagram, instructions, attention operation and warranty terms in “support file”.

install LED cabinets

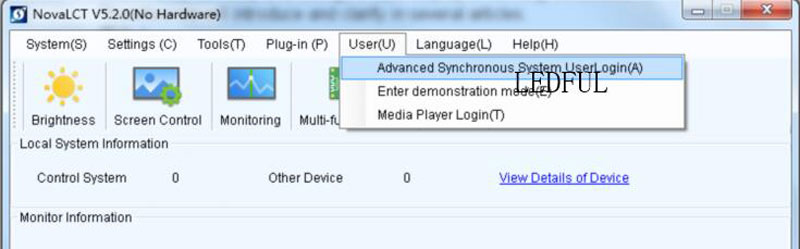

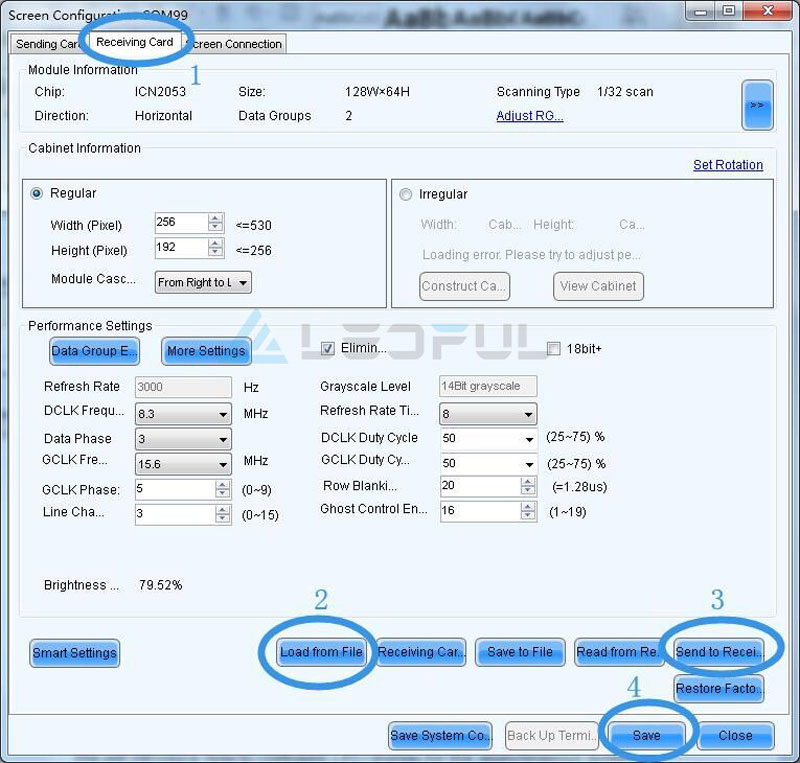

2)Open software NovaLCT and load receiver card parameter which in “support file”. Normally this is configured in our factory during your LED screen aging. Password: 168 to login “Users -- Advanced Synchronous ”

Open software NovaLCT and load receiver card parameter
Open software NovaLCT and load receiver card parameter

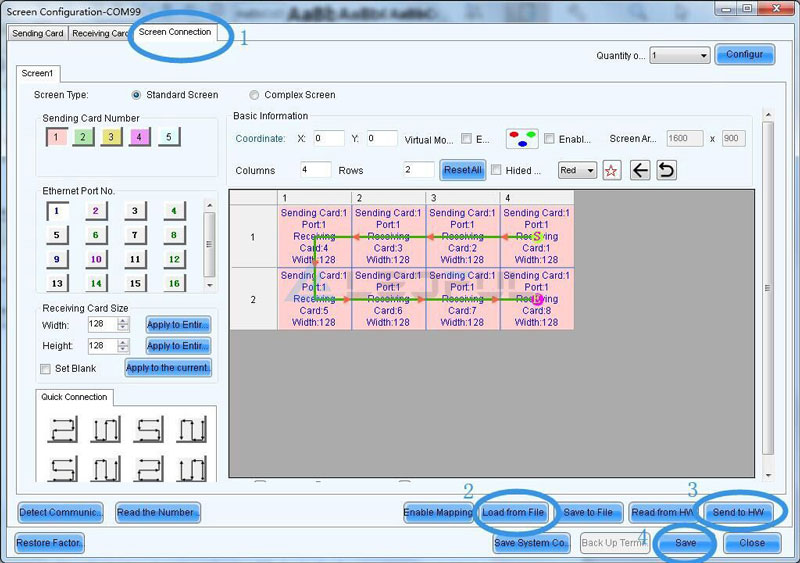

3)Load screen connection parameter in support file by NovaLCT. Please note the A1 cabinet is the data input base on connection diagram from computer.

Load screen connection parameter

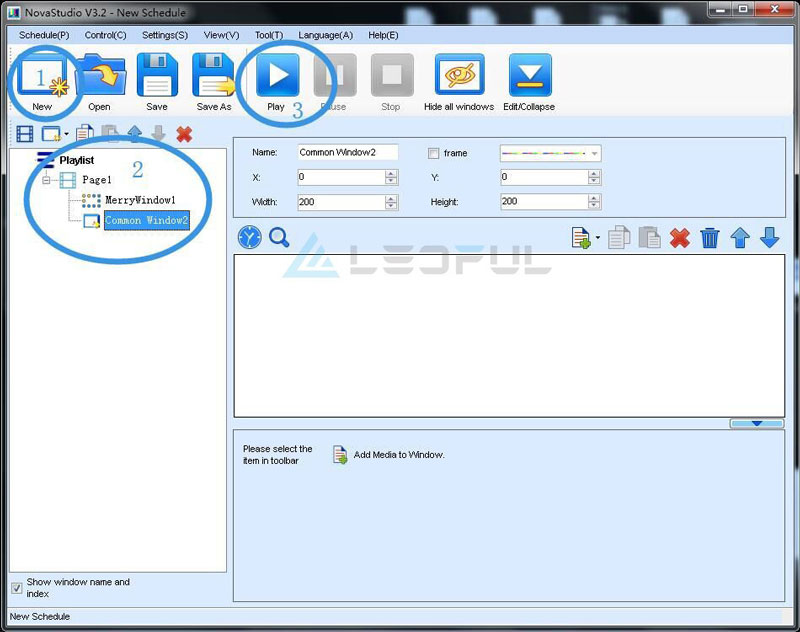

4)Open software NovaStudio to play program for the advertising, commercial, cooperation, contents.

Open software NovaStudio

5) Read our instructions and attention to make sure your LED display operation correct in future which is useful to the lifetime.

install LED cabinets

We will introduce how to configure LED display for the asynchronous system T3 card (TB3) and T6 card (TB6) in next article. Thank you for your reading. Any further questions, please contact our sales engineer online or email to us sales@ledful.com.
