TGC Series

Transparent Glass Curtain LED Display

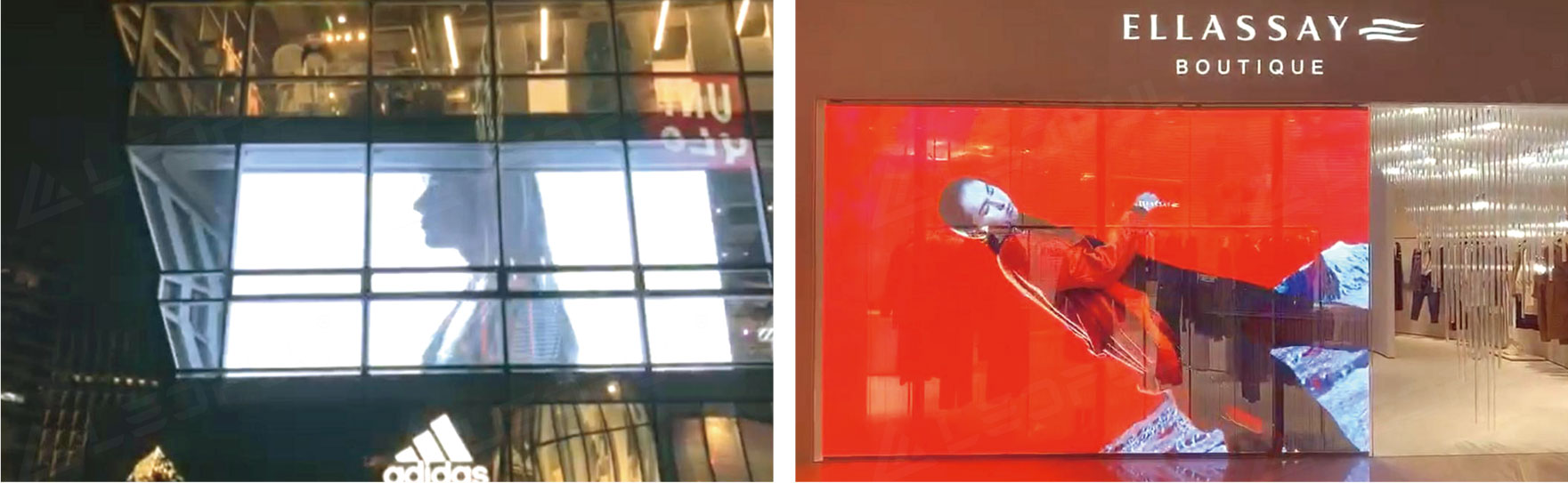

Applications

Specification

Model	TGC1.9	TGC2.8	TGC2.8	TGC3.9	TGC3.9	TGC3.9	TGC5.2
Pixel Pitch(mm)	H1.9-V3.9	H2.8-V5.6	H2.8-V5.6	H3.91-V7.82	H3.91-V7.82	H3.9-V7.8	H5.2-V5.2
Pixel Matrix Per Sq.m	129,024	61,952	63,368	32,768	32,768	32,768	36,982
Pixel Configuration	SMD1515	SMD1921	SMD1921	SMD1921	SMD1921	SMD1921	SMD1921
Brightness (nits)	2500	4500	4500	1000	3500	5500	5500
Scan	1/14	1/16	1/16	1/16	1/16	1/8	1/6
Module Dimension	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft	500x125mm / 1.64x0.41ft
Cabinet Dimension	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft	1000x500mm / 3.28x1.64ft
Cabinet Resolution	504x128	352x88	352x88	256x64	256x64	256x64	192x48
Transparency	30%	50%	50%	60%	60%	70%	80%
Cabinet Material	CNC Aluminum	CNC Aluminum	CNC Aluminum	CNC Aluminum	CNC Aluminum	CNC Aluminum	CNC Aluminum
Cabinet Weight	5kg	7.5kg	5kg	7.5kg	7.5kg	5kg	5kg
Power Con. (Max / Avg)	800/360w/sq.m	450-600W/300W/sq.m	800/360w/sq.m	400/180w/sq.m	400/180w/sq.m	800/360w/sq.m	800/360w/sq.m
Service Access	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back	Front & Back
Refresh Rate (HZ)	1920	1920	1920	1920	1920	1920	1920
Viewing Angle (H/V)	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
IP Rate	IP24	IP45	IP24	IP45	IP24	IP24	IP24
Operation Temperature	-40° ~ 45°	-10℃～60℃	-40° ~ 45°	-10° ~ 60°	-10° ~ 60°	-10° ~ 60°	-10° ~ 60°
Input Voltage (AC)	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V
