Multi-function Card Installation And Software Configuration

Publish Time : Apr 14 2022

Firstly we need to know what's multi-function card and its functions.
  • Automatic brightness adjustment of 256 level.
  • Real-time temperature and humidity monitoring of led display internal and external.
  • Show current environment temperature and humidity on the led display.
  • Detect the smoke(if installed smoke sensor).
  • The remote switch of the led display power(power on and off the led display via remote control).
  • Automatically control the fans, air condition(if any) of the led display.

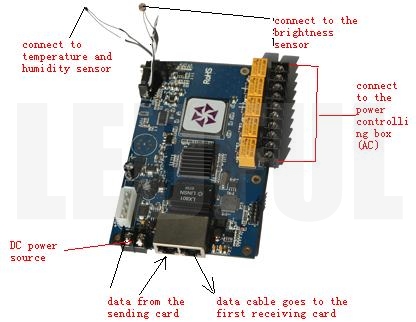

Following is multi-function card photo with the introduction.
Multi-function Card Installation and Software Configuration 1

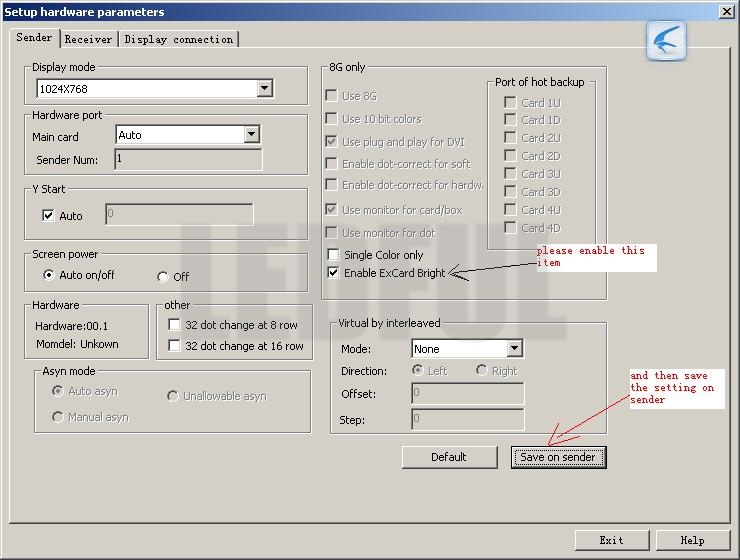

After hardware (multi-function card) installation, then we need setup it on software. Below is showing software configuration.

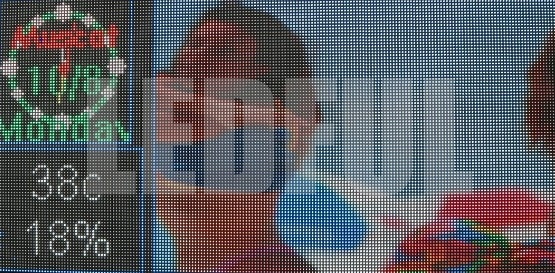

Now current environment temperature and humidity data are displayed on the led screen.

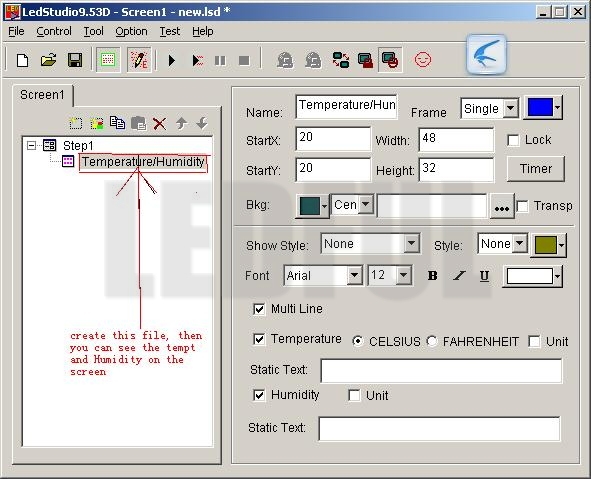

Multi-function Card Installation and Software Configuration 4
Multi-function Card Installation and Software Configuration 5
Any not clear about this demonstration, please feel free to contact our sales engineers. Thank you.
