How To Make Cable

Publish Time : May 28 2019

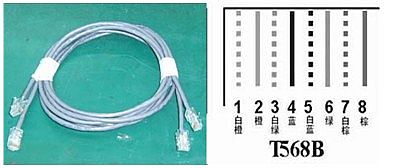

1) Net cable
 How To Make Cable
A and B port : 1White orange,2 orange,3 White green,4 blue,5 White blue,6 green,7 white brown.8 brown

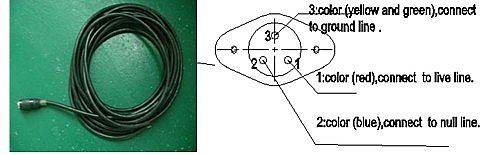

2) 3 core power cable , if have two ports , It's the same connect.
How To Make Cable
3) 9 core data cable , if have two ports , It's the same connect.
How To Make Cable
