LED Display Sending Card Installation Demostration

Publish Time : May 28 2019

Hello, how can we install sending card to our led display? It is quite normal that the clients would choose to use their own PC, as the controller of LED display. In this case, you would need to assemble the sending card and graphics card to your PC. Here we will show you the process.

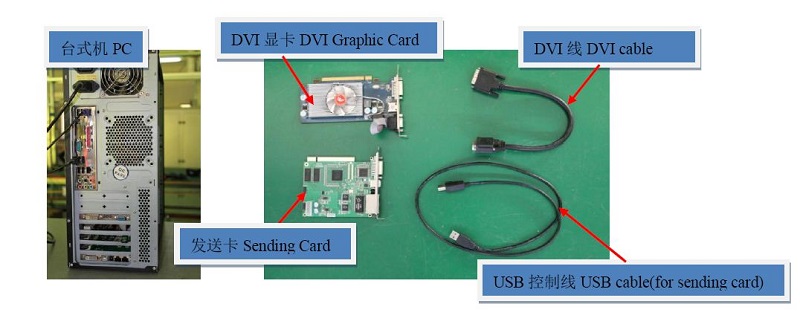

Before starting, please get on hand the parts as below:
LED Display Sending Card Installation Demostration 1
Please power off the PC and follow the steps as below:

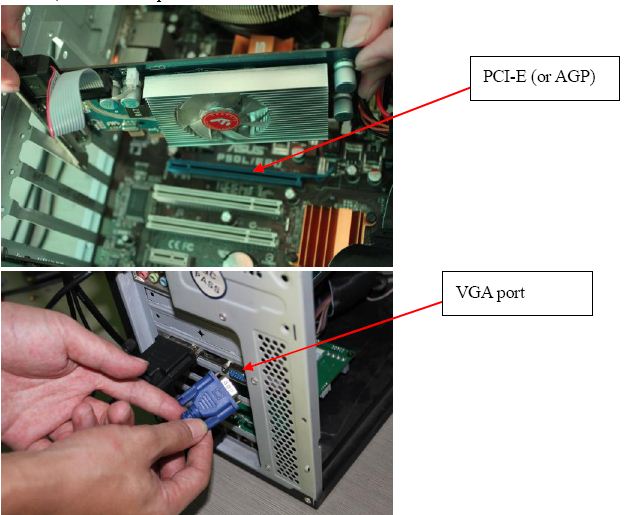

1.Connect the DVI Graphic Card (we provide) to the PCI-E (or AGP) of the computer motherboard (mainboard, system board). Then connect the DVI Graphic Card to the PC monitor, via the VGA port.
LED Display Sending Card Installation Demostration 2

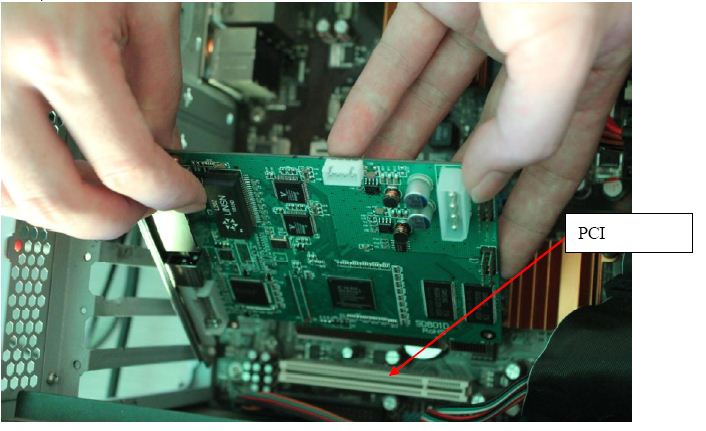

2.Connect the Sending Card to the PCI of the computer motherboard (mainboard, system board).
LED Display Sending Card Installation Demostration 3

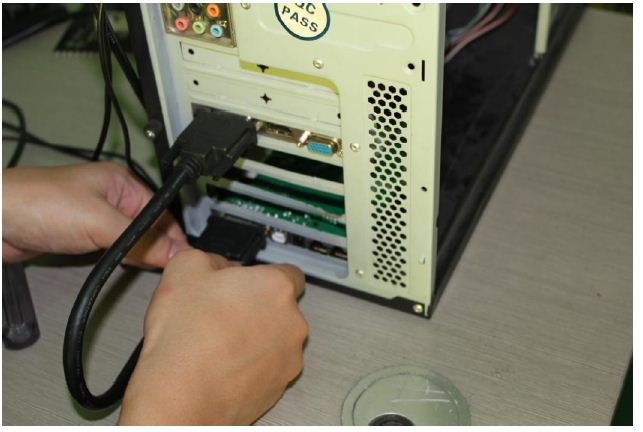

3.Connect the DVI Graphic Card to the Sending Card, by the DVI cable provided.
LED Display Sending Card Installation Demostration 4

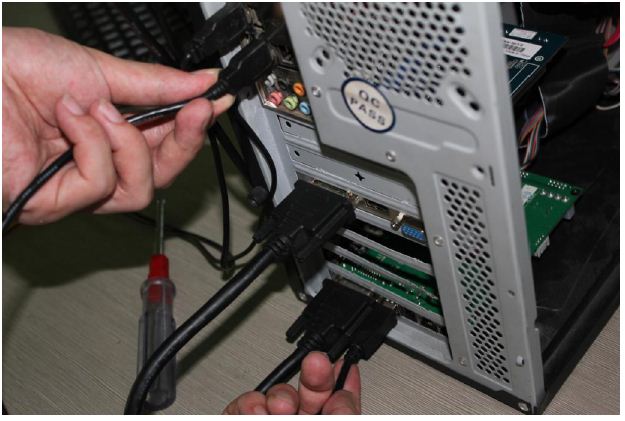

4.Connect the Sending Card to the USB port of the computer.
LED Display Sending Card Installation Demostration 5
5.Connect the signal cable to the Sending Card (either one of the RJ45 ports).
LED Display Sending Card Installation Demostration 6

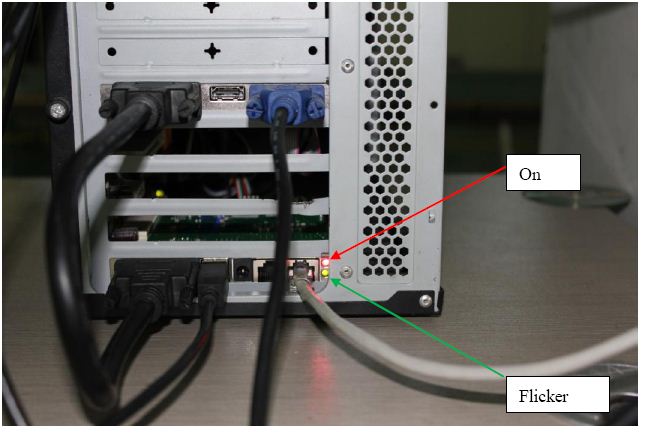

6.Turn on the PC, and check the indicator light of sending card. (Red on, Green flicker). You can download linsn sending card software here.
LED Display Sending Card Installation Demostration 7
Please do not hesitate to contact us if the indicator light showing not normal. Our After-Sale support team is ready 7/24!

For further information of LED display installation, received card malfunction, etc, please feel free to contact sales@ledful.com
