Which Part Of The Led Module Tile Fails - Driving IC Or LED Or PCB

Publish Time : May 28 2019

when they ask for an "intelligent setup file" - RCG, CON, RSPS etc., we must know the circuit way of the led module. Without a module in hand to analyze, the only method is to try and try with the remote control, which would cost too much time.

If the problem is hardware part, things would be even more difficult. From the picture or video they provided, we need to eliminate the possible problems one by one - controller, power supply, flat cable, IC, LED...The high efficiency of that would require a lot of experiences. Our After Sales Engineers are experts on this, but for most of the cases, it's not quite possible to service on-field.

The positive thinking is that - usually one entire led display screen has only one sending card, one cabinet has one receiving card and 3-4 power supplies. So the 1st step is to eliminate the problem possibility of those devices, and for a local engineer with a good tech background, it's not quite difficult. If all those possibilities are eliminated, we would focus on the led module tiles.

A tutorial page is limit to describe all, but we would like to let you know - Before you begin to find out which part of the led module tile fails - driving IC or LED or PCB, and after you've tried fixing it, you need to do below steps to inspect:

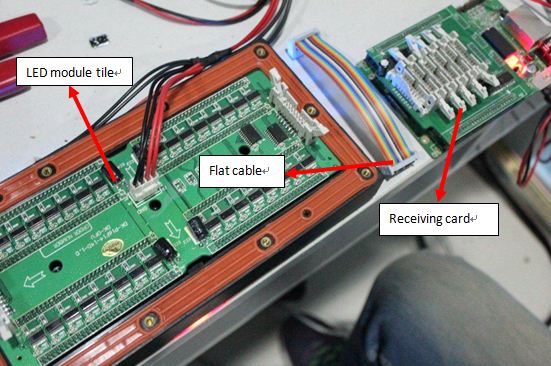

1. What you need is 3 parts: LED module tile, Flat cable, Receiving cardled display service
which part of the led module tile fails - driving IC or LED or PCB 1

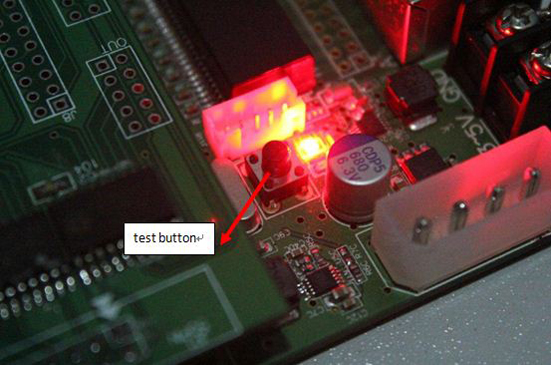

2. You would find a test button on the receiving cardled display service
which part of the led module tile fails - driving IC or LED or PCB 2

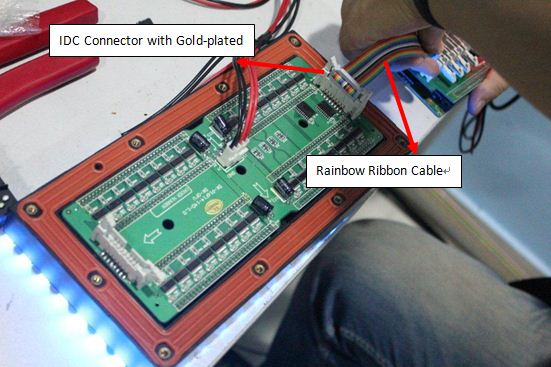

3. Connect the module and receiving card, with the flat cable. (Please notice a good quality IDC connector would be tight, and you need press heavy. What we choose is the "Rainbow Ribbon Cable" and "IDC Connector with Gold-plated PIN", which is the highest industry standard.)
which part of the led module tile fails - driving IC or LED or PCB 3

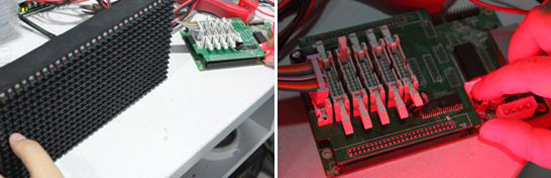

4. Connect ready, and the following you need to press the test button on the receiving card.
which part of the led module tile fails - driving IC or LED or PCB 4

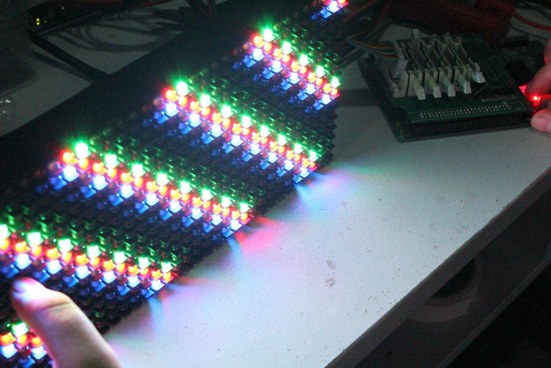

5. Press and the led display module tile would show "scan test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 5

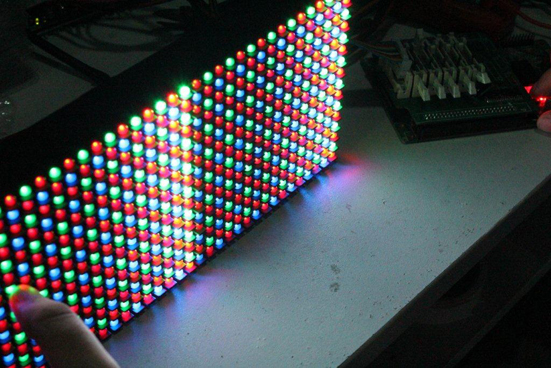

6. Press and the led display module tile would show "grey level test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 6

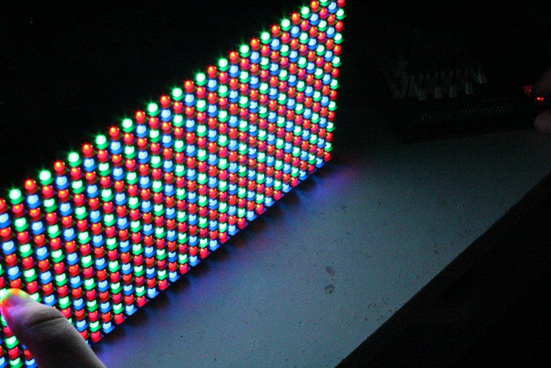

7. Press and the led display module tile would show "white balance test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 7

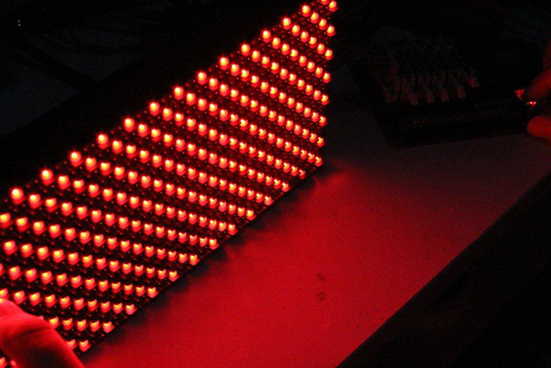

8. Press and the led display module tile would show "red color LED test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 8

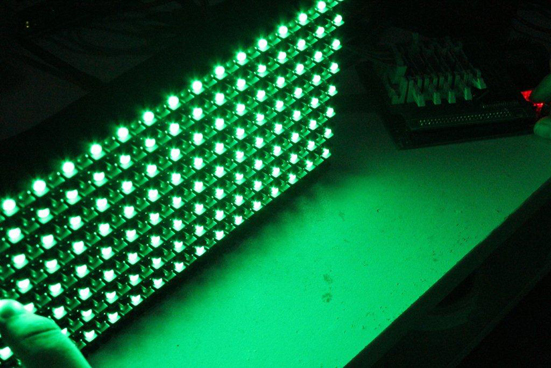

9. Press and the led display module tile would show "green color LED test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 9

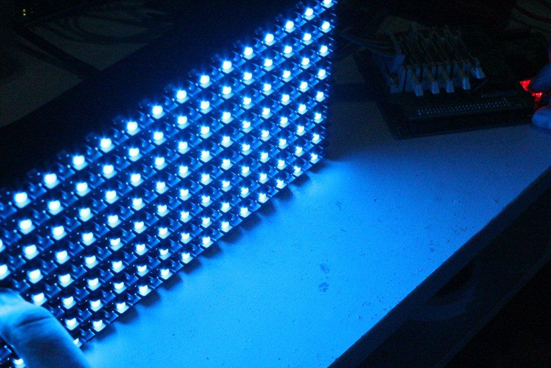

10. Press and the led display module tile would show "blue color LED test mode".led display service
which part of the led module tile fails - driving IC or LED or PCB 10
From what's shown in the module, you'd guess out which component or device of the led module title is failed, and fix it according to your conclusion.
But if you think it's too complex, we'd like to provide the service of that. We will see the status to quote the cost of the service.
