L-COB1.9-Outdoor

Outdoor Fine Pitch for Rental Events

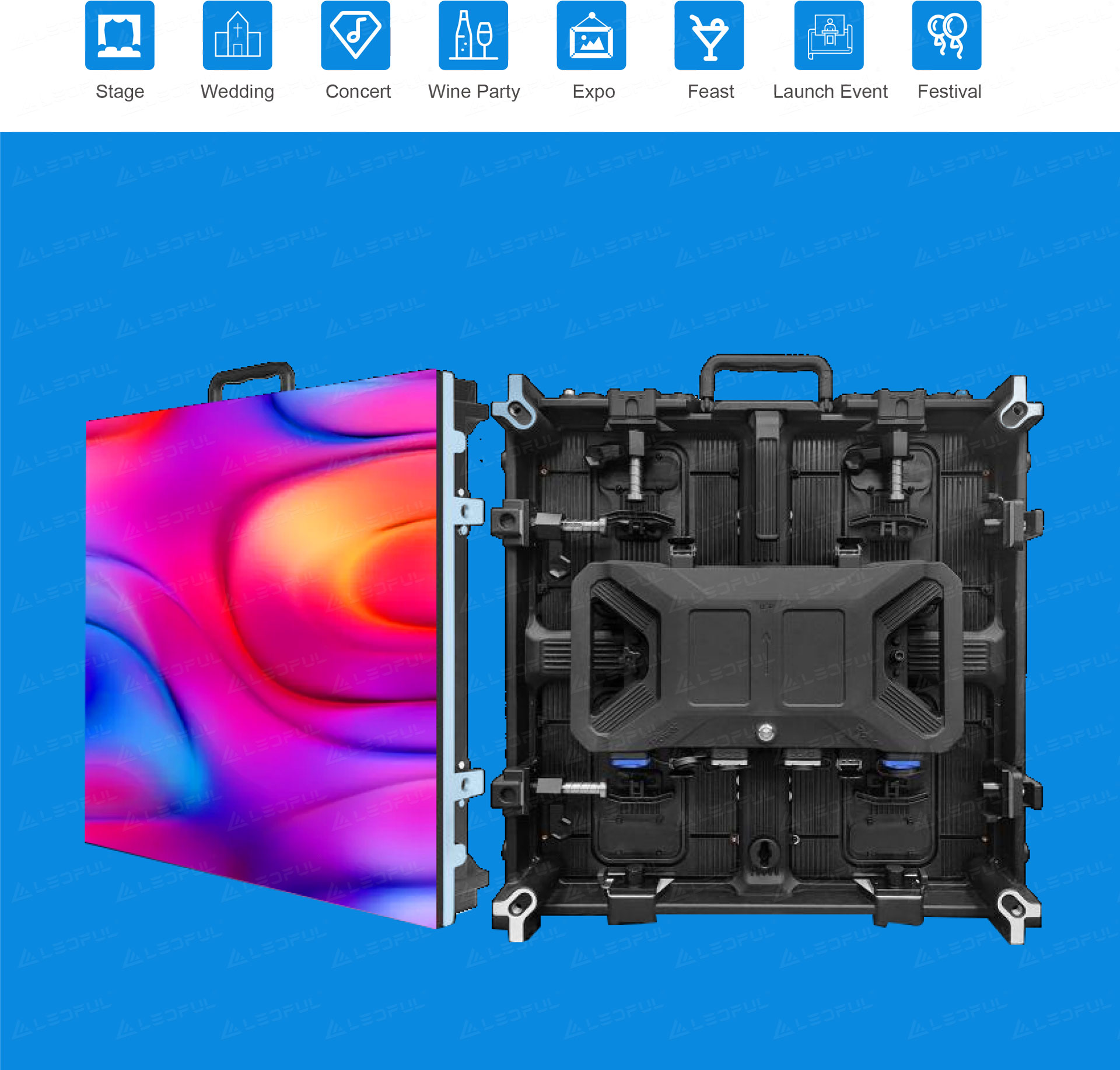

Applications
Applications
Specification
L-COB1.9-Outdoor Product Specification
Pixel Pitch (mm) 1.984
Pixel Matrix Per Sqm 254016
Scan 1/12
Brightness (nits) 3000
Pixel Conguration COB
Refresh Rate (HZ) 3840
Grey Scale (bit) 16
IP Rate IP65
Viewing Angle (H/V) 160°/160°
Panel Flatness ≤0.1 mm
Service Access Front
Module Dimension 250x250mm
Module Resolution 126x126
Cabinet Dimension 500x500mm
Cabinet Resolution 252x252
Receiver Card A8s
Cabinet Material Die Casting Aluminum
Cabinet Weight 7KG
Working Temperature -20℃ ~ +50°℃
Working Humidity 10%~90%
Input Voltage (AC) 110V / 220V

* Specifications and photos are subject to change without prior notice.

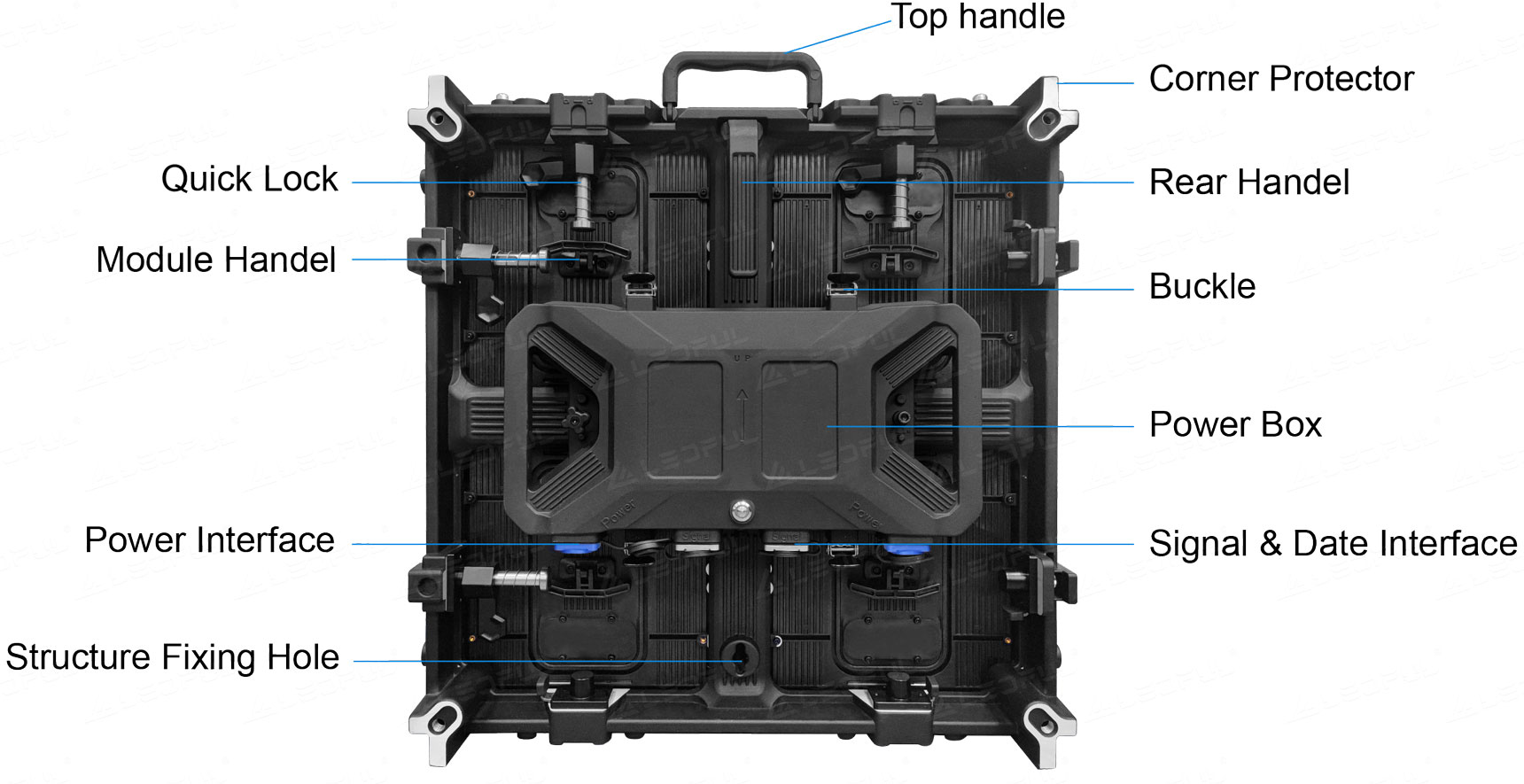

LEDFUL L-COB1.9-Outdoor Cabinet Design
LEDFUL L-COB1.9-Outdoor Cabinet Design

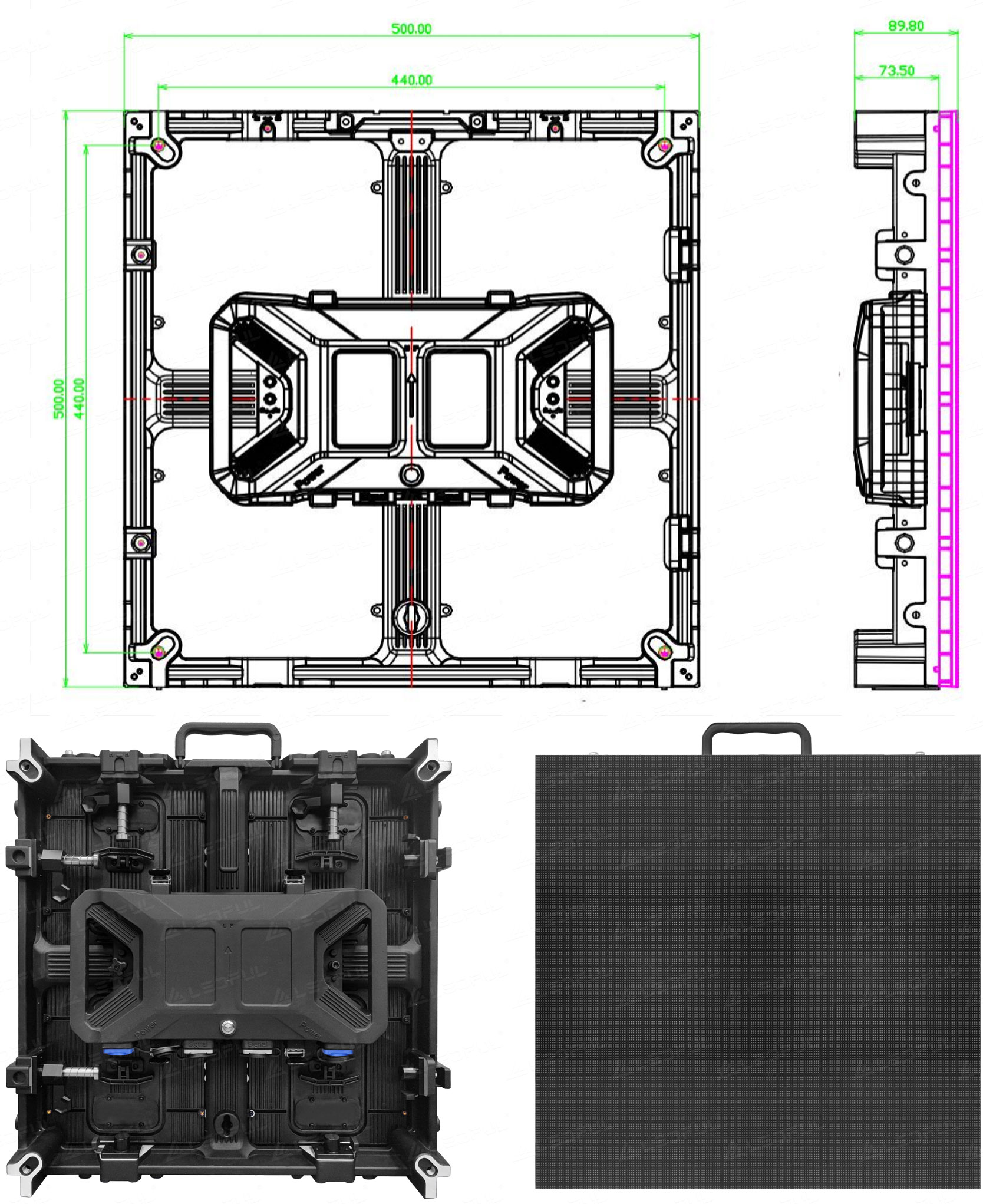

LED Cabinet Appearance
LED Cabinet Appearance

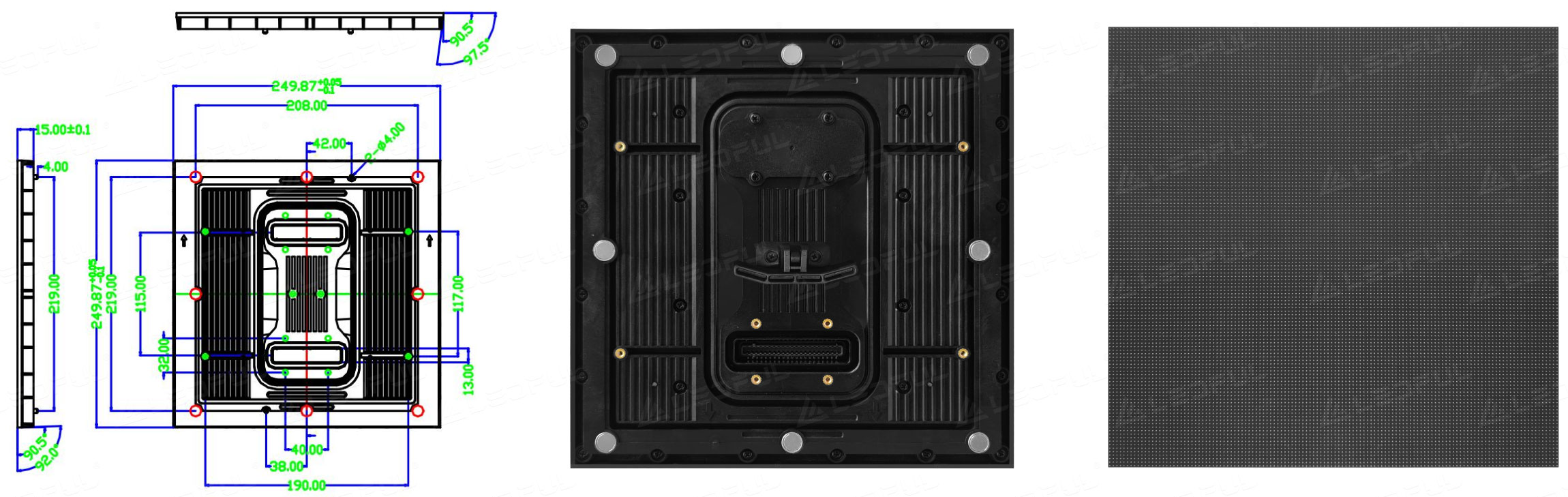

LED Module Appearance
LED Module Appearance

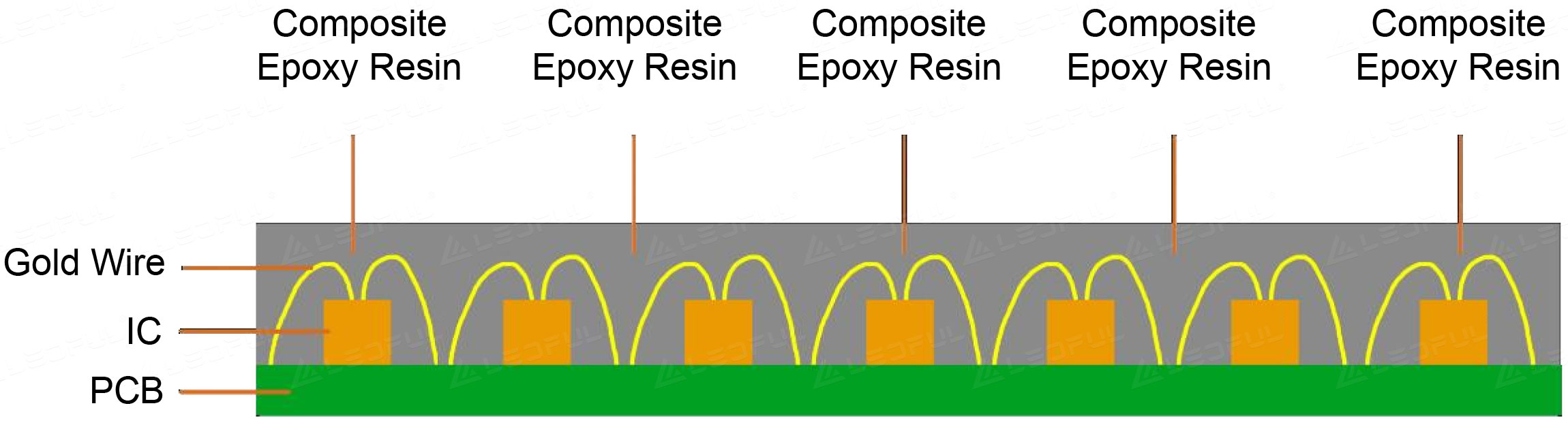

Normal COB Technology in the Market
Normal COB Technology in the Market

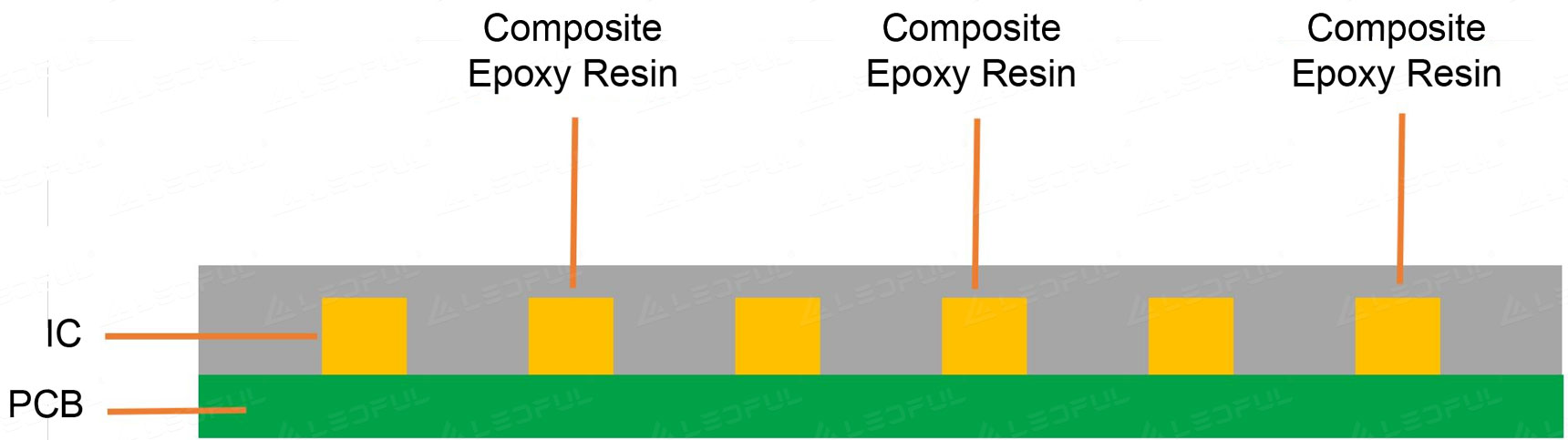

LEDFUL COB Technology
LEDFUL COB Technology

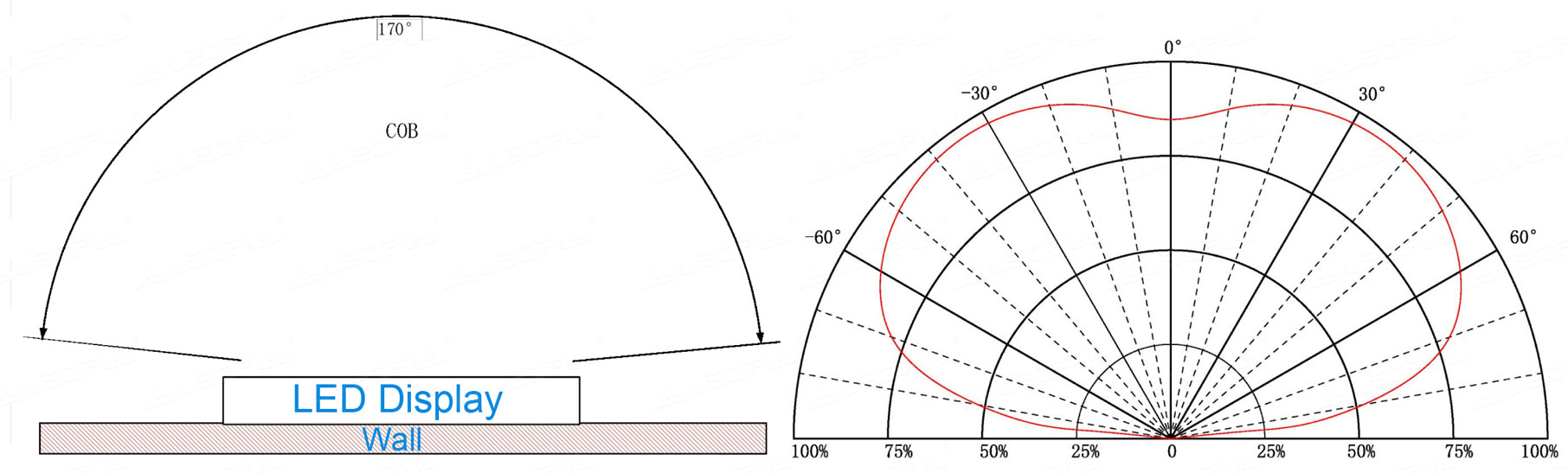

Optical Characteristics - Light Emitting Angle and Schematics
Optical Characteristics - Light Emitting Angle and Schematics
Hardware Connection Diagram
Hardware Connection Diagram

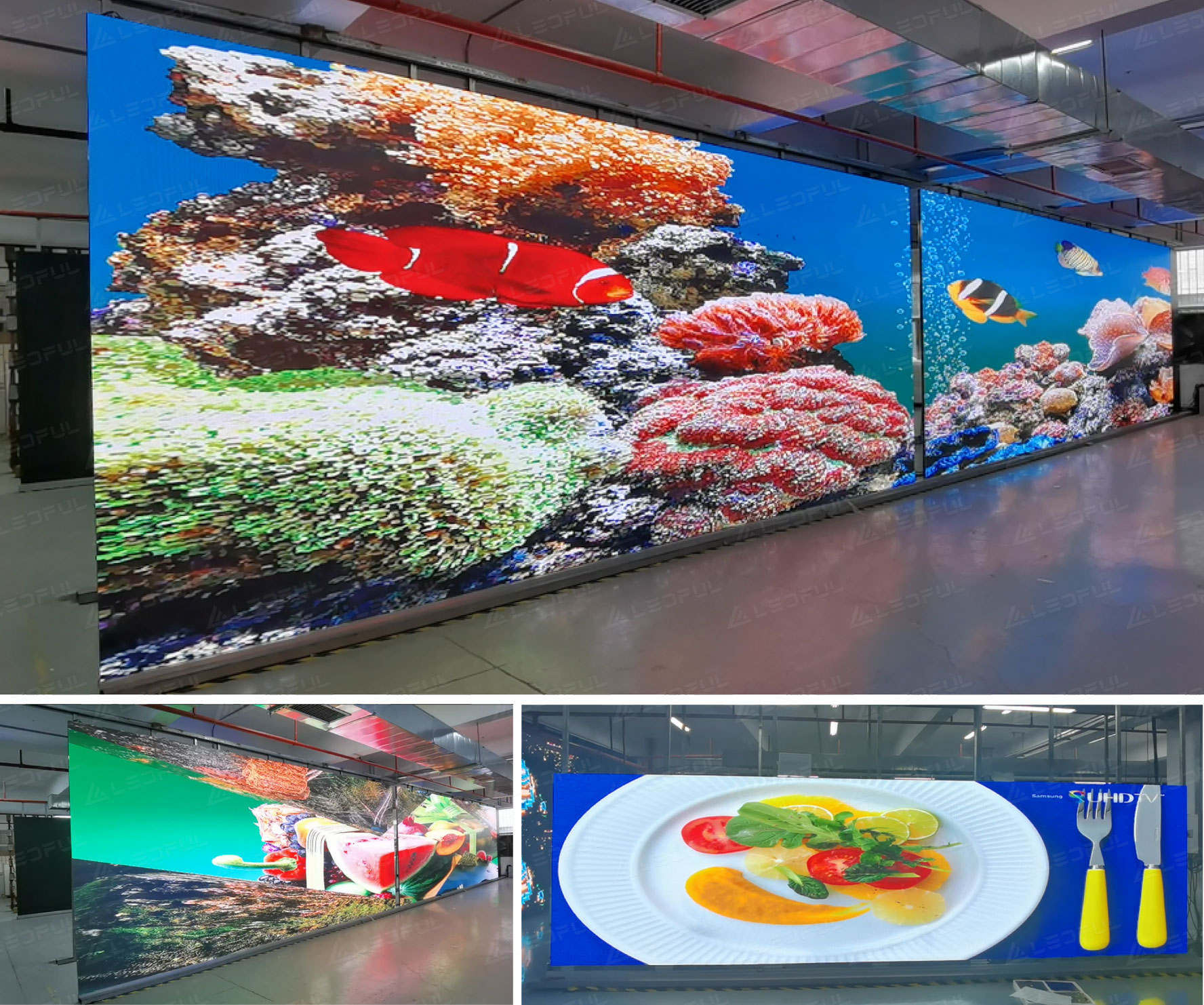

Typical Project Show
Typical Project Show
Features
Features
