Ribbon-Shaped Series

Flexible and Creative LED Display

Applications
Applications
Specification
Model P1.2 P1.56 P1.86 P2 P2.5 P3 P4
Pixel Pitch 1.2 1.56 1.86 2 2.5 3 4
Pixel Matrix Per Sqm 600625 406210 288906 250000 160000 105625 62500
Pixel Confguration 1010 1515 1515 1515 1515 1515 2121
Brightness (nits) 800 800 800 900 900 900 900
Scan 62 43 43 40 32 26 20
Module Dimension 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft 320X160mm/1.05X0.525ft
Module Material Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket Silicon Rubber Soft Bracket
Module Weight 0.325kg 0.325kg 0.325kg 0.325kg 0.325kg 0.325kg 0.325kg
Power Con.(w㎡)(Max /Avg) 1000/340w/sq.m 1000/340w/sq.m 800/270w/sq.m 800/270w/sq.m 800/270w/sq.m 800/270w/sq.m 800/270w/sq.m
Service Access Front Front Front Front Front Front Front
Refresh Rate (HZ) 3840 3840 3840 3840 3840 3840 3840
Grey Scale (bit) 14 14 14 14 14 14 14
Viewing Angle (H/V) 140/140 140/140 140/140 140/140 140/140 140/140 140/140
IP Rate IP45 IP45 IP45 IP45 IP45 IP45 IP45
Operation Temperature -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃ -10℃~+50℃
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V

* Specifications and photos are subject to change without prior notice.

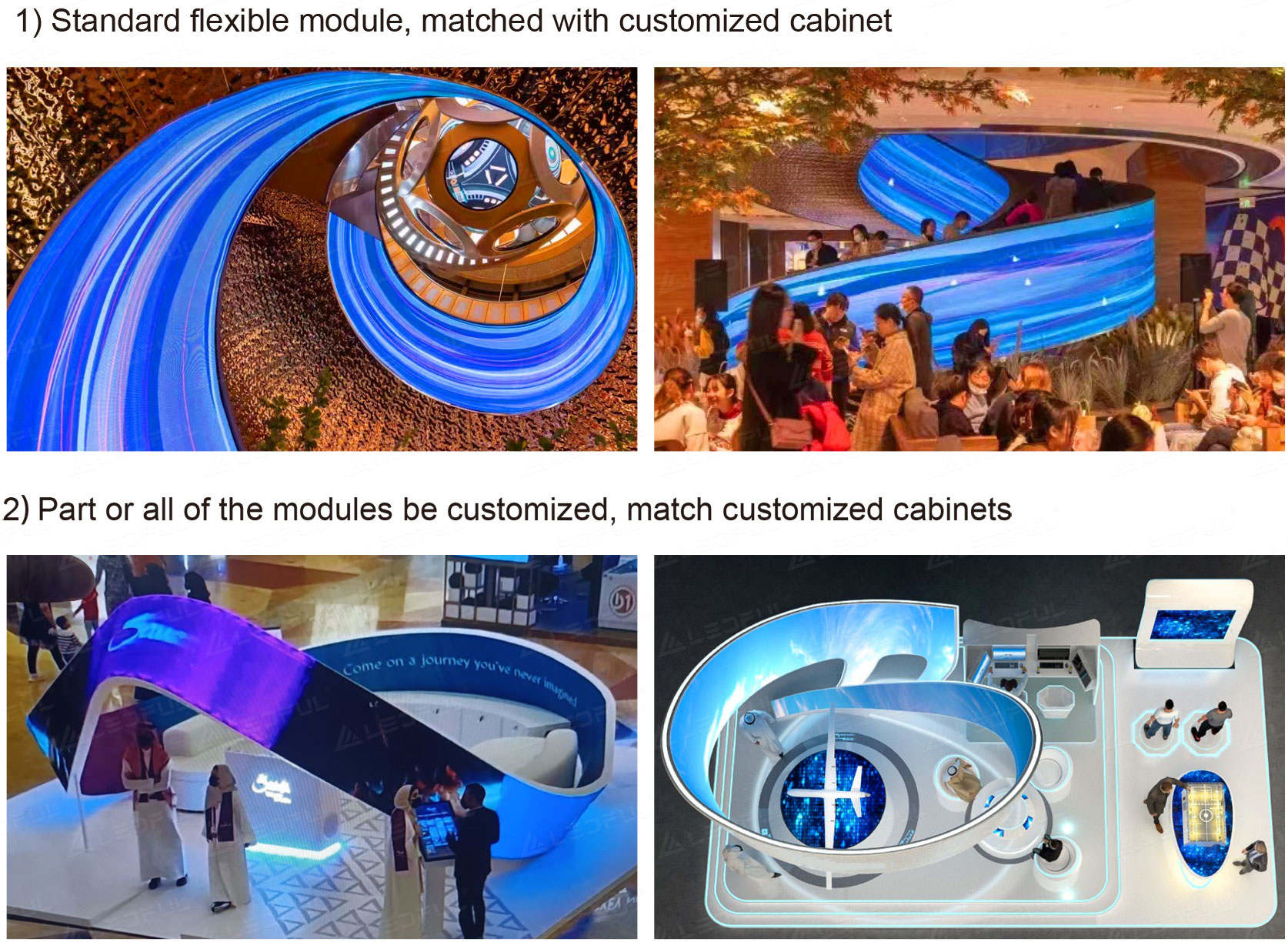

Two Options to Meet your Diverse Ideas
Two Options to Meet your Diverse Ideas

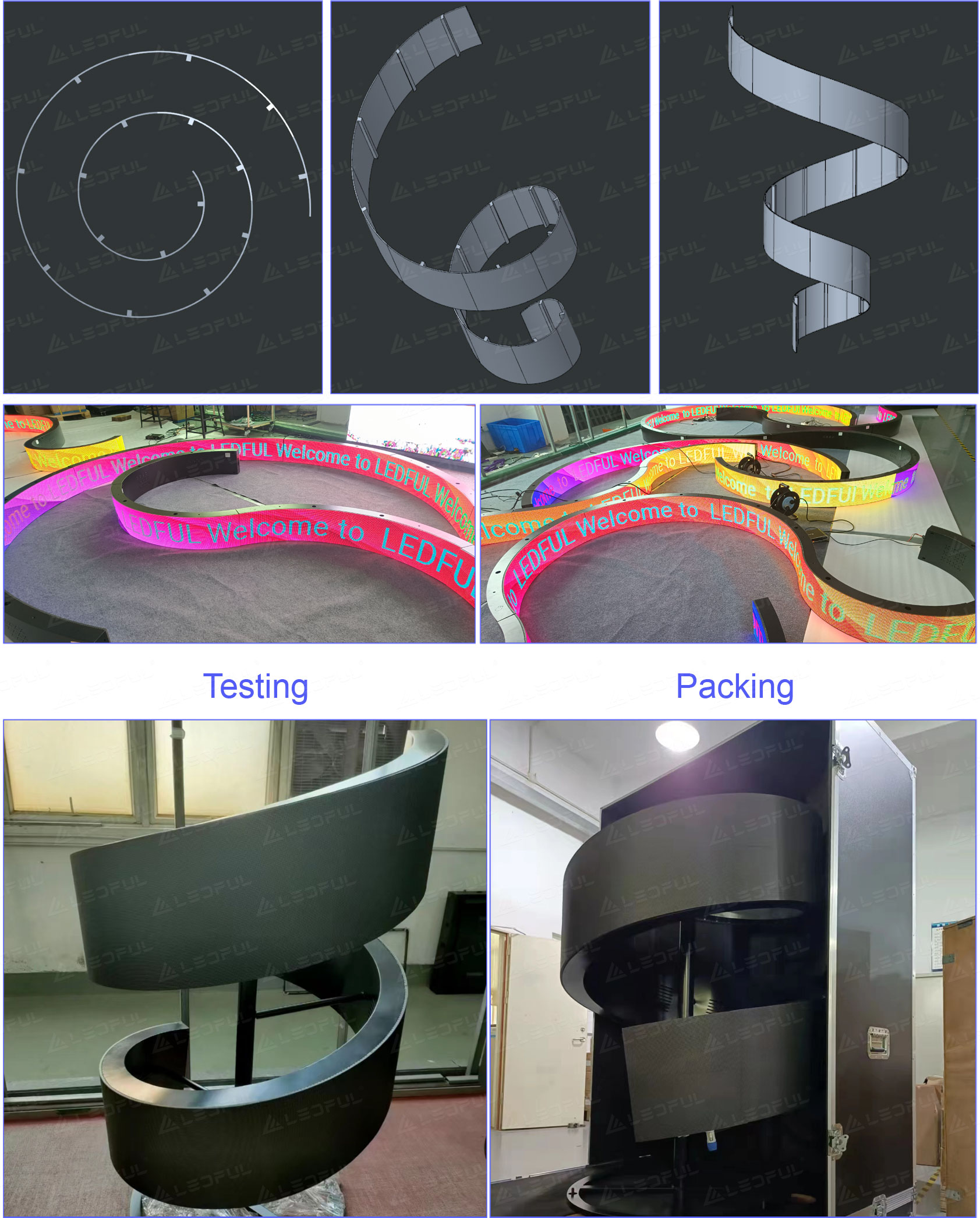

Design Diagram
Design Diagram

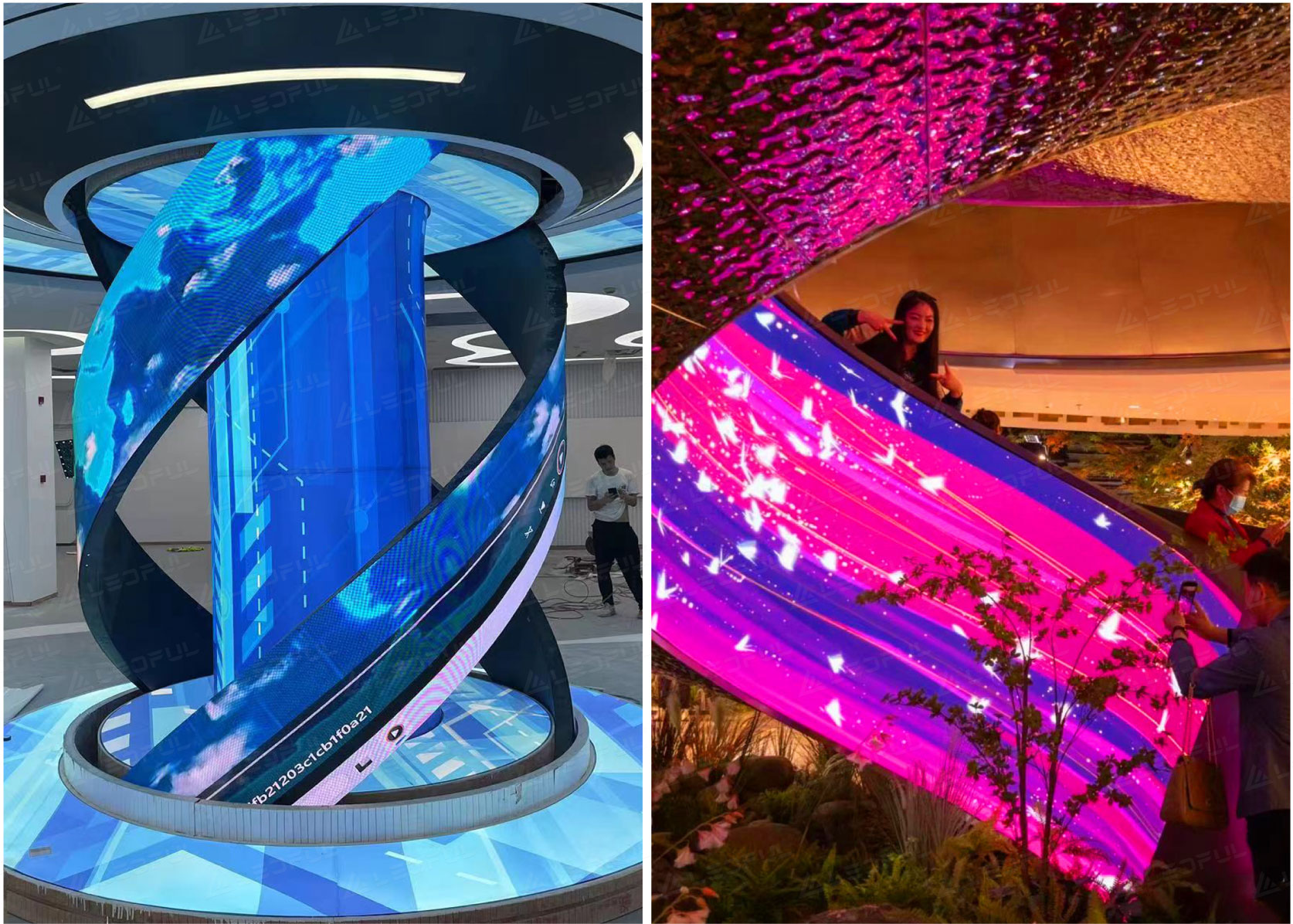

Typical Project
Typical Project
Features
Features
