Circle Series

Creative LED Display

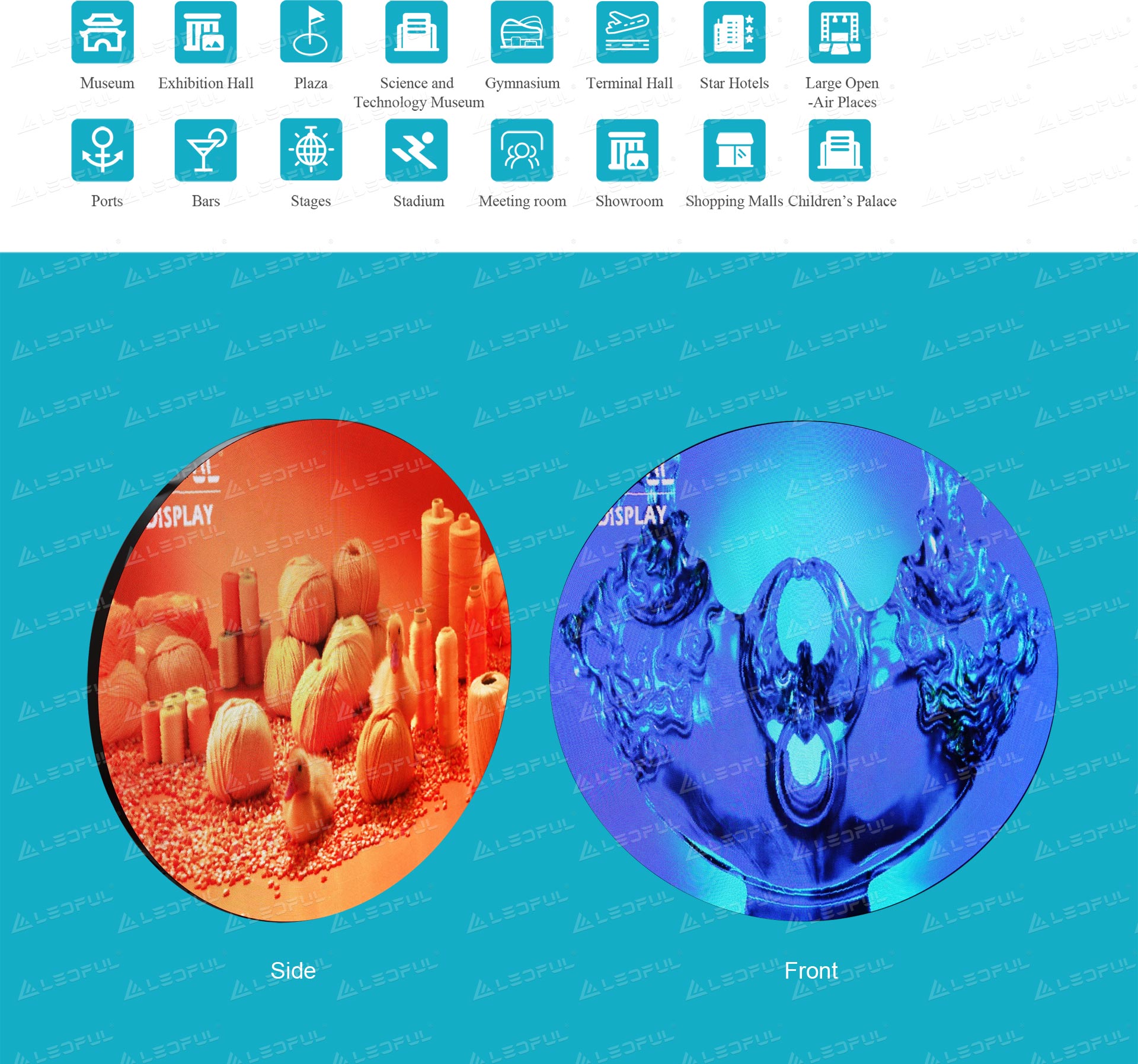

Applications
Applications
Specification
Model Circle 1.25 Circle 1.53 Circle 1.875 Circle 2 Circle 2.5
Pixel Configuration SMD1010 SMD1212 SMD1212 SMD1515 SMD1515
Pixel Pitch (mm) 1.25 1.53 1.875 2 2.5
Pixel Matrix (dots/㎡) 640,000 422,500 284,444 288,888 160,000
Brightness(cd/㎡) 600 600 600 700 800
Scan 64S 52S 45S 40S 32
Module Dimension Customized
Power Consumption(Max / Avg /㎡) 820W / 250W
Cabinet Material Iron
Service Access Front
Viewing Angle (H/ V) 160/80
Working Temperature -20℃- 40℃
Refresh Rate (HZ) 1920HZ
IP Rate IP30
Grey Scale(bits) 16
Input Voltage (AC) 110/220
Outdoor Panel Optional Indoor/Outdoor

* Specifications and photos are subject to change without prior notice.

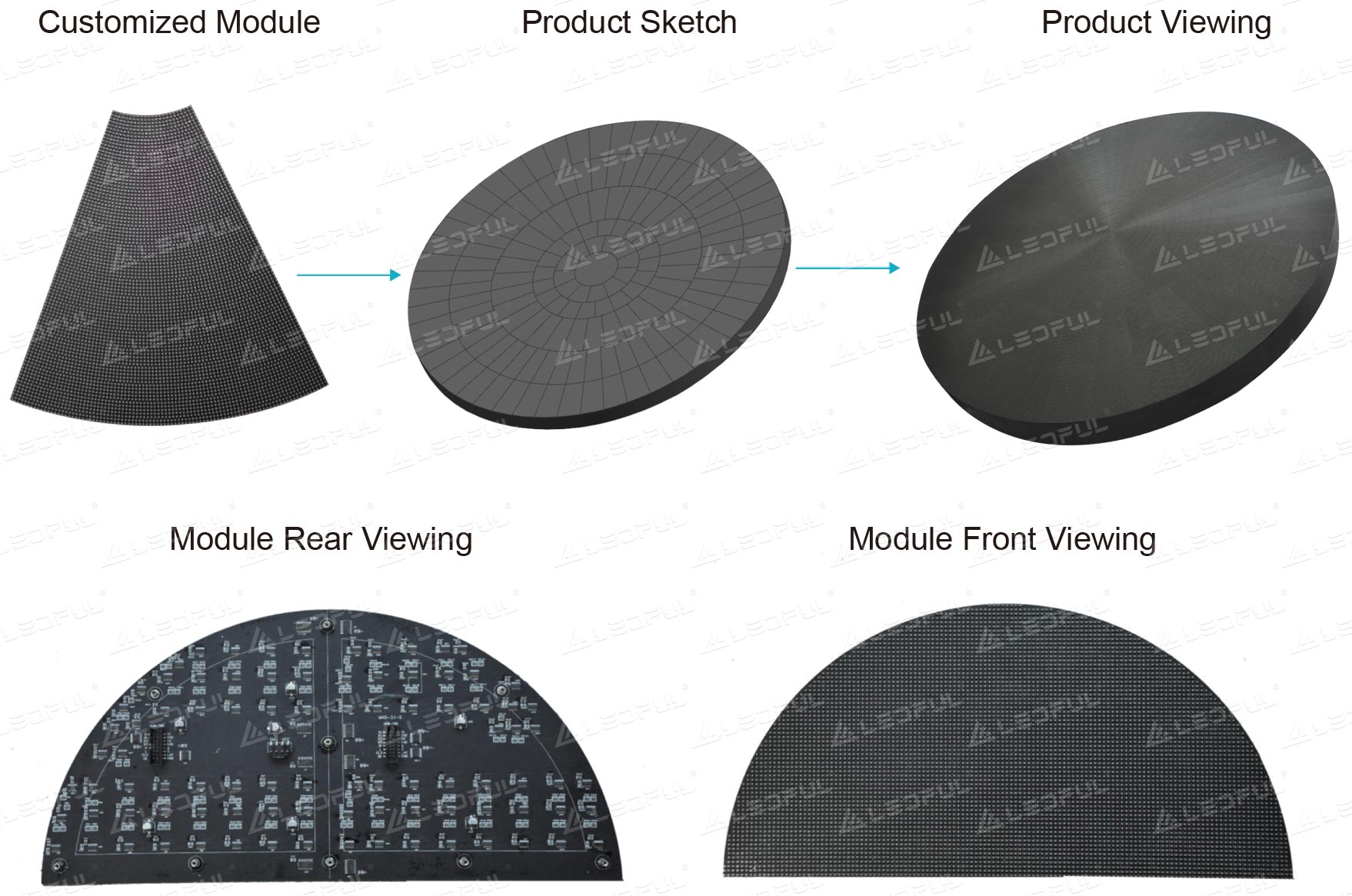

Product Appearance
Product Appearance

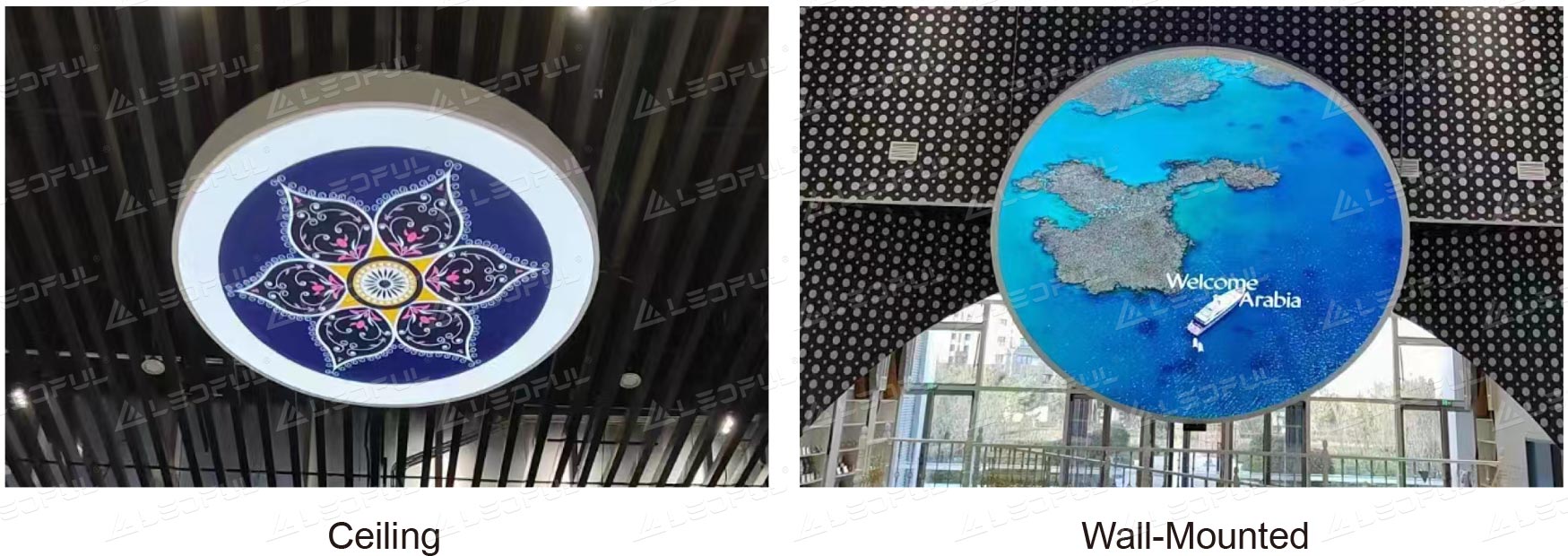

Various Installation--Ceiling, Wall-Mounted, Hanging
Various Installation--Ceiling, Wall-Mounted, Hanging
Sample of 1m 1.5m and 2m
Sample of 1m 1.5m and 2m

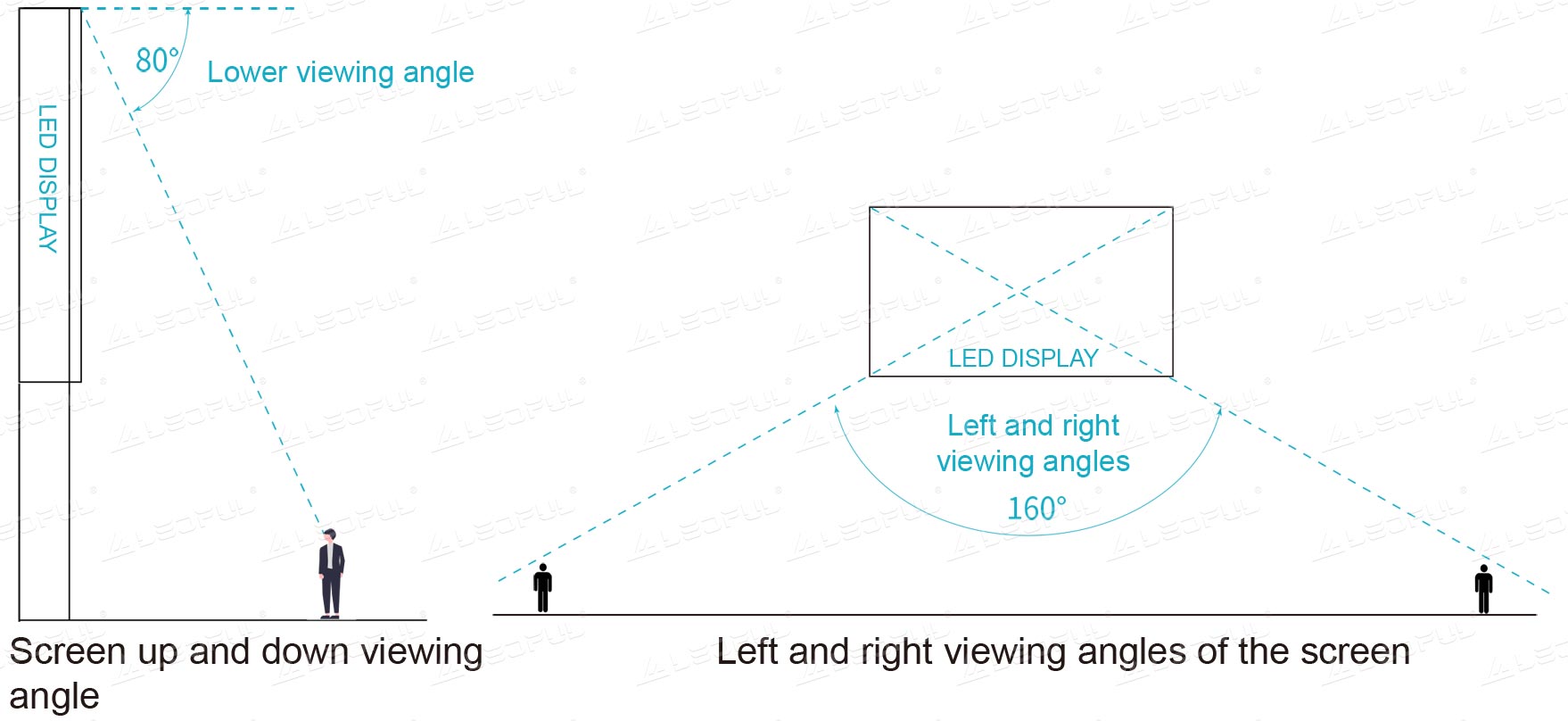

Viewing Angle
Viewing Angle

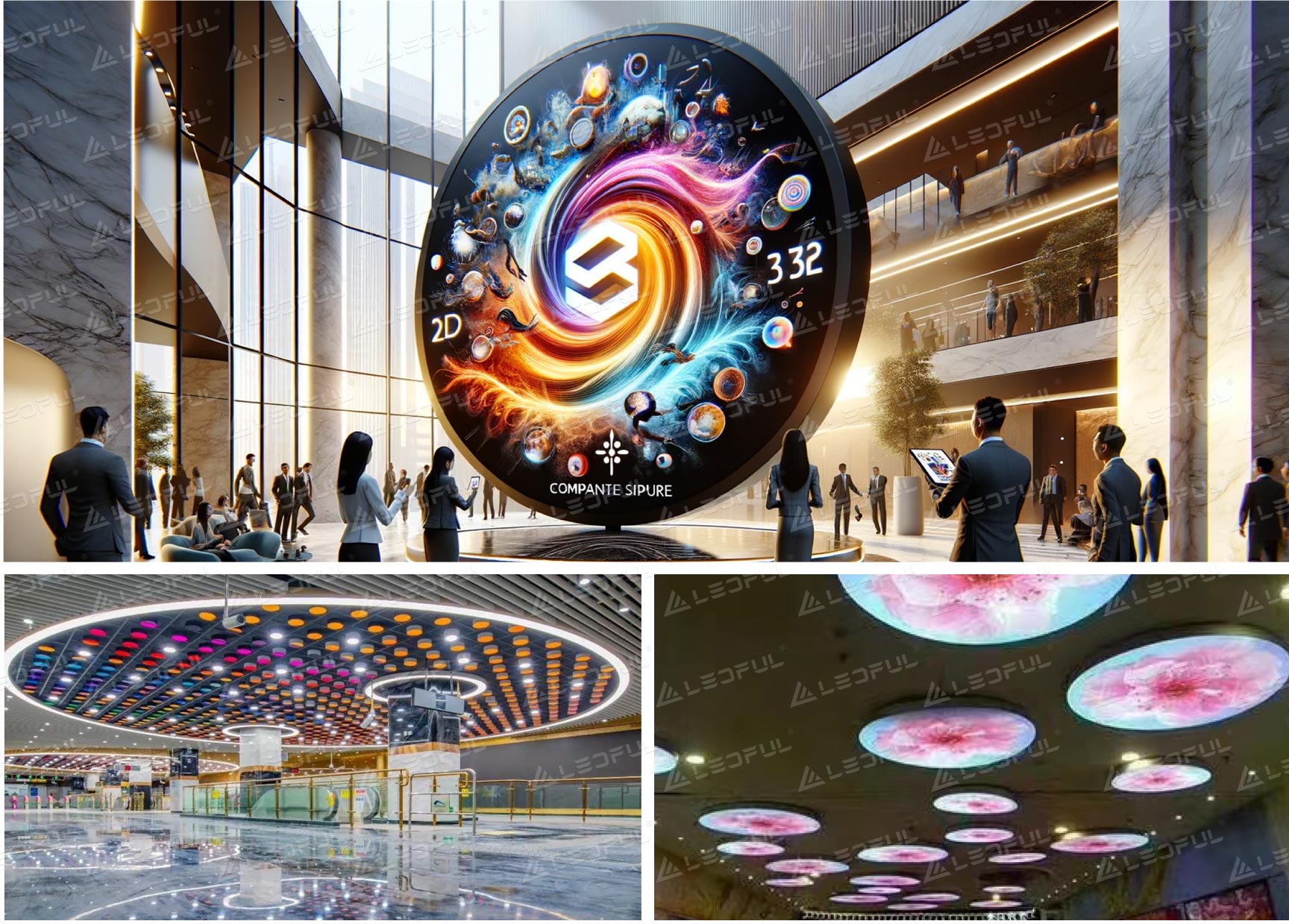

Typical Project
Typical Project
Features
Features
