OFR Series

Outdoor Fixed for Advertising

Partner

Specification

OF/OFR	OF2.5	OF3	OF3.076	OF3.91	OF4	OF4.81
Pixel Pitch(mm)	2.5	3	3.08	3.91	4	4.81
Pixel Matrix Per Sq.m	160000	111111	105680	65436	62500	62500
Pixel Configuration	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921
Brightness (nits)	5000	5000	5000	4000	5000 5500	4000
Scan	1/16	1/16	1/13	1/16	1/10 / 1/8	1/13
Module Dimension	160x160mm	192x192mm	320x160mm	250x250m	320x160mm /256x128mm	250x250mm
Cabinet Dimension	960x960mm （Cabinet size can be changed according to module size）
Cabinet Weight	46kg / 101lb (Iron)	46kg / 101lb (Iron)	45kg / 99lb (Iron)	44kg / 97lb (Iron)	44kg / 97lb (Iron)	43kg / 95lb (Iron)
Power Con. (Max / Avg)	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m
IP Rate	IP65
Service Access	Rear
Refresh Rate (HZ)	>1920
Grey Scale (bit)	16bit
Viewing Angle (H/V)	140/140
Input Voltage (AC)	110V/240V

OF/OFR	OF6	OF6.6	OF8	OF10S	OF10D	OF16S
Pixel Pitch(mm)	6	6.67	8	10	10	16
Pixel Matrix Per Sq.m	27777	22500	15625	10000	10000	8000
Pixel Configuration	SMD3535	SMD2727	SMD3535	SMD3535	DIP346	SMD3535
Brightness (nits)	5500	5500	6500	6500	1000	8000
Scan	1/8	1/6	1/3	1/2	1/2	1/1
Module Dimension	192x192mm	320x160mm	320x160mm	320x160mm	320x160mm	256x256mm
Cabinet Dimension	960x960mm （Cabinet size can be changed according to module size）
Cabinet Weight	42kg / 93lb (Iron)	42kg / 93lb (Iron)	41kg / 90lb (Iron)	40kg / 88lb (Iron)	40kg / 88lb (Iron)	46kg / 101lb (Iron)
Power Con. (Max / Avg)	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m	900/ 180 w/sq.m
IP Rate	IP65
Service Access	Rear
Refresh Rate (HZ)	>1920
Grey Scale (bit)	16bit
Viewing Angle (H/V)	140/140
Input Voltage (AC)	110V/240V

* Specifications and photos are subject to change without prior notice.

Die casting Aluminum with different Size

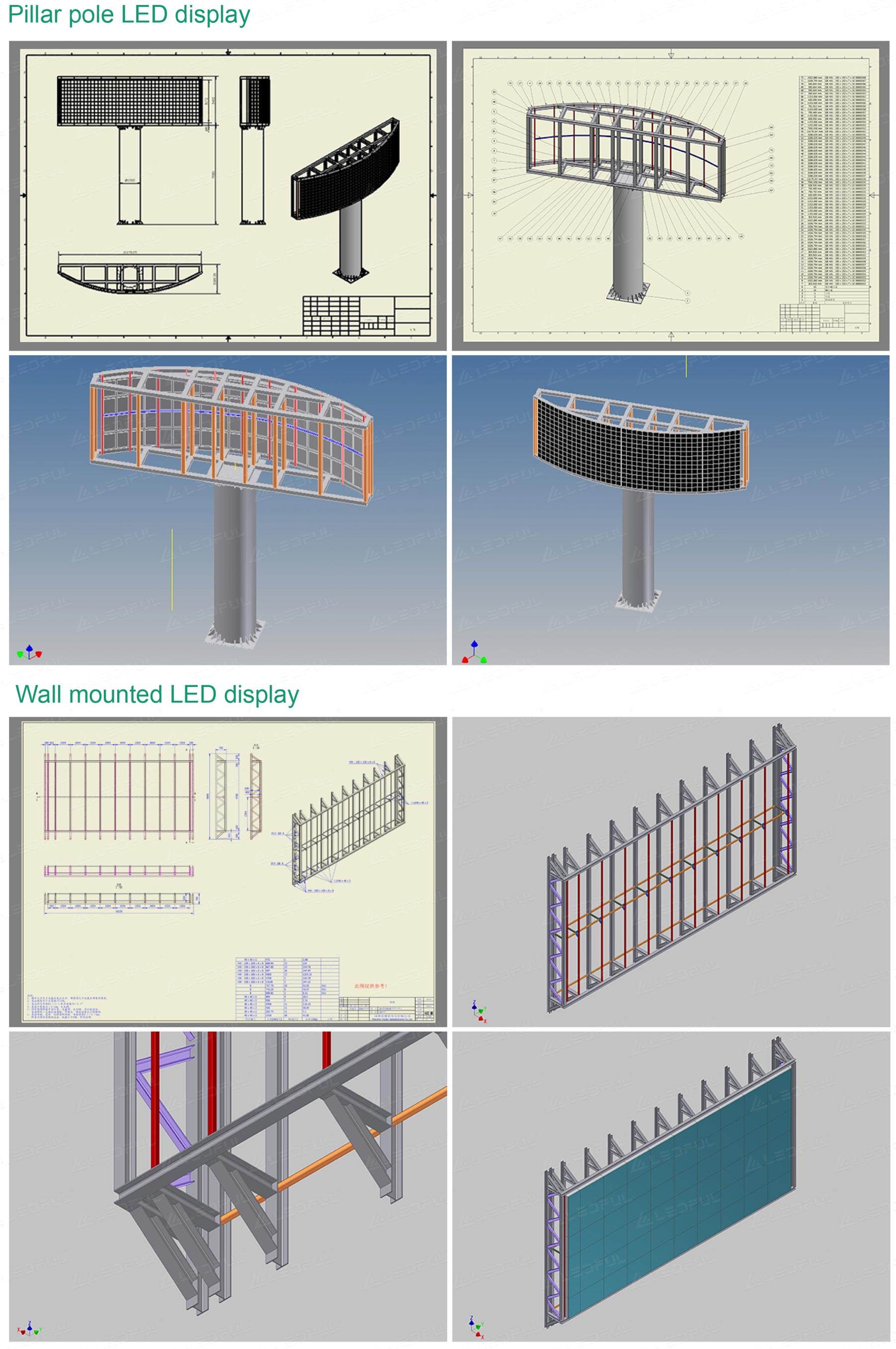

Where is LED display installed？

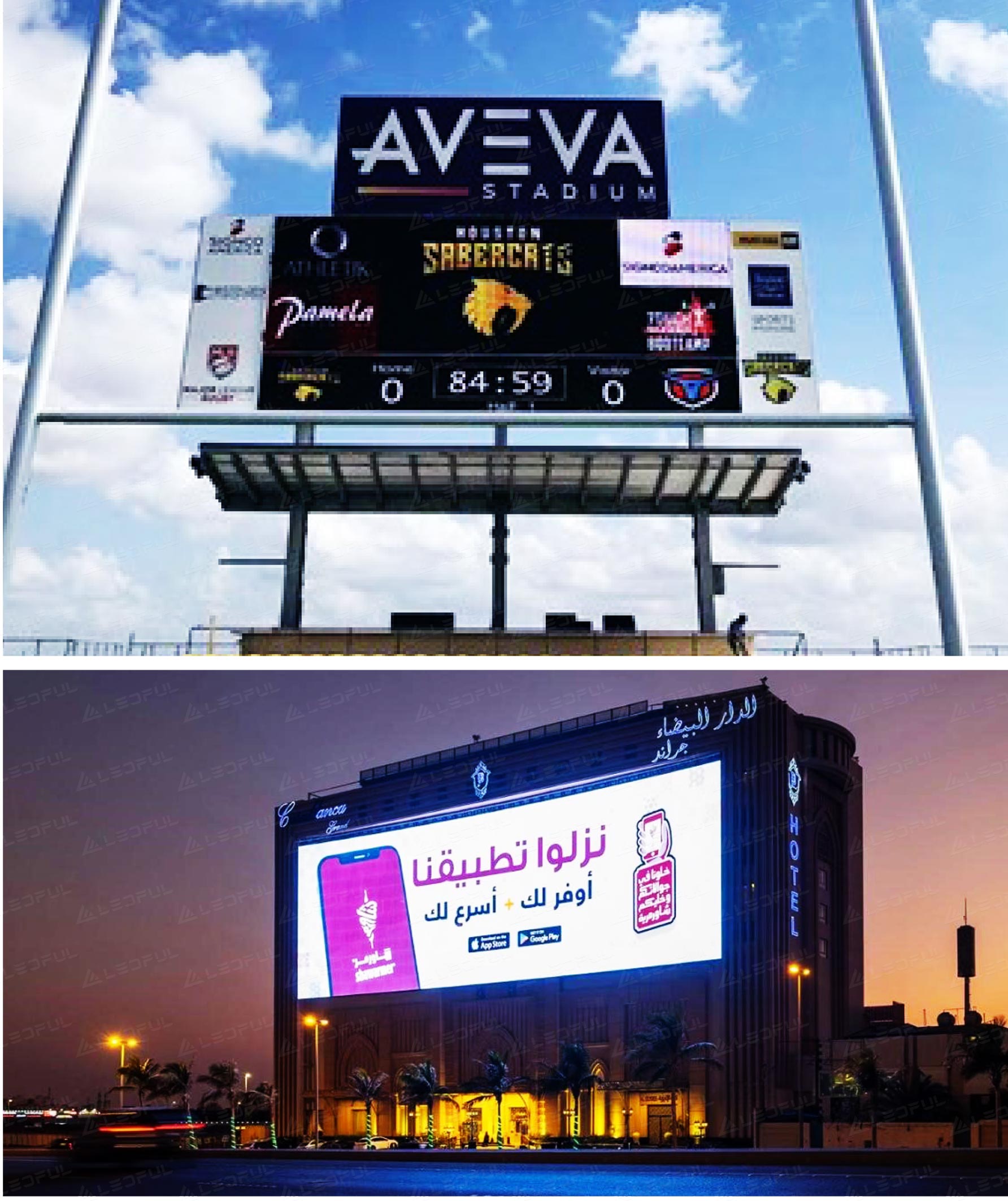

OFR Series

Features
