How to Configure LED Display by Mobile Phone

How to Configure LED Display by Mobile Phone

Publish Time : May 21 2019

In the last article, we introduced how to configure asynchronous system T3 and T6 card with computer. Now here is mobile device configuration.

Mobile Device (iOS / Android)
1) Please install LED cabinets base on our connection diagram, instructions, attention operation and warranty terms in “support file”.

install LED cabinets base

2) Install APP Viplex Handy in the mobile device

Install APP Viplex Handy in the mobile device

3) Connect T3/T6 card WiFi “APxxxxxx”. Password: 12345678

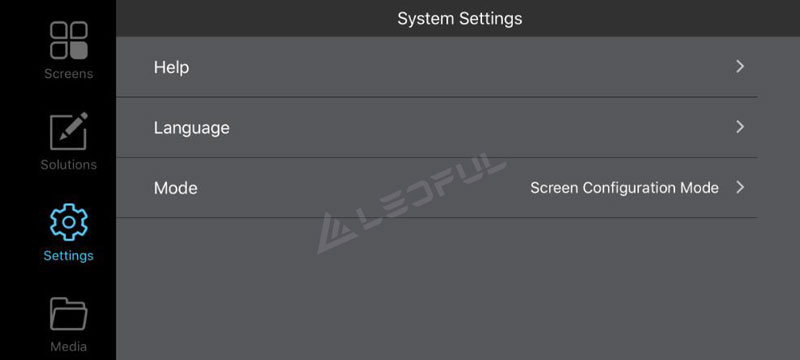

4) System Settings -- Mode -- Screen Configuration Mode

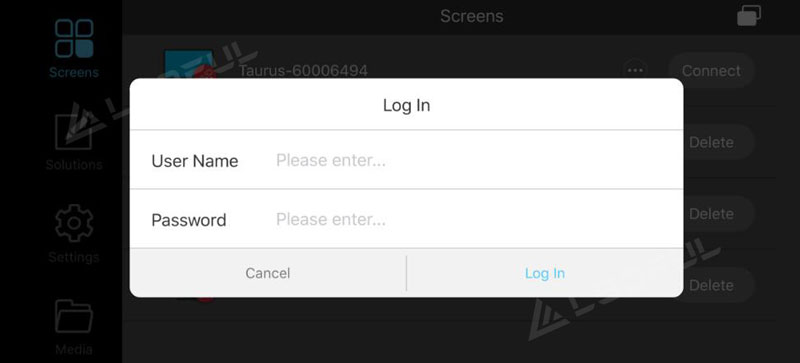

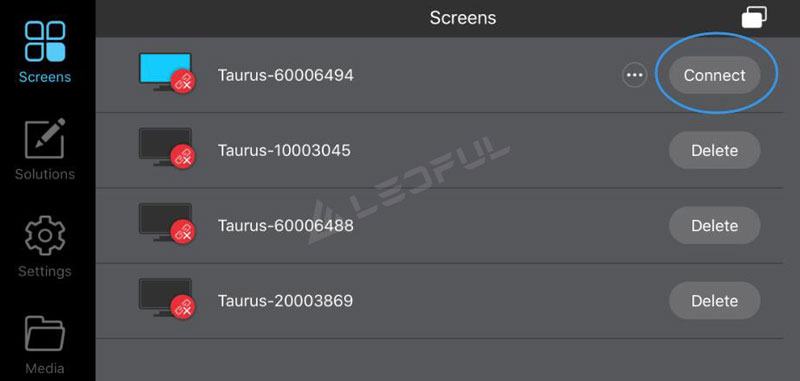

5) Screens -- Taurusxxxxxx -- Connect. Account: admin, password: 123456

Screens

Screens

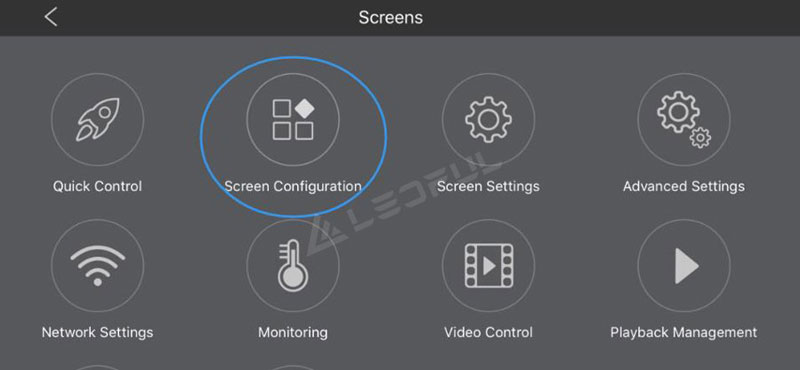

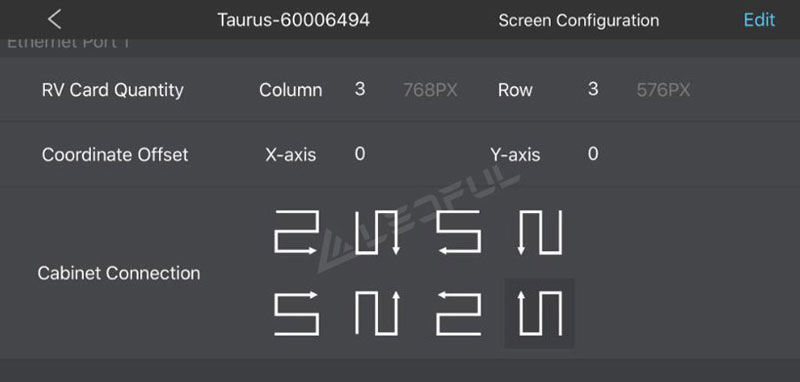

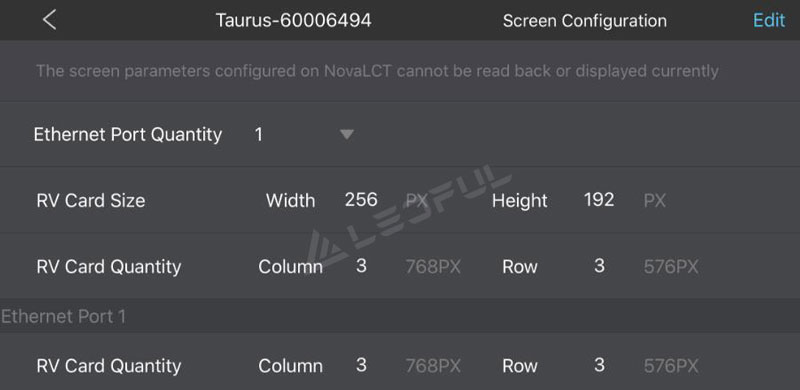

6) Configure receiver card quantity and cabinet connection start from A1 cabinet base on connection diagram in support file

Configure receiver card quantity and cabinet connection

Configure receiver card quantity and cabinet connection

Configure receiver card quantity and cabinet connection

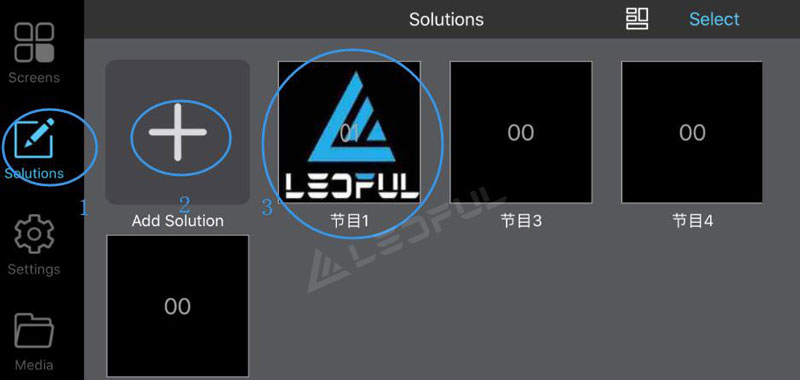

7) Solutions -- Play programs

Solutions

We will introduce how to publish advertising remotely on LED display in next article. Thank you for your reading. Any further questions, please contact our sales engineer online or email to us sales@ledful.com.
