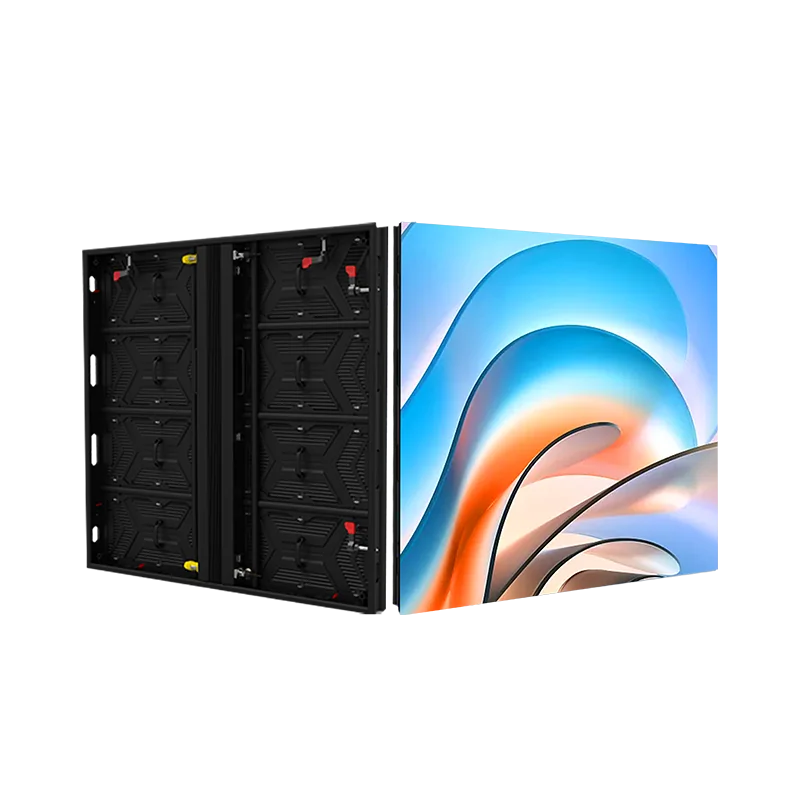

Front Maintenance High-end Outdoor Billboard
● Front & Rear Dual Maintenance Way
● Nationstar LED Standard & High Quality
● High Brightness 6000~10000nits
● High Refresh Rate 3840Hz~7680Hz
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
5500-10000nits High Brightness
Curved Surface Display without Gaps
Front & Back Side IP68 Protective Level
Size Customizable
FM series is a new design with super thin and super light for outdoor application. Nationstar lamp beads top level in the industry. With premium quality & elegant appearance, multi-cabinet size for flexible splicing, beveled cabinet for right angle, wall mounted, hanging, it’s the best choice for outdoor advertising, roadside billboard, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

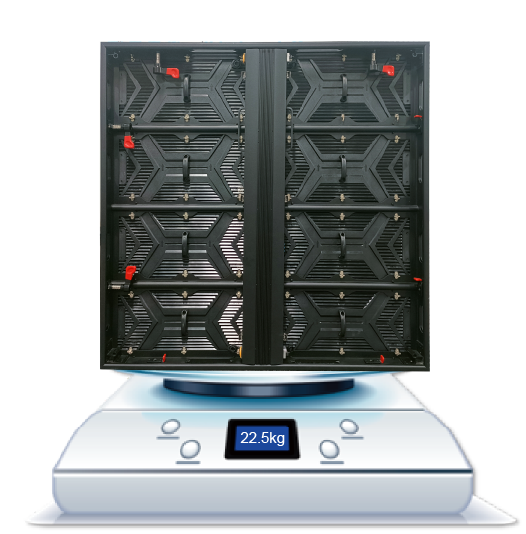

Cabinet standard size is 1000x1000mm, one cabinet only 83mm thickness & 22.5kg/pc, simple and sturdy. Thinner & lighter than iron material, achieves aesthetic purpose. Perfect choice for outdoor billboard with elegance.

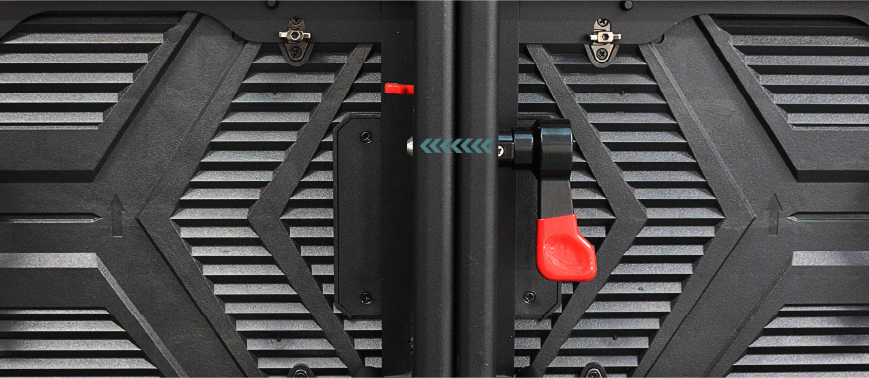

Each cabinet has 4 quick locks, can be quickly connected. Precise hole positions, perfect splicing of each cabinet, simple and seamless. Convenient, save labors, save cost.

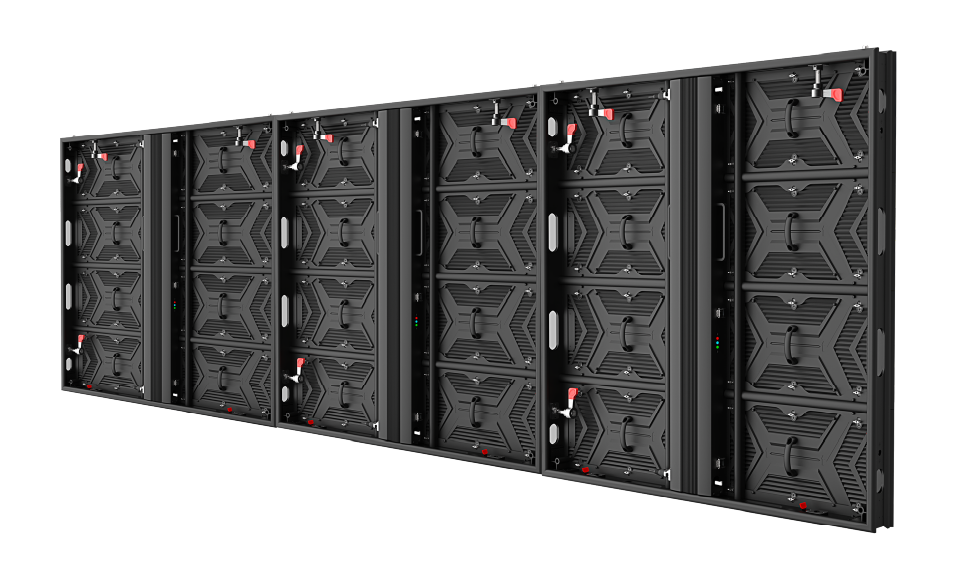

Profile aluminum material, high strength, better flatness with tolerance less than ±0.1mm, bring perfectly flat surface, truly seamless. Amazing visual effect.
Nationstar brand is top level in industry, especially in outdoor scenario. High contrast, wide viewing angle, low light decay.
Durable, best performance, excellent reliability, good consistency.

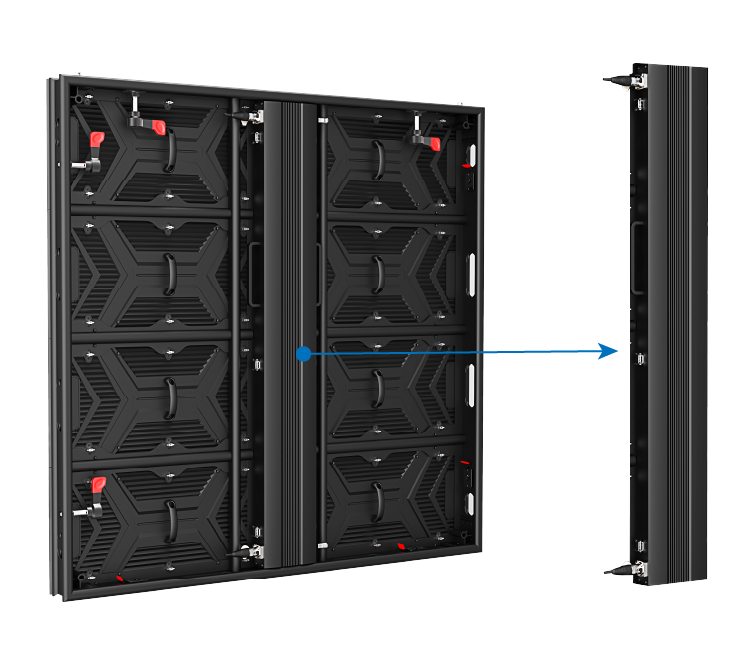

One power box contains power supplies and receiver card, no complex cables. Simple appearance design, clear at a glance.
Easy assemble and maintenance, easy, simple, convenient, user-friendly.
6000nits High brightness for outdoor screen, superior visual effect. Brighter than 5000nits, best choice for huge billboard, perfect for long-distance viewing.

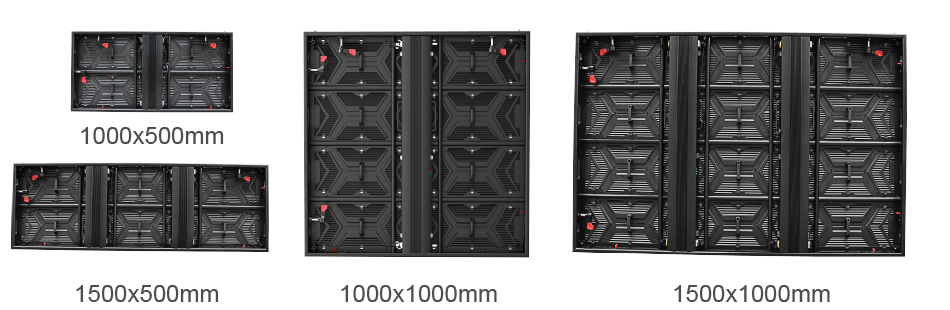

Multi-Size Options 1000x1000mm, 1000x500mm, 1500x1000mm, 1500x500mm. Precisely match the required screen size, more accurate, more flexible.

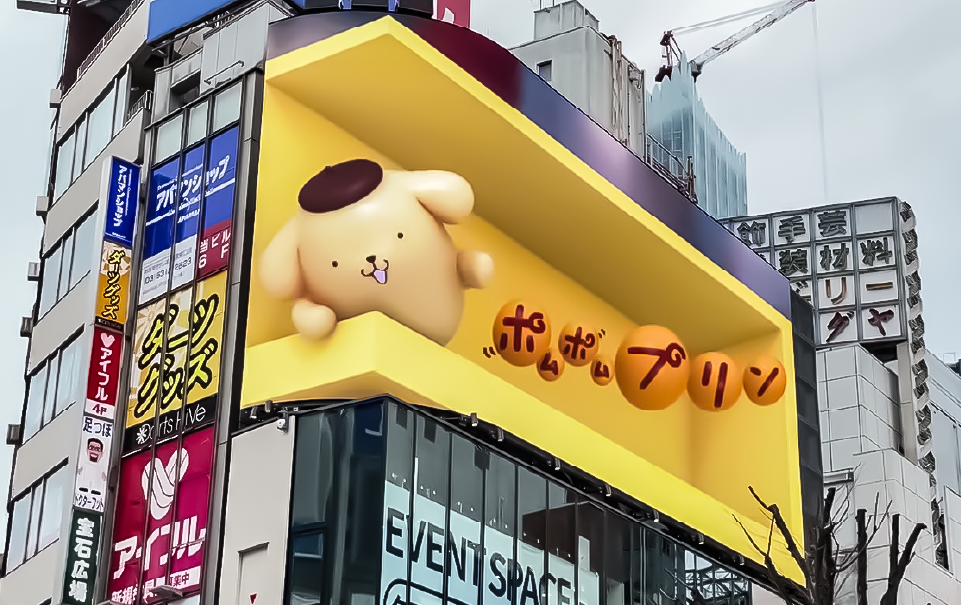

Front maintenance, perfect for wall-mounted installation. Exclusive wall-mounted plates, simple & light & firm. Can be directly mounted on wall, no need for rear service channel. Elegant appearance.

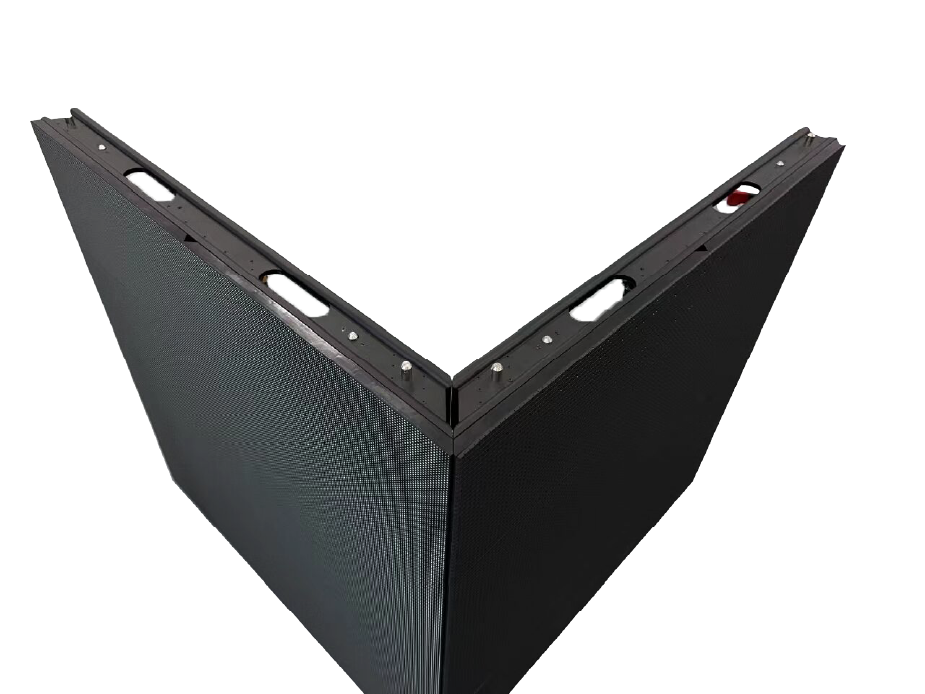

Beveled cabinet can make and multi-sided column LED screens, right-angle screens. Many choices for your free will.

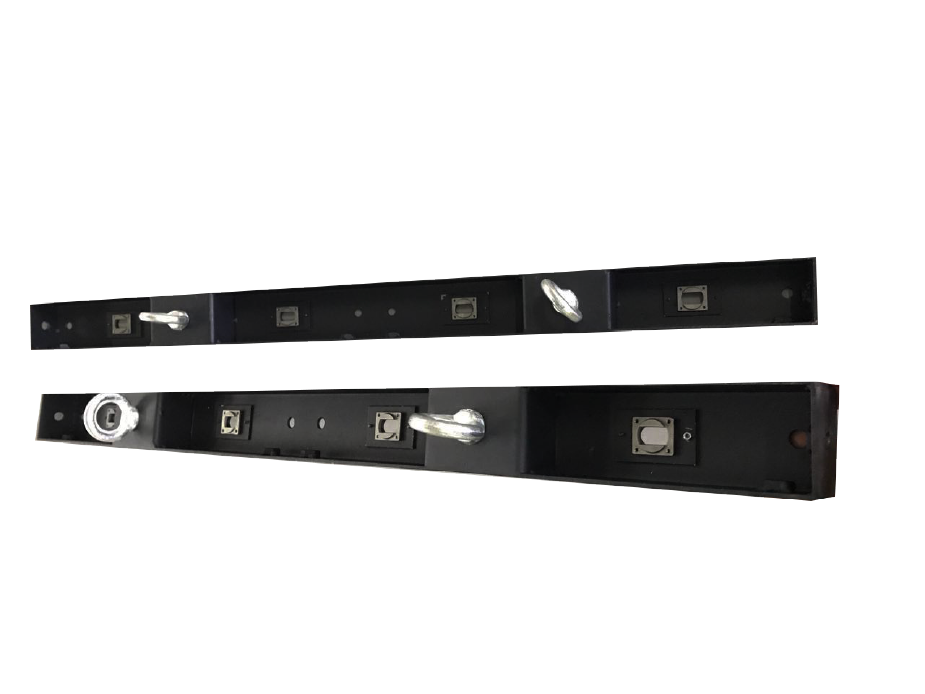

Exclusive hanging bars without safety concerns.

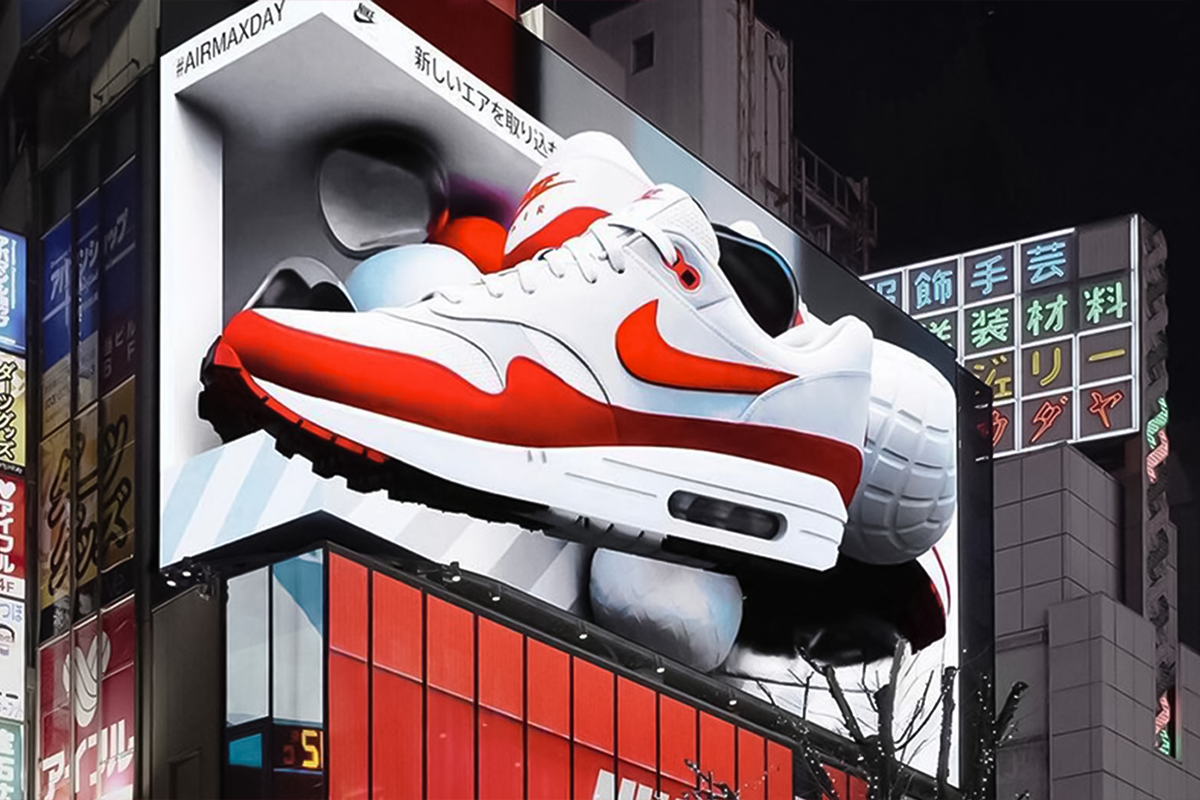

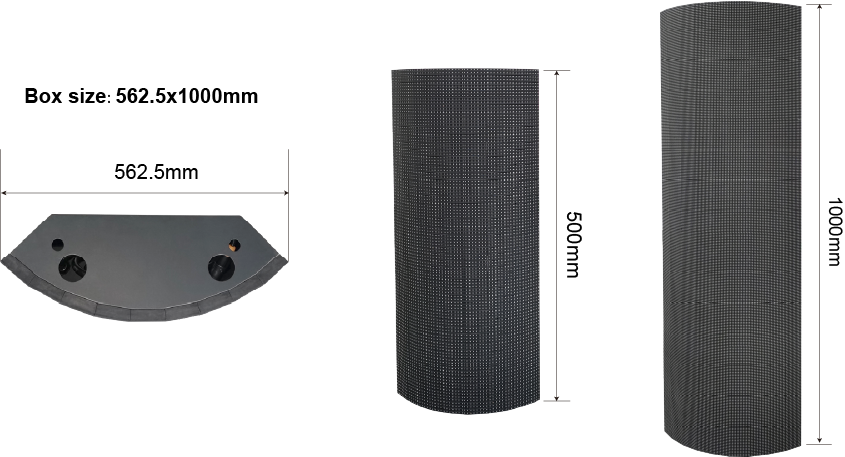

Customized small modules, size 62.5x250mm. Narrow cabinet size 562.5x1000mm. Super small modules make seamless corner cabinet, smooth transition, no black seam, perfect splicing, best choice for 3D application, 100% displays the best effect of 3D video.
| Model | FM2.9 | FM3.9 | FM4.8 | FM6.2 | FM7.8 | FM10.4 |
| Pixel Pitch(mm) | 2.976 | 3.91 | 4.81 | 6.25 | 7.8 | 10.4 |
| Pixel Matrix Per Sqm. | 112,896 | 65,536 | 43,264 | 25,600 | 16,384 | 9,216 |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness (nits) | ≥6000 | |||||
| Scan | 1/21 | 1/16 | 1/13 | 1/8 | 1/4 | 1/2 |
| Module Dimension | 500x250mm | |||||
| Cabinet Dimension | 1000x1000mm/1000x500mm;1500x1000mm/1500x500mm | |||||
| Cabinet Material | Profile Aluminum | |||||
| Cabinet Weight | 22.5kg | |||||
| Power Con. (W/Sqm.) | Max.1104W/Avg.200~300W | |||||
| Service Access | Front &Rear Access | |||||
| Refresh Rate (HZ) | ≥3840 | |||||
| Grey Scale (bit) | 16bit | |||||
| Contrast Ratio | 8000:1 | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP65 | |||||
| Operation Temperature | -20℃~+60℃ | |||||
| Operation Humidity | 10%～90% | |||||
| Input Voltage (AC) | AC90-264V,47-63Hz | |||||
| * Specifications and photos are subject to change without prior notice. | ||||||
