FLEX Column Series

FLEX and Creative LED Display

Features & Advantages

features-advantages-flex-column-series

Applications

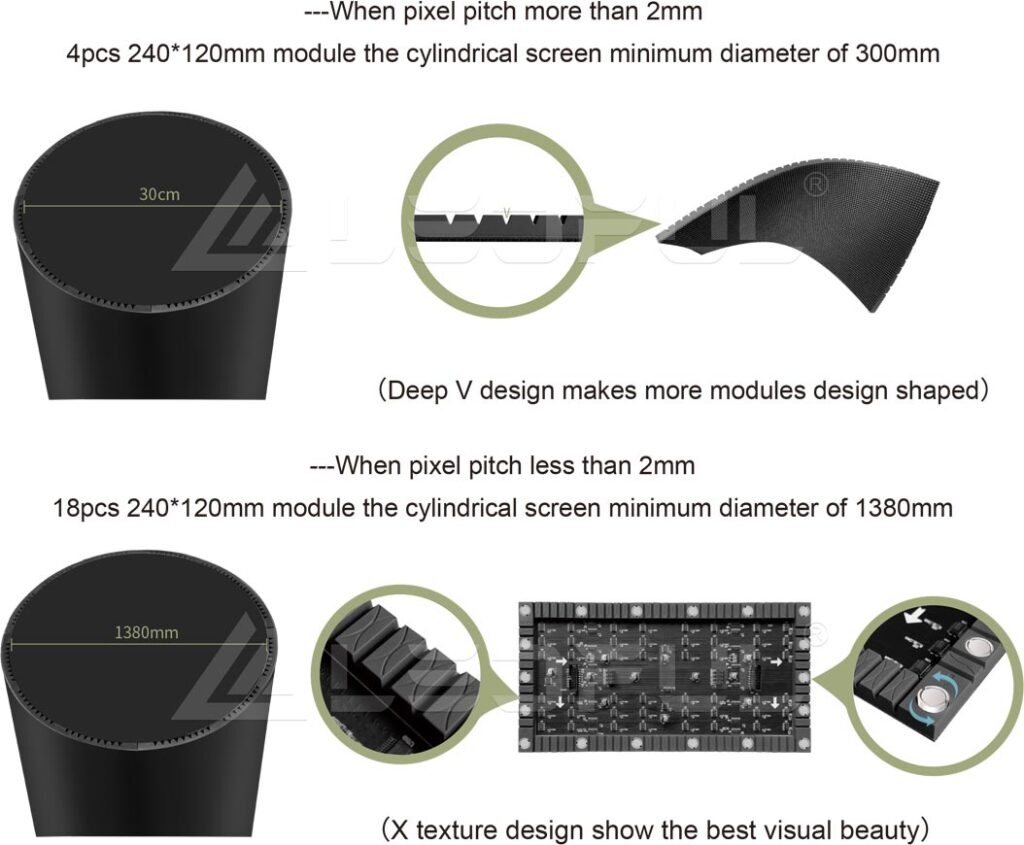

Flex column minimum diameter details

ModelFLEX1.25FLEX1.579FLEX1.667FLEX1.875FLEX2FLEX2.5FLEX3FLEX4
Pixel Pitch(mm)1.251.5791.6671.87522.534
Pixel Matrix Per Sqm.64000040111136000028444425000016000011111162500
Pixel ConfigurationSMD1010SMD1010 / SMD1212SMD1010 / SMD1212SMD1212 / SMD1515SMD1515SMD1515SMD1515 / SMD2121SMD2121
Brightness (nits)≥600≥650≥700≥750≥750≥750≥900≥850
Scan1/481/381/361/321/301/241/201/15
Module Dimension240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft		240x120mm
/ 0.79×0.39ft
Module MaterialSilicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket		Silicon Rubber
Soft Bracket
Module Weight0.215kg0.203kg0.195kg0.216kg0.205kg0.175kg0.175kg0.17kg
Power Con. (Max / Avg)1000 / 340 w/sq.m1000 / 340 w/sq.m800 / 270 w/sq.m800 / 270 w/sq.m800 / 270 w/sq.m800 / 270 w/sq.m800 / 270 w/sq.m800 / 270 w/sq.m
Service AccessFrontFrontFrontFrontFrontFrontFrontFront
Refresh Rate (HZ)384038403840≥2880≥2880≥1920≥1920≥1920
Grey Scale (bit)1414141414141414
Viewing Angle (H/V)140 / 140140 / 140140 / 140140 / 140140 / 140140 / 140140 / 140140 / 140
IP RateIP45IP45IP45IP45IP45IP45IP45IP45
Operation Temperature-10° ~ 50°-10° ~ 50°-10° ~ 50°-10° ~ 50°-10° ~ 50°-10° ~ 50°-10° ~ 50°-10° ~ 50°
Input Voltage (AC)100V or 240V100V or 240V100V or 240V100V or 240V100V or 240V100V or 240V100V or 240V100V or 240V


* Specifications and photos are subject to change without prior notice.

flex-column-minimum-diameter-details

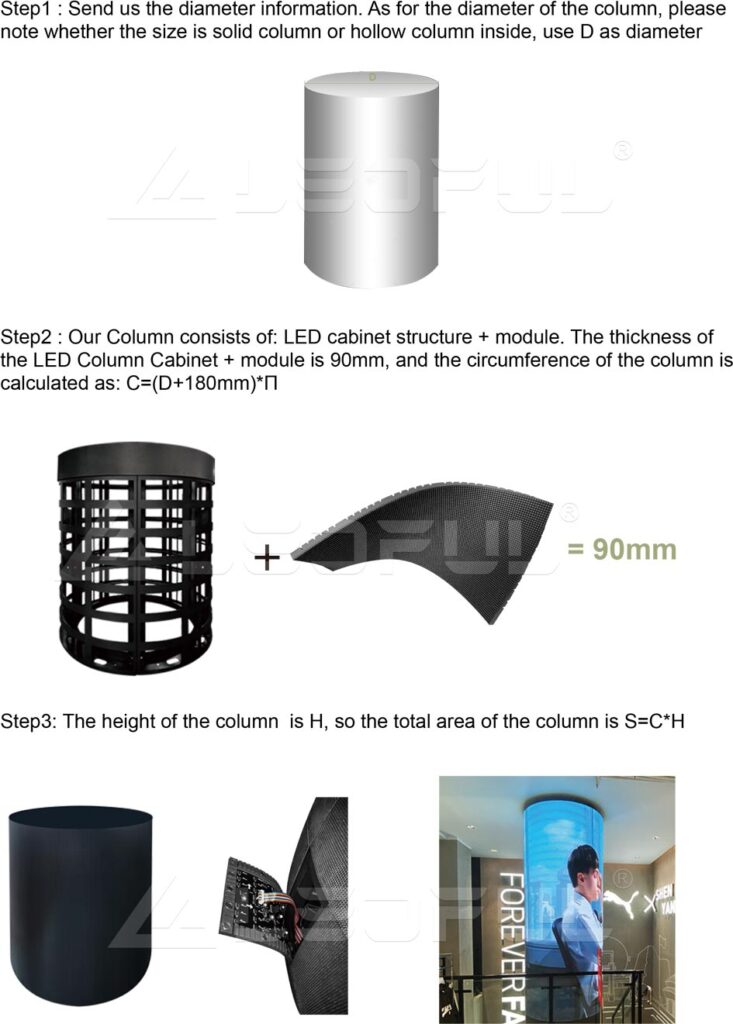

How to calculate the total screen surface area of Column Project

how-to-calculate-the-total-screen-surface-area-of-column-project

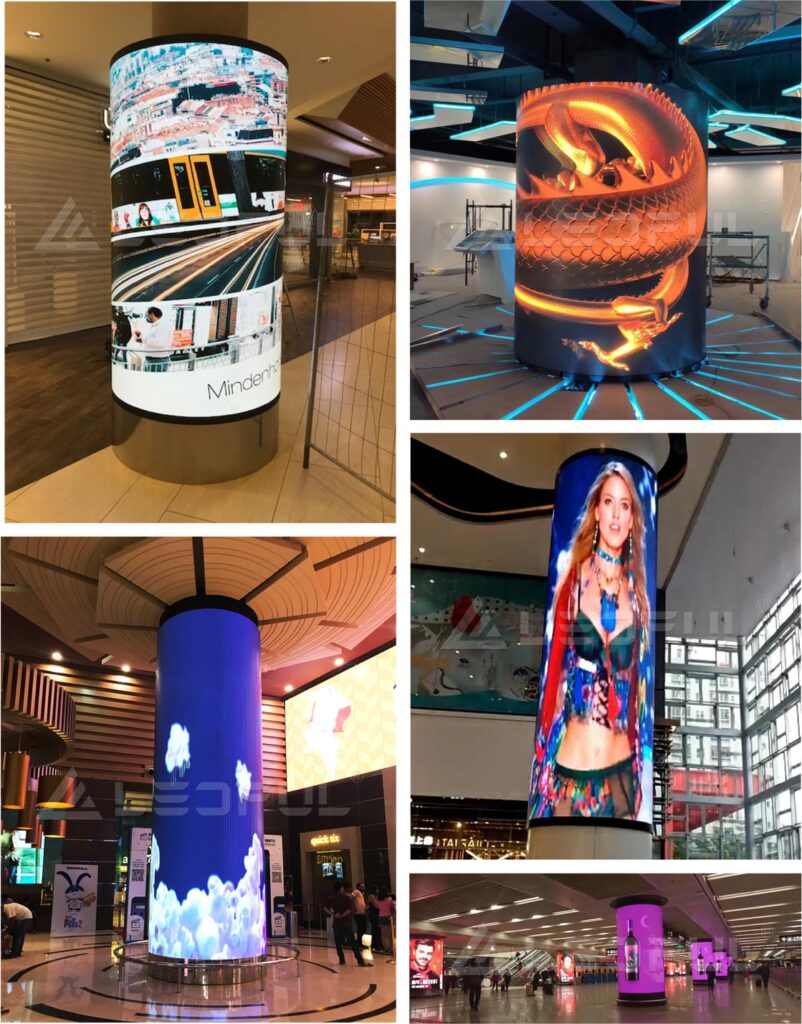

FREE FLEXIBLE DESIGN CAN MAKE VARIOUS SHAPED

free-flexible-design-can-make-various-shaped
