Stadium Perimeter LED Screen
● Professional Top Cover & Soft Mask
● Die Casting Aluminum Cabinet
● Adjustable Viewing Angle 30°~90°
● Hign Refresh Rate 3840Hz
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Front / Back Service
High Refresh, High Grey Scale,Stable Performance
IP65 Protection
Remote Control
Ultra Light and Thin
Ultra Wide Viewing Angle
Cabinet Dimension Ratio
Cable Free Connection

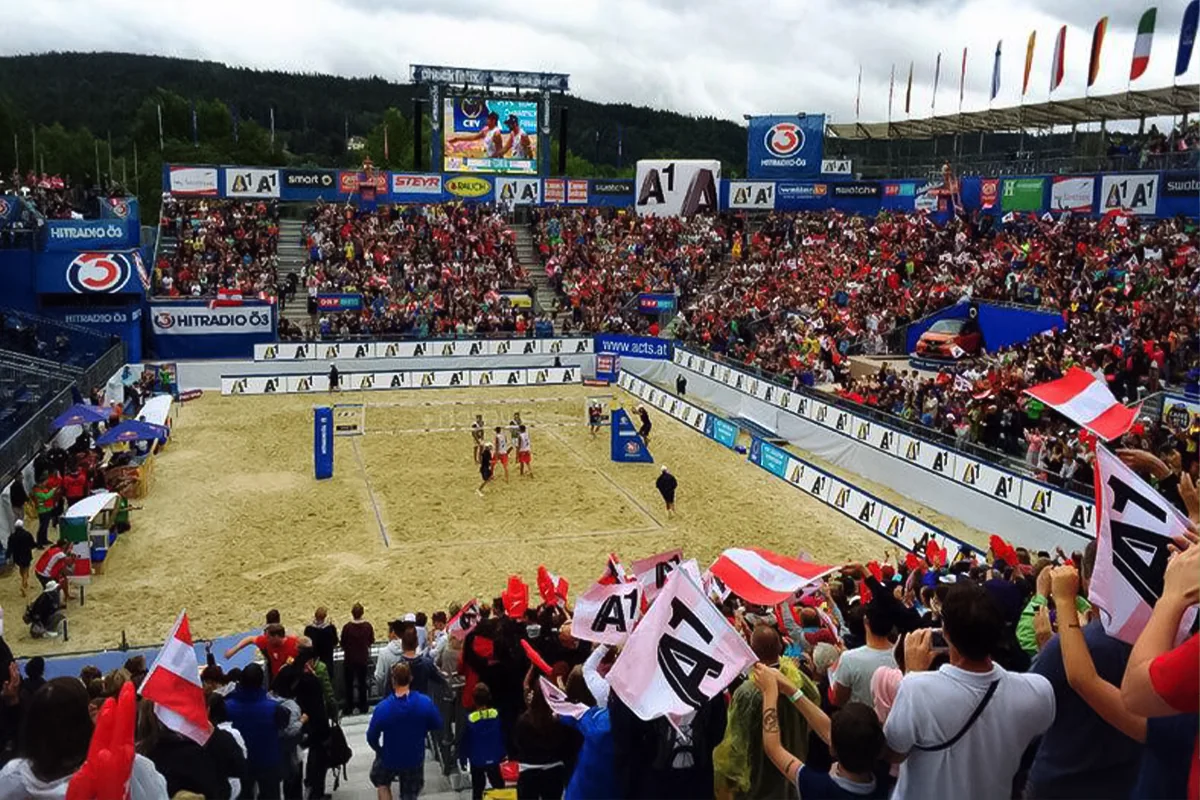

PMR series is a professional perimeter LED display for stadiums and sport events. It has soft top cover and soft masks on screen surface to protect athletes from injury if they hit the screen by accidentally. Meantime it has energy saving solution, signal & power backup solution, quick assembly & disassembly solution for rental using, etc. PMR series product is perfect solution for many stadium and sport events like football, basketball, Ping-pang, badminton, baseball, hockey, E-sports, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

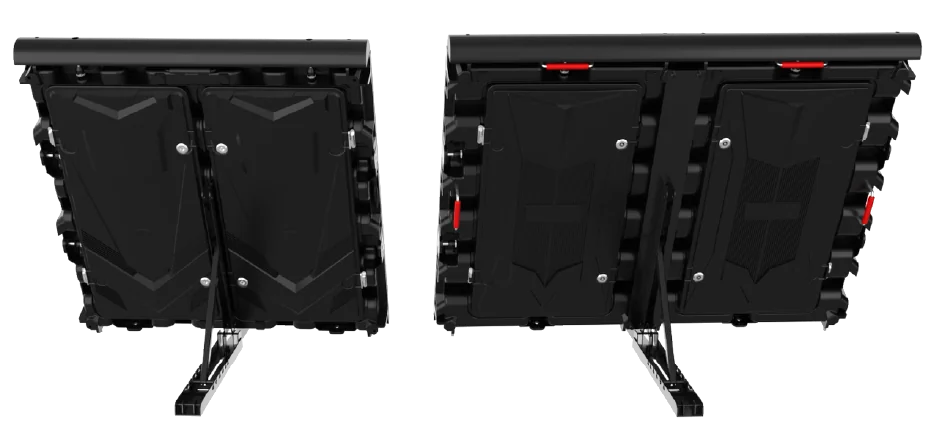

960x960mm, 1280x960mm, 1600x900mm, 1200x900mm and other customized cabinet sizes are available with die casting aluminum material.

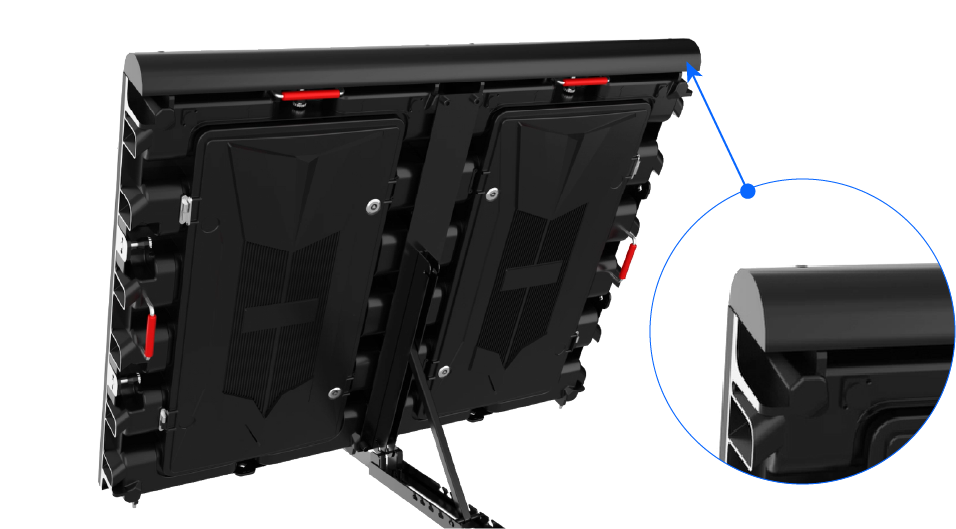

There are soft top cover on the top of each LED panel. And meantime the mask on the surface of LED display changed to a soft rubber mask, which can protect the athletes from injury and also protect the screen well. It will be no problem if the screen are hit by the balls or other things by accidentally.
Maximum 160°C perfect viewing angle brings more audiences a better viewing experience. Meantime the screen brightness can be max 7,000nits~10,000nits which can let the LED screen still have a great performance under the strong sunshine.

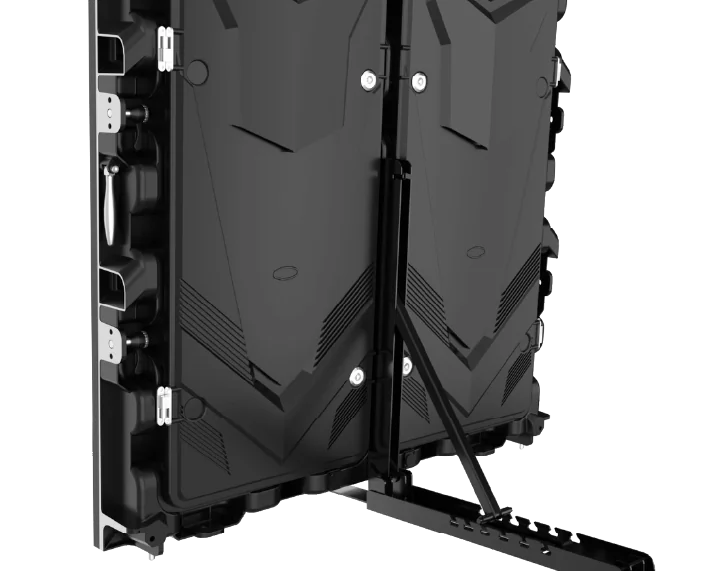

The base support behind each LED cabinet can be adjustable from 30°to 90°degree. It can be adjusted to a best viewing angle for the audiences.
1) Protect the athletes from injury when hit by accidentally.
2) Enhance the contrast of LED display, a better performance.
3) Protect LED lamps and waterproof function.
PMR series can do signal and power backup solution, if there is any damaged of power supply, receiver card or LAN cables, the backup receiver card or power supply will connect and work normally, so the perimeter LED screen is still working normally without any problems, which is an important feature for some large sport events.

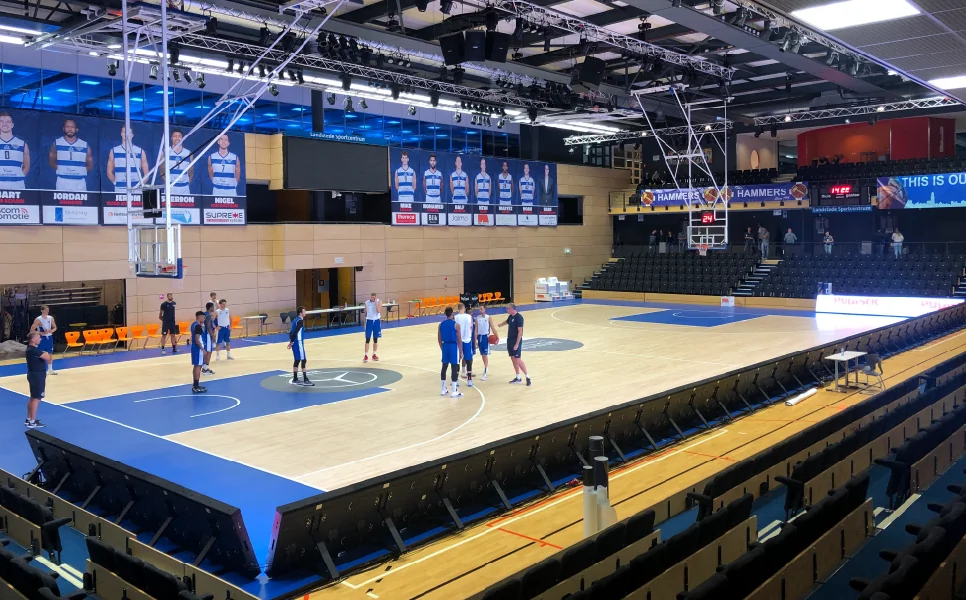

LEDFUL provides professional stadium LED screen control system and software together. It can broadcasts the score between different teams, live show of the games and athletes, etc. Professional one-stop solution makes stadium LED screen easy to use.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.

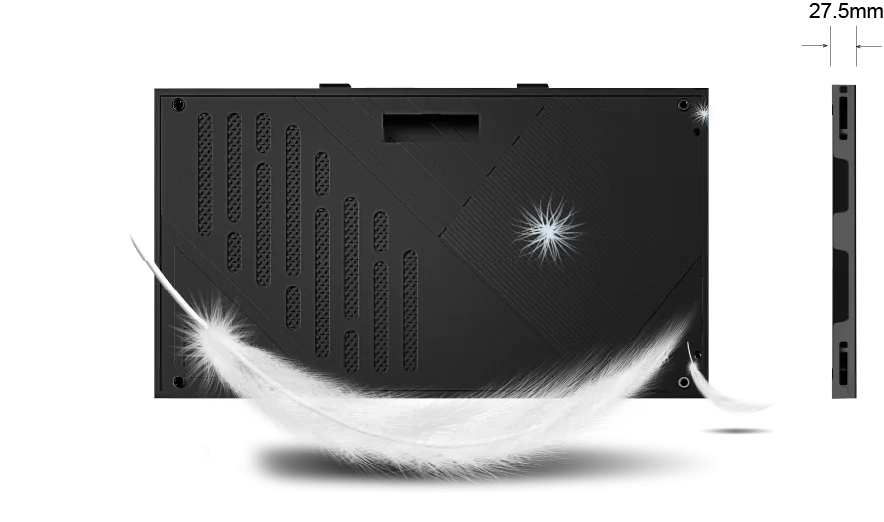

LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | IPM5R | OPM6.6R | OPM8R | OPM10R | PM8-PLUS | PM10-PLUS |
| Pixel Pitch(mm) | 5 | 6.67 | 8 | 10 | 8.33 | 10 |
| Pixel Matrix Per Sqm. | 40,000 | 22,500 | 15,625 | 10,000 | 14,400 | 10,000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD2727 | SMD2727 |
| Brightness(nits) | 1200 | 6000 | 6000 | 7000 | 6000 | 7000 |
| Scan | 1/8 | 1//6 | 1/5 | 1/2 | 1/3 | 1/2 |
| Module Dimension | 320x160mm | 400×300mm | ||||
| Cabinet Dimension | 960×960mm /1280×960mm | 1600x900mm | ||||
| Cabinet Material | Die Casting Aluminum | Profile Aluminum | ||||
| Cabinet Weight | 28KG (960x960mm)/35KG(1280x960mm) | 45KG | ||||
| Power Con. (W/Sqm.) | Max.650W / Avg.100~200W | Max.650W / Avg.100~200W | ||||
| Service Access | Rear | Front / Rear | ||||
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ||||
| Grey Scale (bit) | 16bit | 16bit | ||||
| Contrast Ratio | 5000:1 | 5000:1 | ||||
| Viewing Angle (H/V) | 140°/140° | 140°/140° | ||||
| IP Rate | IP43 | IP65 | IP65 | IP65 | IP65 | |
| Operation Temperature | -20℃~+60℃ | -20℃~+60℃ | ||||
| Input Voltage (AC) | AC110/240V,50/60Hz | AC110/240V,50/60Hz | ||||
| * Specifications and photos are subject to change without prior notice. | ||||||
