S Shaped Flexible LED Display
● Front Service with Magnetic Module
● Light, thin, easy installation, plug and play
● Pixel pitch, size, base support all customizable
● High refresh rate and high grayscale for indoor application
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Front Service with Magnetic Module
High refresh rate and high grayscale for indoor application
Light, thin, easy installation, plug and play
Pixel pitch, size, base support all customizable-01
High Refresh Rate & High Grey Scale
Ultra Light and Ultra Thin
Cabinet Dimension Ratio
Cable Free Connection

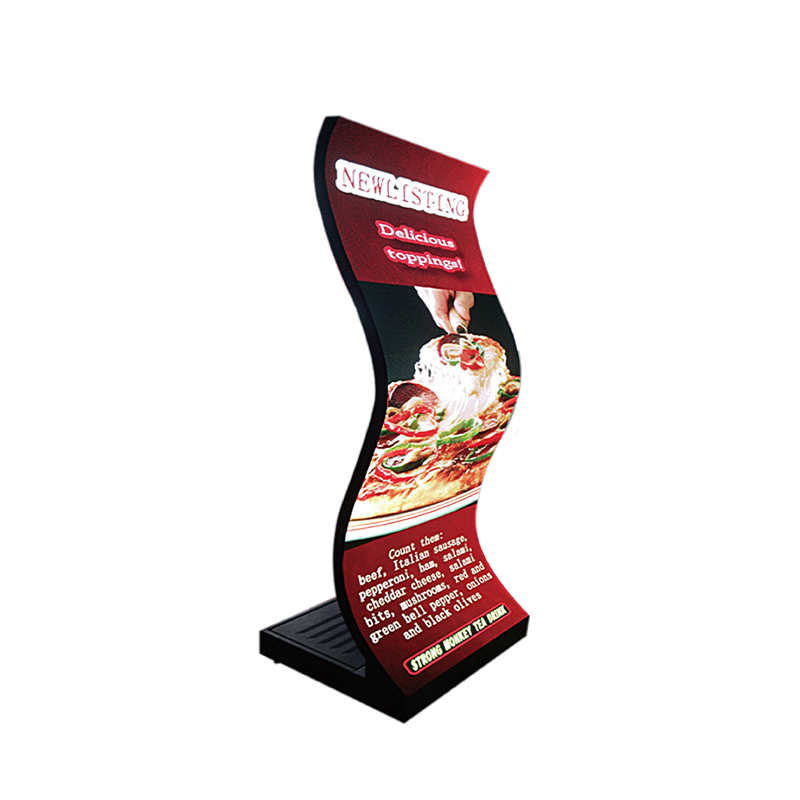

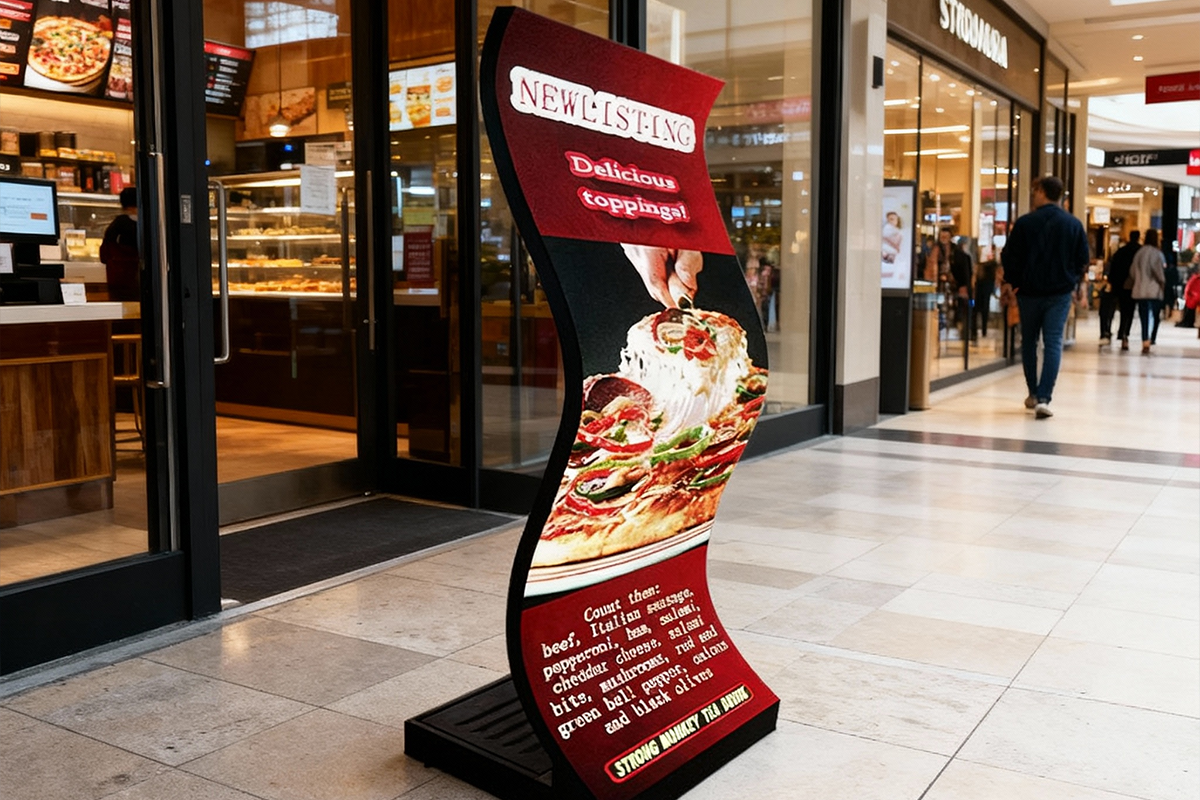

S Poster with high refresh rate and high grayscale for indoor applications. It has movable wheels supporting all circumstances like retail shops, showroom, supermarket and so on. Various pixel pitch are suitable for both far and close viewing.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

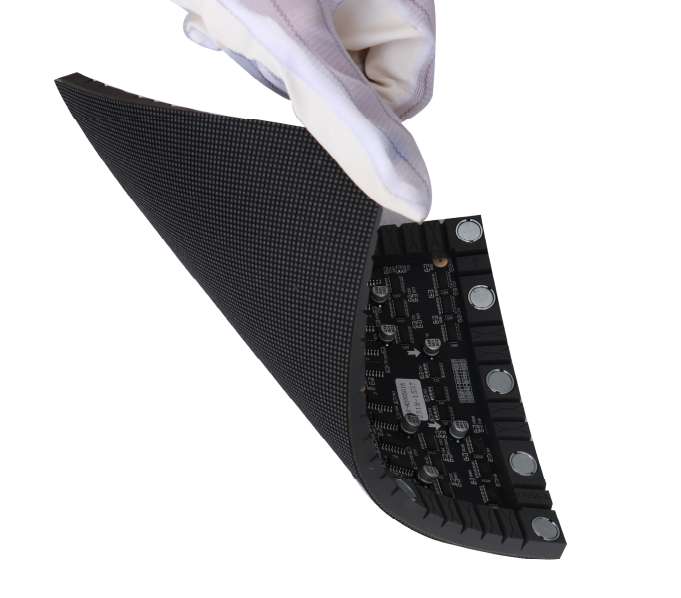

The soft module adopts super flexible substrate material, which can be bent at large scale and is suitable for installation needs of irregular shape.

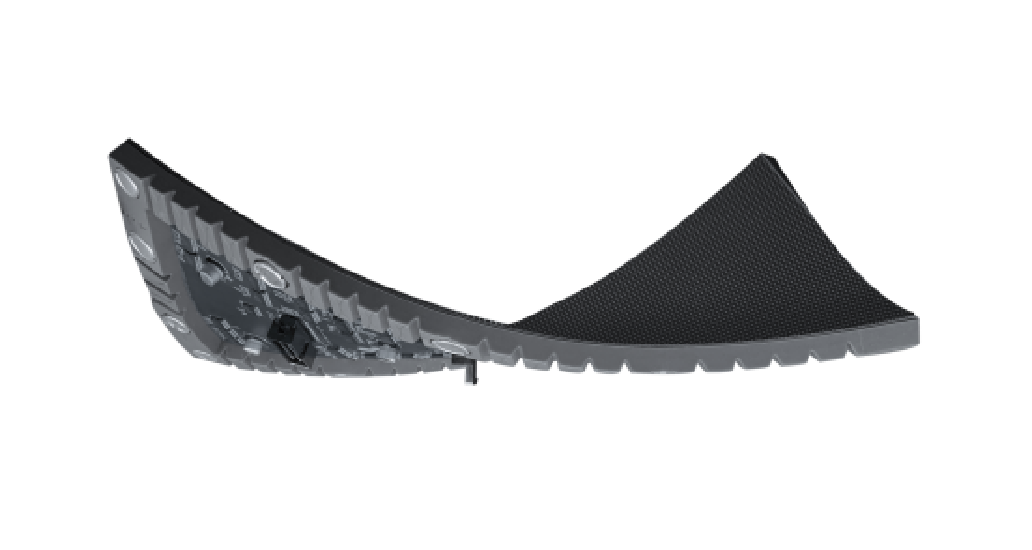

P1.2, 1.5, 1.6, 1.8, 2 and 2.5 small pixel pitch available to choose. Even at a close viewing distance, the viewing effect is a visual feast and there is no graininess. Suitable for viewing in vaults such as indoor exhibitions, science and technology museum, art museum,etc.
In addition to the S series advertising machines, we can also make advertising machines in wave arc, and ribbon shapes according to customer needs and preferences. Each module is seamlessly connected, and even the curved parts are very flat.
Modules are lighter than ordinary non-soft modules. It can be used in occasions that require quick construction and disassembly, such as exhibitions, events, etc.

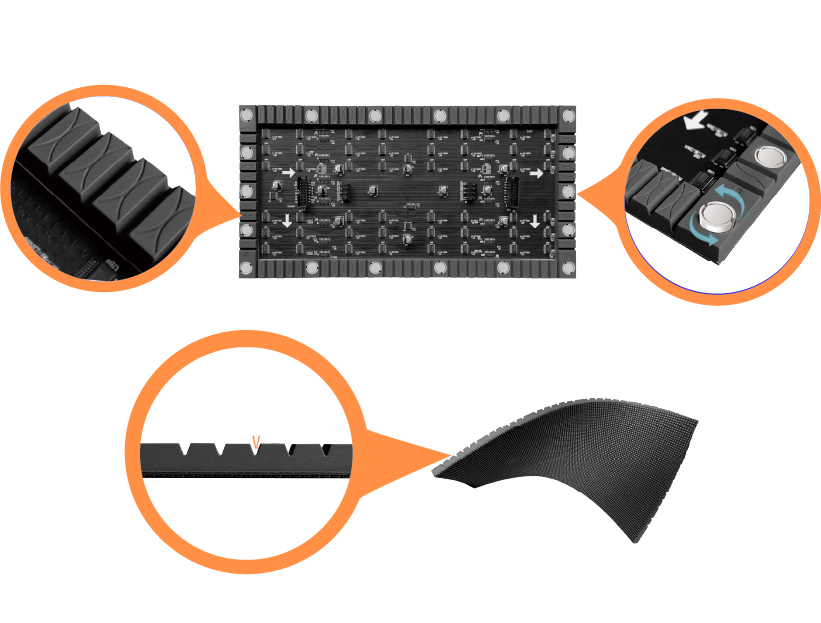

The use of high magnetic force, so that the module is better attached to the cabinet above, no matter what the environment is not easy to deglue, warping feet. The V-shaped design can better increase friction and viscosity. Fine-tuned magnets ensure module flatness. X-design highlights visual beauty. Deep V design makes the module softer.

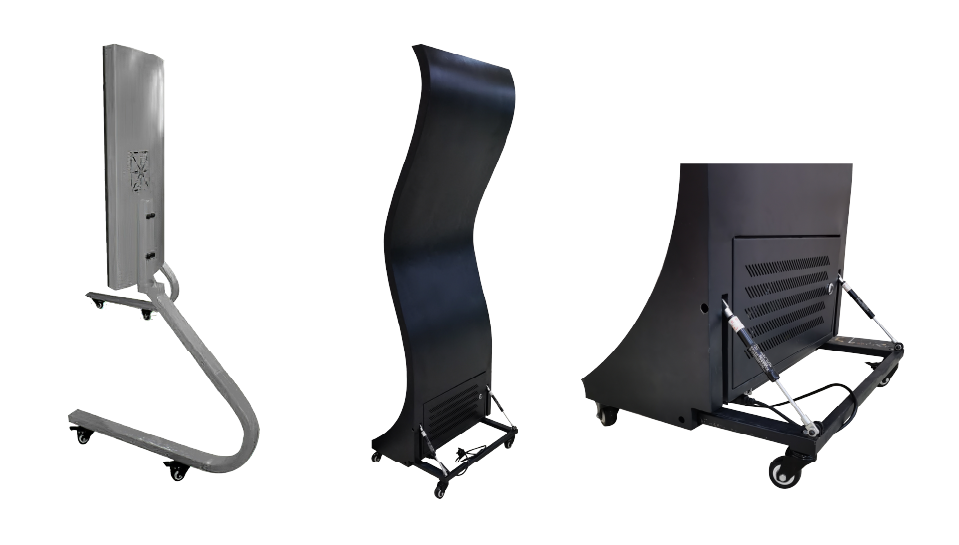

It supports vertical and horizontal installation, with wheels, which is easy to move, can be used in multiple places.Two size available for choose, 600×1920mm and 720×1920mm and also can be customized as you like.

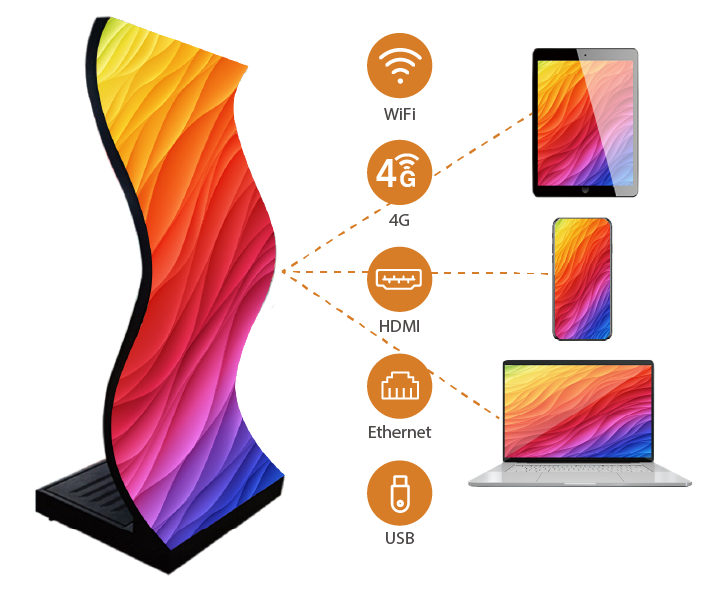

No component installation. Just connecting socket and video controller. Supporting wifi, 4G and quickly control the screen through mobile phone and computer. Play whatever you want.
Different from conventional advertising poster, the unique shape and design make it more visually attractive, and the S-shape can create a three-dimensional sense, making the advertising content more hierarchical and dynamic.
Support curved design, to use special small modules 150×168.75mm and special cabinet 150×337.5mm
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | SPOSTER 1.2 | SPOSTER 1.5 | SPOSTER 1.6 | SPOSTER 1.8 | SPOSTER 2 | SPOSTER 2.5 |
| Pixel Pitch(mm) | 1.25 | 1.579 | 1.667 | 1.875 | 2 | 2.5 |
| Pixel Matrix Per Sqm | 640,000 | 401,076 | 359,856 | 284,440 | 250,000 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1010 / 1212 | SMD1010 / 1212 | SMD1212 / 1515 | SMD1515 | SMD1515 |
| Brightness (nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 |
| Scan | 1/48 | 1/38 | 1/36 | 1/32 | 1/30 | 1/24 |
| Power Con. (W/sqm.) | Max. 1000W / Avg.340W | Max. 1000W / Avg.340W | Max. 800W / Avg.270W | Max. 800W / Avg.270W | Max. 800W / Avg.270W | Max. 800W / Avg.270W |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥2880 | ≥2880 | ≥1920 |
| Module Dimension | 240x120mm / 0.79×0.39ft | |||||
| Cabinet Dimension | 600×10920 / 1920×600 （W×H） | |||||
| Cabinet Material | Silicon Rubber Soft Bracket | |||||
| Cabinet Weight | 60KG | |||||
| Service Access | Full Front Access | |||||
| Grey Scale (bit) | 14 | |||||
| Contrast Ratio | 5000:01:00 | |||||
| Viewing Angle (H / V) | 140° / 140° | |||||
| IP Rate | IP43 | |||||
| Operation Temperature | ﹣20℃ ~ +60℃ | |||||
| Input Voltage (AC) | 110 or 240V | |||||
| * Specifications and photos are subject to change without prior notice. | ||||||
