High-end Perimeter LED Screen Solution
● Aluminum Profile Cabinet
● Front & Rear Dual Maintenance Way
● Soft Top Cover & Soft Mask
● Easy Adjustable Base Support
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
High Refresh, High Grey Scale,Stable Performance
Ultra Light and Thin
Ultra Wide Viewing Angle
Front / Back Service
IP65 Protection
Remote Control
Ultra Wide Viewing Angle
Front / Back Service

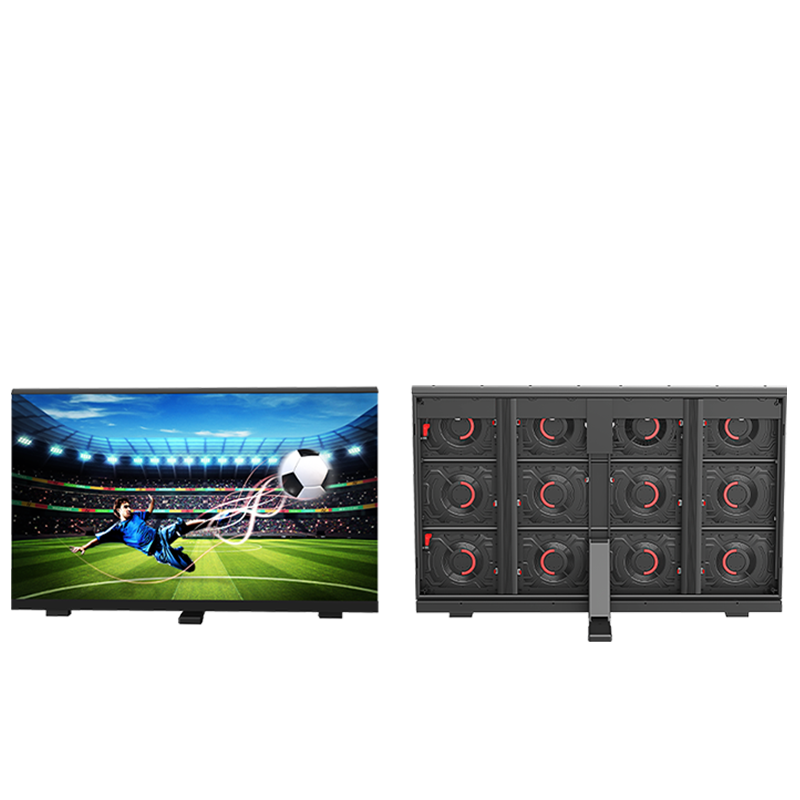

PM PLUS is upgraded new tech for perimeter LED screen, thin and light cabinets, 900mm height to perfectly meet FIFA,FIFB and UEFA requirement, won’t affect any sights of audiences. Meantime it has higher protection level IP65, wider and flatter, etc. New PM Plus product is usually used for football stadium, basketball stadium, baseball, hockey, ice-hockey, e-sport games and so on.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Nationstar lamp beads, and the power cord complies with the HO7RNF standard and uses a Nutrik Power Con. & Data Con. The refresh rate is ≥ 3840Hz to avoid flickering under high-speed cameras. Color performance: NTSC color gamut coverage ≥ 85%. Surge protection device protects electrical equipment and systems from damage caused by transient over voltage. All materials and product performance are in compliance with FIFA and UEFA certification.

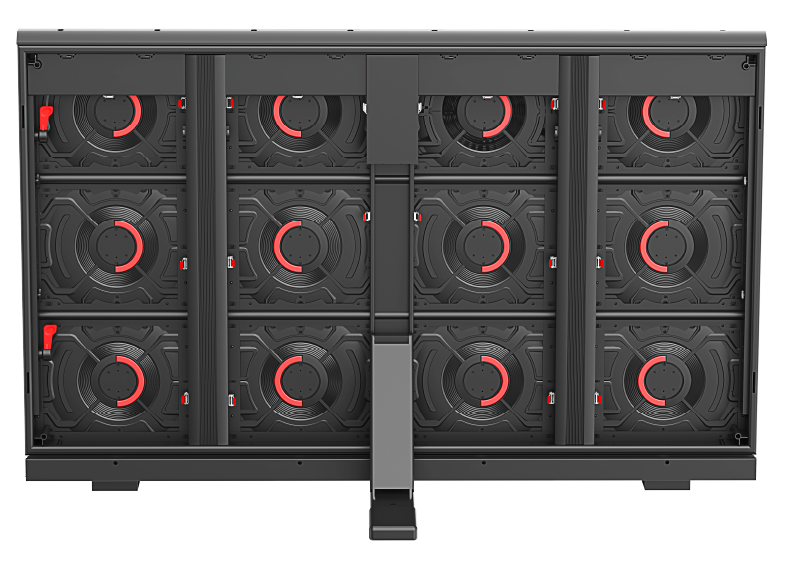

Thinner and lighter, 7.8cm thickness, 1600x900mm only 46kg/pcs. Lightweight and low density can reduce the overall weight of the screen. With excellent strength and rigidity, it can ensure that the screen will not deform even when receiving external force.
LEDFUL uses Nationstar copper wire LED lamps as standard, high brightness 6500~10000nits, stable performance, lower damage rate, longer lifetime.

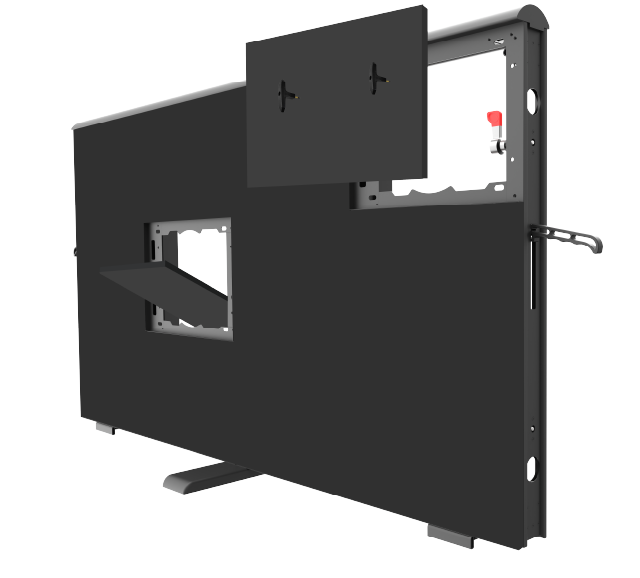

PM PLUS supports front maintenance and rear maintenance. Special but simple maintenance tool makes quick assembly & disassembly and easy maintenance.

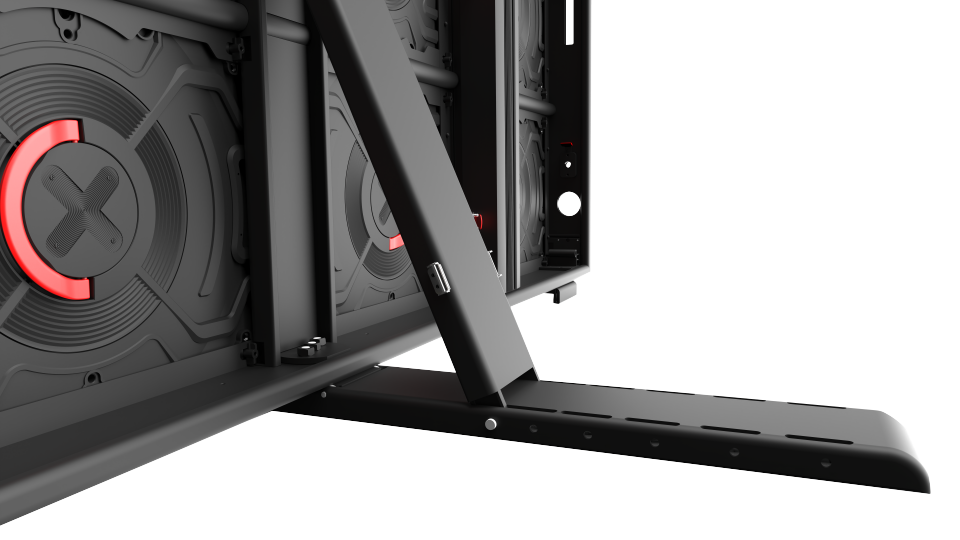

The upgraded base support behind each LED cabinet can be adjustable from 65° to 90°degree. It can be adjusted to a best viewing angle for the audiences.

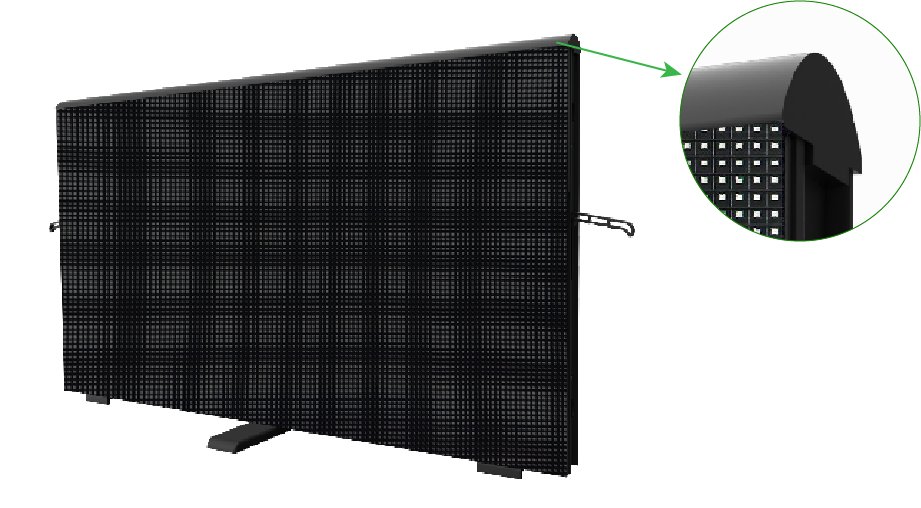

There are soft top cover on the top of each LED panel. And meantime the mask on the surface of LED display changed to soft rubber mask, those will protect the athletes from injury and also protect the screen well. It will be no problem if the screen are hit by the balls or other things by accidentally.

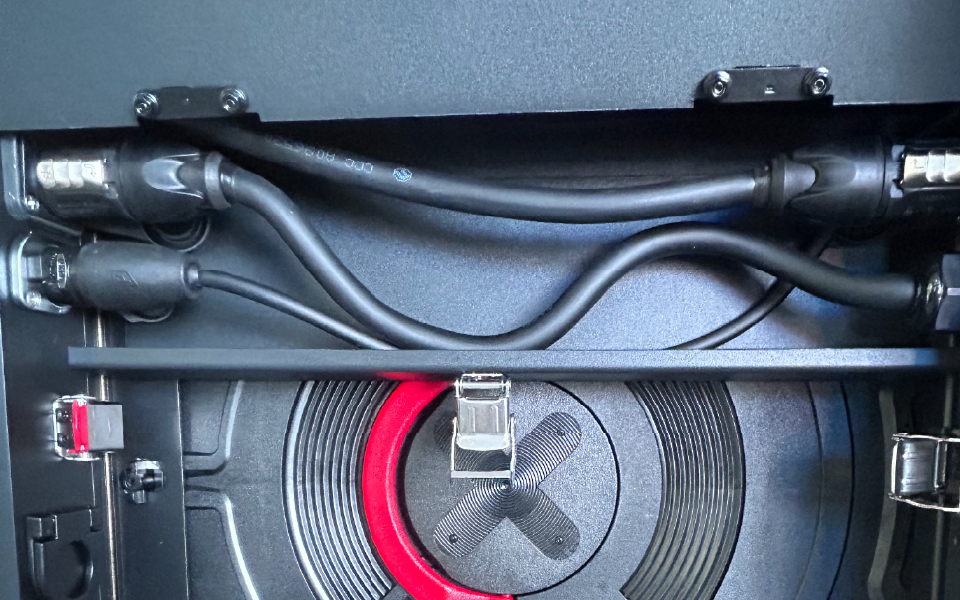

The screen is placed outdoors all year round, and rain and dust can easily cause cable corrosion. The hidden cable box can not only better protect the cables, but also look more beautiful.

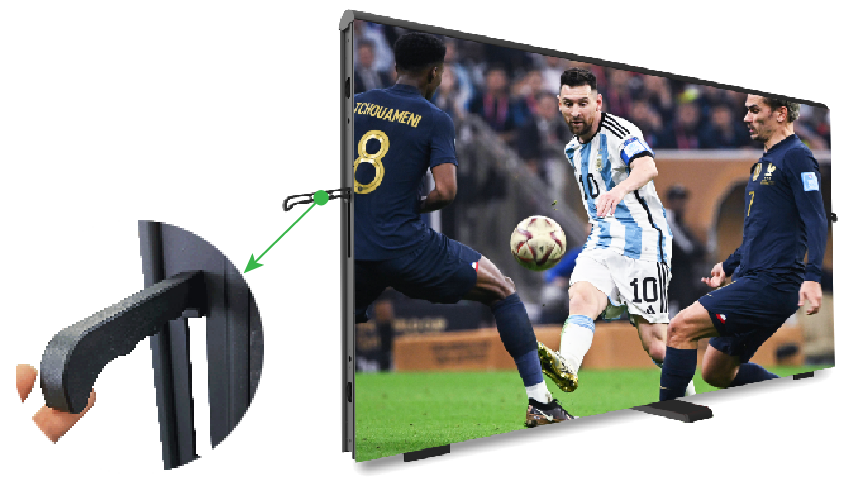

Anti-slip safety handle let the installation and movement be easy and convenient.

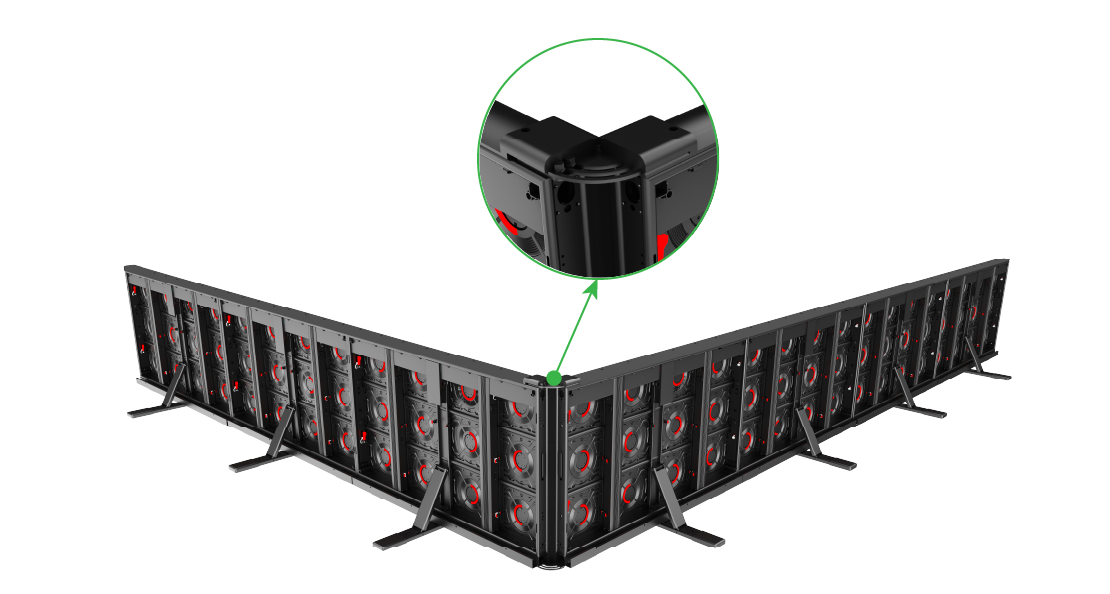

LED cabinets can be easily connected by 90° via a slide rail. At the same time, in the event of an emergency, it can be quickly opened to provide an escape exit.

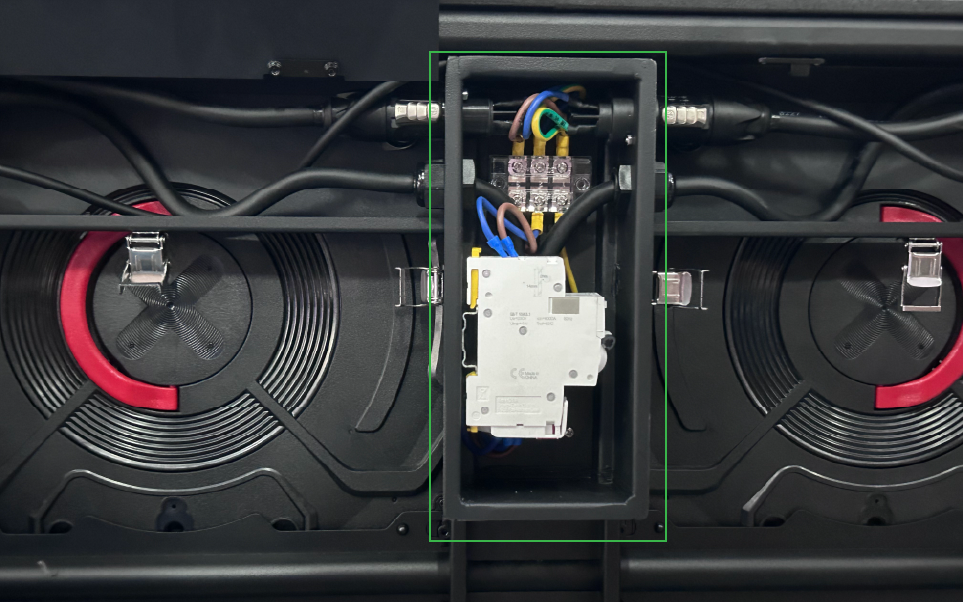

Each cabinet is equipped with a 16A leakage protection switch. In the event of a leakage accident, it can prevent electric shock and protect the screen and circuit from damage.

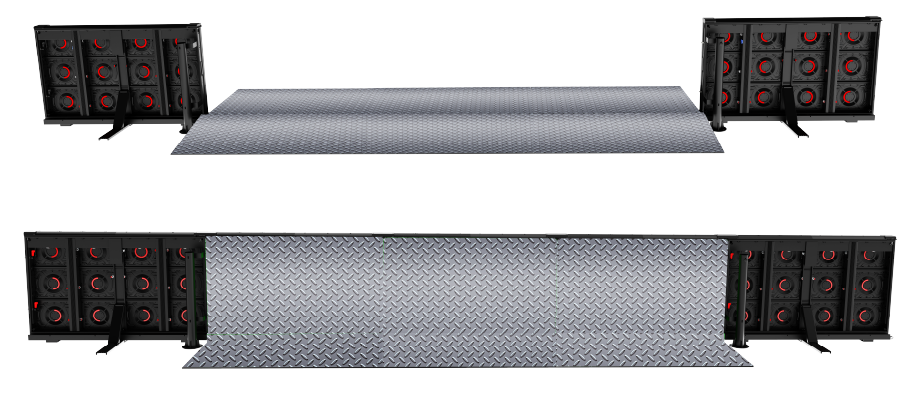

The pedal can be used as a convenient entrance and exit, or as a safe escape exit. When unpredictable danger occurs, lay down the pedal and escape quickly.
Maximum 160° perfect viewing angle brings more audiences a better viewing experience. Meantime the screen brightness can be max 6,500nits~10,000nits which can let the LED screen still have a great performance under the strong sunshine.

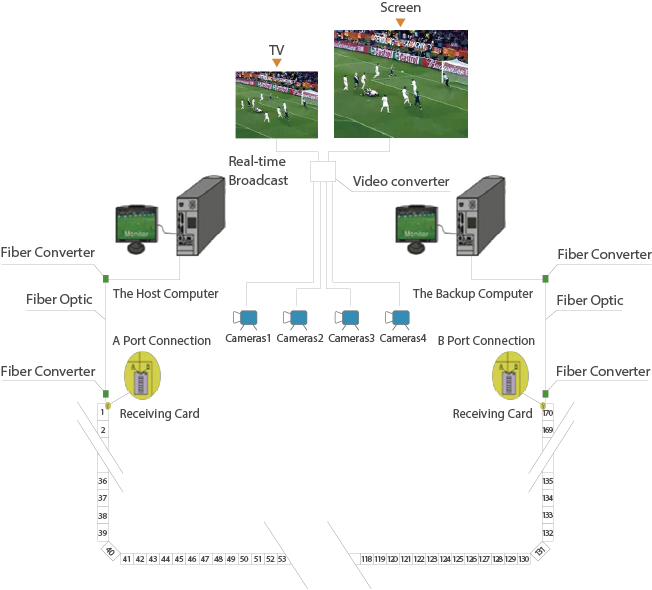

PM PLUS series can do signal and power backup solution, if there is any damaged of power supply, receiver card or LAN cables, the backup receiver card or power supply will connect and work normally, so the perimeter LED screen is still working normally without any problems, which is an important feature for some large sport events.
Nigeria National Stadium 260m Indoor Perimeter LED Screen for FIFA Game in Africa.
| Model | PM8 PLUS | PM10 PLUS |
| Pixel Pitch(mm) | 8.33 | 10 |
| Pixel Matrix Per Sq.m | 14,400 | 10,000 |
| Pixel Configuration | SMD2727 | SMD2727 |
| Brightness (nits) | 6500 | 6500 |
| Scan | 1/3 | 1/2 |
| Module Dimension | 400×300mm / 1.31×0.98ft | |
| Cabinet Material | Profile Aluminum | |
| Cabinet Weight | 46KG | |
| Power Con. (W/sqm.) | Max. 600-800W / Avg. 100-200W | |
| Service Access | Front and Rear Access | |
| Refresh Rate (HZ) | ≥3840 | |
| Grey Scale (bit) | 16 | |
| Contrast Ratio | 10000 : 1 | |
| Viewing Angle (H / V) | 160° / 140° | |
| IP Rate | IP65 | |
| Operation Temperature | ﹣20℃ ~ +60℃ | |
| Input Voltage (AC) | AC110/240V, 50-60Hz | |
| * Specifications and photos are subject to change without prior notice. | ||
