Indoor Full Front Service LED display
| Model | WALL1.2-PRO GOB | WALL1.5-PRO GOB | WALL1.9-PRO | WALL2.5-PRO | WALL2.6-PRO | WALL2.9-PRO | WALL3.9-PRO |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness(nits) | ≤1000 | ||||||
| Scan | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250x250mm | ||||||

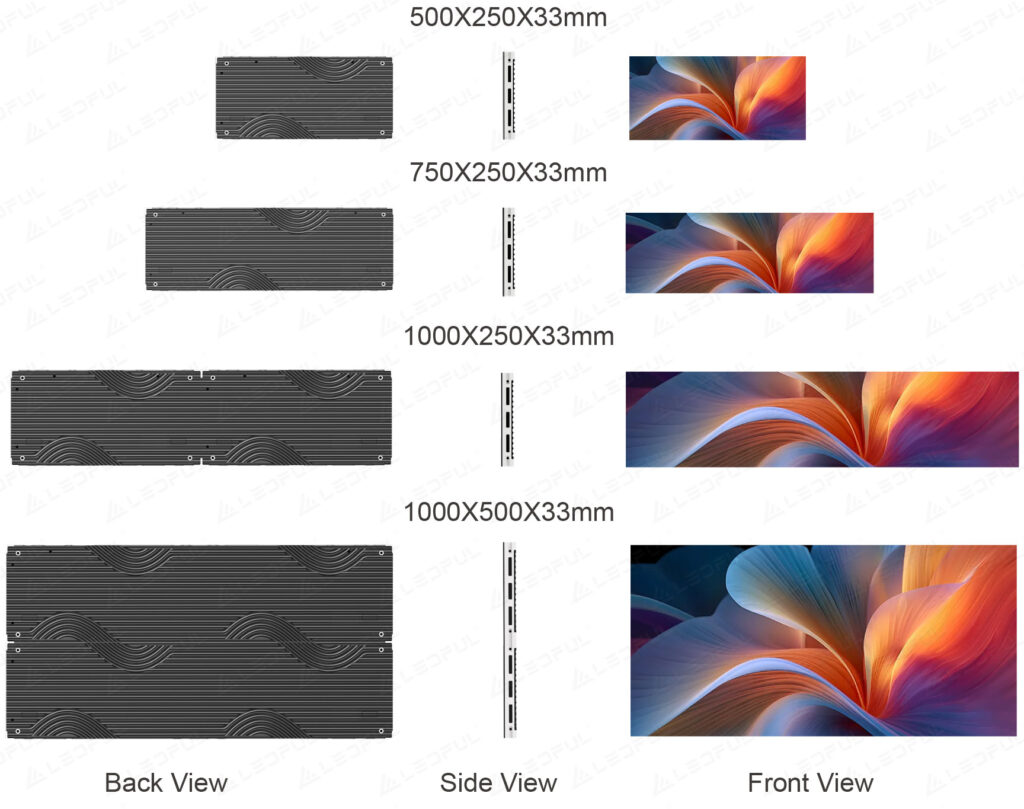

| Cabinet Dimension | 1000×500×33mm,1000×250×33mm,750×250×33mm,500×250×33mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | 8KG | ||||||
| Power Con. (W/Sqm.) | Max.800W/Avg.100-200W | ||||||

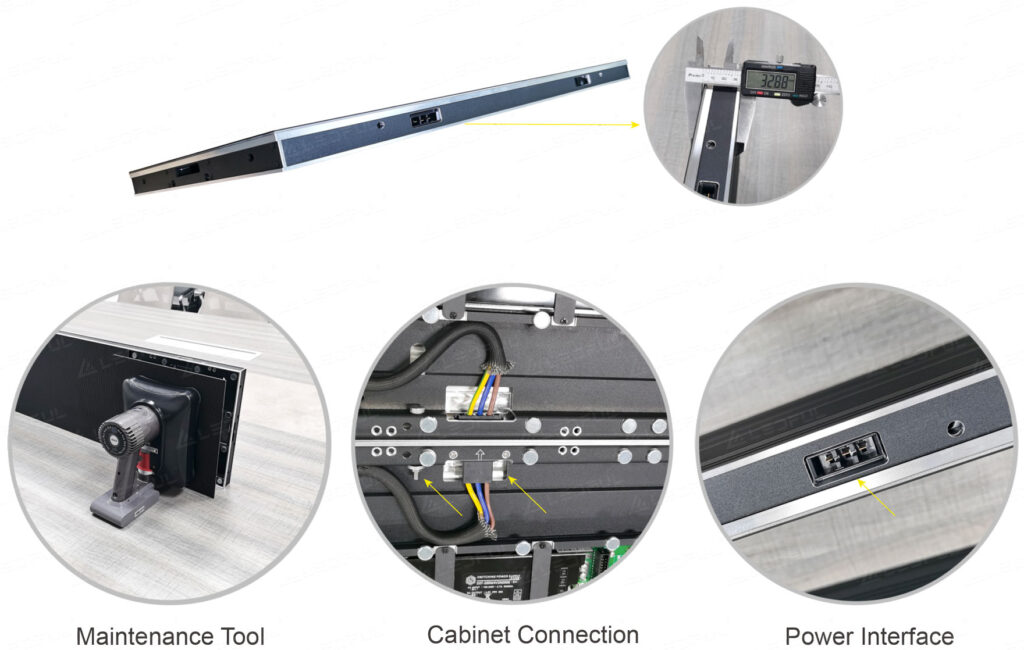

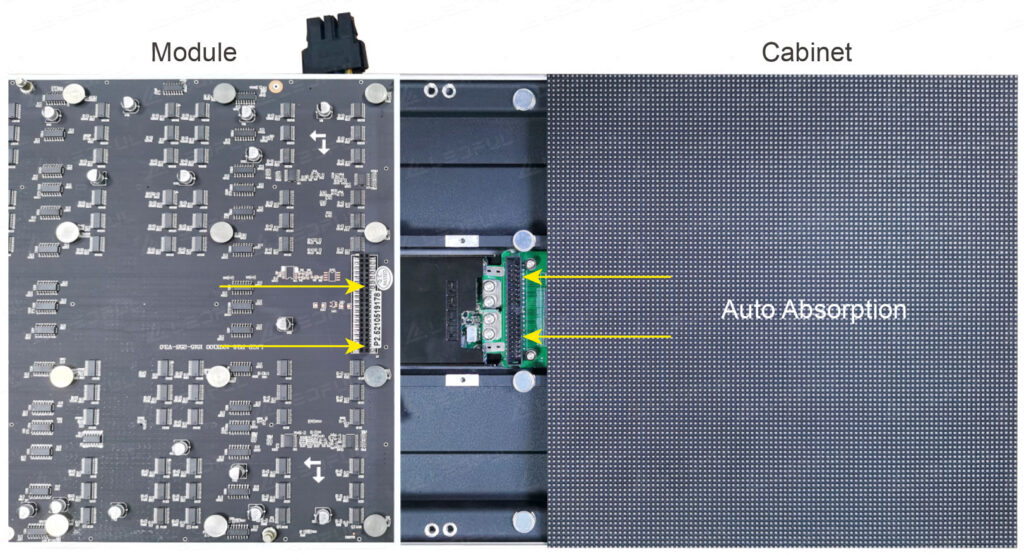

| Service Access | Full Front Access | ||||||
| Refresh Rate(HZ) | ≥3840 | ||||||
| Grey Scale (bit) | 16bit | ||||||
| Contrast Ratio | 10000:1 | ||||||
| Viewing Angle (H/V) | 160°/160° | ||||||
| IP Rate | IP65(front) | IP65(front) | IP31 | IP31 | IP31 | IP31 | IP31 |
| Operation Temperature | -20℃~+60℃ | ||||||
| Operation Humidity | 10%～90% | ||||||
| Input Voltage(AC) | AC90-264V,47-63Hz | ||||||
* Specifications and photos are subject to change without prior notice.
