Indoor Ultra High Definition LED Screen
● Large Viewing Angle
● Ultra Slim & Light Design
● 2K / 4K / 8K with 16:9 Ratio
● Cable-free Design, Easy Installation
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Cabinet Dimension Ratio 16比9

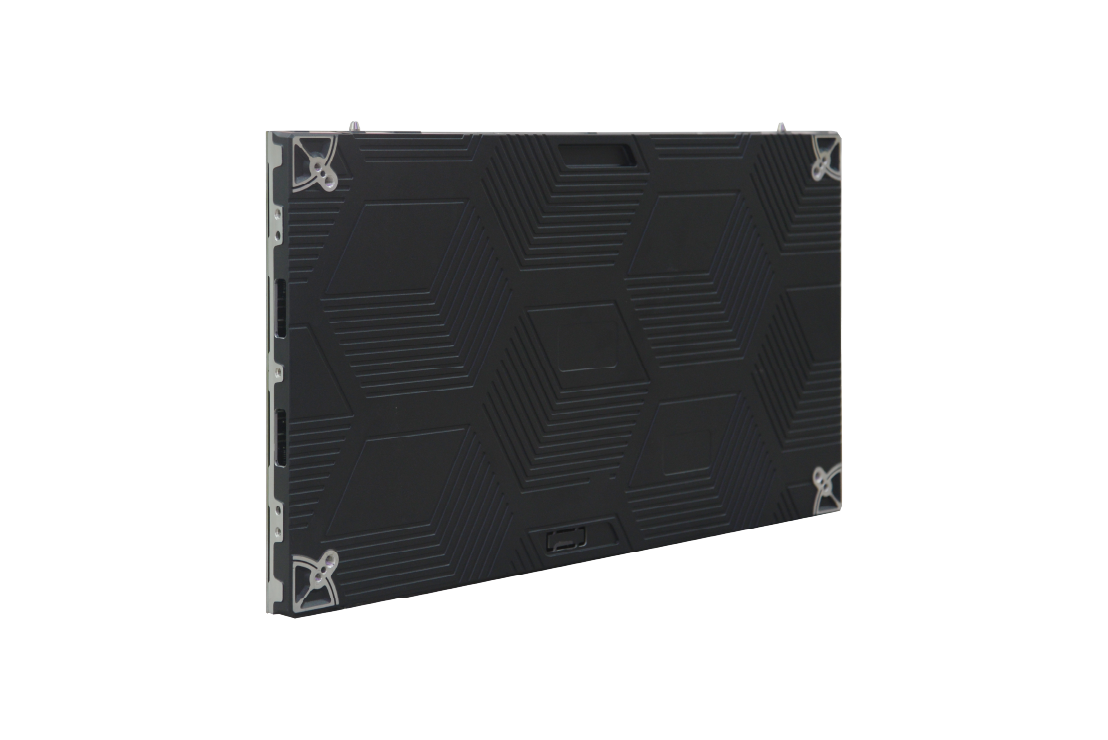

Cable Free Connection
Dual Backup Power & Data
Front Maintenance & Front
High Refresh Rate & High Grey Scale
Ultra Light and Ultra Thin
Front / Rear Service
Chip on Board (directly mounting the LED chips onto the board), Flip-Chip, solder LED chip on PCB and seal with epoxy resin, reduce the risk of soldering wire and improve the stability, wider viewing angle and super high protection. Super thin and light weight for indoor application. 16:9 gold aspect ratio achieve as superior display effect as TV, with premium quality & elegant appearance. Multiple installation ways such as wall-mounted, hanging and floor standing. Available for control room, theater, studio conference, shopping and church etc.

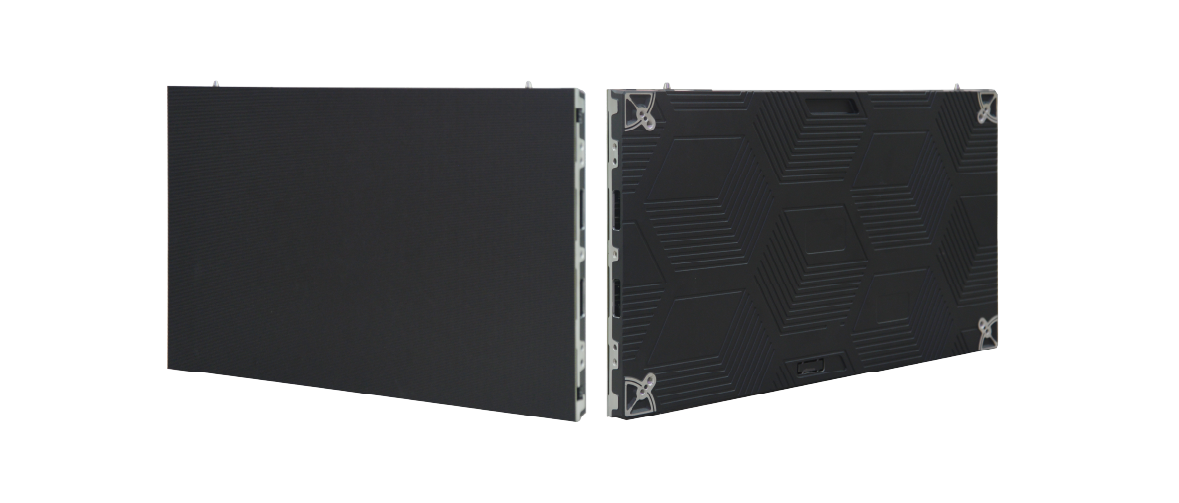

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

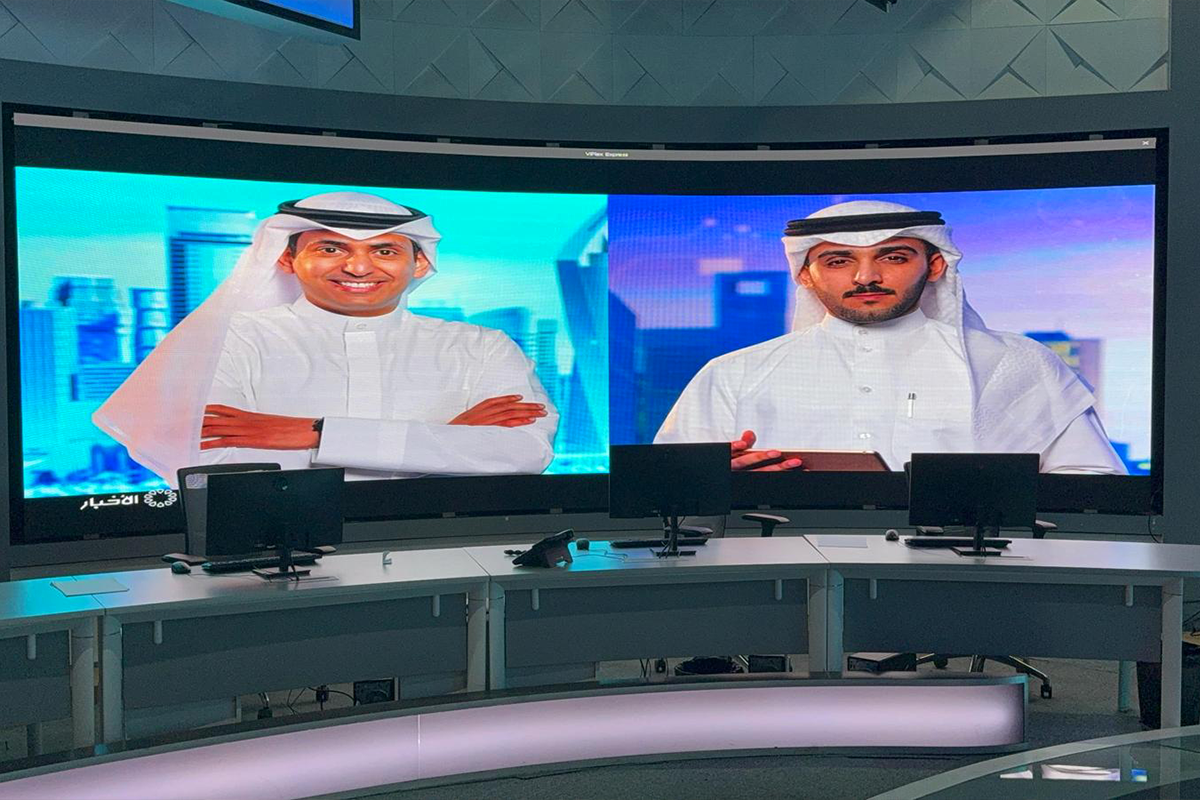

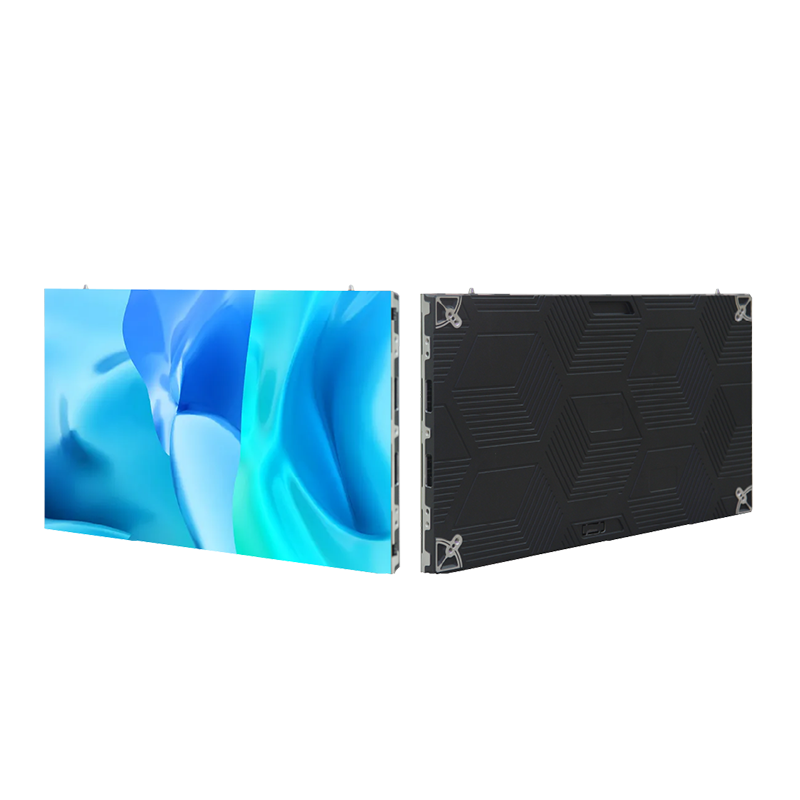

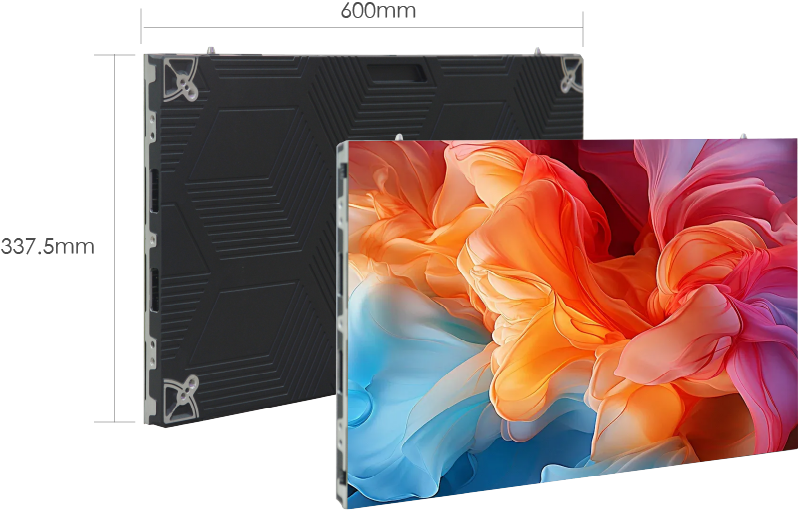

600×337.5mm cabinet dimension create the 16:9 ratio.It
offers a balance that enhances viewing experiences,
making it ideal for movies, TV shows, and video games.
Faster setup, save labors, save time, save cost during LED screen
installation, simple, easy, convenient, new user friendly, neat cables
arrangement, reduced cable clutter.

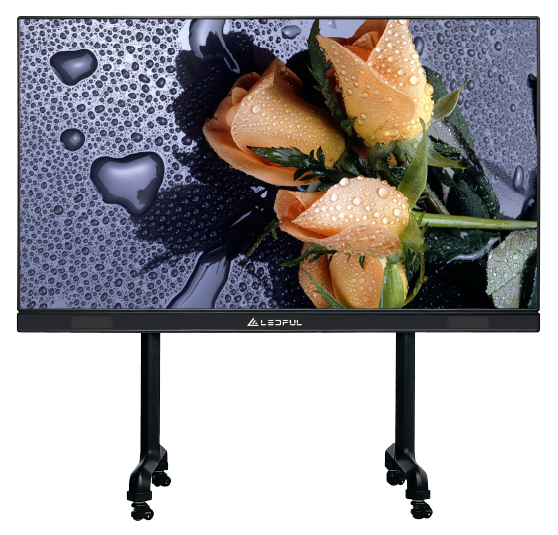

CPoster plug and play, freestanding with wheels,
movable, all-in-one LED poster, born for conference
room, touch function is optional.

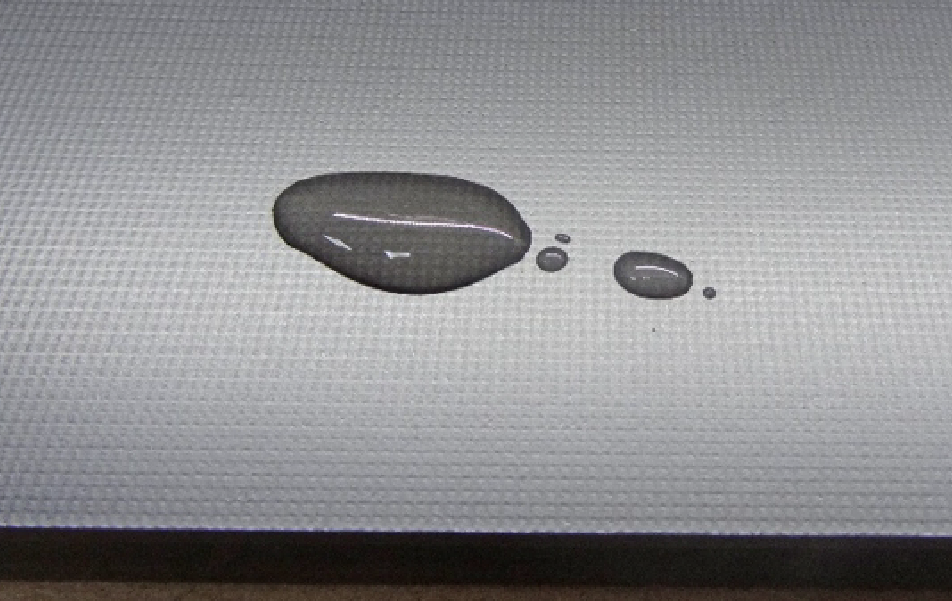

Protection grade IP65, waterproof, dustproof, anti-oxidation,
anti-static and anti-shock, more stable performance,
improved lifespan of screen.

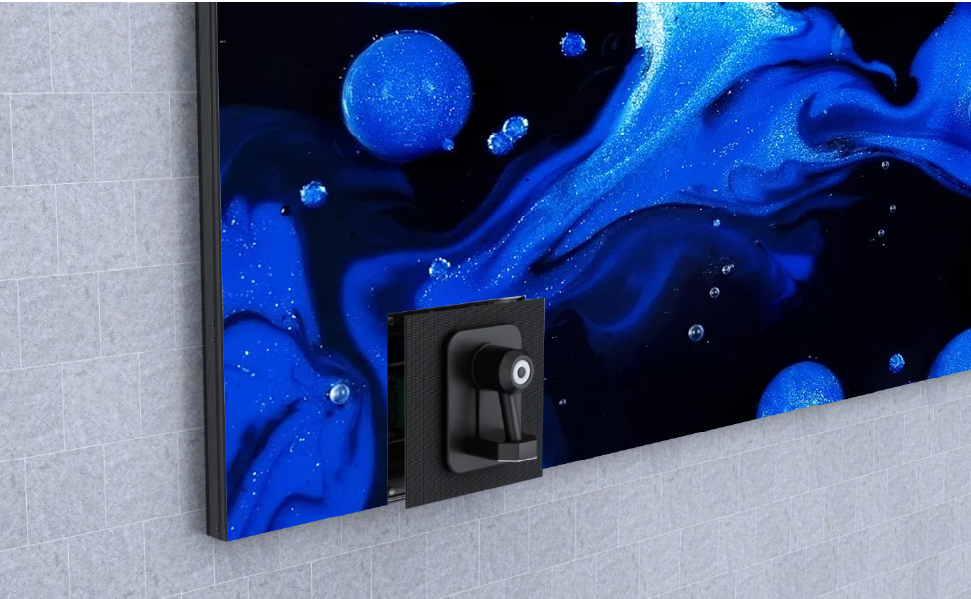

Easier and faster installation and maintenance, anyone can replace
LED modules with a special suction tool, easy, quick, convenient,

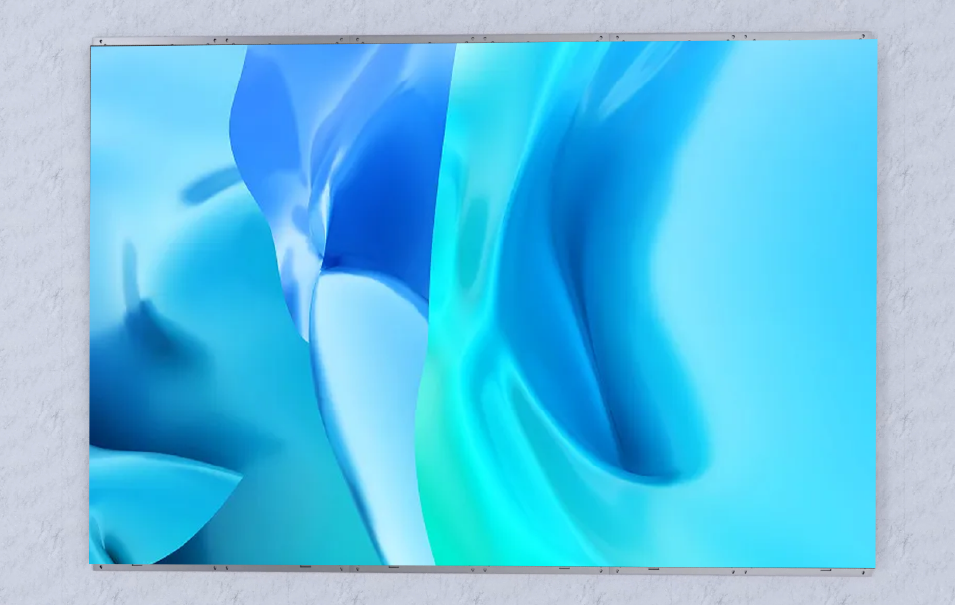

only 1 second with our cable-free design. Flexible in location, can
be mounted to the wall directly.

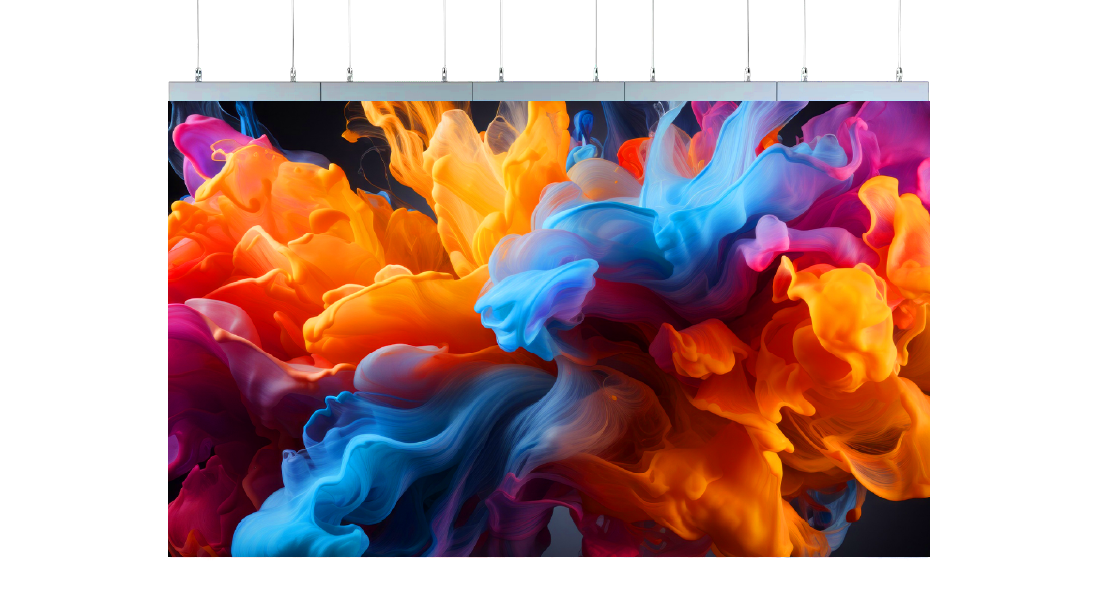

Super light only 25kg/sqm and strong hanging bars ensure
hanging installation without safety concern.
High strength, better flatness with tolerance less than ±0.1mm,
makes LED screen real seamless and perfect flatness. Better
heat-dissipation, longer working lifespan.
● 16bit grayscale
● 10000:1 contrast ratio
● Seamless splicing, no any lines between cabinets
● Low blue light damage, UHD, 3840HZ high refresh, full color
● Ultra-wide viewing angle, horizontal and vertical viewing angles
reach 170°
● Energy efficiency, reduced energy consumption, having a
positive environmental impact
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

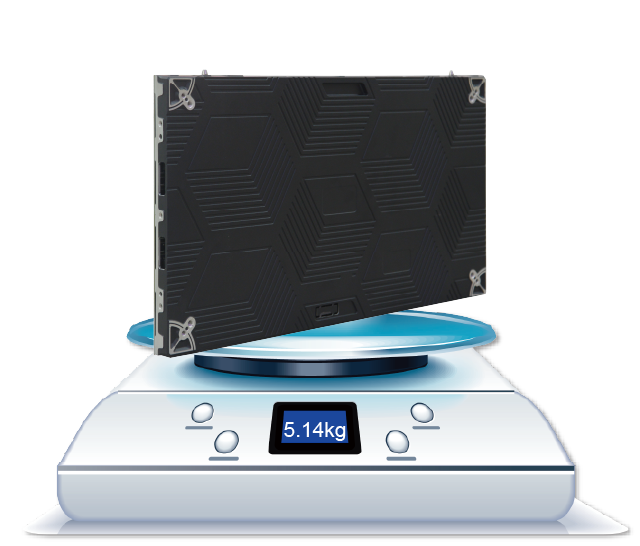

25mm product depth & per cabinet is only 5.14kg/pcs.
LED screen with brackets installation depth 54mm,
without brackets installation depth 39mm, super thin
like TV, bringing perfect appearance.
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | COB0.9(Flip-Chip) | COB1.2(Flip-Chip) | COB1.5(Flip-Chip) | COB1.8(Flip-Chip) |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.56 | 1.875 |
| Pixel Matrix Per Sqm. | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Pixel Configuration | COB 1R 1G 1B | |||
| Brightness (nits) | 600-800 | |||
| Scan | 1/60 | 1/45 | 1/48 | 1/30 |
| Module Dimension | 150×168.75mm | |||
| Cabinet Dimension | 600×337.5x25mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | 5.14KG | |||
| Power Con. (W/Sqm.) | Max.300W/Avg.100W | |||
| Service Access | Full Front Access | |||
| Refresh Rate (HZ) | ≥3840 | |||
| Grey Scale(bit) | 16bit | |||
| Contrast Ratio | 10000:1 | |||
| Viewing Angle (H/V) | 170°/170° | |||
| IP Rate | IP65 (front) | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage (AC) | AC110/220V,50-60Hz | |||
| * Specifications and photos are subject to change without prior notice. | ||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
