Indoor & Outdoor High Level LED Screen
● Ultra Strong Cabinet Design
● Status Monitor LCD on Backside
● One Second Exchangeable Control Box
● 7680Hz, 10,000:1 Contrast, High Brightness, etc.
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Second Exchangeable Box
Concave / Convex Curved Shape
Front / Rear Service
Light and Thin

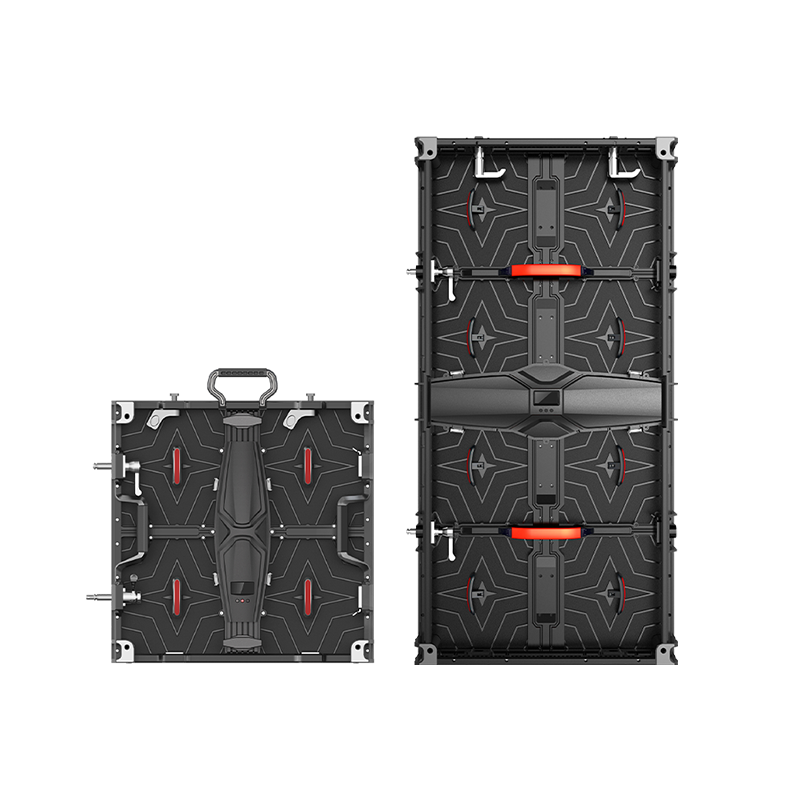

XT Series is a high-end product with high quality and unique designs. Premium quality & novel appearance design, multi cabinet sizes for flexible splicing, beveled cabinets for right angle, various installation ways like hanging, free standing, wall mounting, etc. It’s great choice for Indoor and outdoor live shows, music festival, film shooting, exhibition, broadcasting, conference, stage, party, sports activity, wedding, game shows, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

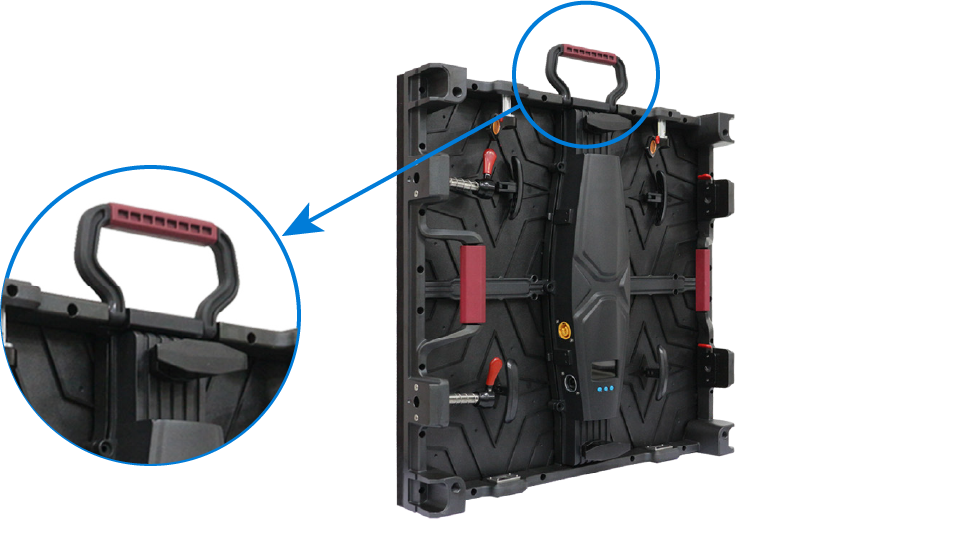

Easy to grasp and carry when you build the screen.
Only 8KG for easily installation and disassembling.

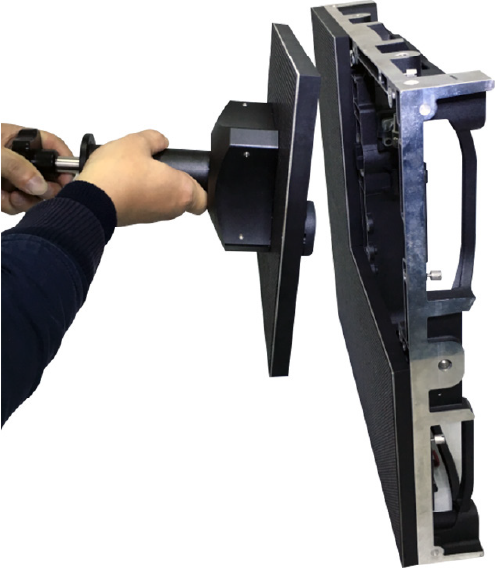

Front maintenance option is necessary when there is no enough space behind the screen for rear service.
You can remove the LED modules by our front maintenance suction tool, easy, quick and convenient.

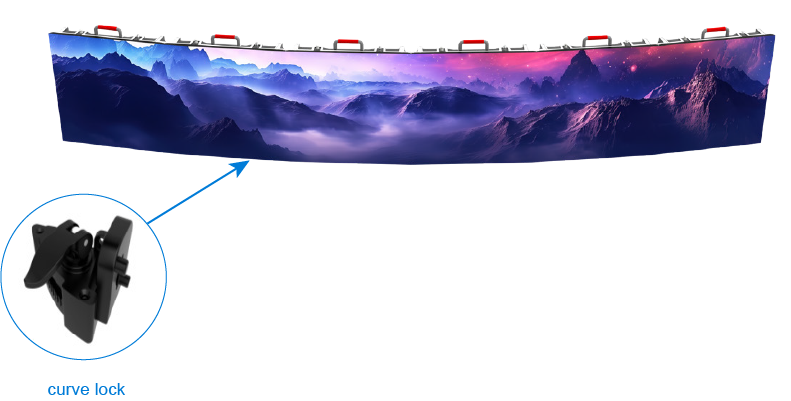

Support curved cabinet adjustment by yourself.
-10°~ +15° ultra-wide and ultra-curved LED Display.
Two rotary knobs make the control box exchangeable in 1 second.
Very fast disassembly and installation with one whole control box included power supply, receiver card, all cables, HUB board inside it. It can save a lot of time to maintain defective parts when the events is going on.
No light leakage design with specific strips on side of cabinet and behind neighbour module.

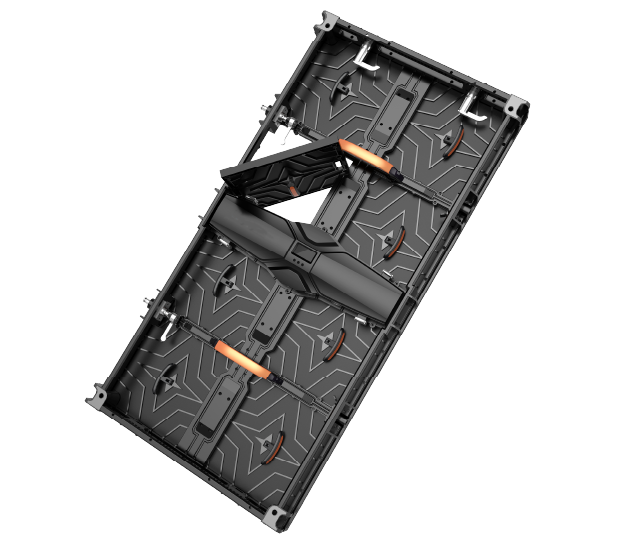

Hanging or stacking, X & T series with light and thin features makes installation faster and easier.4 quick locks on each LED cabinet for easily and quickly cabinets assembly, 1~3 hours for normal size screen.

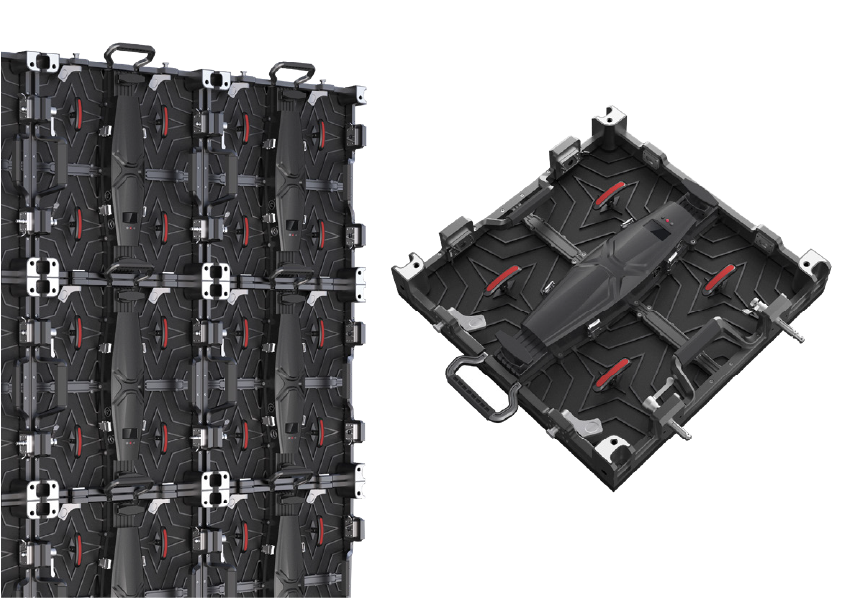

Help to find the right positions to connect two cabinets together quickly. More accurate, convenient and faster.

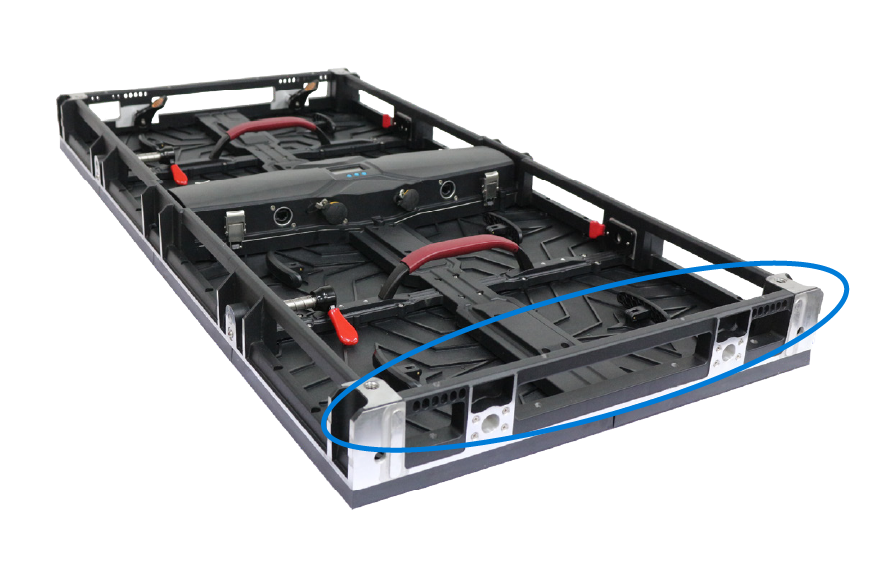

Climbing structure can help you make convenient Maintenance.
This design can prevent the module from slipping or bumping when replacing the module during maintenance.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

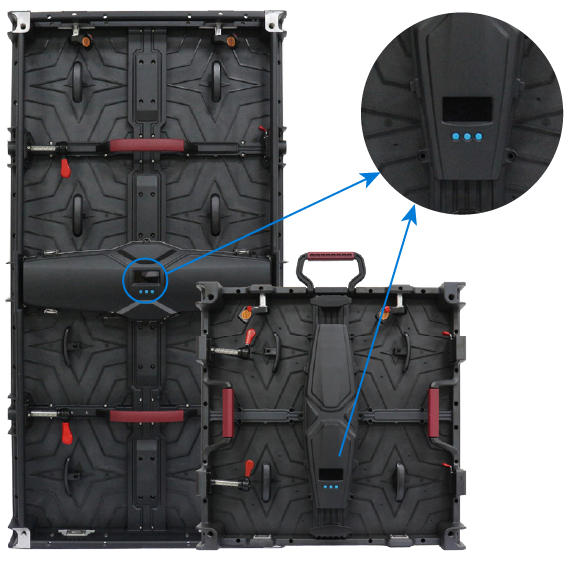

A small LCD screen on each LED panel will show the working hours, temperature, current, voltage, etc. You can control and manage all LED panels well.
If you have no idea about how long the panels have worked, you can know that by status LCD, so that you can balance the brightness and lifespan of all your panels.

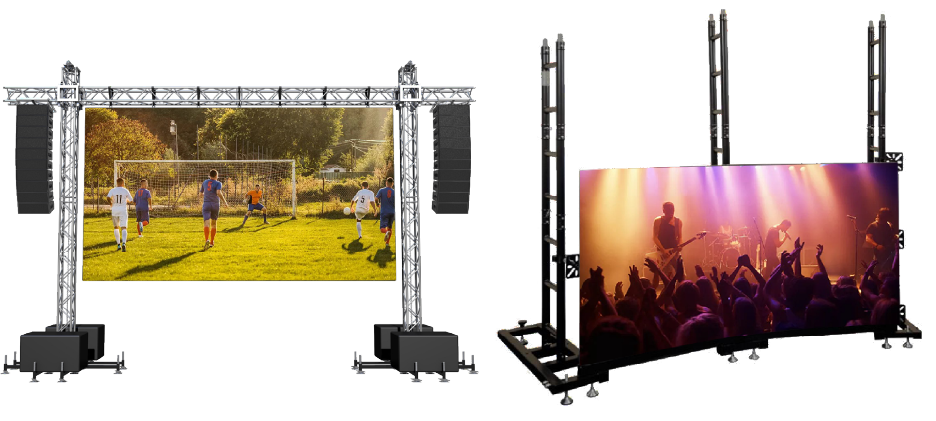

Truss, Floor stacking structure, tend and stage, etc. LEDFUL Provides all kinds of structure to fit your rental LED screen.

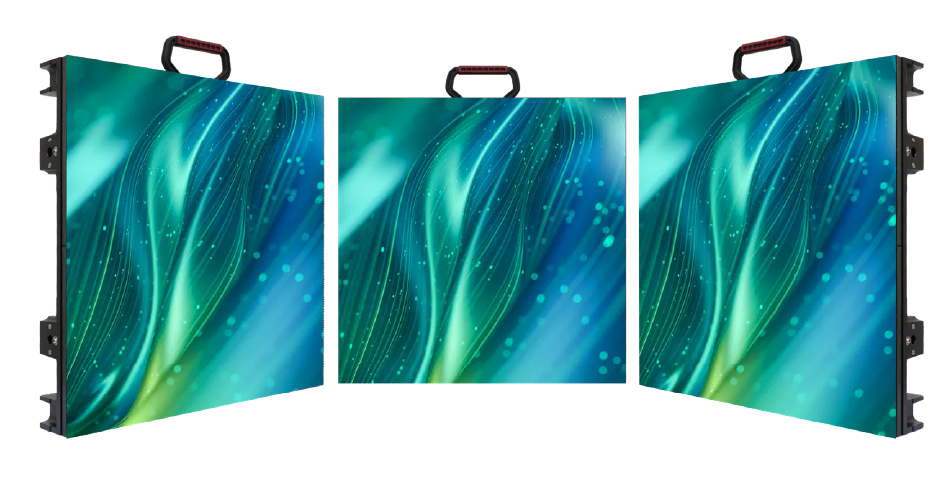

The response speed exceeds the response limit of the naked eyes while playing the high speed dynamic images in an LED Screen, it wil have more advantages, there will be no ghosting or twisting and it will perfectly provide the dynamic images.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.

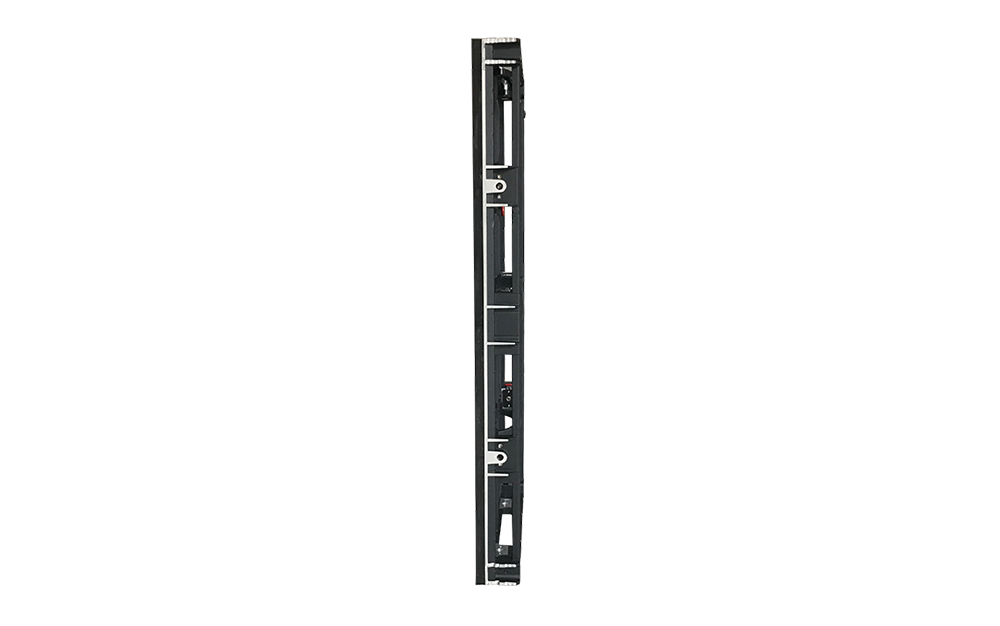

LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | XI1.5 GOB | XI1.9/TI1.9 | XI2.5/TI2.5 | XI2.6/TI2.6 | XI2.9/TI2.9 | X13.9/T13.9 | XI4.8/HI4.8 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Brightness (nits) | 800 | 900 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Scan | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | ||||||
| Cabinet Dimension | X—500x500mm T—500X1000mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | X—8kg T—14KG | ||||||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | ||||||
| Service Access | Rear Service(Front Service Optional) | ||||||
| Refresh Rate(HZ) | ≥3840 | ||||||
| Grey Scale (bit) | 16 | ||||||
| Viewing Angle(H/V) | 160°/160° | ||||||
| IP Rate | IP43 | ||||||
| Operation Temperature | -20℃~+60℃ | ||||||
| Operation Humidity | 10%～90% | ||||||
| Input Voltage(AC) | 110V/240V | ||||||
| * Specifications and photos are subject to change without prior notice. | |||||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
