Circle Series

Creative LED Display

Applications

circle-series-applications

Specification

ModelCircle 1.25Circle 1.53Circle 1.875Circle 2Circle 2.5
Pixel ConfigurationSMD1010SMD1212SMD1212SMD1515SMD1515
Pixel Pitch (mm)1.251.531.87522.5
Pixel Matrix (dots/㎡)640,000422,500284,444288,888160,000
Brightness(cd/㎡)600600600700800
Scan64S52S45S40S32
Module DimensionCustomized
Power Consumption(Max / Avg /㎡)820W / 250W
Cabinet MaterialIron
Service AccessFront
Viewing Angle (H/ V)160/80
Working Temperature-20℃- 40℃
Refresh Rate (HZ)1920HZ
IP RateIP30
Grey Scale(bits)16
Input Voltage (AC)110/220
Outdoor Panel OptionalIndoor/Outdoor


* Specifications and photos are subject to change without prior notice.

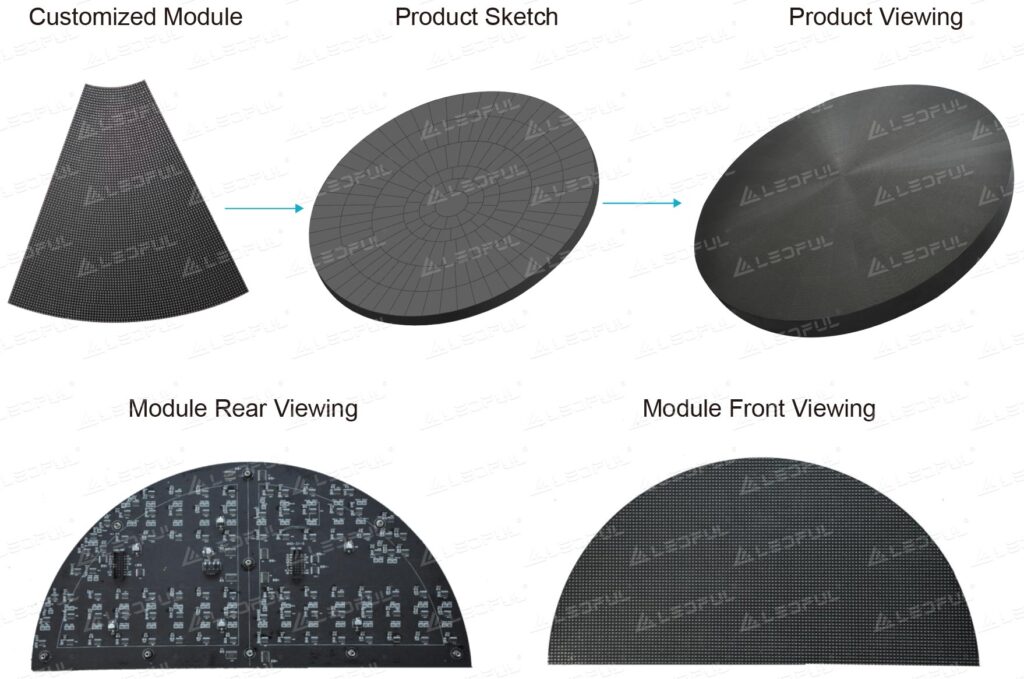

Product Appearance

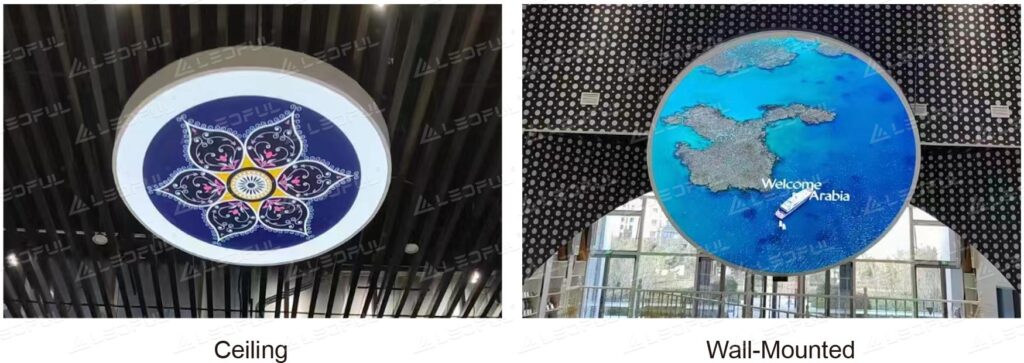

Various Installation--Ceiling, Wall-Mounted, Hanging

various-installation-ceiling-wall-mounted-hanging

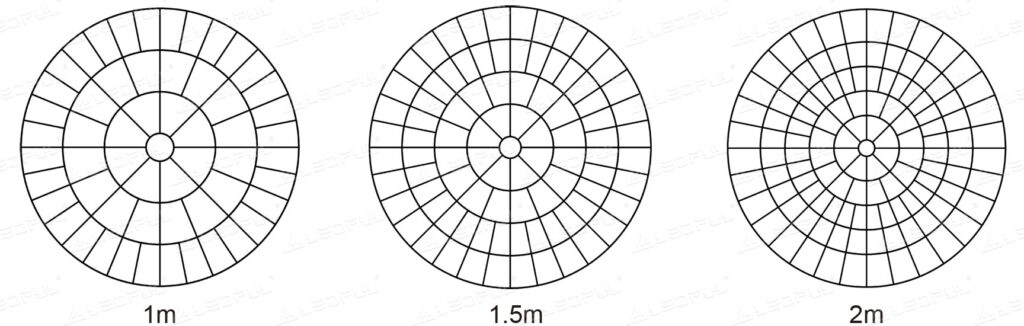

Sample of 1m 1.5m and 2m

sample-of-1m-1.5m-and-2m_1701767497

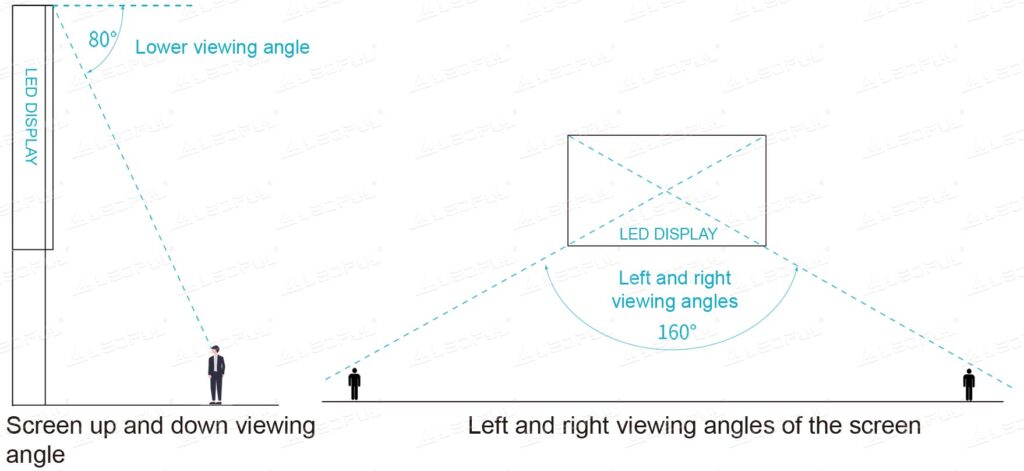

Viewing Angle

viewing-angle

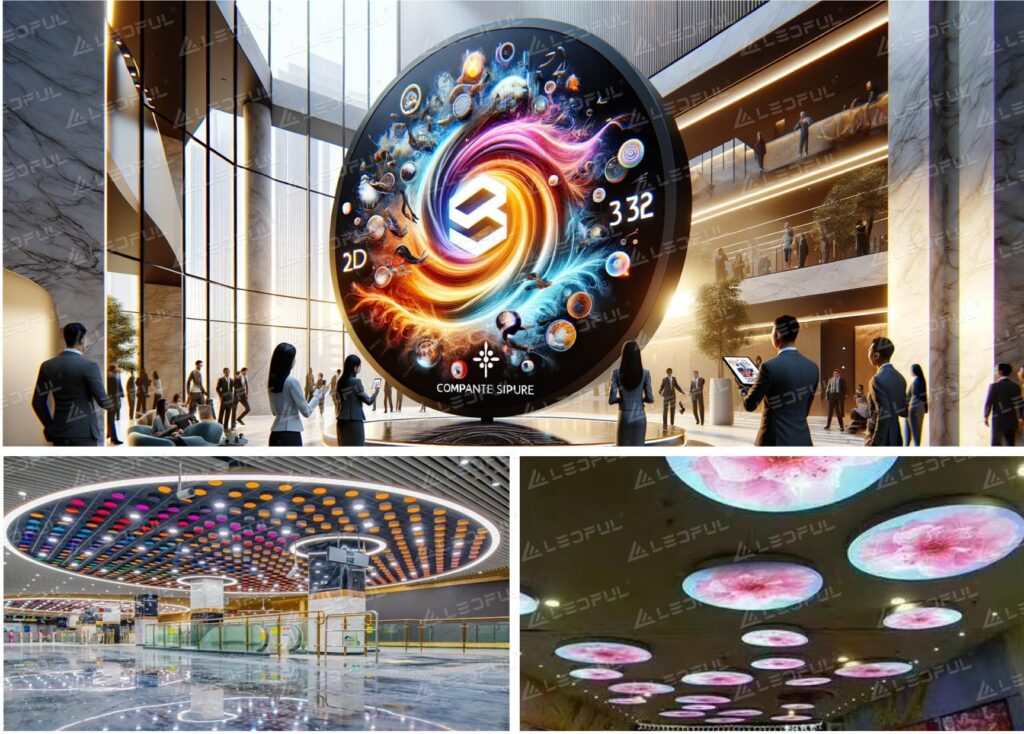

Typical Project

typical-project (1)

Features

features (1)

Parameter name

Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Model
Pixel Pitch(mm)
Pixel Matrix Per Sqm.
Pixel Configuration
Brightness(cd/Sqm.)
Scan
VI/HI1.5
VI/HI1.9
VI/HI2.5
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Module Dimension
Cabinet Dimension
Cabinet Material
Cabinet Weight
Power Con. (W/Sqm.)
Service Access
250×250mm
V--500x500mm / H--500x1000mm
Die Casting Aluminum
V--8KG / H--14KG
Max. 800W / Avg. 200-300W
Front / Rear
Refresh Rate (HZ)
Grey Scale (bit)
Viewing Angle(H/V)
IP Rate
Input Voltage(AC)
≥3840(7680)
≥16bit
160°/160°
IP31
110V/240V
