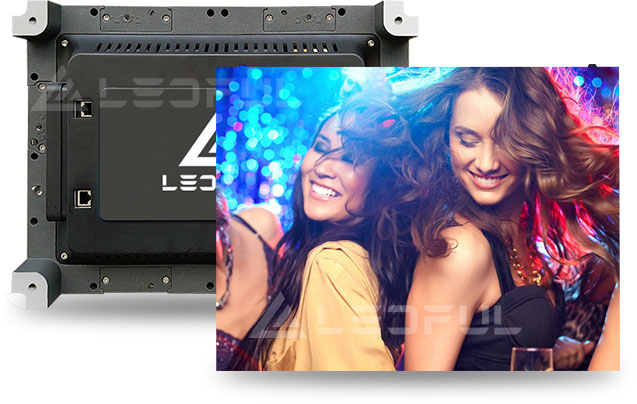

HD LED Display
| Value | HD1.2 | HD1.5 | HD1.6 | HD1.9 | HD2.5 |
| Pixel Pitch(mm) | 1.25mm | 1.5625mm | 1.667mm | 1.923mm | 2.5mm |
| Pixel Matrix Per Sq.m | 640000 | 409600 | 360000 | 270400 | 160000 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1010 | SMD2121 |
| Scan | 1/30 | 1/32 | 1/30 | 1/26 | 1/30 |
| Cabinet Resolution | 320×240 | 256×192 | 240×180 | 208×156 | 160×120 |
| Brightness (nits) | 800 | ||||
| Module Dimension | 200x150mm / 0.66×0.49feet | ||||

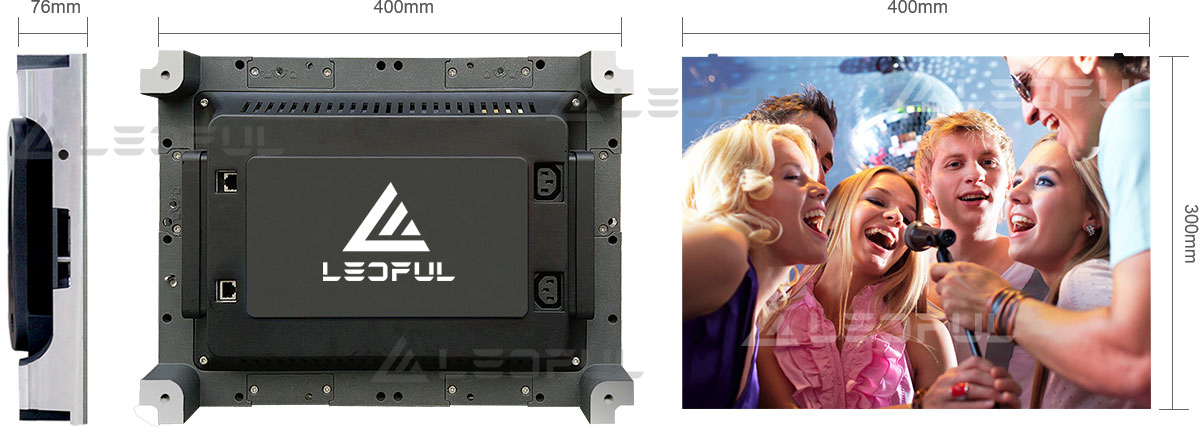

| Cabinet Dimension | 400x300x75mm / 1.31×0.98×0.25feet | ||||
| Cabinet Weight | 4.6kg /10.1Ib ( Die-casting Aluminum) | ||||
| Service Access | Front | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160 / 160 | ||||
| Power Con. (Max / Avg) | 500/ 200 w/sq.m | ||||
| IP Rate | IP31 | ||||
| Input Voltage (AC) | 110 / 240 | ||||

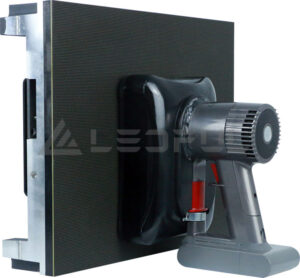

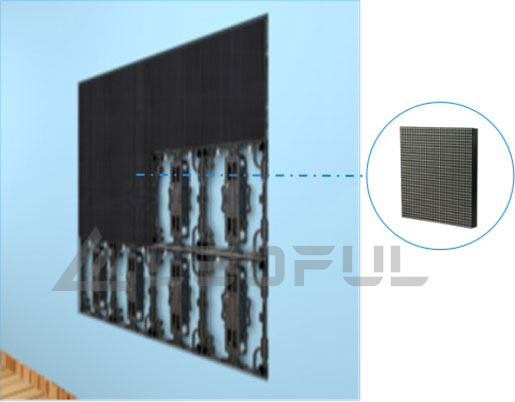

LED modules, power supply, receiver card, hub card, cables are all front service.

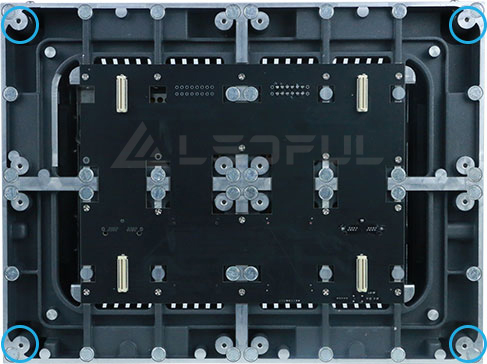

Each corner of cabinet has a screw hole, screw M8 bolts to fix bare cabinet on the wall.
Assembly modules onto the cabinet.
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

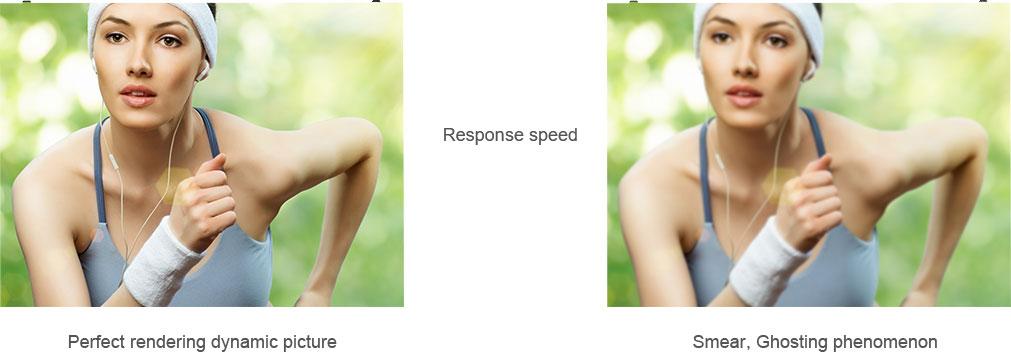

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.

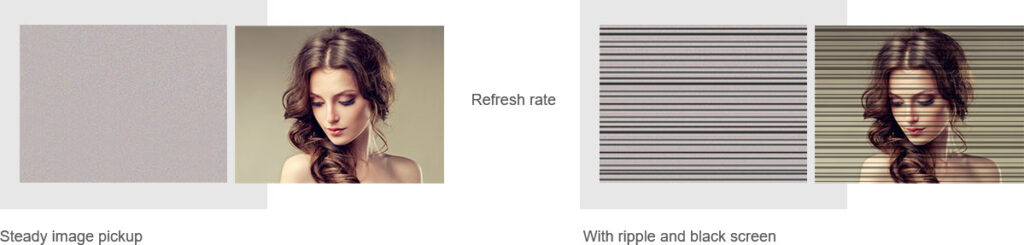

It could be reach 3840HZ.
It has almost the perfect gray scale and gives true color of the images,
there will have no data loss and you could see every details clearly.
