Flexible and Creative LED Display
| Model | P1.56 | P1.86 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.56 | 1.86 | 2 | 2.5 | 3 | 4 |
| Pixel Matrix Per Sq.m | 406210 | 288906 | 250000 | 160000 | 105625 | 62500 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (nits) | 800 | 800 | 900 | 900 | 900 | 900 |
| Scan | 1/43 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Module Dimension | 320x160mm / 1.05×1.05ft | 320x160mm / 1.05×1.05ft | 320x160mm / 1.05×1.05ft | 320x160mm / 1.05×1.05ft | 320x160mm / 1.05×1.05ft | 320x160mm / 1.05×1.05ft |
| Module Material | Silicon Rubber Soft Bracket | Silicon Rubber Soft Bracket | Silicon Rubber Soft Bracket | Silicon Rubber Soft Bracket | Silicon Rubber Soft Bracket | Silicon Rubber Soft Bracket |
| Module Weight | 0.215kg | 0.203kg | 0.195kg | 0.216kg | 0.205kg | 0.175kg |
| Power Con. (Max / Avg) | 1000 / 340 w/sq.m | 1000 / 340 w/sq.m | 800 / 270 w/sq.m | 800 / 270 w/sq.m | 800 / 270 w/sq.m | 800 / 270 w/sq.m |
| Service Access | Front | Front | Front | Front | Front | Front |
| Refresh Rate (HZ) | 3840 | 3840 | 3840 | ≥2880 | ≥2880 | ≥1920 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP45 | IP45 | IP45 | IP45 | IP45 | IP45 |
| Operation Temperature | -10° ~ 50° | -10° ~ 50° | -10° ~ 50° | -10° ~ 50° | -10° ~ 50° | -10° ~ 50° |
| Input Voltage (AC) | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V |
* Specifications and photos are subject to change without prior notice.

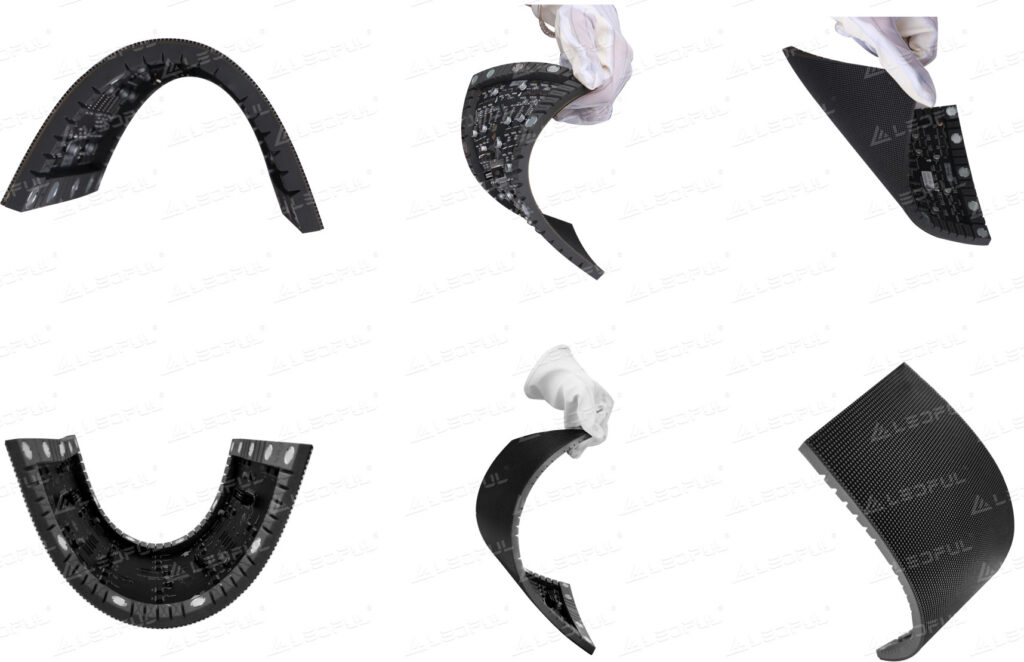

Maximum curved angle is 90 degree.
