KINETIC Series

Kinetic LED Display

● Modular Design
● Ultra-thin gap
● Independent Software
● Multiple Noise Reduction
● Front & Rear Maintenance
● Precision Matching Technology

Product Features

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…

Modular Design

Multiple Noise Reduction

Easy Maintenance

Precision Matching Technology

Independent Software

1200x800

Product Introduction and Applications

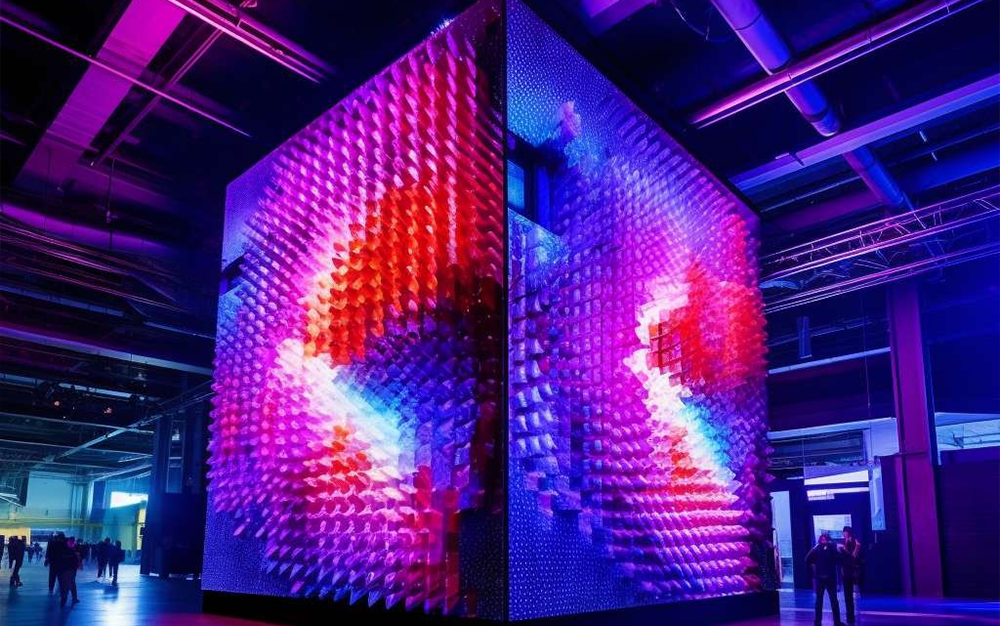

A kinetic screen is a high-end device that brings an immersive 3D experience through synchronized Z-axis motion. As an “all-in-one” rental solution, its advantages in quick setup and impactful visual effects ensure your event stands out from the start, adapting well to both indoor and outdoor environments!

Ceiling Installation

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

Why choose Kinetic Display?

Kinetic LED Display is an important choice for advertisers who pursue novelty and eye-catching. It can bring higher advertising exposure and conversion rate, and expand its application scenarios and market space.

Why-choose-Kinetic-Display
Kinetic-LED-Display Die-Casting-Aluminum-Cabinet-and-Module

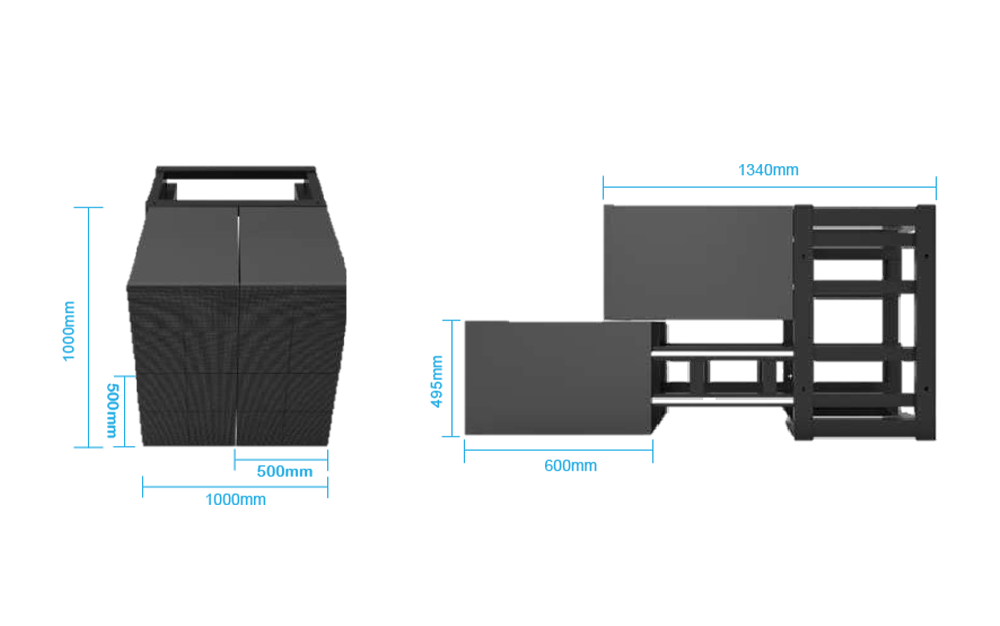

Die-Casting Aluminum Cabinet and Module

500mmx500mm 4-in-1 independent die-casting aluminium cabinet, more accurate and faster installation.
* 500×500 cabinet by 250×250 module or 640×480 cabinet by 160×160 module

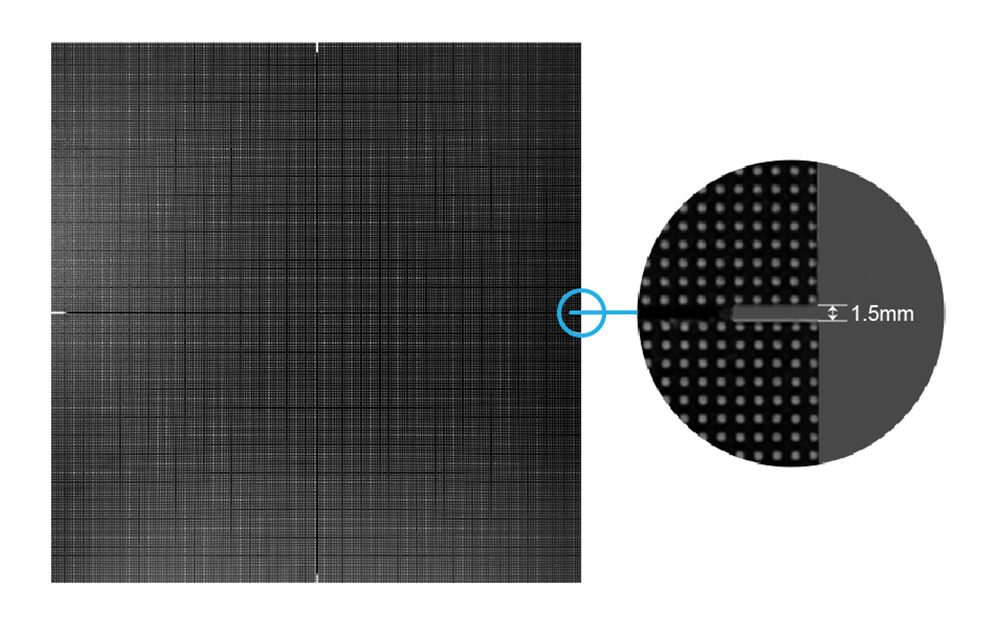

Small Space Between Modules

Only 1.5~2mm space enables the continuity of the moving image.

Kinetic-LED-Display Small-Space-Between-Modules
Kinetic-LED-Display -Interactive-Function

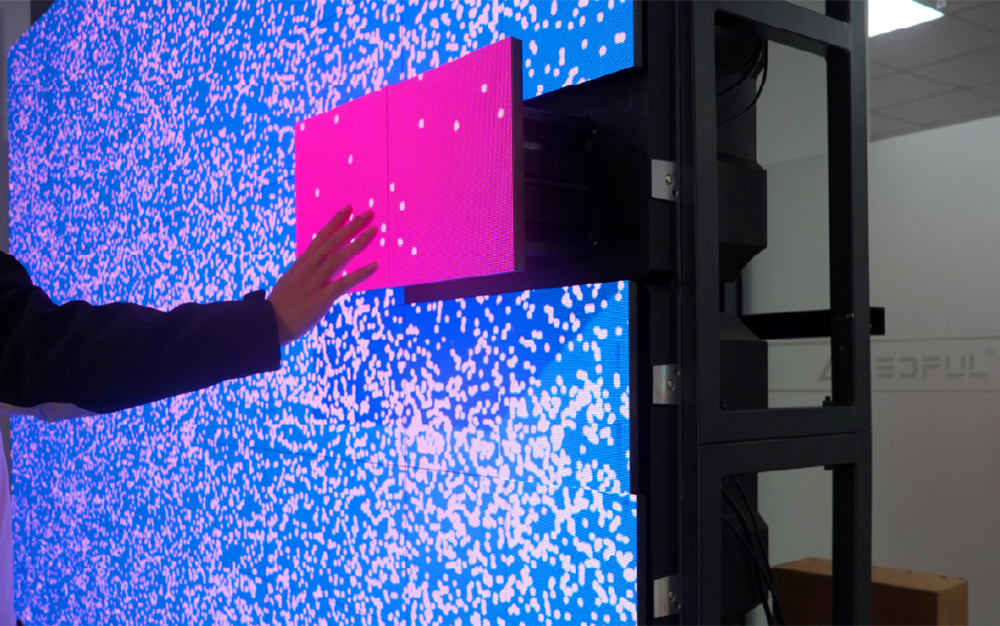

Interactive Function

With radar set, it supports event-triggered interaction, real-time interaction and other methods to bring real-time fun and participation to the audience.

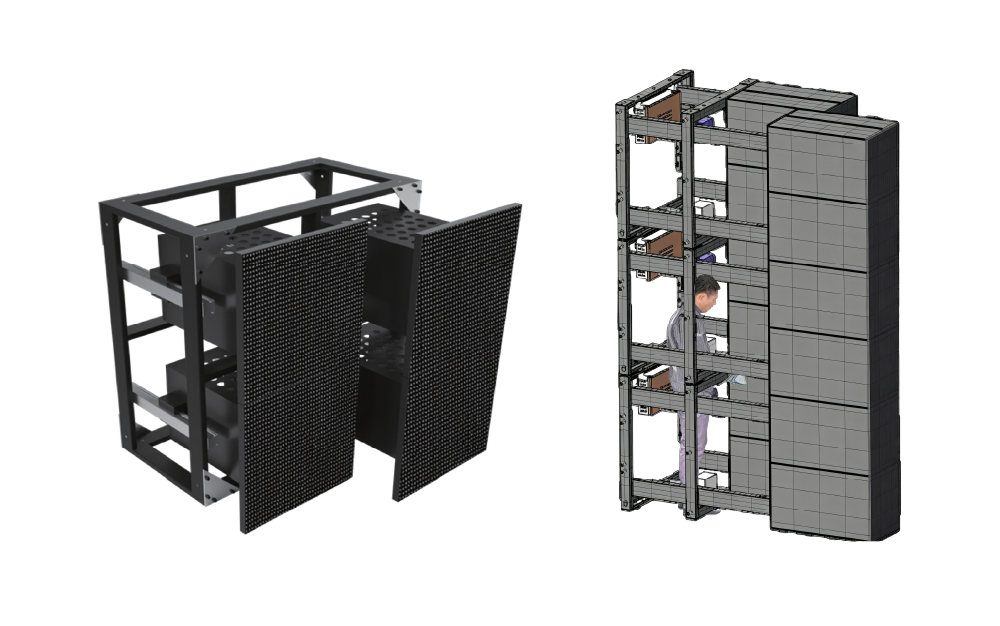

Front & Rear Maintenance

Dual service mode of front and rear design to save your Maintenance Time and Cost.
Indoor : Front Maintenance
Outdoor : Rear Maintenance

Kinetic-LED-Display Front-&-Rear-Maintenance
Kinetic-LED-Display Quick-Lock-Ensures-Fast-Assembly

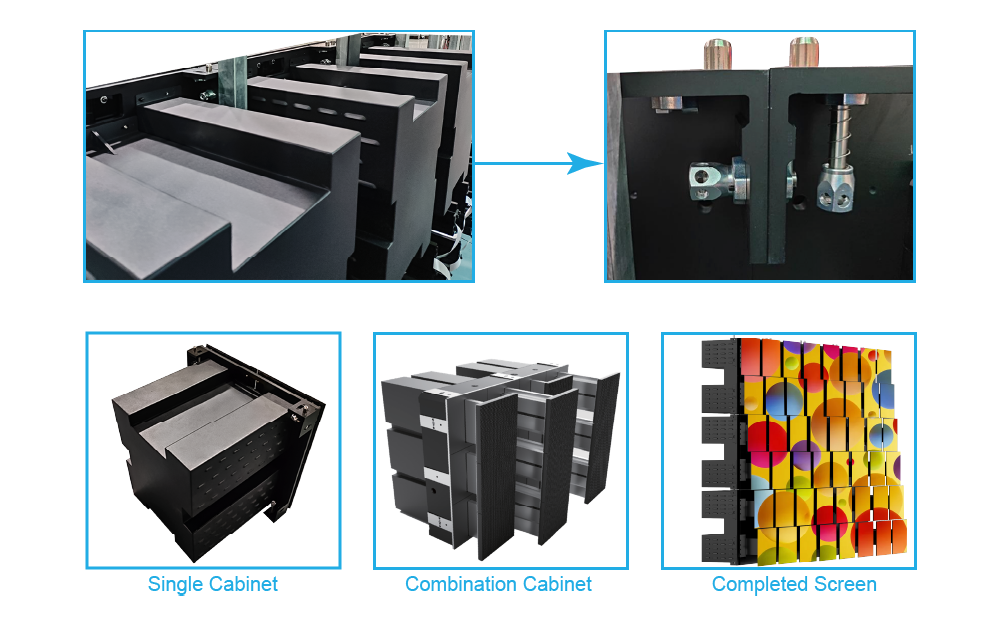

Quick Lock Ensures Fast Assembly

It enables quick installation, tool-free operation, and enhanced safety while reducing assembly time and labor costs. It also ensures reliable connections and maintenance convenience for users.

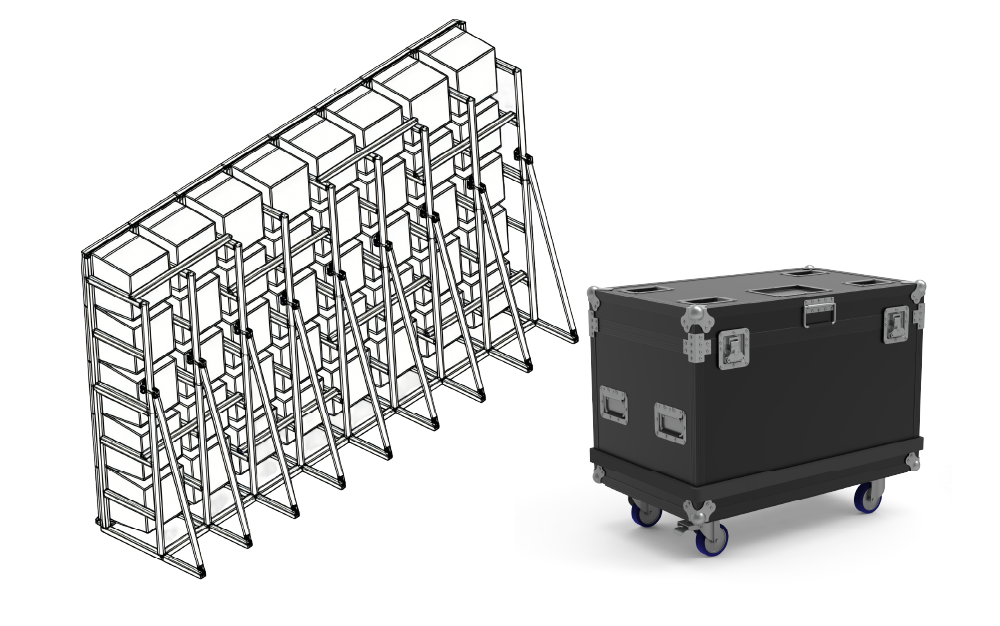

Rental Installation Method Available

Movable Lightweight Structure makes sure any place to use KINETIC screen and on-site quick set-up.

Kinetic-LED-Display Rental-Installation-Method-Available
Kinetic-LED-Display Convenient-Operation-for-Creative

Convenient Operation for Creative Workflow

Mechanical part controlled by DMX512 and Display part controlled by Video Processor. Combined operation for the best visual performance.

Multiple Noise Reduction Design

Adopt closed-loop stepping drive system, effectively reduce 70% noise.

Kinetic-LED-Display Multiple-Noise-Reduction-Design
Kinetic-LED-Display Strong-Weather-Resistance

Strong Weather Resistance

Withstand severe weather such as typhoons, heavy rains,sand and dust, high temperatures, and severe cold temperature.

Kinetic Screen Specifications

● 125-150-I: Compact design with a maximum stroke of 150mm, ideal for small indoor installations requiring subtle motion effects.
● 250-250-I: Mid-sized indoor model with a 250mm stroke, balancing footprint and movement range for medium-scale venues.
● 250-300-O: Outdoor-rated model with a 300mm stroke, optimized for larger outdoor spaces and more pronounced wave effects.
● 500-600-O: Large-scale outdoor model with a 600mm maximum stroke, designed for grand venues requiring dramatic, wide-range kinetic movements.
※Each model’s dimensions and stroke capacity are tailored to specific indoor/outdoor use cases, ensuring flexible application across various event and architectural scenarios.

Kinetic-Screen-Specifications
Model-selection-reference-1

Model selection reference

Recommended minimum area: (10 units horizontally and 10 units vertically, for a total of 100 units, which can better present a 3D visual effect.)
Indoor 250 model:10*10*0.25*0.25=6.25㎡(25 cabinets)

Visual Design Principles

Horizontal Field: The central ±30° zone offers the sharpest clarity and color accuracy for core content. The ±60° binocular zone supports stereoscopic vision, while peripheral vision (up to ~104°) only detects motion, ideal for ambient effects.

Vertical Field: The 0° horizontal line is the most comfortable viewing point. The ±30° range is best for key information; content beyond ±50° is easily overlooked.

Visual-Design-Principles
Model-selection-reference

Model selection reference

●(125-150-I) Model: With a 2m screen height, its best viewing range starts at 1.5m, ideal for close-range indoor applications.
●(250-250-I) Model: Featuring a 2.5m screen height, it delivers clear visual performance at 2.5m, suitable for medium-distance scenarios.
●(250-300-O) Model: Designed for outdoor use, its 9.5m tall screen ensures optimal visibility from 6m away, adapting to large-scale outdoor environments.
●(500-600-O) Model: Built for long-distance viewing, the 15m high screen offers sharp recognition starting at 10m, perfect for large venues.

How to use kinetic Display?

1)Solution Selection
We recommend that the device have at least 12 rows and 12 columns (144 motion units). Too few units will not be able to fully utilize the coordination between mechanical movement and the image.

Area:
1) Module 128*128mm: 2.3㎡ 0.0164㎡ per unit 8 units (4×2) 0.132㎡ per unit
2) Module 160*160mm: 3.7㎡ 0.0256㎡ per unit 12 units (4×3) 0.311㎡ per unit
3) Module 250*250mm: 9㎡ 0.0618㎡ per unit 4 units (2×2) 0.25㎡ per unit
4) Module 320*320mm: 14.9㎡ 0.102㎡ per unit 6 units (2×3) 0.622㎡ per unit
5) Module 500*500mm: 36㎡ 0.25㎡ per unit 4 units (2×2) 1㎡ per unit

The more cabinets, the more visually stunning it is.

Kenatic-Display-Interactive-Modes

kinetic Display Interactive Modes

Our kinetic Display not only delivers exceptional display performance but also integrates a variety of advanced interactive technologies, enabling true two-way interaction between the screen and the audience. It significantly enhances on-site engagement and immersion—ideal for stage performances, exhibitions, and commercial spaces—offering audiences a novel and captivating experience.

Specifications

 KINETIC-IndoorKINETIC-Outdoor
ModelKINETIC1.7-128KINETIC1.9-160KINETIC1.5-250KINETIC1.9-250KINETIC2.6-250KINETIC2.5-320KINETIC10.4-500
Pixel Pitch(mm)1.781.981.561.952.62.510.4125
Module Diamention(W×H)128×128160×160250×250250×250250×250320×160500×250
Gap between units(mm)0.5(0.3~0.7)1(0.5~1.5)2(2~2.5)2(2~2.5)2(2~2.5)2(1.5~2.5)5(3.5~6.5)
Motion Unit Dimension(WxH)(mm)128×128160×160250×250250×250250×250320×320500×500
Resolution of Unit72×7280×80160×160128×12896×96128×12848×48
Cabinet Dimension(Motion Units Qty)512×256(4×2)644×483 (4×3)500×500(2×2)500×500(2×2)500×500(2×2)640×960(2×3)1000×1000(2×2)
Cabinet Thickness (Standby mode) (mm)3803203203203206501430
Max.Forward Stroke(mm)300200200200200400600
Max.Forward Speed(mm/s)600300500500500600800
Min. Forward-back Cycle Time(s)0.50.50.50.50.511.5
Motion Qty per Sqr6139161616104
Weight per Sqr(kg)15275484848161171
Max.Power Capacity(w/m2)125096572072072011571350
Power Supply Requirement ≤3KW:220V single phase
≥3KW:380V Three phases/Five wires
Screen Brightness(cd/m2)≥600≥5000
IP RateIP55IP65
Operation Temperature0℃ ~ 40°℃-10℃~60℃
Input Voltage (AC)AC110V / 220V, 50~60Hz
Environmental AttentionsNo etchant gas, No inflammable gas, No oiled mist and dust
Heat DissipationOpen self-cooling (with fan cooling)Half-sealed self-cooling (with fan cooling)
Control SoftwareMaster software 1) After the equipment is finished, use the computer to distribute the matrix, and 1 machine matches once.(Do not need to climb to the device, manually set the < ID number > marshalling queue)
2) After the device is finished, use the computer to flatten the screen. (You don’t need to climb into the device once you’ve reached it, manually adjust by pressing keys)
3) The software can monitor the status of all the motors and configure, adjust, and update the firmware online.
4) The software can transcode the DMX512 protocol to drive the device movement. (Compatible with all stage lighting software)
Program Programming Software1) “dynamic video,” “human-computer interaction,” “3D PPT,” “interactive games,” “dance lights” a variety of programs mixed arranged in a broadcast list, loop.
2) < program content file > and < glossary > upload FTP system, provided for the device to download.
Control Center1) Control device hardware (switching, restarting, volume regulation).
2) Unified management of multiple software (video player, interactive broadcast, 3DPPT, interactive games) running, switching, pre-reading, pause, on-stage and off-stage operations.
3) Open API interface, allowing third parties to control the entire set of equipment.
Mobile phone central control1) Control equipment’s switching, restarting, troubleshooting, etc., and the machine state.
2) The mobile phone and the < Control Center > data are interconnected, and use the mobile phone to switch content.
3) The phone controls and configures the software that is running,
4) As input devices for human-machine interaction (touchscreen, camera, microphone).
Production SoftwareAffter Effices plugin
(Sports video production)
1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly.
2) Check the motion speed, when the motion speed exceeds the limit of the device, an alarm will be triggered. The software can calculate the speed of motion that meets the requirements
MShow(3D PPT)
(Speech courseware production)
1) Presentation software specifically developed for wave screens (similar to Office PowerPoint)
2) The software is for the general public, and no expertise is required to edit the coursework.
3) You can control the device’s content display through a speaker pen.

TouchDesigner plugin
(Human-computer interaction production)
1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly.
2) The running data is converted through the plug-in into motion data that our devices can read.
Stage light software
(Stage lighting effects)
1) Support ArtNet / sACN protocol (ETN)
2) Support DMX512 protocol (wired)
Unreal Engine 5 plugin
(Interactive Game Production)
 1) 3D model with a wavy screen that can be viewed in real time. The plug-in recognizes the black-and-white changes as stretching motion. See the bump effect in real time and modify it instantly.
2) The running data is converted through the plug-in into motion data that our devices can read.



Parameter name

Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Model
Pixel Pitch(mm)
Pixel Matrix Per Sqm.
Pixel Configuration
Brightness(cd/Sqm.)
Scan
VI/HI1.5
VI/HI1.9
VI/HI2.5
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Module Dimension
Cabinet Dimension
Cabinet Material
Cabinet Weight
Power Con. (W/Sqm.)
Service Access
250×250mm
V--500x500mm / H--500x1000mm
Die Casting Aluminum
V--8KG / H--14KG
Max. 800W / Avg. 200-300W
Front / Rear
Refresh Rate (HZ)
Grey Scale (bit)
Viewing Angle(H/V)
IP Rate
Input Voltage(AC)
≥3840(7680)
≥16bit
160°/160°
IP31
110V/240V
