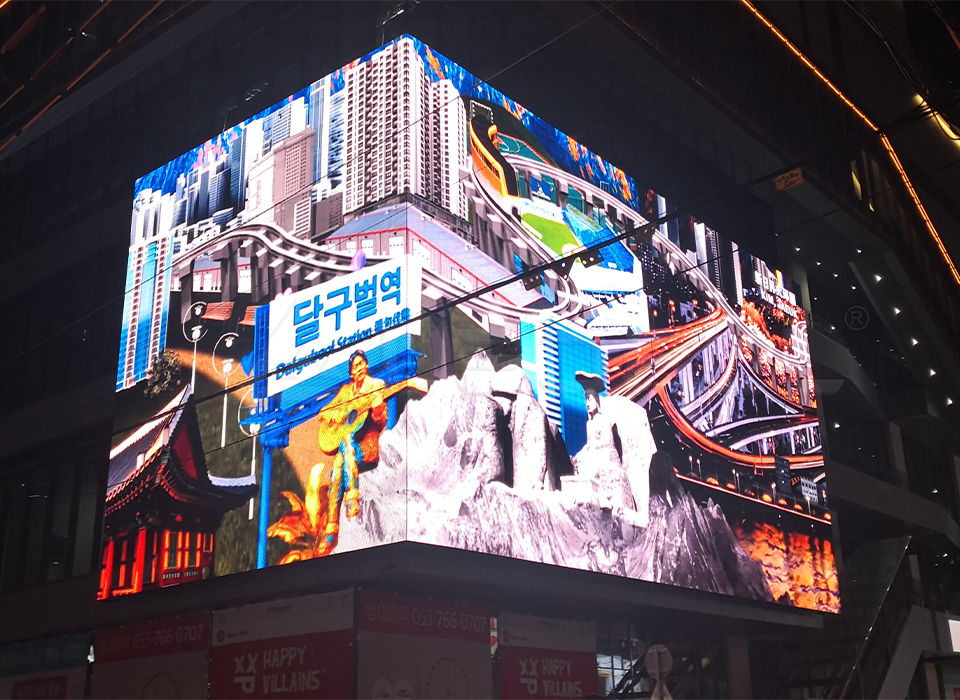

Commercial LED Advertising Display

Commercial LED advertising display is widely used in almost all applications in current market, especially for Retail, Transportation, Entertainment, Corporate, Hospitality, Casino, Real Estate. The product range includes Indoor LED screen, Flex LED screen, Round LED screen, LED poster screen, outdoor LED billboard, etc.

Future of Advertising

BM PRO Series

Super HOT Sale for Indoor LED Screen with Cable Free

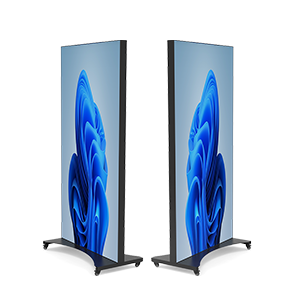

LPoster PLUS

LEDFUL Unique Poster | 960/1280mm Wider

DOOH (Digital Out Of Home) is the tendency and future of Advertising and Media business. Because location benefits, content creativity, omnichannel advertising, offline personalization, higher audience engagement, better ROI (Return On Investment), all benefits with DOOH will make your advertising products advantages attractive. LEDFUL’s LED Display with OF series, FS series, TGC series, ST series are the proper solution for the media market.

DOOH (Digital Out Of Home) is the tendency and future of Advertising and Media business. Because location benefits, content creativity, omnichannel advertising, offline personalization, higher audience engagement, better ROI (Return On Investment), all benefits with DOOH will make your advertising products advantages attractive. LEDFUL’s LED Display with OF series, FS series, TGC series, ST series are the proper solution for the media market.

1.What Is Outdoor LED Display?

Outdoor LED display refers to an electronic device that is installed in an outdoor environment and uses light-emitting diode (LED) technology to display images, text, video and other content. It usually has the characteristics of high brightness, water and dust resistance, strong weather resistance and so on. Usually the outdoor LED display will be fixed in one place and will not move after installation.

Types of commercial LED advertising displays:

High brightness: from 6000nits~10000nits high brightness, LED screen effect is still clear and bright even in direct sunlight.
Strong protection performance: up to IP65~IP68 waterproof and dustproof protection level, outdoor LED display can be operated safely in all kinds of harsh envirouments.
Wide viewing Angle: Large viewing Angle design ensures clear viewing from different directions.
Weather resistance: The use of high-quality materials, can cope with high temperature, cold, wind sand, rain and snow and other harsh environment, stable operation.
Energy saving and environmental protection: low energy consumption and no harmful substances, responding to green environmental protection needs.
Intelligent control: Support network remote real-time management and content update, improve the efficiency of information transfer.
High Resolution: High resolution presents fine picture quality.
Multi-form display: Support dynamic picture, video and text and other diverse content, strongly attract the audience’s attention.
Long life: Superior bead and circuit design provides long service life and reduced maintenance frequency.

The main components of the outdoor LED display include:
LED module: The core component, composed of lamp beads, PCB board and plastic shell, is responsible for displaying images and text.
Control system: Includes sending card, receiving card and control software for processing and transmitting content.
Power supply system: Provides stable power for the display components through the switching power supply. (Usually need to be prepared locally by the customer)
Cabinet frame: Waterproof and dust-proof design, used to protect the internal components, suitable for outdoor environment.
Heat dissipation system: Use fans or heat sinks to ensure normal operation at high temperatures.
Signal transmission system: such as data cable, network cable or optical fiber, used for the transmission of signal source content.
Installation structure: Bearing bracket or frame which ensure stable installation of equipment.

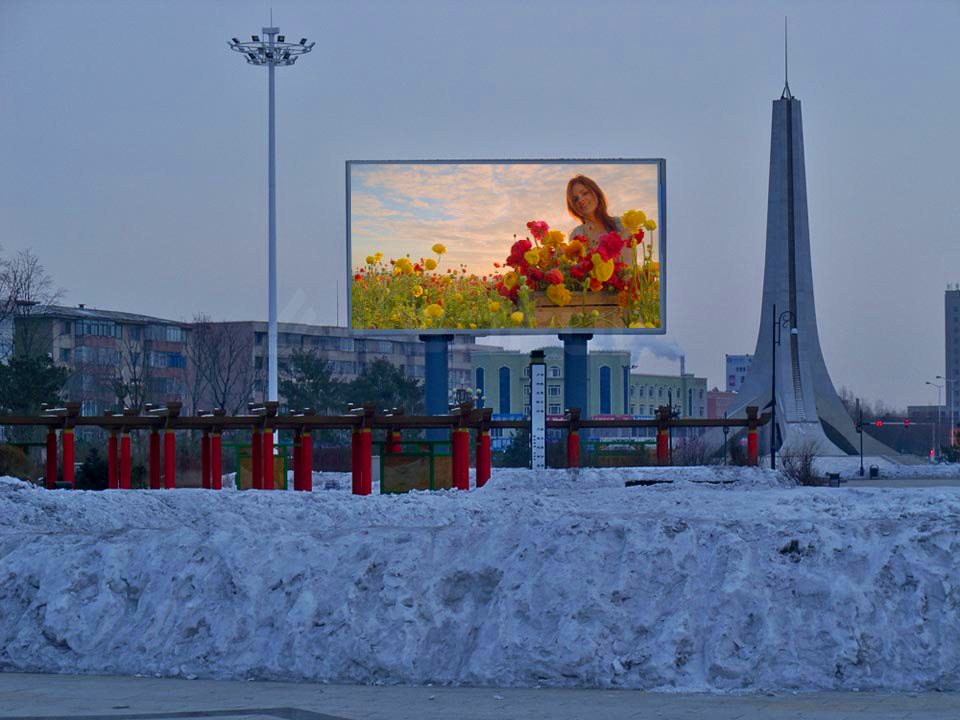

Outdoor LED display is widely used, mainly covering the following application scenarios.

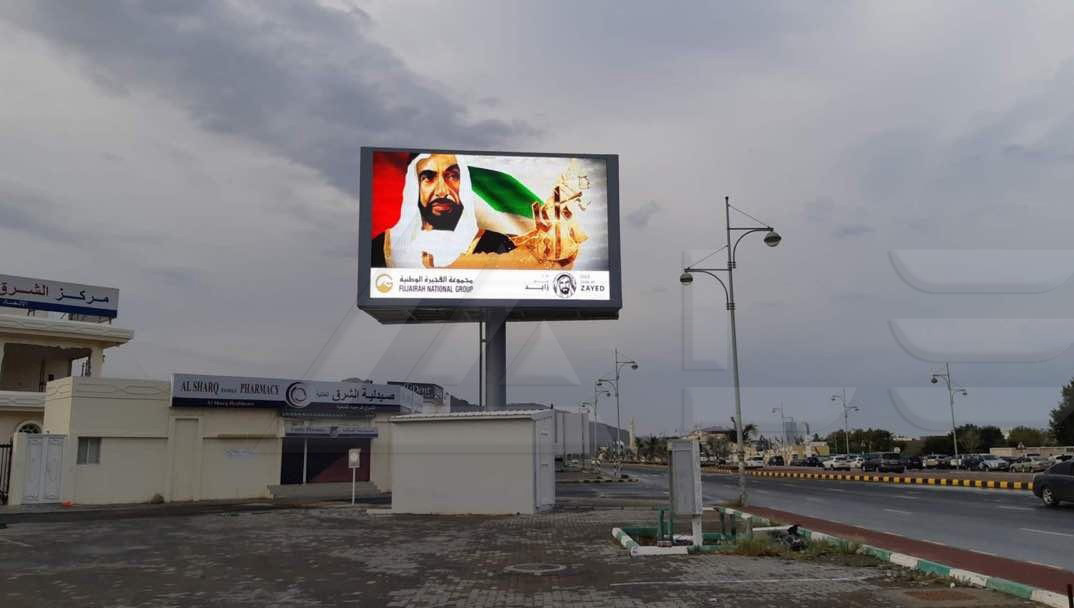

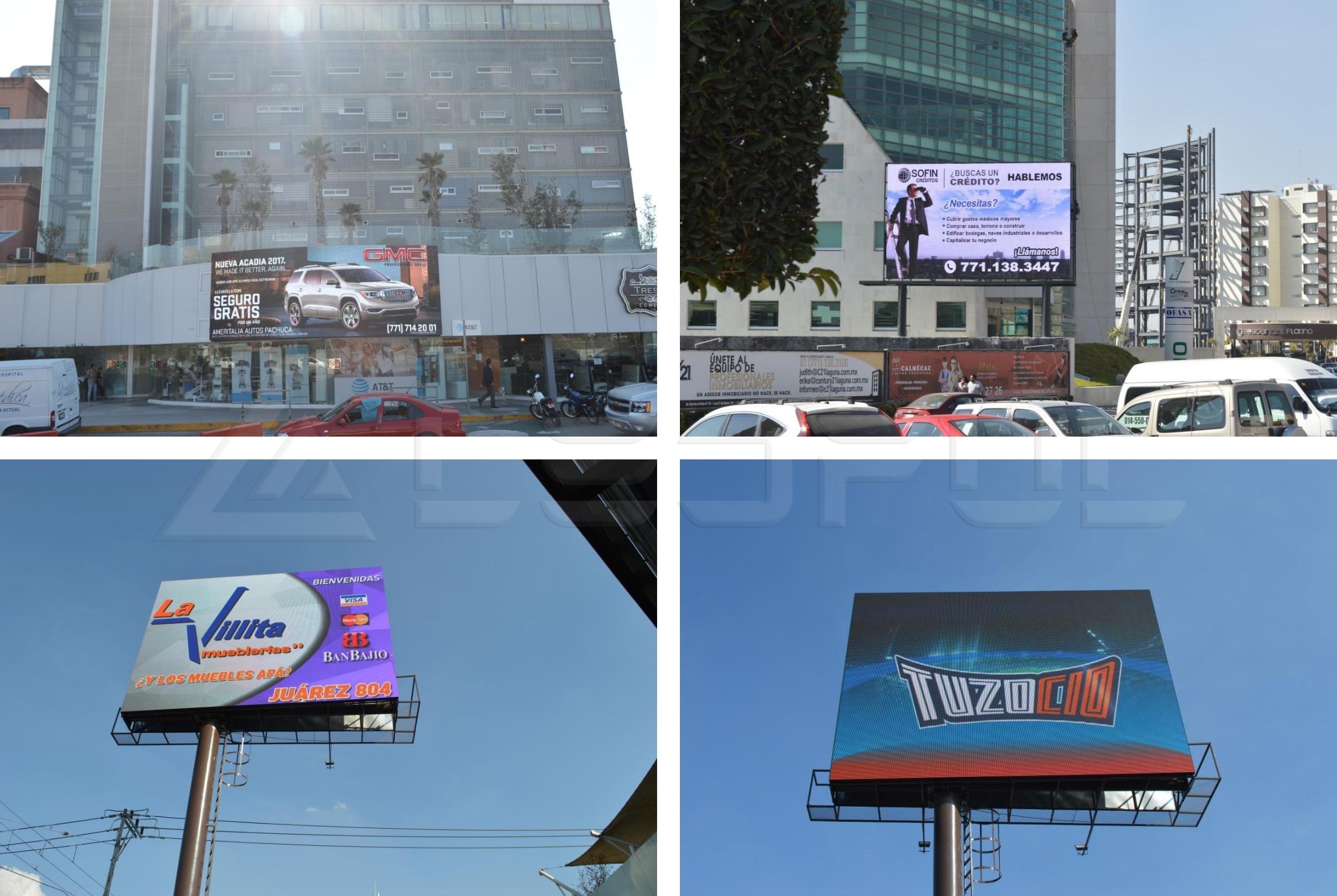

Advertising marketing: Set in the external walls of shopping malls, commercial streets, bus stops, etc., attract attention, enhance brand awareness and sales.
Public information dissemination: City information such as weather, traffic, emergency notice is displayed, mostly in squares, stations, airports and other areas.
Live events: Provide scores, live images and interactive functions for the stadium to optimize the spectator experience.

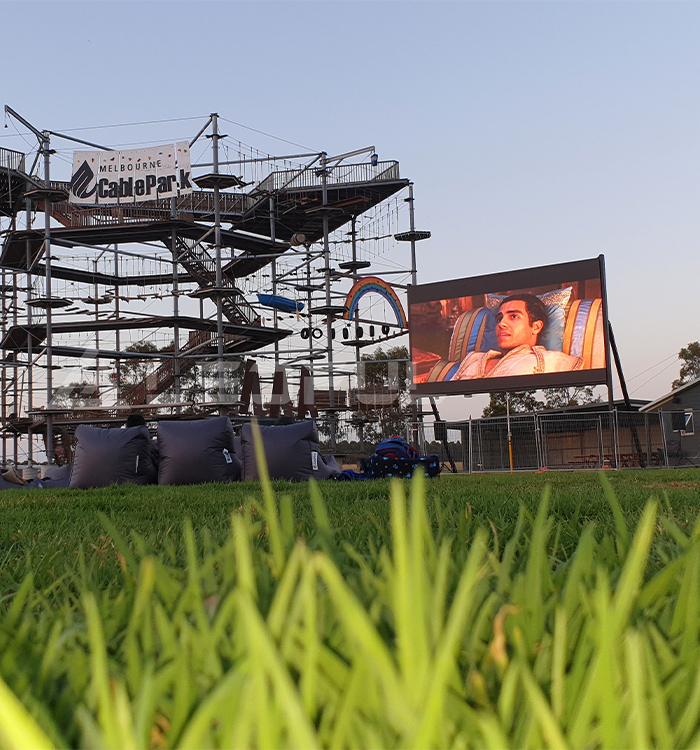

Performance activities: Used for concerts or festival stages to play videos or special effects to increase the audience’s visual shock.
Smart city: Combined with the Internet of Things, the release of environmental monitoring, real-time road conditions and other information to help smart management.

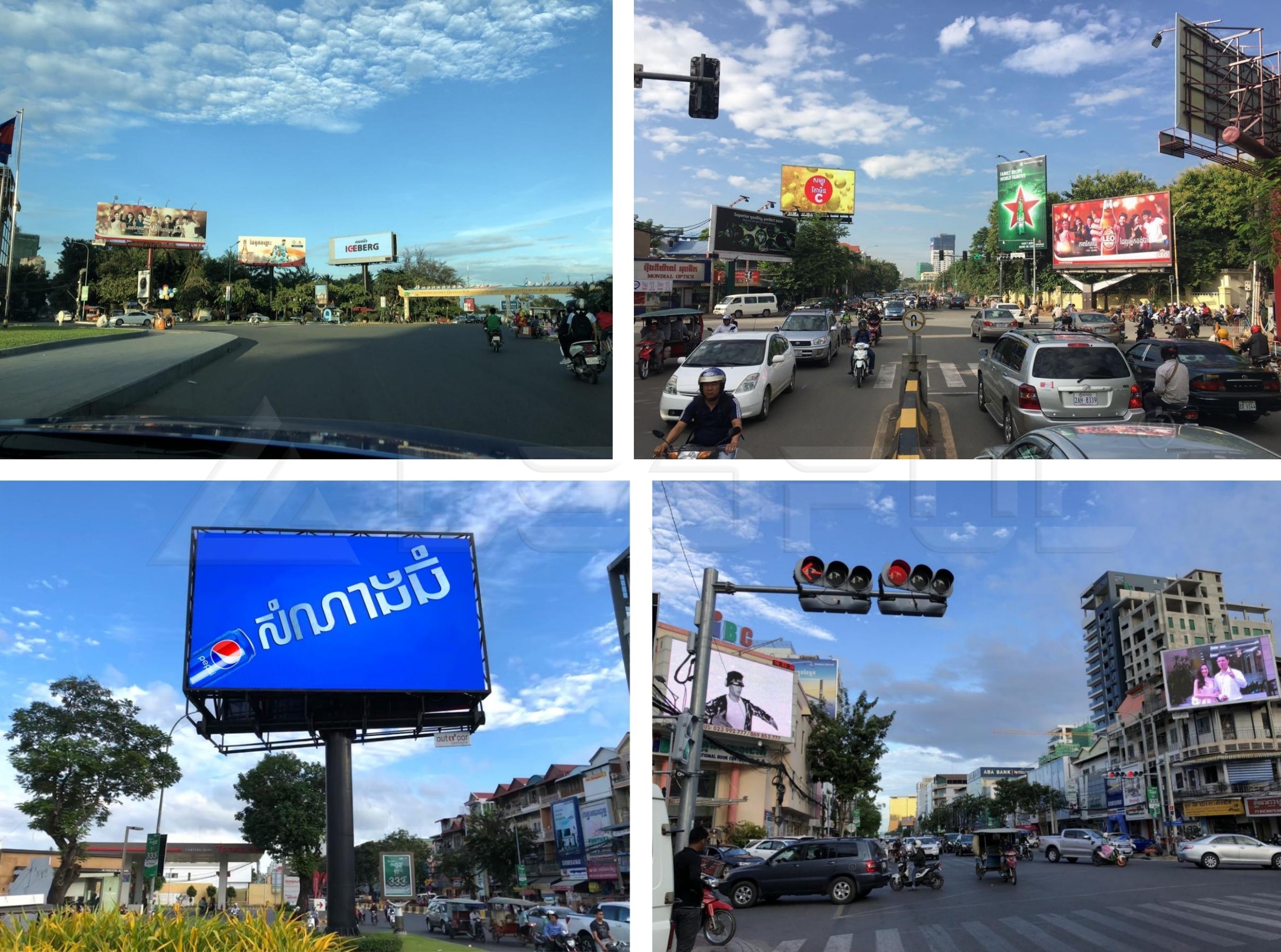

Traffic guidance: installed on highways, trunk roads, etc., indicating road speed limits and accident information to improve driving efficiency.

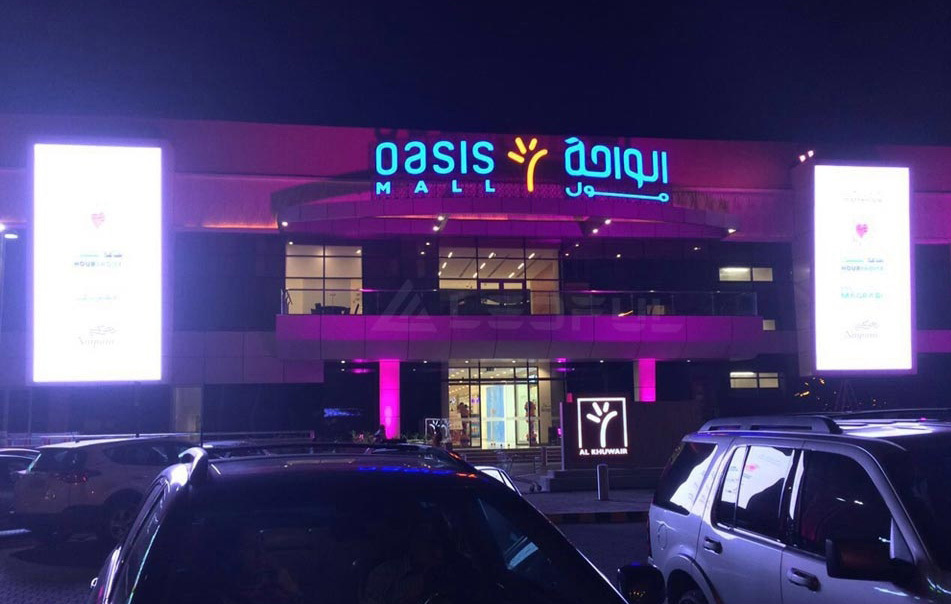

Store publicity: Used to display promotion and new product information to improve the store’s ability to attract customers.

The use of outdoor LED displays in these scenes strengthens the efficiency of information dissemination, while beautifying the visual content of the city.

2.Why do you need an outdoor LED display?

LED displays are increasingly being used in retail shops and stores for several compelling reasons. They offer numerous benefits that enhance the customer experience, improve store marketing efforts, and streamline operations. According to the market investigation, we find reasons for choosing LED displays in retail shops and stores:

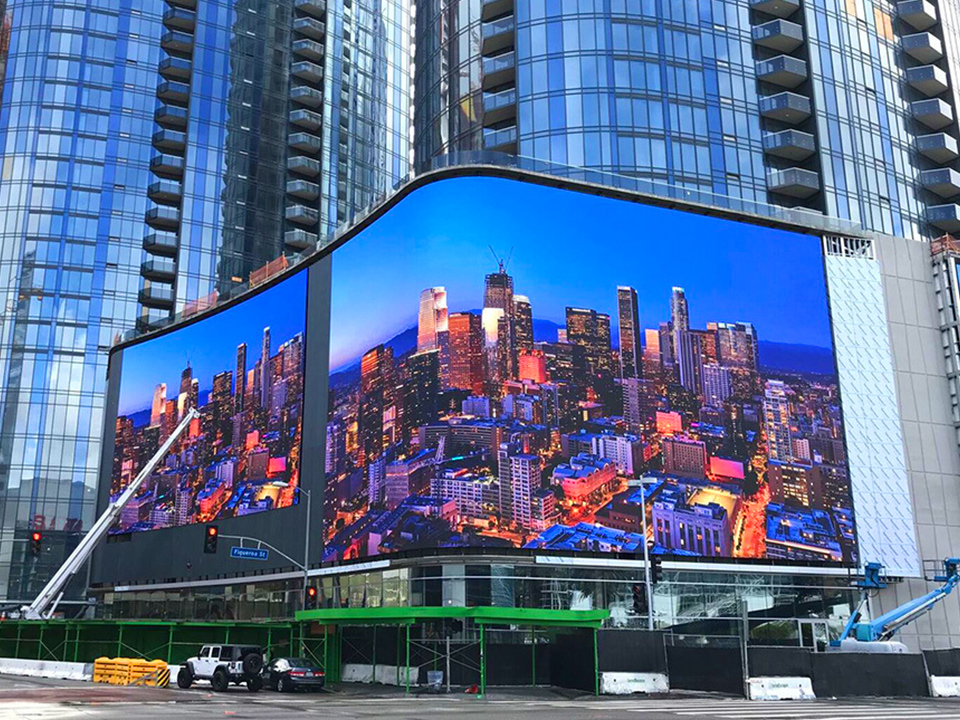

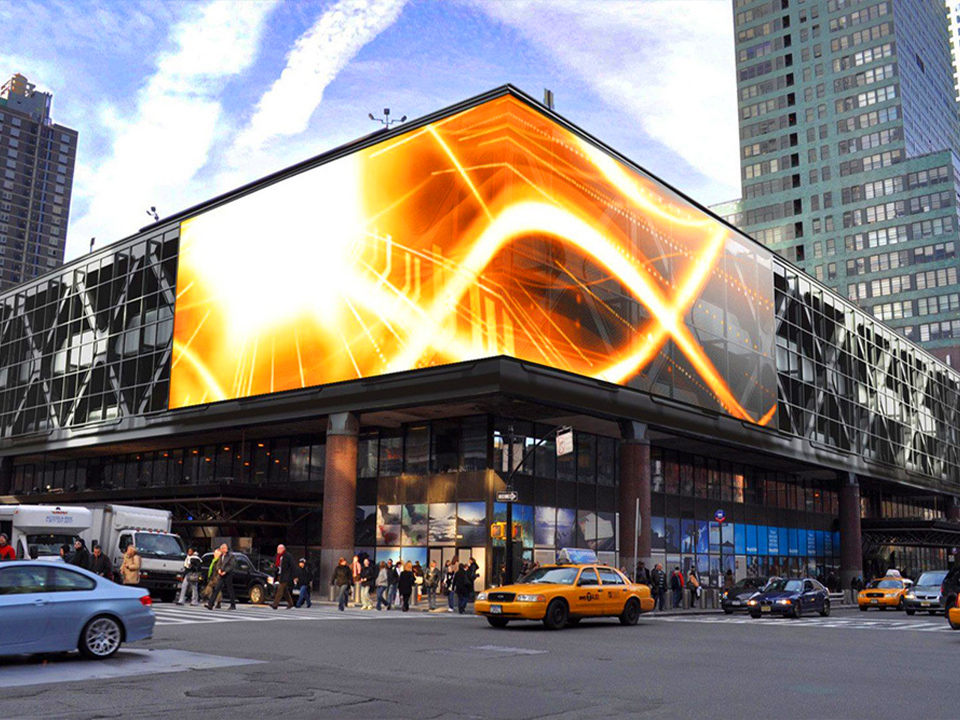

Outdoor LED displays can be used as part of landmark buildings to attract attention, convey information and enhance the image of the city. It can not only display advertising content, but also be used to publish public information, cultural publicity and urban activities, etc., becoming a unique highlight and landmark presence in the city. A landmark building often needs a large area of outdoor LED display to shine.

The advertising revenue of outdoor LED displays mainly comes from its high exposure rate and wide audience coverage. By advertising in high-traffic areas, companies can quickly capture the attention of target customers, thereby increasing brand awareness and product sales. In addition, the dynamic display effect and high-definition picture quality of the LED display also make the advertising content more attractive, further improving the communication effect of the advertisement.

Compared with traditional paper media, outdoor LED display has the following advantages:

Strong dynamic effect: can play video, animation and text, more attractive, beyond the limitations of static display of paper media.
Flexible real-time updates: Digital control allows the content to be modified at any time to adapt to different needs, while the paper media cannot be changed once it is printed.
Environmental protection: significantly reduce paper use, save resources; Print media consumes a lot of raw materials.
Bright and clear: clear and easy to read day and night, suitable for various light environments; Paper media are more affected by light.
Interactive function: Support touch or audience interaction, improve engagement, paper media lack this function.
Cost optimization: Although the upfront investment is high, the long service life can reduce the overall cost.

n general, LED displays have great advantages in the field of communication efficiency, flexibility of use and sustainable development.

3. How to Choose Pixel Pitch, Size and Brightness?

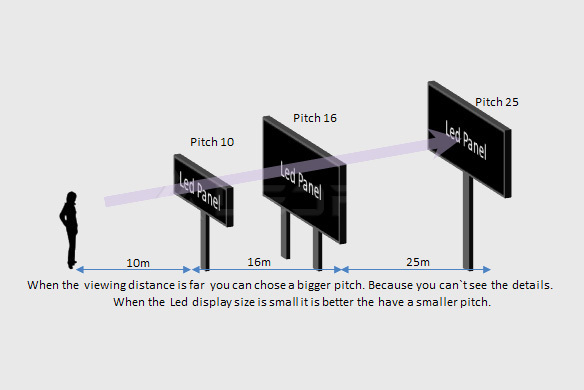

Pixel pith refers to the distance between LED beads, usually in millimeters. The smaller the pitch, the higher the resolution of the display, the clearer the picture, but the cost will be higher.

If the viewing distance is far (such as large squares, outdoor billboards), you can choose a larger pixel pitch (such as P8, P10).

If the viewing distance is close (such as the entrance of the mall, the stage background), you need to choose a smaller pixel pitch (such as P2.5, P4).

The size of the outdoor LED display needs to be determined according to the space size of the installation location and the viewing Angle range of the audience.

In large outdoor venues, displays often need to be made larger to attract the attention of distant viewers.
Need to pay attention to proportion coordination to ensure that the screen content can be clearly presented in different sizes.

Quick recommended sizes: 5x3m, 6x3m, 6x4m, 7x5m, 8x5m, 9x6m, 10x7m, 12x8m, etc.

Outdoor LED displays need high enough brightness to ensure that they are still visible in direct sunlight.

Usually the brightness of the outdoor screen is between 5000-7000cd/m², and the appropriate brightness is selected according to the lighting condition of the installation site. The stronger the sunlight is, the higher brightness is required. Nowadays we can make super high brightness outdoor LED screen from 8,000nits to 12,000nits brightness as maximum.

At the same time, we provide auto brightness sensor which supports automatic brightness adjustment to avoid excessive glare at night.

Resolution: Outdoor LED display usually doesn’t need a high resolution because view distance always be far. So usually more than 200K dots resolution will be fine.

Refresh Rate: LEDFUL Outdoor LED display standard refresh rate is 3840Hz, it can let the LED screen has a good performance and no scan lines or waves when people take videos and pictures.

IP Level: IP65 is standard and also enough for normal outdoor LED screen using, we recommend to use IP68 level products if the screen is installed near the sea.

4. How to know the quality of one outdoor LED screen?

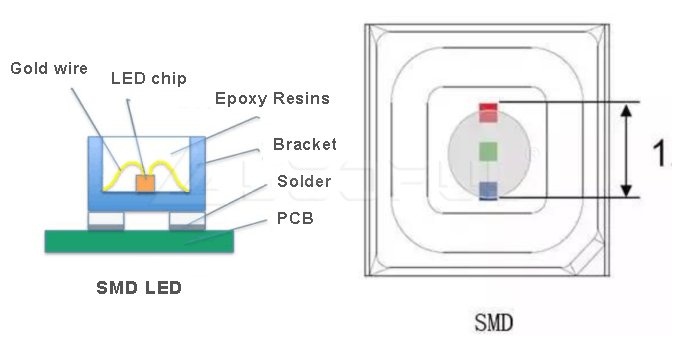

The quality of LED chips mainly determines the quality of LED displays. In the current LED display market, there are various LED chips available. If manufacturers use low-quality LED chips, the overall quality of the LED display will also be very low.

Globally recognized LED chip brands include CREE, Nichia, Osram, Samsung, Philips, etc., but these brands are often expensive and not suitable for the regular production and sale of LED displays.

In the current market, Chinese LED display manufacturers generally consider the best LED brand to be Nationstar, especially for outdoor LED displays, where Nationstar performs very well. Next are other LED brands like Kinglight, Knlight, Hongsheng, Mulinsen, etc.

LEDFUL mainly uses Nationstar and Kinglight LEDs as raw materials for outdoor LED displays, ensuring high quality while providing the most reasonable prices.

The outdoor LED display has three types of cabinets:

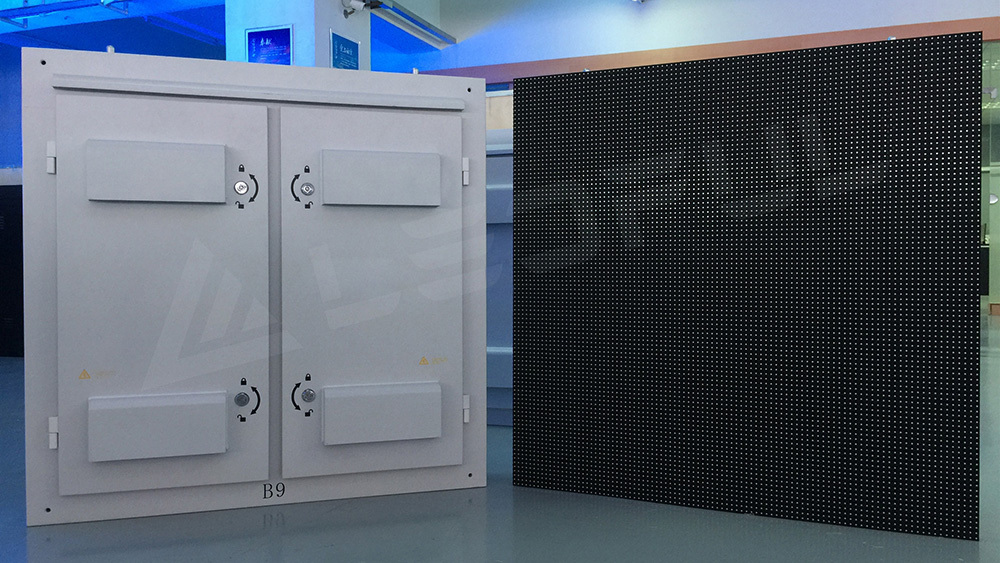

1)Iron cabinet
The iron cabinet using metal plate processing technology, with iron as the main raw material and a rust-proof spray coating on the surface.

Advantages: Highly customizable to meet the needs of different screen sizes.
Disadvantages: heavy(40kg/sqm), thick (12~14cm thickness), larger in size, not good appearance.

2)Die-cast aluminum cabinet
Formed by die-cast aluminum molds, with aluminum and magnesium as the main raw materials, featuring high-precision, high-density rust-proof spray coating, providing excellent rust resistance.

Advantages: Light weight (28kg/sqm), thin (10cm thickness), high hardness, stronger load-bearing capacity, good heat dissipation, and better appearance.
Disadvantages: Sizes are often limited to a few fixed dimensions, and the price is slightly higher.

3)CNC profile cabinet
With each component made from die-cast aluminum molds and then assembled together, featuring high-precision, high-density rust-proof spray coating, providing excellent rust resistance.

Advantages: Lighter (22kg/sqm), thinner (8cm thickness), high hardness, strong load-bearing capacity, multiple functions, and higher protection level.
Disadvantages: Sizes are often limited to a few fixed dimensions, and the price is relatively high.

When we choose which cabinet is more appropriate, we need to consider about the screen size, site installation environment and other requirements.



There is no significant difference in quality between different brands of receiving card and controller, but the difference in control methods. It has no effect on the quality of LED display. LEDFUL cooperates with many receiving card and controller brands, such as Novastar, Colorlight, Huidu, Xixun and so on.

The quality of the power supply determines the power operation safety and power use efficiency of the LED display. LEDFUL main cooperation brands are Meanwell, G-energy, Nandian, Huayun, Chuanglian, Rongdian, etc. These different brands of power supply sizes are different, suitable for our different cabinet design. The power supplies can be used for 110V, 220V or 110~220V.

The use of different wires and interfaces inside the cabinet may also cause quality differences.
Low quality ribbon cable such as gray color ribbon cable, the transmission signal rate is slightly lower, high quality ribbon cable such as colorful ribbon cable can be more stable and fast. LEDFUL uniformly uses colorful ribbon cables, even at a higher material cost.
The metal material inside the interface will also affect the signal transmission of the LED display, and generally gold-plated material will be better, what LEDFUL uses just like it.

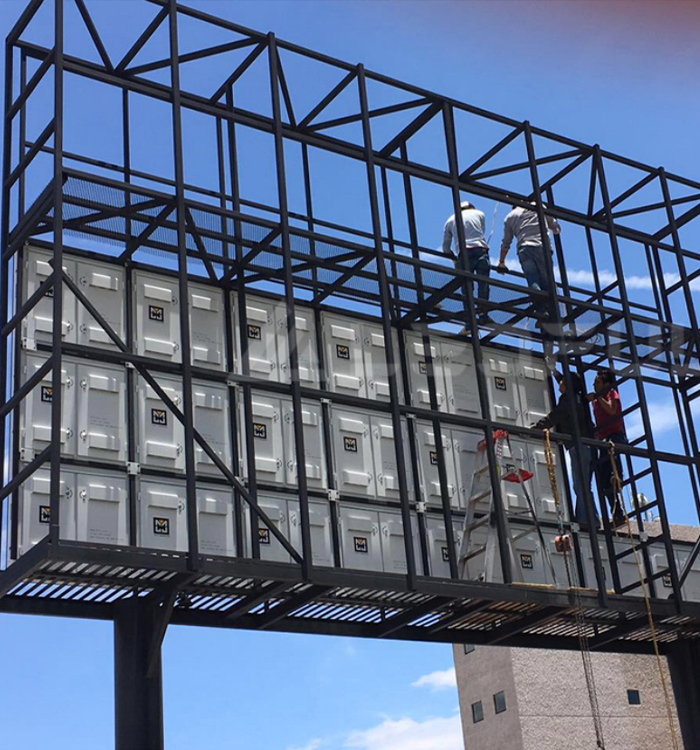

5. How to install outdoor LED screen?

Outdoor LED display because of its large area and size, usually need to use a stable and strong structure to support. This is not only to ensure the safety and stability of the display, but also to maintain normal operation in adverse weather conditions. In addition, the robust structural design also helps to extend the service life of the display and reduce maintenance costs. Outdoor LED display installation methods mainly include the following:

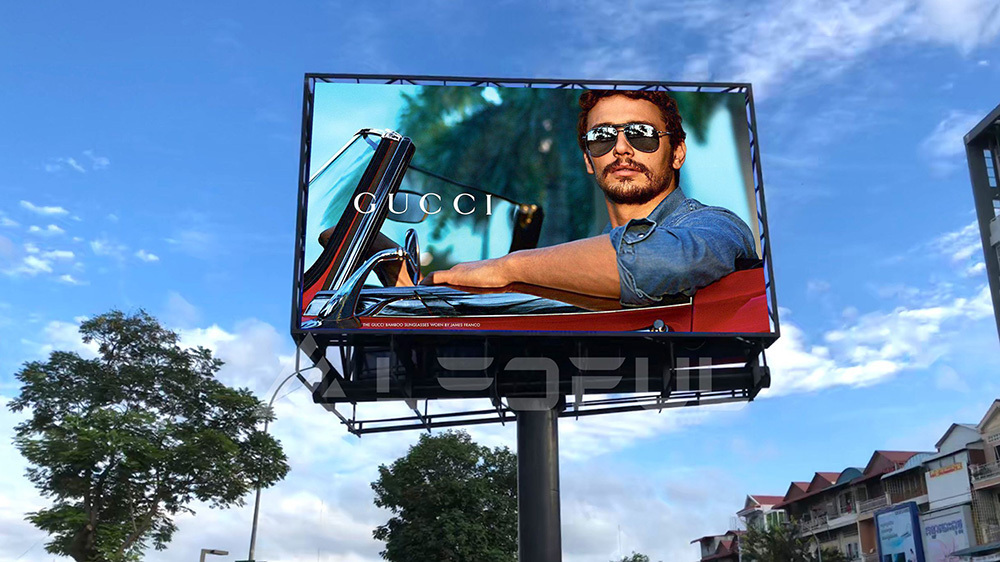

This method requires building a solid foundation on the ground, usually a concrete base, and then install the pole on the foundation. An LED display is installed on the upper part of the column. This method is suitable for locations with good ground conditions that require long-term fixation.

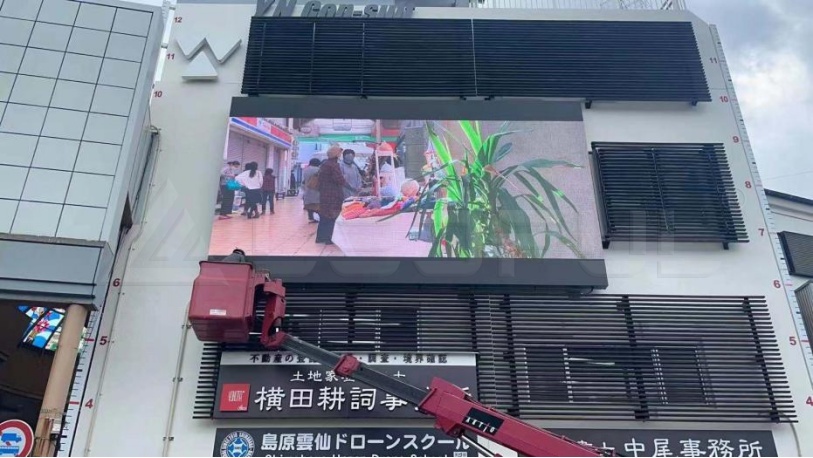

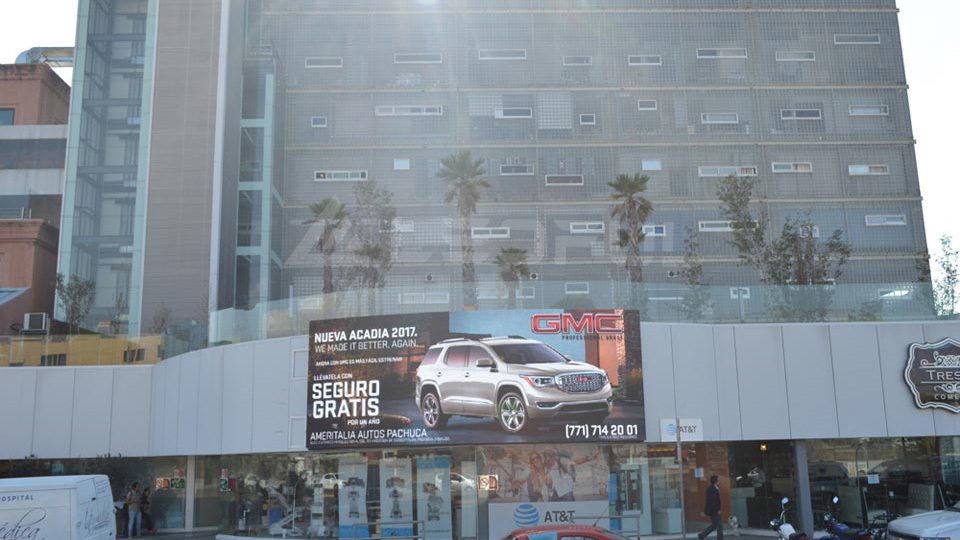

If there are solid walls on site, you can make wall mounted structure on the wall, and then fix the outdoor LED display on the strutcure. This method saves space but requires the wall to have sufficient load-bearing capacity.

Make and install the steel structure on the roof of a building, and then fix the LED screen on the structure. This installation way is suitable for situations that require a higher perspective. When installing, the load-bearing capacity of the roof and windproof measures need to be considered.

In very rare cases, we will consider hoisting installation, by adding lifting rings on top of the cabinets and hanging it with steel wire ropes from the ceiling or extended structures of the building.

When choosing a specific installation method, factors such as the on-site environment, screen size, audience perspective, and safety need to be considered. Ensure that the installation is stable and secure.

6. How to display 3D Videos on Outdoor LED Screen?

Outdoor 3D LED displays are increasingly becoming a trend and a fashion, often a must-have choice for landmark buildings.

Outdoor LED displays & 3D video key points:

In fact, any LED display can play naked-eye 3D videos, but the better the quality of the LED display, the better the effect of displaying 3D videos.
High-definition resolution: the higher the screen resolution, the better the display effect of 3D videos.
Refresh rate: it is recommended to reach at least 7680Hz, so that whether people observe with the naked eye or shoot with a phone/camera, the LED display will have a stunning effect.
90° right angle or curved right angle: Flat screens can also display 3D effect videos, but LED displays with right angles or curved right angles will make 3D displays more three-dimensional, with a greater sense of depth, and the effect will be more realistic.

3D videos are key, and usually require the use of professional software to create and export in a supported 3D format, which often necessitates professionals or companies to produce the desired 3D content.

3D videos on LED displays often have an optimal viewing angle. During the production of 3D videos, the best viewing angle is established based on the size of the LED display, its orientation, and the direction of the main audience, which is often at a right angle opposite direction.


LEDFUL provides one-stop solution for outdoor 3D LED displays, preparing professional outdoor LED displays as well as the 3D videos you want to showcase, along with all other equipment and accessories.

7. How to Control Outdoor LED Screen?
01 Synchronous Control

This method requires sending signals to the LED display in real-time through a computer or other control devices to achieve synchronized display. This control method is suitable for occasions that require real-time content updates, such as sports events, concerts, etc.

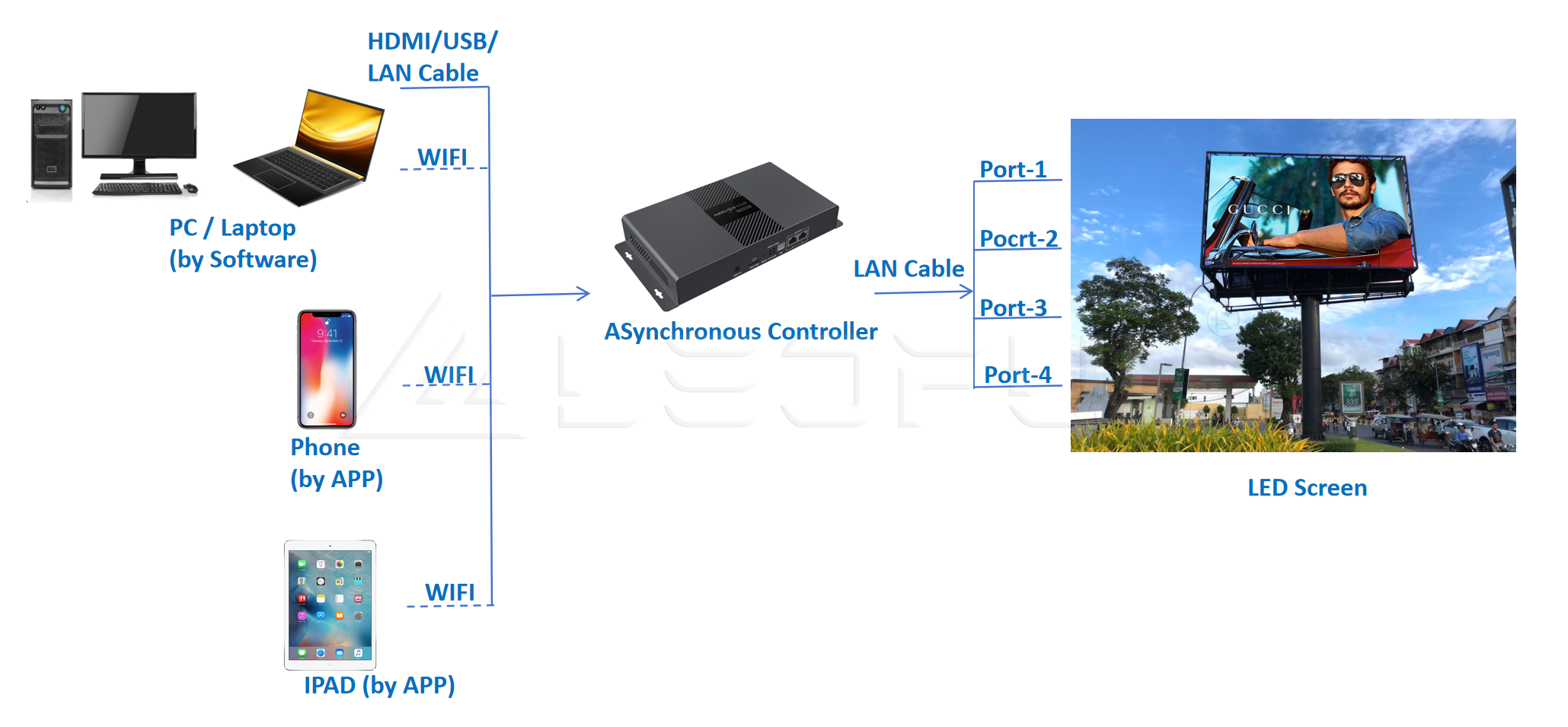

02 Asynchronous Control

The asynchronous control method involves pre-storing the display content in the control card of the LED display, allowing the display to automatically play content according to a preset program. This method is suitable for occasions that do not require frequent content updates, such as billboards, bulletin boards, etc.

03 Cloud Control

The cloud control method is through a cloud control platform website, remotely managing a single or multiple LED displays, allowing for remote monitoring, usage records, screen brightness management, program scheduling management, and various other functions. This method is suitable for media advertising companies, chain stores, streetlight pole screens, and other scenarios where it is inconvenient to go to the installation site for control.

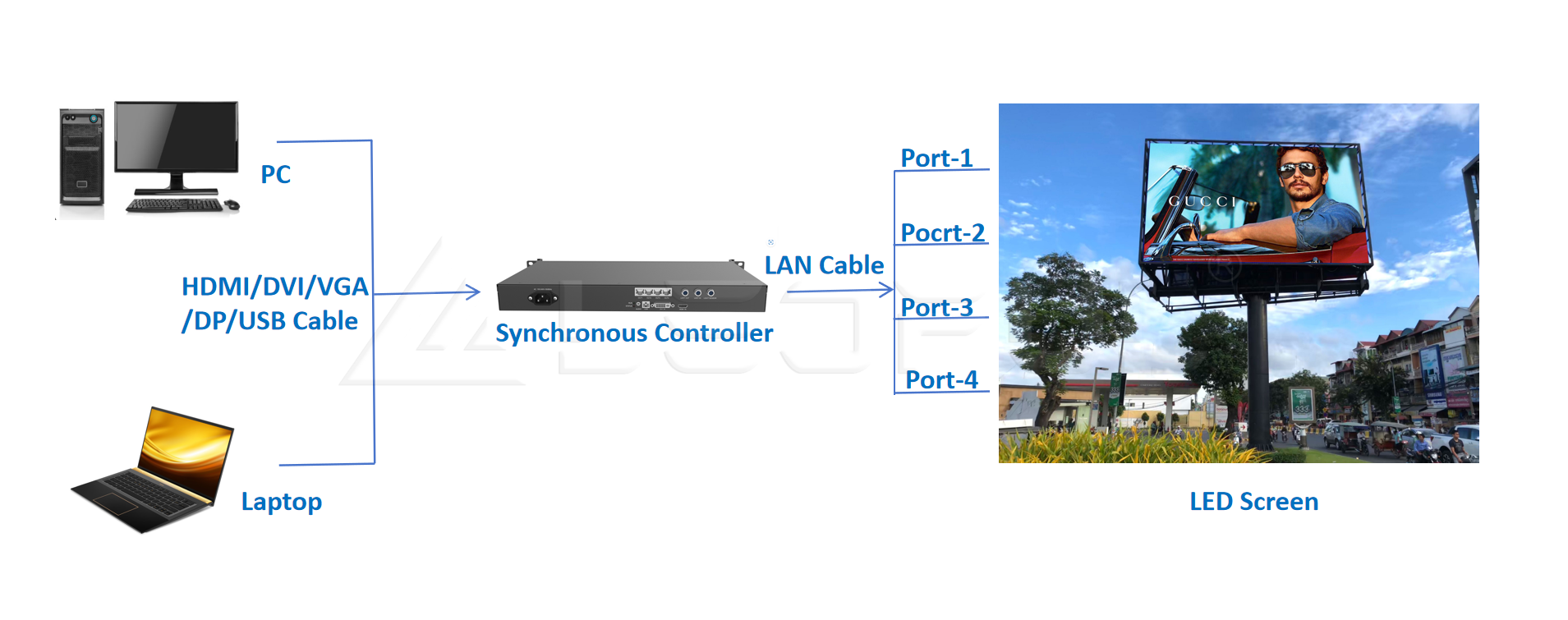

Synchronous control

Generally requires a computer or other media devices connected to the control system via HDMI, DVI, VGA, DP, etc., and the control system is then connected to the screen via an Ethernet cable.

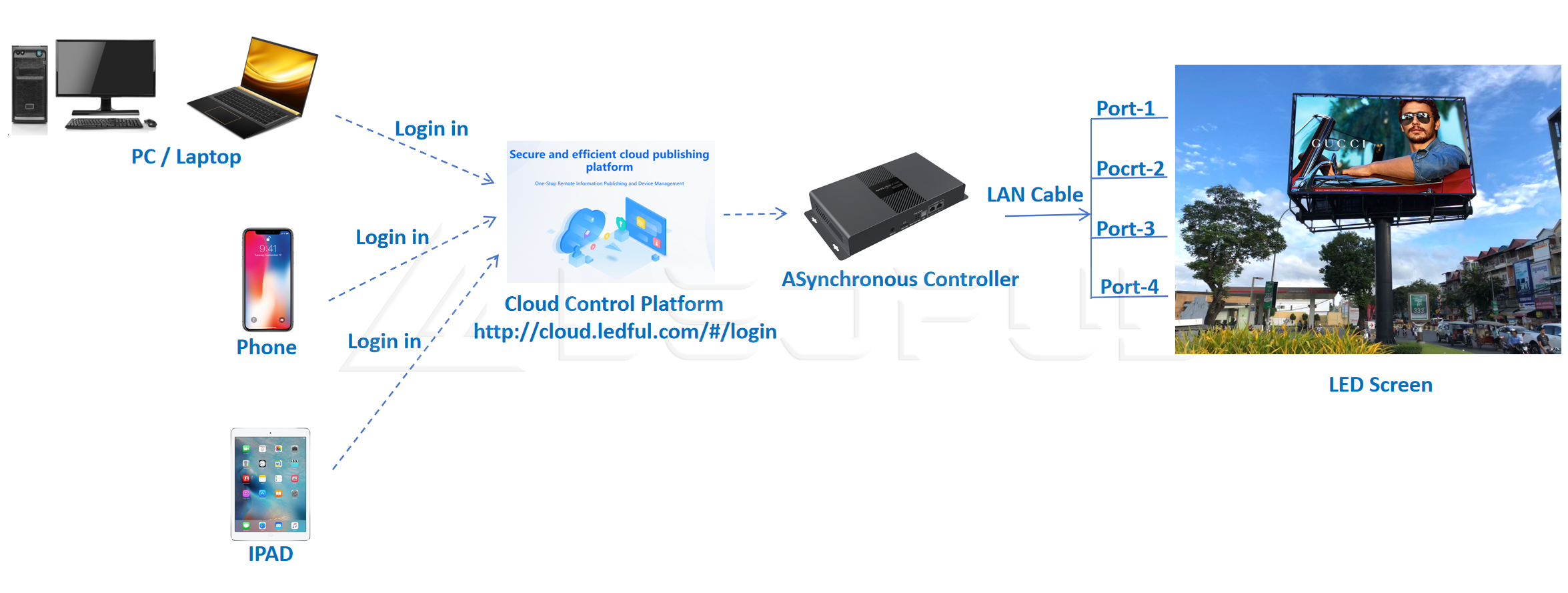

Cloud control

You can log into the cloud control platform using a computer/IPAD/PHONE and then remotely manage multi-screens on the website.

These control methods each have their advantages and disadvantages. Choosing the appropriate control method can improve the efficiency and effectiveness of the outdoor LED display.

8. What is Energy Saving Solution for Outdoor LED Screen?

Let us explain it simply to let you know it easily as below.

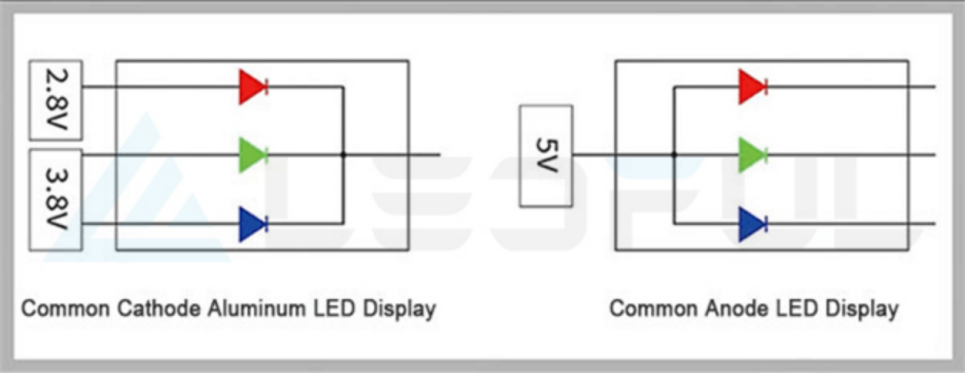

There are three LED chips inside the LED lamps which can make green, red, blue three lights.

Actually the red chip only needs 2.8V power to light up, green chip needs 3.8V, blue chip needs 3.8V.
But traditional technology can’t transfer the power accurately, it only transfer the power red chip – 5V, green chip – 5V, blue chip – 5V, so a lot of electricity is wasted. Then one power supply is 5V*60A= 300W.
Common cathode technology use special design IC, PCB, power supply to transfer the power accurately, red chip-2.8V, blue chip -3.8V, green chip- 3.8V, there is no extra electricity is wasted. One power supply is (2.8V + 3.8V +3.8V)/3 * 60A = 208W.

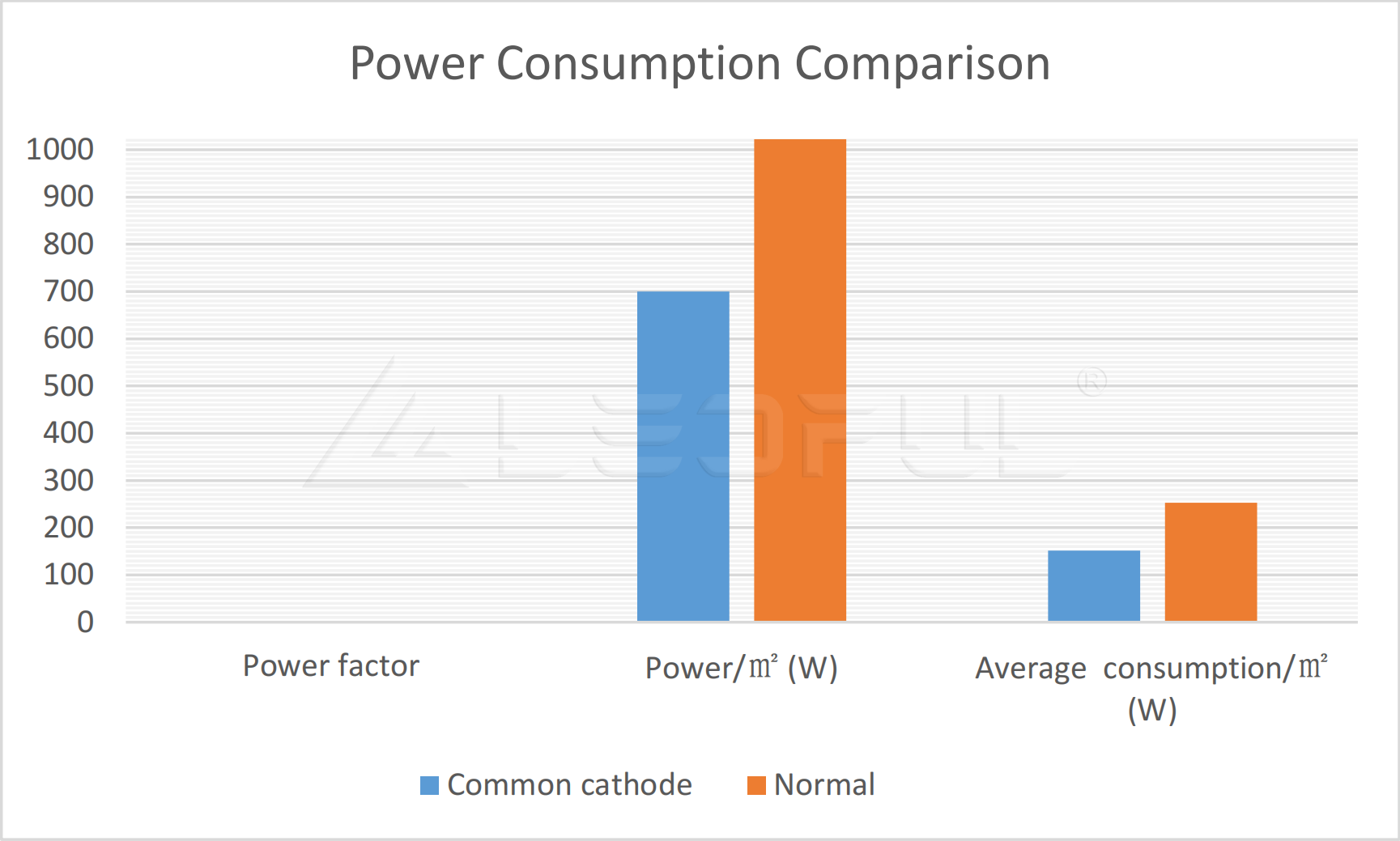

One sqm outdoor LED screen requires an average of three power supplies.

Normal outdoor LED screen:

One sqm needs maximum 300W * 3 = 900W power.

Common cathode outdoor LED screen:
One sqm needs maximum 208W * 3 = 624W power. (Save 30%)

Advantages

1) Reducing Operating Costs
Reduced power supply leads to lower overall screen power consumption, requiring less electricity, saving on electricity bills; the longer the screen is used, the more electricity costs are saved, greatly reducing operating costs.


2) Longer Lifetime

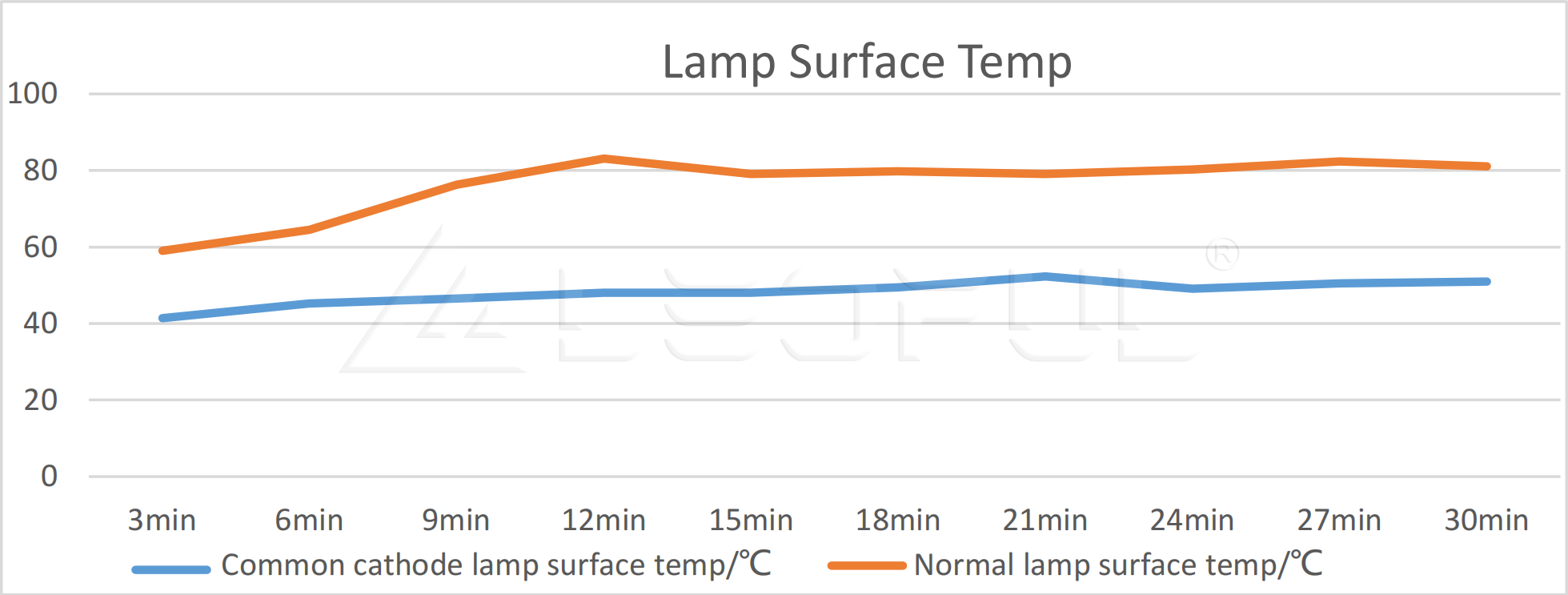

The reduction in power consumption will also let the LED display generate less heat, the LED display has a longer service life accordingly.

3)More Environmentally Friendly
Especially in some countries and areas with strict environmental protection policies, the common cathode energy-saving solution is more likely to obtain project approval.

01 Brightness

Commercial LED advertising displays are typically much brighter than LCD displays, making them more suitable for outdoor and high-ambient-light environments.

02 Power Consumption

Commercial LED advertising displays are more energy-efficient than LCDs, which helps lower operational costs, especially in large-scale deployments.

03 Protection

Commercial LED advertising displays generally last longer and are more robust, especially for outdoor applications. Outdoor LED billboard is ALL weather resistant, Ingress Protection Grade can reach IP66.

04 Viewing Angles

Commercial LED advertising displays offer 160~170 degrees wider viewing angles (both horizontally and vertically) compared to LCDs, making them more suitable for large audiences and open spaces.

05 Flexibility

Commercial LED advertising displays can be made in any shape and size without any bezel, whereas LCD displays are limited by standard panel sizes.

9. What is Lifespan of Outdoor LED Screen?

Although the theoretical use time of the LED display is 10,000 hours, that is under very ideal conditions, such as the outdoor temperature is more suitable, between 0 and 30 degrees, such as the brightness is adjusted to 50% to 70%, etc. Under normal use, the service life of outdoor LED displays is usually between 6 and 10 years. The specific usage time depends on multiple factors, including product quality, installation environment, maintenance frequency, and usage frequency.

01 Product quality

If you choose high-quality products, such as Nationstar lamp beads, the service life of the LED display can be significantly improved. If the use time of ordinary quality products is 6~7 years, then it can be extended to 8~10 years with high-quality products. If it is used regularly Well maintained and in a good environment, it can even be used for more than 10 years.In addition, high-quality products can also effectively reduce light attenuation. The brightness of ordinary quality products after 5 years may only be 60% to 70% of the original value. However, with high-quality products, the brightness can still maintain more than 85% even after 5 years, then the LED display can still maintain bright colors.

02 The weather is too hot

When the weather is too hot, it will seriously affect the service life of the LED display, when the temperature of the external environment is too high, the temperature of the LED display will become very high, which is equivalent to making the LED display work in excess of load. Normal LED display operating temperature is -20°C~60°C, more than 60°C in the weather, it is recommended to build a closed structure and install air conditioning.

03 Extreme bad weather

Normal rain, fog, wind and even hail will not affect the normal work and service life of the LED display, but if the LED display is in a sandstorm and other weather for a long time, too much sand and dust condenses inside the box, it will affect the normal use of the LED display, such as the operation of fans and cooling systems. It is recommended that the LED display be regularly maintained in an environment with frequent sandstorms.

04 Frequency of use

Although the LED display can always be opened, but if it can be properly closed for a period of time, it can extend the LED display service time. We recommend that it is best to rest 1 to 2 hours a day, and if you need to play for a long time, rest at least a few hours a month.

05 Regular maintenance

It is recommended to maintain the LED display every six months to a year to check the LED surface damage lamp beads, the environment inside the cabinets, the power system of the power cables and power supplies. Effective regular maintenance can effectively eliminate safety hazards and extend the service life of the LED display.By improving product quality, making enclosed structure with air conditions effectively avoiding exceed heat, regular maintenance, and appropriately reducing the frequency of use, we can effectively extend the use time of outdoor LED displays, so as to obtain more long-term benefits.

10.What is Price?

Although the theoretical use time of the LED display is 10,000 hours, that is under very ideal conditions, such as the outdoor temperature is more suitable, between 0 and 30 degrees, such as the brightness is adjusted to 50% to 70%, etc. Under normal use, the service life of outdoor LED displays is usually between 6 and 10 years. The specific usage time depends on multiple factors, including product quality, installation environment, maintenance frequency, and usage frequency.

Composition of price

LED lamps account for more than 60% of the cost of LED display, the better the quality of the lamp beads, the more famous the brand, the higher the price. Usually Nationstar LED lamp price is higher, but the quality is also the best.

The smaller the pixel pitch, the smaller the size of the lamp bead, there will be more LED lamp beads in the same unit area, the higher the resolution, the higher the price. The same product, outdoor LED display price: P1.5 > P1.9 > P2.5 > P2.6 > P2.9 > P3.076 > P3.9 > P4 > P4.8 > P6 > P6.6 > P8 > P10.

When the IC quality is better, the refresh rate of LED screen is higher, screen performance then be better, price also be higher. LEDFUL standard refresh is 3840Hz, which is enough for outdoor normal LED display.

Iron cabinet is the cheapest, die-cast aluminum and CNC profile aluminum prices are slightly higher.

the better the brand, the better the quality, the higher the price, but not too much difference, the difference in quality is not large.

The flight case is more protective, with wheels for easy movement, usually used for screens that need to be moved, and the price is higher. The protection of the wooden box is also very good, no wheels, the price is cheaper.

labor assembly cabinets, debugging screen, aging screen, packaging and transportation costs, because China is still a labor-intensive country, this part of the cost is not particularly high.

How to get the most cost-effective products

According to the viewing distance of the audience and the size of the screen, we can choose the most appropriate pixel pitch, the most cost-effective choice. In the first half of the article has been introduced how to choose the size and pixel pitch, if still not confirmed, please feel free to send us an inquiry.

LEDFUL has been deeply engaged in the LED display industry for more than 15 years, and we fully understand the advantages and disadvantages of the entire supply chain and different brands of raw materials. Usually, the solutions we give to customers are the most cost-effective products under the premise of ensuring quality after comprehensive consideration. Providing customers with the best balance of quality and price has always been one of LEDFUL’s goals.

Usually, the production time of outdoor LED display is 20 working days, and sea transportation is 30~40 days, so the best situation is to purchase two months in advance, and carry out sea transportation, the cost will be very cheap.

A good LED display manufacturer, can bring you far more than the value of the product. For example, LEDFUL has a professional team of engineers to give you 24-hour online technical support, such as LEDFUL after 15 years of experience accumulation and precipitation, to provide you with the most suitable project solutions, one-stop solutions, the most cost-effective solutions and so on. These value service, after-sales support, always timely professional reply far exceeds the value of the product.

Don’t choose a product priced too much below the market price. Prices that do not conform to common sense are likely to cause greater losses in the future.

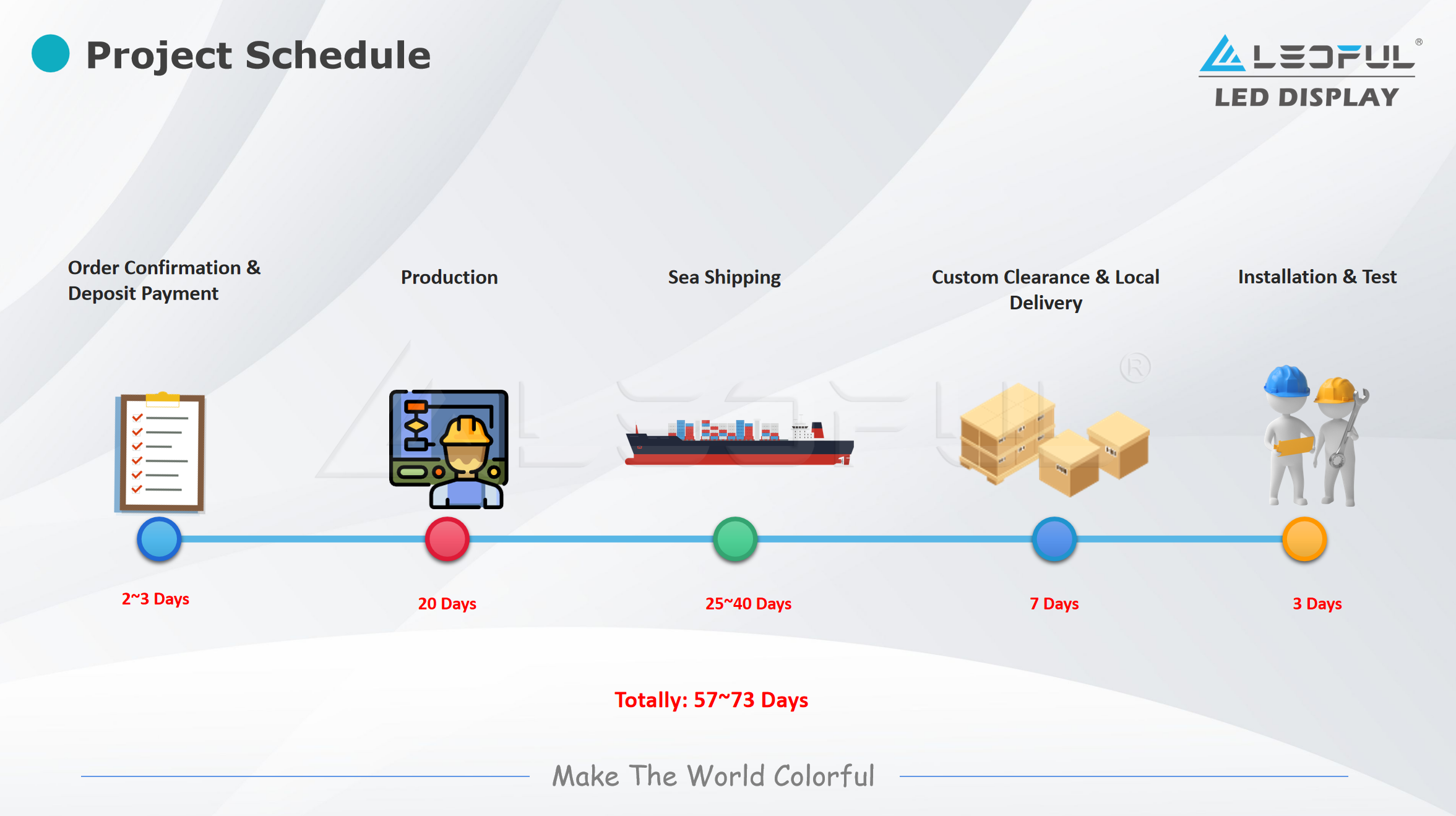

11. How to Purchase?

Outdoor 3D LED displays are increasingly becoming a trend and a fashion, often a must-have choice for landmark buildings.

Outdoor LED displays & 3D video key points:

You tell us your detailed LED display needs, such as installation location and method, size, viewing distance, etc., it will be better if you can provide a picture of the site installation address. Our sales engineers will provide you with the most suitable solution ASAP.

Through in-depth communication and understanding, we reached a complete agreement on project questions, solutions and product prices.

We provide proforma invoice and you pay 50% deposit to us. We will arrange production immediately when we receive your deposit. Production takes 20 working days, the specific production process is as follows:

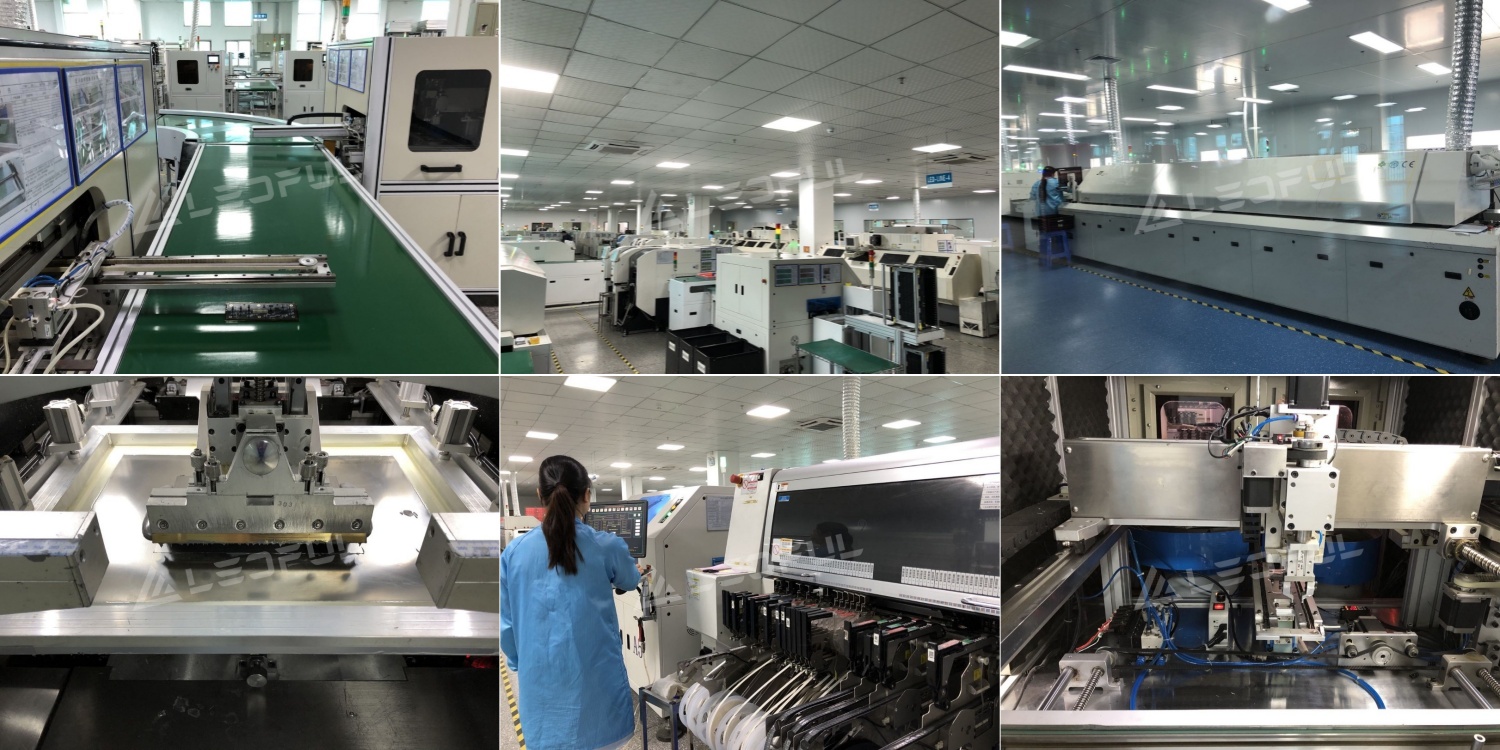

1)Purchase all raw materials. (12 days) — Purchase all kinds of raw materials, such as lamp beads, IC, PCB, receiving card, power supply, wire, empty cabinets, etc.
2)LED Modules Production. (3 days) — The production of LED modules with SMT machines.
3) Assemble the entire LED cabinets. (2 days)
4) Aging and test the LED screen. (2 days) — Combine the LED cabinets into a final LED display, debug the screen, do all kinds of detection and testing, age the LED screen, ensure that there is no problem.
5) Packing. (1 day) — Disassemble the LED screen, prepare all spare parts and accessories, and put them into the wooden boxes for packaging and waiting for transportation.

You arrange the balance payment, we arrange delivery to your city. If you have your own forwarder, we can provide EXW or FOB shipping terms. Shipping usually takes 25 to 40 days. During this transit time, you can build and install the structure by your side locally, and we will provide you with professional CAD structural drawings.

After the goods arrive at the port, you complete the paperless customs clearance procedures online, pay off the customs duties, and then arrange to pick up the goods and local transportation. You can either pick up the goods yourself at the port or have a local agent arrange shipping to your address. Customs clearance and local transport usually take about a week.

After receiving the screen, carefully check the products and all accessories, confirm all is correct. Then start to install the screen. We will program the LED screen well before we ship the cargo, so you only need to combine the cabinets to be a big LED screen according to the order, and then you can play the videos on it.

12.Why Buy Outdoor LED Screen from LEDFUL?
Quality Always Comes First

We always ensure to provide high quality products, LEDFUL’s products have been sold to more than 108 countries and regions, and more than 9600 successful LED display cases have been built around the world, we have received almost all good reputrations from our customers, LEDFUL high-end quality products are always the most important factor for customers to trust us. 50% of our sales also come from our regular customers, which is enough to show their trust to our products’ quality.

Reliable LED Display Manufacturer

Our core team has more than 15 years of experience, we understand and clear all raw materials, production process, with our own independent research and development team, most of your requirements on LED display will be met, most of your questions can get answers from us.

Professional Solution Provider

LEDFUL is not only a manufacturer of LED display, not only to provide screens, but also to provide you with perfect solutions, such as outdoor LED display, we can provide high-end energy-saving solution, outdoor COB solution, 3D display solution, one-stop solution, cloud control solution, ultra-small pitch solution, super cost-effective solution, irrefular shape screen solution and so on. We not only provide the screen, but also your team of senior consultants with 15 years of LED display experience.

Good Price

Providing our customers with the best balance of quality and price has always been one of our core objectives. LEDFUL continuously optimizes the price by optimizing the supply chain, designing efficient products, optimizing management, saving personnel costs and other methods, to provide you with the most reasonable and optimized price under the condition of great quality.

Good Service

Sales Engineer team: Our sales engineers generally have 3~8 years of experience, they have a wealth of product knowledge and solution experience, for your project escort.

After-sales engineer team: We have software engineers, product design engineers, structural and drawing engineers, quality management engineers, etc., whether you are before or after purchase, any problems you have will be answered and solved quickly.

13. LEDFUL Classic Outdoor LED Screen Project Show
CLASSIC PROJECT-1

Product Model: OF10
Pitch: 10mm
Size: 200sqm (Double-sided)
Location: United Arab Emirates
Application: Outdoor LED Street Advertising Display

CLASSIC PROJECT-2

Product Model: FM8
Pitch: 8mm
Size: 500sqm (8 Sets)
Location: Mexico
Application: DOOH Advertising

CLASSIC PROJECT-3

Product Model: OF10
Pitch: 10mm
Size: 1000sqm (16 Pcs in Total)
Location: Cambodia
Buyer: Biggest Advertising Company in Cambodia.

CLASSIC PROJECT-4

Product Model: OF6
Pitch: 6mm
Size: 120sqm (2 Pcs in Total)
Location: Oman
Buyer: OASIS Shopping mall

14. Conclusion

Thanks for watching! I believe that seeing here, you also have your own views and conclusions.LEDFUL is a company focused on the development, production and sale of high-quality LED display. We are always committed to providing our customers with the most suitable solutions, the highest quality products and the most reasonable prices. LEDFUL has established a good reputation in the industry and won the trust from our customers. In the future, LEDFUL will continue to be customer-oriented, continuously improve product performance, promote industry development, and create more value for our customers. LEDFUL will uphold 200% sincerity and intentions, escort your project, and is willing to work with you to carry out LED display business. Welcome to leave your information and requests on outdoor LED display, we will reply to you as soon as possible!

The Feature of the Case

Product Mode

BM1.8-PRO

Screen Size

260sqm

Location

Korea

Time

2022

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita.

Case Details Display

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita.

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita.

Guinness World Record Cafe Store

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem…

Guinness World Record Cafe Store

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem…

Guinness World Record Cafe Store

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem…

Guinness World Record Cafe Store

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem…

Related Proudcts
Related Cases
