Front Service Outdoor LED Display
| Model | FS5.3 | FS6.6 | FS8 | FS10 |
| Pixel Pitch(mm) | 5.3 | 6.6 | 8 | 10 |
| Pixel Matrix Per Sq.m | 35200 | 22500 | 15625 | 10000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Brightness (cd/㎡) | 5500-11000 | 6500-11000 | 6800-11000 | 7000-11000 |
| Scan | 1/6 | 1/6 | 1/5 | 1/2 |
| Module Dimension | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft | 320x320mm / 1.05×1.05ft |

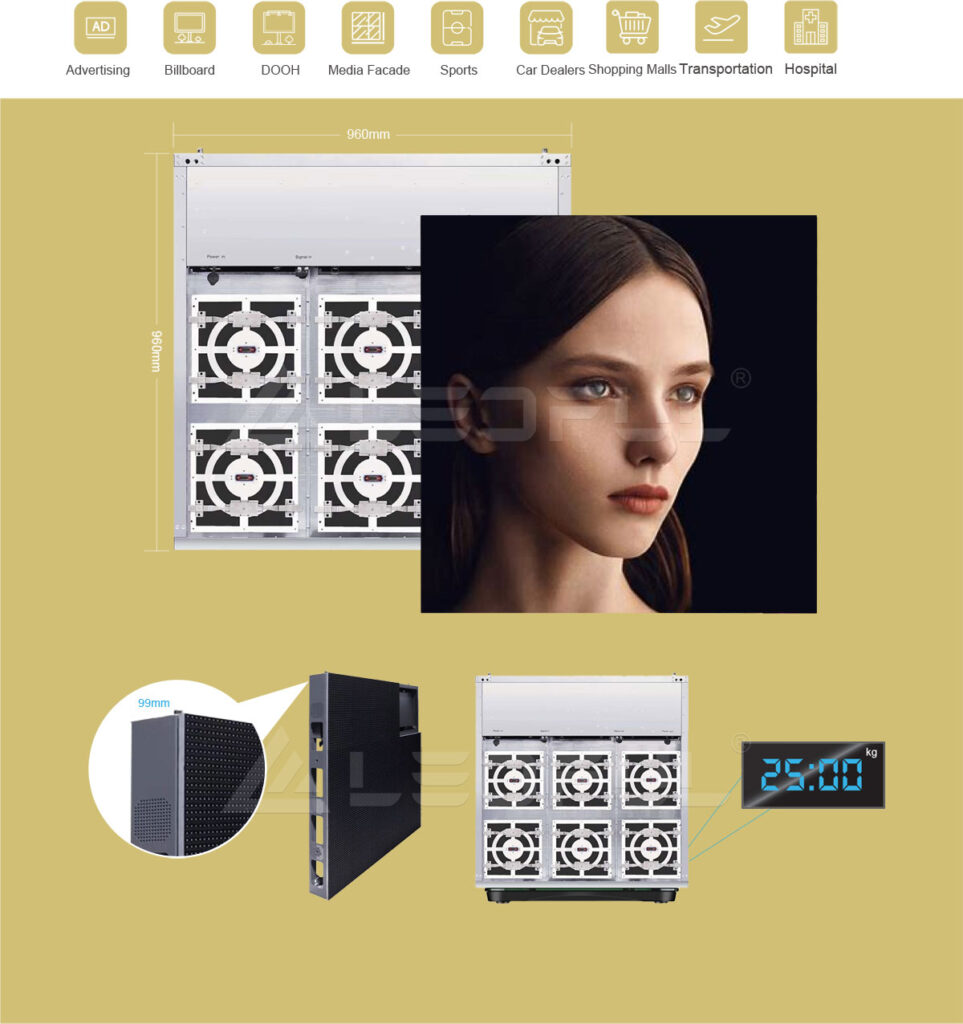

| Cabinet Dimension | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft | 960x960mm / 3.15×3.15ft |
| Cabinet Material | Iron | Iron | Iron | Iron |
| Cabinet Weight(kg / sqm) | 25KG | 25KG | 25KG | 25KG |
| Power Con.(W/㎡) (Max / Avg) | 800W/240W | 800W/240W | 800W/240W | 800W/240W |

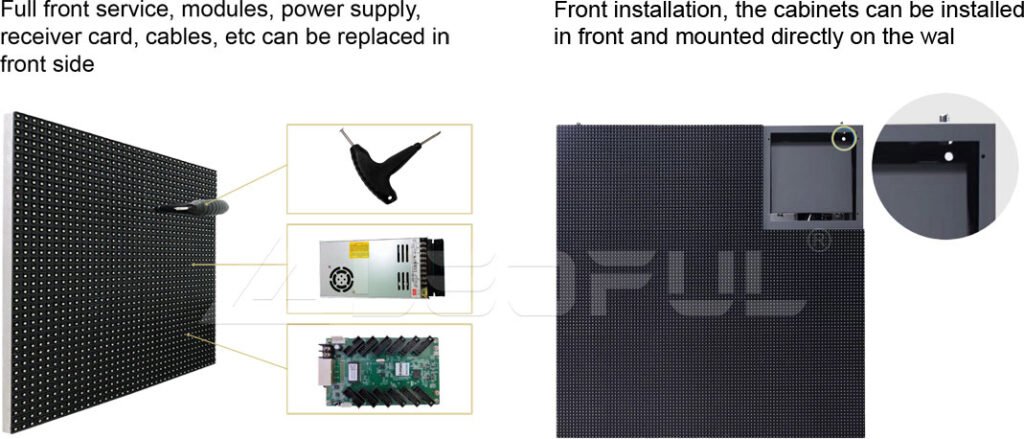

| Service Access | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Rate | IP68 | IP68 | IP68 | IP68 |
| Operation Temperature | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ |
| Input Voltage (AC) | 110V / 240V | 110V / 240V | 110V / 240V | 110V / 240V |
* Specifications and photos are subject to change without prior notice.
