Indoor High Definition LED Screen
● Super Light and Thin
● HUB Connection Cable Free
● Die Casting Aluminum Module
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Full Front Service

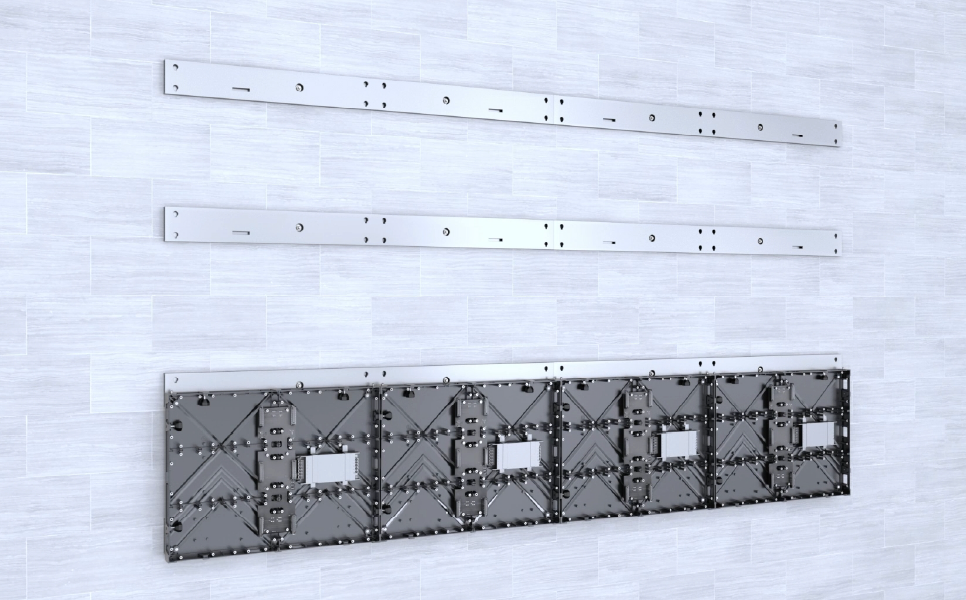

Easy Installation
High Contrast

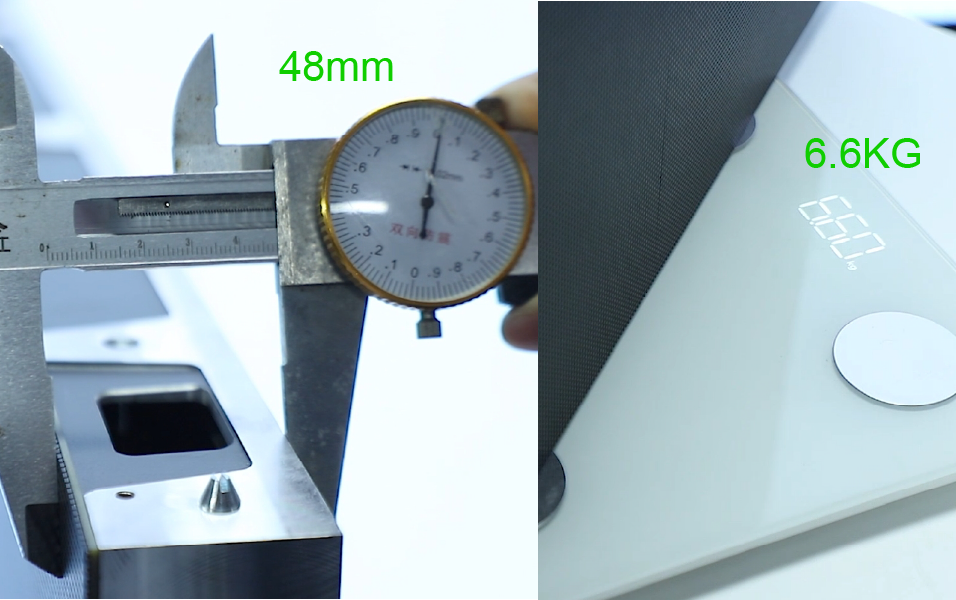

Light and Thin
Light and Thin
Ultra-thin and Light
Curved
High Protection
Ultra-wide Viewing Angle
Curved

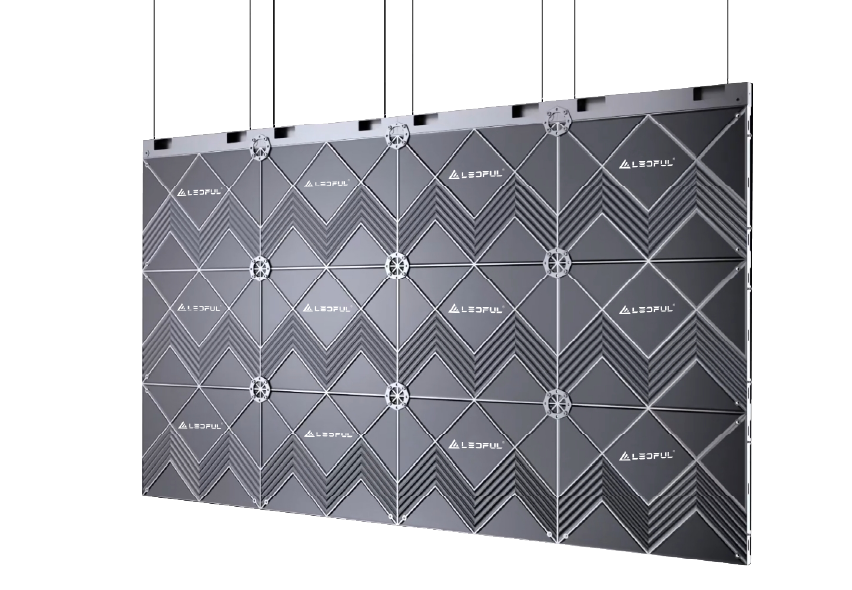

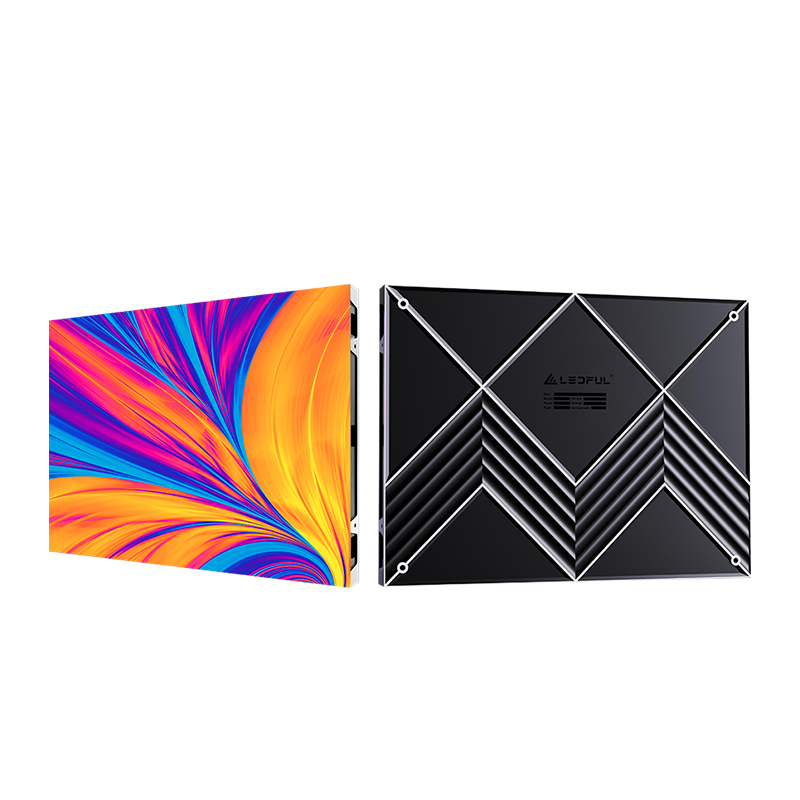

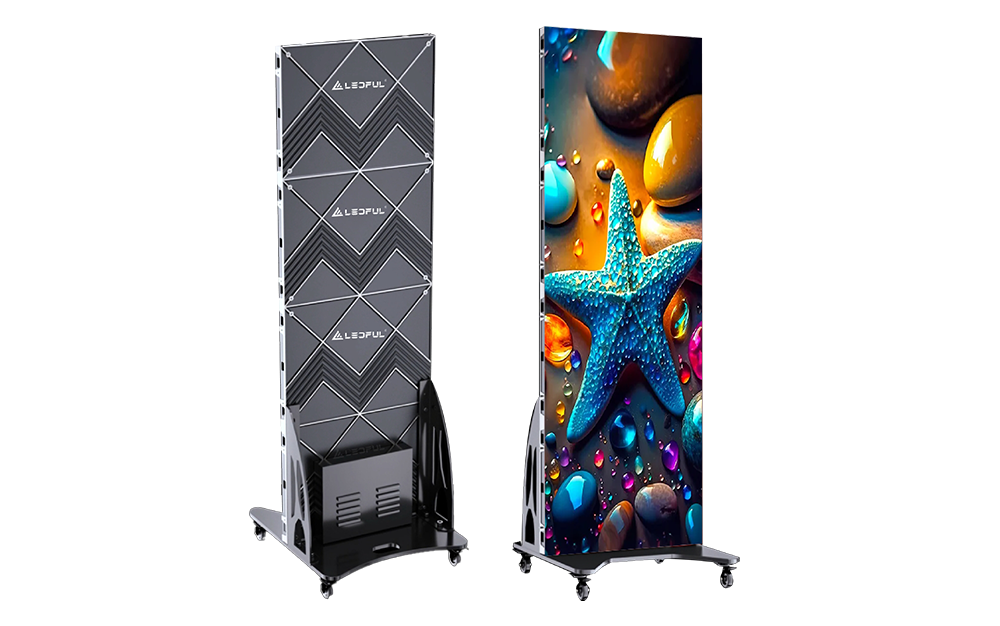

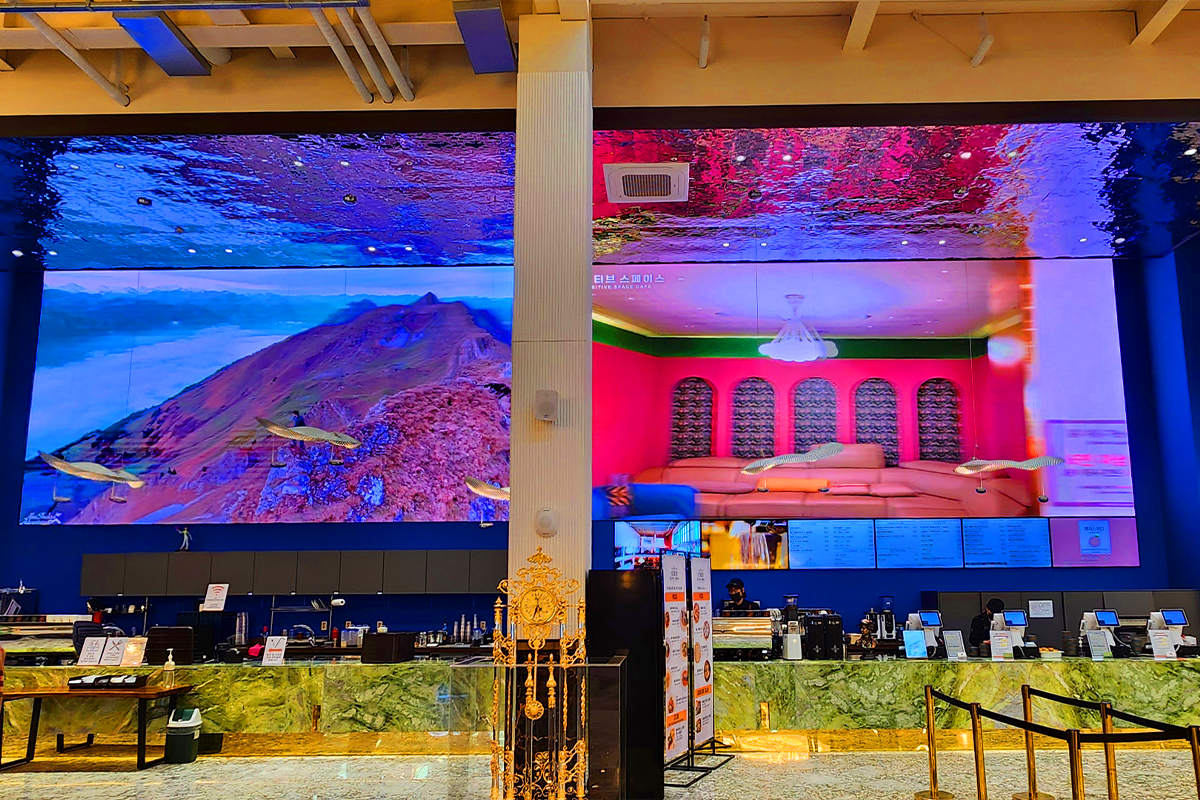

BM-PRO series cabinet is a new design with thinner and lighter for indoor application. With premium quality & business style, multi cabinet size for flexible splicing, wall mounted, hanging, free standing with wheels, it’s the good choice for conference room, airport, retail store, auditorium, theater, religion house, hospitality, shopping mall, gaming room, etc.

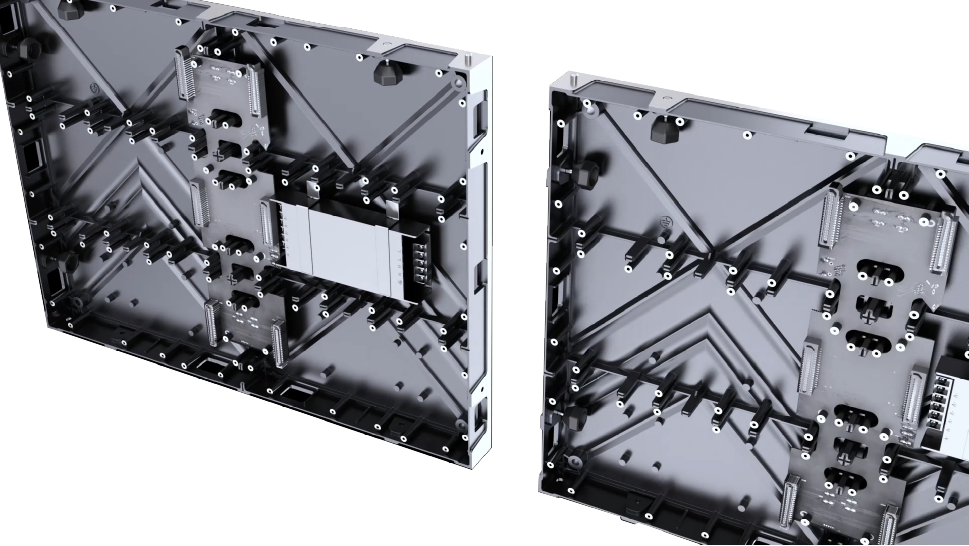

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Higher structural strength, higher flatness, strongly dissipate heat, corrosion resistance, long service life.

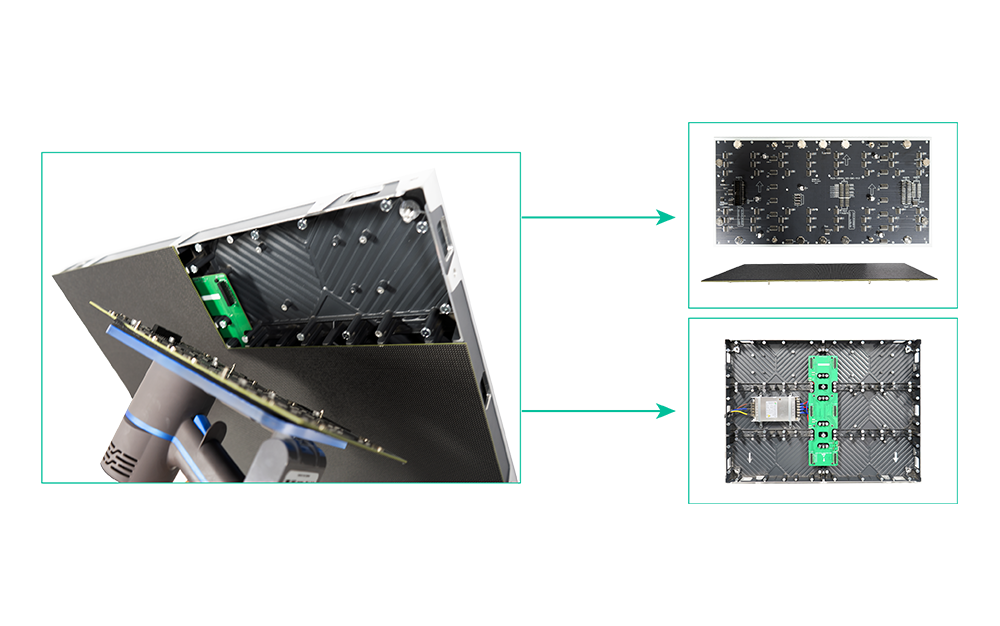

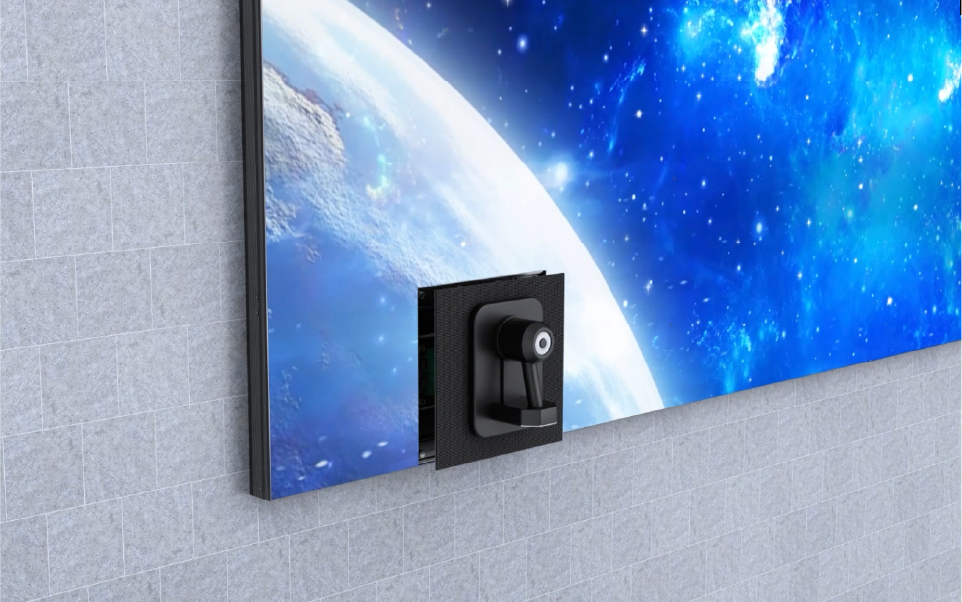

Dual service mode of front and rear design to save you Maintenance Cost.
Decreasing the possibility of failure caused by cables, also makes the whole screen tidy and elegant appearance.
Aluminum material LED display module, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level.
Each LED module is equipped with a safety harness to prevent the module from falling when doing maintenance.
High density silicone cables, high & low temperature resistance, and excellent electrical insulation; Protect the cables from damage caused by animals, bring down the possibility of maintenance.
Featuring a common cathode design, the FS Pro series reduces heat generation and energy consumption, resulting in lower operating costs and environmental impact. The overall energy saving is 40%.
The brightness reaches up to 10000nits, can instantly captivate attention & deliver content even under strong sunlight.
Delicate picture with no flicker, superior displays effects.
| Model | BM1.2-PRO | BM1.5-PRO | BM1.8-PRO | BM2.5-PRO | BM1.8HI-PRO | BM2.5HI-PRO |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 2.5 | 1.86 | 2.5 |
| Pixel Matrix Per Sqm. | 640,000 | 422,500 | 288,888 | 160,000 | 288,888 | 160,000 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD1415 | SMD1921 |
| Brightness(nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 | 3500 | 4000 |
| Scan | 1/64 | 1/52 | 1/43 | 1/32 | 1/43 | 1/32 |
| Module Dimension | 320x160mm | |||||

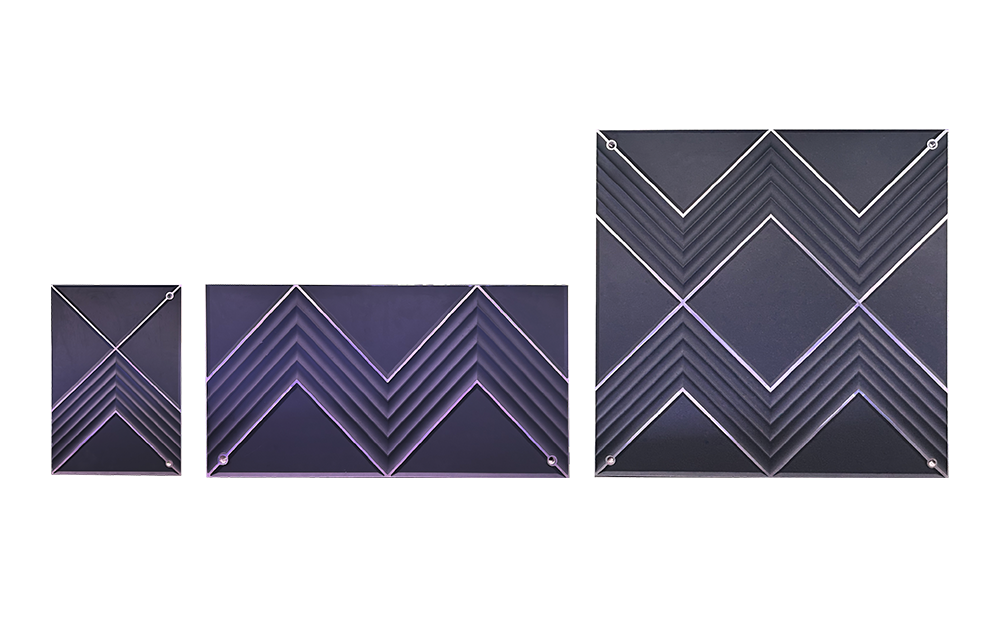

| Cabinet Dimension | 640×480×48mm,640×640×48mm,320×480×48mm,640×320×48mm,640x160mmx48mm | |||||
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight | 6.5KG | |||||
| Power Con. (W/Sqm.) | Max.650W/Avg.100-200W | Max.976W/Avg.200-300W | ||||
| Service Access | Full Front Access | |||||
| Refresh Rate(HZ) | ≥3840 | |||||
| Grey Scale(bit) | 16bit | |||||
| Contrast Ratio | 10000:1 | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP31 | |||||
| Operation Temperature | -20℃~+60℃ | |||||
| Operation Humidity | 10%~90% | |||||
| Input Voltage(AC) | AC 110/220V,50-60Hz | |||||
| * Specifications and photos are subject to change without prior notice. | ||||||
