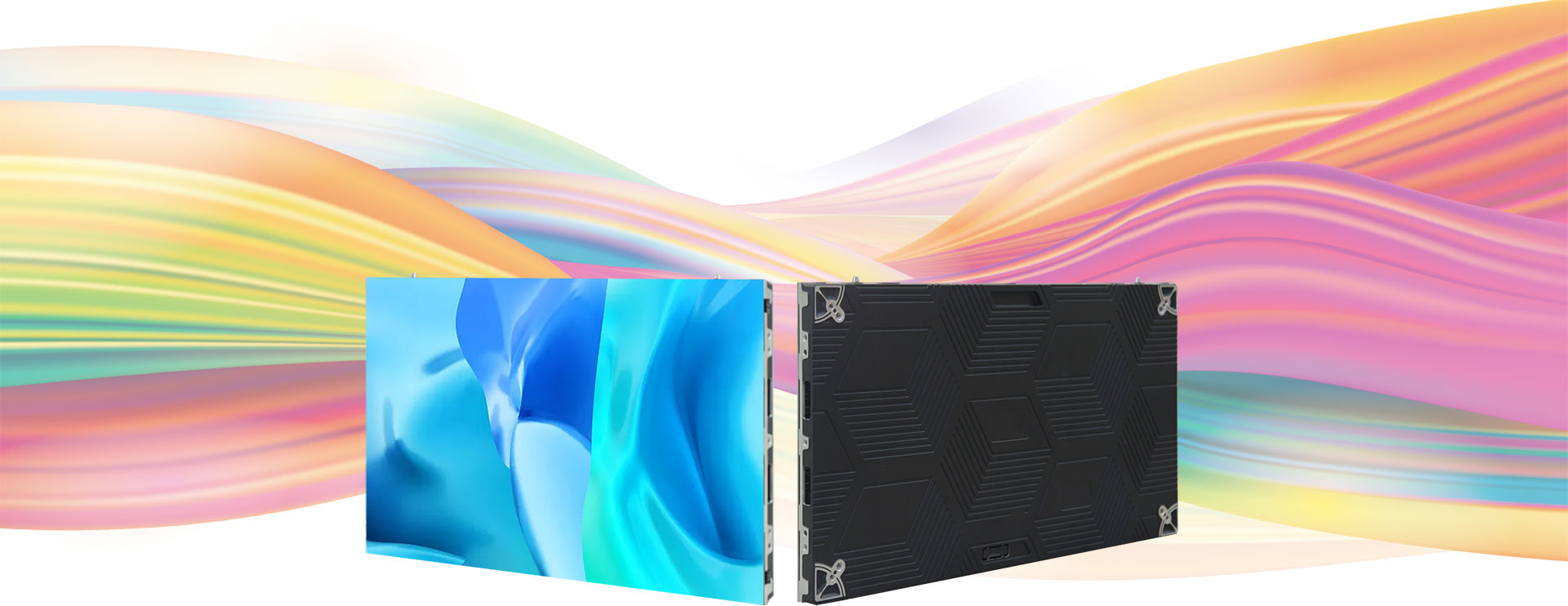

Indoor Ultra High Definition LED Screen
Faster setup, save labors, save time, save cost during LED screen installation, simple, easy, convenient, new user friendly, neat cables arrangement, reduced cable clutter.
● 16bit grayscale
● 10000:1 contrast ratio
● Seamless splicing, no any lines between cabinets
● Low blue light damage, UHD, 3840HZ high refresh, full color
● Ultra-wide viewing angle, horizontal and vertical viewing angles reach 170°
● Energy efficiency, reduced energy consumption, having a positive environmental impact

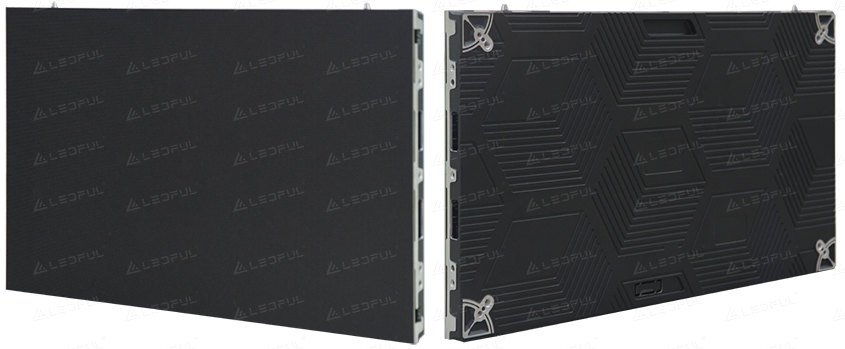

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
High strength, better flatness with tolerance less than ±0.1mm, makes LED screen real seamless and perfect flatness. Better heat-dissipation, longer working lifespan.

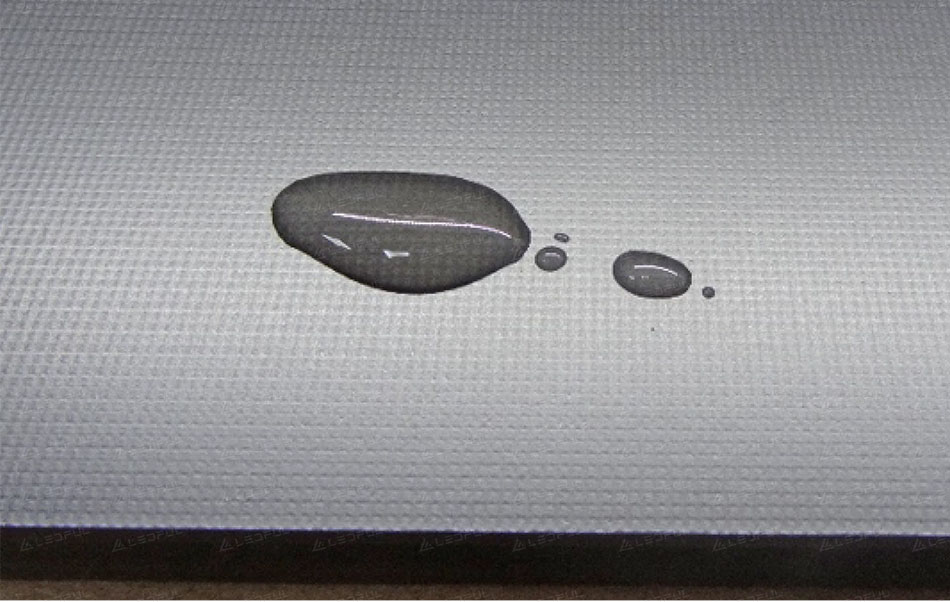

Protection grade IP65, waterproof, dustproof, anti-oxidation, anti-static and anti-shock, more stable performance, improved lifespan of screen.
25mm product depth & per cabinet is only 5.14kg/pcs.
600×337.5mm cabinet dimension create the 16:9 ratio.It offers a balance that enhances viewing experiences, making it ideal for movies, TV shows, and video games.

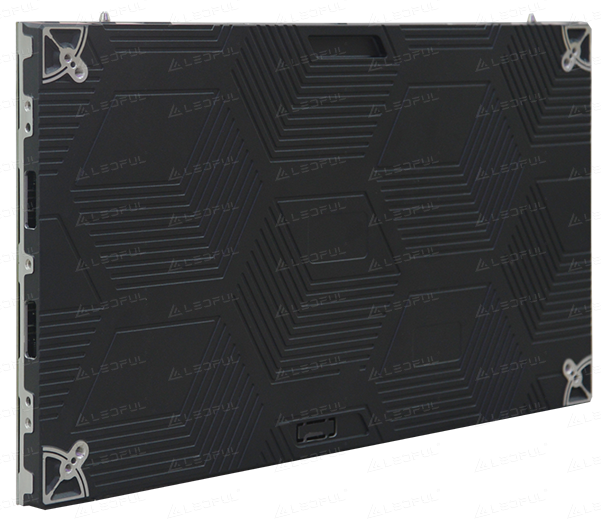

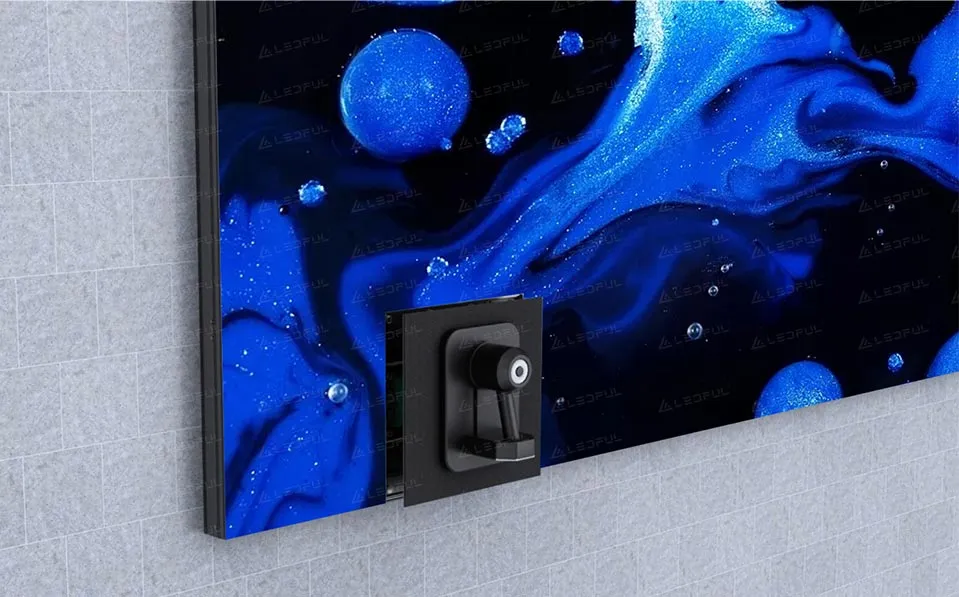

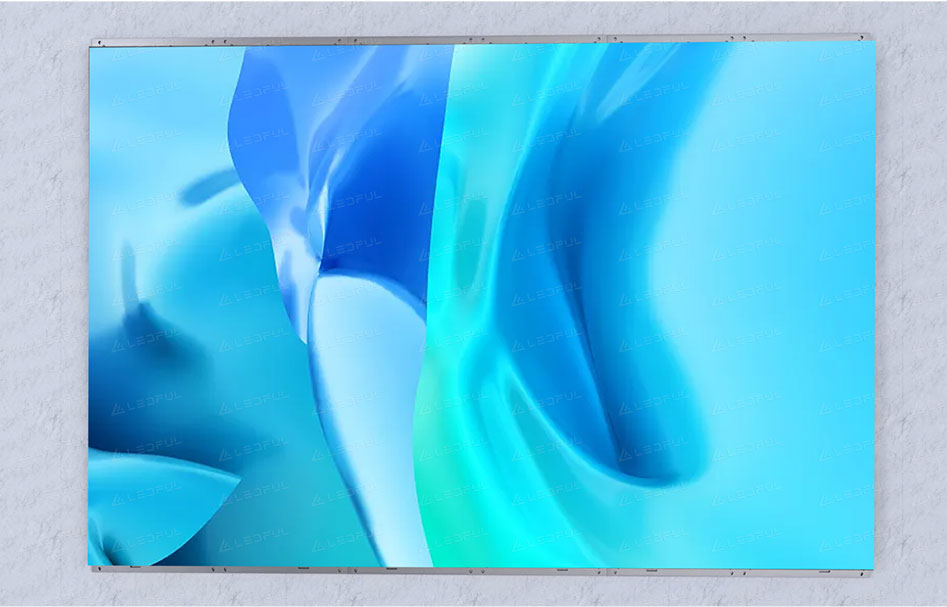

Easier and faster installation and maintenance, anyone can replace LED modules with a special suction tool, easy, quick, convenient, only 1 second with our cable-free design. Flexible in location, can be mounted to the wall directly.
Easier and faster installation and maintenance, anyone can replace LED modules with a special suction tool, easy, quick, convenient, only 1 second with our cable-free design. Flexible in location, can be mounted to the wall directly.

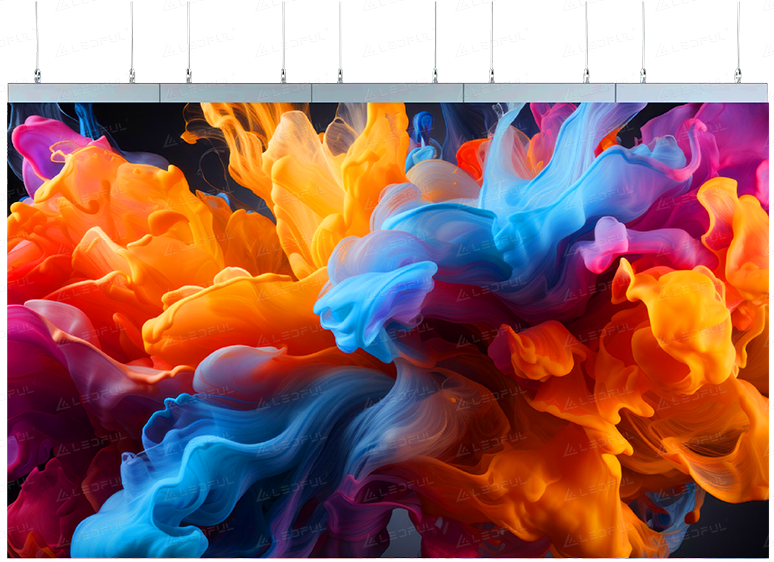

Super light only 25kg/sqm and strong hanging bars ensure hanging installation without safety concern.

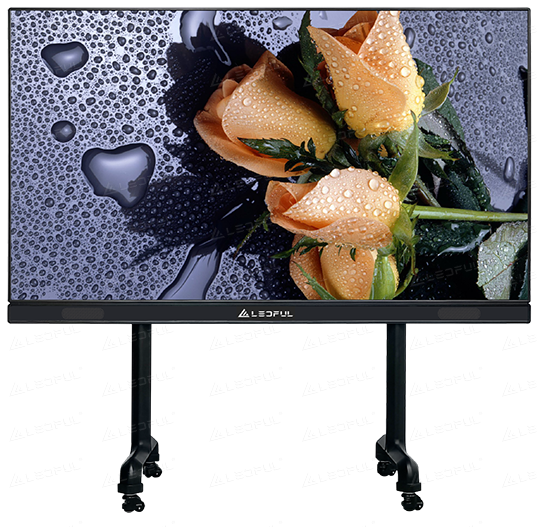

CPoster plug and play, freestanding with wheels, movable, all-in-one LED poster, born for conference room, touch function is optional.
| Model | COB0.9(Flip-Chip) | COB1.2(Flip-Chip) | COB1.5(Flip-Chip) | COB1.8(Flip-Chip) |
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.56 | 1.875 |
| Pixel Matrix Per Sqm. | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Pixel Configuration | COB 1R 1G 1B | |||
| Brightness (nits) | 600-800 | |||
| Scan | 1/60 | 1/45 | 1/48 | 1/30 |
| Module Dimension | 150×168.75mm | |||
| Cabinet Dimension | 600×337.5x25mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | 5.14KG | |||
| Power Con. (W/Sqm.) | Max.300W/Avg.100W | |||
| Service Access | Full Front Access | |||
| Refresh Rate (HZ) | ≥3840 | |||
| Grey Scale(bit) | 16bit | |||
| Contrast Ratio | 10000:1 | |||
| Viewing Angle (H/V) | 170°/170° | |||
| IP Rate | P65 (front) | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage (AC) | AC110/220V,50-60Hz | |||
* Specifications and photos are subject to change without prior notice.
