Extend Reality LED Screen
● Cable free
● 7680hz High Refresh
● Above 5000nits high brightness.
● 500*500 mm die casting aluminum cabinet,
● All-in-one power supply box design, easy maintenance.
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Front/Rear Service
No Light Leakage
Light and Thin
Concave/Convex Curved Shape
Climbing support
Wide View Angle
Wide View Angle
Wide View Angle
V&H series is rental led screen with die-casting aluminum cabinet, super thin, light and good heat dissipation, good for both indoor and outdoor rental events. Multiple designs like curved, 90 degree, cube, flexible. Multiple installation ways, wall-mounted, hanging, ceiling, floor stacking. It is a good choice for exhibition, concert, wedding, conference, party, hotel, school, stadium, theater, auditorium, car shop, ect.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

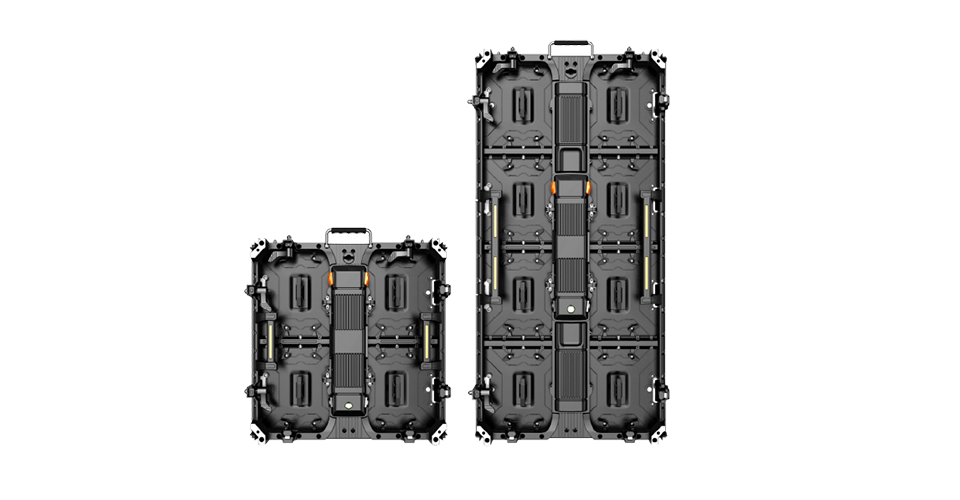

500x500mm and 500x1000mm optional, 500x1000mm big panel is cost-effective option and save you more time and energy on installation; 500x500mm small panel is good for multiple screen sizes, such as 1.5m , 2.5m, and 3.5m, ect. Varying sizes, more options.

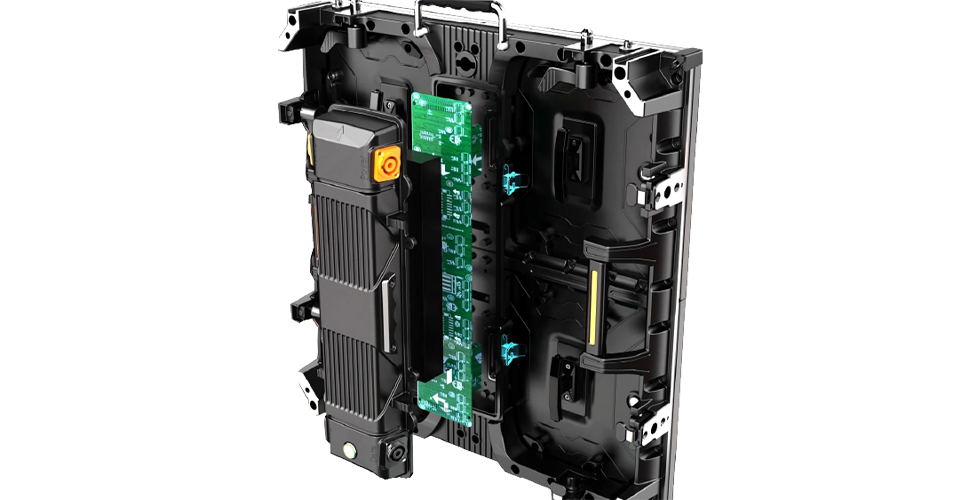

Power box and led panel without cable for connection, gold-plated row of pins, good conductivity, stable signal and data transmission, save labors and time during maintenance and assembly.

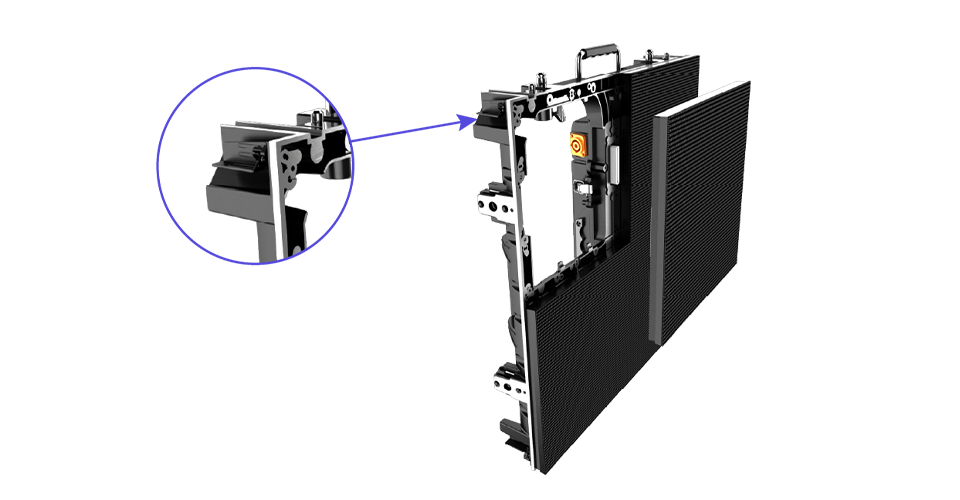

4 corner parts with corner protector to protect led panel during installation, disassembly and transportation.
Profiled aluminum or steel wall mounted installation structure,using connecting plate to fix screen on structure.

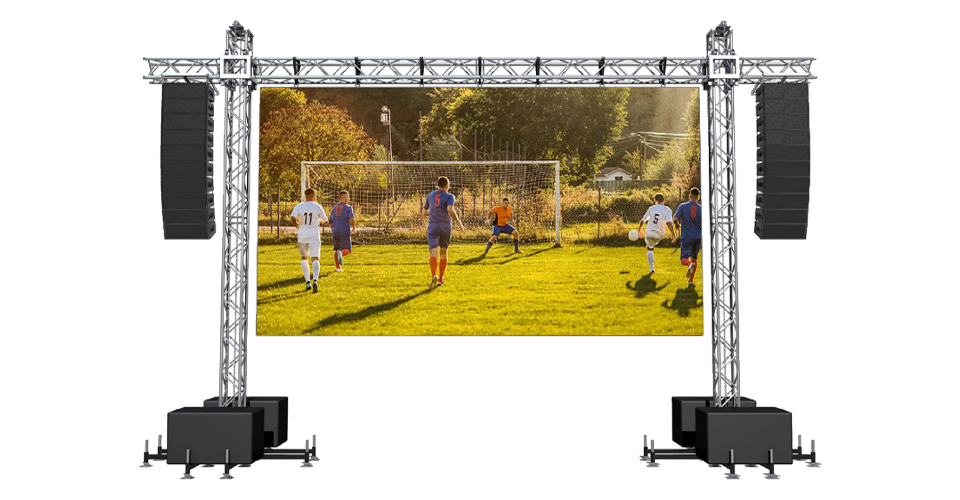

Truss structure for hanging installation, 500x500mm 8KG per piece, 500x1000mm 14KG per piece. Strong hanging bars ensure the safety of hanging.
LEDFUL floor stacking structure, aluminum alloy material, screw lock & clamp. Beam can be used as both hanging and ground beam. Easy installation and easy lock.
Left & Right sides with beveled cabinet and module.
LED display with scale lock that can adjust degree, the range is -15°~+15°, concave or convex screen.

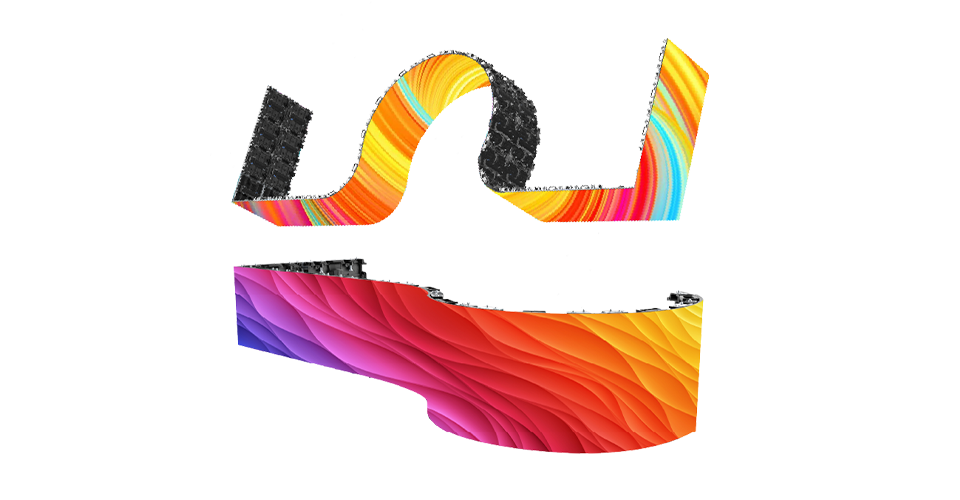

Creative design for different events, curved screen, 90 degree screen, flat screen and flexible screen can work together to meet your requirements.

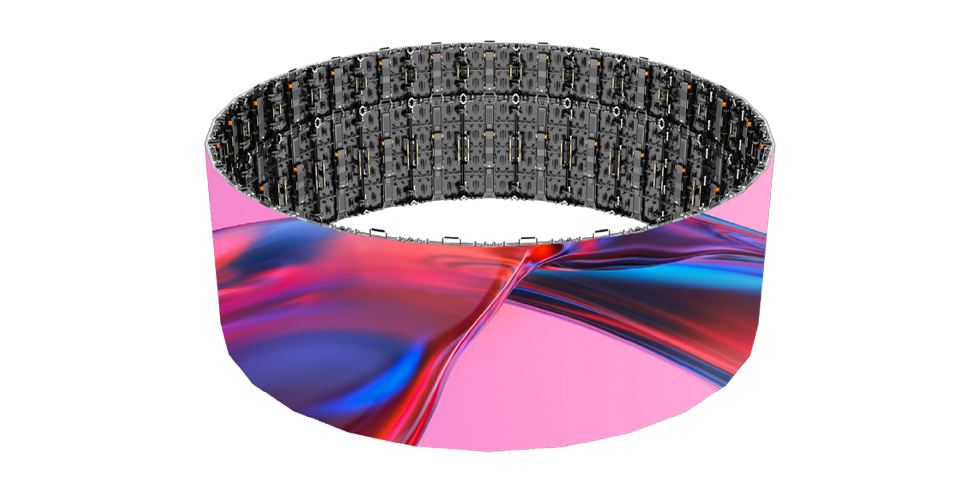

Born to rent curved screens, 500X500mm cabinet size, 250x250mm flexible module, one cabinet can be bent 45°, 8 cabinets can make a circle. curved surfaces are smoother with smaller gaps and better aesthetics. Self-adjustable lock that has lock and unlock status.

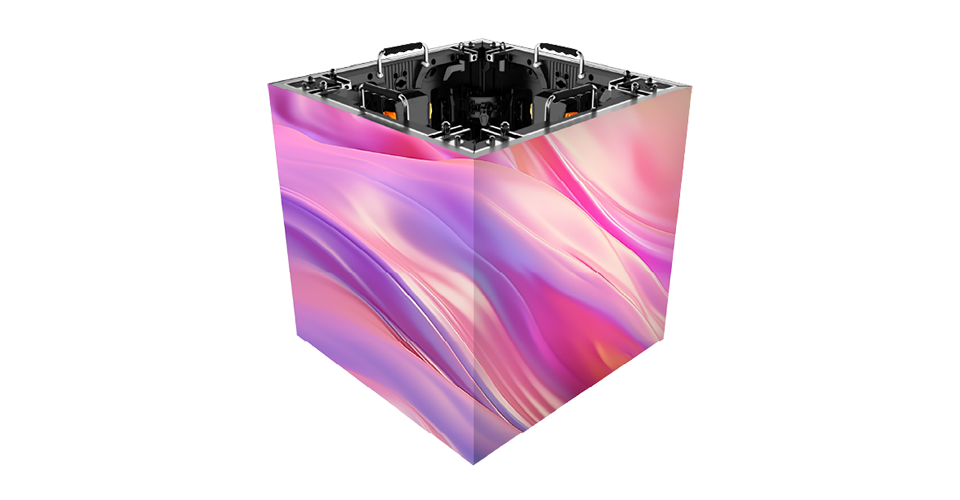

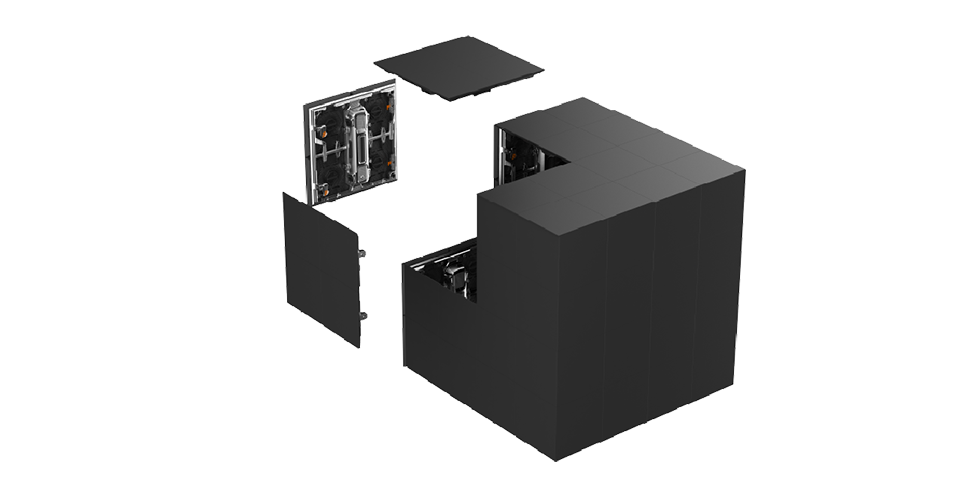

4-sided beveled cabinet and module make a complete cube screen, small gap 6.65mm between cabinet to cabinet at right angle part. Die-casting aluminum cabinet makes it more precise.

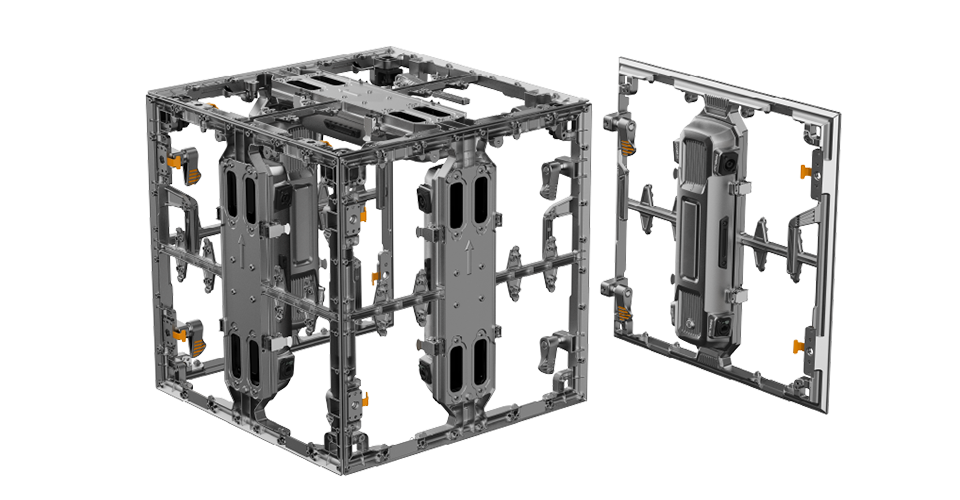

Born to make column and cube shape, 4-sided beveled cabinet for 5 and 6 sides screen. Front maintenance with magnet. Replaceable quick lock, curved or 90 degree. LED module with small handle, more convenient for maintenance and installation.

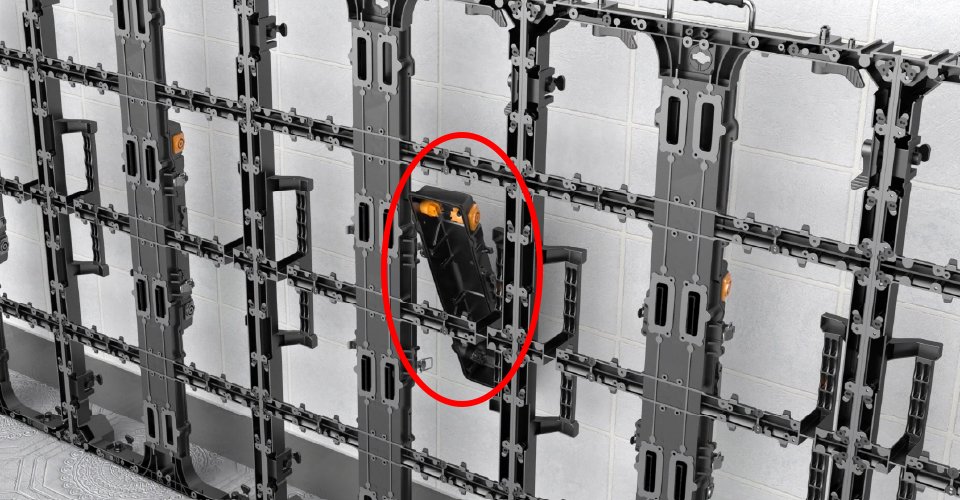

Standard is rear maintenance, led modules are fixed on cabinet by screw; front maintenance is additional option, it is led module with magnet and we can remove module from cabinet by front service tool.

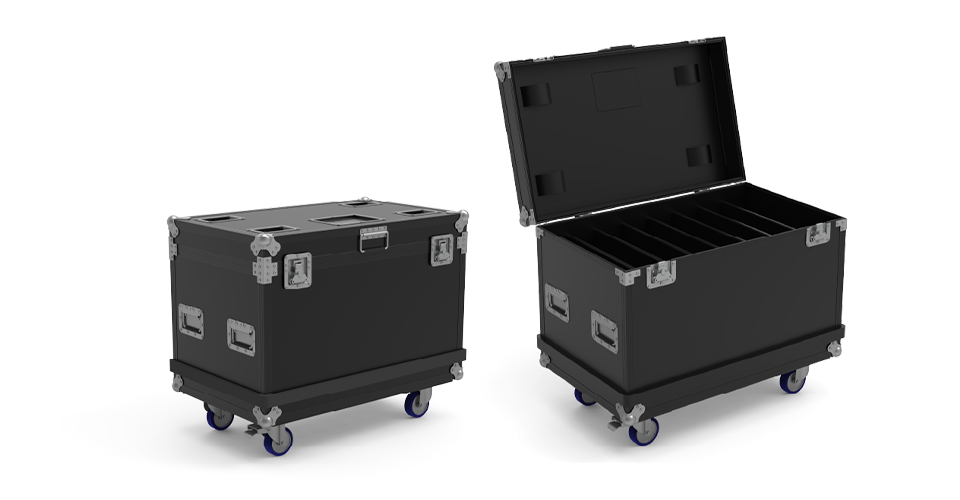

Flight case package with wheels, can be moved to various places. Composite honeycomb panel exterior, aluminum flight case frame, high density EVA and pearl foam. ABS plastic flight case is optional.
| Model | VI/HI1.5 | VI/HI1.9 | VI/HI2.5 | VI/HI2.6 | VI/HI2.9 | VI/HI3.9 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness(cd/Sqm.) | ≥900 | ≥900 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Scan | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250×250mm | |||||
| Cabinet Dimension | V–500x500mm / H–500x1000mm | |||||
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight | V–8KG / H–14KG | |||||
| Power Con. (W/Sqm.) | Max. 800W / Avg. 200-300W | |||||
| Service Access | Front / Rear | |||||
| Refresh Rate (HZ) | ≥3840(7680) | |||||
| Grey Scale (bit) | ≥16bit | |||||
| Viewing Angle(H/V) | 160°/160° | |||||
| IP Rate | IP31 | |||||
| Input Voltage(AC) | 110V/240V | |||||
| Model | VO/HO2.6 | VO/HO2.9 | VO/HO3.9 | VO/HO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness(cd/Sqm.) | 4500 | 4500 | 5000 | 5000 |
| Scan | 1/24 | 1/21 | 1/16 | 1/13 |
| Module Dimension | 250×250mm | |||
| Cabinet Dimension | V–500x500mm / H–500x1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | V–8KG / H–14KG | |||
| Power Con. (W/Sqm.) | Max. 800W / Avg. 200-300W | |||
| Service Access | Front / Rear | |||
| Refresh Rate (HZ) | ≥3840(7680) | |||
| Grey Scale (bit) | ≥16bit | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Input Voltage(AC) | 110V/240V | |||
* Specifications and photos are subject to change without prior notice.
