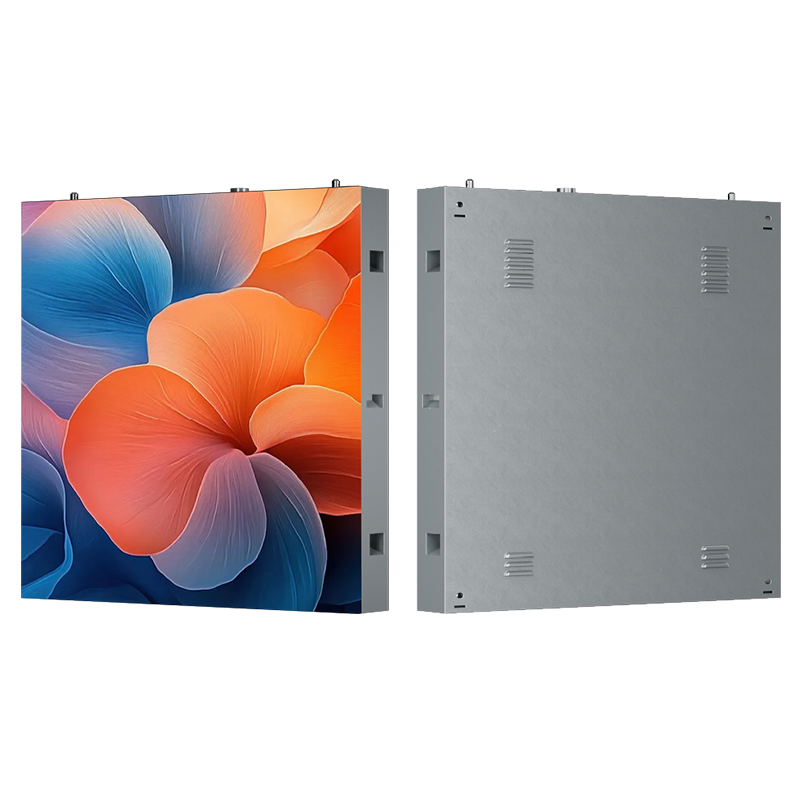

Outdoor Waterproof and Front Access LED Screen
● Customized Cabinet Size
● High Refresh Rate 3840Hz
● Front & Rear Dual Service Way
● High Brightness 6000~7000nits
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
A-Grade material
Better heat dissipation
Front & Back Service
High brightness
Higher protection
Light weigh
Super thin
Cable Free Connection
BM-PRO series cabinet is a new design with thinner and lighter for indoor application. With premium quality & business style, multi cabinet size for flexible splicing, wall mounted, hanging, free standing with wheels, it’s the good choice for conference room, airport, retail store, auditorium, theater, religion house, hospitality, shopping mall, gaming room, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

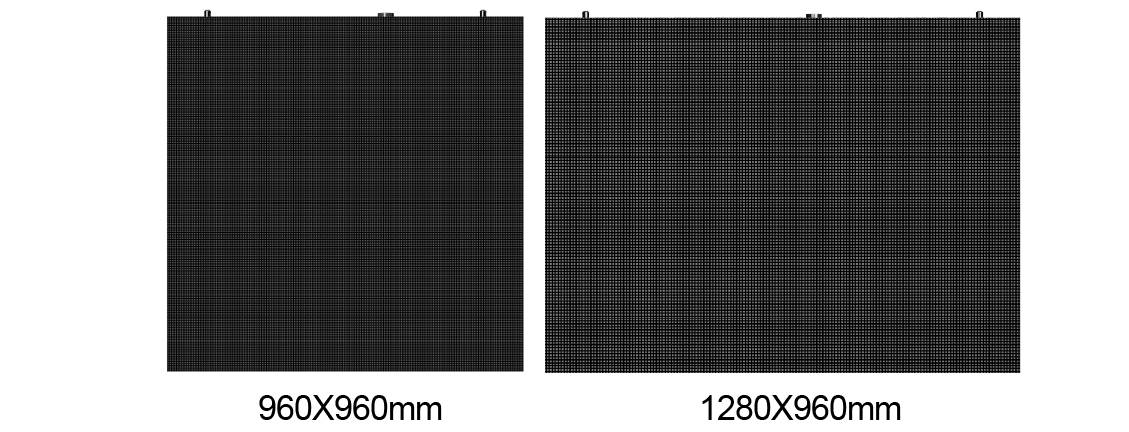

There are several different module sizes available–320x160mm, 250x250mm and 320x320mm. The cabinet dimensions can be customized based on the module size, meeting customer requirements for different screen sizes.

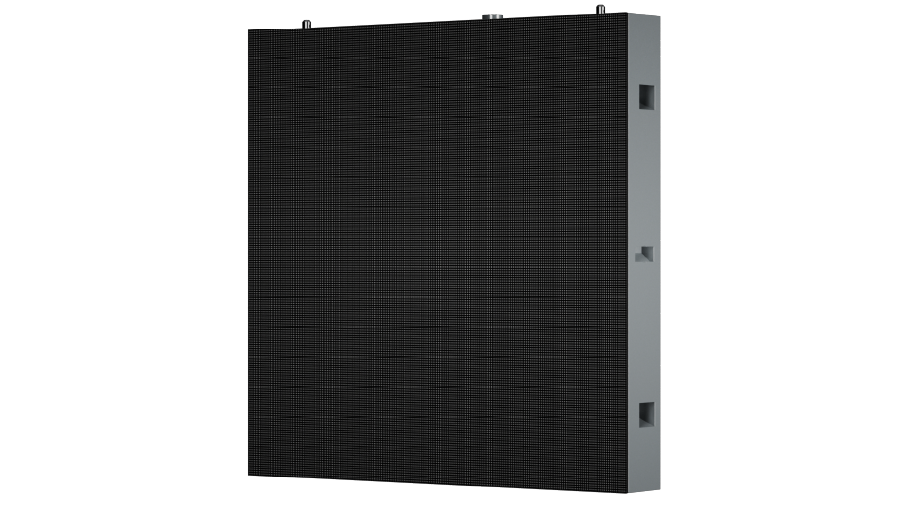

The precise structure of the box, the silicone seal and the waterproof glue process can completely prevent the intrusion of dust and rain. The box is equipped with fans to ensure better heat dissipation.

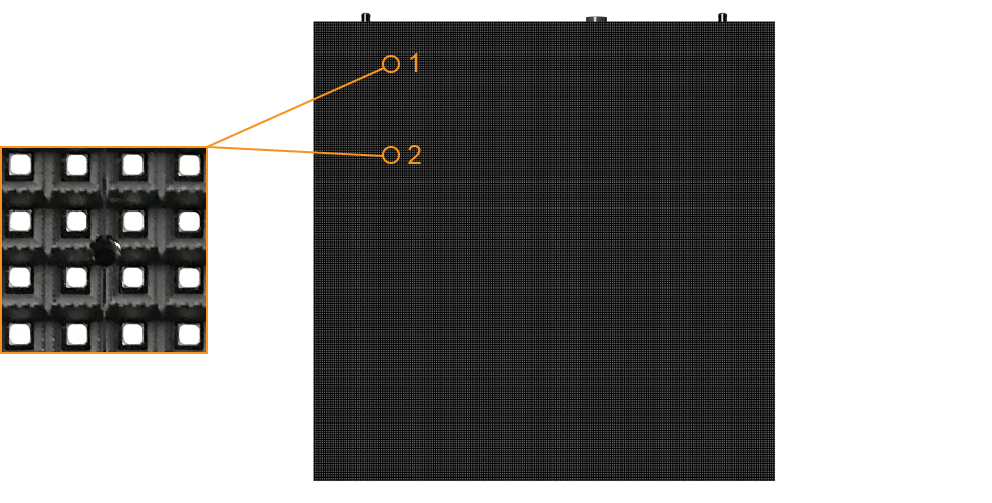

Only a small front maintenance tool is needed to unlock the four holes on a module, and the gear front maintenance can be easily carried out. No need to reserve a wide maintenance space at the back.

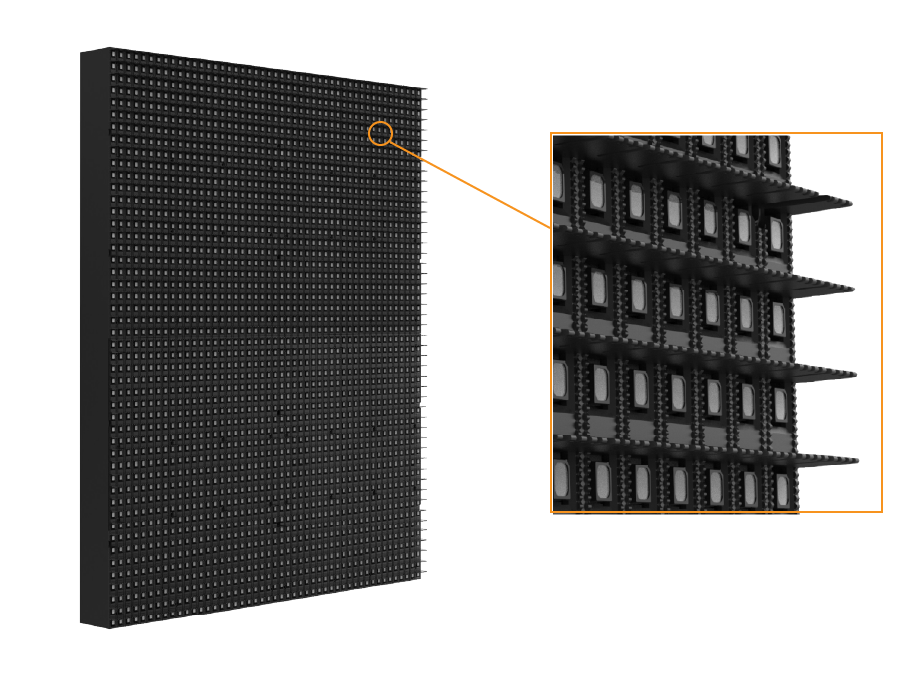

It forms a physical barrier that effectively prevents dust, rain, and moisture from invading the interior of the screen, protecting the delicate LED lamp beads and driver IC, and greatly extending the service life of the display. The black mask can provide higher contrast, making the picture look clearer.

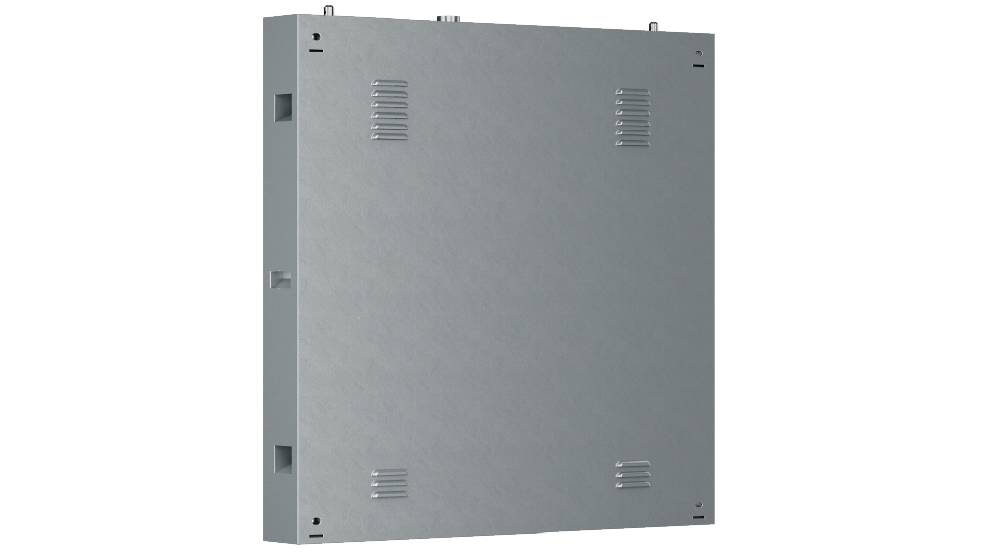

Handle holes are reserved on both sides to make screen installation easier.

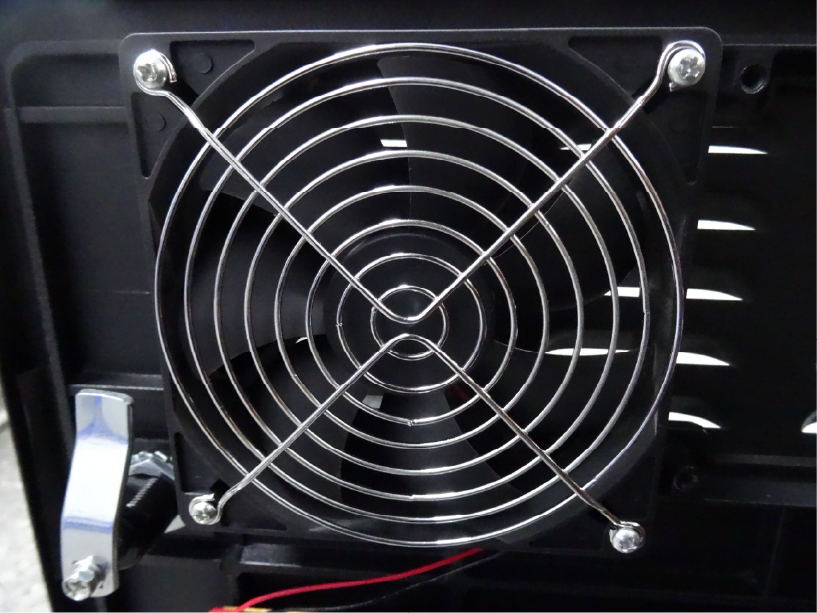

The box is equipped with fans to ensure better heat dissipation, which is suitable for hot weather.

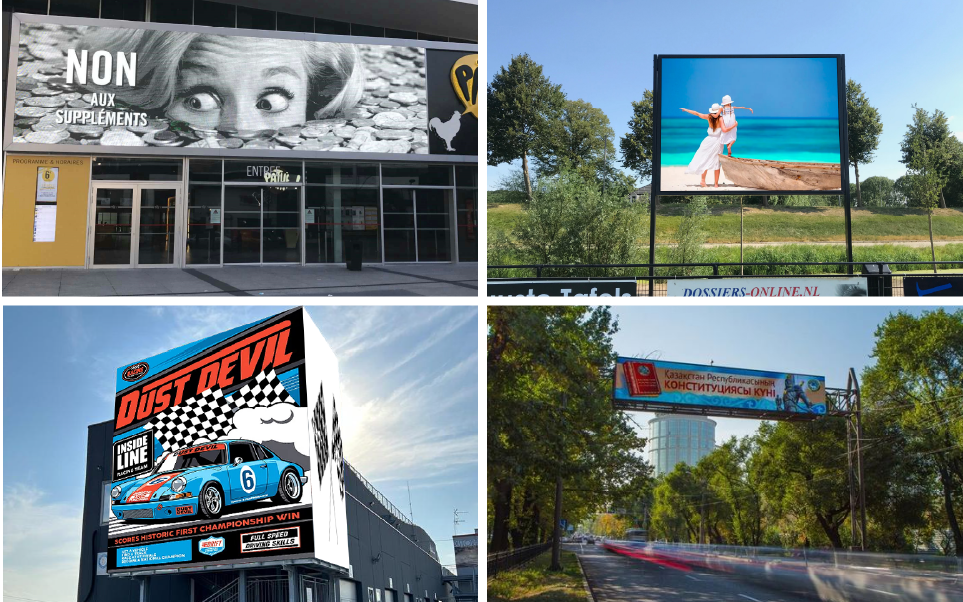

It can be directly mounted on the wall or used as a pillar. There are also various outdoor fixed right-angle screens and corner screens.

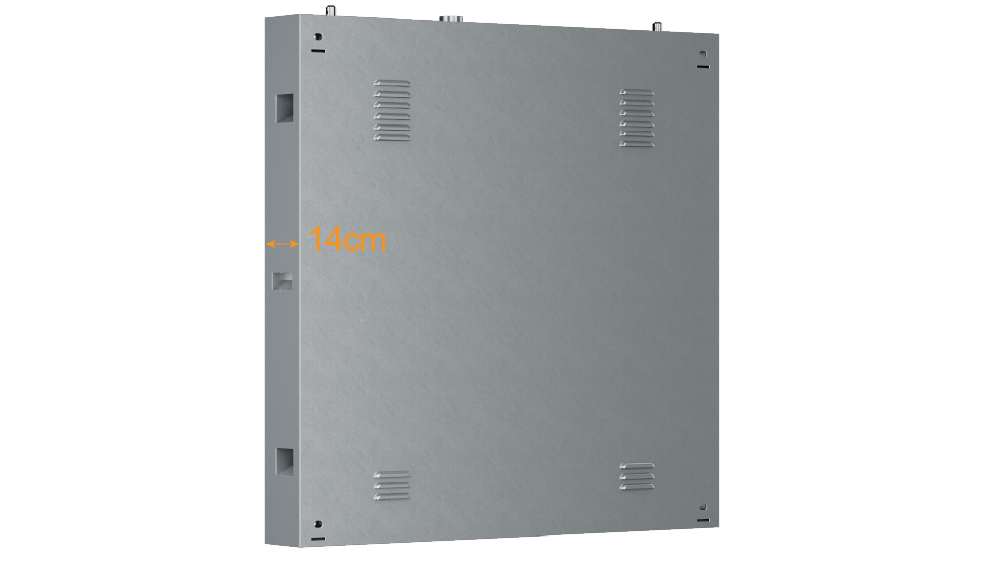

The thickened cabinet helps to increase the stability of the entire screen and resist bad weather. It can effectively resist strong winds, prevent the cabinet from deforming, and improve safety.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| FA | FA4 | FA5 | FA6.6 | FA8 | FA10 |
| Pixel Pitch(mm) | 4 | 5 | 6.67 | 8 | 10.4 |
| Pixel Matrix (㎡) | 62,500 | 40,000 | 22,500 | 15,625 | 9,216 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Scan | 1/10 | 1/8 | 1/6 | 1/5 | 1/2 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Brightness (nits) | 6000 | 6000 | 6000 | 6000 | 6000 |
| Power Con. (Max / Avg) | 800/240W | 800/240W | 800/240W | 800/240W | 800/240W |
| Material | Iron | Iron | Iron | Iron | Iron |
| Module Dimension | 320x160mm / 320x320mm | 320x160mm / 320x320mm | 320x160mm / 320x320mm | 320x160mm / 320x320mm | 320x160mm / 320x320mm |
| Cabinet Dimension | 960x960mm / 3.15×3.15ft Customized | 960x960mm / 3.15×3.15ft Customized | 960x960mm / 3.15×3.15ft Customized | 960x960mm / 3.15×3.15ft Customized | 960x960mm / 3.15×3.15ft Customized |
| Weight (㎡) | 40kg | 40kg | 40kg | 40kg | 40kg |
| Refresh Rate (HZ) | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Service Access | Front Service | Front Service | Front Service | Front Service | Front Service |
| Viewing Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (AC) | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| Operation Temperature | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ |
| Operation Humidity | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% |
| * Specifications and photos are subject to change without prior notice. | |||||
| FA | FA3.9 | FA4.8 | FA5.9 | FA6.9 | FA8.3 | FA10.4 |
| Pixel Pitch(mm) | 3.91 | 4.81 | 5.95 | 6.94 | 8.33 | 10.4 |
| Pixel Matrix (㎡) | 65,536 | 43,264 | 28,224 | 20,736 | 14,400 | 9,216 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Scan | 1/8 | 1/6 | 1/7 | 1/6 | 1/5 | 1/2 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Brightness (nits) | 6000 | 5500 | 5500 | 6000 | 6000 | 6000 |
| Power Con. (Max / Avg) | 800/240W | 800/240W | 800/240W | 800/240W | 800/240W | 800/240W |
| Material | Iron | Iron | Iron | Iron | Iron | Iron |
| Module Dimension | 250x250mm / 0.82×0.82ft | 250x250mm / 0.82×0.83ft | 250x250mm / 0.82×0.84ft | 250x250mm / 0.82×0.85ft | 250x250mm / 0.82×0.86ft | 250x250mm/ 0.82×0.86ft |
| Cabinet Dimension | 1000x1000mm / 3.28×3.28ft Customized | 1000x1000mm / 3.28×3.28ft Customized | 1000x1000mm / 3.28×3.28ft Customized | 1000x1000mm / 3.28×3.28ft Customized | 1000x1000mm / 3.28×3.28ft Customized | 1000x1000mm / 3.28×3.28ft Customized |
| Weight (㎡) | 40kg | 40kg | 40kg | 40kg | 40kg | 40kg |
| Refresh Rate (HZ) | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Service Access | Front Service | Front Service | Front Service | Front Service | Front Service | Front Service |
| Viewing Angle (H/V) | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 | 140/140 |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (AC) | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V | 110V / 220V |
| Operation Temperature | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ | -20℃ to 60℃ |
| Operation Humidity | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% | 10% to 90% |
| * Specifications and photos are subject to change without prior notice. | ||||||
