Cathode Full Color Aluminum Screen
● Light & Thin
● Energy Saving
● 3D LED Display
● 10,000nits Brightness
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Full Front Service
Cable Free Design
User Friendly
Die Casting Aluminum Module
Light and Thin
Anti-Shedding Design

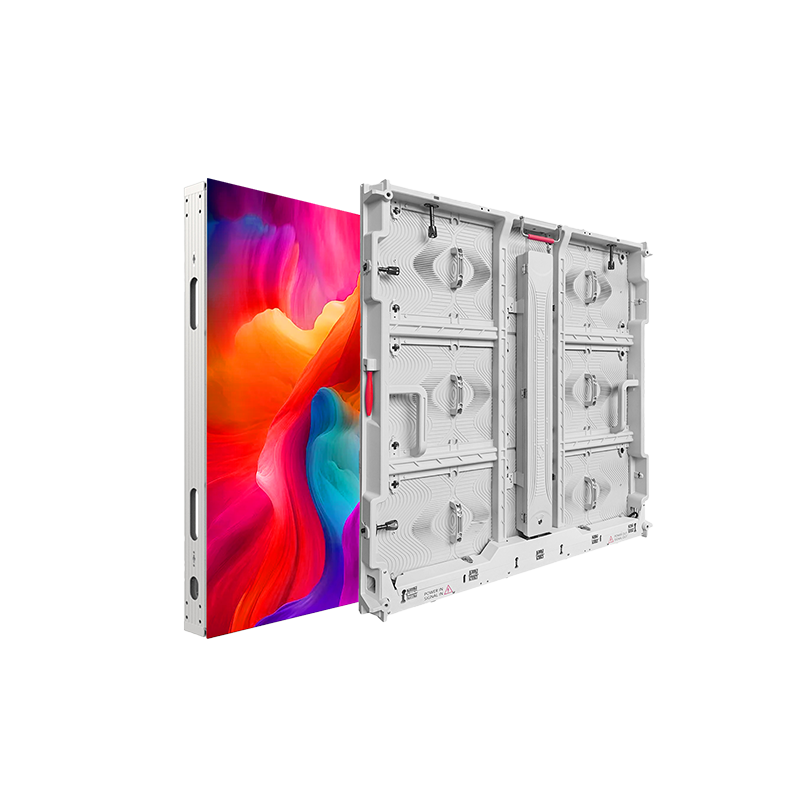

The FS PRO series common cathode LED display redefines outdoor advertising with its exceptional performance, energy efficiency, and versatility. This display boasts an IP66 waterproof rating, seamless splicing capabilities, and a unique energy-saving design, a high-precision aluminum profile cabinet, full-sealed design, making it ideal for outdoor display applications.

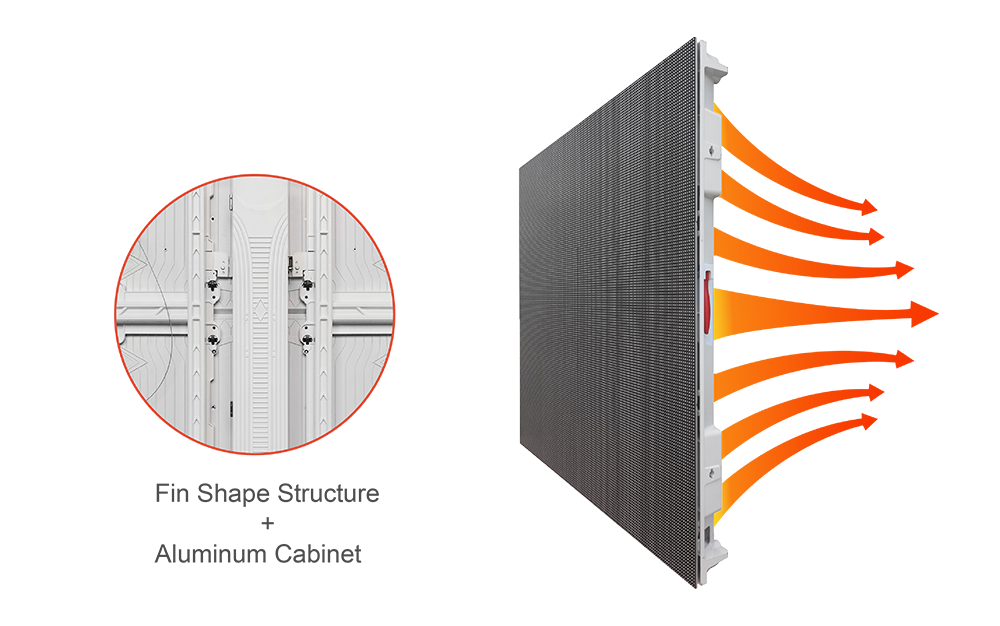

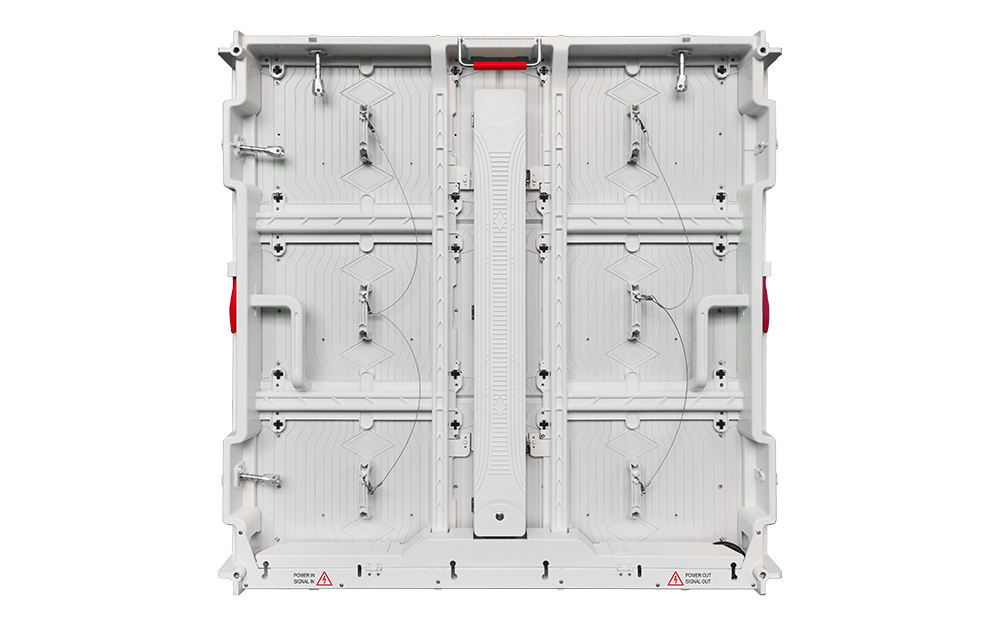

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Higher structural strength, higher flatness, strongly dissipate heat, corrosion resistance, long service life.

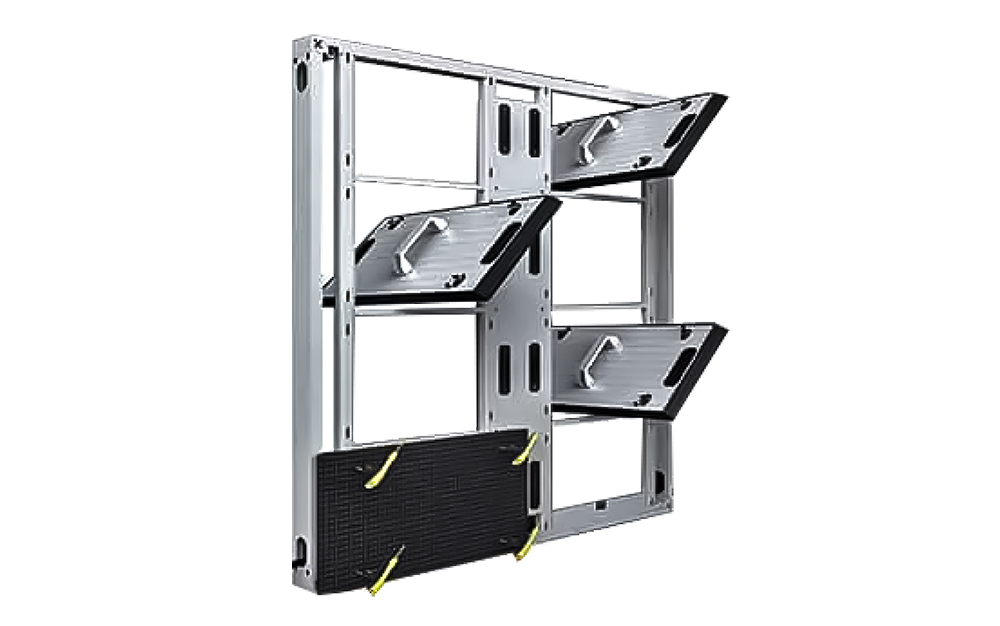

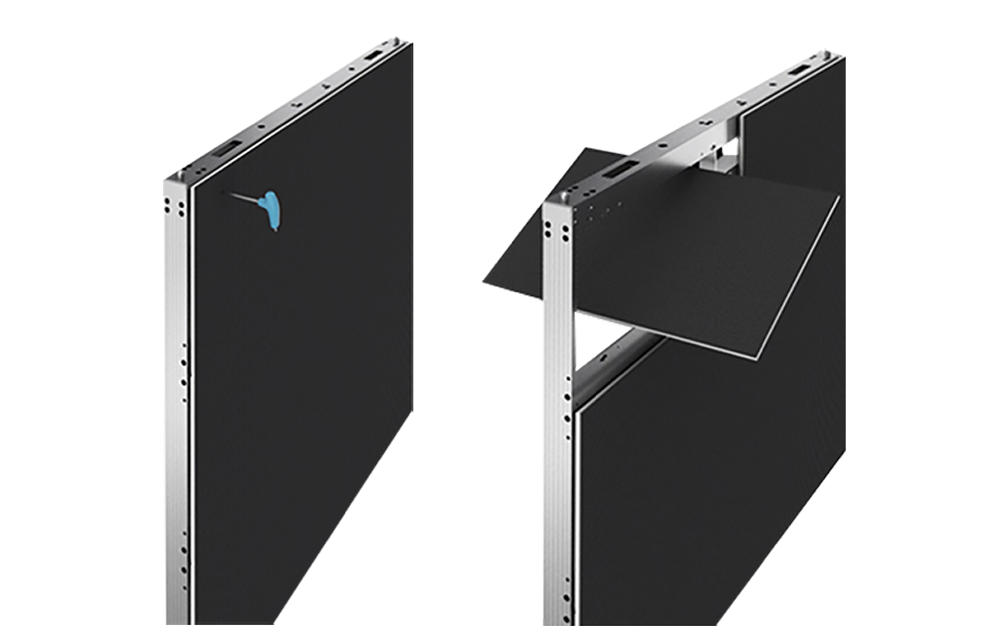

Dual service mode of front and rear design to save you Maintenance Cost.

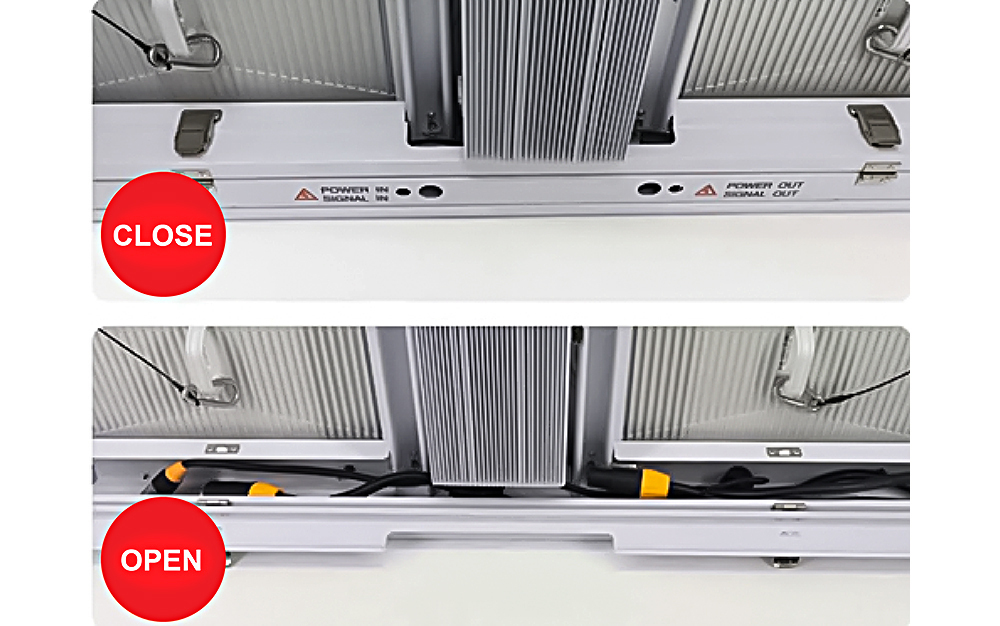

Decreasing the possibility of failure caused by cables, also makes the whole screen tidy and elegant appearance.

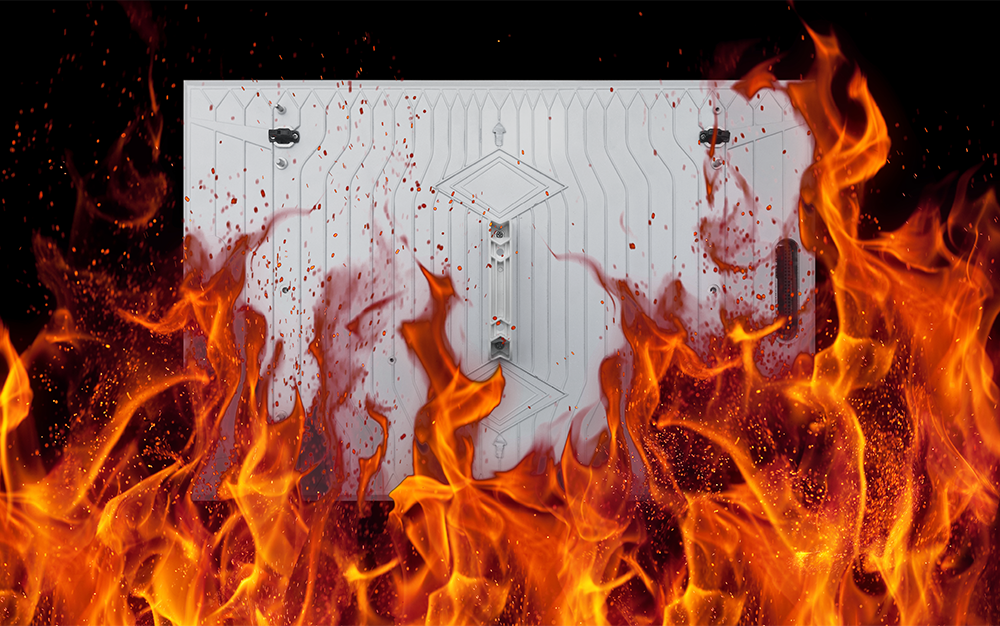

Aluminum material LED display module, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level.
Each LED module is equipped with a safety harness to prevent the module from falling when doing maintenance.
High density silicone cables, high & low temperature resistance, and excellent electrical insulation; Protect the cables from damage caused by animals, bring down the possibility of maintenance.

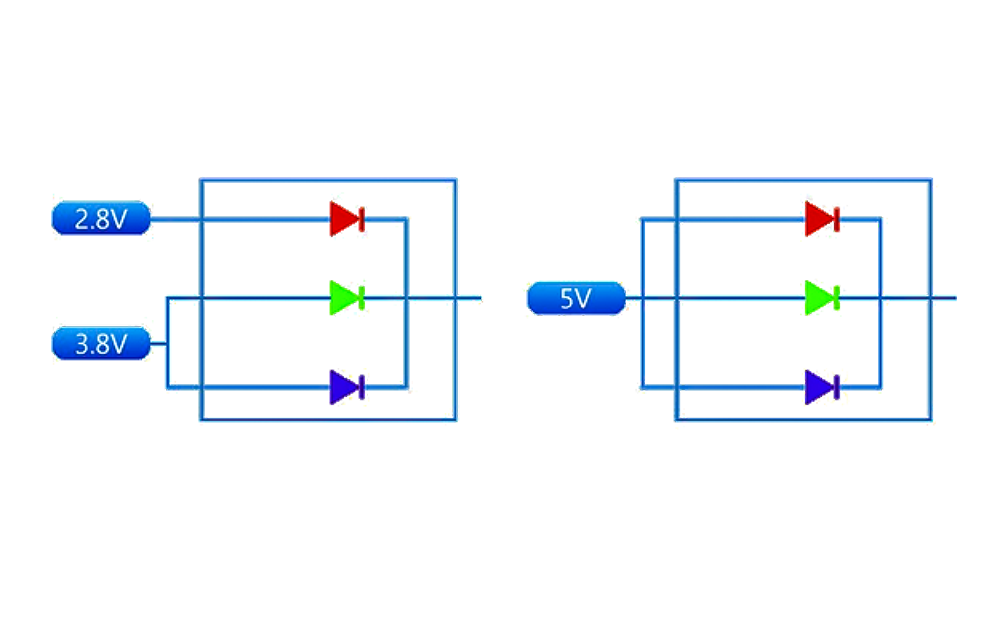

Featuring a common cathode design, the FS Pro series reduces heat generation and energy consumption, resulting in lower operating costs and environmental impact. The overall energy saving is 40%.

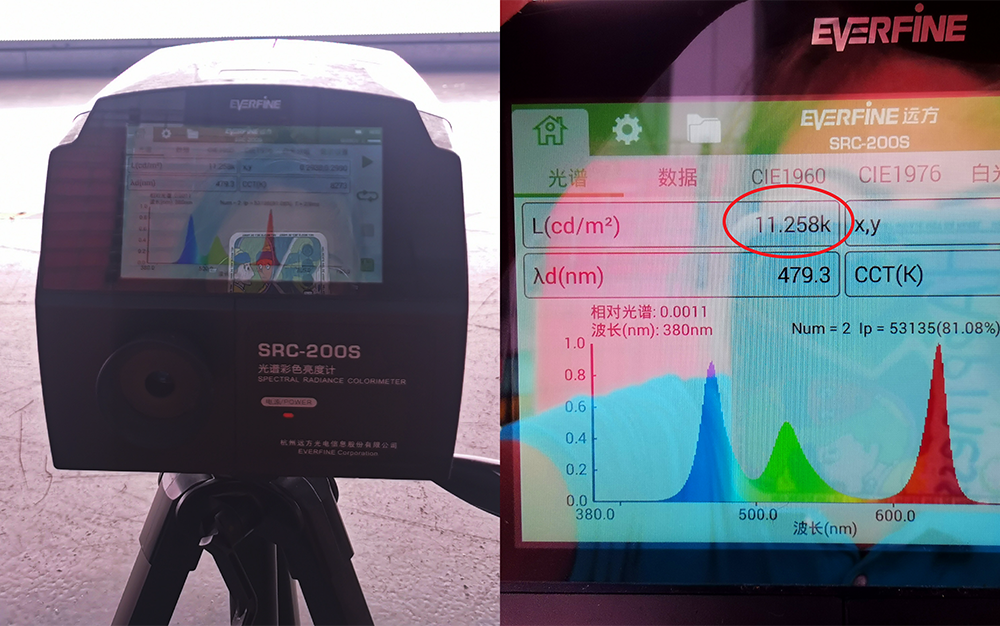

The brightness reaches up to 10000nits, can instantly captivate attention & deliver content even under strong sunlight.

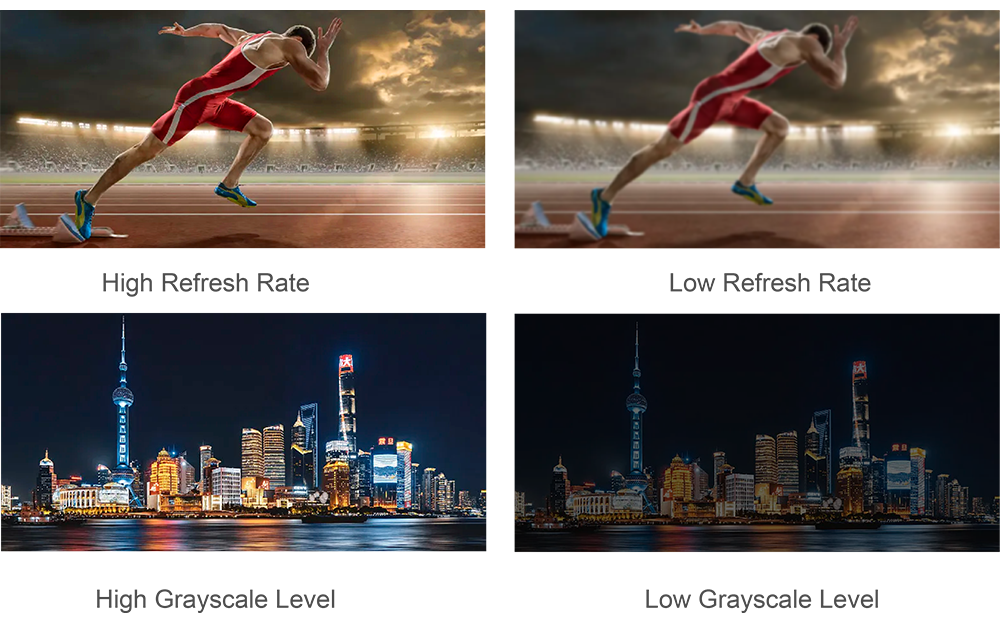

Delicate picture with no flicker, superior displays effects.

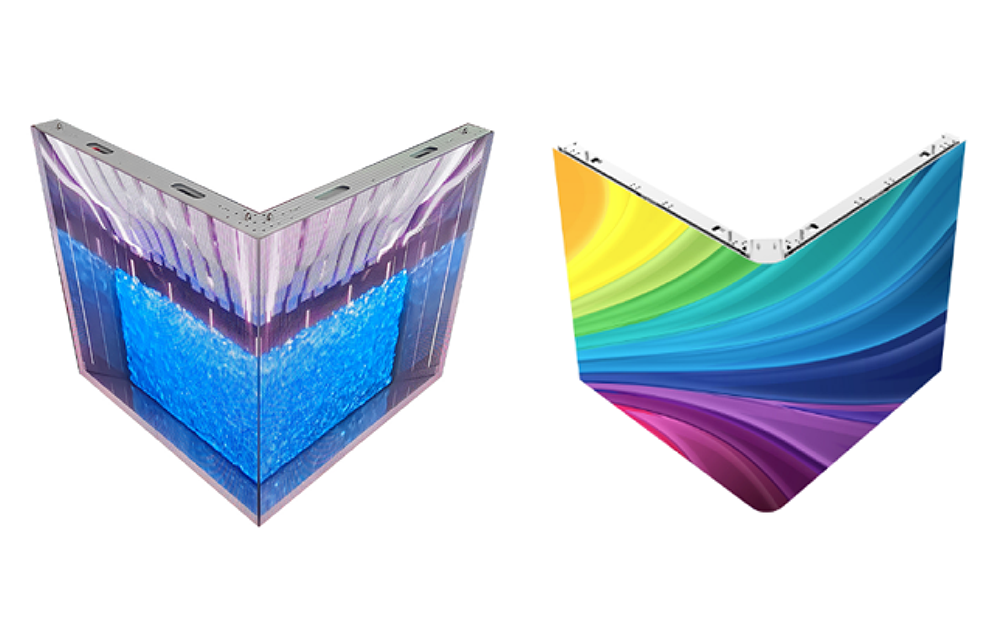

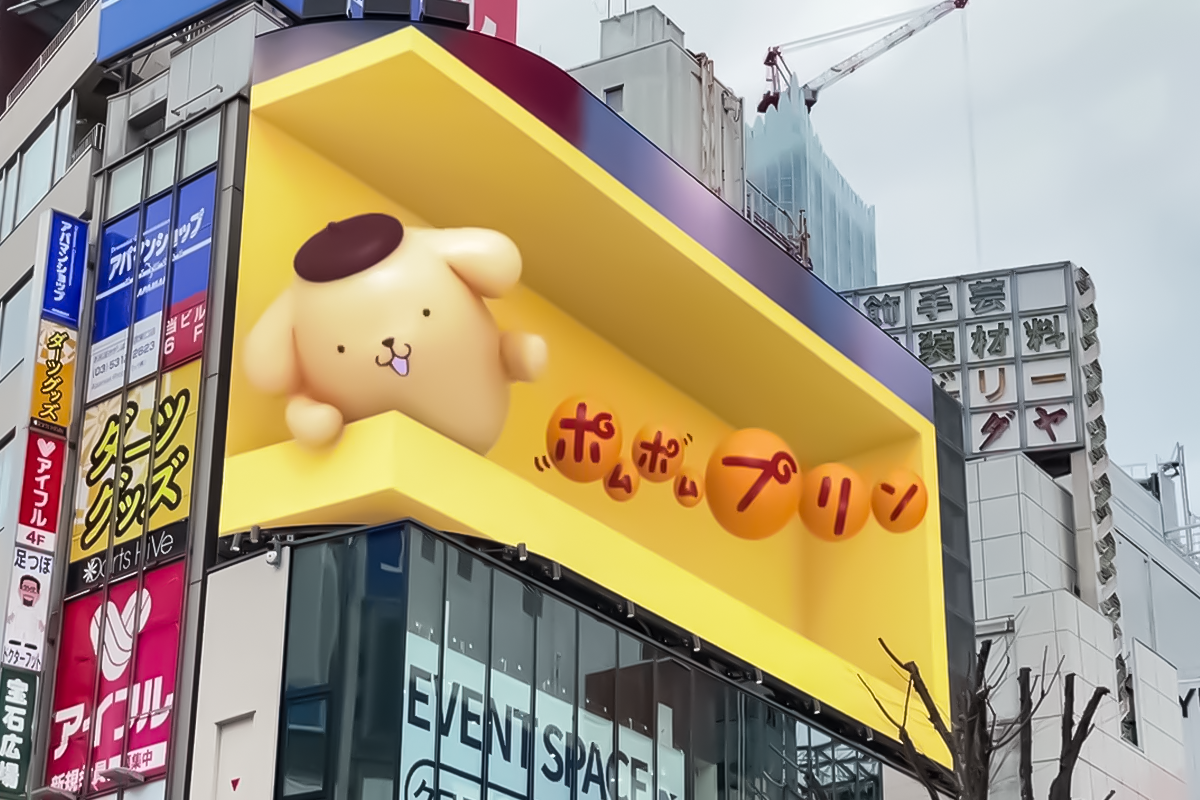

Supports both right-angle and arc splicing, enabling seamless integration and creative visual effects, ideal for 3d giant digital billboard solution.

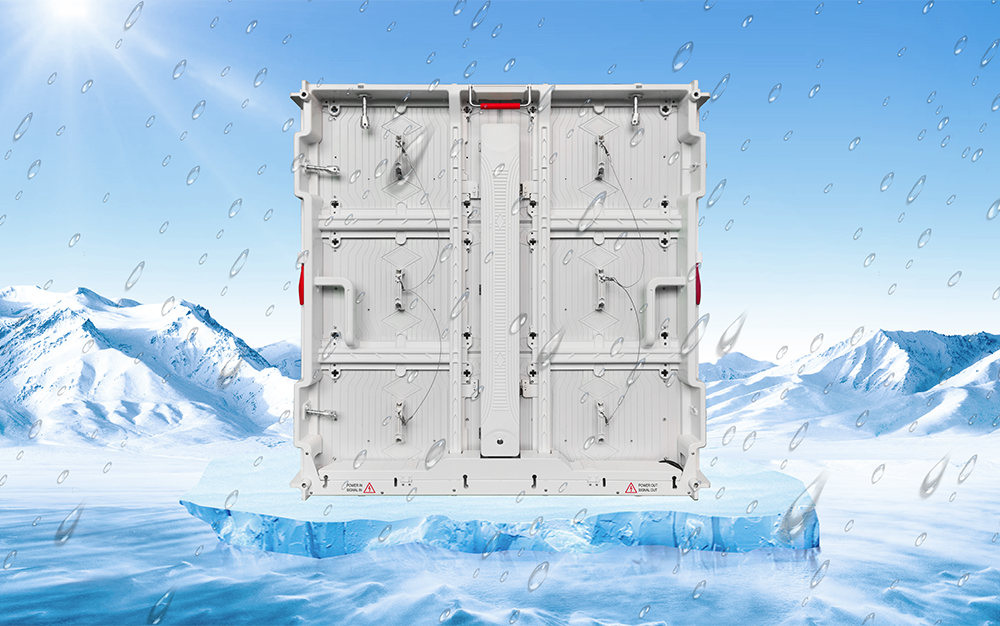

FS PRO Series LED Display offers superior protection with IP66 high waterproof and dustproof rating, surpassing the common IP65 outdoor LED displays. High IP66 Waterproof level ensures stable screen operation even in extreme weather as below: high temperature, low temperature, and high humidity.

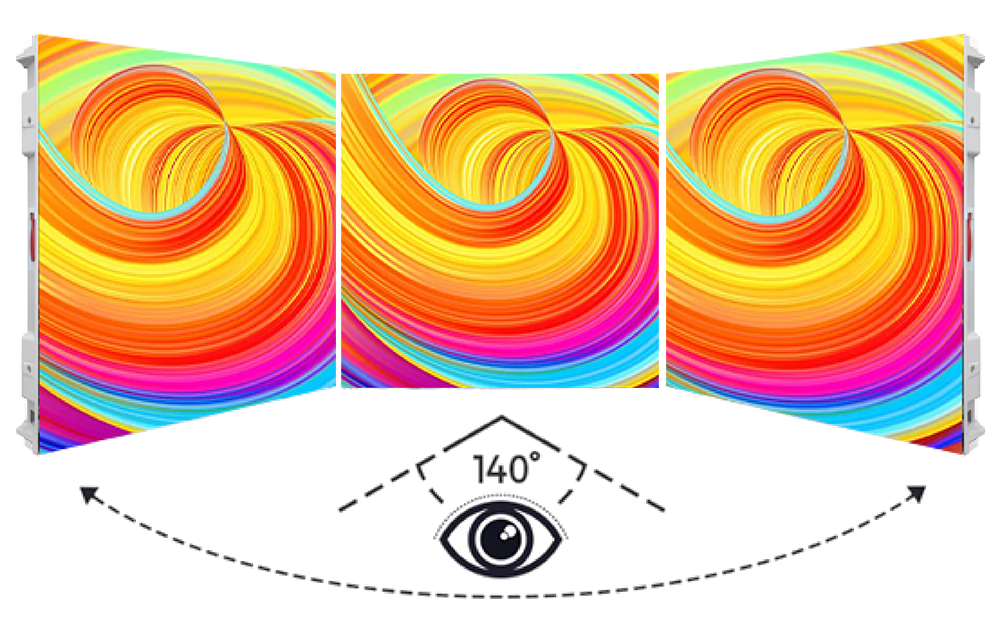

The viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle. Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
| Model | FS4.4-PRO | FS5.7-PRO | FS6.6-PRO | FS8-PRO | FS10-PRO |
| Pixel Pitch(mm) | 4.4 | 5.7 | 6.67 | 8 | 10 |
| Pixel Matrix Per Sqm. | 50,625 | 30,625 | 22,500 | 15,625 | 10,000 |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Brightness(nits) | ≥6000 | ||||
| Scan | 1/9 | 1/7 | 1/6 | 1/3 | 1/2 |
| Module Dimension | 480x320mm | ||||
| Cabinet Dimension | 960x960mm/960x640mm;1440x960mm/1440x640mm | ||||
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 25KG | ||||
| Power Con. (W/Sqm.) | Max.550W / Avg.186W (Common Cathode Energy Saving Solution) | ||||
| Service Access | Front & Rear Access | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 16bit | ||||
| Contrast Ratio | 15000:1 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| IP Rate | IP66 | ||||
| Operation Temperature | -40℃~+80℃ | ||||
| Operation Humidity | 10%~98% | ||||
| Input Voltage (AC) | AC100-240V,50/60Hz | ||||
| * Specifications and photos are subject to change without prior notice. | |||||
