L&F PRO Series

New Rental LED Screen Solution

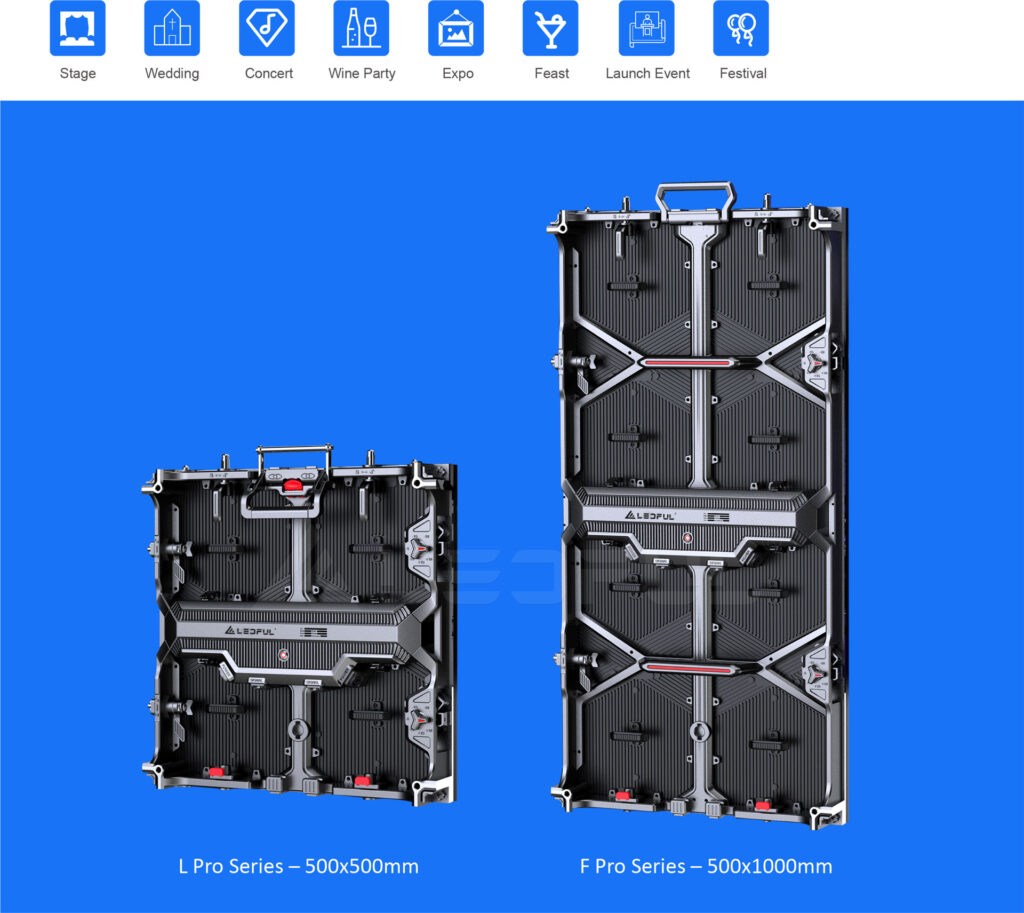

Applications

applications-l-f-pro

Specification

ModelL Pro/F Pro 2.6L Pro/F Pro 2.9L Pro/F Pro 3.9L Pro/F Pro 4.8
Pixel Pitch(mm)2.62.983.914.81
Pixel Matrix Per Sq.m147,456112,89665,53643,264
Pixel ConfigurationSMD1515/1415SMD2121/1415SMD2121/1921SMD2121/1921
Brightness (cd/㎡)1000/40001000/40001000/40001000/4000
Scan1/321/211/161/13
Module Dimension250×500mm250×500mm250×500mm250×500mm
Cabinet DimensionL Pro — 500x500mmF Pro — 500x1000mmL Pro — 500x500mmF Pro — 500x1000mmL Pro — 500x500mmF Pro — 500x1000mmL Pro — 500x500mmF Pro — 500x1000mm
Cabinet MaterialDie Casting AluminumDie Casting AluminumDie Casting AluminumDie Casting Aluminum
Cabinet WeightL Pro — 8KGF Pro — 14KGL Pro — 8KGF Pro — 14KGL Pro — 8KGF Pro — 14KGL Pro — 8KGF Pro — 14KG
Power Con.(W/㎡) (Max / Avg)800W/200-300W800W/200-300W800W/200-300W800W/200-300W
Service AccessFront/RearFront/RearFront/RearFront/Rear
Refresh Rate (HZ)≥3840≥3840≥3840≥3840
Grey Scale (bit)≥16≥16≥16≥16
Viewing Angle (H/V)160°/160°160°/160°160°/160°160°/160°
IP RateIP43 / IP65IP43 / IP65IP43 / IP65IP43 / IP65
Input Voltage (AC)110V / 240V110V / 240V110V / 240V110V / 240V


* Specifications and photos are subject to change without prior notice.

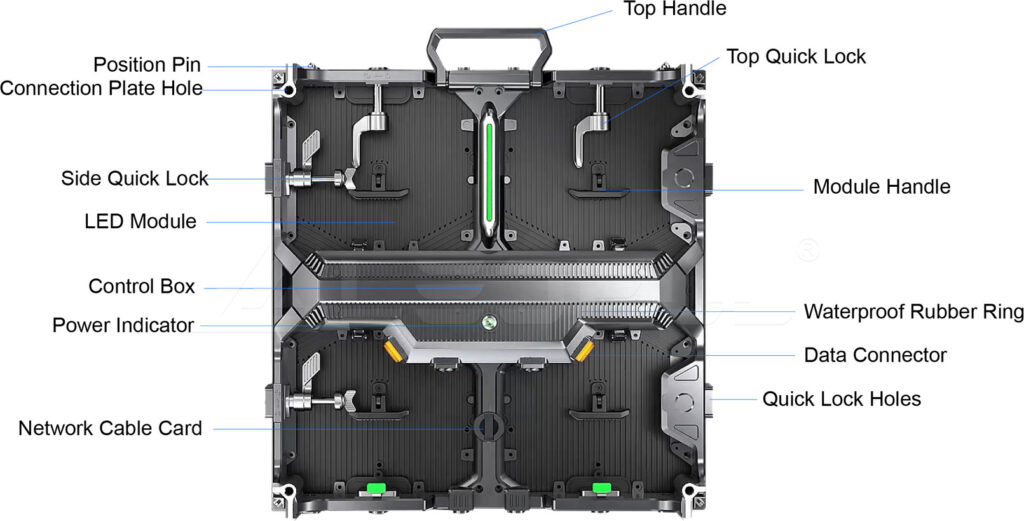

LEDFUL New Private Rental L Pro & F Pro Series Product

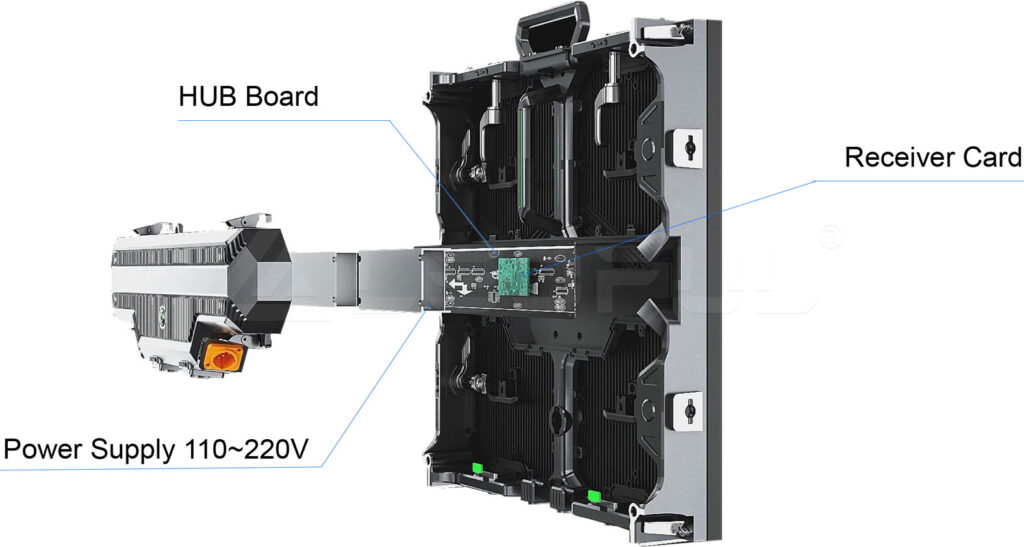

Quick Exchangeable Control Box for Easy Maintenance

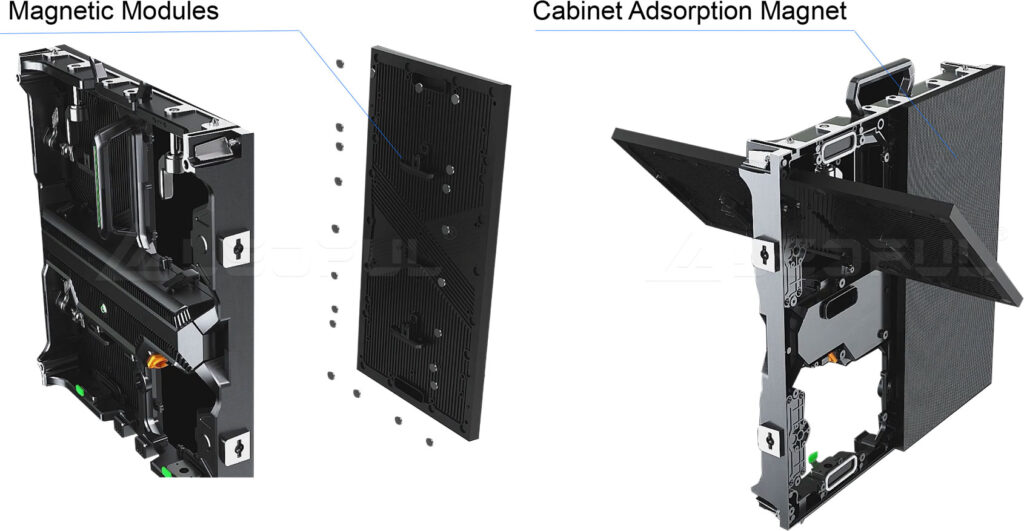

Front / Rear Service Way

front-rear-service-way

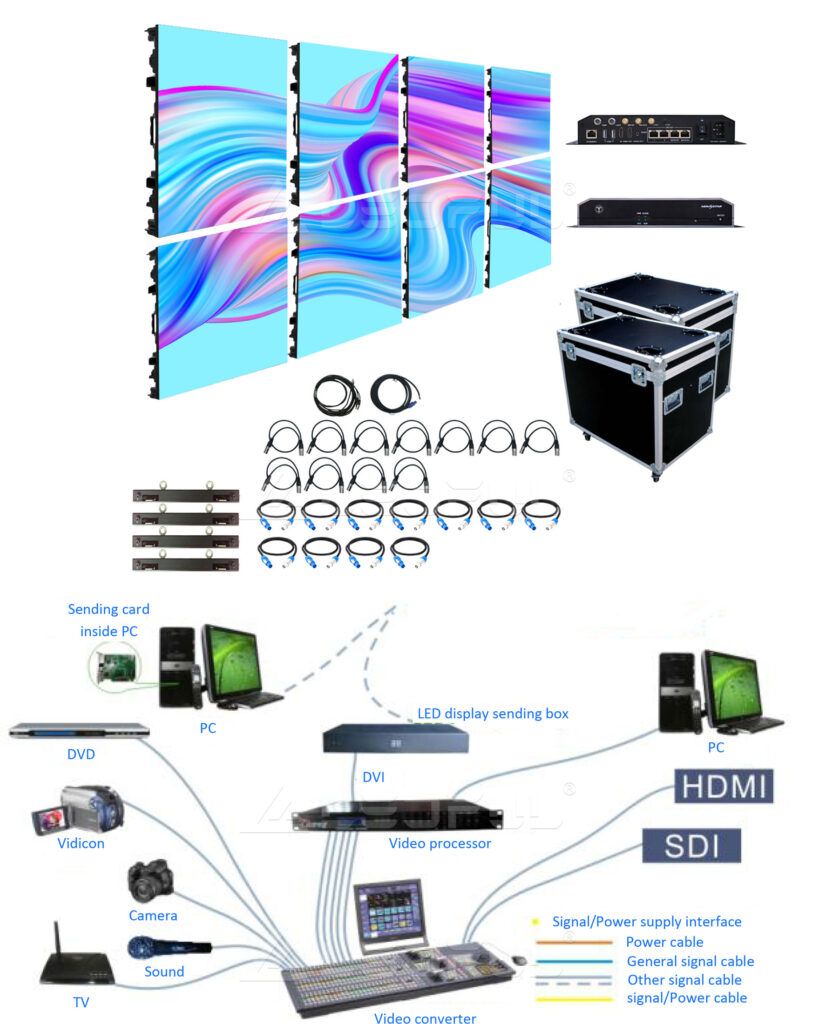

Hardware Connection Diagram

hardware-connection-diagram (1)

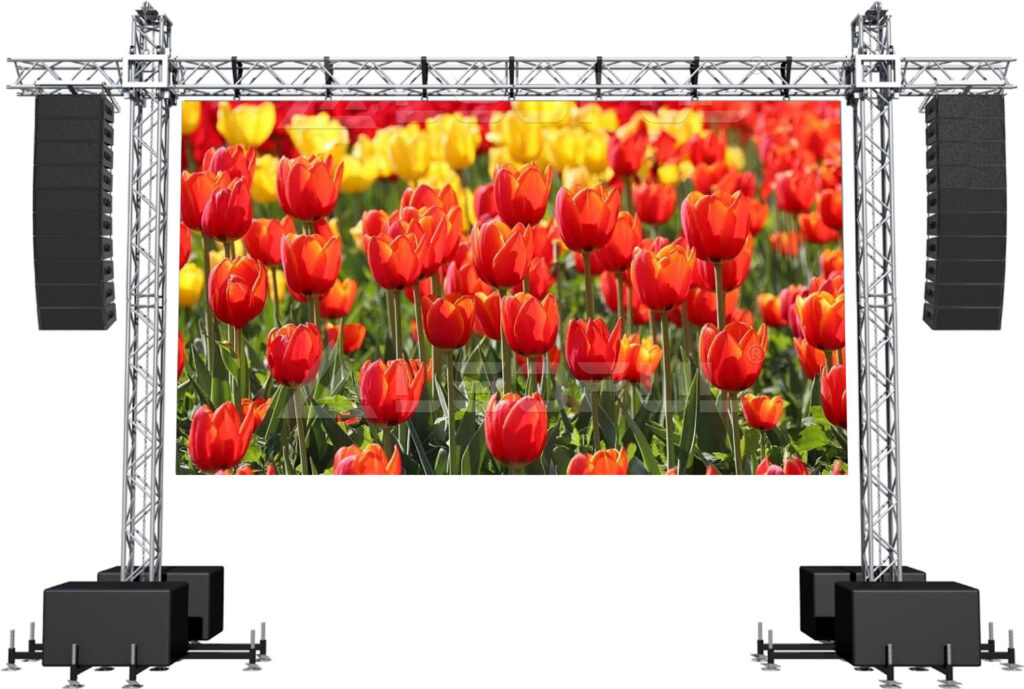

L & F Pro Series Used Together

l-f-pro-series-used-together

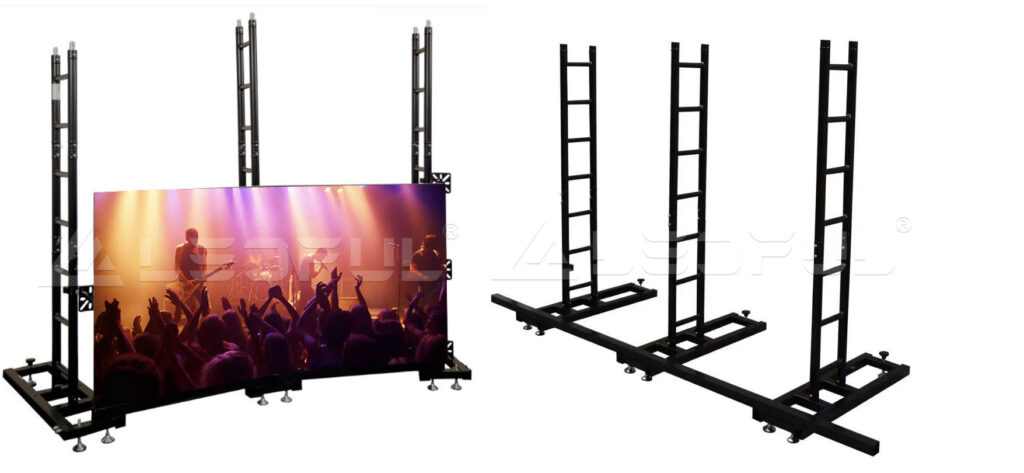

Hanging or Stacking, LEDFUL Support

All Installation & Structure Options

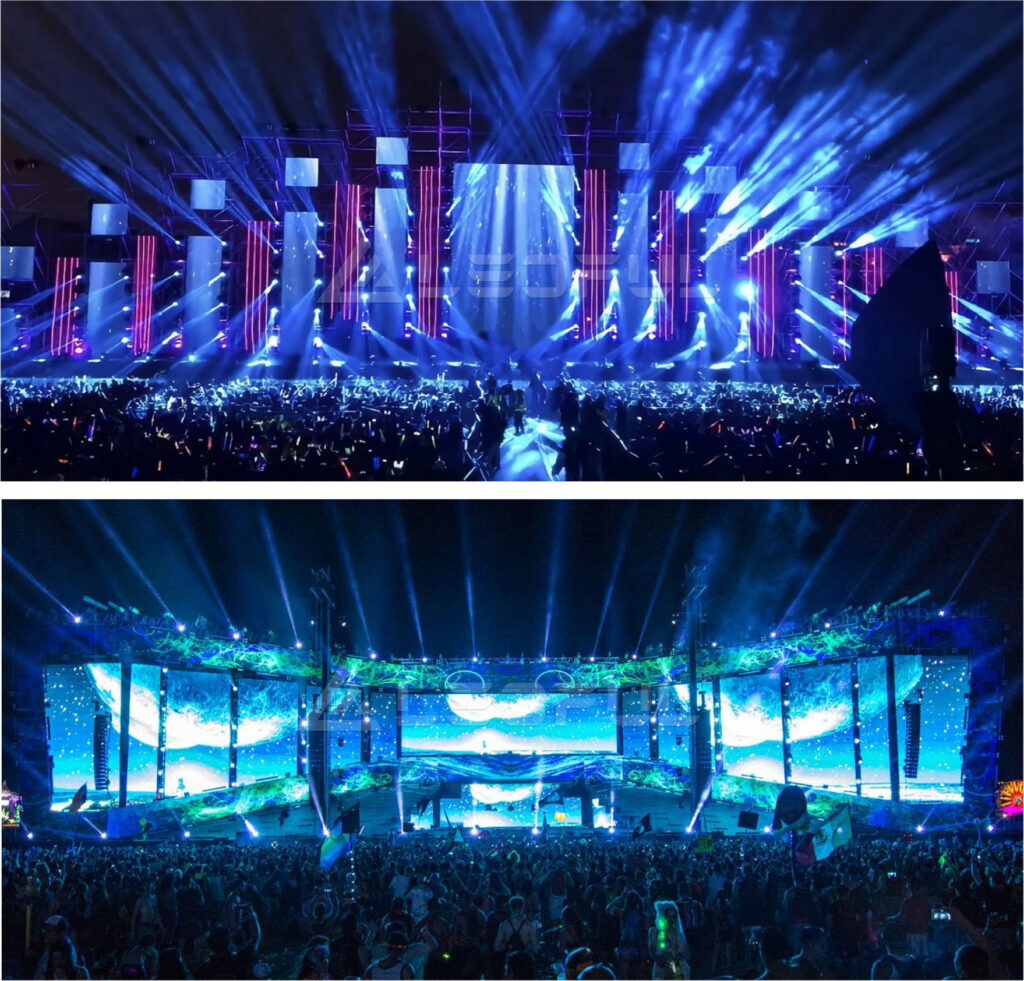

Typical Project Show

typical-project-show (1)

Features

We Work With

cooperation-brand

Parameter name

Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Model
Pixel Pitch(mm)
Pixel Matrix Per Sqm.
Pixel Configuration
Brightness(cd/Sqm.)
Scan
VI/HI1.5
VI/HI1.9
VI/HI2.5
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Module Dimension
Cabinet Dimension
Cabinet Material
Cabinet Weight
Power Con. (W/Sqm.)
Service Access
250×250mm
V--500x500mm / H--500x1000mm
Die Casting Aluminum
V--8KG / H--14KG
Max. 800W / Avg. 200-300W
Front / Rear
Refresh Rate (HZ)
Grey Scale (bit)
Viewing Angle(H/V)
IP Rate
Input Voltage(AC)
≥3840(7680)
≥16bit
160°/160°
IP31
110V/240V
