LFCPoster Series

Lifted Folding Conference Poster

● Touchable Interactive Screen
● COB Tech & Surface Anti-hit Waterproof
● Remote & Projection Control
● Movable Base Support for Rental

Product Features

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…

COB Tech & Surface Anti-hit Waterproof

Touchable Interactive Screen

Movable Base Support for Rental

Remote & Projection Control

High Refresh Rate & High Grey Scale

Ultra Light and Ultra Thin

Cabinet Dimension Ratio

Cable Free Connection

Product Introduction and Applications

LFCPoster series products, using the world’s leading COB technology, equipped with Nova intelligent conference system, foldable lifting, convenient movement, simple operation, comprehensive functions, widely used in government and enterprise meetings, information release, exhibition, biomedical, education and training, star hotels, private theaters, clubs and other fields.

The standard size of LFCPoster is 136 “(3×1.6875m), which displays 2K contents and can also accept customization. The bottom is equipped with a bracket and wheels, when you need to move, you can push the LED display, when you need to stop, you can step on the brake, it will not easily shake or fall. The whole product needs 1 to 2 power cables, no installation, can be controlled by projection, can also be connected to the computer through network cable or HDMI cable, and can be connected to WIFI for Internet operation. The product can be lifted or folded through the remote control or button to reduce space, enter and exit the elevator through flight case, so it can be used for related rental activities very well.

Ceiling Installation

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

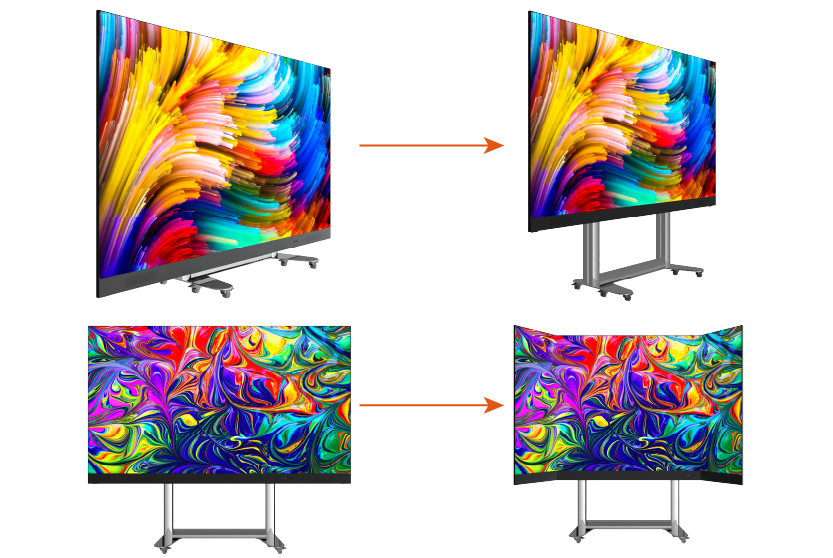

0~65cm Liftable | Two Sides 120cm Foldable

Perfect Performance & Main Advantages

◆ 135” | 2K and above

◆ 27mm Thickness Screen

◆ SMD/GOB/HOB/COB Optional

◆ 16bits, 3840Hz, 7000:1 Contrast

Perfect Performance & Main Advantages

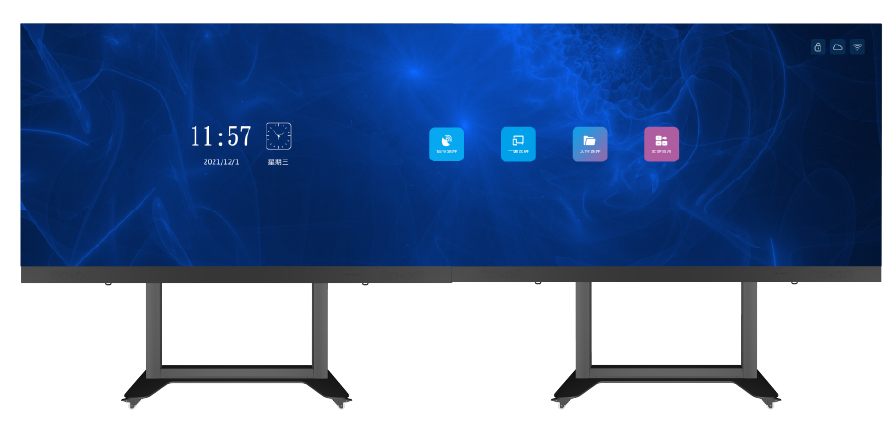

Bigger & Wider

Cascade Connection Available.

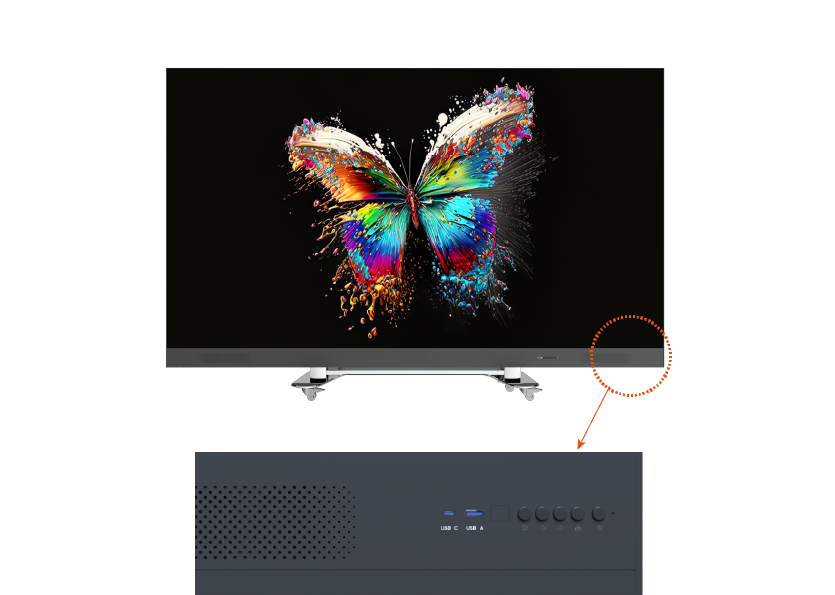

Easy Operation Buttons

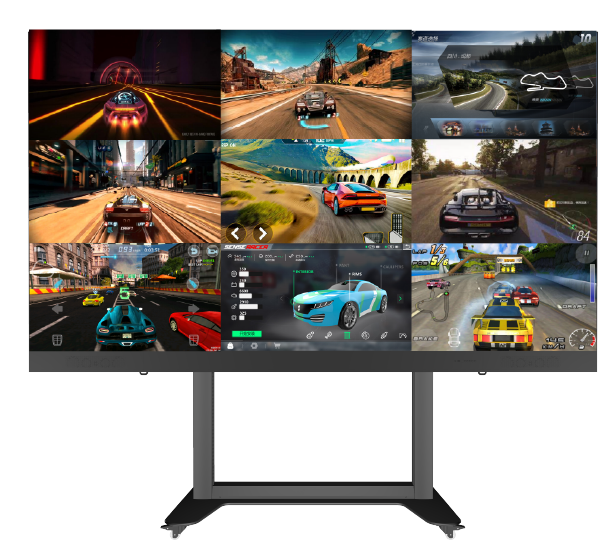

Wireless Projection

Project contents of computer / Phone quickly, easy and convenient.

Plug and Play

Only one main power cable needs to plug, friendly to end user.

Plug and Play

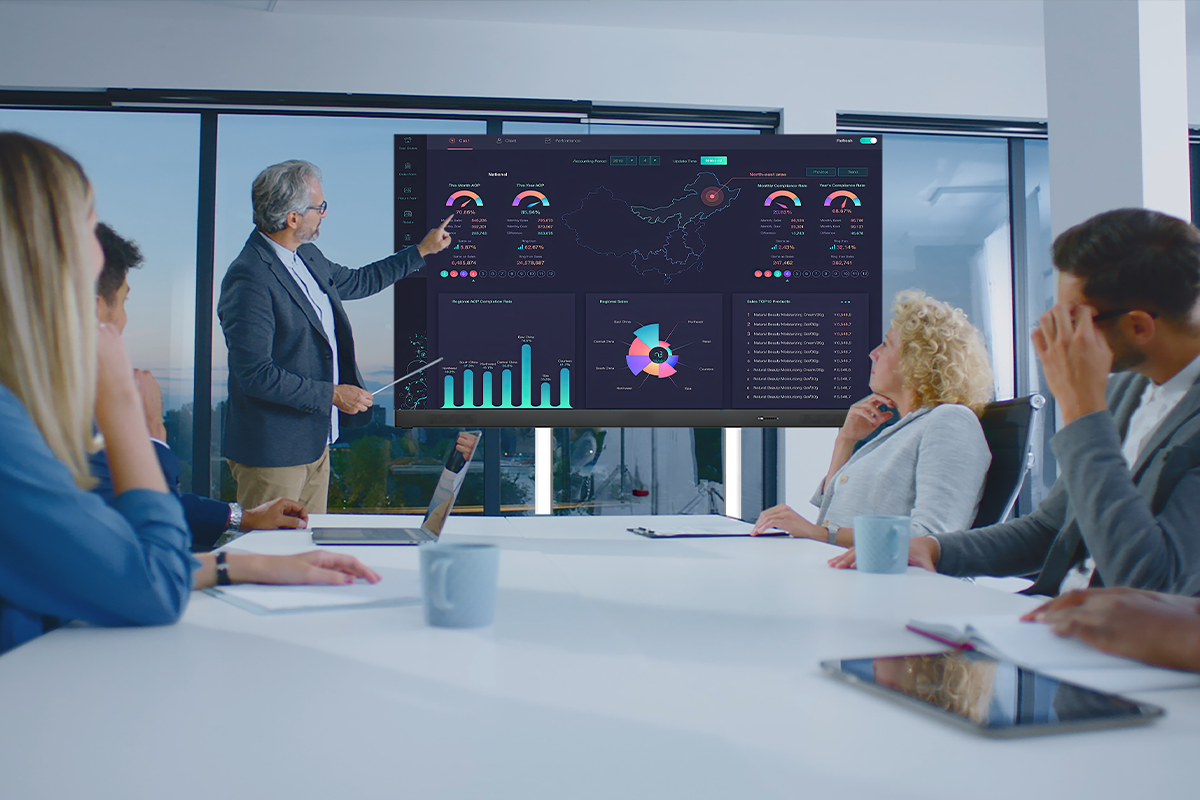

Efficient Meetings Smart Office

Efficient Meetings | "Smart" Office

Integrated professional meeting software,  support connecting with microphone, camera and other equipments.

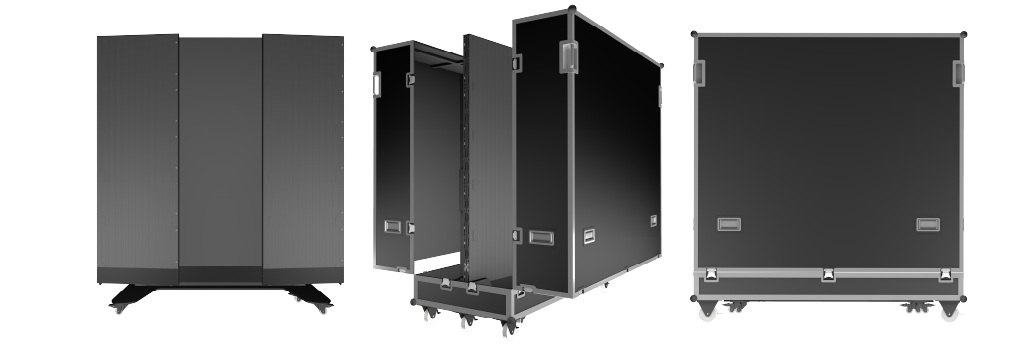

Professional Flight Case for Rental Using

The screen can be folded into the elevator with flight case, 2 minutes to open and use.

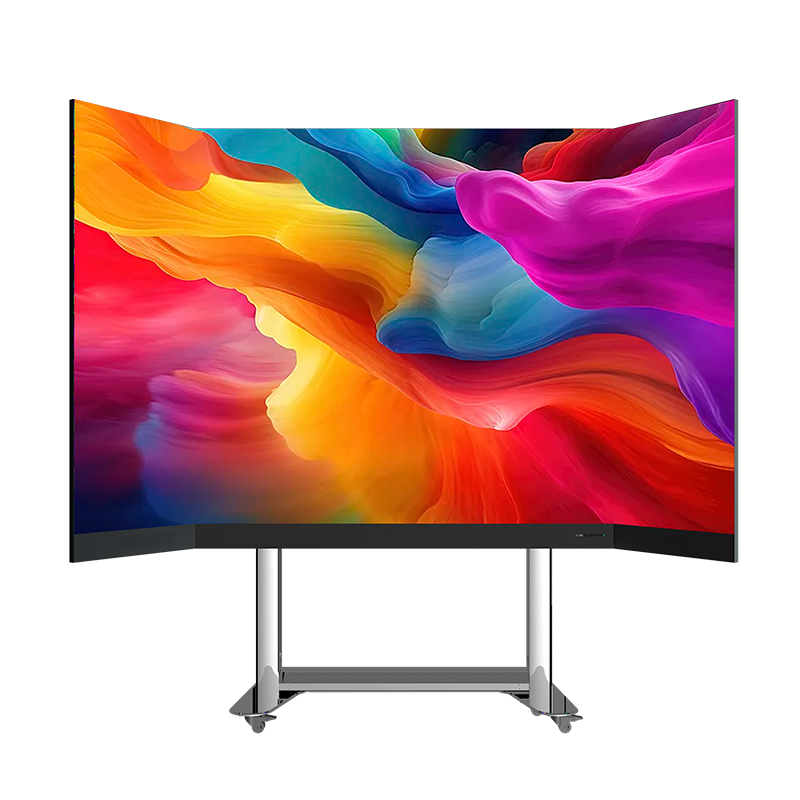

Convex and Concave Design Solution

Support curved design, to use special small modules 150×168.75mm and special cabinet 150×337.5mm

90 Degree Design

Beveled cabinet makes seamless right angle and 4 sided column LED screens.

Wall Mounted

LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.

Free Standing UPoster

UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.

Size:600x2025mm, weight: 31.4kg.

Specifications

ModelLFCPoster1.5-COB
Pixel Pitch(mm)1.56
LEDCOB
Pixel Matrix Per Sq.m409,600
Brightness (nits)800
Scan1/48
Module Dimension150*168.75mm
Cabinet Dimension600*337.5mm
Screen Dimension136” (3*1.6875m)
Screen Resolution2K (1920*1080)
Cabinet MaterialDie Casting Aluminum
Cabinet Weight5.2KG
Max Power Con. (W/sqm.)840W
Ave Power Con. (W/sqm.)250W
Service AccessFull Front Access
Refresh Rate (HZ)≧3840
Grey Scale (bit)54
Contrast Ratio≧8000 : 1
Viewing Angle (H / V)160° / 160°
IP RateFront IP65 | Rear IP43
Operation Temperature﹣20℃ ~ +60℃
Operation Humidity10% ~ 90%
Input Voltage (AC)AC110-220V, 50-60Hz
* Specifications and photos are subject to change without prior notice.


Parameter name

Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Model
Pixel Pitch(mm)
Pixel Matrix Per Sqm.
Pixel Configuration
Brightness(cd/Sqm.)
Scan
VI/HI1.5
VI/HI1.9
VI/HI2.5
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Parameter name
Module Dimension
Cabinet Dimension
Cabinet Material
Cabinet Weight
Power Con. (W/Sqm.)
Service Access
250×250mm
V--500x500mm / H--500x1000mm
Die Casting Aluminum
V--8KG / H--14KG
Max. 800W / Avg. 200-300W
Front / Rear
Refresh Rate (HZ)
Grey Scale (bit)
Viewing Angle(H/V)
IP Rate
Input Voltage(AC)
≥3840(7680)
≥16bit
160°/160°
IP31
110V/240V
