Indoor Ultra High Definition LED Screen
● Large Viewing Angle
● Ultra Slim & Light Design
● 2K / 4K / 8K with 16:9 Ratio
● Cable-free Design, Easy Installation
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Cabinet Dimension Ratio 16:9
Cable Free Connection
Dual Backup Power & Data
Front Maintenance & Front Installation
High Refresh Rate & High Grey Scale
Ultra Light and Ultra Thin
Front / Rear Service

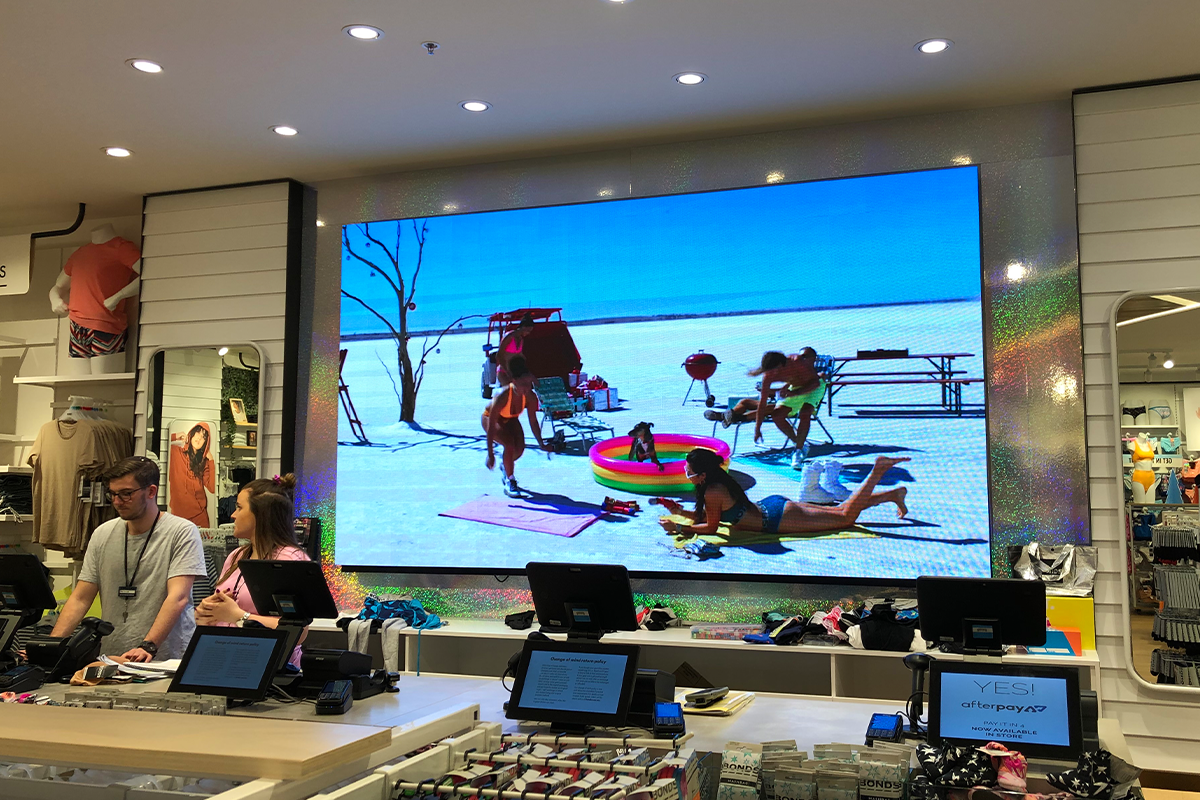

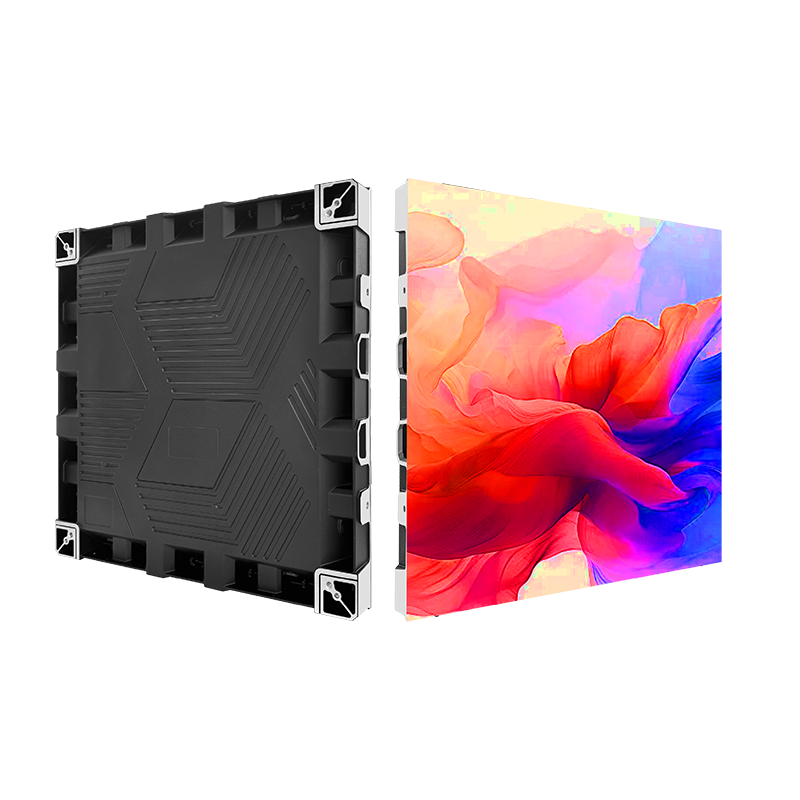

Chip on Board (directly mounting the LED chips onto the board) , Flip-Chip, solder LED chip on PCB and seal with epoxy resin, reduce the risk of soldering wire and improve the stability, wider viewing angle and super high protection. Super thin and light weight for indoor application. Multiple installation ways such as wall-mounted, hanging and used for events. Born for control room, events, exhibitions, studio conference and shopping malls
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

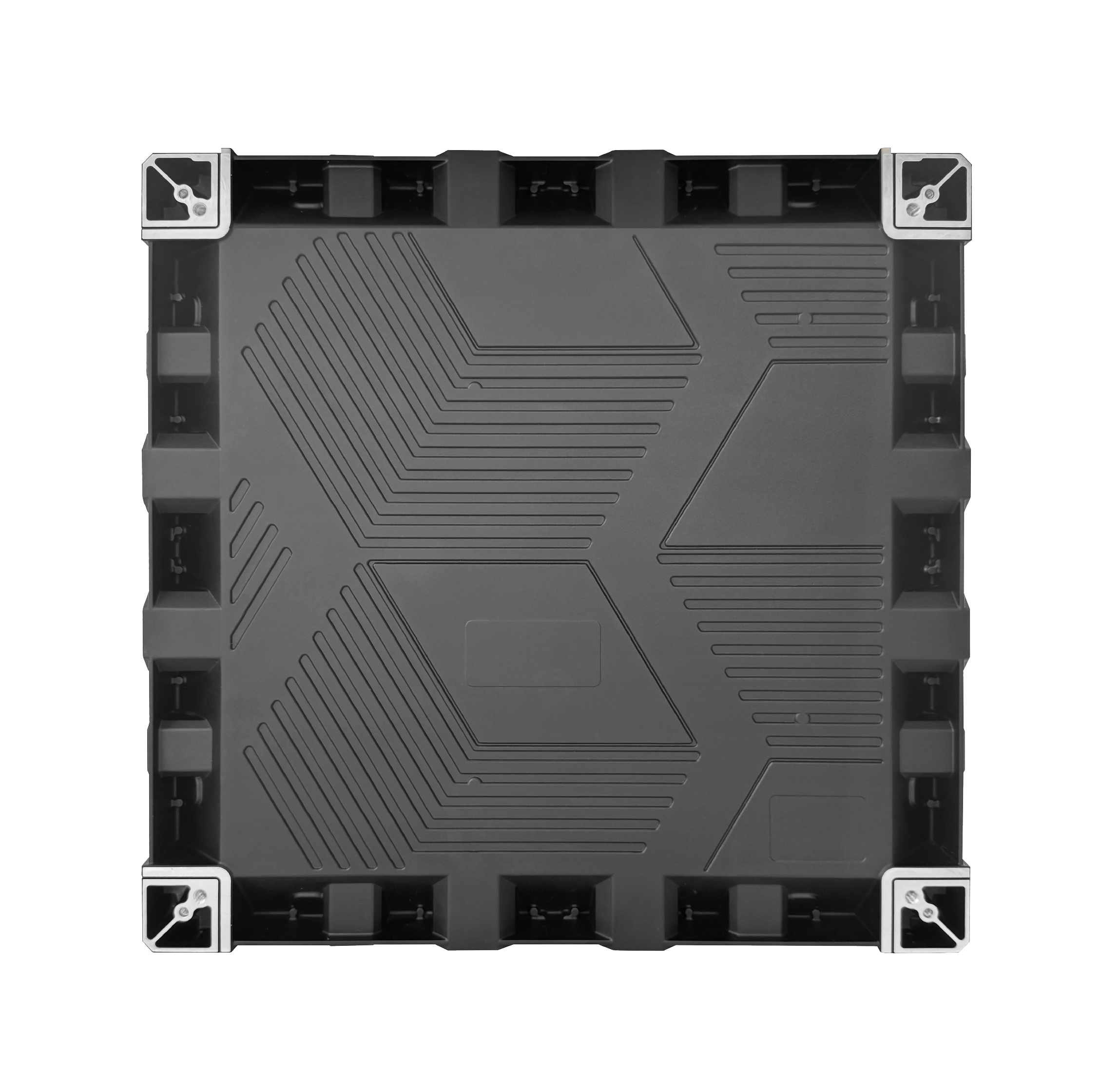

Faster setup, save labors, save time, save cost during LED screen installation, simple, easy, convenient, new user friendly, neat cables arrangement, reduced cable clutter.

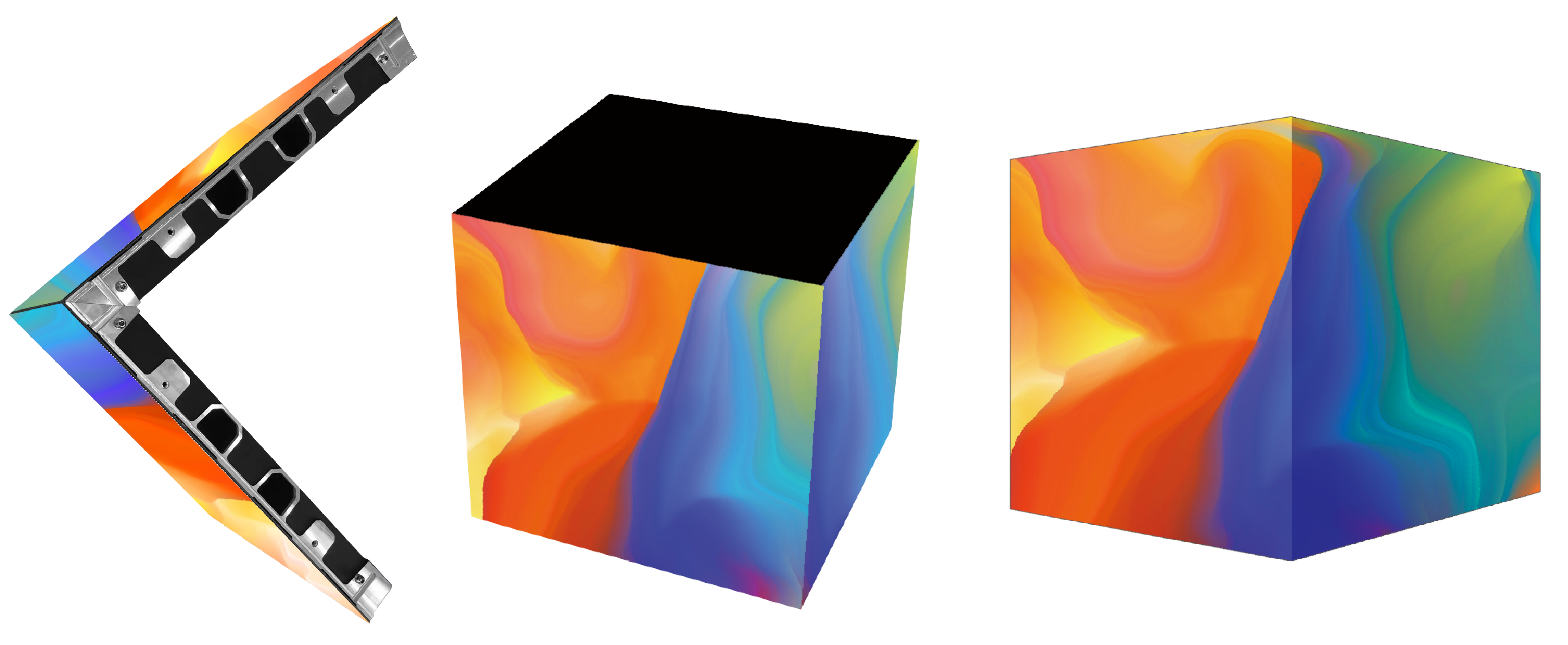

Beveled cabinet design makes seamless right angle screens, 4-sided column screens or 5-sided cube screens.
Two different cabinet designs, wider application, more options. Recommending the more right solution for clients according to actual condition.

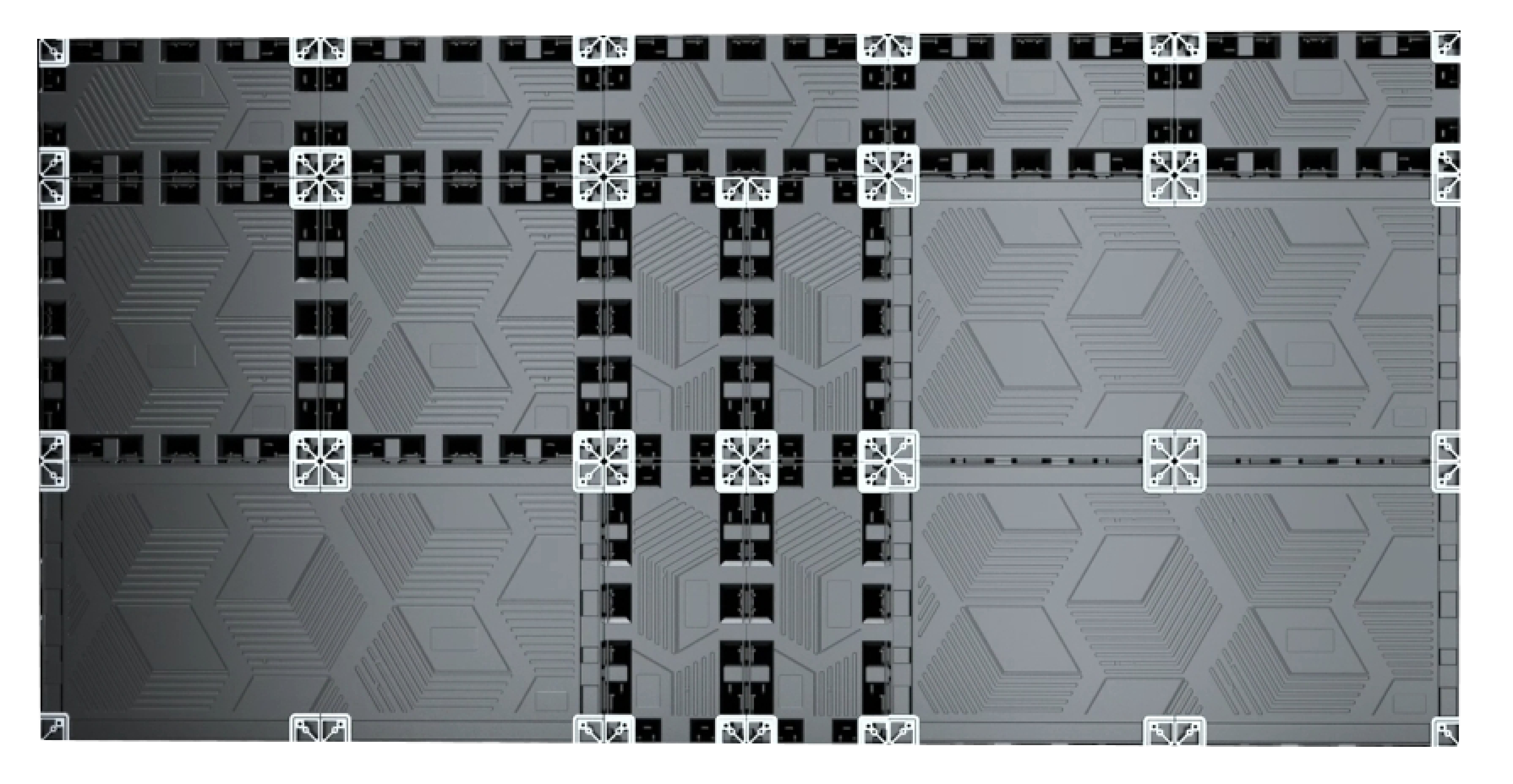

Multi-Size Options 500x500mm & 500x250mm & 500x1000mm. More options, more solution, solve the pain point of indoor space limitation.

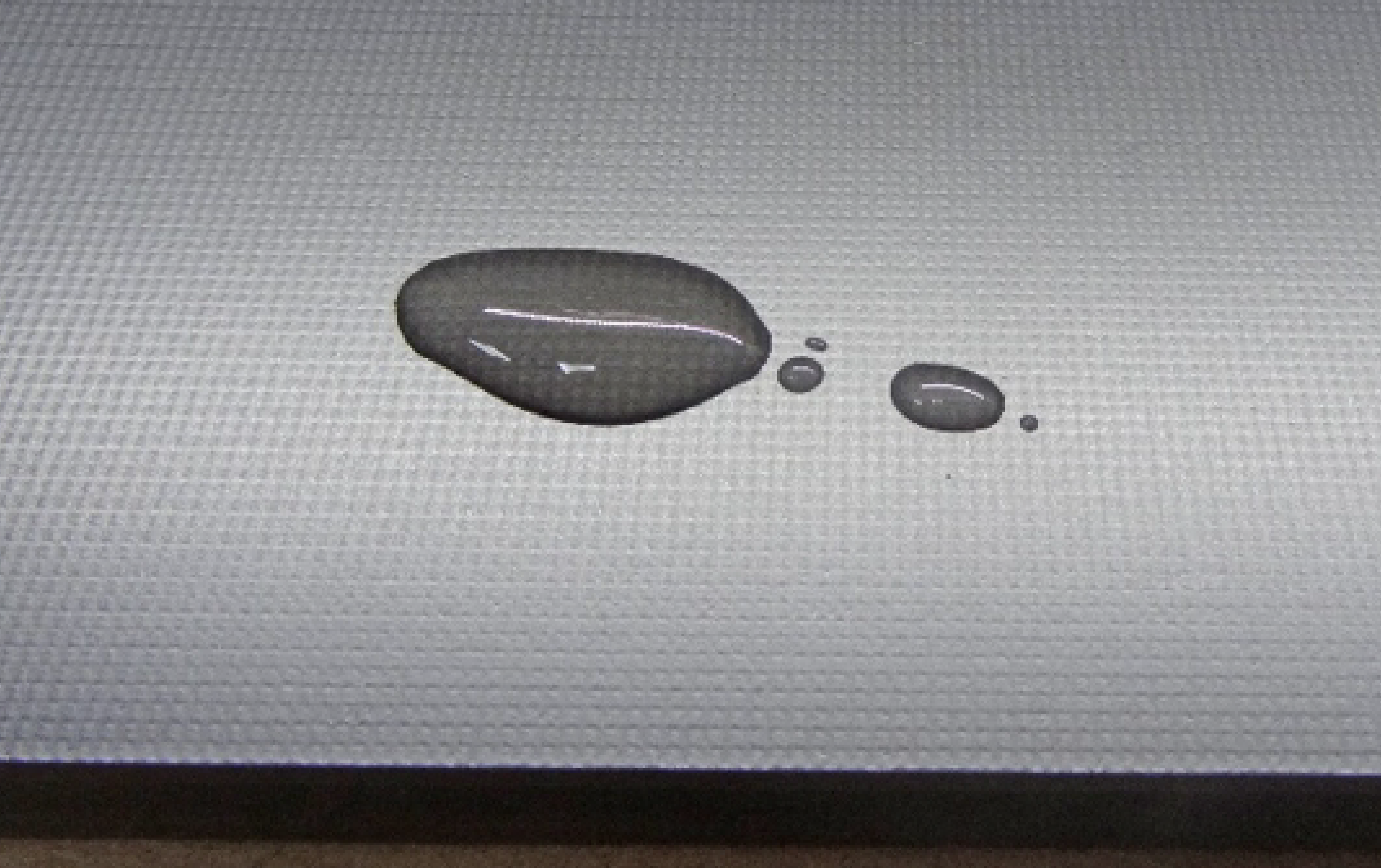

Protection grade IP65, waterproof, dustproof, anti-oxidation, anti-static and anti-shock, more stable performance, improved lifespan of screen.

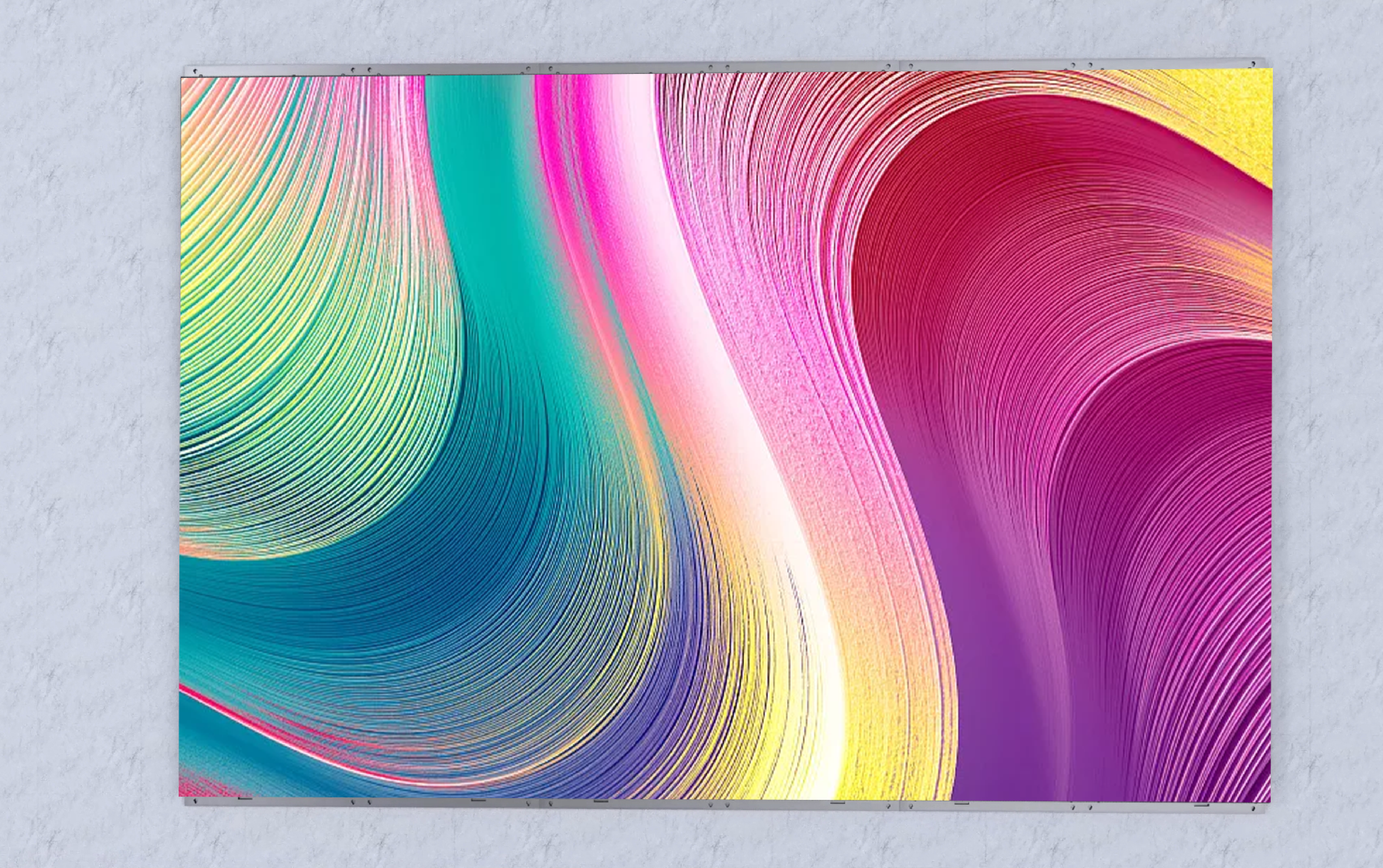

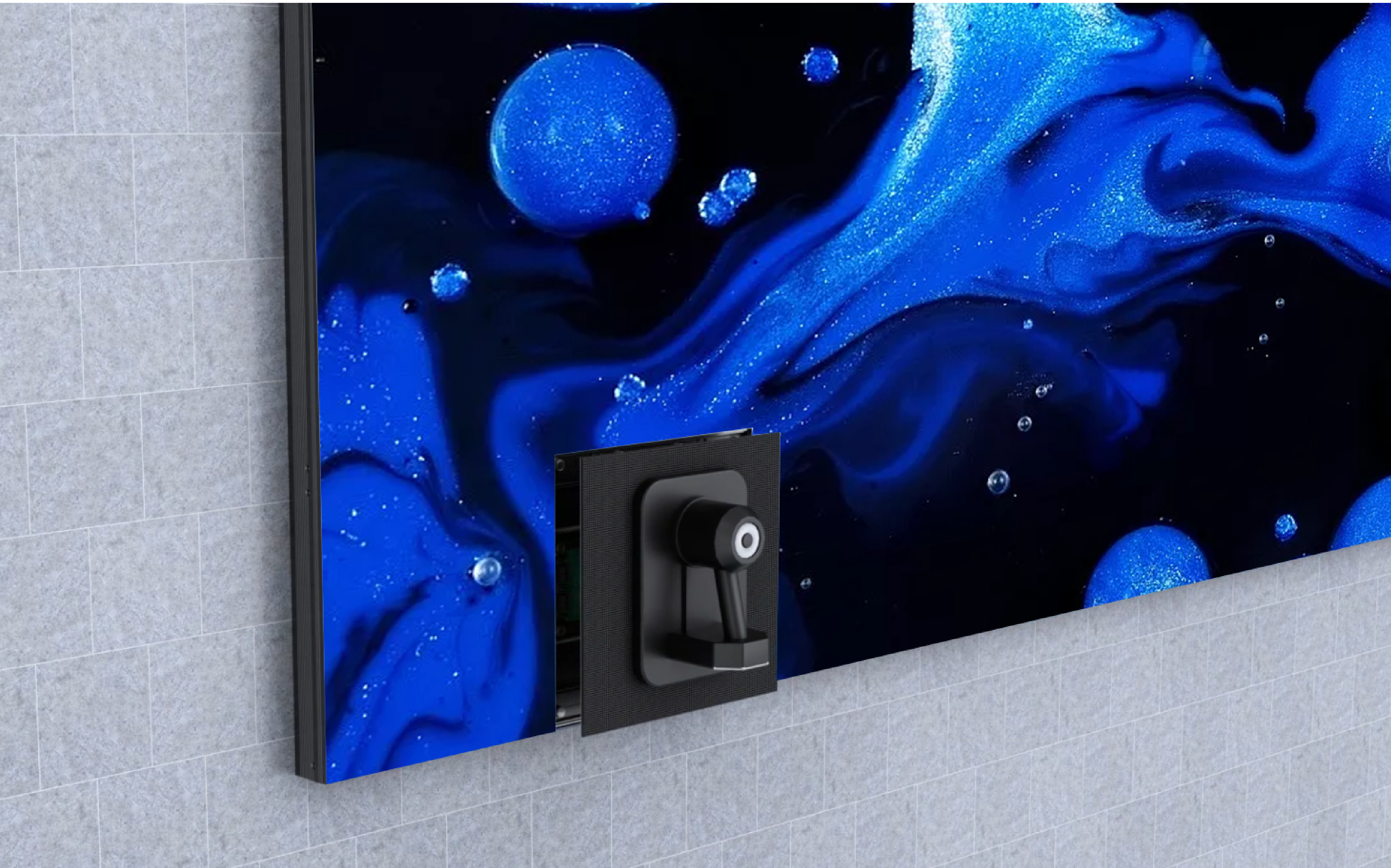

Easier and faster installation and maintenance, anyone can replace the LED modules with a special suction tool. Easy, quick, convenient, only 1 second with our cable-free design. Flexible in location, can be mounted to the wall directly.

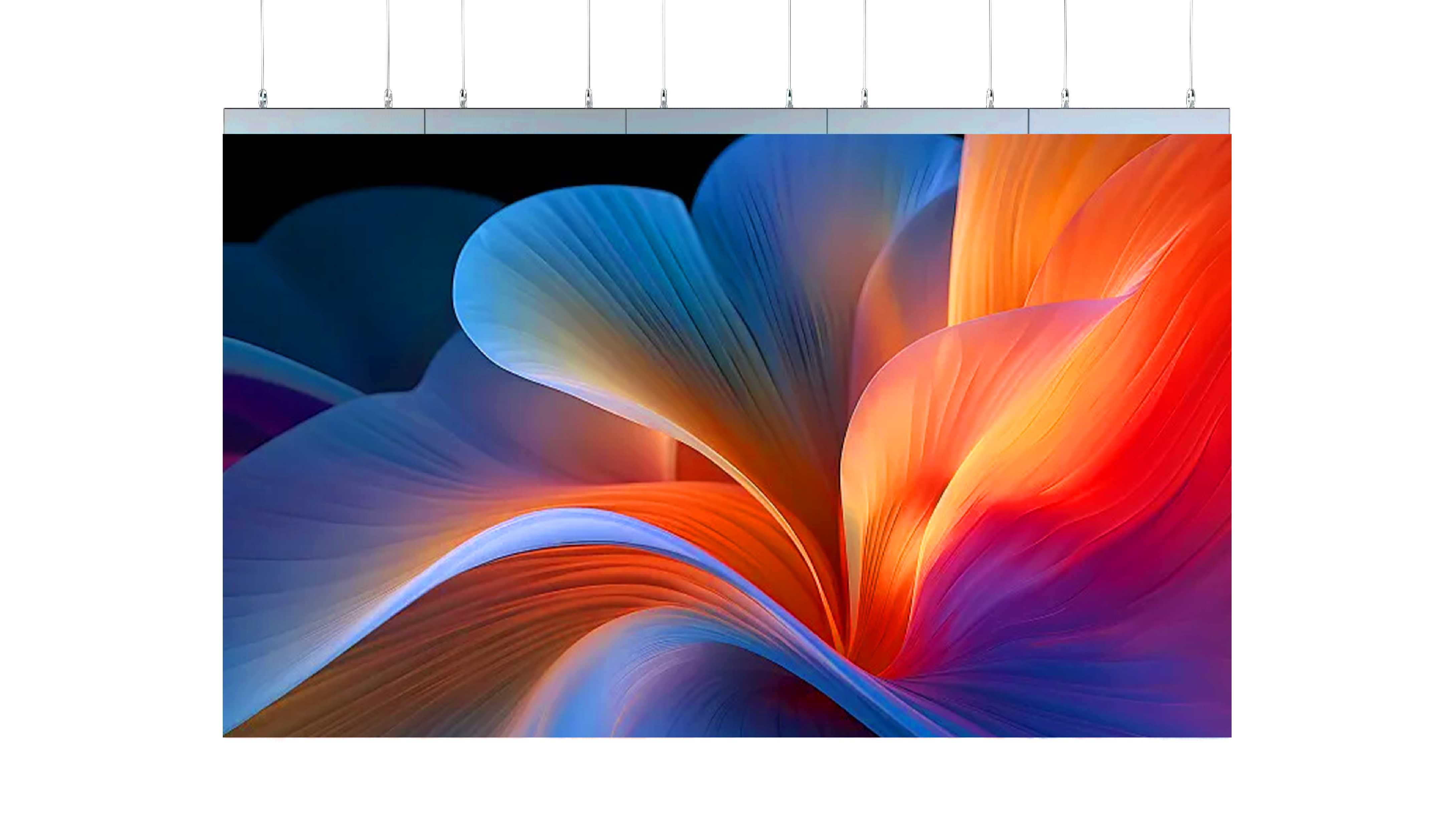

Super light only 26kg/sqm and strong hanging bars ensure hanging installation without safety concern.
High strength, better flatness with tolerance less than ±0.1mm, makes LED screen real seamless and perfect flatness. Better heat-dissipation, longer working lifespan.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

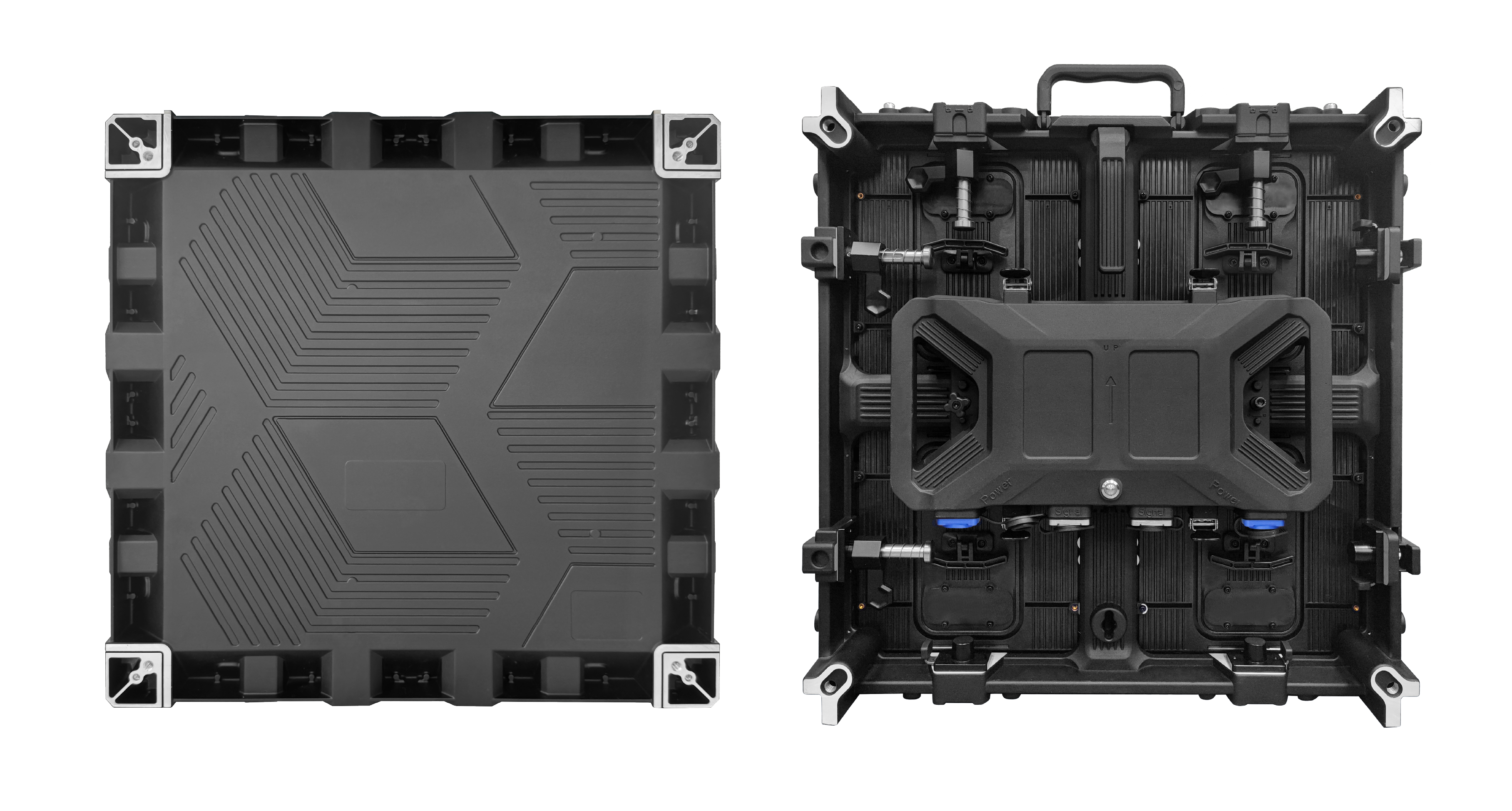

Applied to various events, music show and exhibitions etc, fast installation and disassemble, convenient transportation with flight case package.

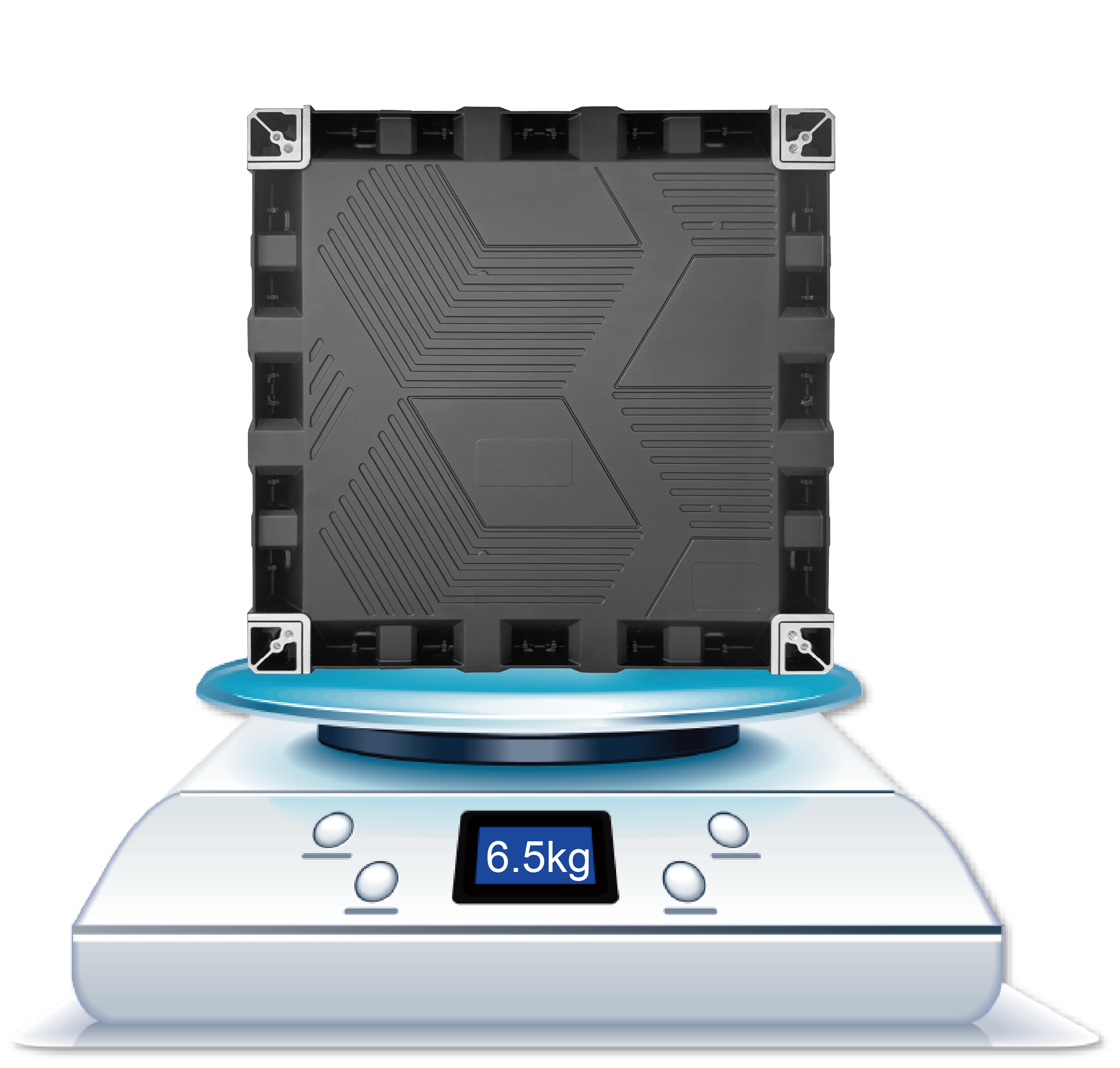

50mm product depth & per cabinet is only 6.5kg.
LED screen with brackets installation depth 54mm, without brackets installation depth 39mm, super thin brings perfect appearance.
LED screen with brackets installation depth 54mm, without brackets installation depth 39mm, super thin brings perfect appearance.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | COB01.2(Flip-Chip) | COB1.5(Flip-Chip) | COB1.9(Flip-Chip) | COB1.9(Flip-Chip) |
| Pixel Pitch(mm) | 1.25 | 1.5625 | 1.953 | 1.953 |
| Pixel Matrix Per Sqm. | 640,000 | 409,600 | 262,144 | 262,144 |
| Pixel Configuration | COB 1R 1G 1B | COB 1R 1G 1B | COB 1R1G 1B | COB 1R 1G 1B |
| Brightness (nits) | 600-800 | 600-800 | 600-800 | 2000 |
| Scan | 1/50 | 1/40 | 1/64 | 1/16 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | 500x500x50mm / 500x250x50mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | 6.5KG/pcs | |||
| Power Con. (W/sqm.) | “Max.460W / Avg.210W” | |||
| Service Access | Full Front Access | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Contrast Ratio | 10000:1 | |||
| Viewing Angle(H/V) | 170°/170° | |||
| IP Rate | IP65(front) | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～95% | |||
| Input Voltage(AC) | AC110/220V,50-60Hz | |||
| * Specifications and photos are subject to change without prior notice. | ||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
