Holographic Invisible Screen
● High Transparency & Invisible
● High Brightness 5000nits
● Super Light & Slim
● Ture 3840Hz & 16 Bits
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
With Ttransmission Interruption
Brightness up to 4000nits 斜杠 m2
Light and Thin
Soft Curvature to 1,100R
High Refresh Rate & High Grey Scale
Ultra Light and Ultra Thin
Cabinet Dimension Ratio
Cable Free Connection

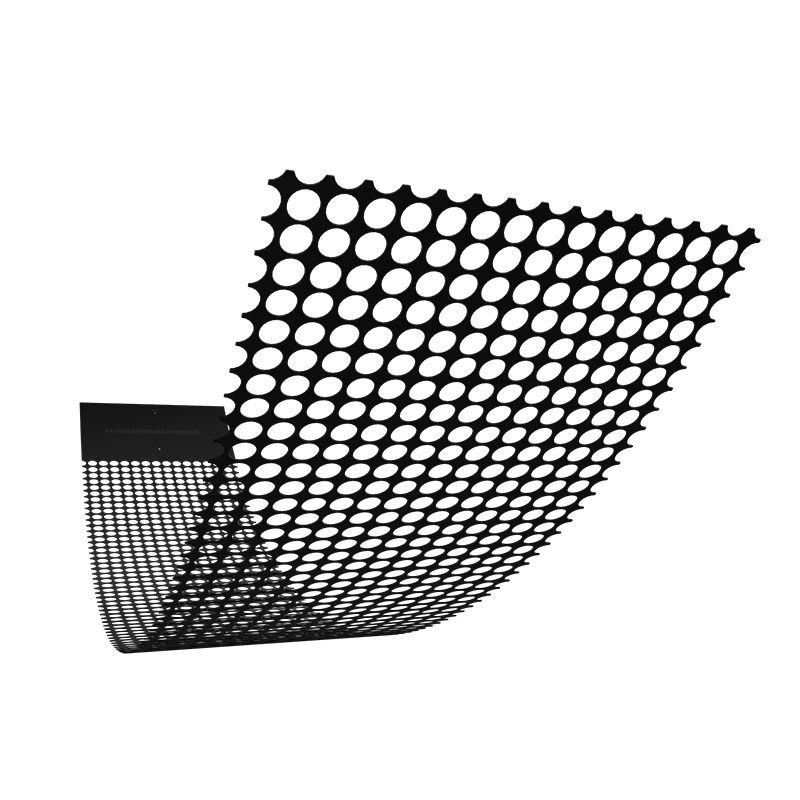

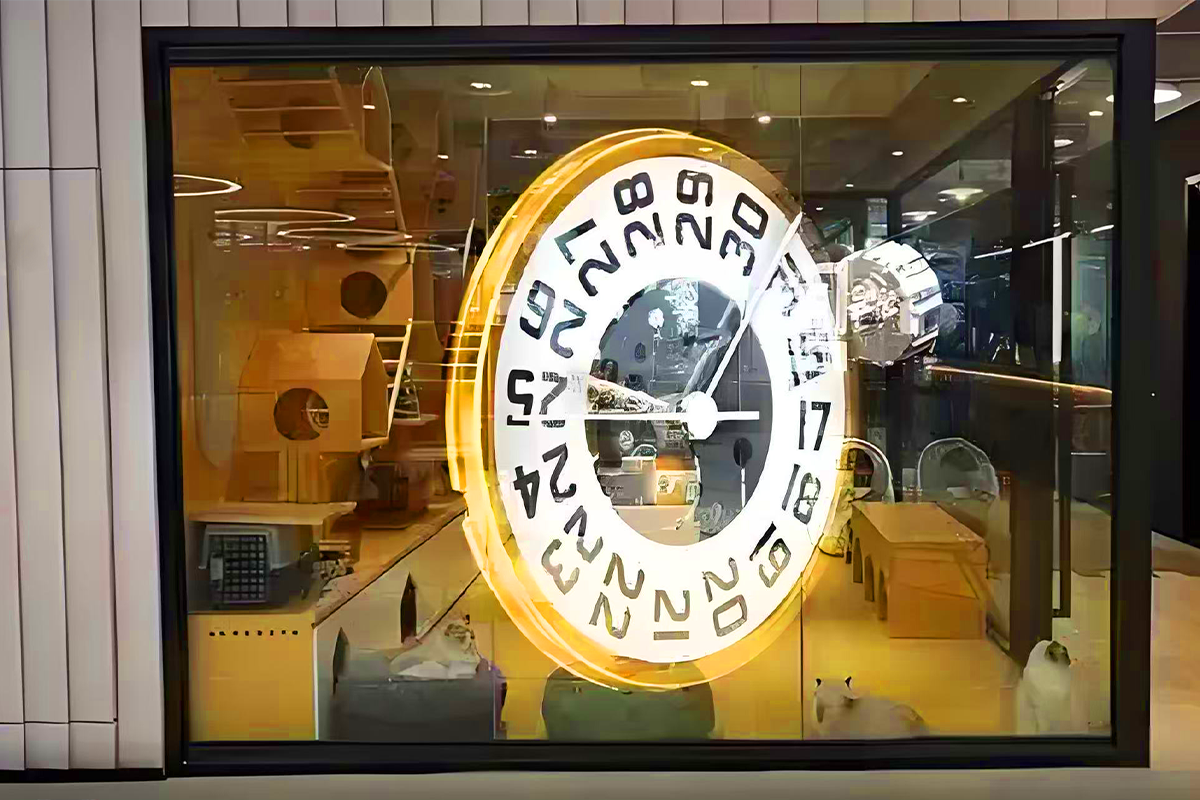

HIS series holographic LED display is new technology for window glasses transparent LED display. It’s totally invisible LED display when put the power boxes at sides, which has a excellent holographic image and perfect advertising effect. It can display naked 3D videos to increase eye attraction. The thickness of HIS display is only 2mm, and weight is 3 kg/sqm, light and thin for easy installation and good appearance. Meantime, the HIS supports different installation methods like hanging from the ceiling, moveable standing on the ground, sticking to the glass directly, etc. Pixel pitch is P3.9mm and P6.25mm, panel size can be highly customized while the standard is 250x1500mm.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

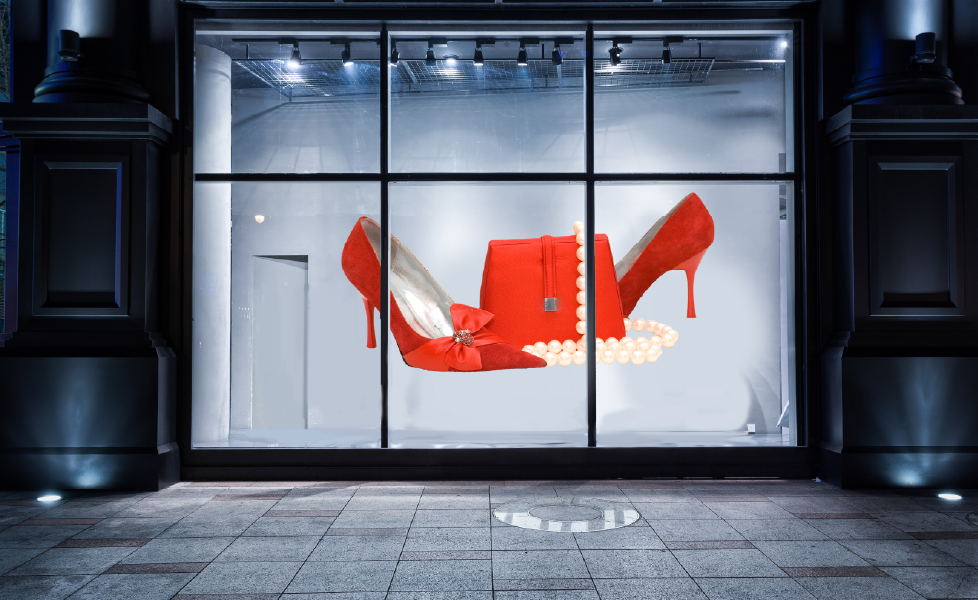

The transparency of HIS series can reach more than 90% which is totally invisible, because there is no any frame in the middle of LED screen. So it does not affect the penetration of sunlight or people’s sight when viewing from indoors or outdoors. The newfangled holographic images will bring the advertising better performance.

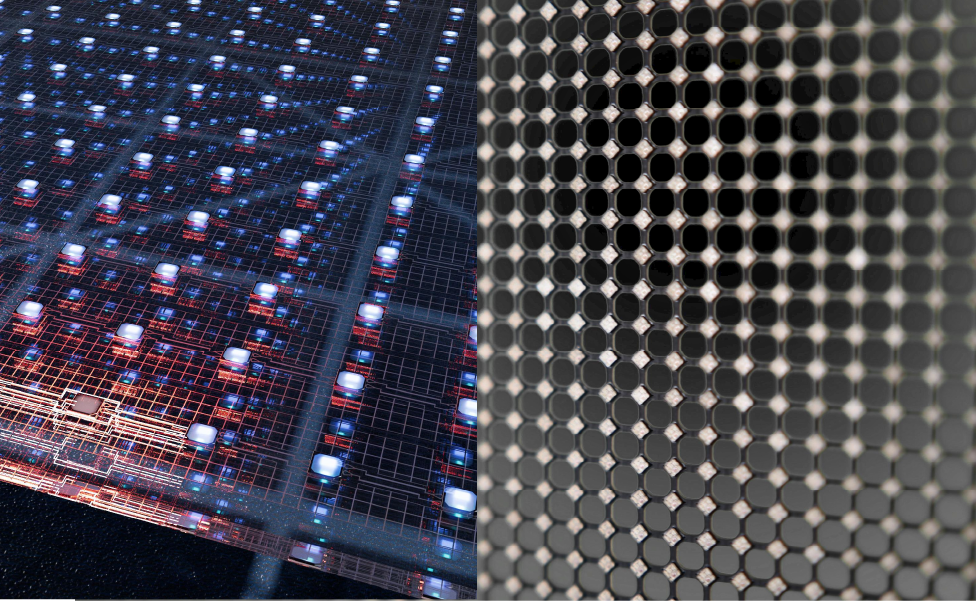

Each LED lamp integrated one driving IC, high quality and more stable.
If one LED dies, it will not affect the normal display of subsequent LEDs.

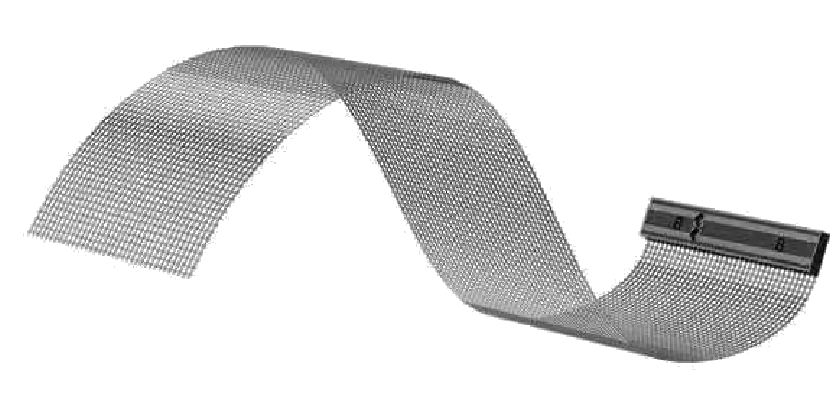

Weight: 3kg/sqm
Thickness: 2mm for HIS LED display
Super light and thin product which can be posted on glass easily, meantime looks clean and clear.

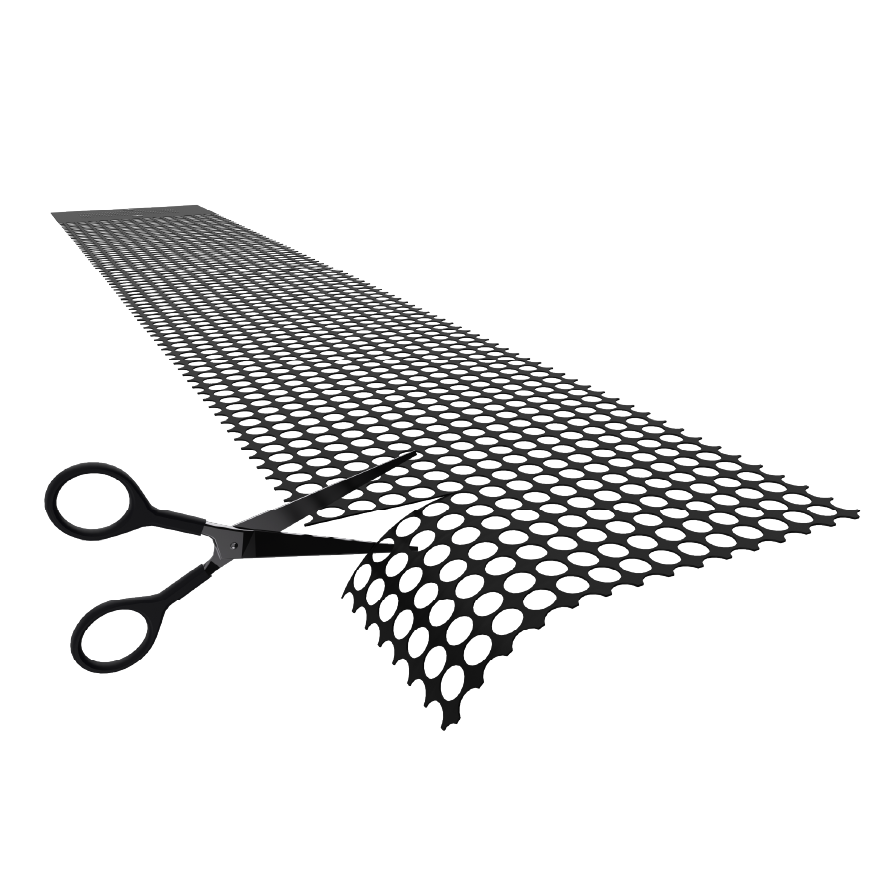

LEDFUL HIS holographic invisible screen supports highly customized size. It supports free cropping without restrictions and can create various shapes, such as round, triangle, trapezoid, oval, etc.

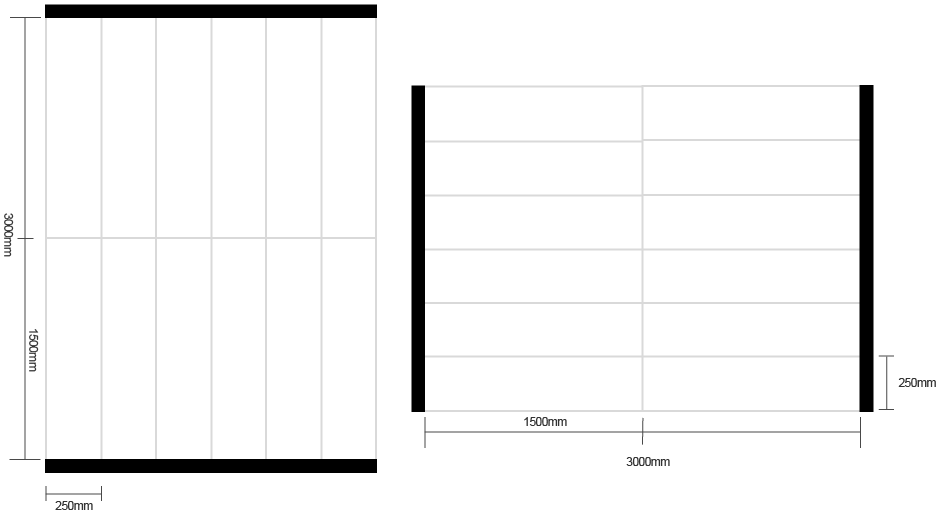

HIS products can be assembled vertically. The standard size is 250x1500mm, and the maximum height can reach 3 meters without any frame in the middle. Meanwhile, they can also be assembled horizontally. The standard size is 1500x250mm, and the maximum width can reach 3 meters without any frame in the middle.

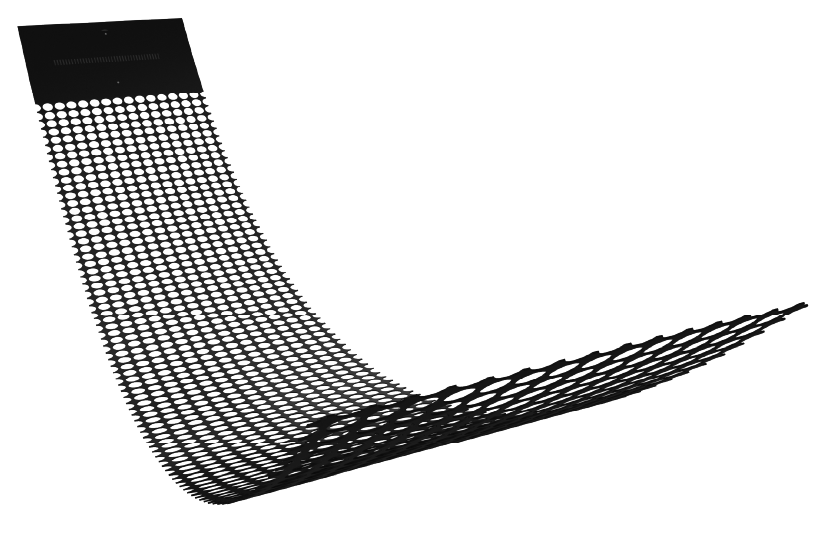

The HIS series products can be slightly bent. For glass with not particularly large curvature, arc pasting can be achieved, presenting a beautifully smooth arc display effect.
Maximum brightness can be 5000nits which can face sunshine directly. If the screen faces to inside, the brightness can be adjusted from 0~5000nits.

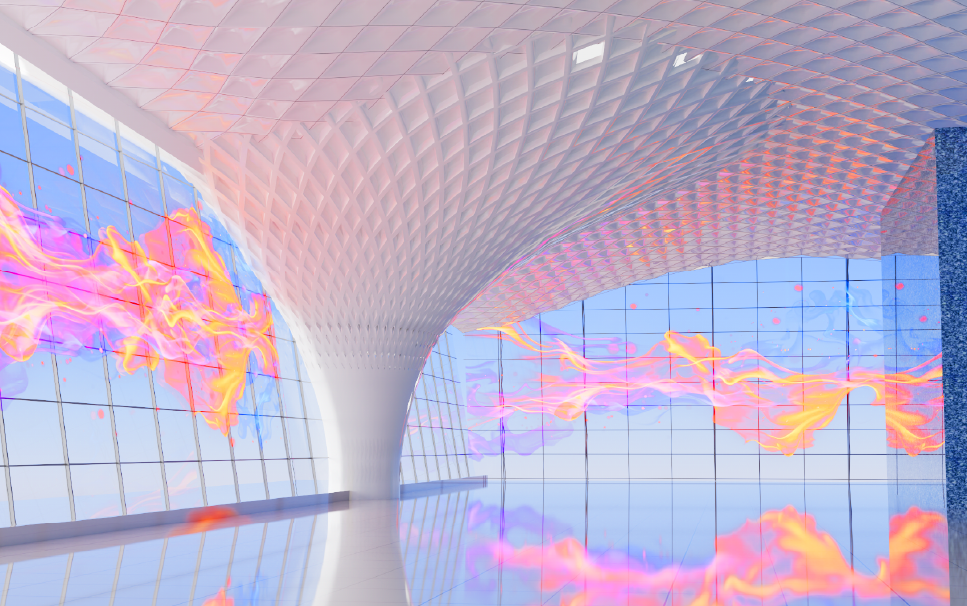

The minimum pitch is P2.5mm (too high in price and not promoted for the time being). For small pitch, there is P3.9 mm. For large pitch, there is P6.25 mm. An appropriate pitch can be selected according to the glass size and viewing distance.

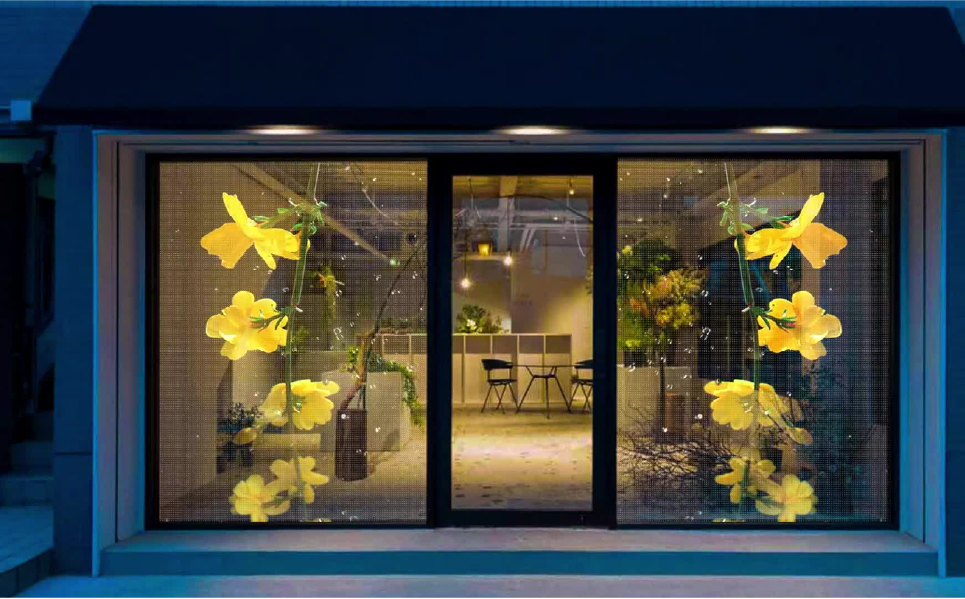

The high refresh rate of 3840Hz and high gray scale of 16 bits make the display effect of the holographic transparent screen more realistic, vivid and delicate, giving your screen a very good advertising effect.

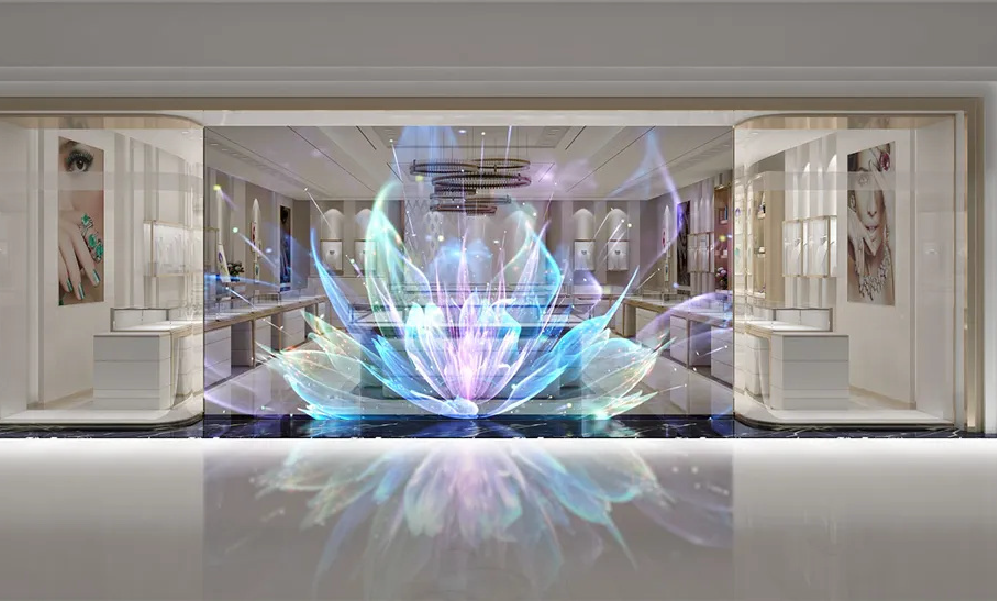

Ads Show on Transparent Glass of Jewelry Store
Product Showcase of Car Dealer Shop

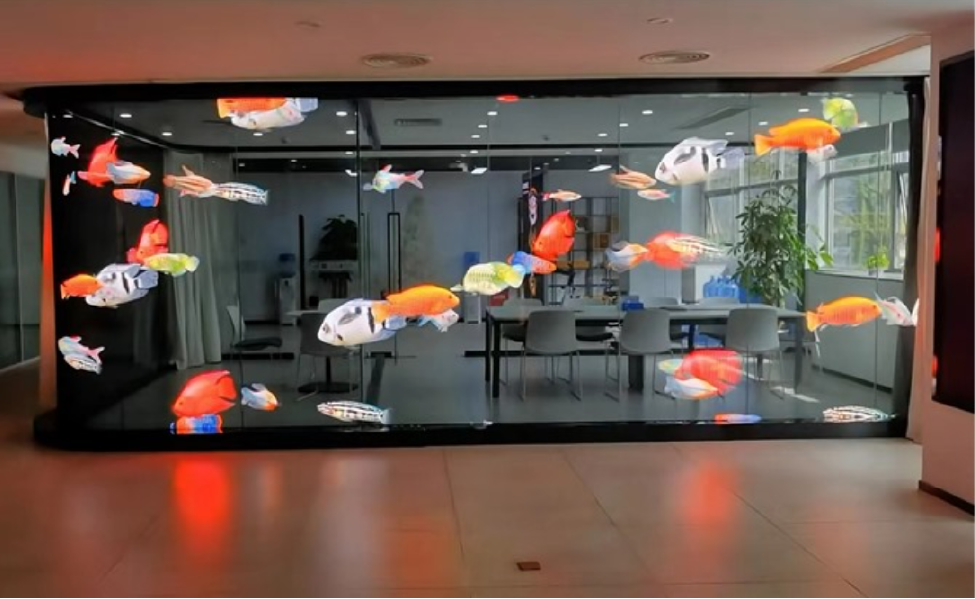

Giant Glass Wall Between Office Room
| Model | HIS3.91 | HIS6.25 |
| Pixel Pitch(mm) | 3.91 | 6.25 |
| Pixel Matrix Per Sq.m | 65,536 | 25,600 |
| Pixel Configuration | SMD1515 Integrated Driving IC | SMD1515 Integrated Driving IC |
| Panel Dimension | 1000*250mm / 1500*250mm | 1000*250mm / 1500*250mm |
| Panel Resolution | 256*64 / 384*64 | 160*40 / 240*40 |
| Power Con.(W/㎡) (Max / Avg) | 600W/200W | 600W/200W |
| Panel Material | Aluminum | |
| Panel Thickness | 2mm | |
| Weight (kg/sqm) | 3KG | |
| Transparency | ＞90% | |
| Brightness (cd/㎡) | 3500 | |
| Breakpoint Continuation | Support | |
| Bending Installation | Support | |
| Service Access | Rear / Front | |
| Refresh Rate (HZ) | ≥3840 | |
| Grey Scale (bit) | 16 | |
| Scan | Static Scanning | |
| Viewing Angle (H/V) | 160°/140° | |
| IP Rate | IP43 | |
| Operation Temperature | -10℃ ~ +65°℃ | |
| Operation Humidity | 10% ~ 90%RH | |
| Input Voltage (AC) | AC110V / 220V, 50~60Hz | |
| Blind Spot Rate | ≦0.0001 | |
| Life span at 50% brightness | 100,000 hours | |
| * Specifications and photos are subject to change without prior notice. | ||
