Interactive Dance Floor LED Display
● Interactive Sensors Integrated
● Die Casting Alu. Cabinet
● Cable Free connection
● 2T Loading Capacity
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
2T Loading Capacity
Better heat dissipation
Cable Free Connection
Die Casting Alu. Cabinet, thinner and lighter
Free height adjustable base support
Interactive Sensors Integrated
Cable Free Connection
Die Casting Alu. Cabinet, thinner and lighter

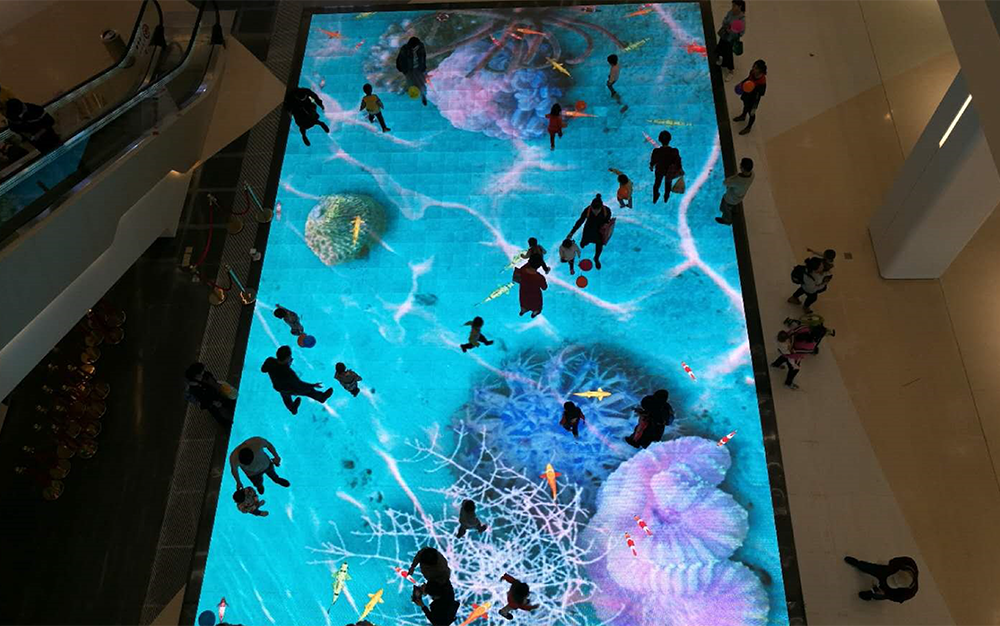

Floor LED screen is new and hot LED display technology in the market. The LED screen surface has many interactive driver IC, so that people and the screen have a perfect interaction effect. LEDFUL interactive floor LED screen usually used for shopping mall, wine bars, shops, plaza, amusement parks, exhibitions, auto show, interactive walls, wedding, night clubs, T-show, etc.

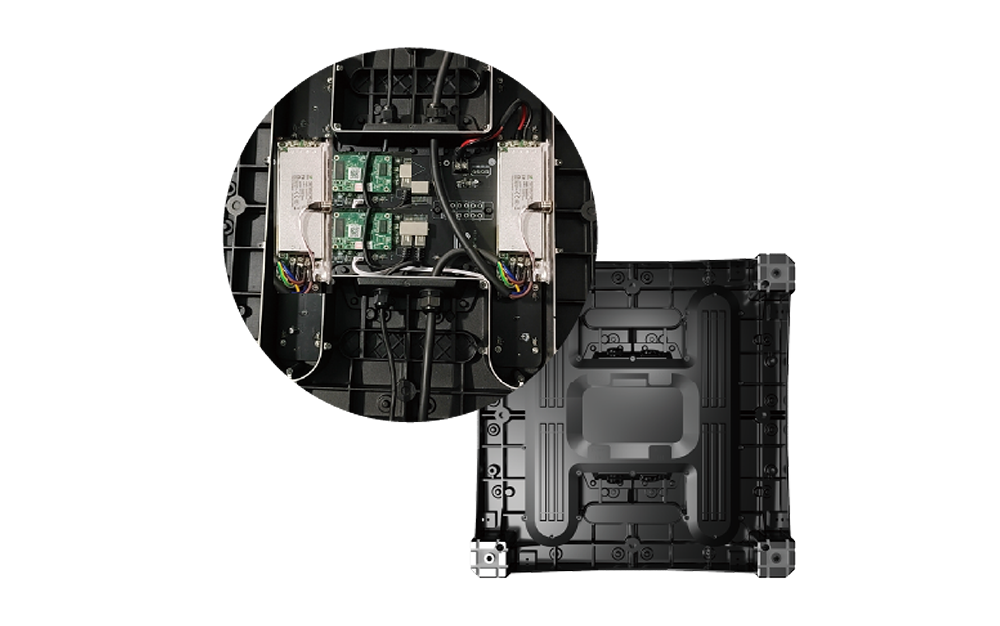

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

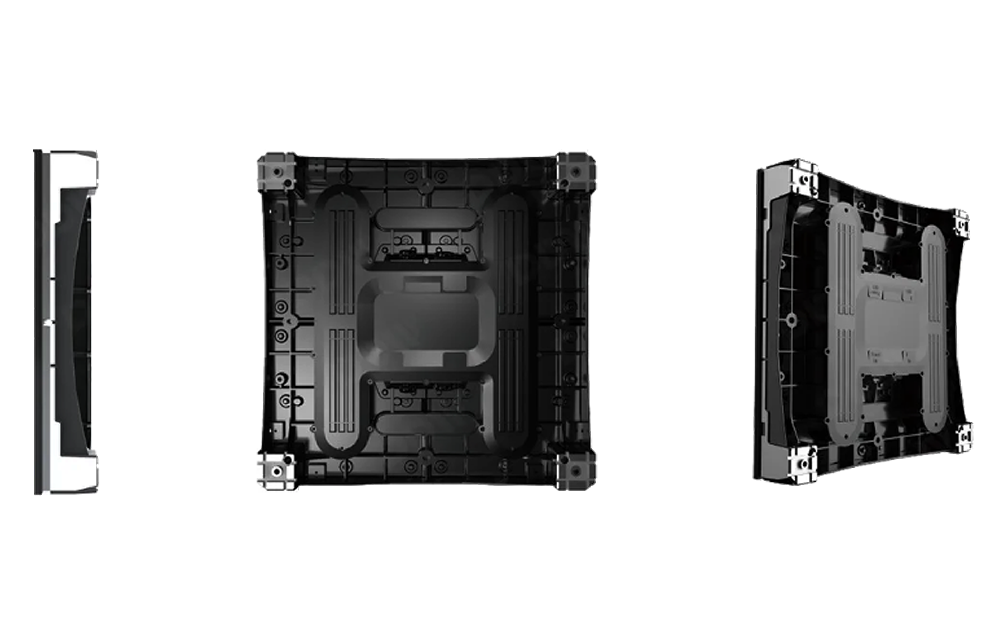

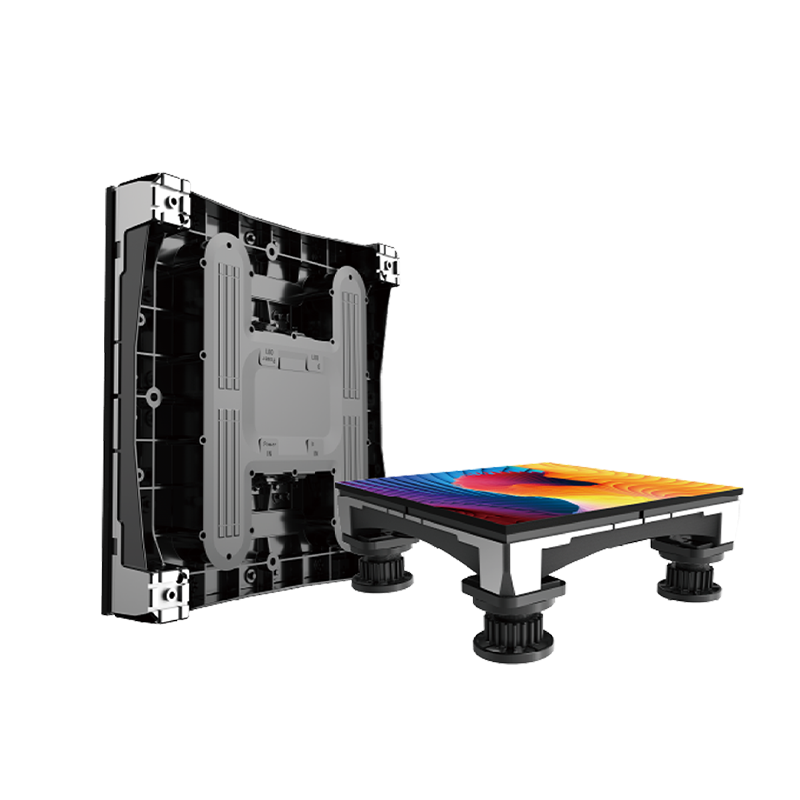

FLOOR-R Series LED dance floor screen is light-weight design with only 11.4kg/pcs. Slim die-casting aluminum cabinet 500x500mm with 92mm thickness only. Meantime seamless splicing lets the screen looks perfect and display whole content without any gap. All features are great designs for easy and fast installation.
Our LED dance floor display employs front maintenance design and solution. It can make fast maintenance and replacement with such design. No need for professional technician and device, simple and user-friendly for customers.

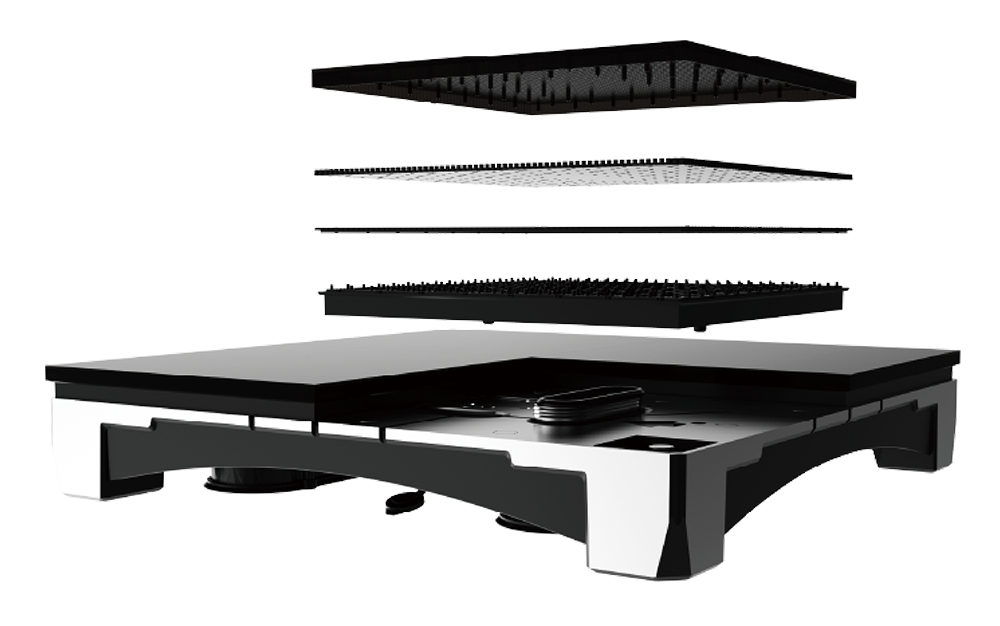

The mask is made of high-strength PC material with good light transmittance and impact resistance, which can effectively protect the LED chip from interference from the external environment.
Great surface protection, real shockproof and anti-collision, can withstand harsh transportation or violent impact, avoid dead lights and falling lights, and reduce later maintenance.
Even if one power supply or signal line fails, normal operation can still be maintained during the events, which prevent the screen from being paralyzed due to a single point of failure.

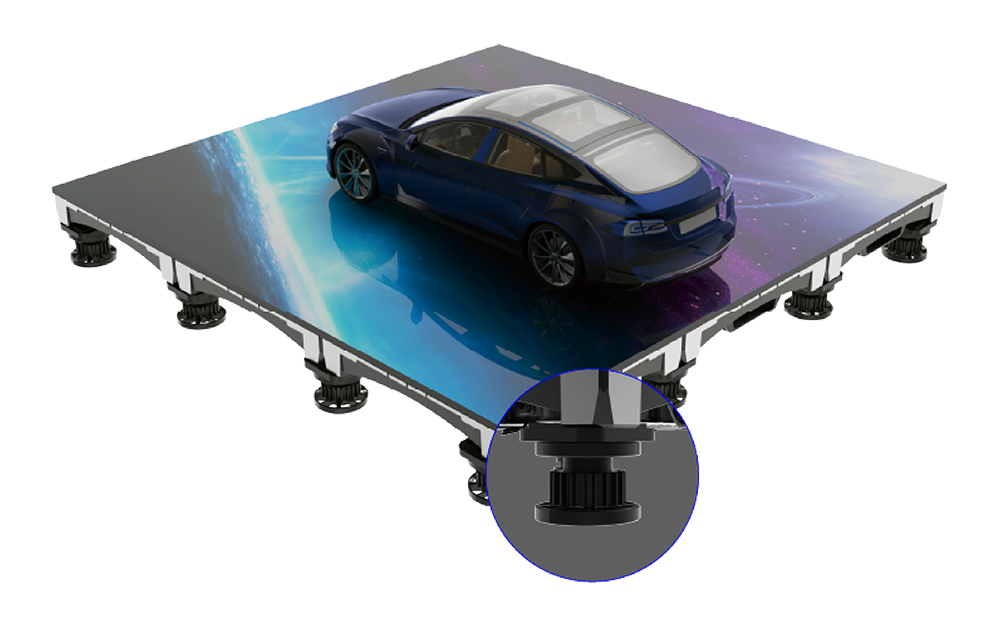

The LED floor tile screen is designed with anti-slip super PC cover, which can withstand huge pressure without deformation or damage. The bearing weight is over 2000kg/㎡.

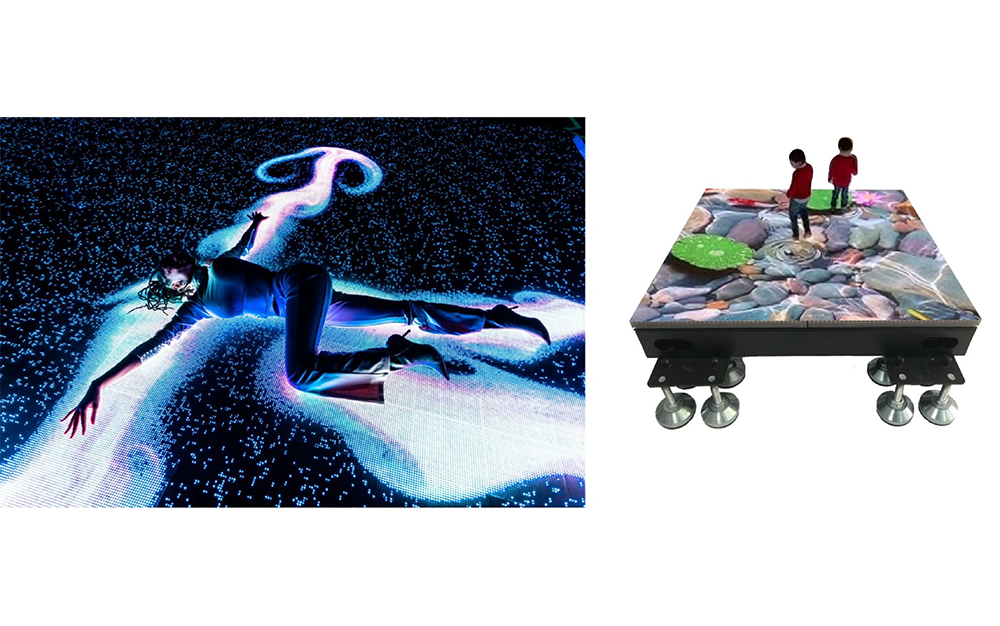

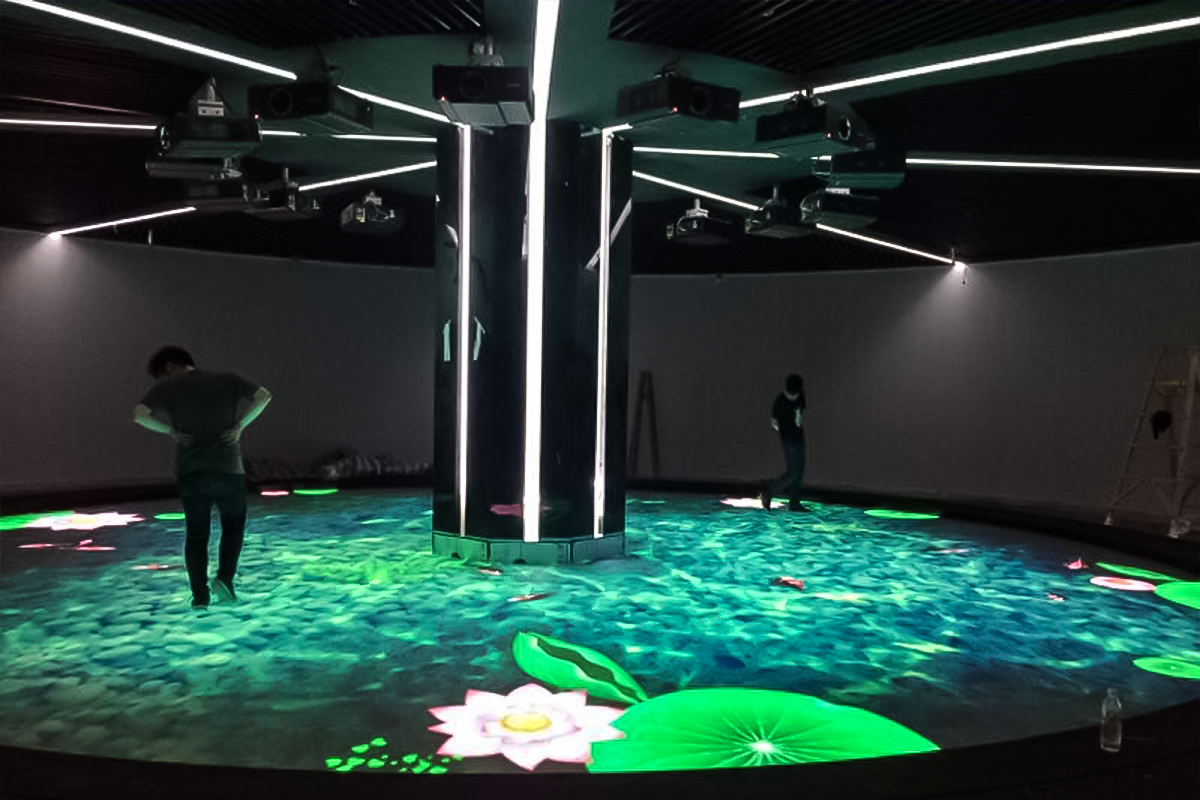

The most impressive feature of interactive dance floor displays is their ability to sense and react to the presence and movements of the audience. It can detect the presence of people and track their movements in real time.

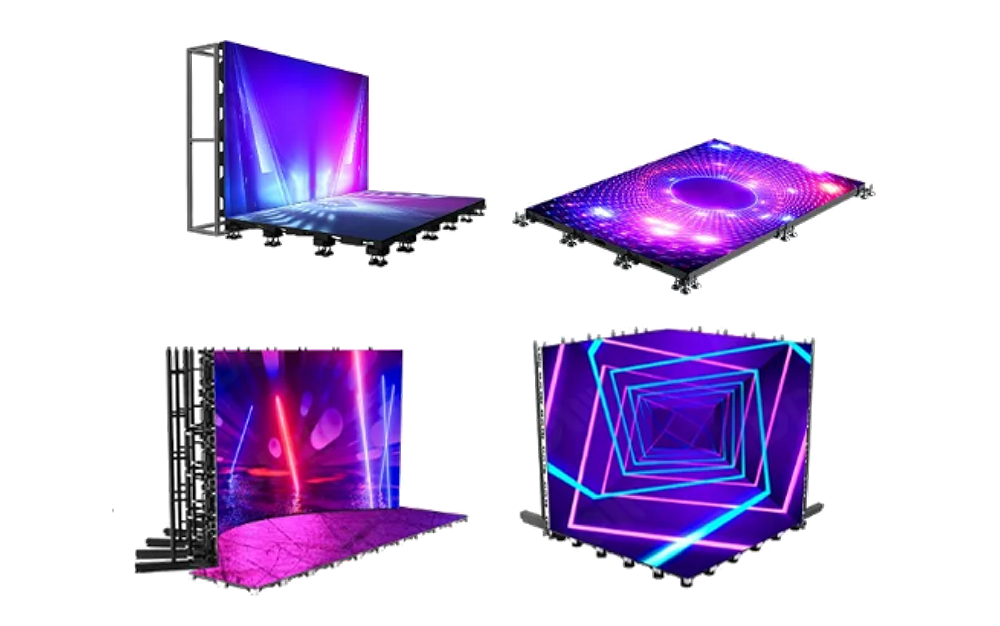

Put on the floor with base support, stand on the floor with structure, curved shape, fixed on a wall, 3-sided, etc. LEDFUL floor LED display support various installation ways and creative designs.
| Model | Fl1.5-DOB | FI1.8-DOB | FI1.9-DOB | FI2.5-DOB | FI2.6-DOB | FI2.9-DOB | Fl3.9-DOB |
| Pixel Pitch(mm) | 1.524 | 1.83 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1212 | SMD1212 | SMD1212 | SMD1415 | SMD1415 | SMD1415 | SMD1415 |
| Brightness (nits) | ≥1000 | ||||||
| Scan | 1/41 | 1/34 | 1/32 | 1/25 | 1/16 | 1/14 | 1/16 |
| Module Dimension | 250x250mm | ||||||
| Cabinet Dimension | 500x500mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | 11.3KG | ||||||
| Power Con. (W/Sqm.) | Max.800W/Avg.240W | ||||||
| Service Access | Front Access | ||||||
| Refresh Rate (HZ) | ≥3840 | ||||||
| Grey Scale (bit) | 16bit | ||||||
| Contrast Ratio | 8000:1 | ||||||
| Viewing Angle (H/V) | 140°/140° | ||||||
| IP Rate | Front IP54 / Rear IP45 | ||||||
| Operation Temperature | -20℃~+60℃ | ||||||
| Operation Humidity | 10%~90% | ||||||
| Input Voltage (AC) | AC100-240V,50/60Hz
| ||||||
| Model | FI2.5R | FI2.6R | FI2.9R | FI3.9R | FO3.9R | FO4.8R | FO5.2R | FO6.2R |
| Pixel Pitch(mm) | 2.5 | 2.6 | 2.97 | 3.91 | 3.91 | 4.81 | 5.2 | 6.25 |
| Pixel Matrix Per Sqm. | 160,000 | 147,456 | 112,896 | 65,536 | 65,536 | 43,264 | 36,864 | 16,000 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (nits) | ≥2000 | ≥3000 | ||||||
| Scan | 1/32 | 1/32 | 1/42 | 1/32 | 1/16 | 1/13 | 1/6 | 1/10 |
| Module Dimension | 250x250mm | |||||||
| Cabinet Dimension | 500x500mm | |||||||
| Cabinet Material | Die Casting Aluminum | |||||||
| Cabinet Weight | 11.3KG | |||||||
| Power Con. (W/Sqm.) | Max.800W / Avg.240W | |||||||
| Service Access | Front Access | |||||||
| Refresh Rate (HZ) | ≥3840 | |||||||
| Grey Scale (bit) | 16bit | |||||||
| Contrast Ratio | 5000:1 | |||||||
| Viewing Angle (H/V) | 140°/140° | |||||||
| IP Rate | IP65 | |||||||
| Operation Temperature | -20℃~+60℃ | |||||||
| Operation Humidity | 10%~90% | |||||||
| Input Voltage (AC) | AC100-240V,50/60Hz | |||||||
