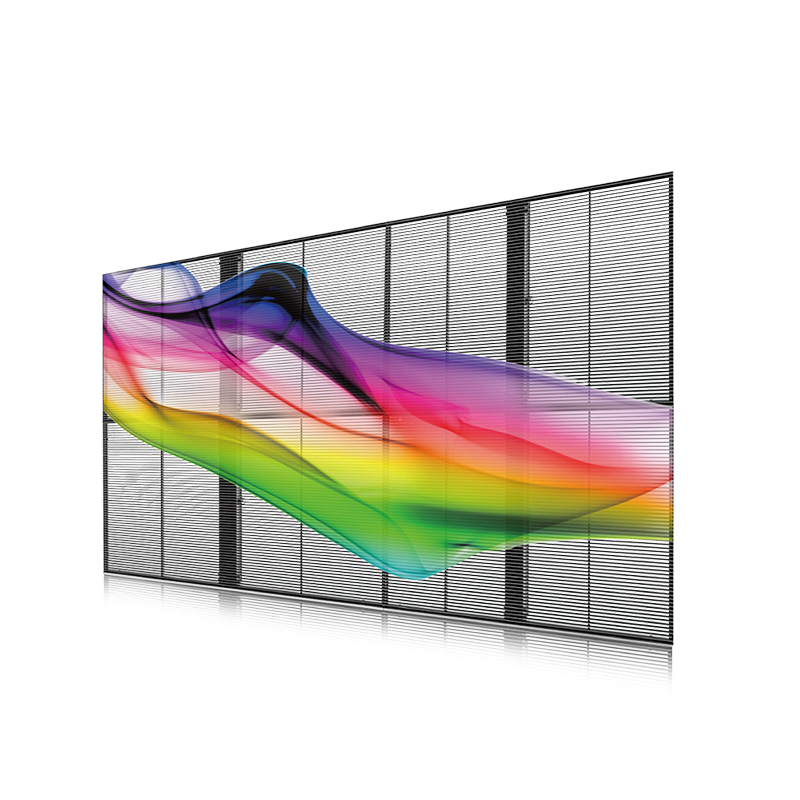

Transparent Glass Curtain LED Display
● High Transparency 70%
● Customized Panel Sizes
● 1000nits, 3000nits, 5000nits Optional
● Solid Aluminum Frame, Light and Thin, 7.5kg/sqm
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Easy installation/maintenance
Diversified control
Wide perspective

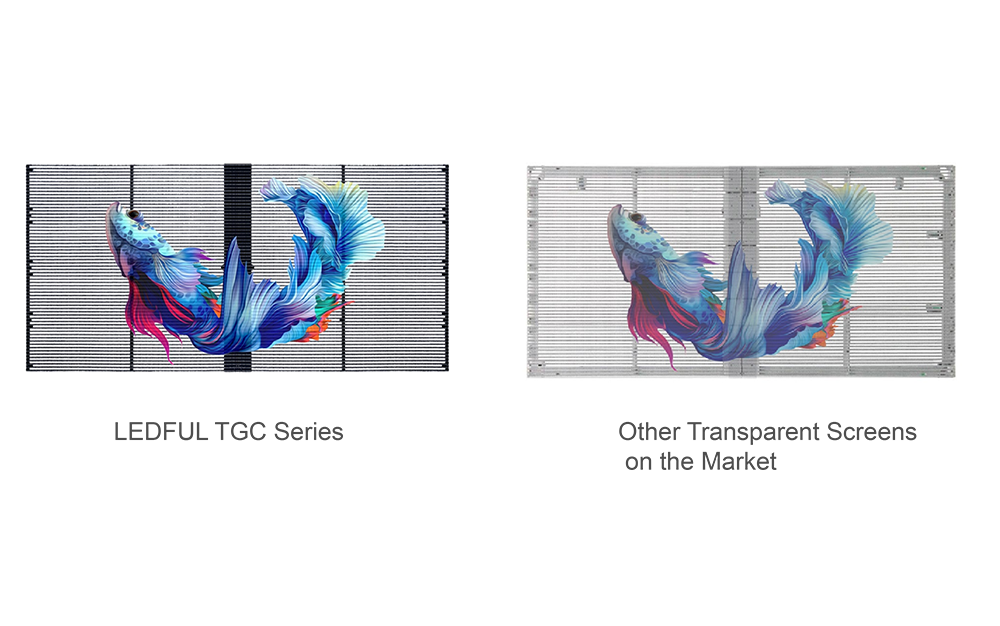

Highly transparent
Highly stable
Light weight
Fully customized
Strong compatibility

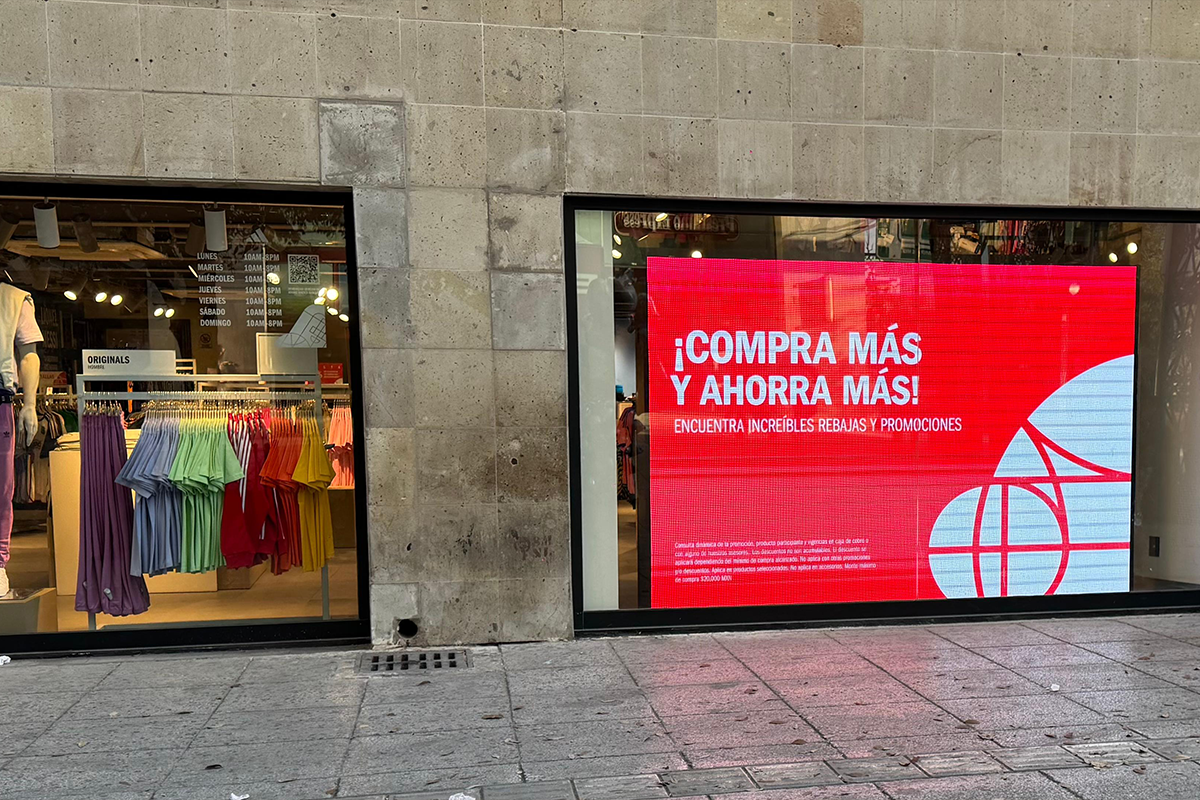

TGC series is a new design with super thin and light weight for window application. With premium quality & elegant appearance, it’s the best choice for Shopping Mall, Retail Shops, Glass Elevator, Car Dealership, Museum, Business Center, Office, Bank, Transportation Corridor, Broadcasting Stage, Rental, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

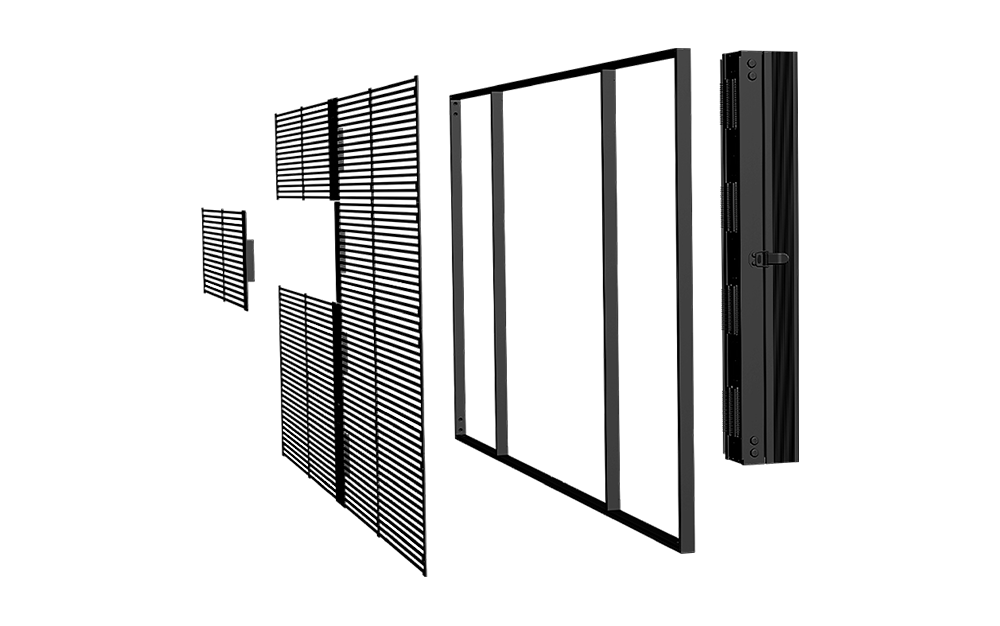

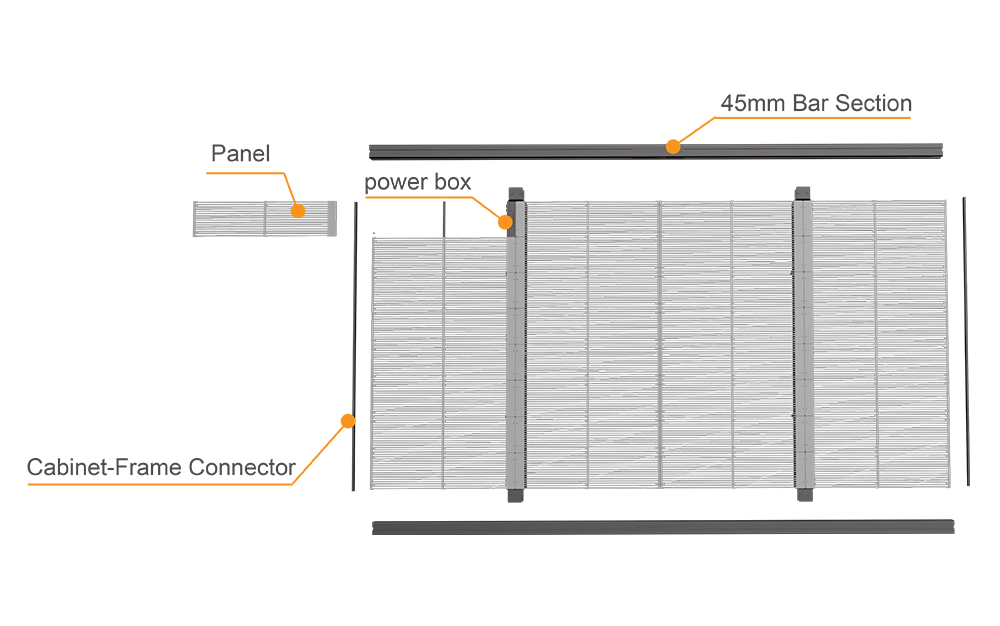

Modular design makes it easy to assemble and install the cabinets.
New cabinets’ installation is much easier to use hoisting rings to connect with the screens.
Simple operation, modules can be replaced individually,saving maintenance costs.
Besides, 10% spare modules will be provided with 3-year warranty. During the guarantee period, if there is any defective part, please collect and send back to us, we will fix or replace new ones and send back to you for free. combined within the LED environment, giving the viewer the illusion of integration and immersion through the camera’s perspective.

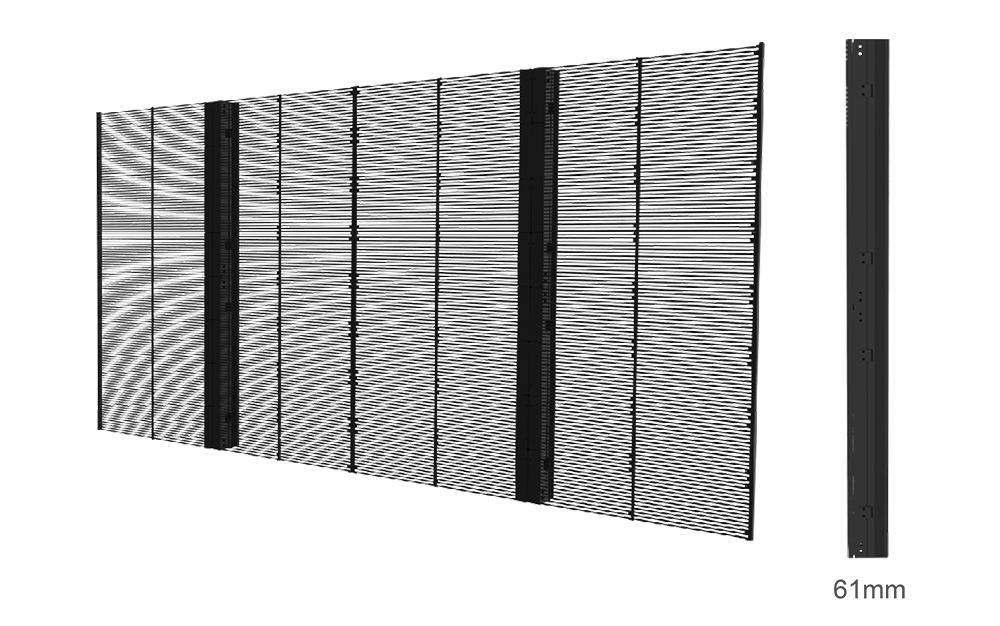

Cabinet size: standard 1000x1000mm
Cabinet thickness: 61mm

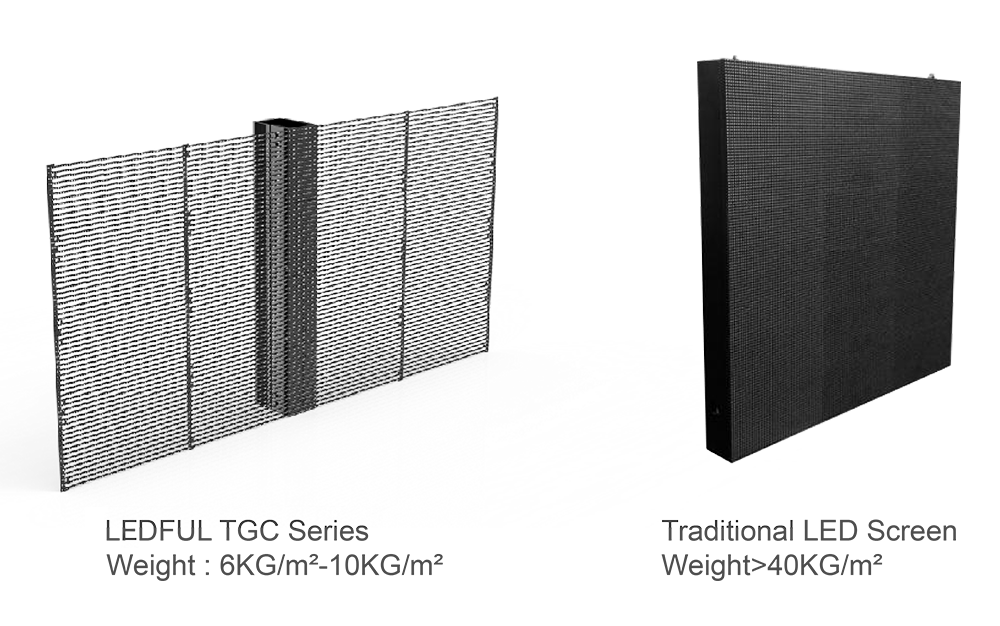

Light and slim design makes the installation and movement much easier, with better appearance.
LEDFUL: Solid Aluminum, thickness 4mm, thicker and stronger
Others: Hollow Aluminum, thickness 2mm，Weak.

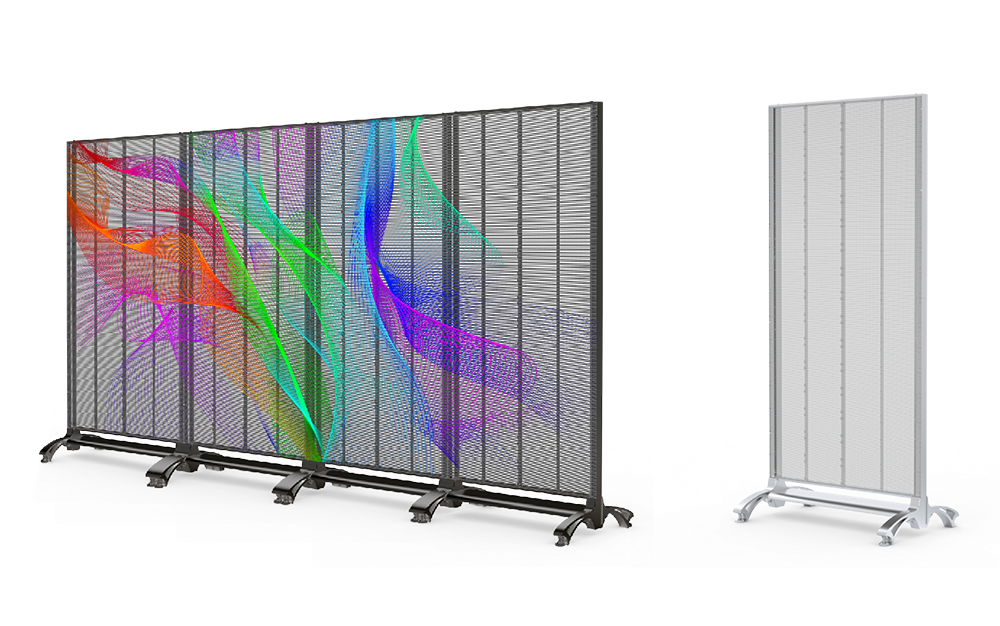

Mobile AD Player, Plug and Play
Could be with movable wheels, easy to move
Various installation methods: standing, hanging, cascade

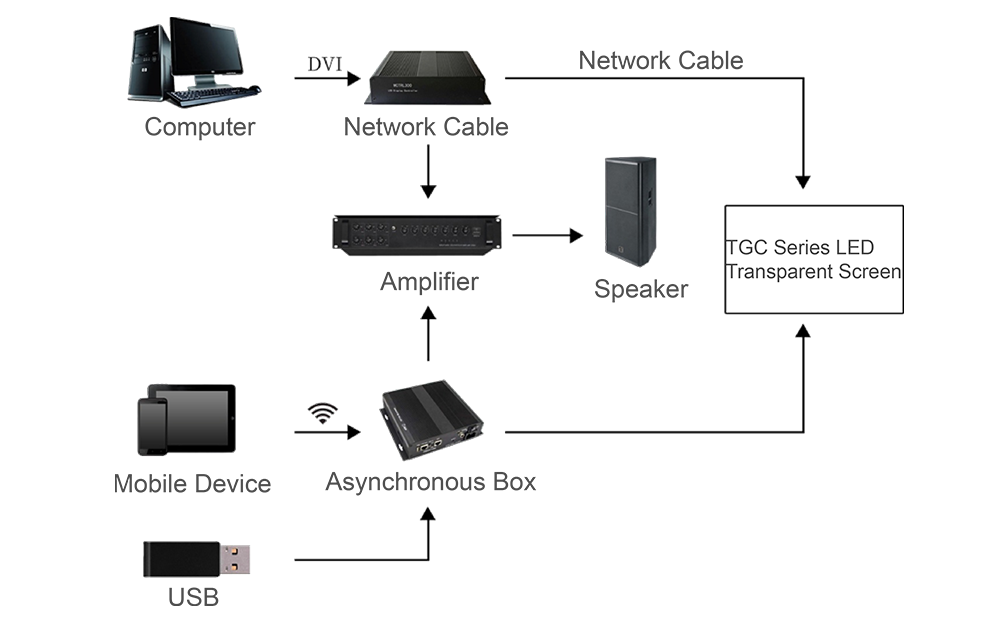

HDMI connection, wifi control and cloud control: TB50 (This is asynchronous control system, that means you can control it by wifi on your phone or ipad, and you can also use network cable to control the system by software on your laptop.)

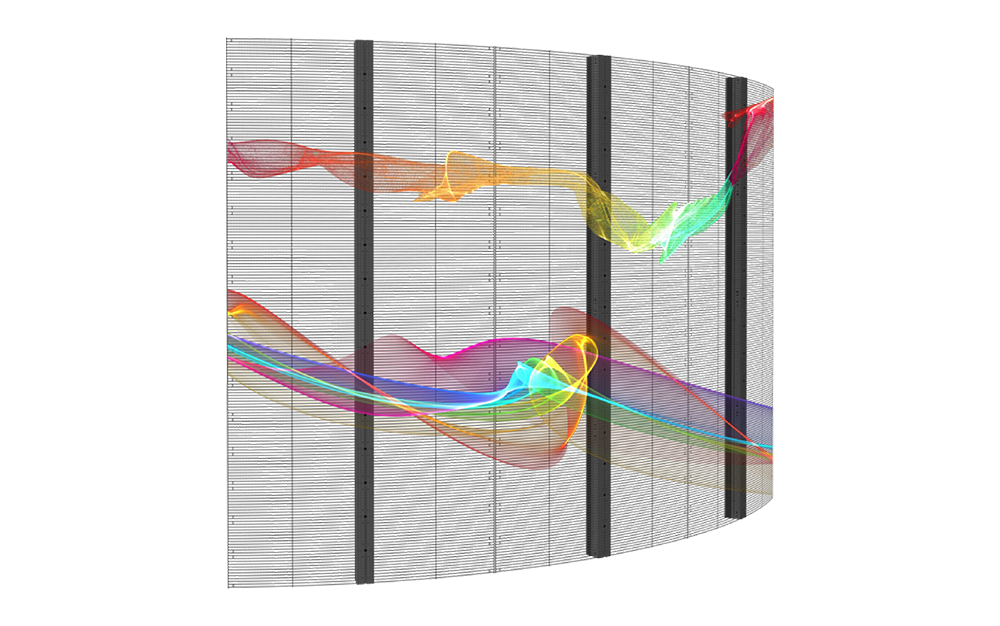

Supporting curved installation, providing curved art and wide viewing angle.
Supporting Bending Installation.
Flexible frame design, support curved installation, providing a variety of artistic effects.

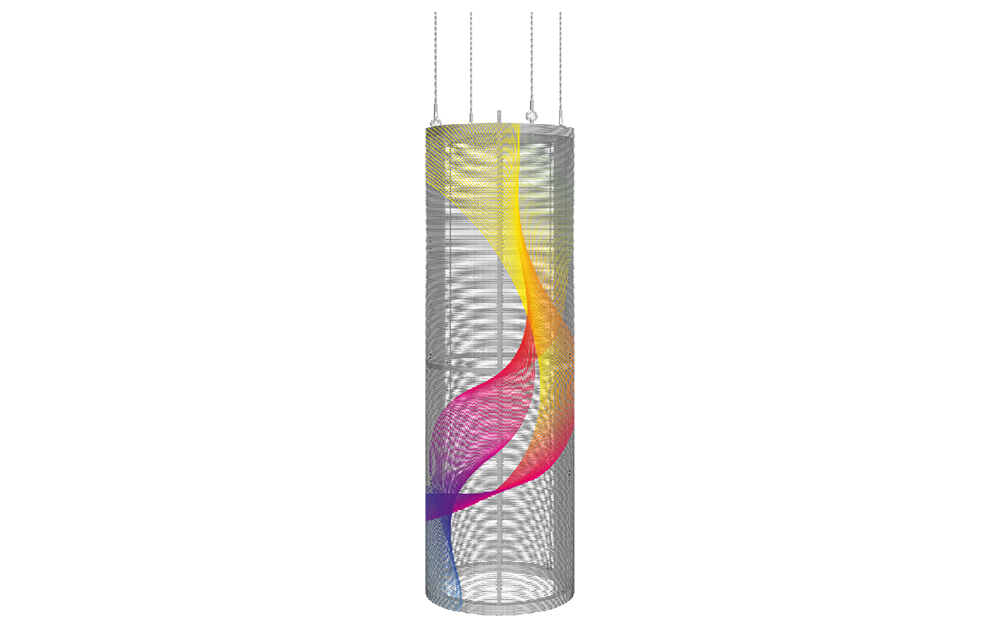

360° view to meet the needs of multiple art displays.
Support customized design, like curved, cylindrical, cube, triangle, square, rectangle design, etc.
Remote cluster control for easy control of single and multiple displays simultaneously.
Two main functions:
VNNOX Media: Screens can be managed remotely by using a router-sized player box like “TB60”; and one person can easily manage 1000 screens
VNNOX Care: Monitor the overall screen condition and automatically restore the on-site condition.
| Model | TGC1.9 | TGC2.6 | TGC2.8 | TGC3.9 | TGC3.9 |
| Pixel Pitch(mm) | H1.9-V3.9 | H2.6-V5.2 | H2.8-V5.6 | H3.9-V7.8 | H3.9-V7.8 |
| Pixel Matrix Per Sqm. | 129,024 | 73,728 | 63,368 | 32,768 | 32,768 |
| Pixel Configuration | SMD1515 | SMD2121/SMD1921 | SMD2121/SMD1921 | SMD2121/SMD1921 | SMD1921 |
| Brightness(nits) | 3,000 | 1,000~5,000 | 1,000~5,000 | 1,000~3,000 | 5,000 |
| Scan | 1/14 | 1/12 | 1/11 | 1/16 | 1/8 |
| Module Dimension | 500x125mm | ||||
| Cabinet Dimension | 1000x1000mm | ||||
| Cabinet Resolution | 504×252 | 384×192 | 356×178 | 256×128 | 256×128 |
| Cabinet Material | CNC Aluminum | ||||
| Cabinet Weight | 7.5KG | ||||
| Power Con. (Max/Avg) | 800/360W/Sqm. | ||||
| Service Access | Front & Rear | ||||
| Refresh Rate (HZ) | ≥1920 | ||||
| Viewing Angle(H/V) | 160°/160° | ||||
| IP Rate | IP31 | ||||
| Operation Temperature | -20℃~60℃ | ||||
| Input Voltage(AC) | 100V / 240V | ||||
| * Specifications and photos are subject to change without prior notice. | |||||
