Indoor Multi Customized Size LED Screen
● Die Casting Aluminum Cabinet
● Different Size Combinations
● High Refresh Rate 3840Hz
● High Brightness 4000nits Optional
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Easy Installation
Light and Thin
Full Front Service
High Contrast

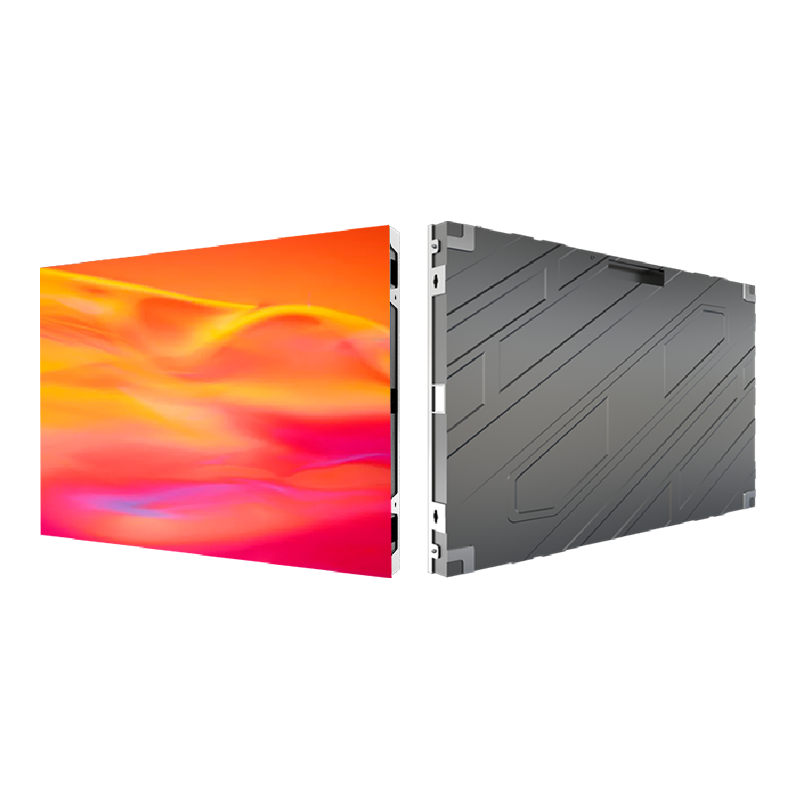

BM series offers cost-effective option with stronger aluminum cabinet material solution. Thinner and lighter cabinet design meets high definition need. Customized multi cabinet size can easily split into flexible size in different spaces. Optional higher solution includes GOB, COB and high brightness etc, which is affordable for many application such as churches, conference room, retail shop, street window etc.

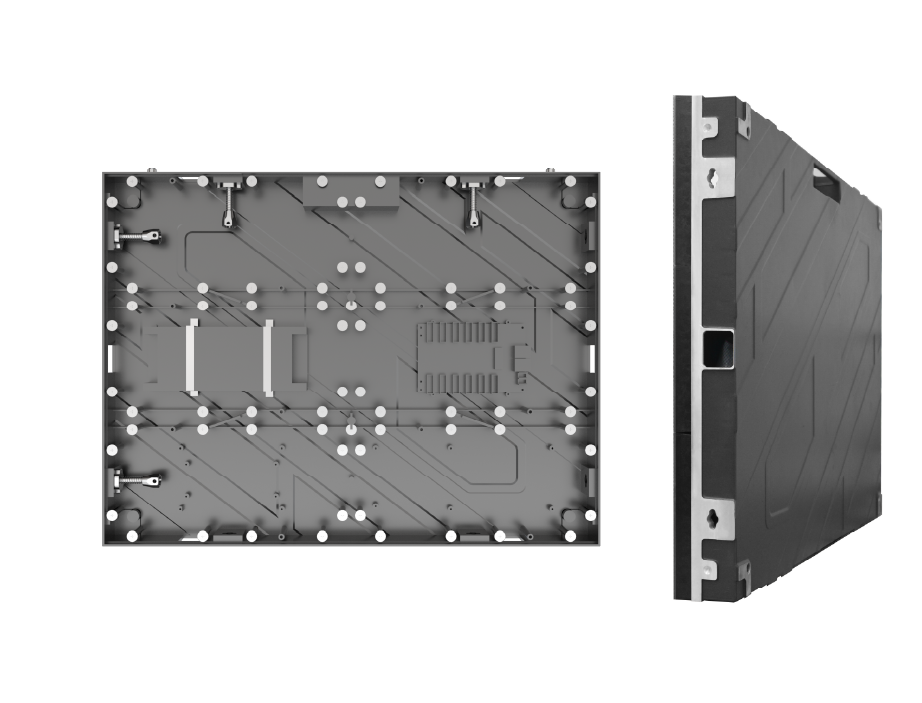

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

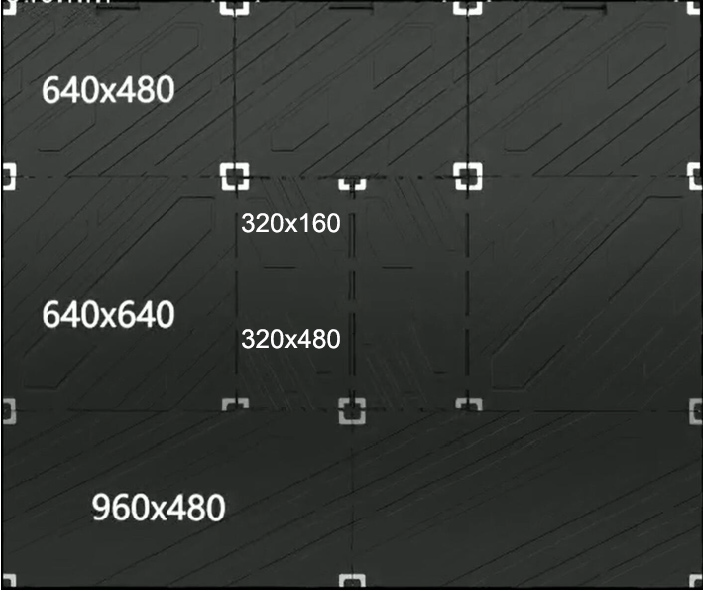

Standard size supports 640×480. Multi-size options can meet 320x160mm, 320x480mm, 320×160, 320×480, 640x640mm and 960x480mm etc. Any screen size needed can be matched by vertical and horizontal different direction arrangement.
Higher precision supports tolerance less than ±0.2mm, achieves seamless and prefect splicing connection.

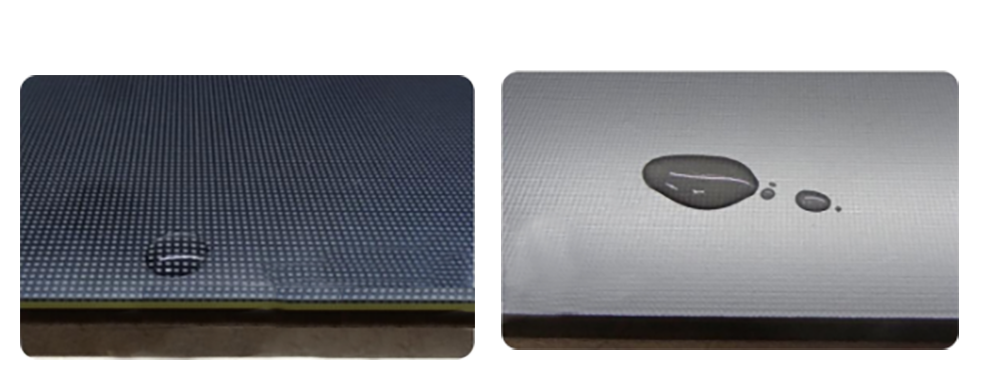

*GOB means Glue On Board which is SMD add glue on surface. COB is Chip On Board directly without encapsulation LED lamp.
*GOB and COB both make LED screen surface be waterproof, anti-hit, anti-static, strong, etc.
*COB has a better performance, higher contrast ratio, wider viewing angle, more vivid colors, etc.

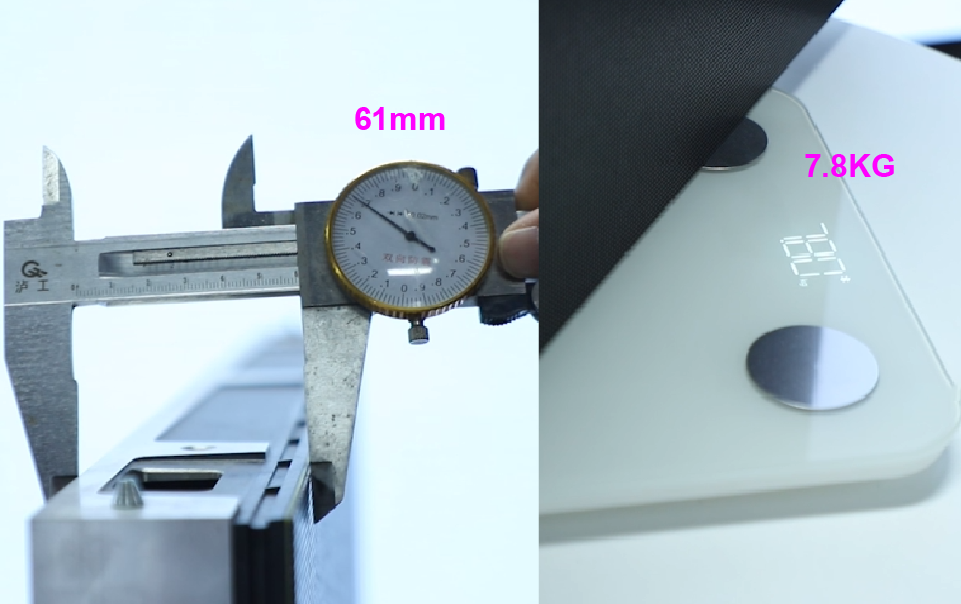

61mm thickness and 7.8kg for 640x480mm cabinet.

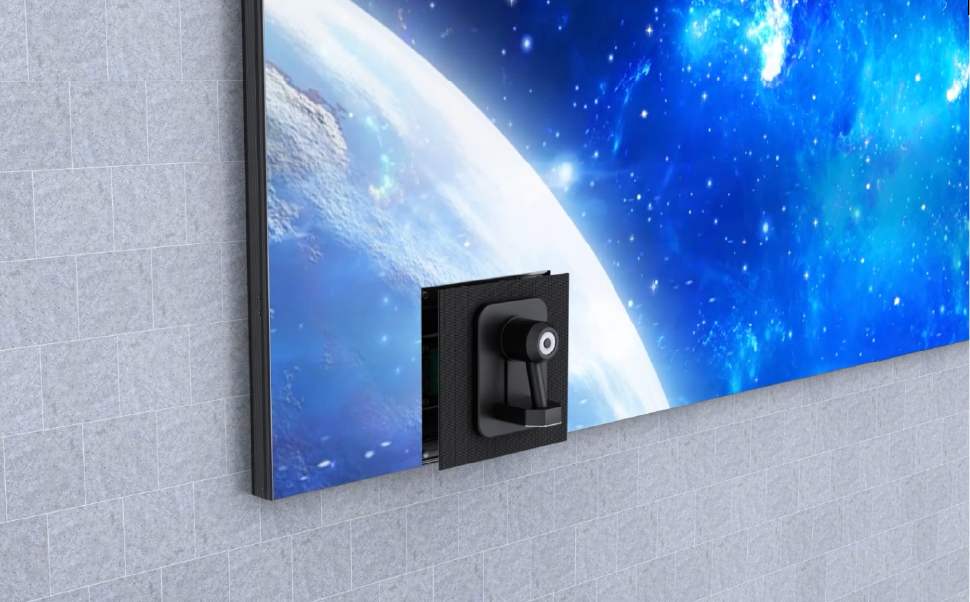

User can easily do maintenance individually to replace module / power supply / receiving card from front side.

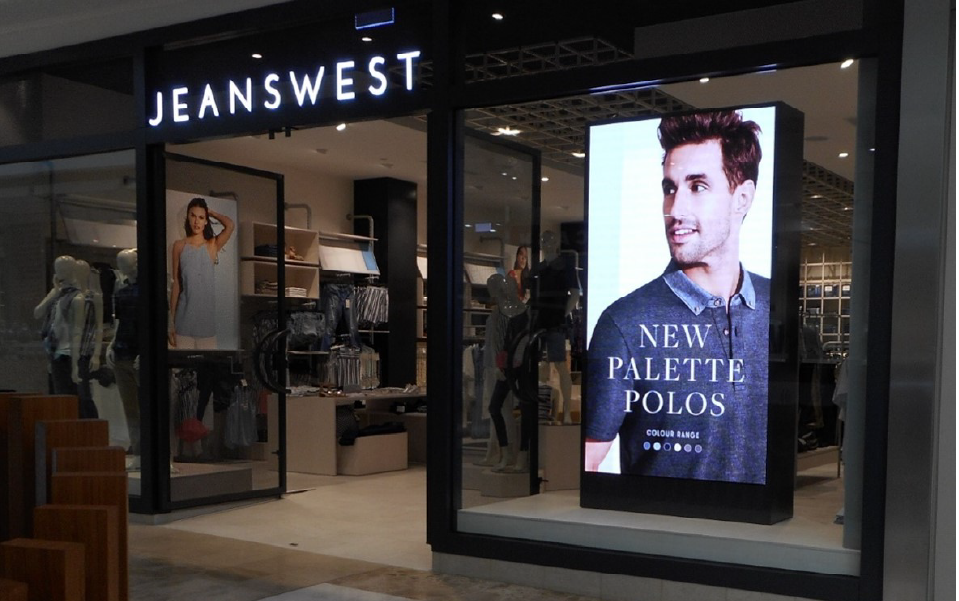

P1.8 and P2.5mm have 4000nits high brightness option, they are designed specifically for window screen facing to sunlight, remain vivid and clear enough.
Curved and 90 degree design can be customized smoothly by using special connection plate.

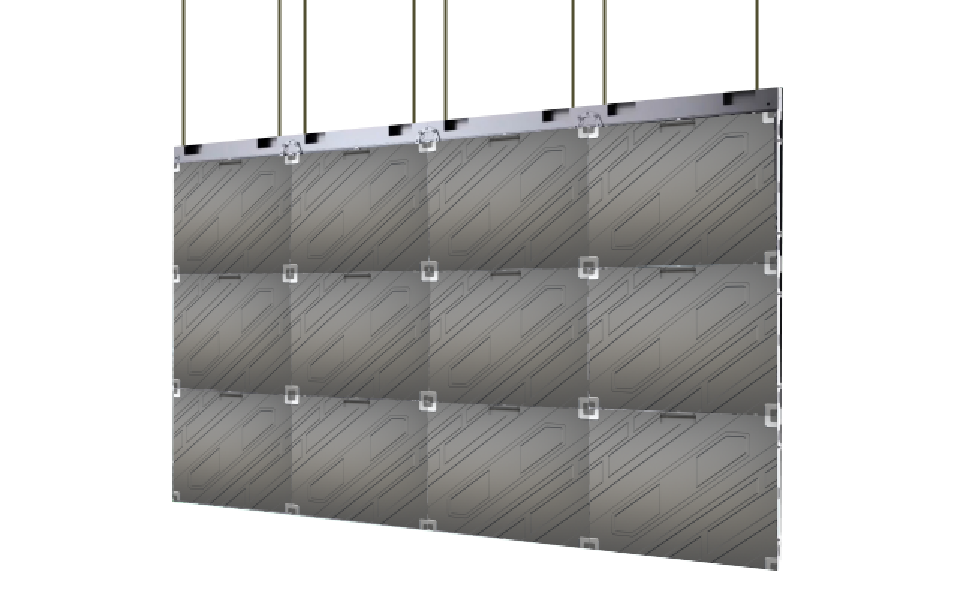

Light cabinet can be hanging safely and save space by hanging bar.

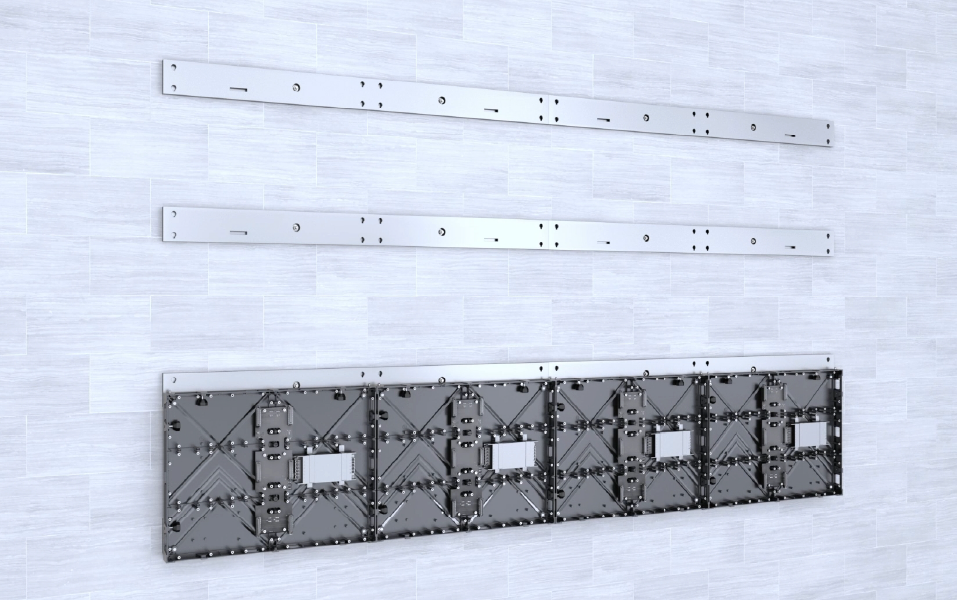

Cabinets can be fixed on wall permanently by aluminum mounted bracket to improve flatness.
| Model | BM1.25-COB | BM1.5-COB | BM1.8-COB | BM1.2-GOB | BM1.5-GOB |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 1.25 | 1.53 |
| Pixel Matrix Per Sq.m | 640,000 | 422,500 | 288,369 | 640,000 | 422,500 |
| Pixel Configuration | COB | COB | COB | SMD1010 | SMD1212 |
| Brightness (cd/㎡) | 600 | 600 | 600 | 600 | 700 |
| Scan | 1/64 | 1/52 | 1/43 | 1/64 | 1/52 |
| Power Con.(W/㎡) (Max / Avg) | 320W/120W | 310W/110W | 300W/ 100W | 550W/150W | 550W/150W |
| IP Rate | Front IP65 / Rear IP43 | ||||
| Module Dimension | 320x160mm / 1.05×0.53ft | ||||
| Cabinet Dimension | 640x480mm / 2.10×1.57ft (Customizable) | ||||
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 7.8KG | ||||
| Service Access | Front | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| Operation Temperature | -20℃ ~ +60°℃ | ||||
| Input Voltage (AC) | 110V / 220V | ||||
| * Specifications and photos are subject to change without prior notice. | |||||
| Model | BM1.8 | BM2 | BM2.5 | BM1.8-HI | BM2.5-HI |
| Pixel Pitch(mm) | 1.86 | 2 | 2.5 | 1.86 | 2.5 |
| Pixel Matrix Per Sq.m | 288,369 | 250,000 | 160,000 | 288,369 | 160,000 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD1415 | SMD1920 |
| Brightness (cd/㎡) | 700 | 700 | 800 | 4000 | 4000 |
| Scan | 1/43 | 1/40 | 1/32 | 1/43 | 1/32 |
| Power Con.(W/㎡) (Max / Avg) | 550W/150W | 550W/150W | 550W/150W | 600W/ 180W | 600W/ 180W |
| IP Rate | IP43 | ||||
| Module Dimension | 320x160mm / 1.05×0.53ft | ||||
| Cabinet Dimension | 640x480mm / 2.10×1.57ft (Customizable) | ||||
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 7.8KG | ||||
| Service Access | Front | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 16 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| Operation Temperature | -20℃ ~ +60°℃ | ||||
| Input Voltage (AC) | 110V / 220V | ||||
| * Specifications and photos are subject to change without prior notice. | |||||
