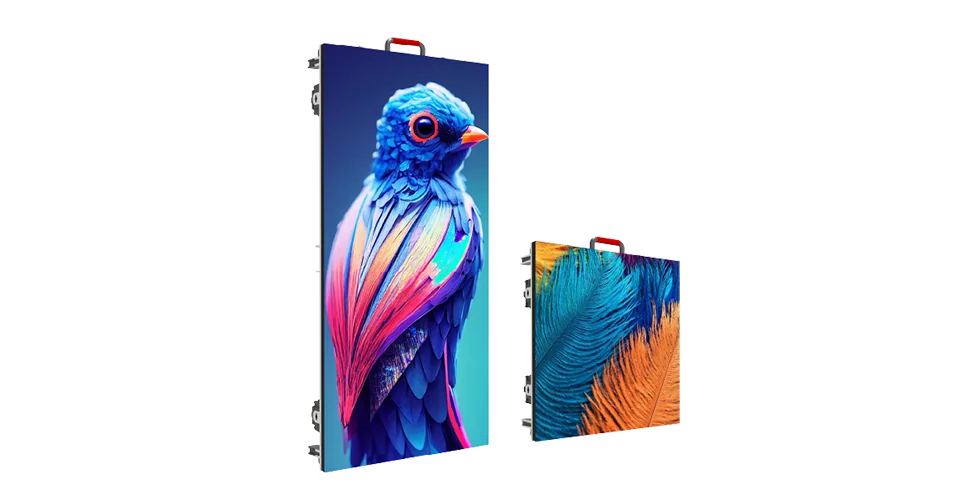

Extend Reality LED Screen
● Cable free
● 7680hz High Refresh
● Above 5000nits high brightness.
● 500*500 mm die casting aluminum cabinet,
● All-in-one power supply box design, easy maintenance.
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Modularization
Front and Rear Maintenance

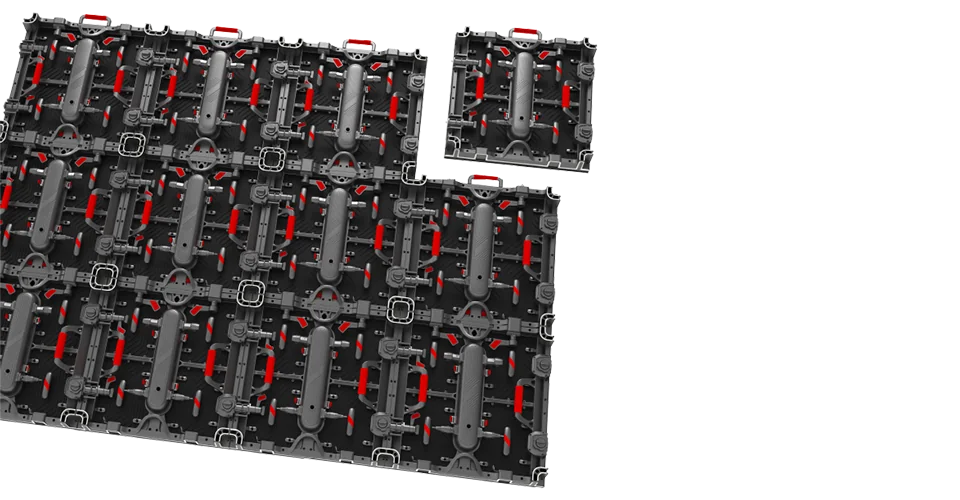

Easy Installation
Multiple Installation Modes
Ultra-thin and Light
Curved
High Protection
Ultra-wide Viewing Angle
The FS PRO series common cathode LED display redefines outdoor advertising with its exceptional performance, energy efficiency, and versatility. This display boasts an IP66 waterproof rating, seamless splicing capabilities, and a unique energy-saving design, a high-precision aluminum profile cabinet, full-sealed design, making it ideal for outdoor display applications.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

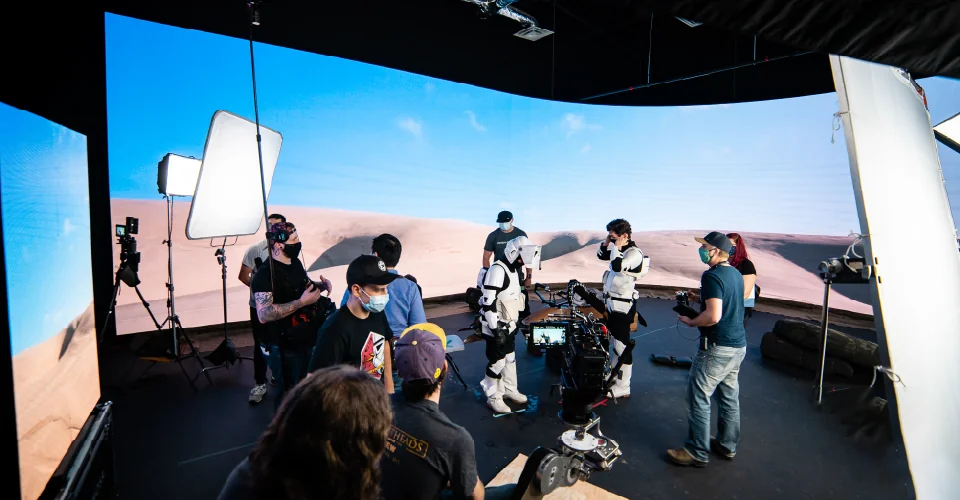

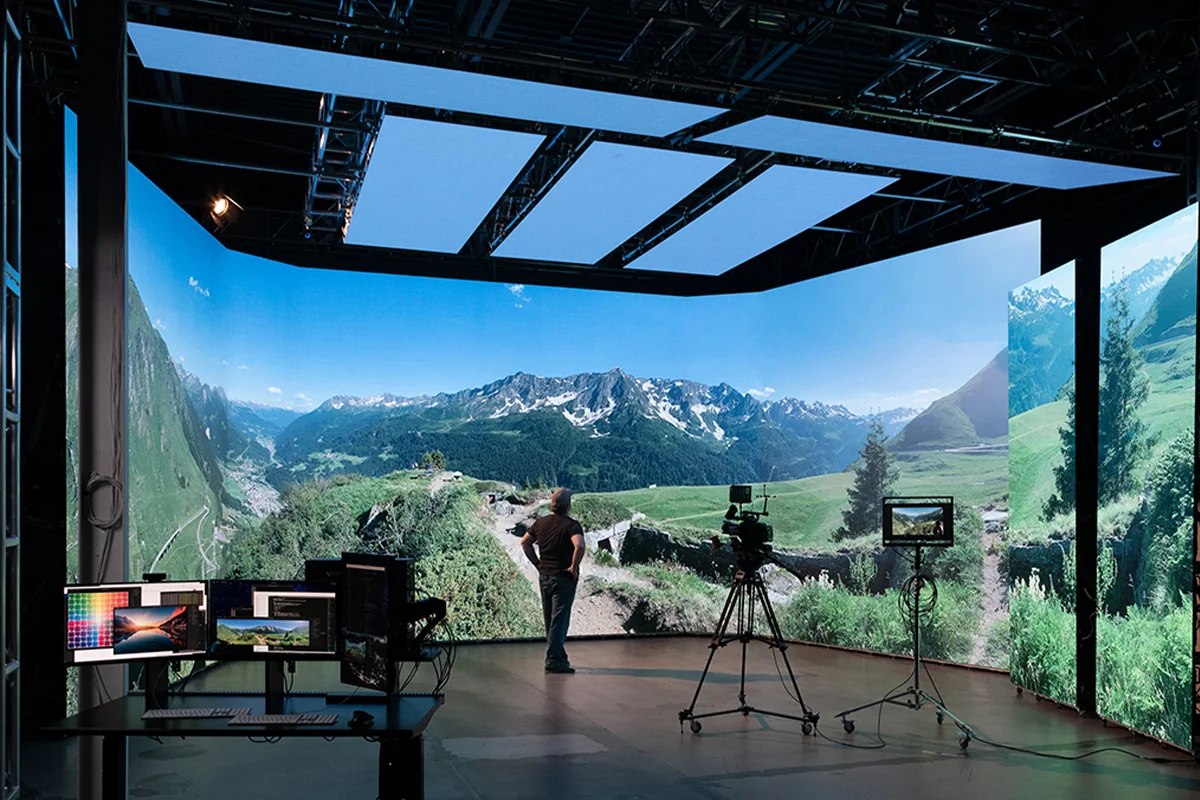

XR(full name Extended Reality) technology is a technology that integrates and interacts with real people & props and virtual scenes through camera tracking and real-time image rendering technologies, so that the display medium (LED screen) and virtual scenes outside the display medium can be integrated in real time, thus creating a sense of infinite space.
Widely used in: advertising production, TV/movie shooting, e-sport games, variety shows, conferences, party shows, model shooting, digital virtual exhibition hall and other application scenarios.

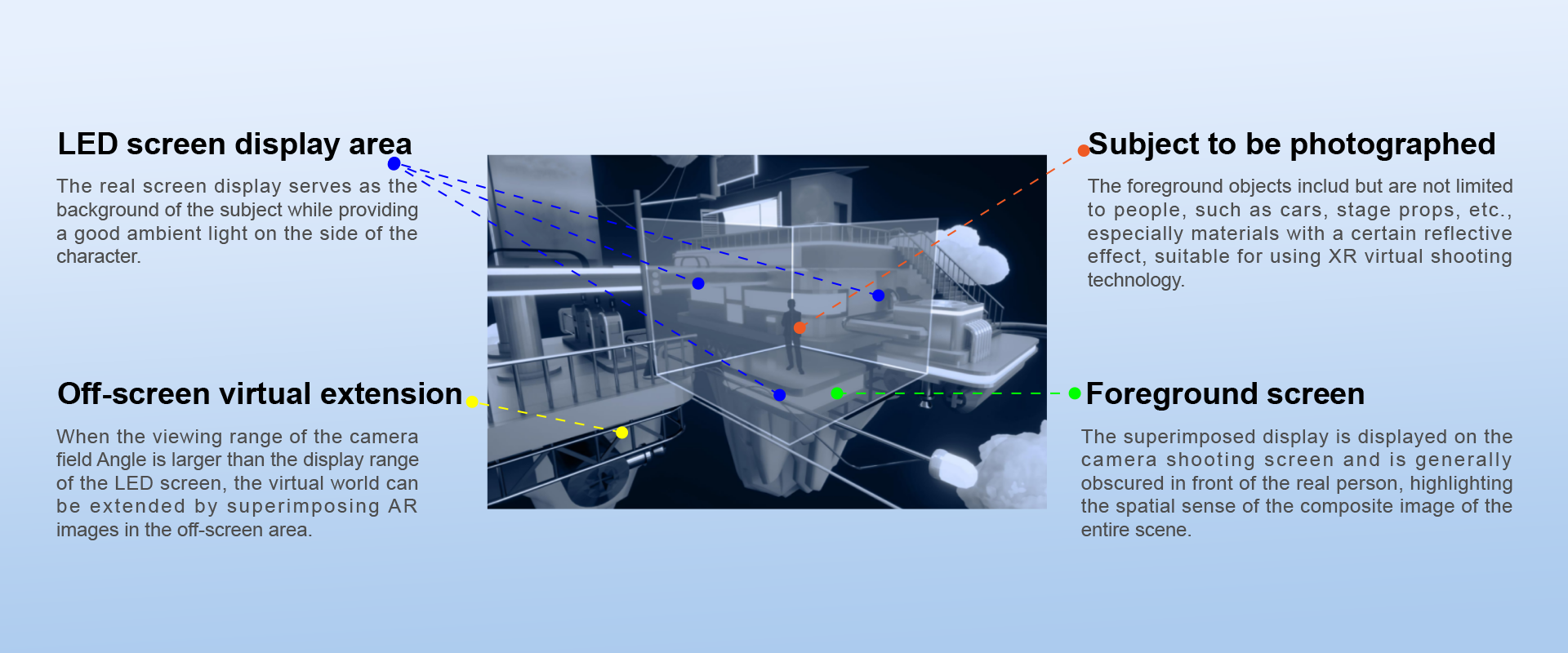

In XR production, a high-quality LED screen (usually rendered as a 3-sided or curved screen) simultaneously displays a 3D virtual environment pre-loaded by a render Engine (often using Unreal Engine or Notch), and these LED screens form the background for a film shoot or live event. When a precise camera tracking system was added, the camera began to move around the real and virtual elements seamlessly combined within the LED environment, giving the viewer the illusion of integration and immersion through the camera’s perspective.
Actors, hosts or producers can see the virtual environment on the spot, so that they can adjust and guide the performance or shooting on the spot, reducing the time and budget spent in post-production. In addition, virtual production solves the crew transportation costs and environmental waiting costs of location shooting, in short, you can reproduce and modify the required environment at any time without having to wait for rain or sunset.

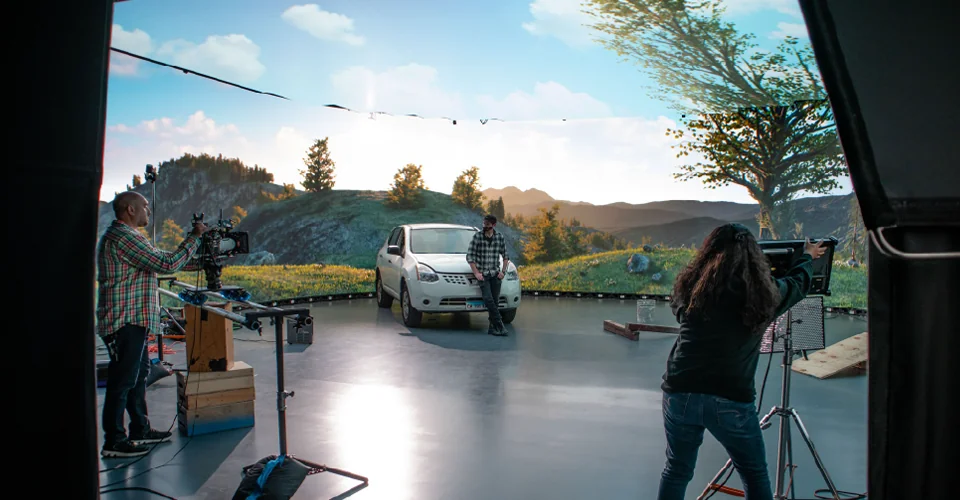

Lighting is provided by the LED display in the XR field, which facilitates the seamless integration of real people into the virtual environment and reduces the time for further lighting adjustments. This is especially suitable for shooting real objects with high reflection, which can provide real environmental reflection information and illumination without post-synthesis.

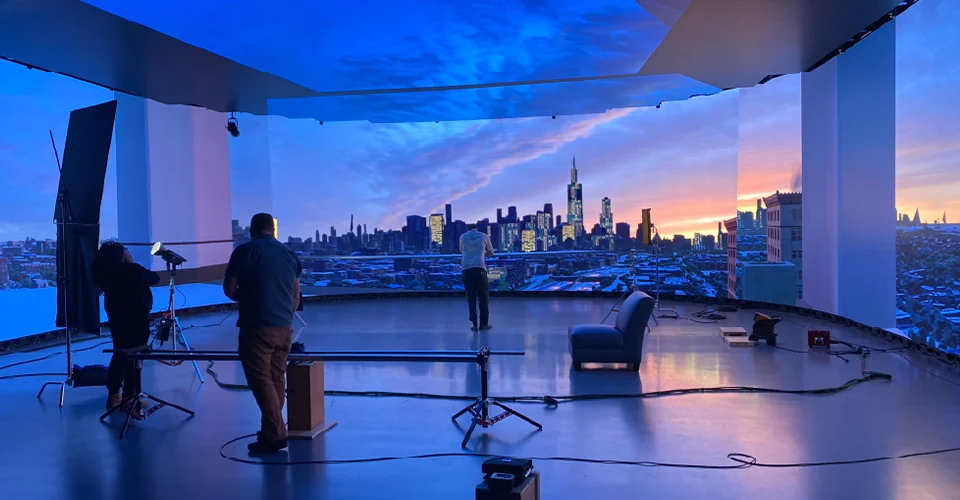

Through the virtual engine or rendering server, make a infinite space that is not limited to the LED display, and make different scenes, and realize the rapid switch of scenes to meet different virtual production requirements. Actors or hosts interact with the environment in an immersive space and produce real movies and shows through a converged server.

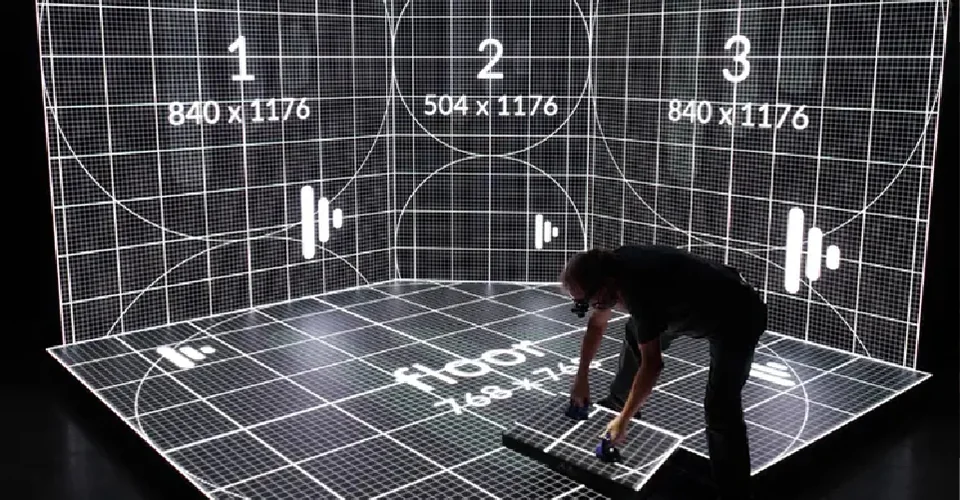

With traditional green screen shooting, the correction time of the virtual camera often takes several hours, while the correction time of the virtual camera tracking system on the XR camera takes only a few minutes, which greatly reduces the interruption and preparation time for screen shooting, and making it possible to shoot multiple scenes and dialogues in a short time.

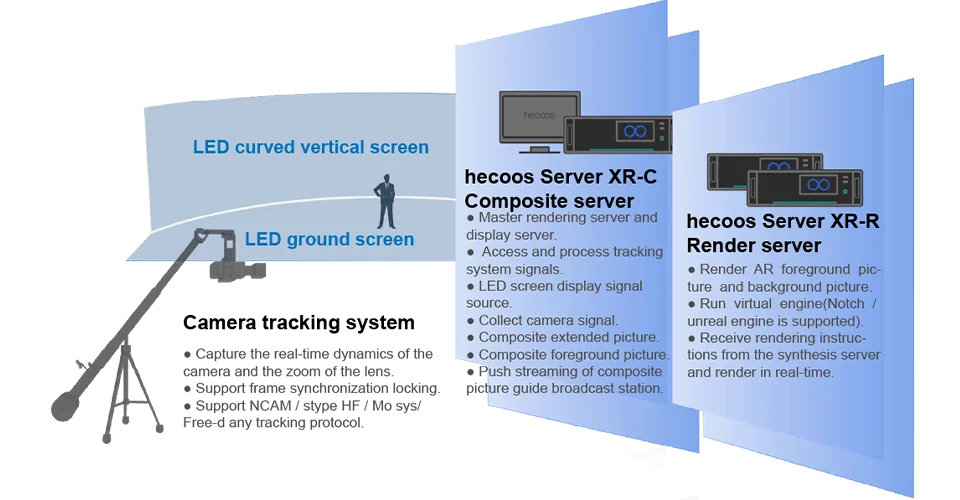

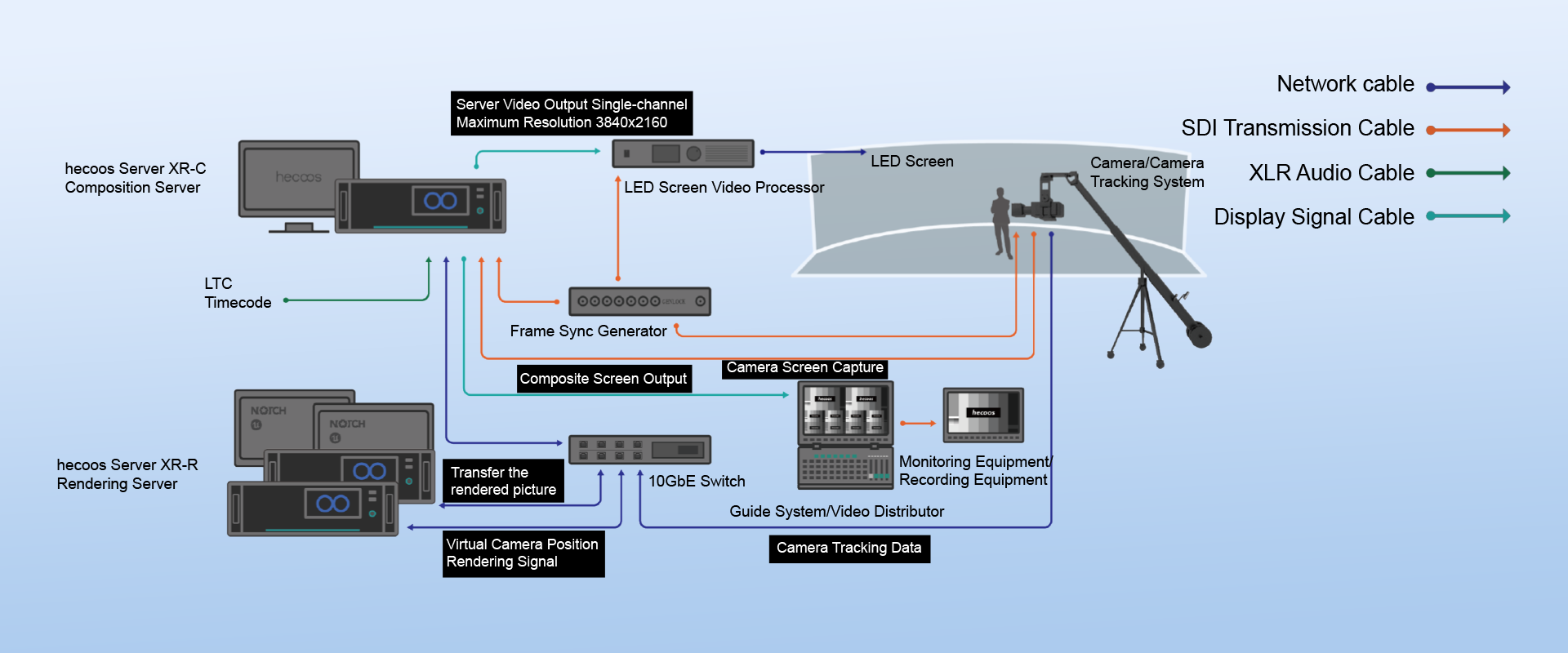

LED screen
● Background screen display.
● Display synchronization between screen groups.
● Receive the broadcast control screen of the server.
● Select appropriate point spacing parameters.
Camera
● Supports real-time streaming of images to the server acquisition card.
● Supports zoom and focal length capture.
● Support frame synchronization locking.
● (zoom and focus aregenerally captured by the encoder equipped with the tracking system)

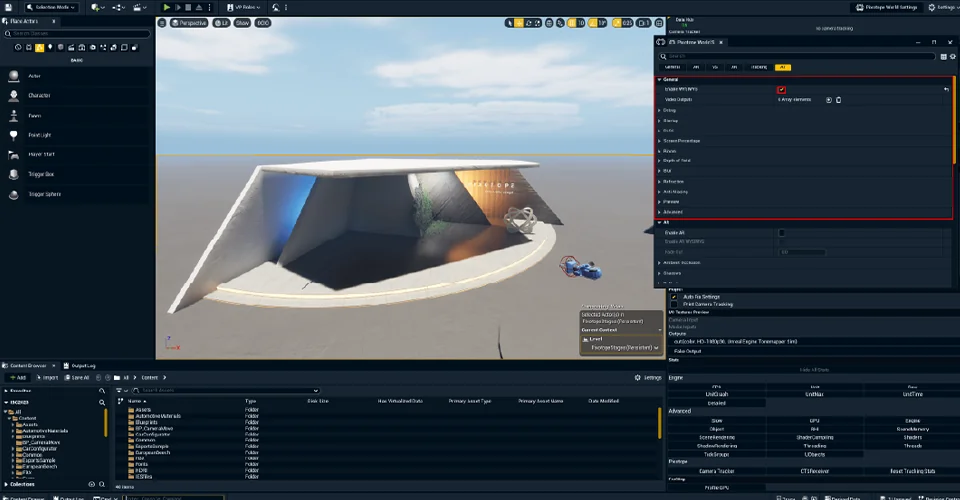

Virtual engine / Render Server: Unreal Engine, Notch
Converged server: Disguise
Camera Tracking System: Mo-sys, Stype, BlackTrax, Optitrack, Vicon
Virtual studio operating platform: Disguise, Pixotope, Zero Density, Brain Storm
LEDFUL provides detailed consulting services.
● Support HDR
● Super High Refresh Rate — 7680Hz
● Super High Grey Scale — 22bits
● Super High Frame Rate — 144Hz
● Super High Contrast Ratio — 10000:1
● Indoor High Brightness — 1500nits
● Color gamut range DCI-P3 percentage — 90%
● Cable Free
● One-second Exchangeable Control Box
● Quick Lock, Top Handle, Module Handles for Easy Installation.

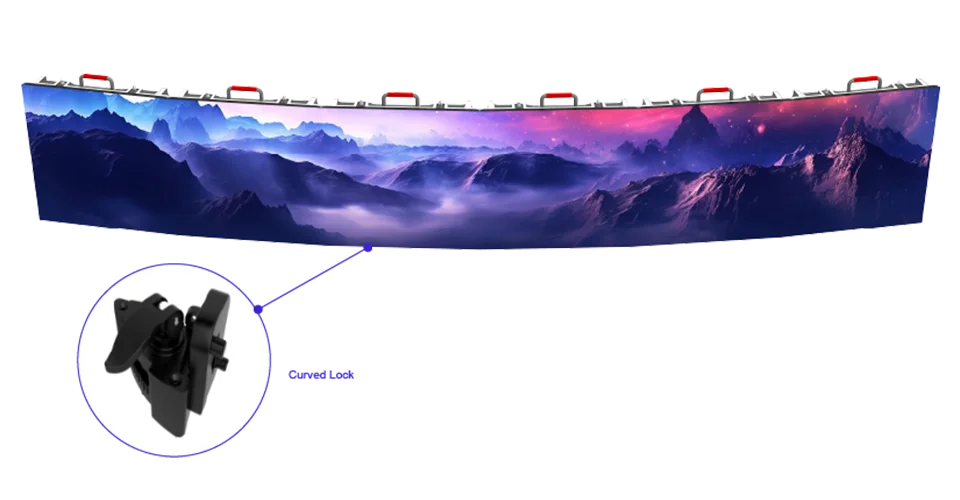

High Precision Curving Makes Perfect Immersive XR Effect.

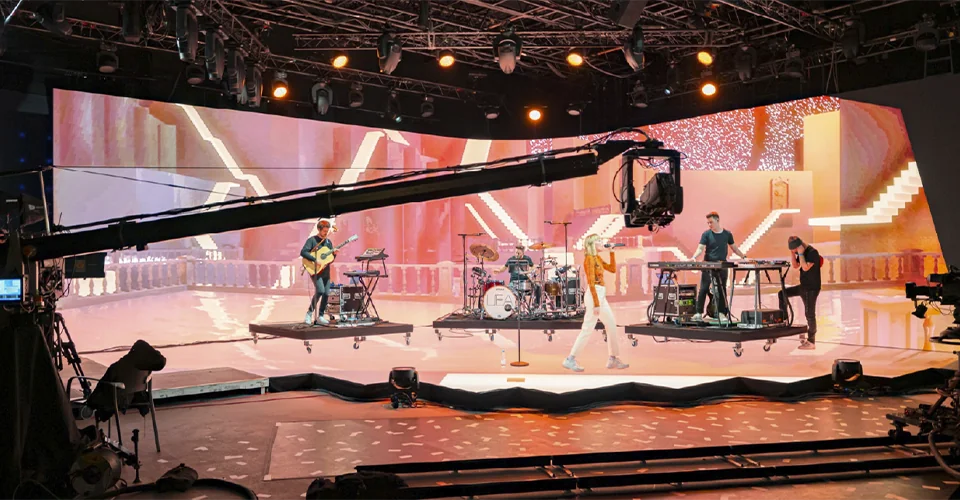

3-Sided giant LED room display makes totally virtual space, makes music videos more creative and attractive.

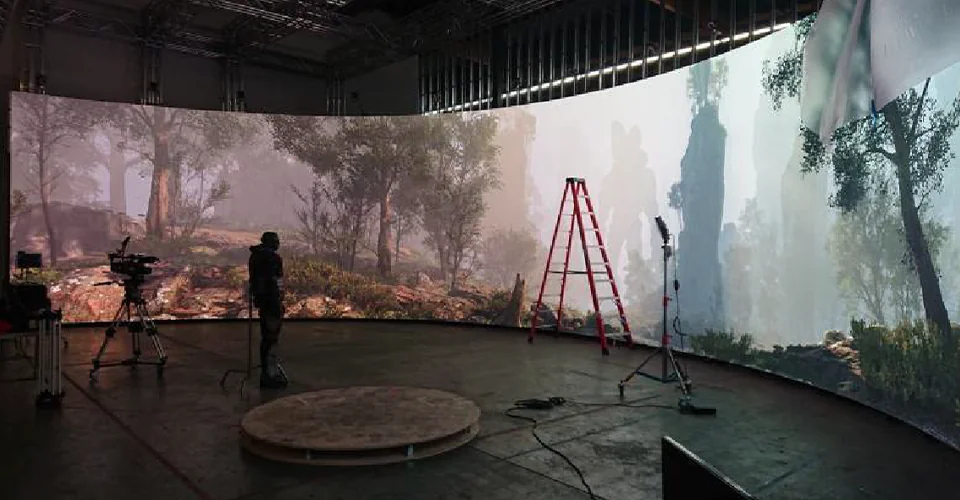

Film production is more and more inclined to XR production, rather than the traditional green screen, LED display can design different scenes and virtual space, with the performance of the characters, a high-end special effects movie can be made more easily.

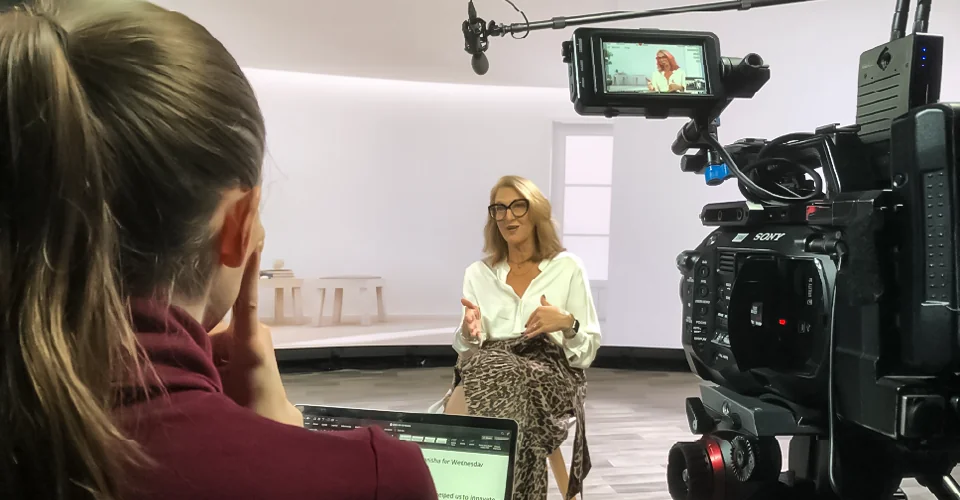

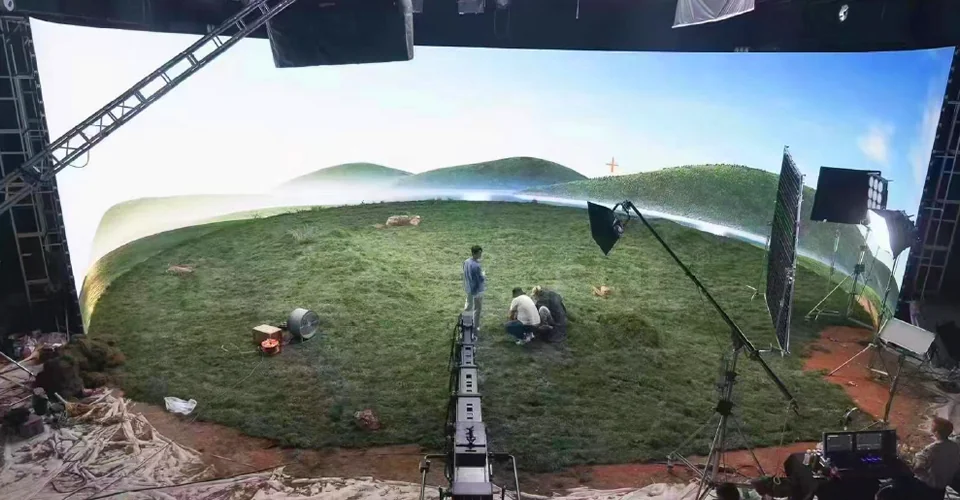

LED display and virtual space as the background, reduce the time and expense of prop preparation, and quickly switch backgrounds.

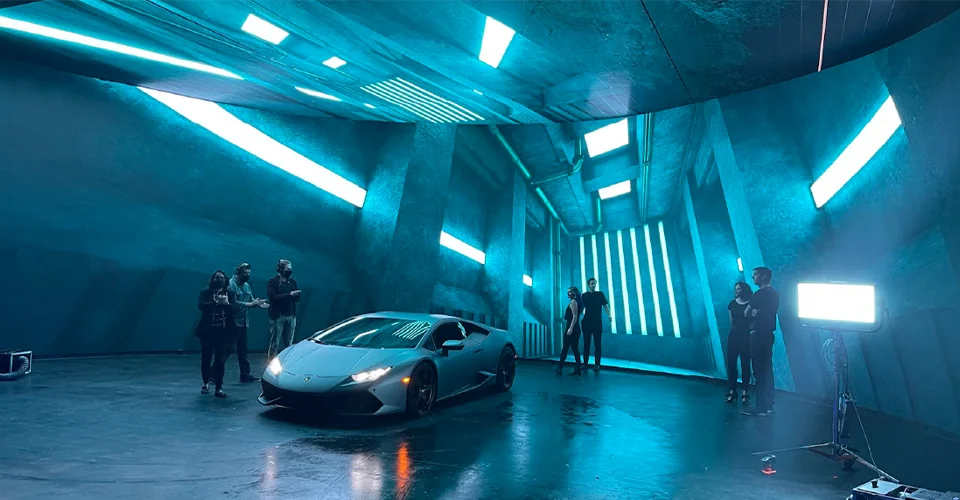

The stage, lighting and LED screen background make the auto show more atmospheric and technological.
Film production is more and more inclined to XR production, rather than the traditional green screen, LED display can design different scenes and virtual space, with the performance of the characters, a high-end special effects movie can be made more easily.

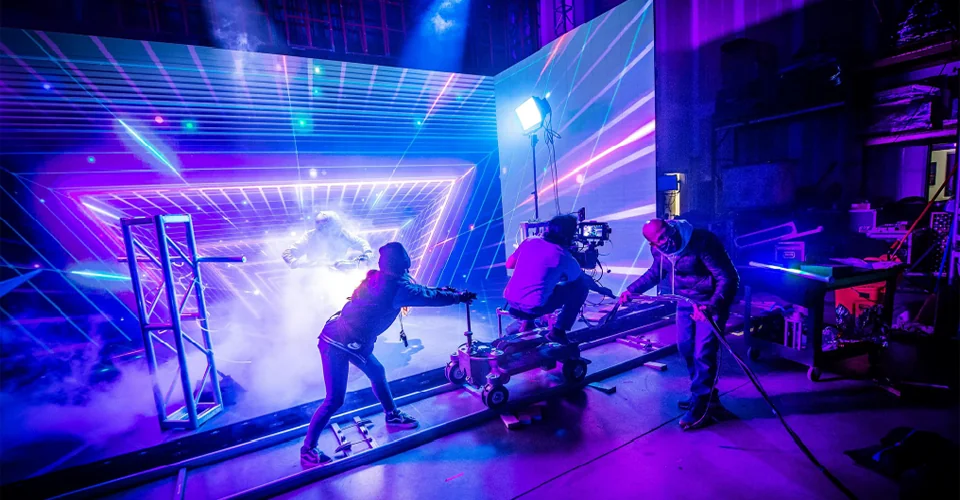

Through XR technology, you can make different special effects, actions, etc., and these special effects have a more prominent performance in different environments.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
| Model | XR1.9 Professional XR solution | XR2.3 Professional XR solution | XR2.6 Professional XR solution | XR2.6 Top XR solution | VI2.6 Premium XR solution | VI2.6 Standard XR solution |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD1515 |
| Pixel Pitch(mm) | 1.95 | 2.315 | 2.6 | 2.6 | 2.6 | 2.6 |
| Encapsulated LED | Kinglight | Kinglight | Kinglight | Nationstar | Kinglight | Kinglight |
| Pixel Matrix Per Sqm. | 262,144 | 186,624 | 147,456 | 147,456 | 147,456 | 147,456 |
| Scan | 1/8 | 1/9 | 1/8 | 1/8 | 1/16 | 1/32 |
| Brightness(nits) | 1500 | 1300 | 900 | |||
| Frame rate(Hz) | 144HZ | 50/60HZ | 50/60HZ | |||
| Grey Scale (bit) | 22bit | 16bit | 16bit | |||
| Color gamut range DCI-P3 percentage | 90% | 75% | 50% | |||
| Receiver Card | A10S PRO | A5S | A5S | |||
| Driving IC | MBI5264 | ICN2065 | ICN2065 | |||
| Control System | Novastar MX40+GENLOCK | Novastar Video Processor | ||||
| Module Dimension | 250x250mm | |||||
| Cabinet Dimension | 500x500mm | |||||
| Cabinet Material | Die Casting Aluminum | |||||
| Cabinet Weight | 7.5KG | |||||
| Max Power Con. (W/Sqm.) | 800W | |||||
| Ave Power Con. (W/Sqm.) | 100~200W | |||||
| Service Access | Front/Rear Access | |||||
| Refresh Rate (HZ) | 7680 | |||||
| Contrast Ratio | 10000:1 | |||||
| Viewing Angle (H/V) | 160°/160° | |||||
| IP Rate | IP43 | |||||
| Operation Temperature | -20℃~+60℃ | |||||
| Operation Humidity | 10%～90% | |||||
| Input Voltage (AC) | AC90-264V,47-63Hz | |||||
| * Specifications and photos are subject to change without prior notice. | ||||||
