Indoor High Definition LED Screen
● Ultra Slim
● Ultra Light
● Cable Free

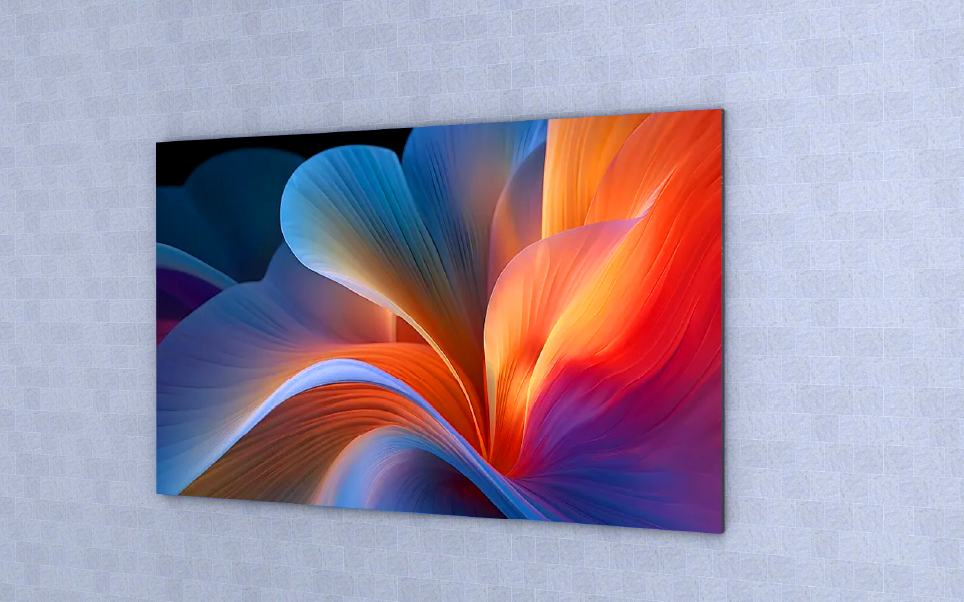

● Hanging & Wall Mounted
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
4H Effect
Cable Free Connection
Full Front Service
Multi Installation Methods
Sharp Cabinet Design
Ultra Light and Thin
Front / Rear Service

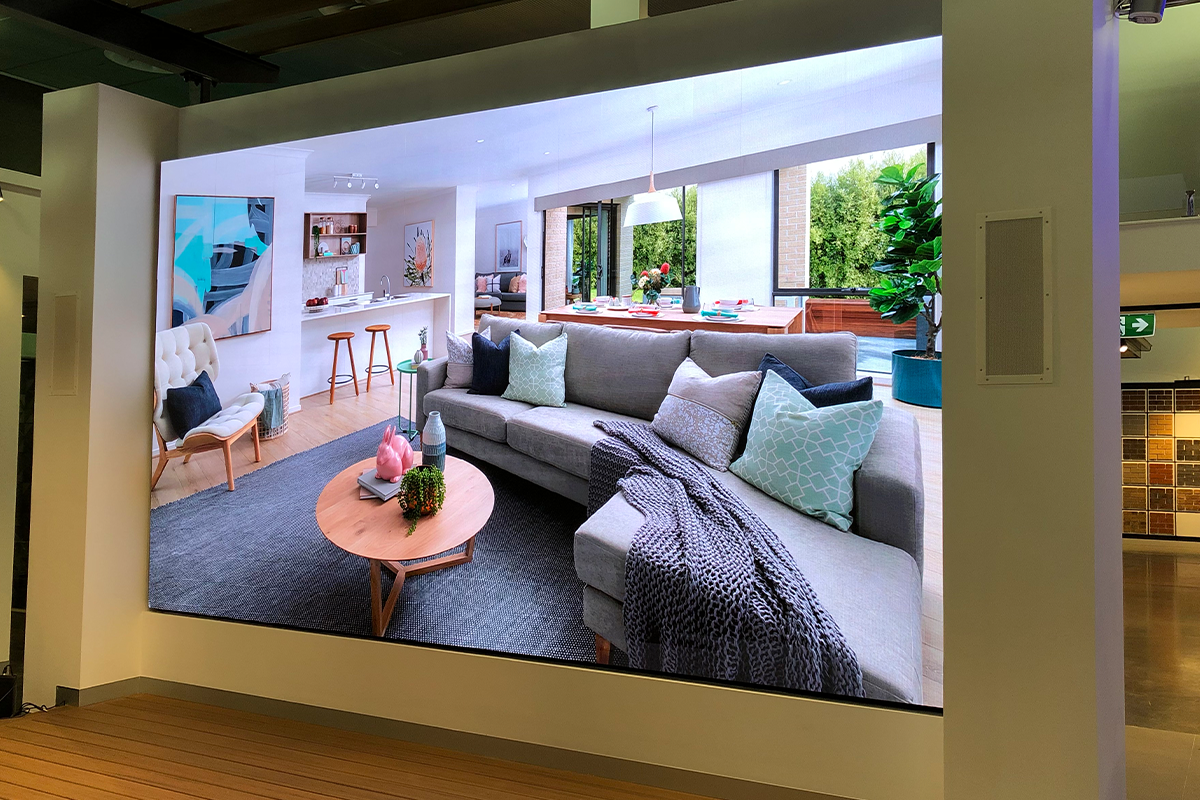

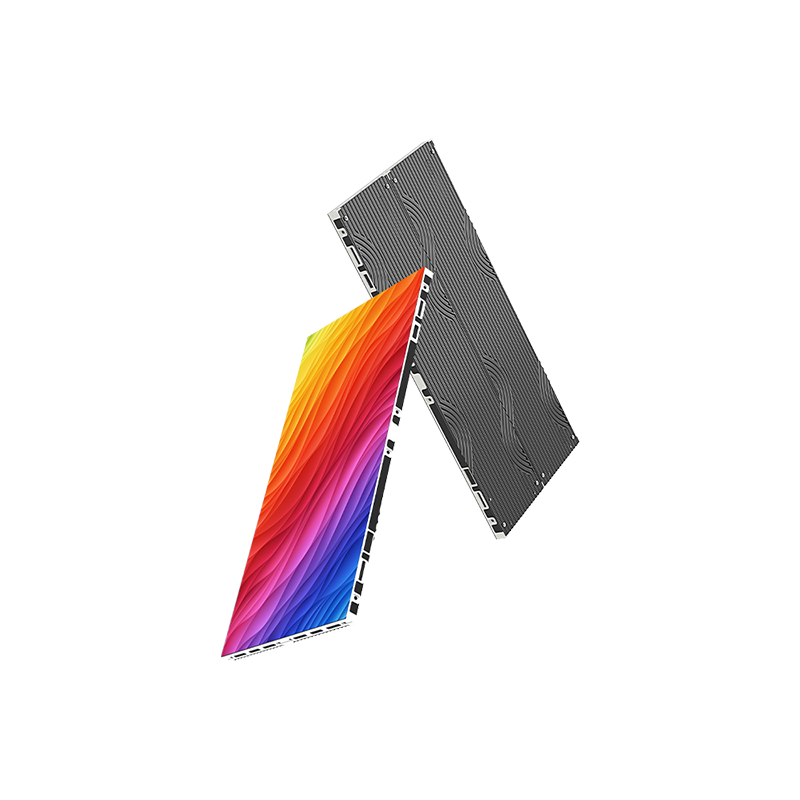

WALL-PRO series is a new design with super thin and super light for indoor application. With premium quality & elegant appearance, multi cabinet size for flexible splicing, beveled cabinet for right angle, wall mounted, hanging, free standing with wheels, it’s the best choice for conference room, control room, airport, retail store, auditorium, theater, religion house, hospitality, shopping mall, gaming room, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Faster, save labors, save time, save cost during LED screen installation. Simple, easy, convenient, user friendly.Gilding module pins, more stable data transmission, reduce defect possibility.

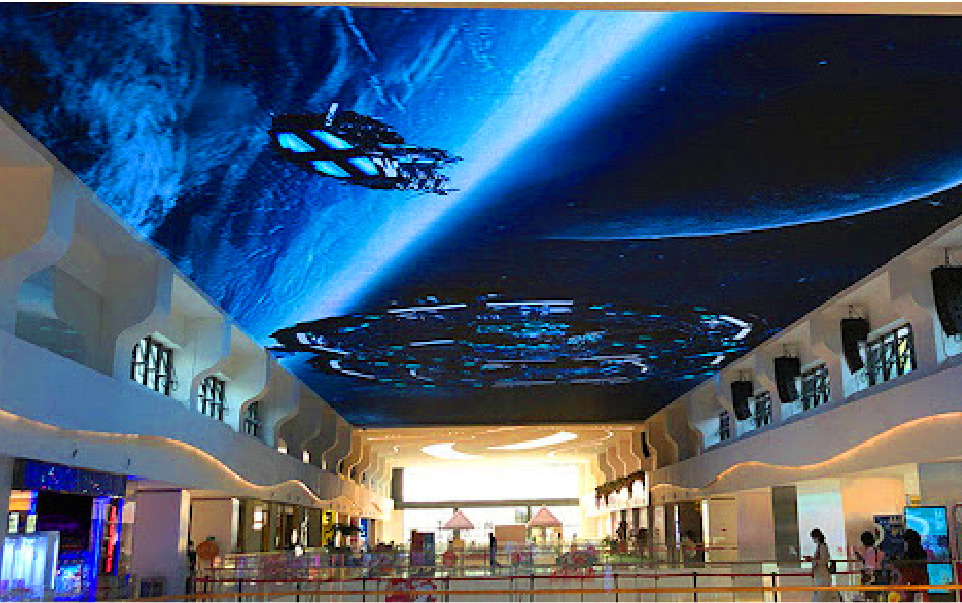

Front installation, front service is good for ceiling LED screen. 16pcs strong magnets and tight module pins ensure the screen safety. Brings your venues more amazing visual experience.

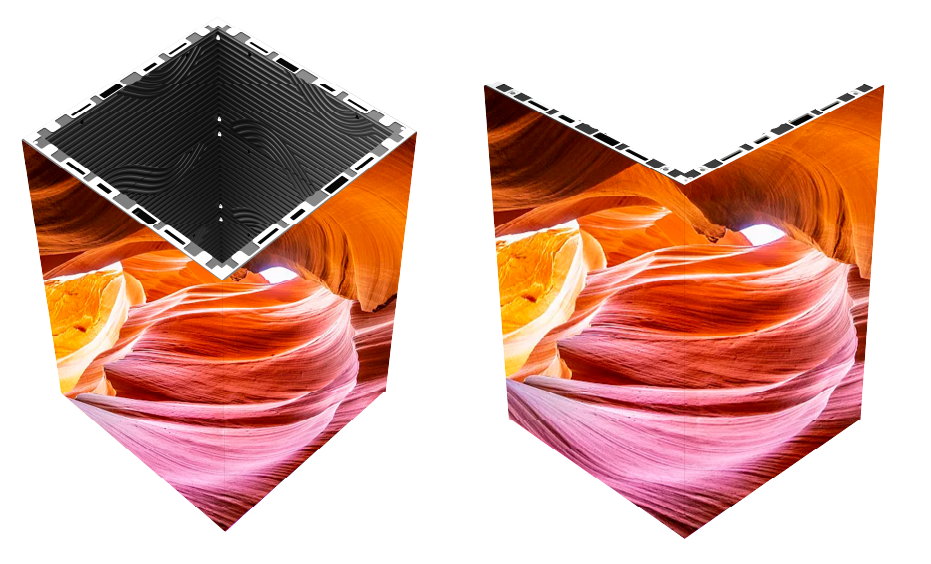

Beveled cabinet makes seamless right angle and 4 sided column LED screens. CNC professional cutting makes bevel cabinet more precise.

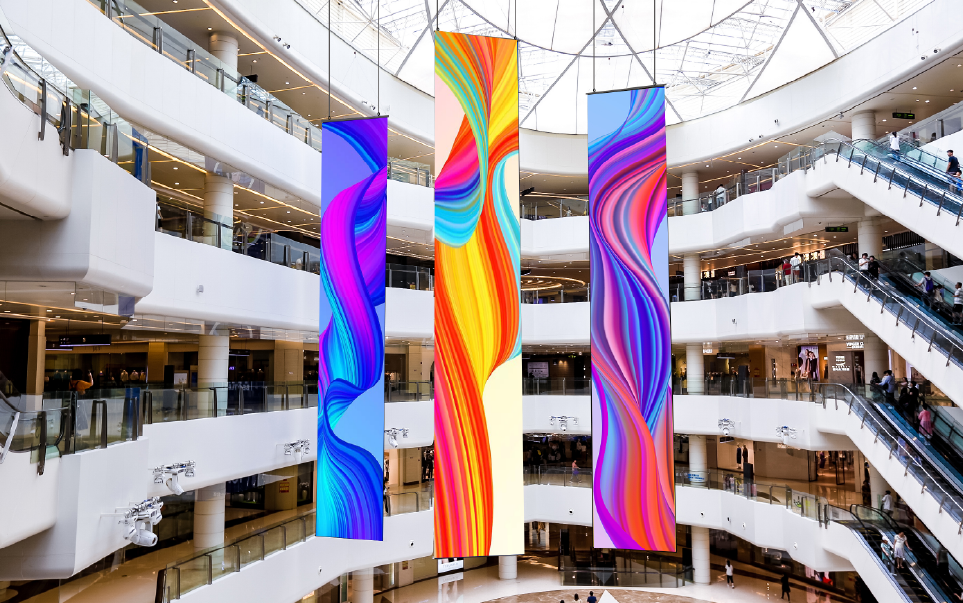

only 53mm depth and 16kg/sqm makes double sided LED elegant. Perfect advertising place can help you get high ROI faster.

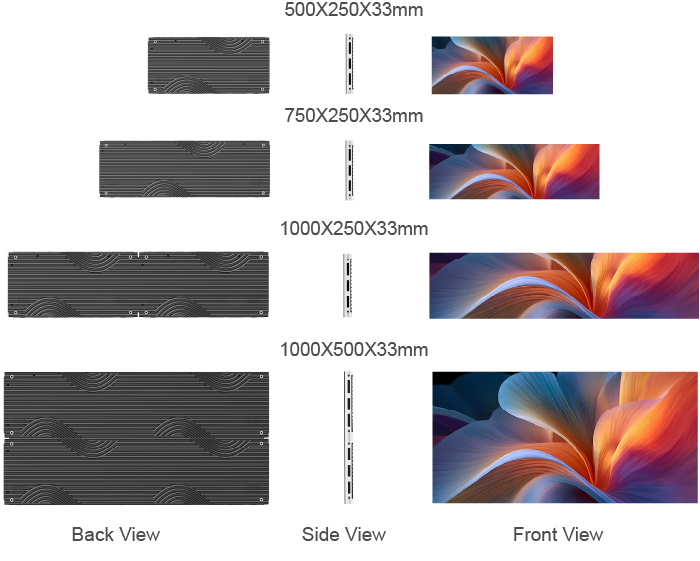

Multi-Size Options 1000x500mm, 1000x250mm, 750x250mm, 500x250mm. Vertical and horizontal cabinet installation with different cabinet size to match any LED screen size requests.

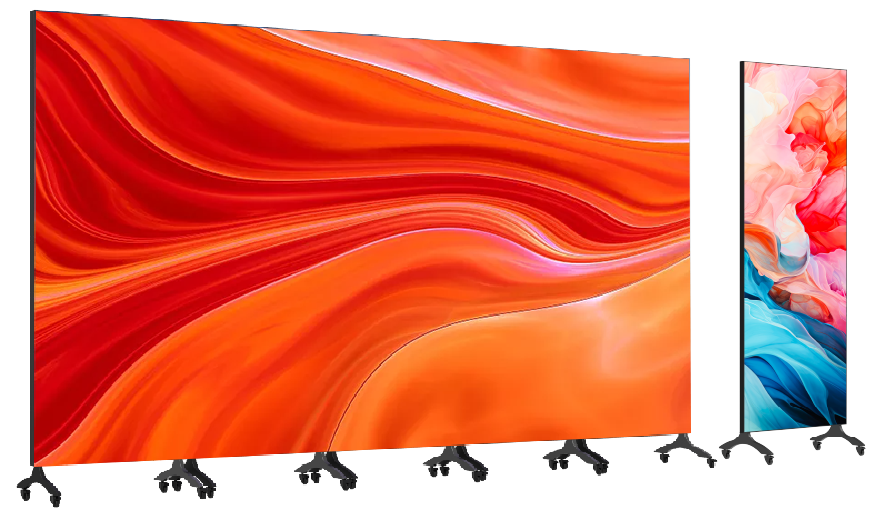

WALLPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display. Packing in flight case, you can use the posters individually or cascade for different events.

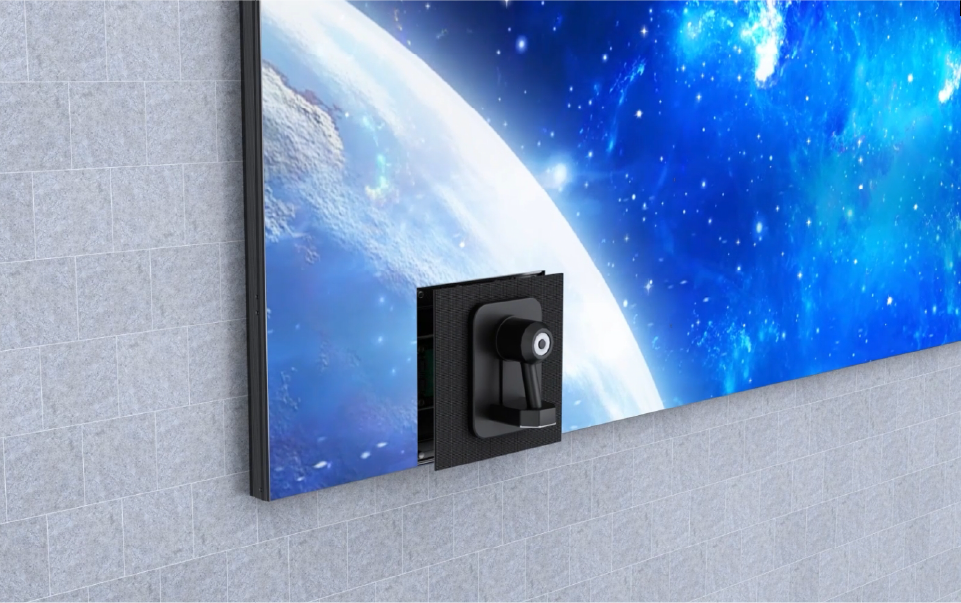

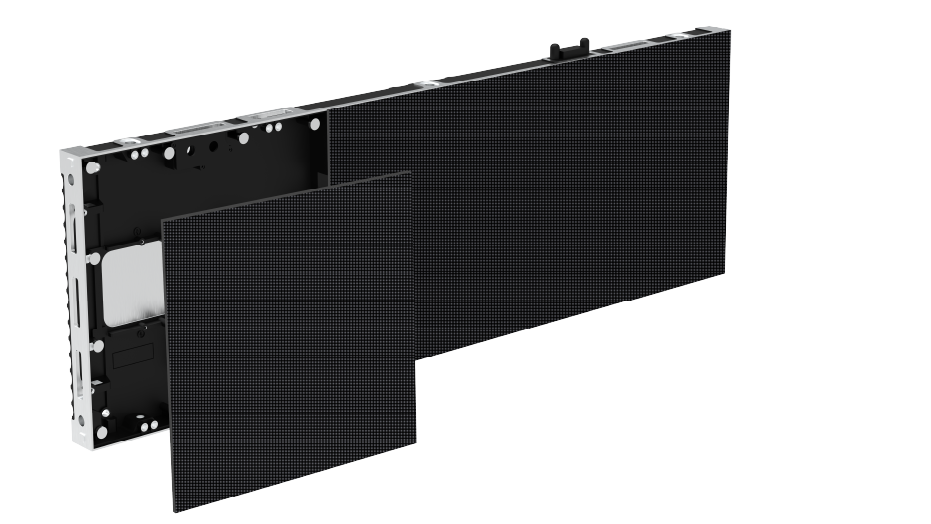

Anyone can replace the modules with a special suction tool. Modules, PSU, receiving cards, HUB can be fully front access and maintenance. Easy, quick, convenient, only 1 second with our cable-free design.
Super light only 16kg/sqm and strong hanging bars ensure hanging installation without safety concern.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

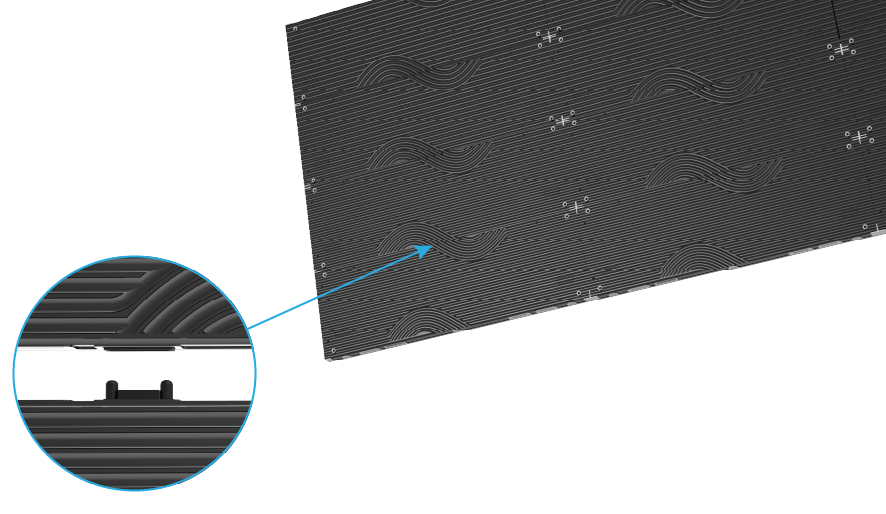

Die casting aluminum cabinet with tolerance less than ±0.1mm, makes LED screen real seamless and perfect flatness. High strength, no distortion after long time use.
All high configurations for better visual experience, improving definition and enhance color vibrancy, delivering lifelike details and stunningly vivid images.

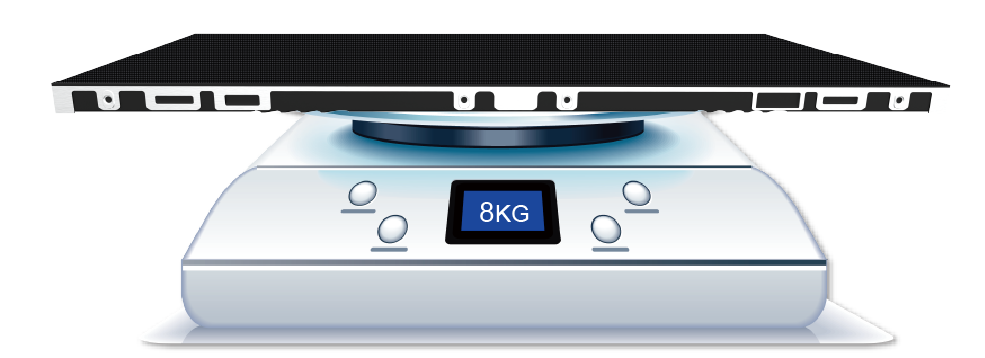

33mm depth, 8kg per cabinet. 1000x500mm double sided only 53mm thickness. Solve the pain point of indoor space limitation.
LEDFUL exclusive mounting bracket, save more installation time and cost. LED screen with brackets installation depth 43mm, without brackets installation depth 33mm, super thin brings perfect appearance.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | WALL1.2-PRO GOB | WALL1.5-PRO GOB | WALL1.9-PRO | WALL2.5-PRO | WALL2.6-PRO | WALL2.9-PRO | WALL3.9-PRO |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness(nits) | ≤1000 | ||||||
| Scan | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250x250mm | ||||||
| Cabinet Dimension | 1000×500×33mm,1000×250×33mm,750×250×33mm,500×250×33mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | 8KG | ||||||
| Power Con. (W/Sqm.) | Max.800W/Avg.100-200W | ||||||
| Service Access | Full Front Access | ||||||
| Refresh Rate(HZ) | ≥3840 | ||||||
| Grey Scale (bit) | 16bit | ||||||
| Contrast Ratio | 10000:1 | ||||||
| Viewing Angle (H/V) | 160°/160° | ||||||
| IP Rate | IP65(front) | IP65(front) | IP31 | IP31 | IP31 | IP31 | IP31 |
| Operation Temperature | -20℃~+60℃ | ||||||
| Operation Humidity | 10%～90% | ||||||
| Input Voltage(AC) | AC90-264V,47-63Hz | ||||||
| * Specifications and photos are subject to change without prior notice. | |||||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
