Indoor High Definition LED Screen
● Ultra Slim
● Ultra Light
● Cable Free
● Hanging & Wall Mounted
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
4H Effect

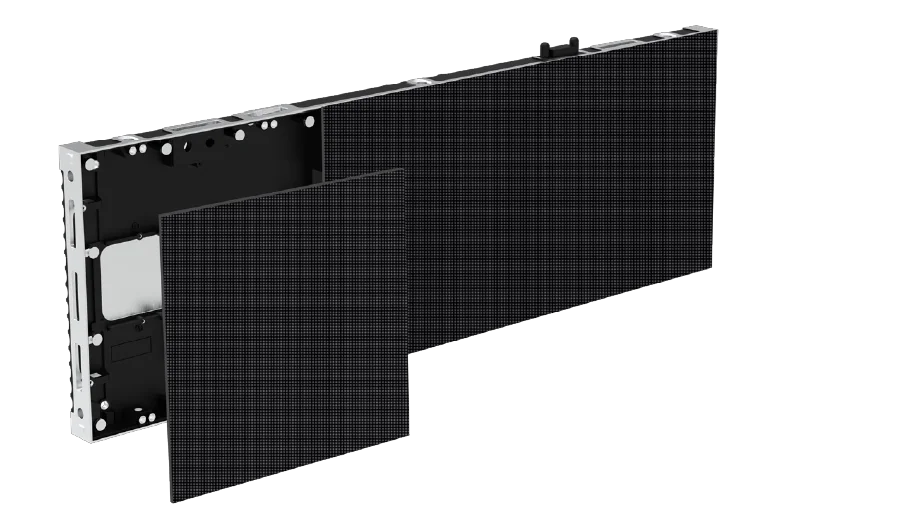

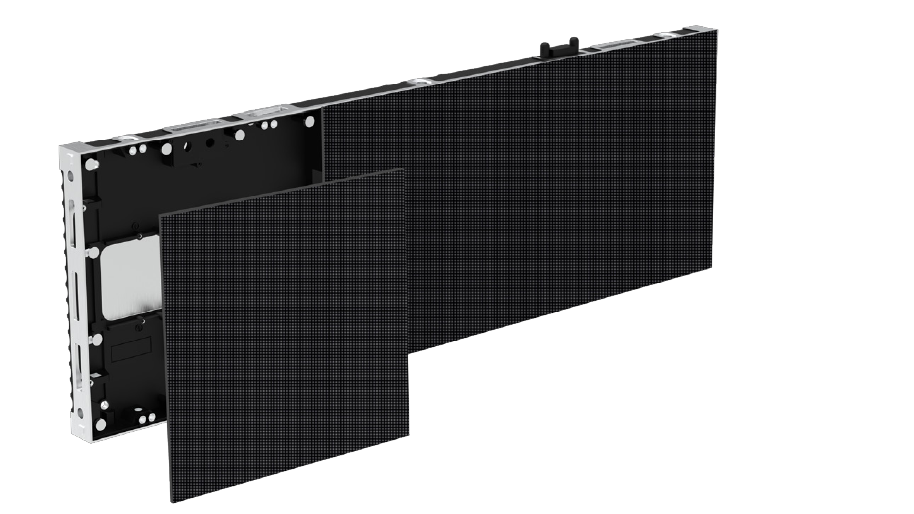

Cable Free Connection
Full Front Service
Multi Installation Methods
Sharp Cabinet Design
Ultra Light and Thin
Front / Rear Service

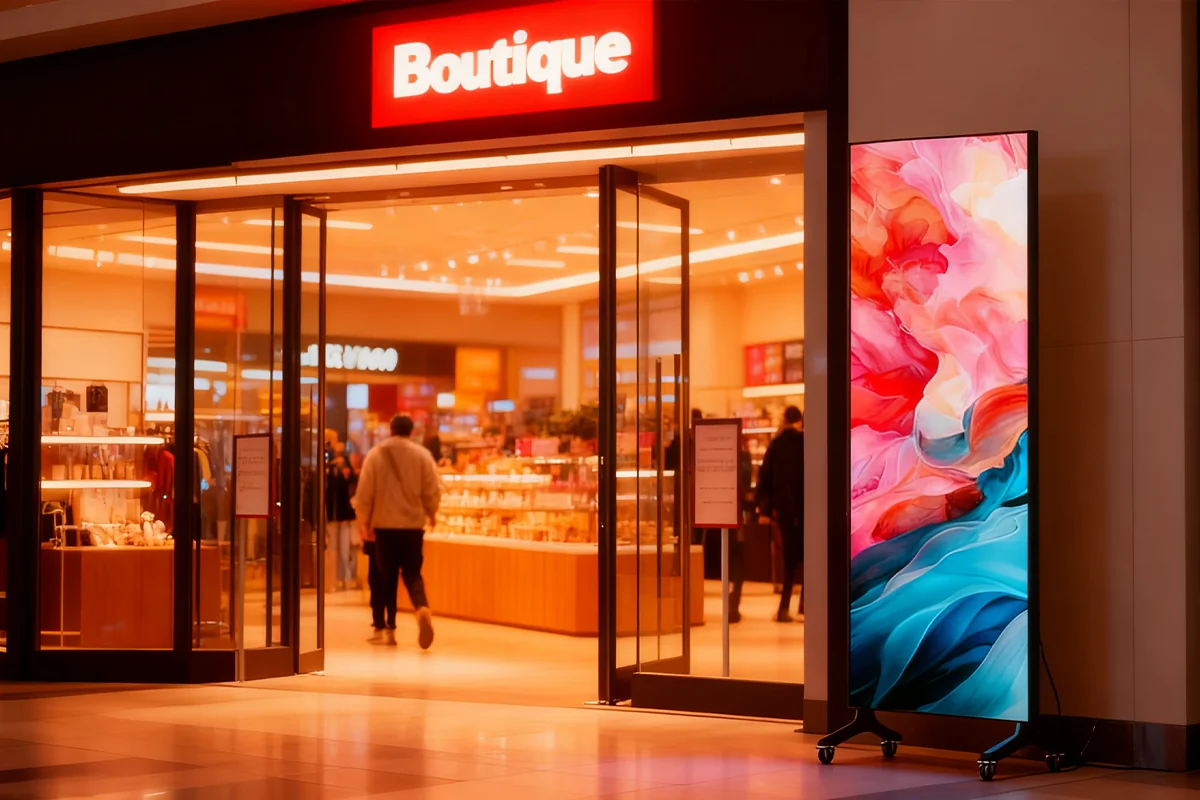

WALL Poster series is a new design with super thin and super light for indoor application. With premium quality & elegant appearance, multi cabinet size for flexible splicing,hanging, free standing with wheels, it’s the best choice for conference room, retail store, auditorium, theater, hospitality, shopping mall, gaming room, etc.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
The cabinet supports a super wide viewing angle of up to 160°. People can see the picture on the screen from various positions in front of the display. Cooperating with a double-sided screen, the contents on the screen can reach as many people as possible.
PCB on the cabinet with good spreading effect and the heat dissipation is better than that of plastic frame. Simple, easy, convenient, save installation and maintenance cost.

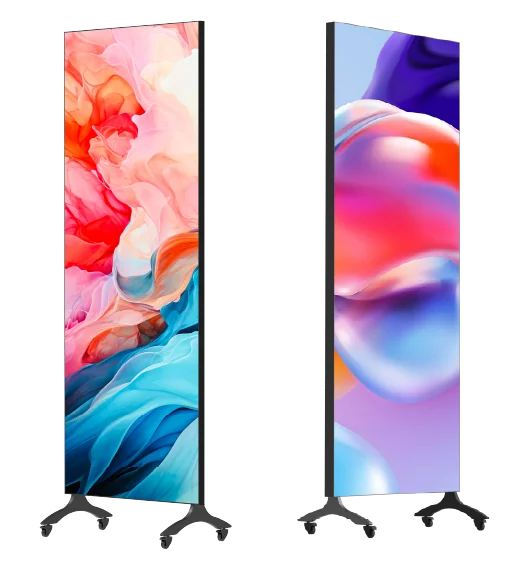

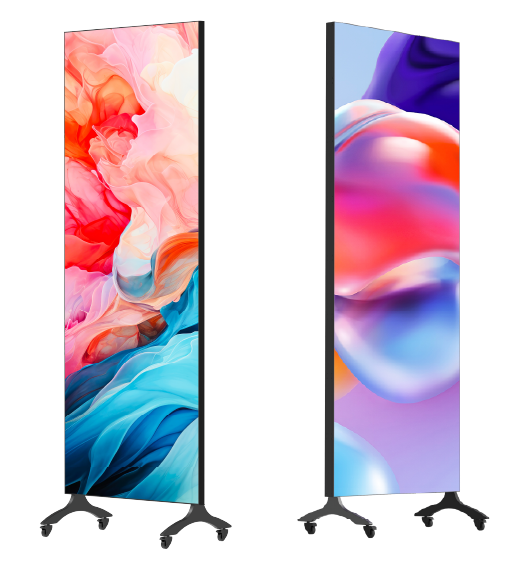

Double-sided LED poster displays capture attention from all directions. Designed for maximum visibility, they offer an innovative solution to traditional signage, allowing for real-time content updates and vivid graphics that make your message stand out.

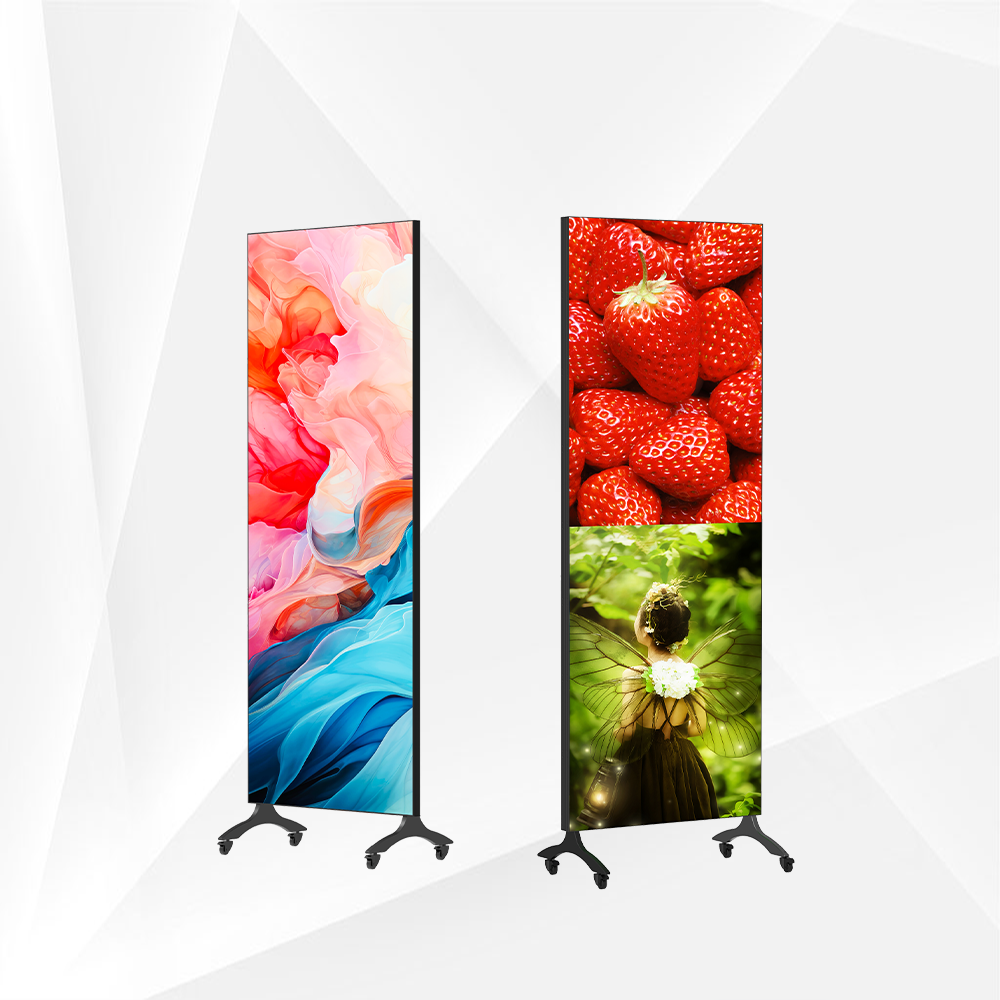

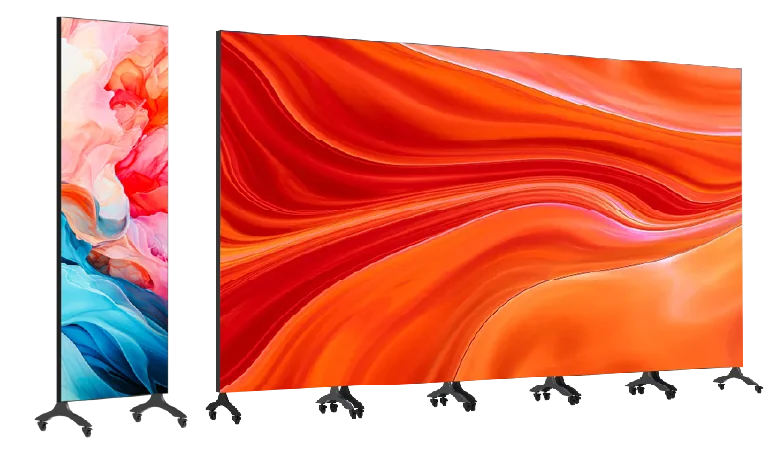

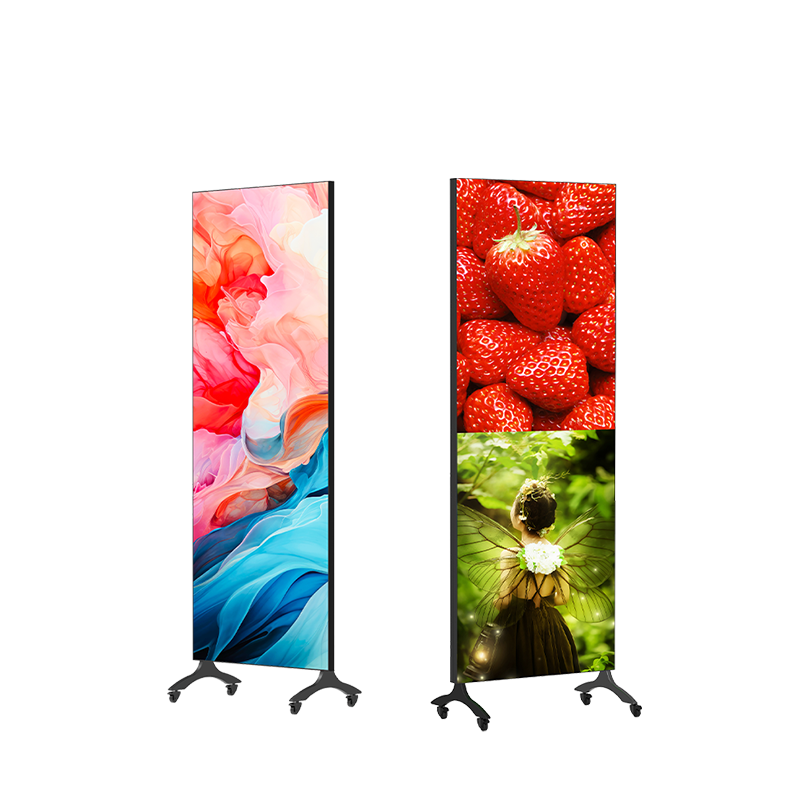

WALL Poster plug and play, free standing, movable, seamless cascade, all-in-one LED display.

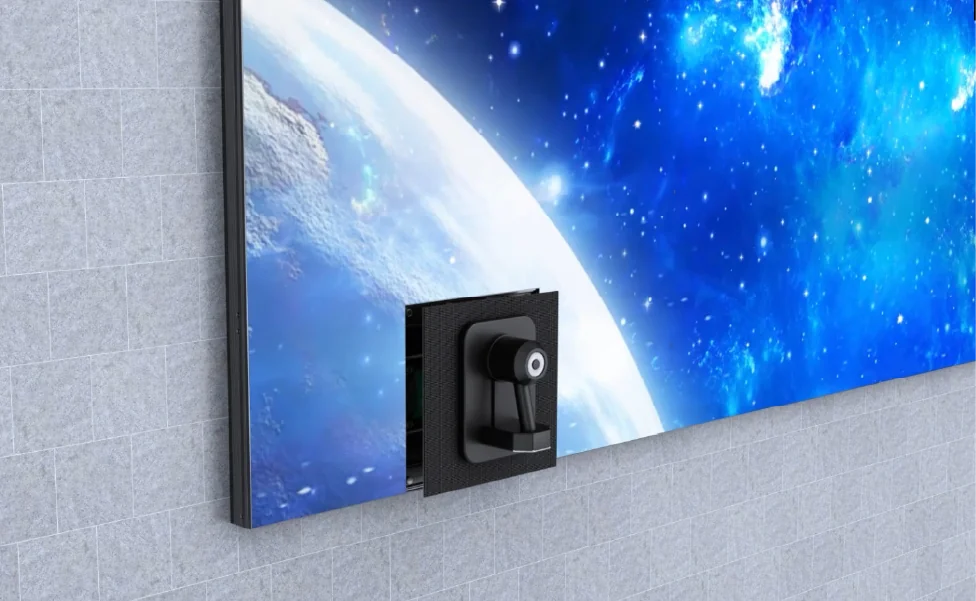

Due to the ultra-light weight of the panels, they can be installed directly on wooden or concrete walls, and all parts are serviceable from the front.

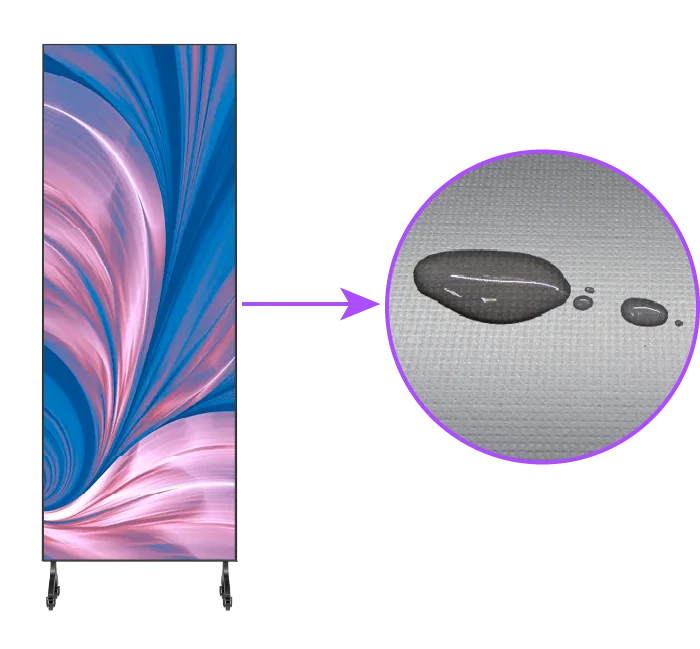

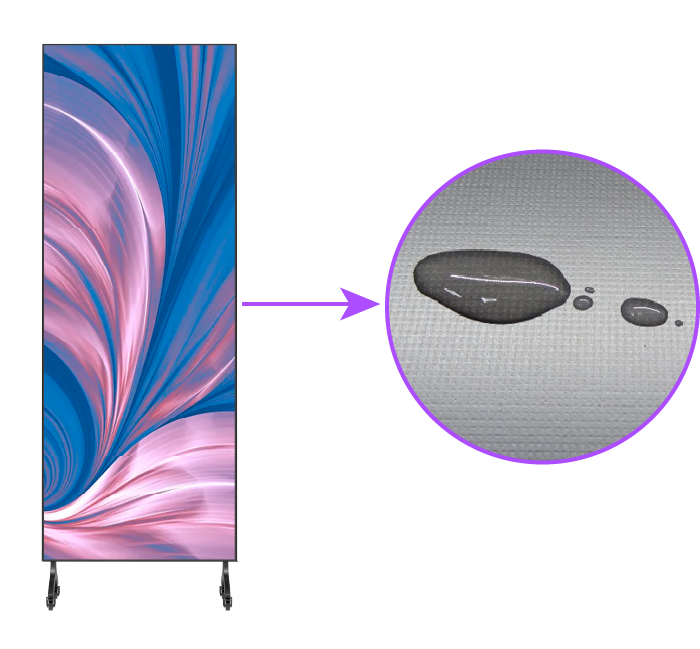

Glue on Board technology, the LED surface is covered by glue that can protect from dust, water (IP65 Waterproof in front), and attack. Its light board protection functions make it moisture-proof in humid regions and prevent it from falling over in crowded places.

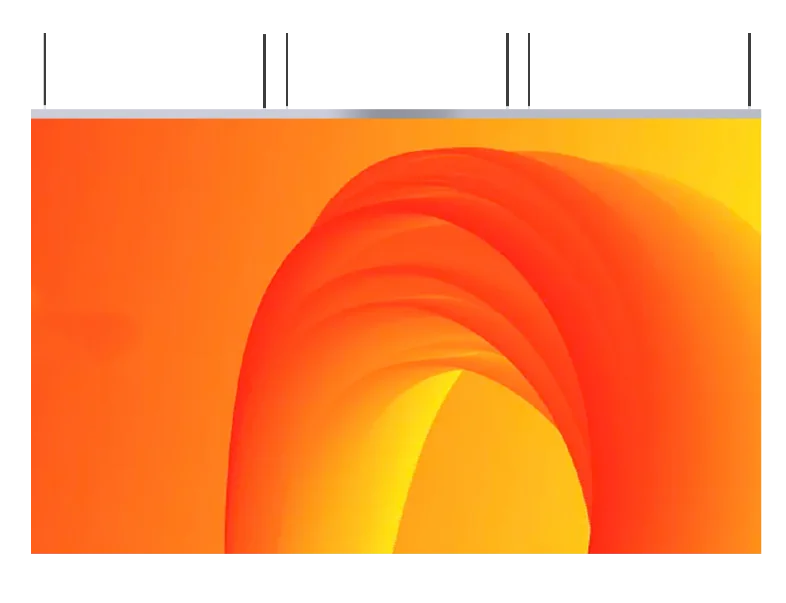

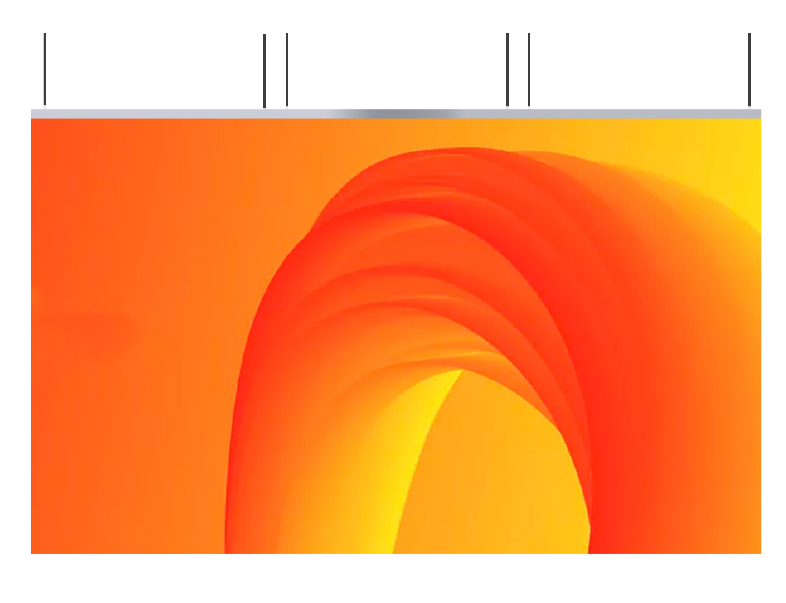

Super light only 16kg/sqm for hanging installation with safety concern.
High brightness, high grayscale, high refresh rate, no scanning lines when taking photos, more realistic and delicate display, more vivid and saturated colors.

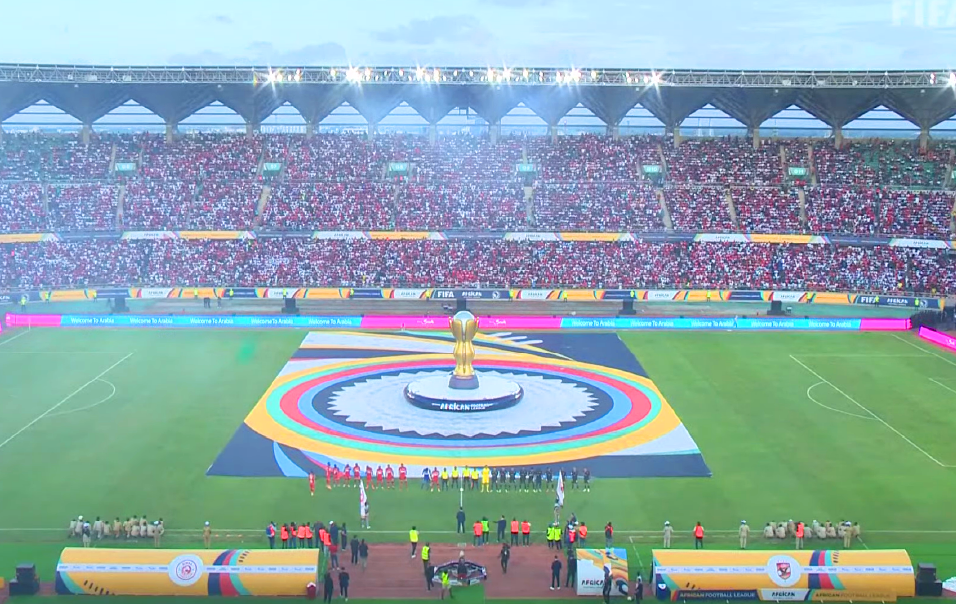

LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

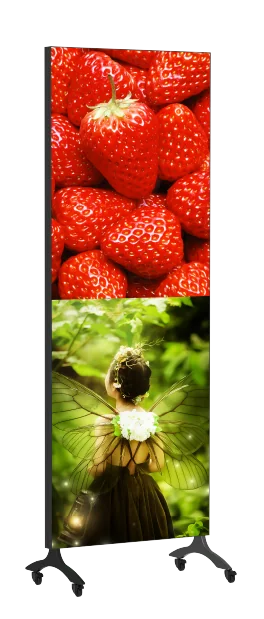

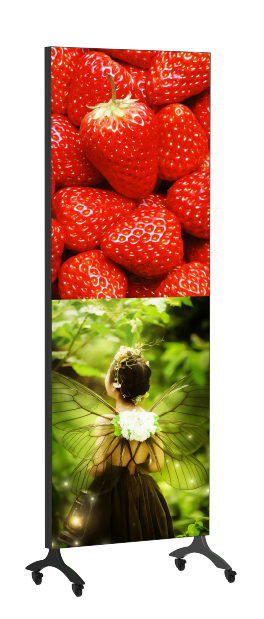

Support multiple split screen modes Support simultaneous playback of pictures and videos.
WALL Poster Series LED indoor screen is light-weight design with only 50.2kg/pc. Slim aluminum die-casting cabinet 1000x250mm with 52mm thickness only. Seamless splicing is working for perfect and complete picture. All features make for easy and fast installation.

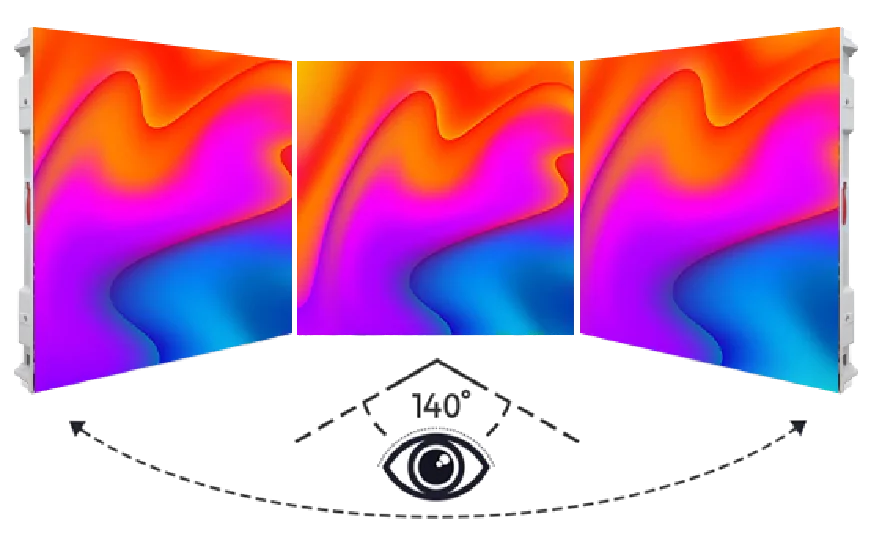

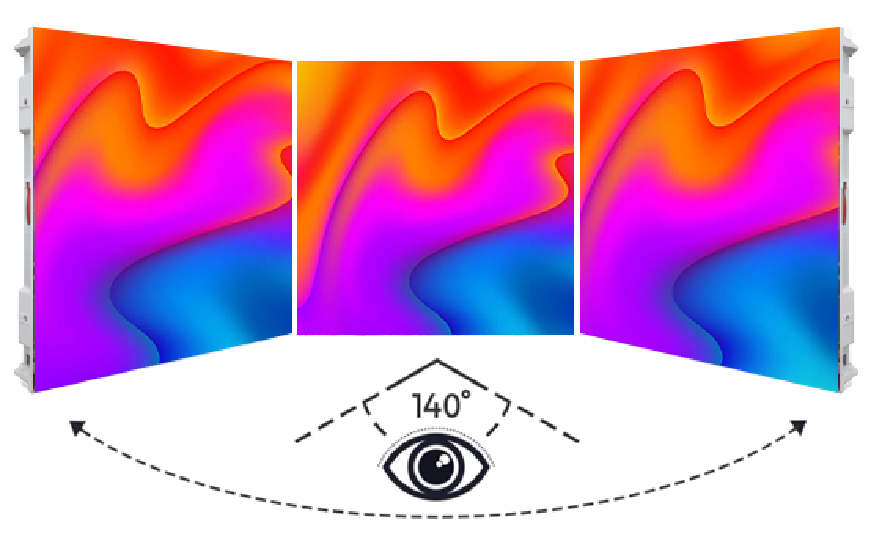

Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.

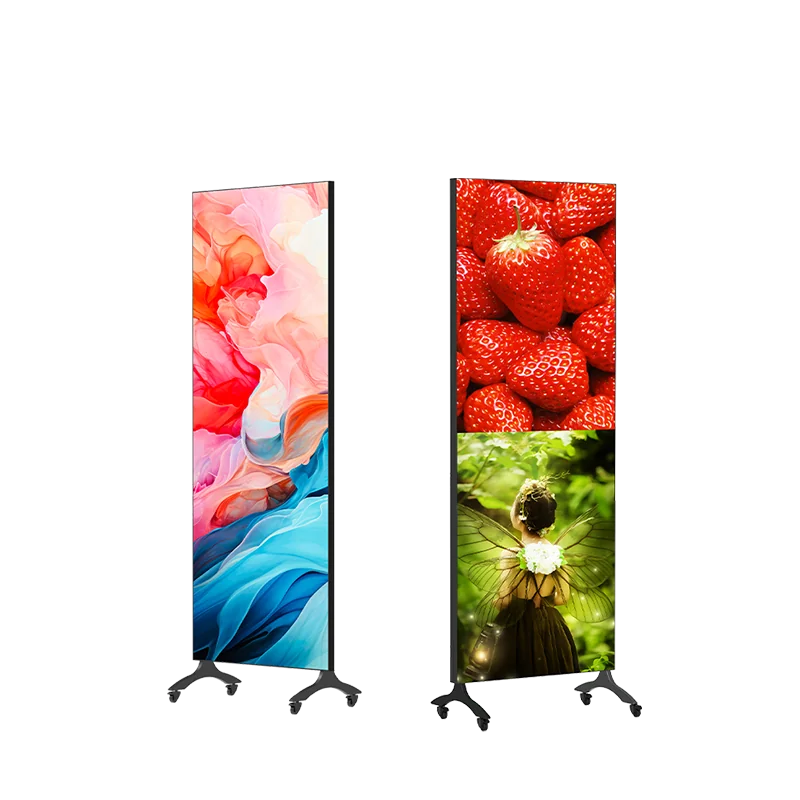

UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | WALLPoster1.2 GOB | WALLPoster1.5 GOB | WALLPoster1.9 | WALLPoster2.5 | WALLPoster2.6 | WALLPoster2.9 | WALLPoster3.9 |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sq.m | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (nits) | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 | ≤1000 |
| Scan | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Dimension | 1000×500×33mm, 1000×250×33mm, 750×250×33mm, 500×250×33mm | ||||||
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Cabinet Weight | 16KG/sqm | 16KG/sqm | 16KG/sqm | 16KG/sqm | 16KG/sqm | 16KG/sqm | 16KG/sqm |
| Power Con. (W/sqm.) | Max. 650W/ Avg.100~200W | Max. 650W / Avg.100~200W | Max. 650W / Avg.100~200W | Max. 650W / Avg.100~200W | Max. 650W / Avg.100~200W | Max. 650W / Avg.100~200W | Max. 650W / Avg.100~200W |
| Service Access | Full Front Access | Full Front Access | Full Front Access | Full Front Access | Full Front Access | Full Front Access | Full Front Access |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Contrast Ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Viewing Angle (H / V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| IP Rate | IP65 (front) | IP65 (front) | IP43 | IP43 | IP43 | IP43 | IP43 |
| Operation Temperature | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ |
| Operation Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Input Voltage (AC) | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz |
| * Specifications and photos are subject to change without prior notice. | |||||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
