Cube Series

Creative LED Display

Applications

Model	Indoor LED Cube			Outdoor LED Cube
Pixel Pitch(mm)	2	2.5	4	2.5	3.076	4	5	6.67
Display number of faces	2004/5/6	2004/5/6	2004/5/6	2004/5/6	2004/5/6	2004/5/6	2004/5/6	2004/5/7
Pixel Density(dots/m2)	250,000	160,000	62500	160,000	105,625	62,500	40,000	22,500
Pixel Configuration	SMD1515	SMD1515/SMD2121	SMD2121	SMD1415	SMD1415	SMD1921	SMD1921	SMD1921
Brightness (cd/㎡)	600~800	600~800	600~800	5000	5000	5000	5000	6000
Scan	40	32	20	16	13	10	8	6
Power Con.(Max/Avg)	720/240w/sqm	710/230w/sqm	500/180w/sqm	900/300w/sqm	900/300w/sqm	900/300w/sqm	900/300w/sqm	900/300w/sqm
Service Access	Front/Rear	Front/Rear	Front/Rear	Rear	Rear	Rear	Rear	Rear
Refresh Rate(HZ)	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920
Grey Scale(bit)	≥14	≥14	≥14	≥14	≥14	≥14	≥14	≥14
View angle	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°
IP Rate	IP43	IP43	IP43	IP65	IP65	IP65	IP65	IP65
Operation Temperature	-20~60°	-20~60°	-20~60°	-20~60°	-20~60°	-20~60°	-20~60°	-20~60°
Input Voltage(AC)	110/220V	110/220V	110/220V	110/220V	110/220V	110/220V	110/220V	110/220V

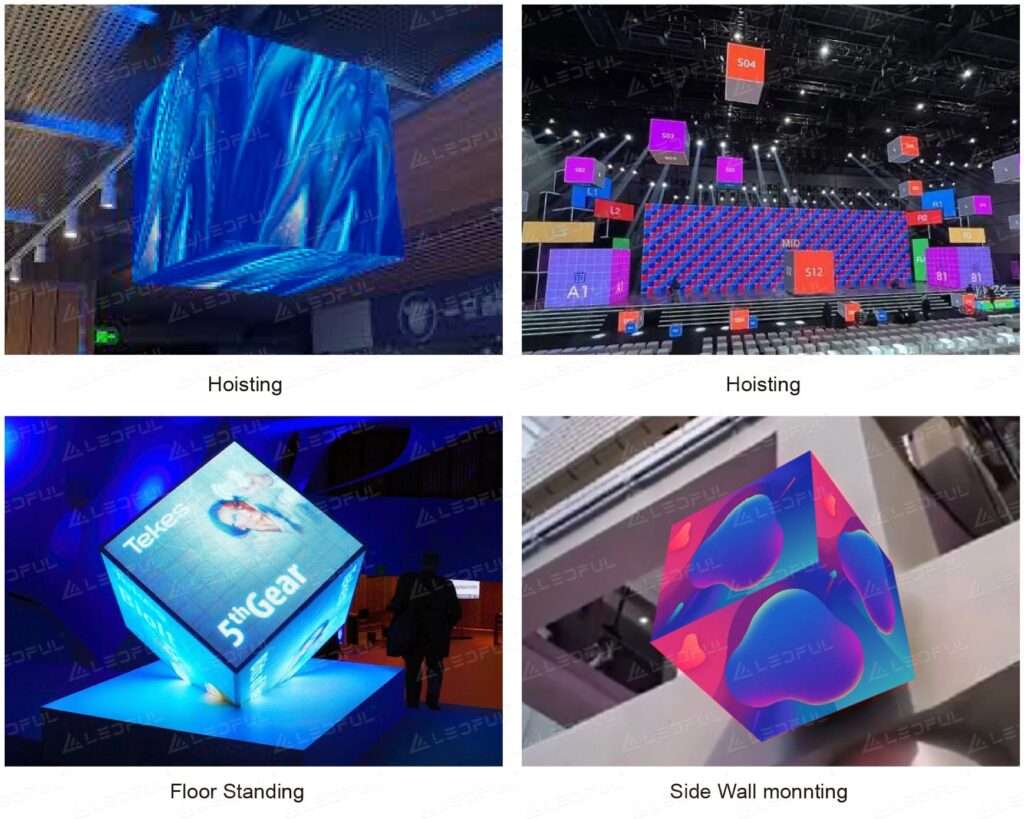

Installation	Hoisting, Floor standing, Side wall mounting, etc.
