All-in-one Transparent LED Poster
● Remote / WIFI / Cloud Control
● Cascade Connection & Bigger Size
● Moveable Base Support with Wheels
● 1000nits, 3000nits, 5000nits Brightness Optional
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Easy installation / maintenance
Highly stable
Plug and play
Diversified control
Fully customized
Highly transparent
Light and thin
Wide perspective

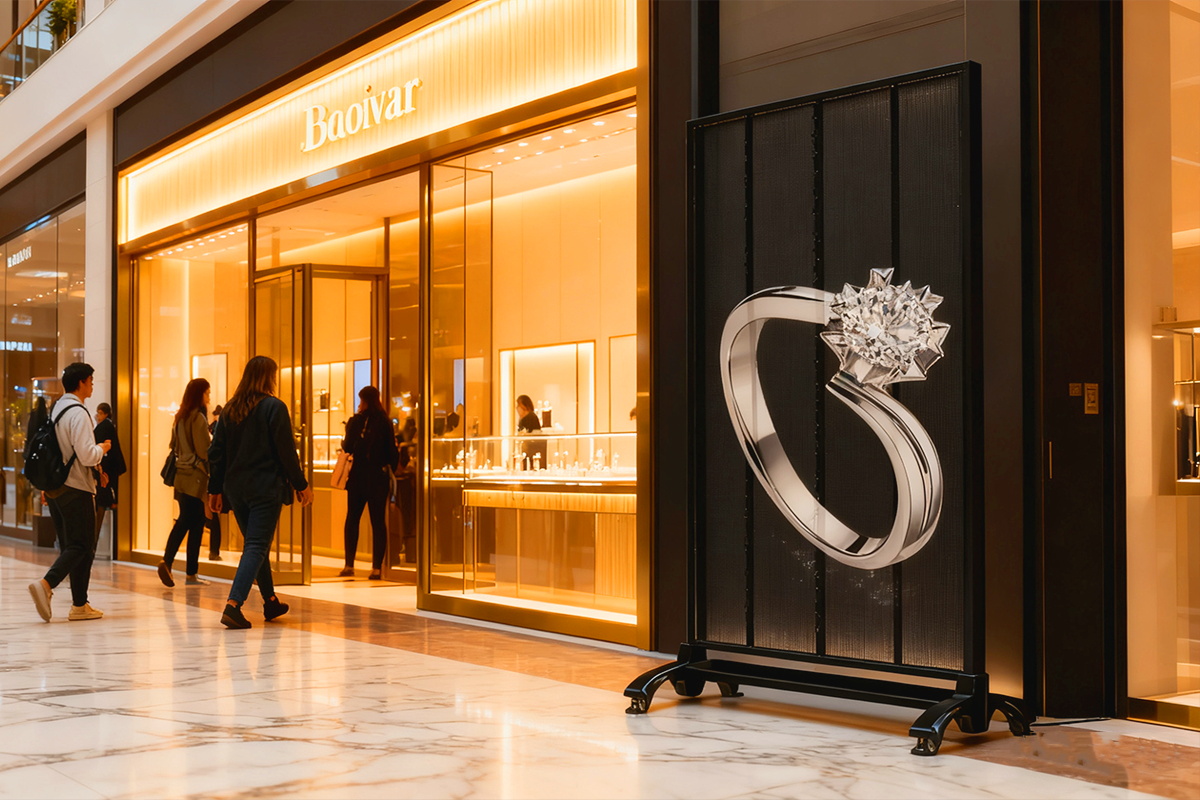

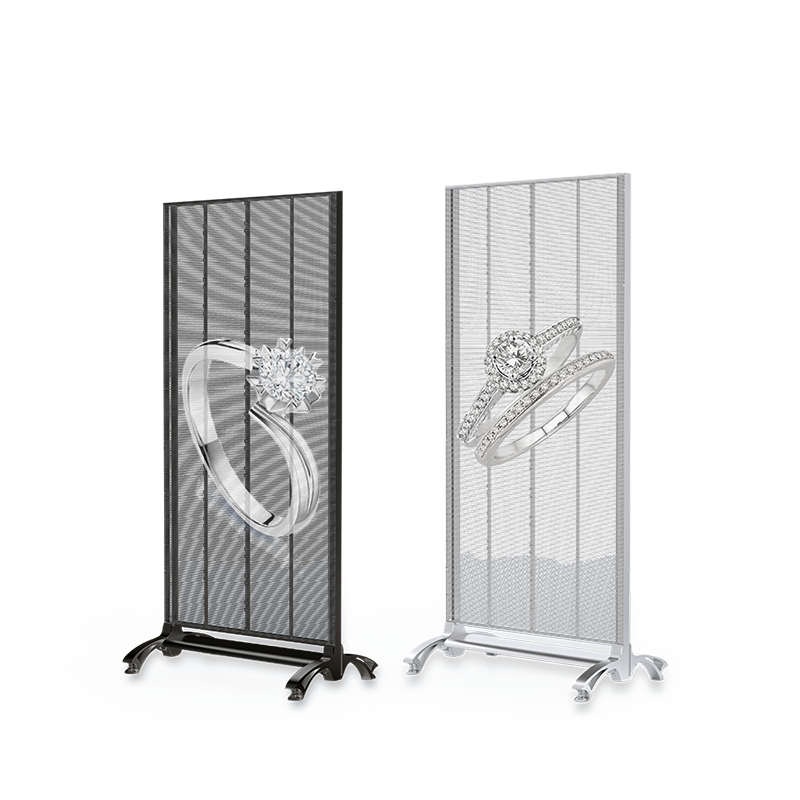

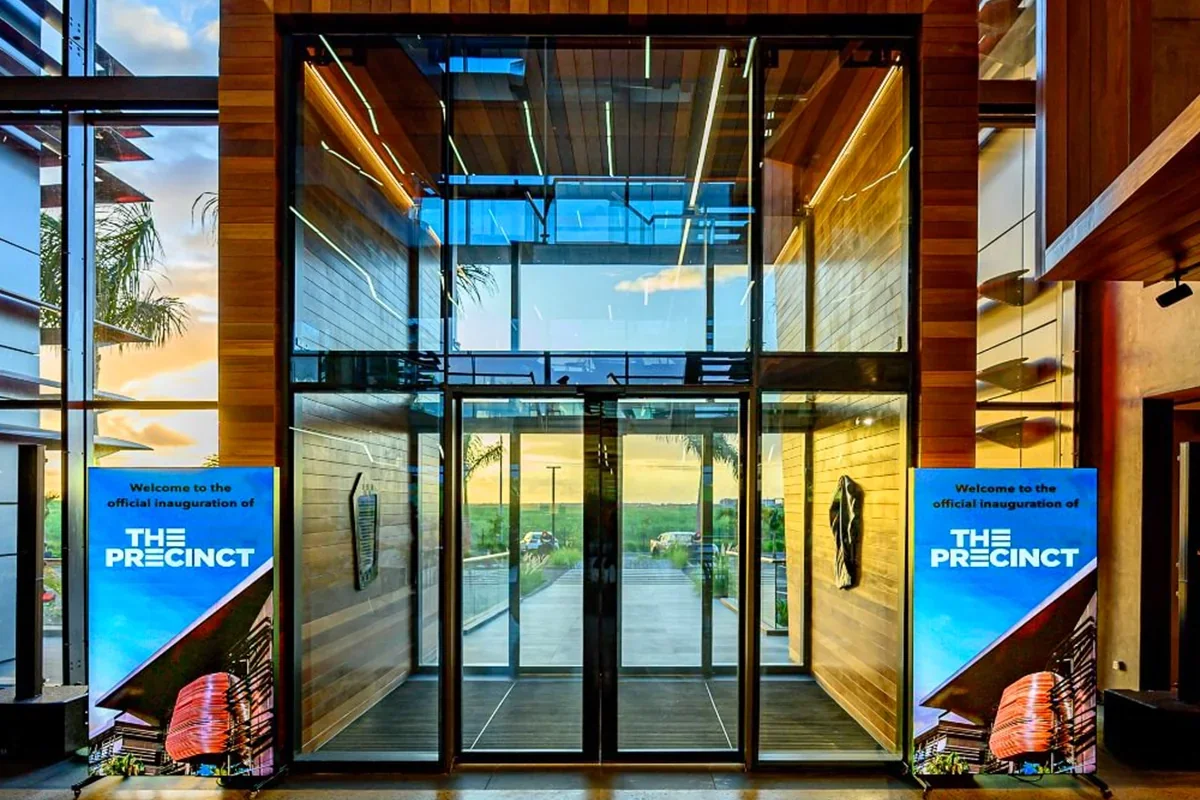

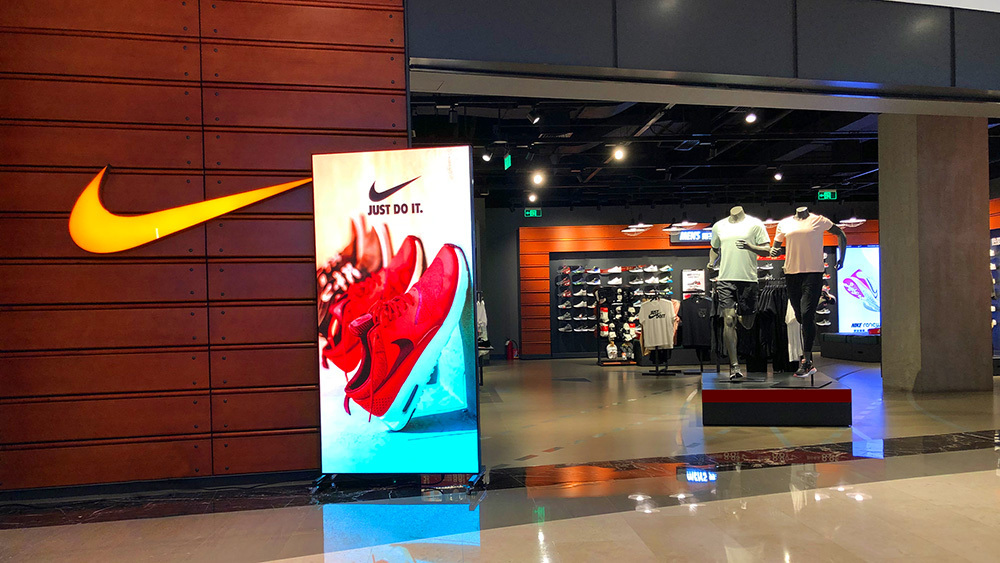

TPoster Series (Transparent LED Poster) represents a new generation of advertising, designed as an independent all-in-one poster. Featuring high brightness, exceptional transparency, a movable base for enhanced flexibility, and plug-and-play functionality, TPoster is an ideal choice for show windows. It is particularly suitable for jewelry stores, luxury boutiques, and similar high-end retail environments, showing advertising videos while elegantly highlighting in-store products.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

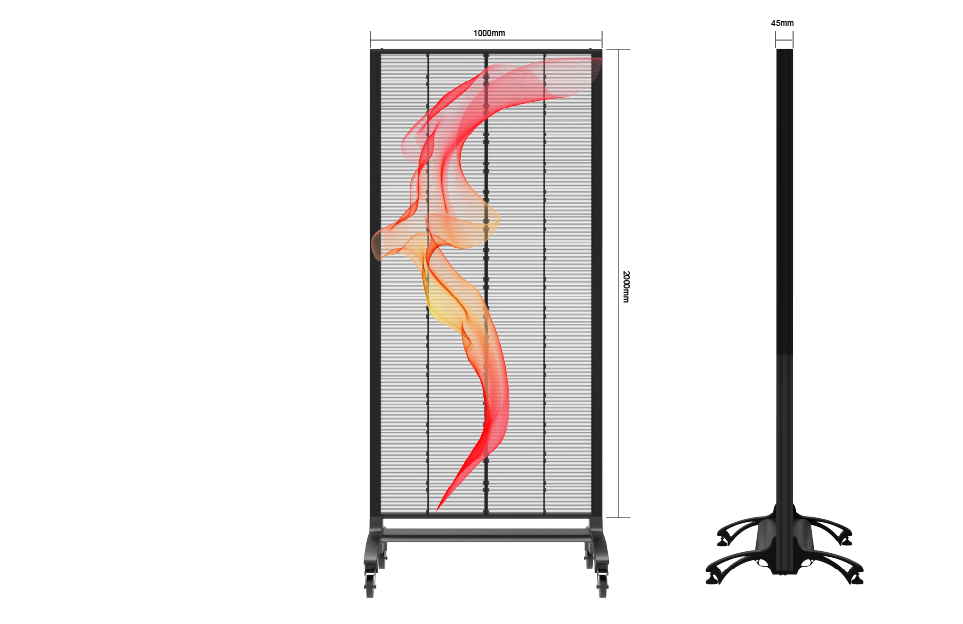

Designed with high-quality aluminum, integrated vertical structure design, moveable wheels design, can be moved freely in different scenes. Super light and thin, 30kg light weight and 45mm thin thickness. Support 3D effect display, bringing better visual impact.

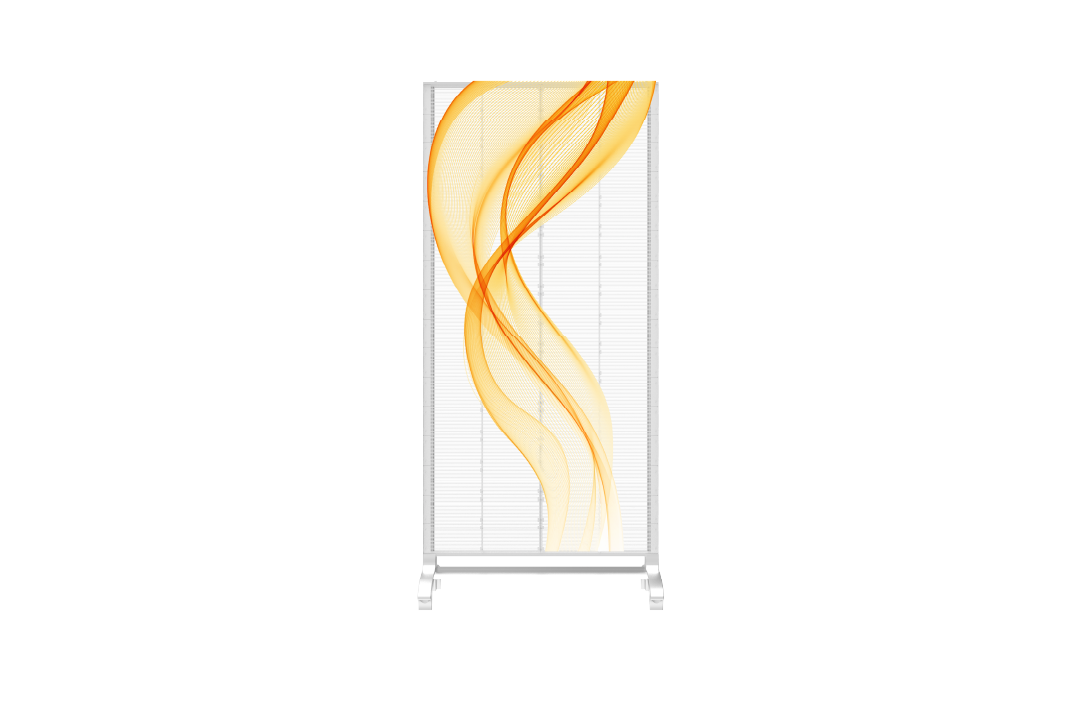

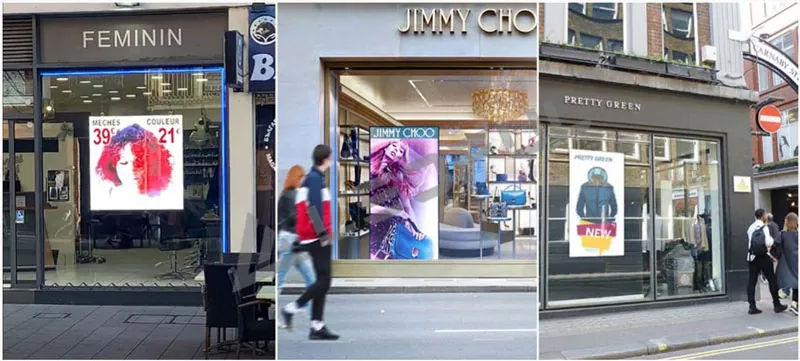

With 70% high transparency, TPoster is an ideal choice for show windows. It is particularly suitable for jewelry stores, luxury boutiques, and similar high-end retail environments, showing advertising videos while elegantly highlighting in-store products.

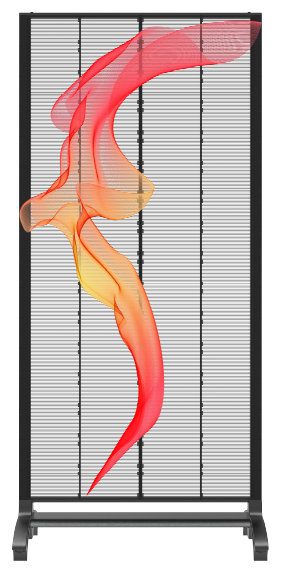

Different brightness of TPoster is perfect for any environment.
3000nits for Indoor environment with high brightness.
5000nits for facing sunlight directly, born for retail shop window.

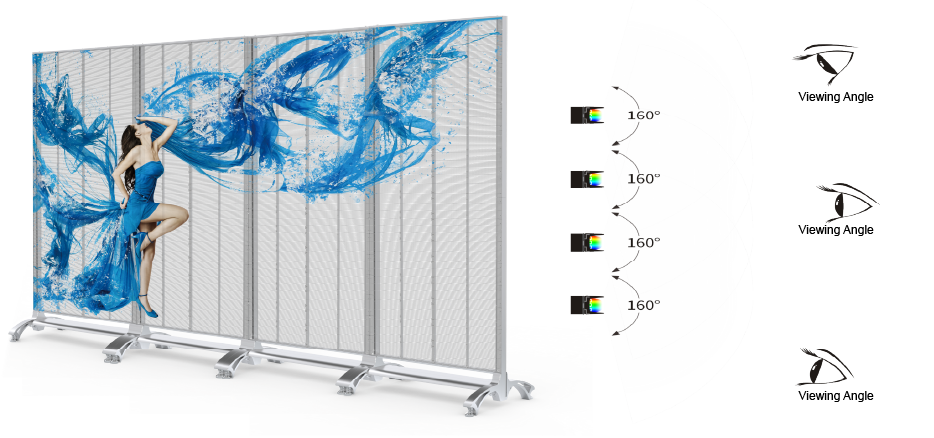

Wide 160°viewing angle allows you to view screen content from multiple angles without worrying about color distortion or loss of brightness, maintaining brilliant colors and high-quality images.

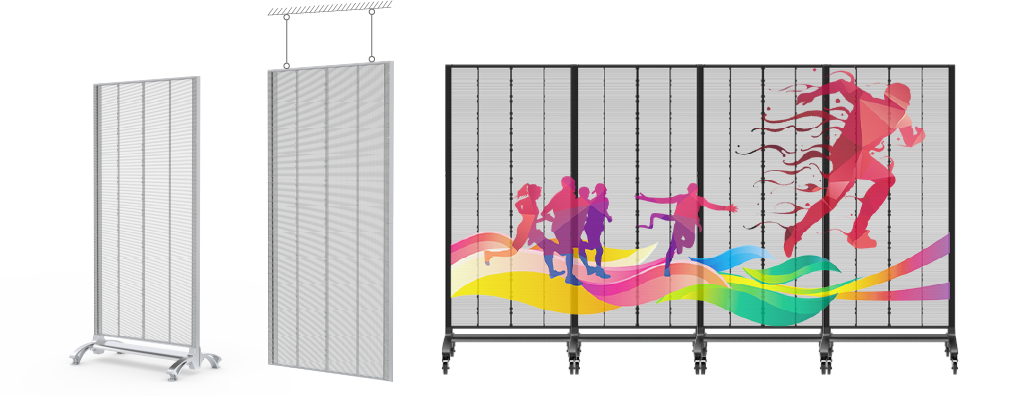

Support floor standing with fixed base or moveable base, hanging, double sided, multiple posters cascade. Flexible designs are suitable for various event applications.

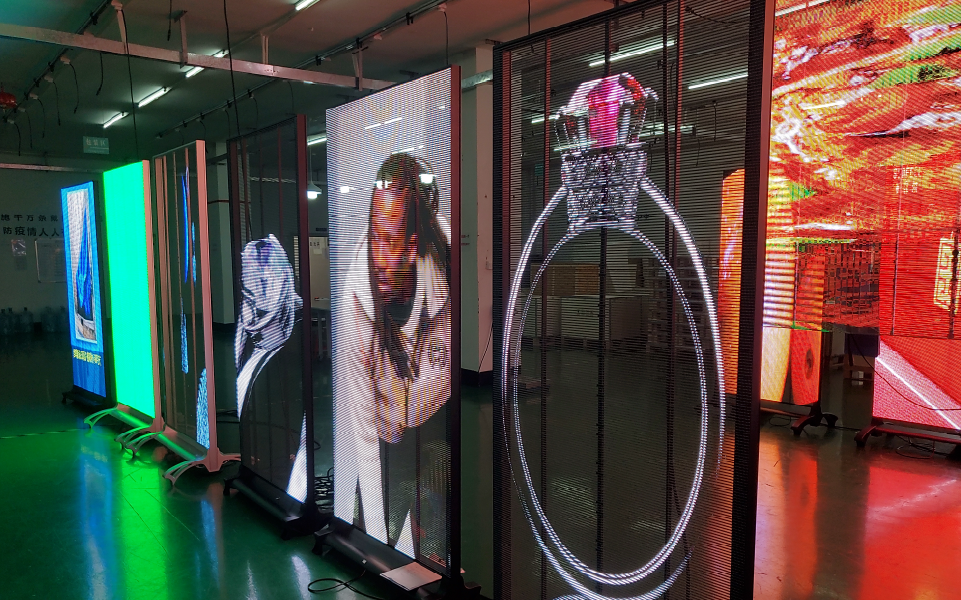

Users can simply connect TPoster to a power source and input content through a USB, HDMI, or wireless connection, and the display will begin functioning immediately.

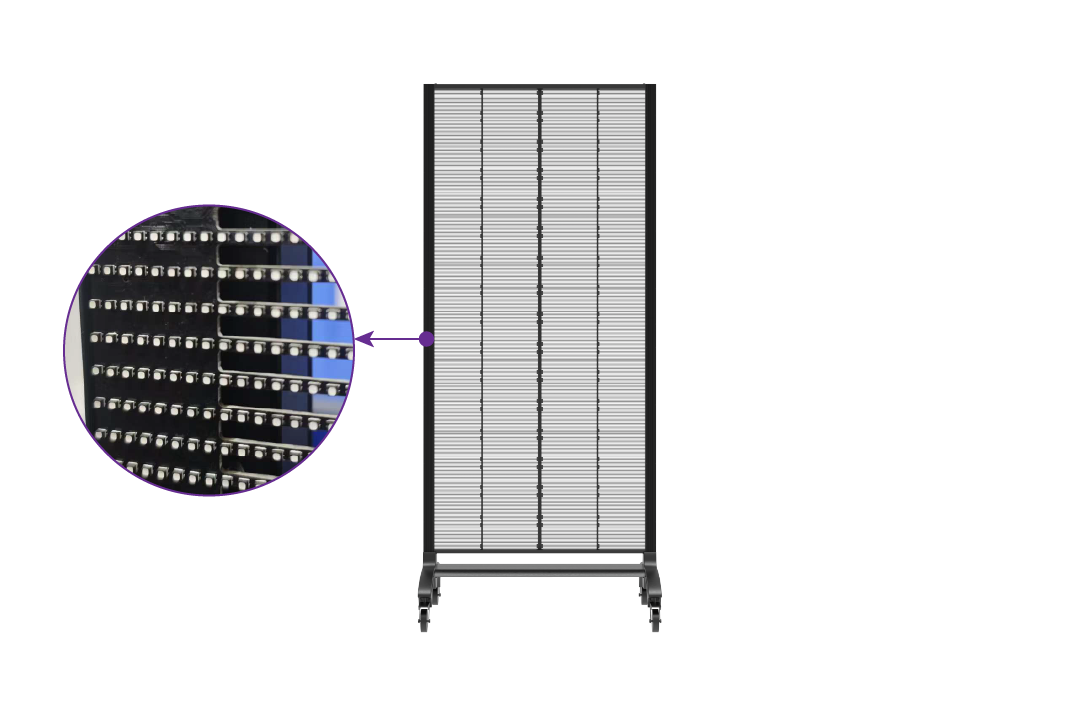

Module HUB connection design without cables, only need 10s for module maintenance. Save time and cost.

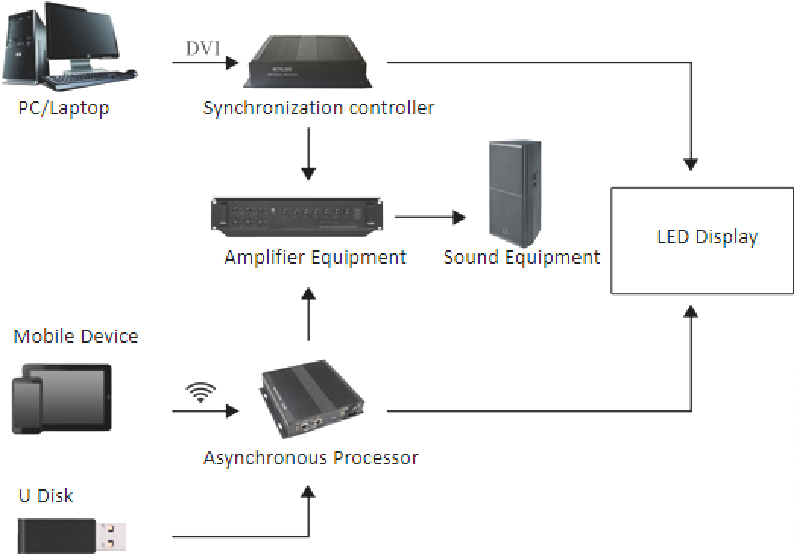

WiFi, Phone (Android, iOS), tablet, Windows, Cloud, USB, Remote Cluster Control are all available. Strong compatibility can support the use of mobile devices and PC devices to change the video and pictures at will, fast and convenient.

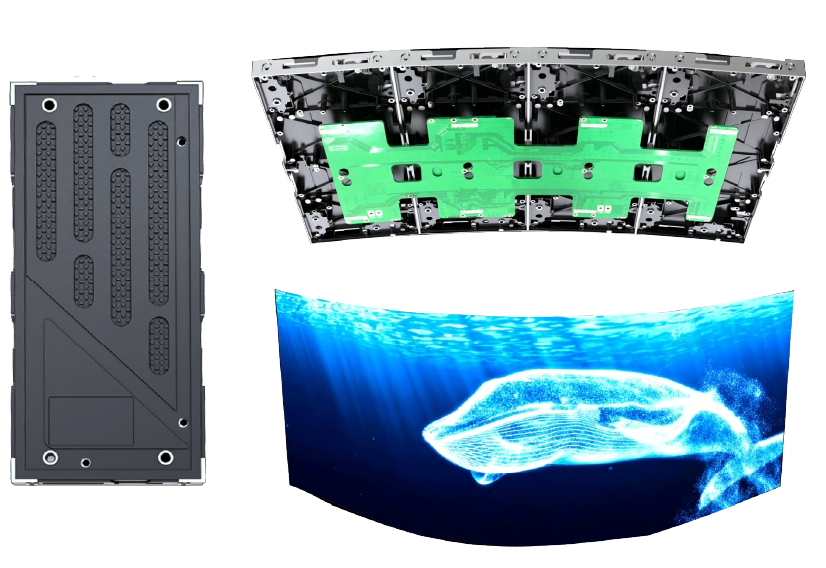

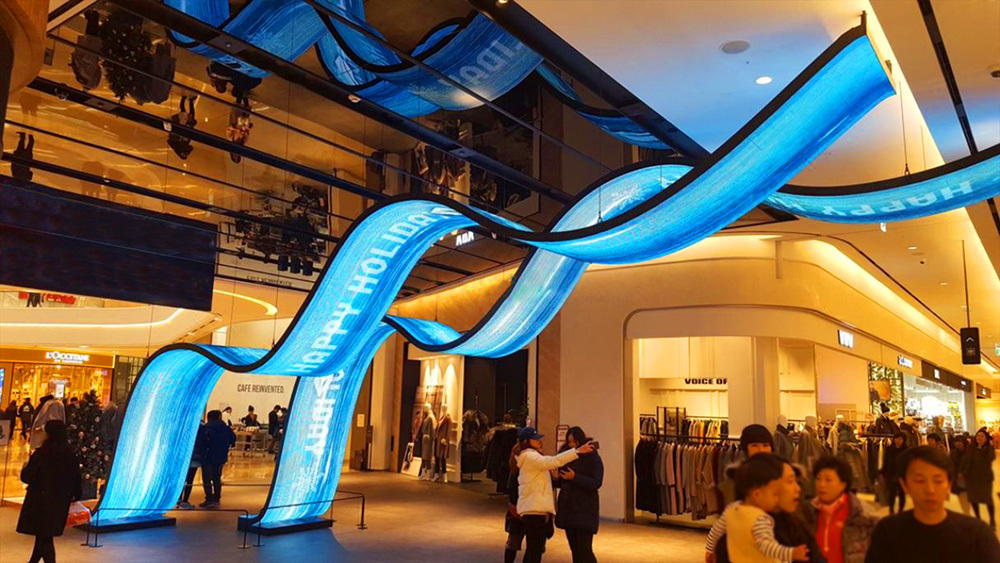

Support curved design, to use special small modules 150×168.75mm and special cabinet 150×337.5mm

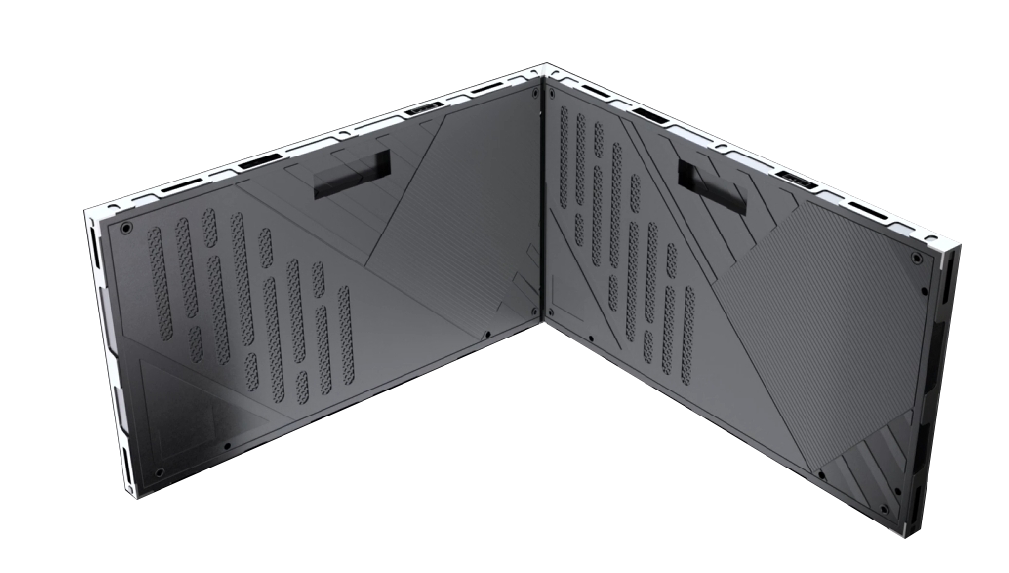

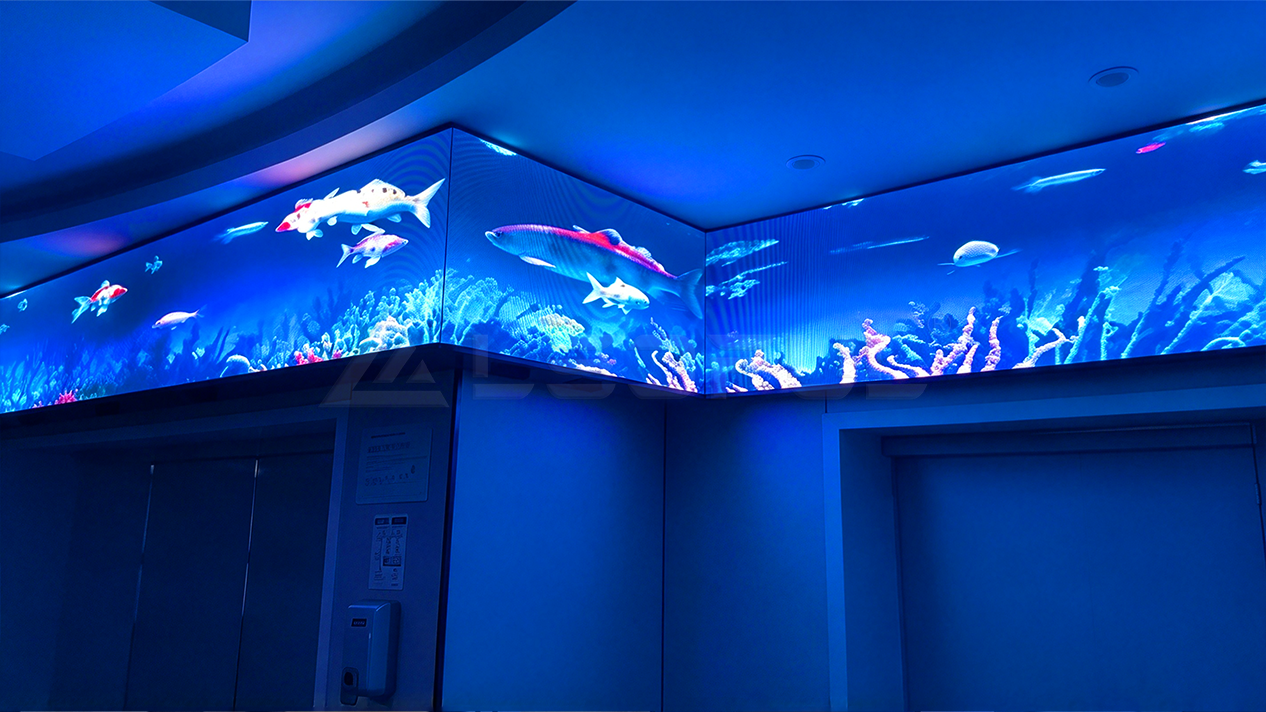

Beveled cabinet makes seamless right angle and 4 sided column LED screens.

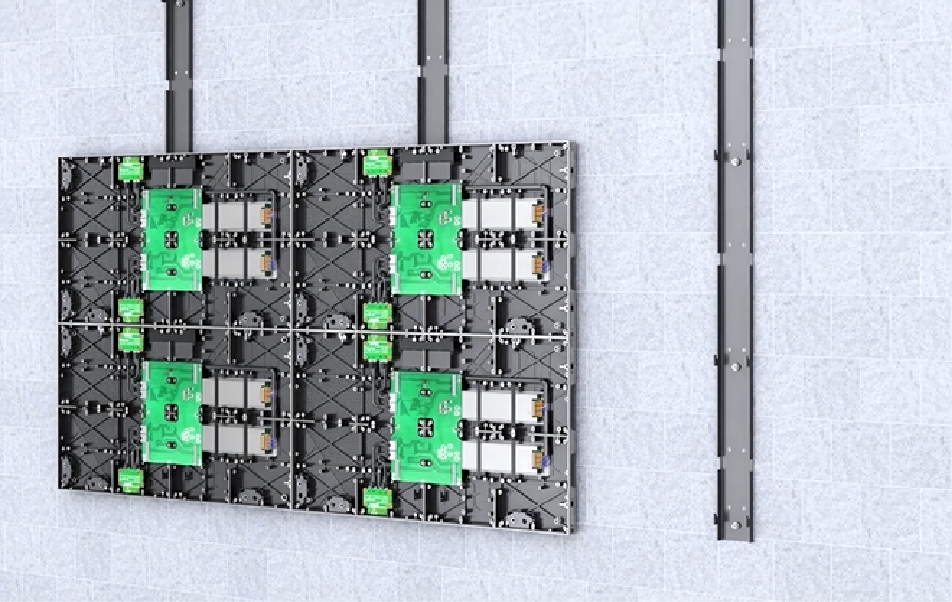

LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.

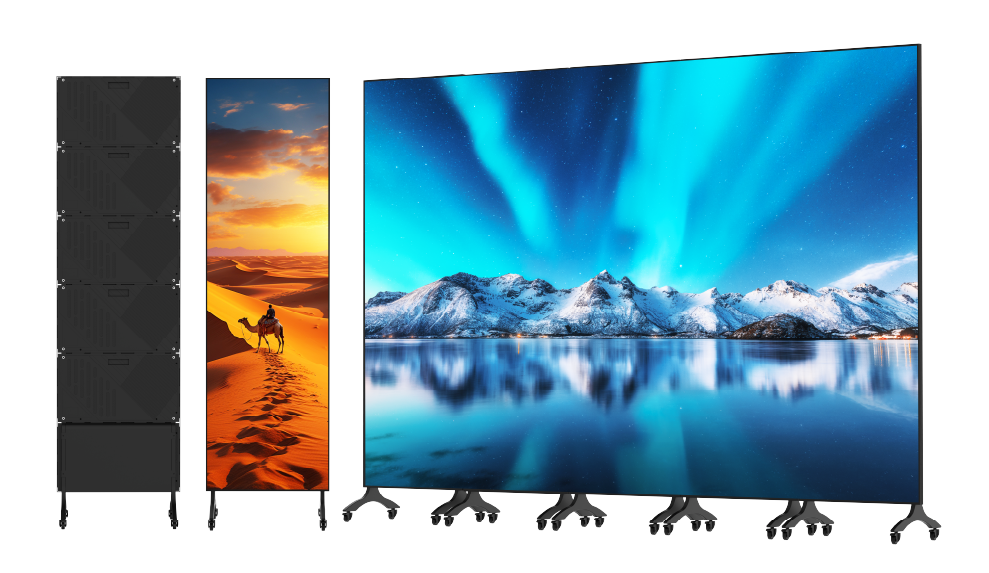

UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | TPoster1.9 | TPoster2.8 | TPoster3.9 |
| Pixel Pitch(mm) | H1.9-V3.9 | H2.8-V5.6 | H3.91-V7.82 |
| Pixel Matrix Per Sq.m | 129,024 | 63,368 | 32,768 |
| Pixel Configuration | SMD1515 | SMD1921 | SMD1921 |
| Brightness (nits) | 3000 | 5000 | 5000 |
| Scan | 1/14 | 1/16 | 1/8 |
| Module Dimension | 500x125mm | 500x125mm | 500x125mm |
| Cabinet Dimension | 1000×2000mm(Variable dimensions) | ||
| Cabinet Material | Profile aluminum | Profile aluminum | Profile aluminum |
| Cabinet Weight | 30KG | 30KG | 30KG |
| Power Con. (W/sqm.) | Max. 800W / Avg.360W | Max. 1600W / Avg.720W | Max. 1600W / Avg.720W |
| Service Access | Front | Front | Front |
| Refresh Rate (HZ) | ≥1920 | ≥1920 | ≥1920 |
| Grey Scale (bit) | 14~16 | 14~16 | 14~16 |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Viewing Angle (H / V) | 160° / 160° | 160° / 160° | 160° / 160° |
| IP Rate | IP24 | IP24 | IP24 |
| Operation Temperature | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ |
| Operation Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Input Voltage (AC) | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz |
| * Specifications and photos are subject to change without prior notice. | |||
