Indoor and Outdoor Dance Floor LED Display
● Interactive Floor LED Display
● Easy Installation and Maintenance
● lron Cabinet, High Load Bearing with 2T weight
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Cabinet Dimension Ratio
Cable Free Connection
Dual Backup Power & Data
Front Maintenance & Front
High Refresh Rate & High Grey Scale
Ultra Light and Ultra Thin
Dual Backup Power & Data
Front Maintenance & Front

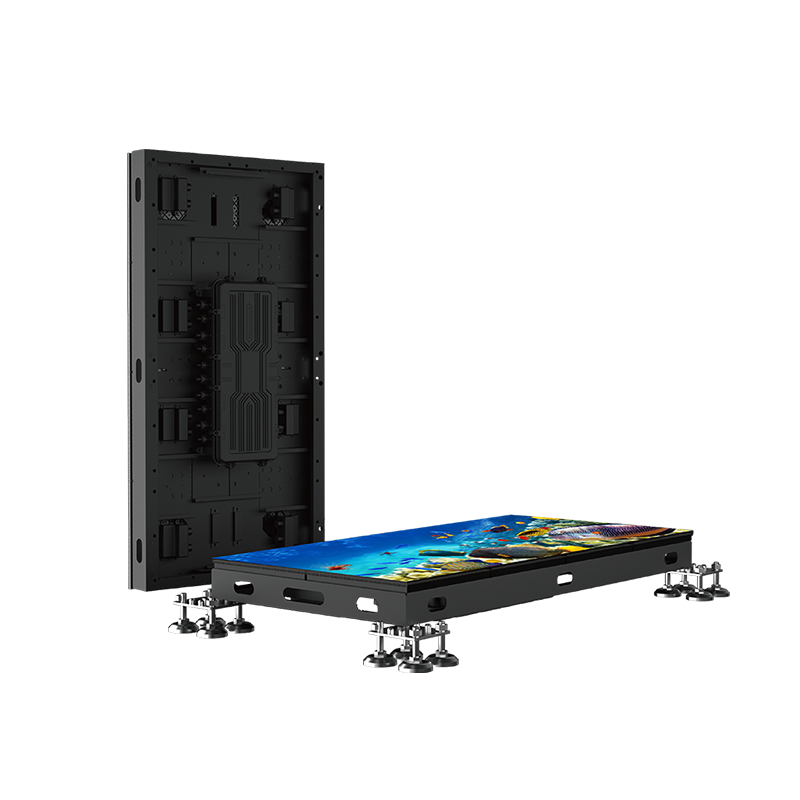

Floor series is an innovative dance floor LED display screen which has advantages of Super Strong Load-Bearing Capacity, Customizable Shapes and Sizes, Versatile Installation, Easy Maintenance. With its Wear-Resistant, Anti-Slip features, it is the preferred choice which is widely used in Stage Rental, Entertainment Centers, Shopping Centers, Theaters, TV stations, Bars, Hotels, Scenic Spots etc. various fields.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

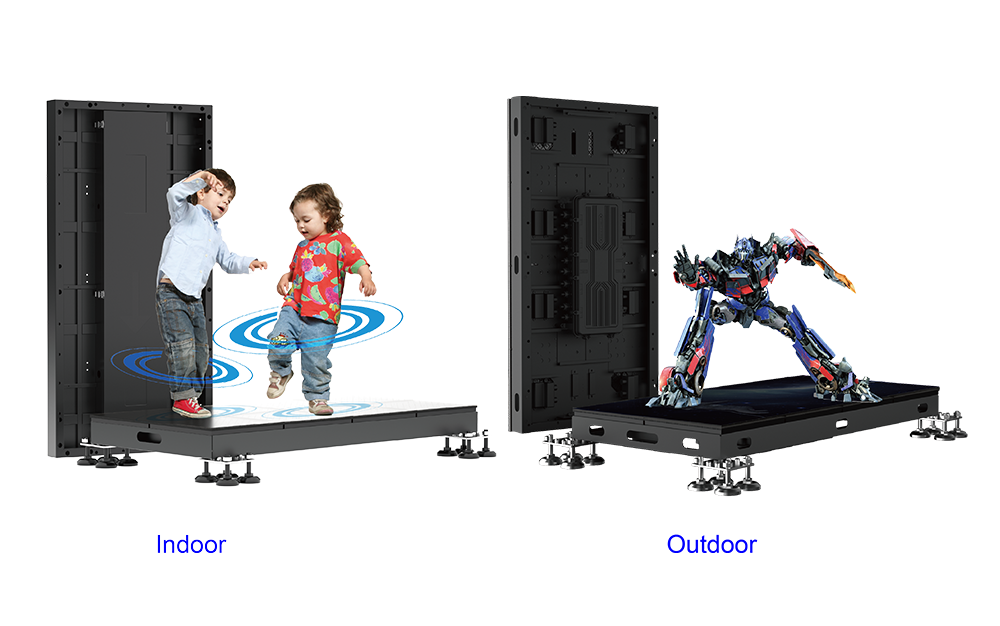

Choosing super strong thicken metal cabinet frame, it can be used for Indoor and outdoor application. Indoor cabinet — 78mm depth with P2.5/2.6/2.9/3.9, outdoor cabinet — 110mm depth with P3.9/4.8/6.2.
In order to meet the requirement of different scenarios, 500x1000mm LED cabinet can work with cladding frame to achieve a variety of shapes.
FLOOR LED module is covered with special mask which is made of high density PC material, making screen UV-resistant, no color difference even viewing from any angle. Dull polish technology on the module mask makes skid resistance an anti-dazzling.

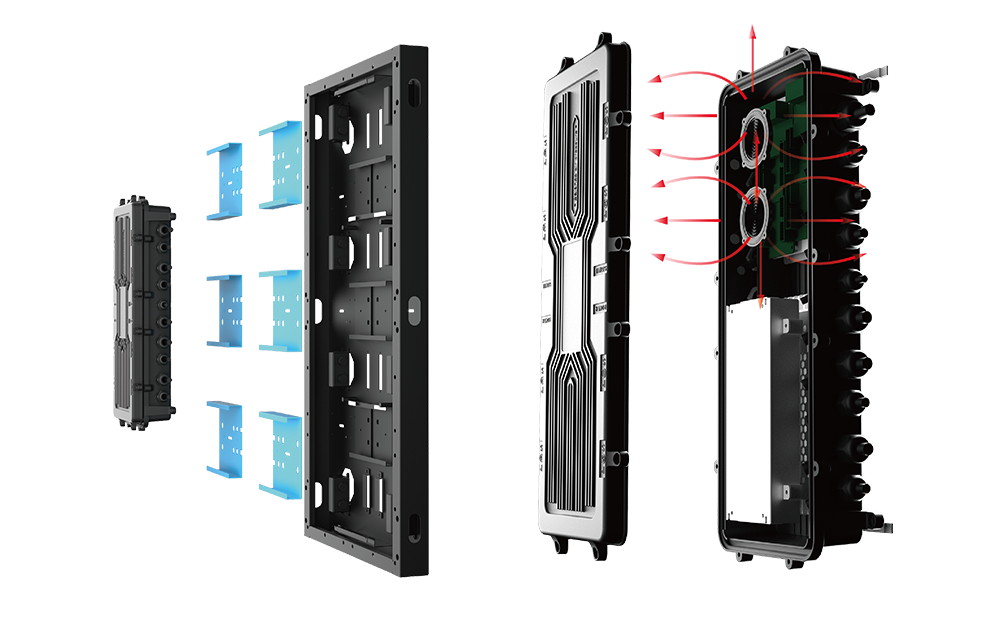

Dance floor cabinet integrates ventilation valve design, which effectively contacts the air over a large area and dissipates heat faster. Besides, LEDFUL provide exclusive cooling fans for dance floor screen, double heat dissipation function extends the working lifespan of screen.

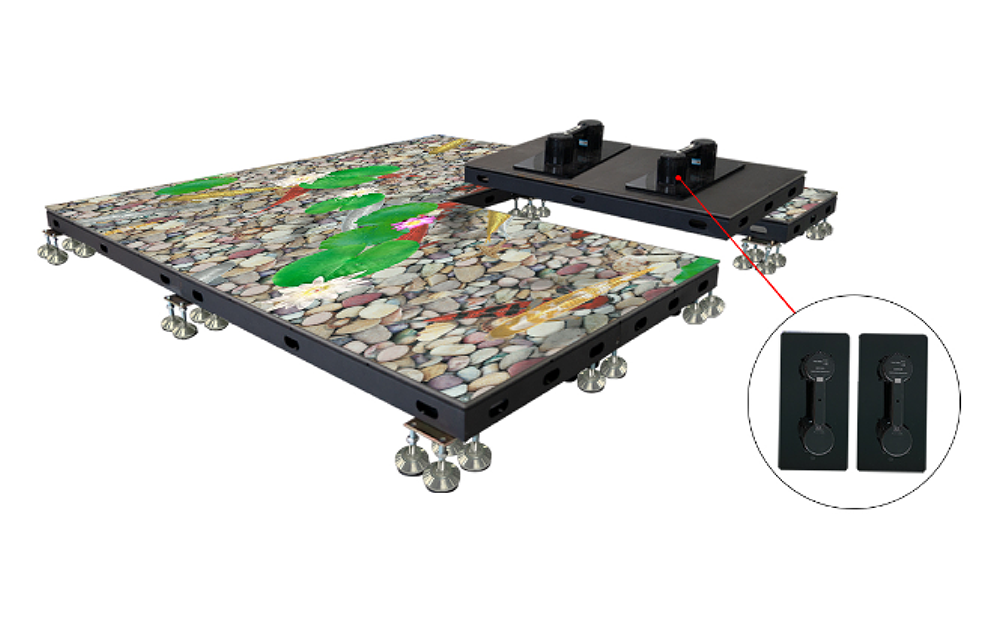

The cabinet can be quickly and easily disassembled through the vacuum suction tool to achieve cabinet replacement and maintenance.

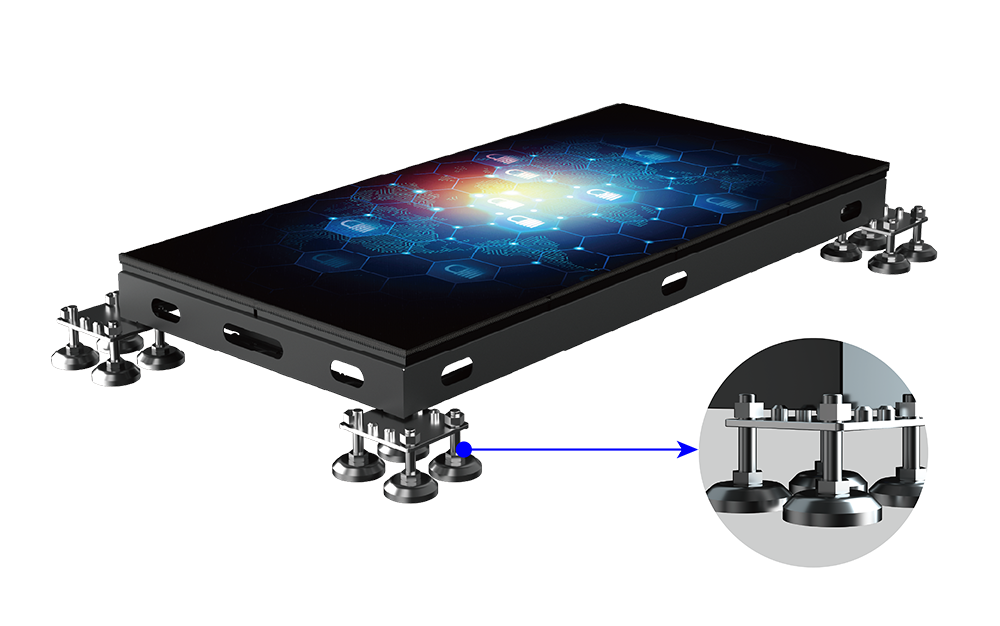

Special base support for dance floor screen installation, this allows 130~170mm height adjustment, to meet requirements of various installation sites.

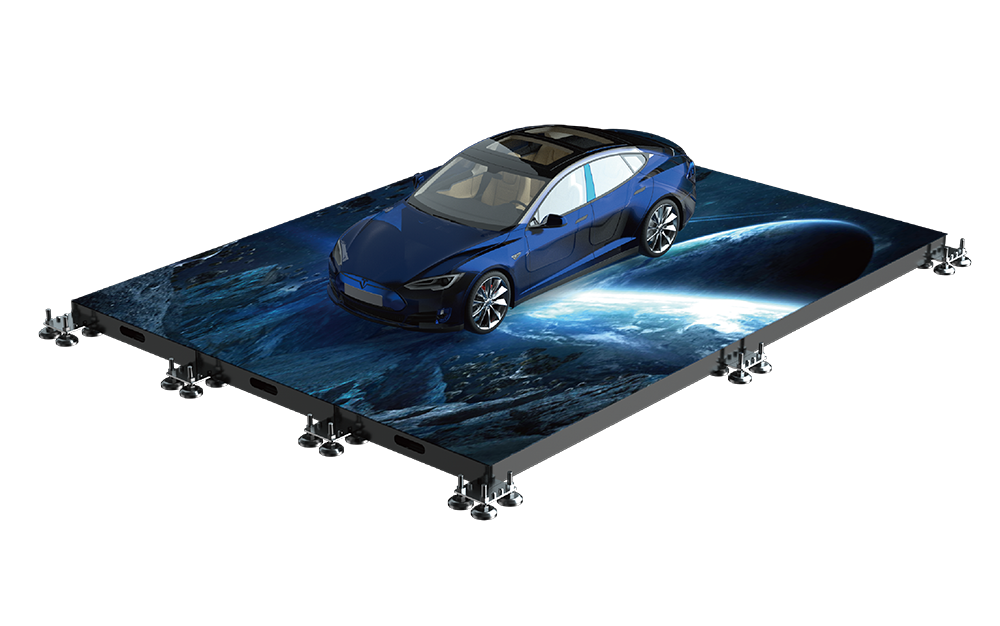

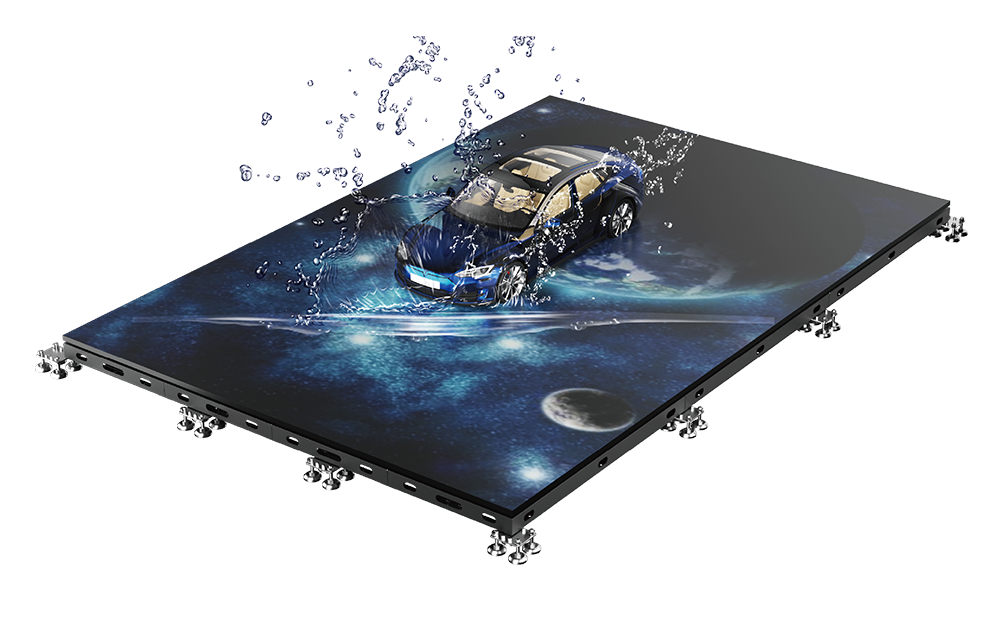

2T per square meter super strong load-bearing capacity, withstanding trampling and car crushing, presenting excellent pressure resistance.
Adopting advanced module glue filling technology, fully surrounded by PC kit and waterproof rubber ring, IP66 dustproof and waterproof, suitable for various indoor and outdoor scenes.

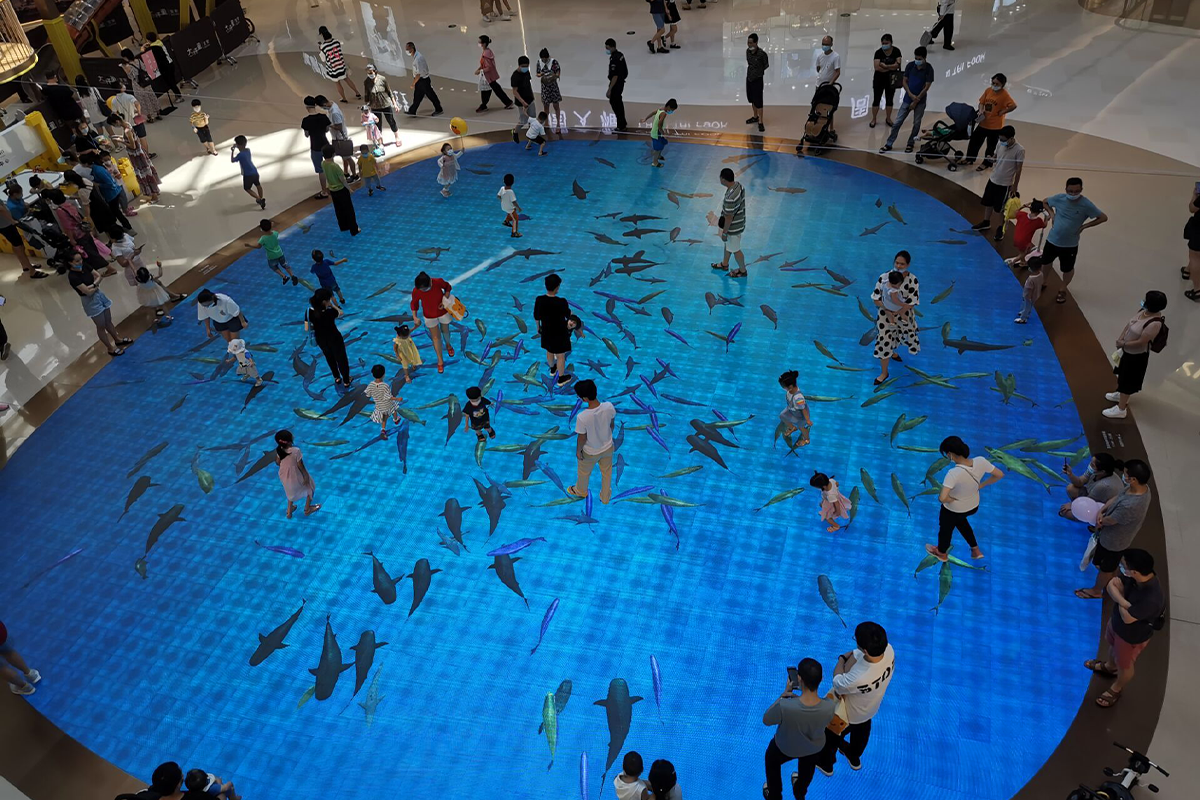

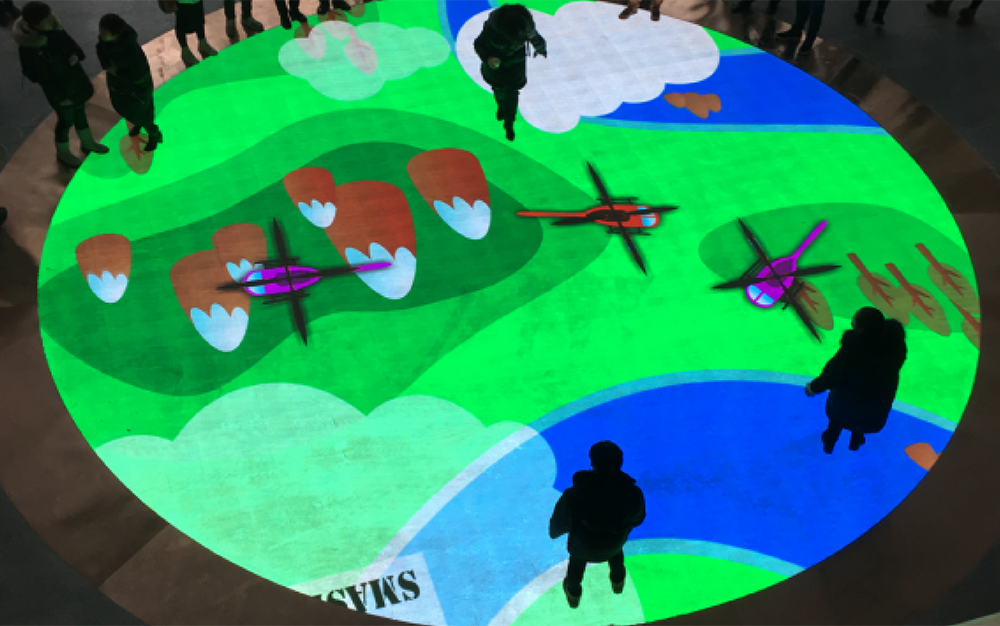

Built-in interactive sensory chip in module, a variety of interactive materials, multi-touch, and excellent sensitivity(0.01s), high-quality hardware facilities are matched with corresponding software facilities to jointly present a variety of interactive effects.
Floor LED displays in XR immersive experiences provide high-resolution and dynamically changing ground scenes, creating a realistic virtual environment. Supporting interactive features can enhance user interaction with the virtual world.
| Model | FI 2.5 | FI2.6 | FI2.9 | FI3.9 | FO3.9 | FO4.8 | FO6.25 |
| Pixel Pitch(mm) | 2.5 | 2.6 | 2.976 | 3.91 | 3.91 | 4.81 | 6.25 |
| Pixel Matrix Per Sq.m | 160,000 | 147,456 | 112,896 | 65,536 | 65536 | 43264 | 25600 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Brightness (nits) | 2000 | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 |
| Scan | 1/32 | 1/32 | 1/42 | 1/32 | 1月16日 | 1月13日 | 1月10日 |
| Module Dimension | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Dimension | 500×1000×78mm | 500×1000*110mm | |||||
| Cabinet Material | Metal lron | Metal lron | Metal lron | Metal lron | Metal lron | Metal lron | Metal lron |
| Cabinet Weight | 44KG/sqm | 44KG/sqm | 44KG/sqm | 44KG/sqm | 44KG/sqm | 44KG/sqm | 44KG/sqm |
| Power Con. (W/sqm.) | Max. 800W / Avg.200~300W | Max. 800W / Avg.200~300W | Max. 800W / Avg.200~300W | Max. 800W / Avg.200~300W | Max. 1200W / Avg.600W | Max. 1200W / Avg.600W | Max. 1200W / Avg.600W |
| Service Access | Front Access | Front Access | Front Access | Front Access | Front Access | Front Access | Front Access |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Viewing Angle (H / V) | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| IP Rate | IP54/IP45 | IP54/IP45 | IP54/IP45 | IP54/IP45 | IP67 | IP67 | IP67 |
| Operation Temperature | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ | ﹣20℃ ~ +60℃ |
| Operation Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Input Voltage (AC) | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz | AC90-264V, 47-63Hz |
| * Specifications and photos are subject to change without prior notice. | |||||||
