Description

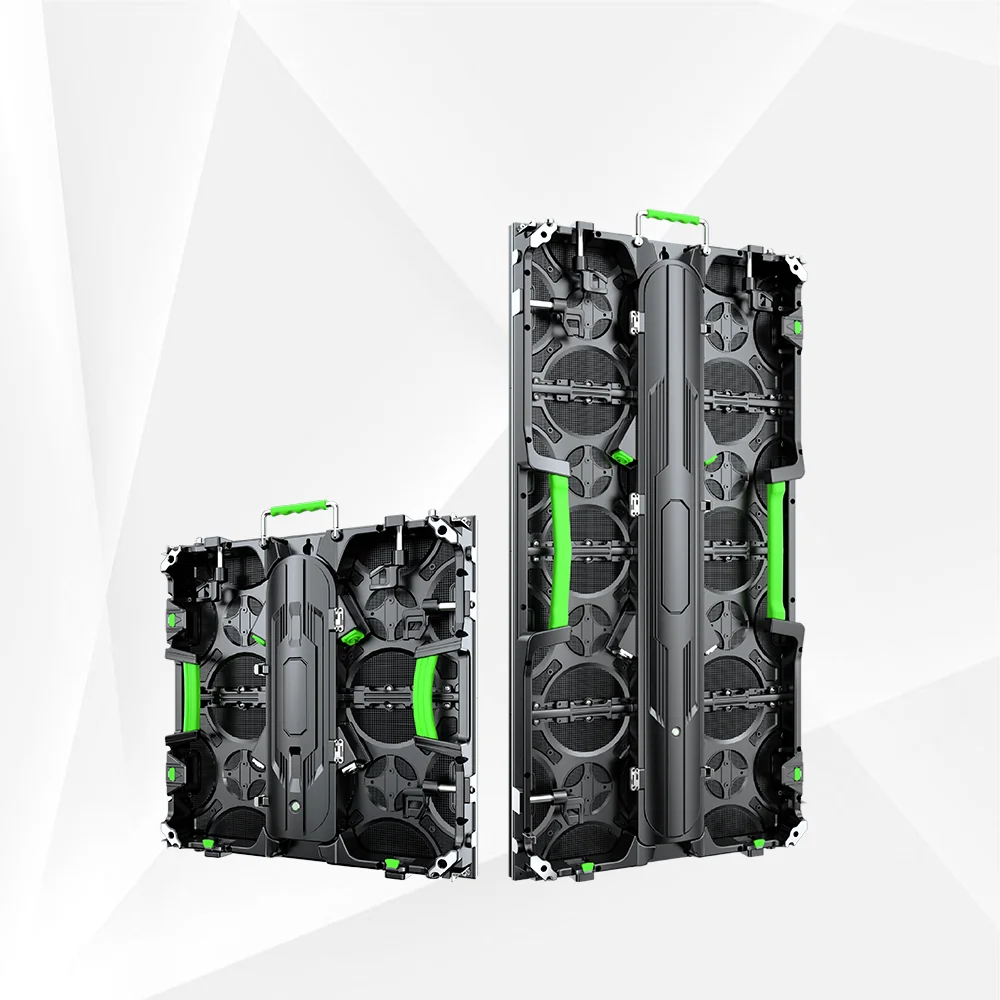

Indoor & Outdoor Rental LED Screen
● High Refresh Rate 3840Hz~7680Hz
● Quick Locks & Easy Installation
● 90° Angle & Curved Design
● Front Service & Rear Service Optional
Product Features
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Climbing Support
Concave / Convex Curved Shape
Front / Rear Service
Light and Thin
No Light Leakage
Wide View Angle
Product Introduction and Applications

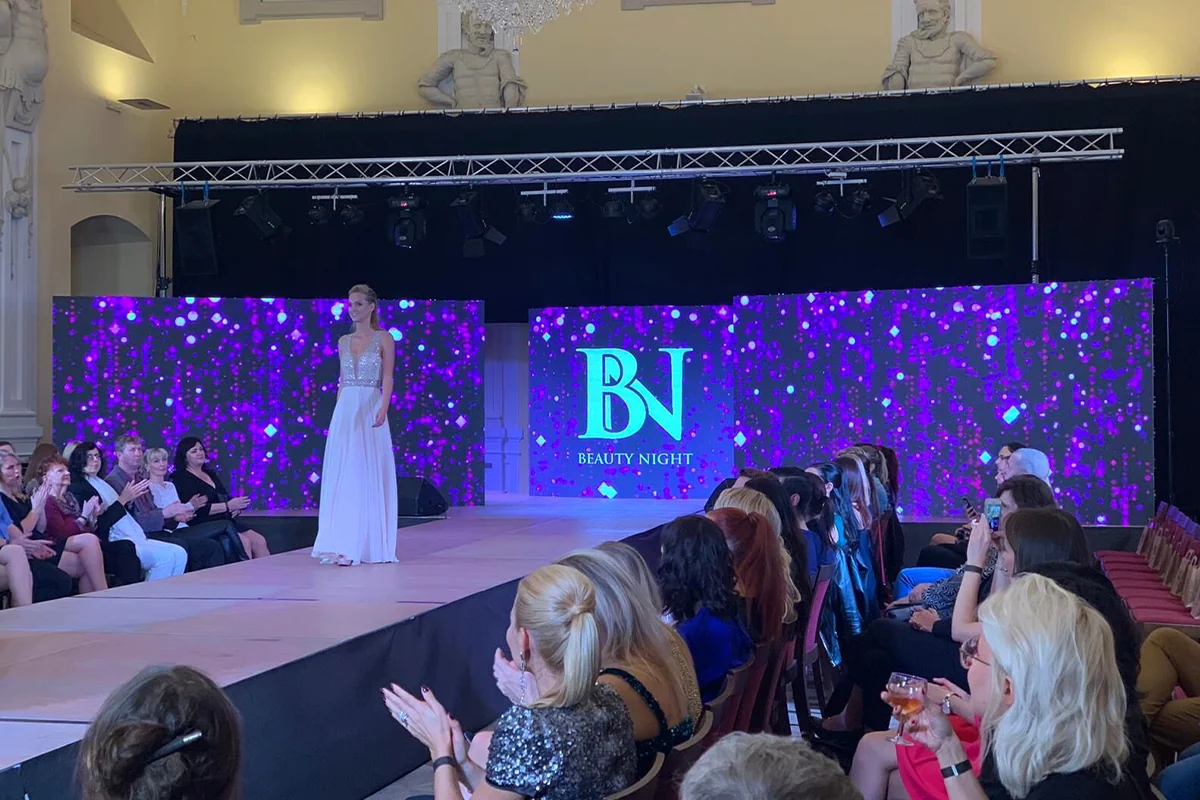

S&K is a great looking, high quality rental product with die-casting aluminum cabinet which is thin, light and good heat dissipation. Curved, 90 degree, cube these solutions are optional. Multiple installation ways, wall-mounted, hanging, ceiling, floor stacking. It is a good choice for exhibition, concert, wedding, conference, party, hotel, school, stadium, theater, auditorium, car shop, ect.

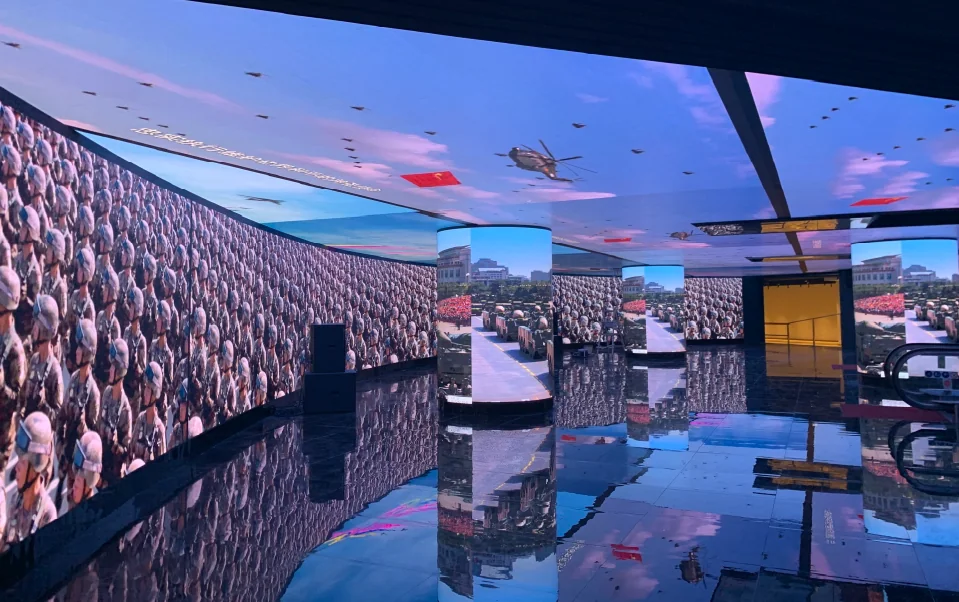

Ceiling Installation
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

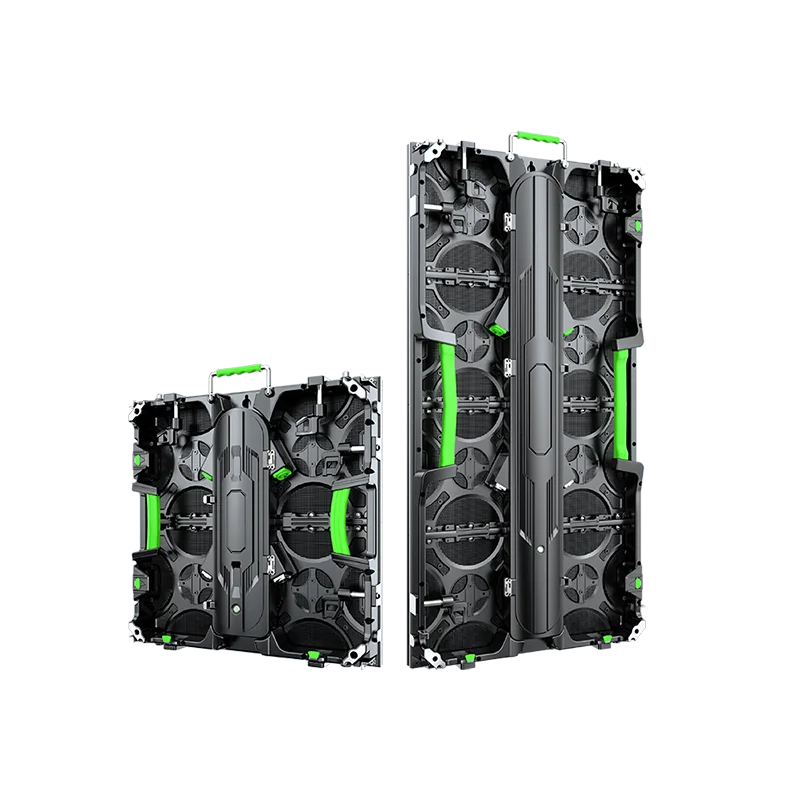

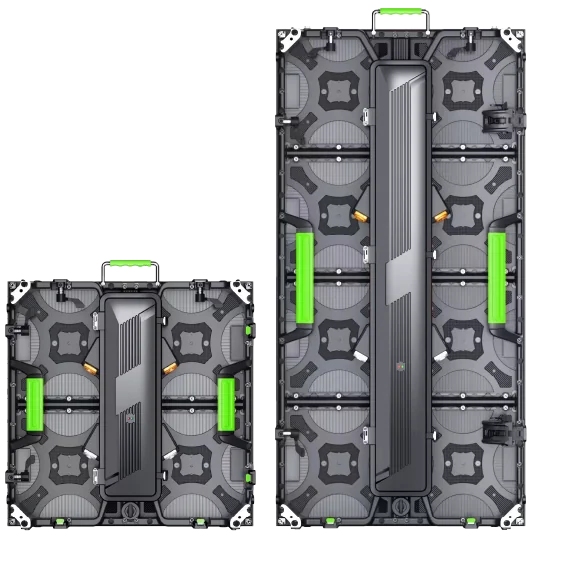

Cabinet Size
500x500mm and 500x1000mm optional, 500x1000mm big panel is cost-effective option and save you more time and energy on installation; 500x500mm small panel is good for multiple screen sizes, such as 1.5m , 2.5m, and 3.5m, ect. Varying sizes, more options.
Excellent Visualization
3840HZ High refresh, High refresh rate is less prone to drag. Reduced line phenomenon of mobile phone or camera photo effect. The picture texture is clear and delicate, with realistic color and high degree of reproduction.

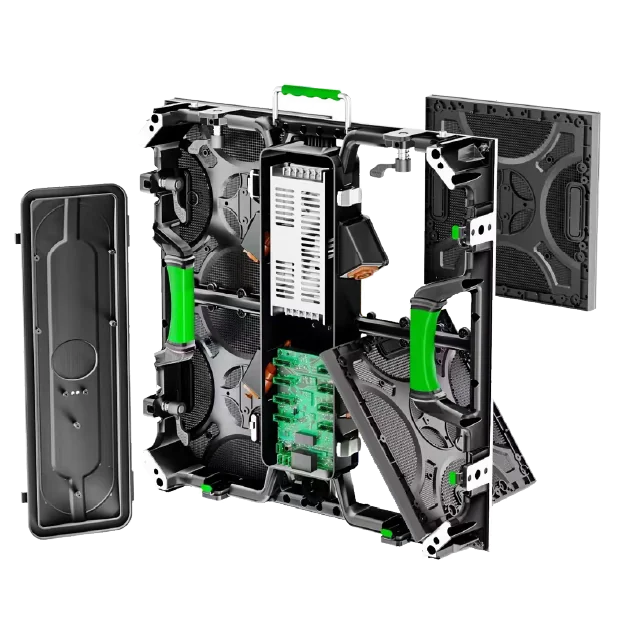

Non-cable-free Connection
LED cabinet & Power Box integrated, led module with cable connection, cost-effective, easy maintenance, flip-top power pack design, power box with safety button.

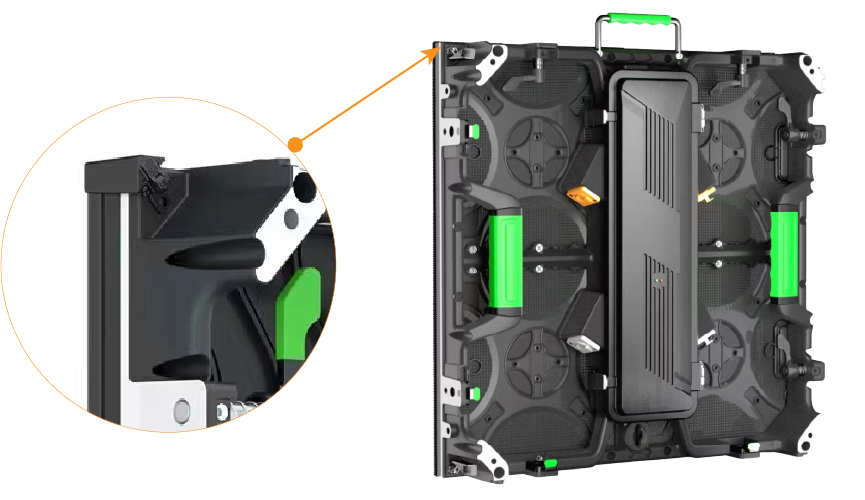

Corner Protector
4 corner parts with corner protector to protect led panel during installation, disassembly and transportation.

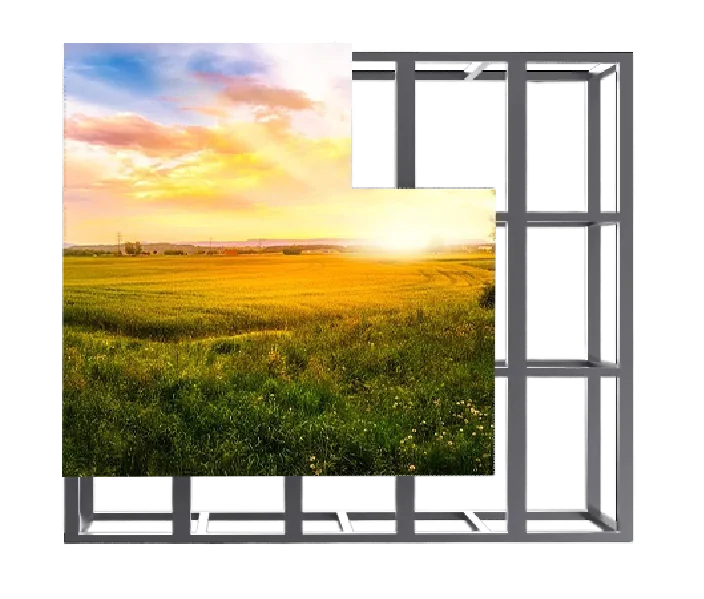

Wall-mounted Installation
Profiled aluminum or steel wall mounted installation structure,using connecting plate to fix screen on structure.

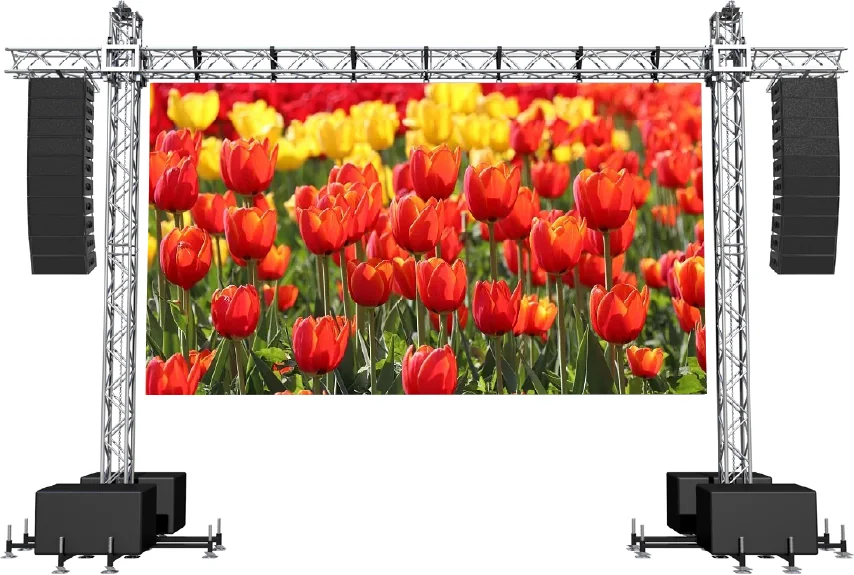

Hanging Installation
Truss structure for hanging installation, 500x500mm 8.6KG per piece, 500x1000mm 11KG per piece. Strong hanging bars ensure the safety of hanging.
Ceiling Installation
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

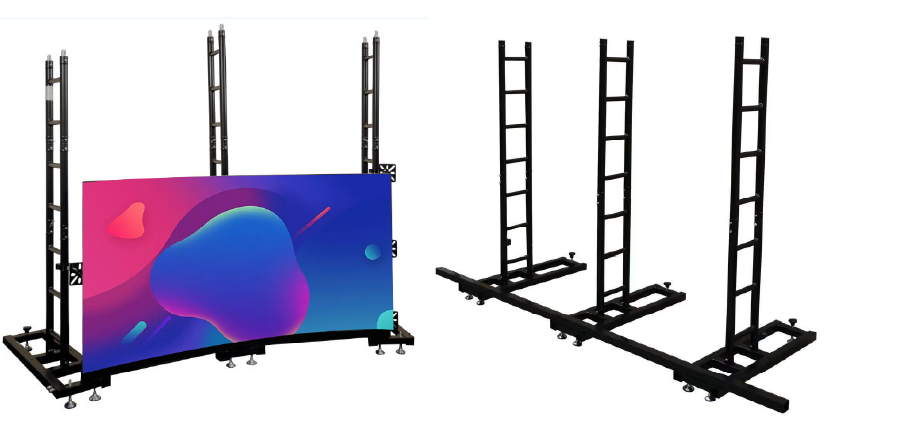

Floor Stacking Installation
LEDFUL floor stacking structure, aluminum alloy material, screw lock & clamp. Beam can be used as both hanging and ground beam. Easy installation and easy lock.
World-Class Project Show-1
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

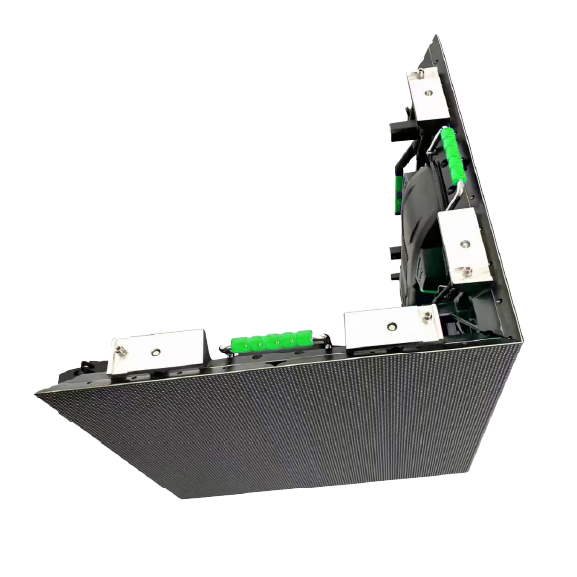

90 Degree Right Angle Design
Left & Right sides with beveled cabinet and module.

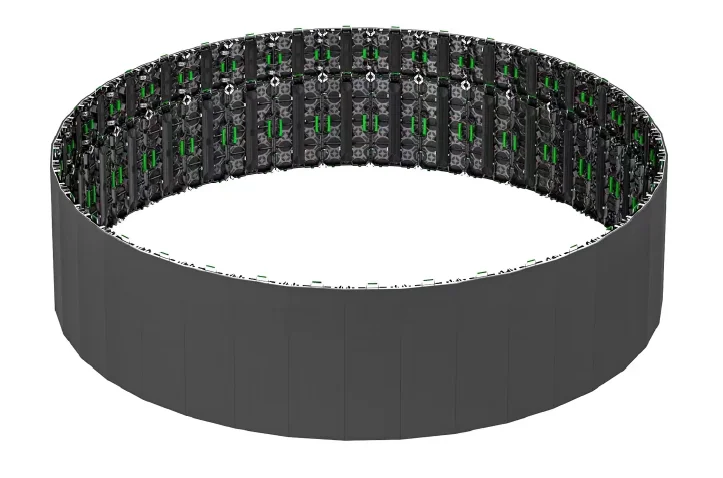

Curved
LED display with scale lock that can adjust degree, the range is -15°~+15°, concave or convex screen. 500x500mm & 500x1000mm can be used together.
Front or Rear Maintenance
Standard is rear maintenance, led modules are fixed on cabinet by screw; front maintenance is additional option, it is led module with magnet and we can remove module from cabinet by front service tool.
Flight Case Package
Flight case package with wheels, can be moved to various places. Composite honeycomb panel exterior, aluminum flight case frame, high density EVA and pearl foam. ABS plastic flight case is optional.
90 Degree Design
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
Wall Mounted
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
Free Standing UPoster
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
Specifications
| Model | SI/KI1.5 | SI/KI1.9 | SI/KI2.5 | SI/KI2.6 | SI/KI2.9 | SI/KI3.9 | SI/KI4.8 |
| Pixel Pitch(mm) | 1.56 | 1.95 | 2.5 | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Brightness (cd/Sqm.) | ≥1000 | ||||||
| Scan | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250×250mm | ||||||
| Cabinet Dimension | S–500x500mm,K–500x1000mm | ||||||
| Cabinet Material | Die Casting Aluminum | ||||||
| Cabinet Weight | S-8KG,K–14KG | ||||||
| Power Con. (W/Sqm.) | Max.800W / Avg.200~300W | ||||||
| Service Access | Front/Rear | ||||||
| Refresh Rate (HZ) | ≥3840 | ||||||
| Grey Scale (bit) | ≥16 | ||||||
| Viewing Angle (H/V) | 160°/160° | ||||||
| IP Rate | IP43 | ||||||
| Input Voltage (AC) | 110V/240V | ||||||
| * Specifications and photos are subject to change without prior notice. | |||||||
| Model | SO/KO2.6 | SO/KO2.9 | SO/KO3.9 | SO/KO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.98 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (cd/Sqm.) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/21 | 1/16 | 1/13 |
| Module Dimension | 250×250mm | |||
| Cabinet Dimension | S–500x500mm,K–500x1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | S-8KG,K–14KG | |||
| Power Con. (W/Sqm.) | 800W/200-300W | |||
| Service Access | Front/Rear | |||
| Refresh Rate (HZ) | ≥3840 | |||
| Grey Scale (bit) | ≥16 | |||
| Viewing Angle (H/V) | 160/160° | |||
| IP Rate | IP65 | |||
| Input Voltage (AC) | 110V/240V | |||
