Cathode Full Color Aluminum Screen
● Fine Pixel Pith P1.25 for Outdoor
● High Brightness 4000nits
● Cable Free Design
● 500*500mm Die Casting Aluminum Cabinet and Module
● Common Cathode Energy Saving Technology
● 3840Hz-7680Hz High Refresh Rate
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
High Brightness
Utra-light & Utra Thin
Great Heat Dissipation
High Protection Grade
Front & Rear Service
Modular Design

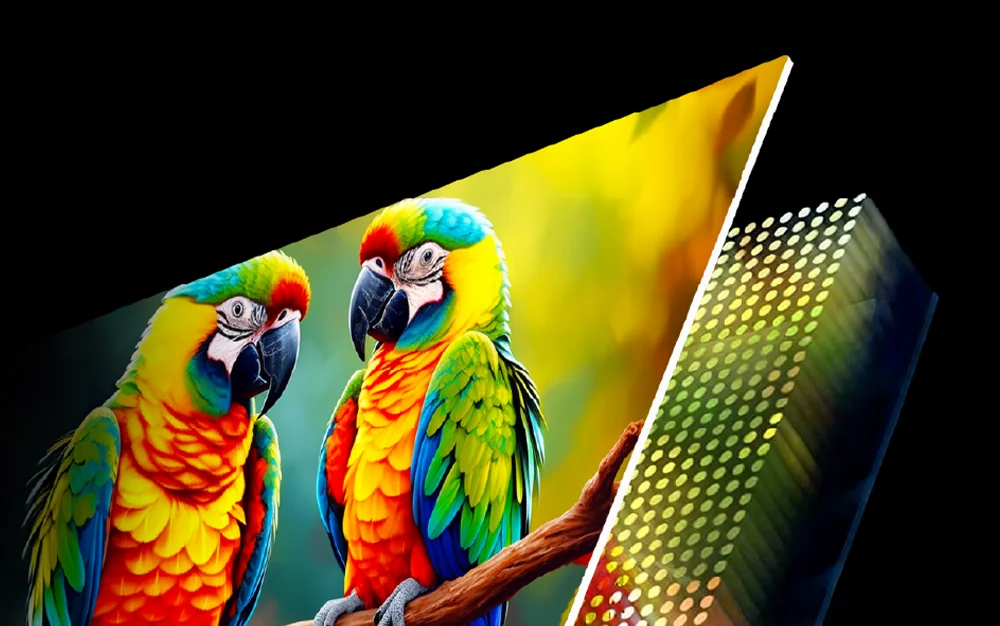

Outdoor fine-pitch rental LED display redefines outdoor visual performance with its outstanding image quality, energy efficiency, and flexibility. Featuring advanced MIP packaging technology, the display delivers higher brightness, improved contrast, and superior color uniformity. Designed with an IP65 protection rating, it ensures reliable operation in demanding outdoor environments. The high-precision aluminum cabinet supports seamless splicing, while the lightweight, rental-friendly structure enables fast installation and dismantling. With energy-saving common cathode design and robust construction, it is an ideal solution for outdoor fine-pitch rental applications, including events, concerts, and sports venues.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
Lightweight cabinet, fast installation, easy transportation, high strength, seamless splicing, and reliable performance for frequent setup and dismantling applications.
Lightweight and slim cabinet design delivers higher structural strength, excellent flatness, efficient heat dissipation, strong corrosion resistance, and extended service life for long-term reliability.
Fine-pitch LED displays deliver ultra-high resolution, seamless visuals, and superior image quality.
Significant improvement in brightness and contrast, delivering superior color uniformity, enhanced visual consistency, higher stability, improved reliability, and long-term performance assurance.
High brightness can instantly captivate attention & deliver content even under strong sunlight.

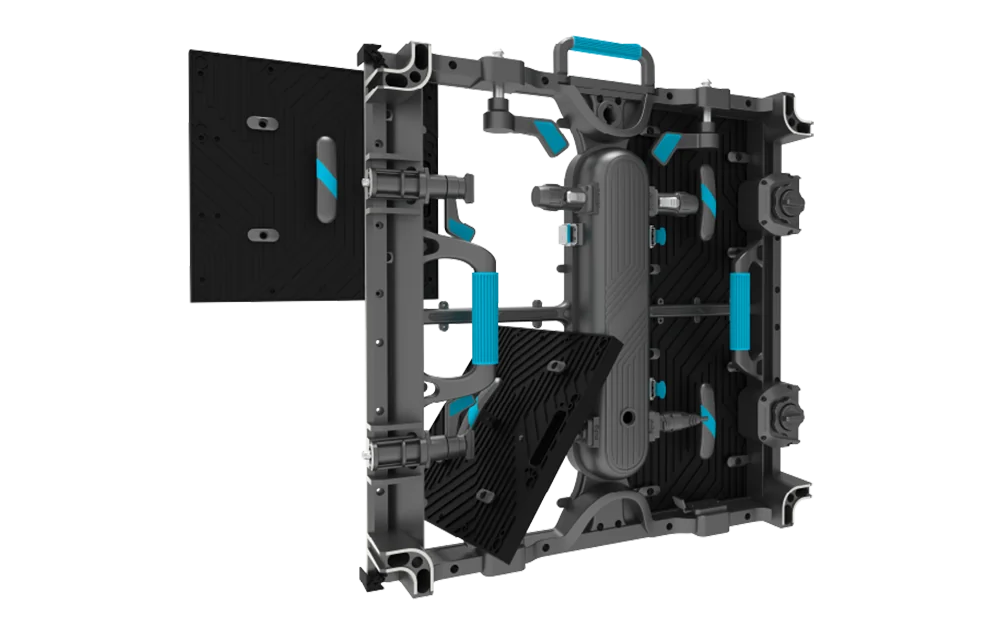

Dual service mode of front and rear design to save you Maintenance Time and Cost.

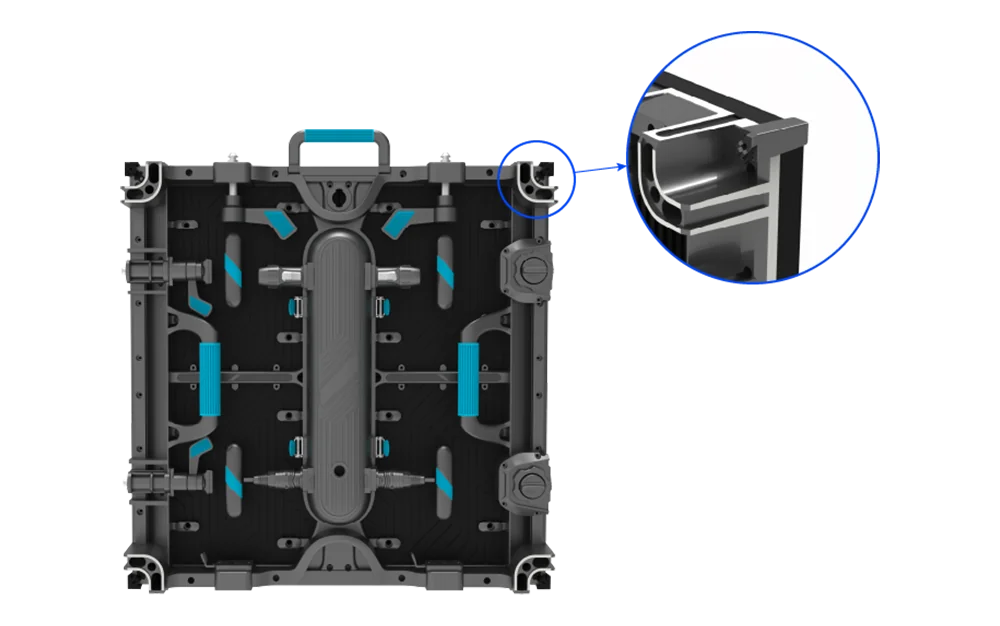

4 corner parts with corner protector to protect led panel during installation,disassembly and transportation.

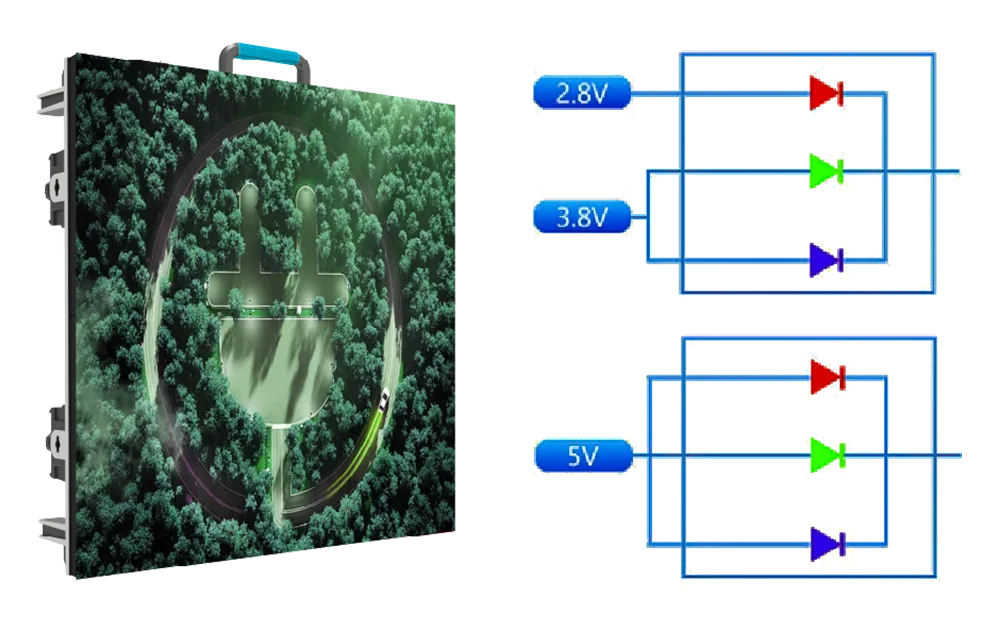

Common cathode design reduces heat generation and energy consumption, resulting in lower operating costs and environmental impact. The overall energy saving is 30%.

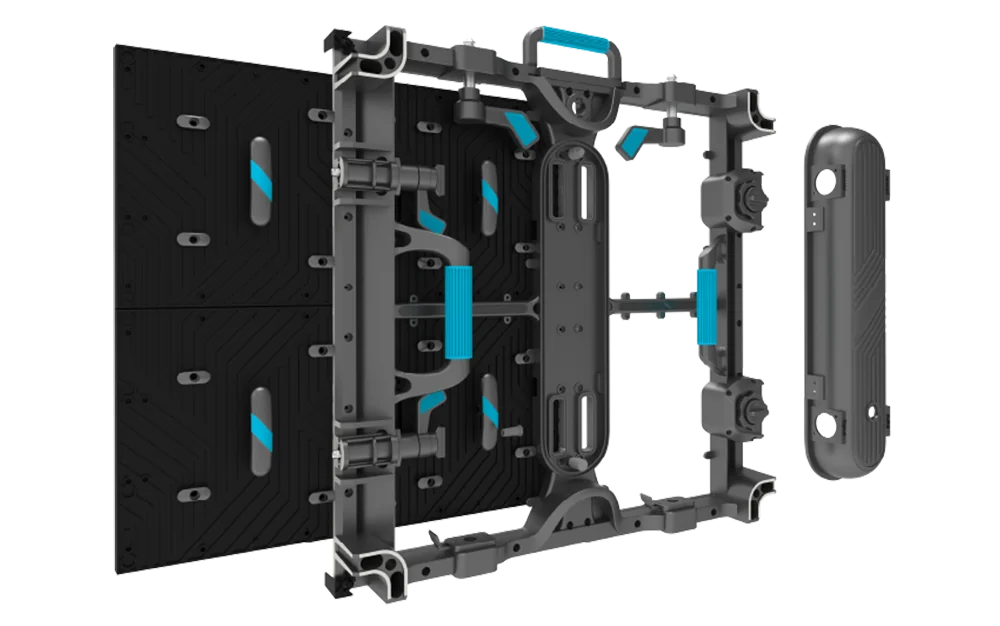

Decreasing the possibility of failure caused by cables, also makes the whole screen tidy and elegant appearance.
High refresh rate ensures ultra-smooth visuals, eliminates flicker, and delivers stable, camera-friendly performance for professional display applications.

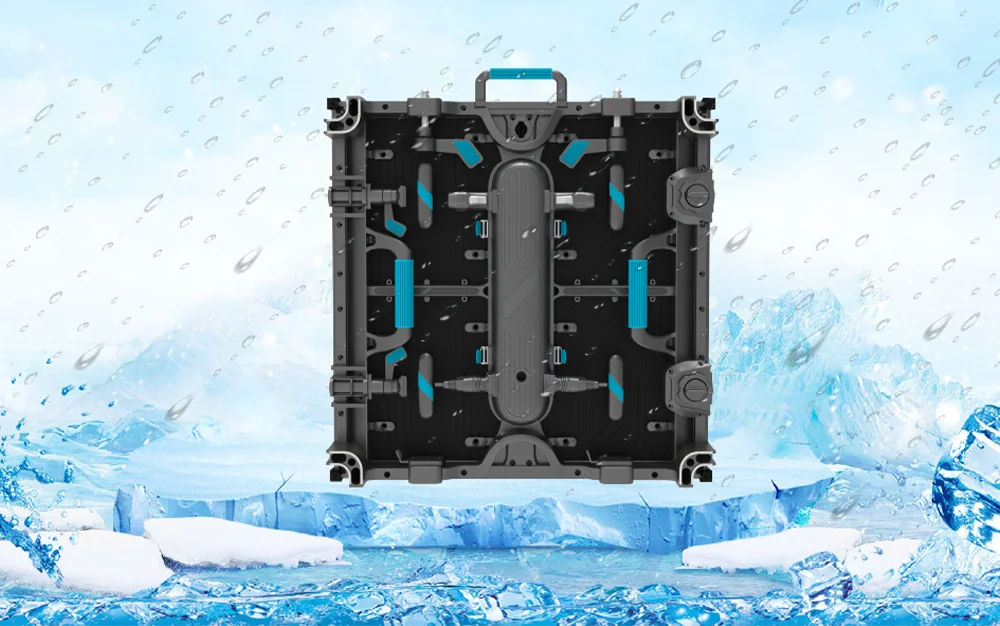

IP65 protection level ensures stable screen operation even in extreme weather: high temperature, low temperature, and high humidity.
| Model | P1.25 | P1.3 | P1.56 | P1.95 |
| Pixel Pitch(mm) | 1.25 | 1.3 | 1.5625 | 1.95 |
| Pixel Matrix Per Sq.m | 640,000 | 589,824 | 409,600 | 262,144 |
| Pixel Con guration | MIP0505 | MIP0606 | MIP0606 | MIP0606 |
| Scan | 1/25 | 1/24 | 1/20 | 1/16 |
| Grey Scale (bit) | 16 | 16 | 16 | 16 |
| Brightness (nits) | 4000 | 4000 | 4000 | 4000 |
| Power Con. (Max / Avg) | 800/200W | 800/200W | 800/200W | 800/200W |
| Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Module Dimension | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Cabinet Dimension | 500x500mm | 500x500mm | 500x500mm | 500x500mm |
| Cabinet Weight(kg/pcs) | 8kg | 8kg | 8kg | 8kg |
| Refresh Rate (HZ) | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Service Access | Front & Rear Maintanenance | Front & Rear Maintanenance | Front & Rear Maintanenance | Front & Rear Maintanenance |
| Viewing Angle (H/V) | 160/160 | 160/160 | 160/160 | 160/160 |
| IP Rate | IP65 | IP65 | IP65 | IP65 |
| Input Voltage (AC) | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz | AC100-240V, 50/60Hz |
| Operation Temperature | ﹣10℃ ~ +60℃ | ﹣10℃ ~ +60℃ | ﹣10℃ ~ +60℃ | ﹣10℃ ~ +60℃ |
| Operation Humidity | 10%~85% | 10%~85% | 10%~85% | 10%~85% |
