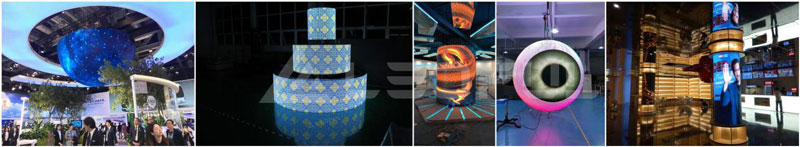

Cylinder Round Ring Square Column Rectangle 90°

The trend of The Times is that LED screen tends to be diversified modeling design, the first is the column design LED screen, based on the characteristics of LED, it has developed a 360 degree multi-screen LED screen with excellent display effect, to meet the pursuit of high quality screen.

LEDFUL-360-degree multi-screen column LED display has incomparable advantages over traditional flat-screen LED display, which can effectively expand the viewing space and display multiple pictures synchronously, completely eliminating the dead zone of viewing. It is the first choice for many occasions such as exhibition venues, indoor and outdoor advertising screens, airport stations and other public places.

Cylinder Round Ring Square Column Rectangle 90°

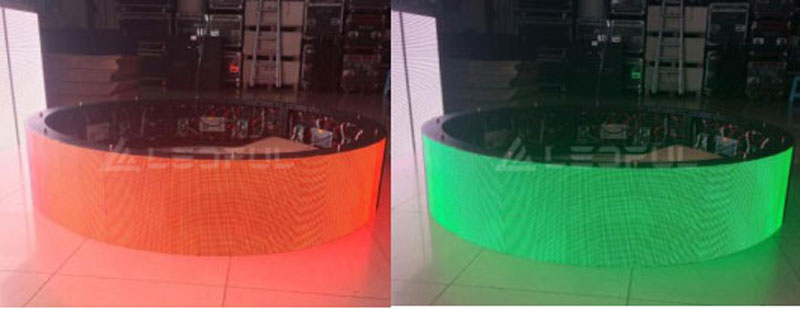

---Cylinder Round Ring Column Solutions
LEDFUL has developed our latest Flex Series for this type of solution, which mainly uses special modules for design and has high requirements on modules and manufacturers' industrial standards

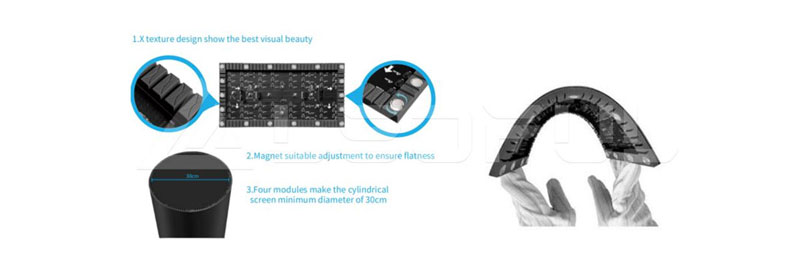

  • Product Selection solutions: LEDFUL Flex series
1. SYTECH PCB+special multi layers design,Compared with the traditional PCB material, the flexible FPC circuit board made of flexible insulating material has high compressive strength and anti-distortion ability.

2. Hollow carved magnet design can be adjusted. LEDFUL Magnetic column suction, installation is convenient and quick, but also easy to shape, magnetic suction installation and conventional indoor screen installation as simple, and Cabinet connecting line are connected by 1 to 1 joint, firm and reliable.

Product Selection solutions: LEDFUL Flex series

3. LEDFUL Rubber shell anti-static, best flatness and seamless, optimized bend angle -50° ~ 70°,  good ductility, can be arbitrary modeling, cylindrical screen with high brush performance, can be hoisted, mounted, mounted, and so on, with the maximum sound requirements.

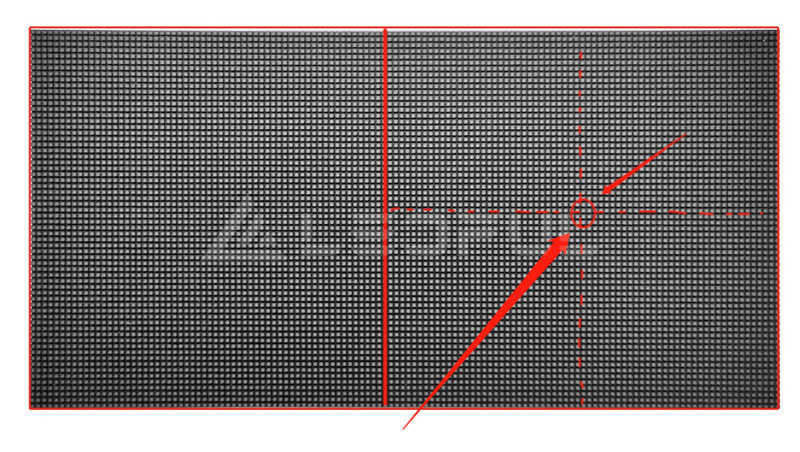

4. Convenient maintenance. It can hand-clasp. Neither the plate remover nor the vacuum remover will work on the cambered surface Way: Press hard on the quarter-point of the module

Product Selection solutions: LEDFUL Flex series
  • About the structure solutions
Usually on the market there will be a direct unit plate box production, micro radian splicing, but its disadvantage is that the unit plate joint interface is inevitable there will be slight edges, the transition is not so smooth. The larger the diameter, the slighter the convex edges. The smaller the diameter, the more obvious the edges. So we made special circular arc steel structure to make the appropriate box structure to solve this problem.

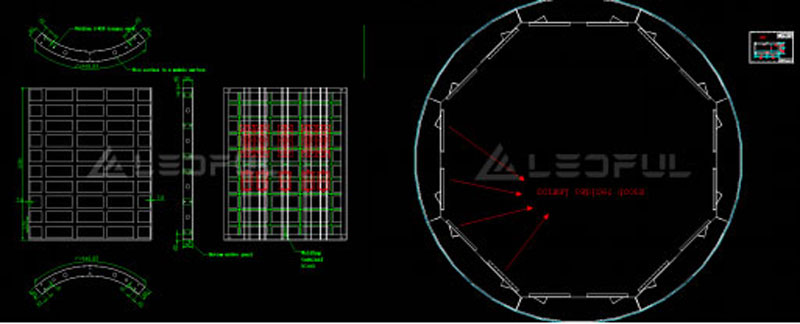

1. LED FLEX series.The structure price is included in the quotation, saving you the cost and time of local production. We will also make relevant CAD drawings for design reference

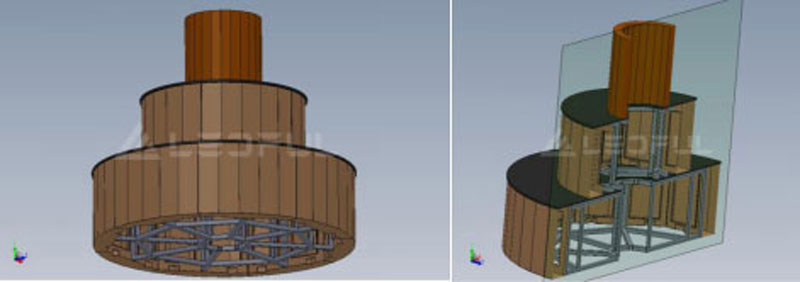

2.If the manufacturer's technology is not up to standard, the spliced LED screen will have many problems such as uneven appearance caused by large stitching gap and discontinuous splicing surface, which will affect the viewing effect and destroy the aesthetic feeling of the overall design. LEDFUL specializes in developing customized integrated release from design to simulation to solve the structural problems

About the structure solutions



---Square column 90 degree LED product solution

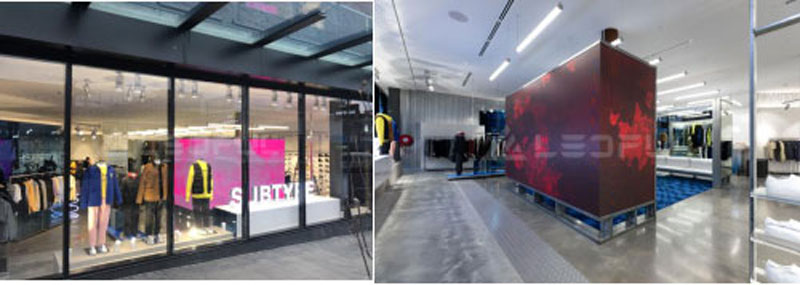

Compared with cylindrical product solutions, conventional rectangular columns pay more attention to structural breakthroughs and tend to users with special needs. At present, they are mainly used in performing arts venues, outdoor media, exhibition halls and squares. LEDFUL has developed a perfect cuboid scheme for this kind of market demand.

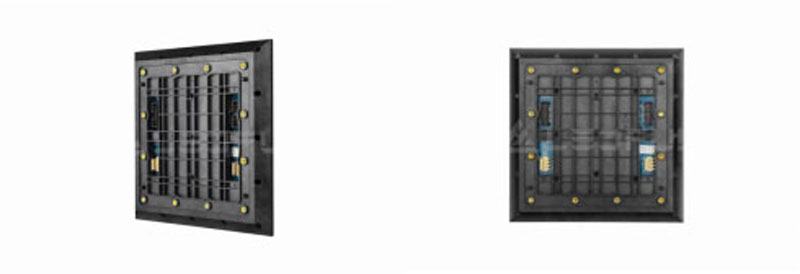

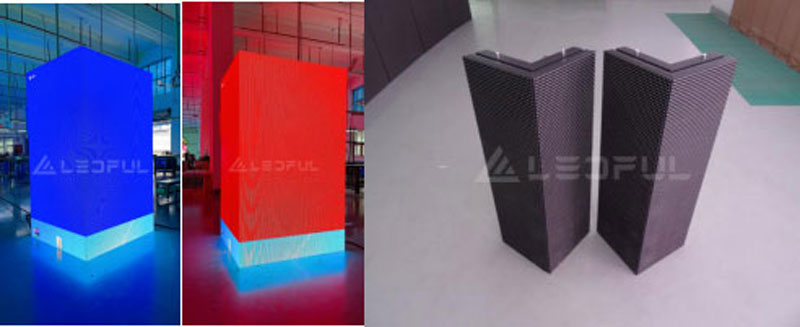

  • Product selection solution: IF/OF hypotenuse module
1. LEDFUL45 degree hypotenuse design,The right Angle stitching gap is less than 1mm, no obvious black edge after lighting, to achieve the minimum gap between the surface of the perfect connection, get rid of the traditional flat screen look and feel

Cylinder Round Ring Square Column Rectangle 90°

2. 90-180 degrees multi-angle stitching, display unit process to meet: fine, smooth, strong, integrated design, easy to install, disassemble and live maintenance, 10 years of mechanical strength is not less than 70%.

Product selection solution: IF/OF hypotenuse module



3. The exterior material has good stability, with anti-flame, anti-uv, anti-oxidation, anti-corrosion, not easy to rust and other characteristics. The structure and packaging process, the outdoor screen as a whole reaches the protection grade of IP65, waterproof and prevent moisture from entering.

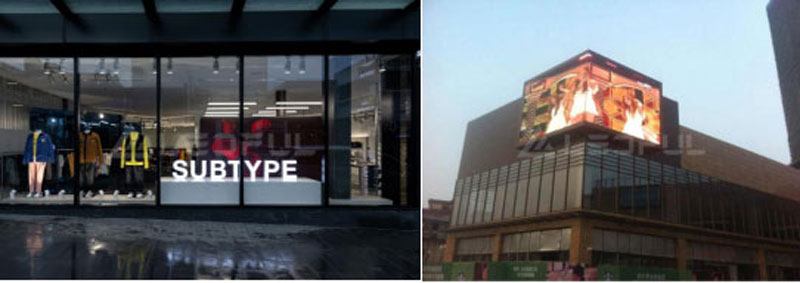

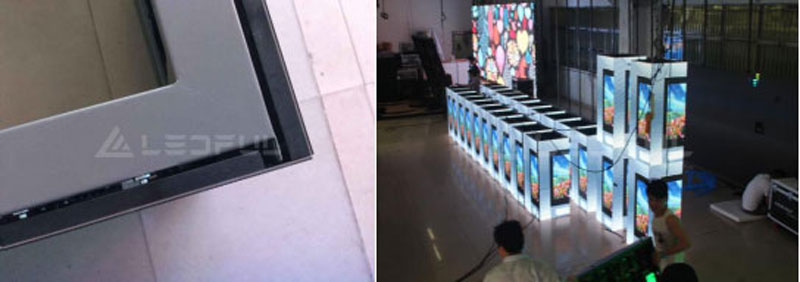

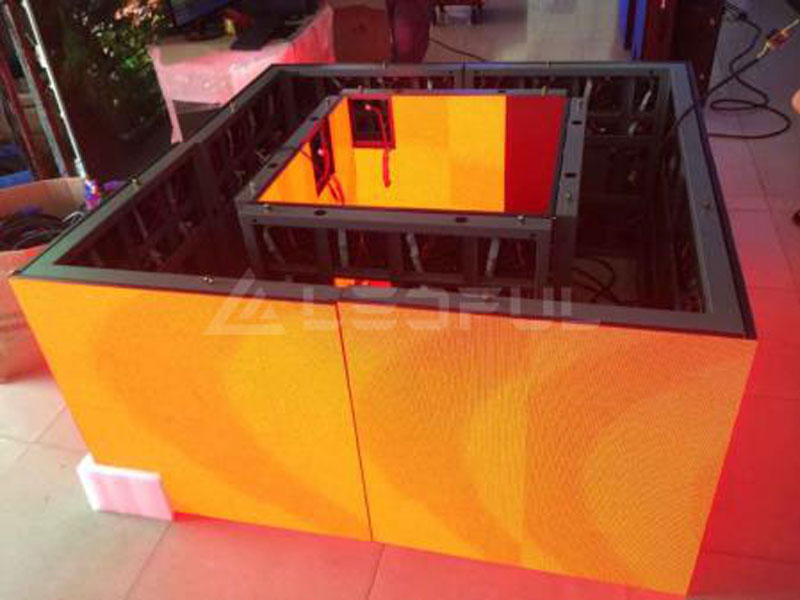

  • About the structure solutions
1. The internal design has an independent heat dissipation cycle, the component material has good thermal conductivity, heat dissipation design can ensure the balance of the internal and external environment temperature of the display unit, to ensure the stable operation of the display unit system.

About the structure solutions



2. Display unit is controlled independently, single point of failure does not affect the use of the whole screen, the unit supports electric plug, after the replacement of the unit through system correction, to ensure the uniformity of the display of the whole screen

About the structure solutions

3. The system adopts stable and mature technology construction, signal transmission adopts loop backup technology, so that the failure rate of signal transmission decreases with geometric base, so that the indoor and outdoor cylindrical screen can reach the highest 360 degree media surround playback.

About the structure solutions

--- LEDFUL Appreciation of relevant cases

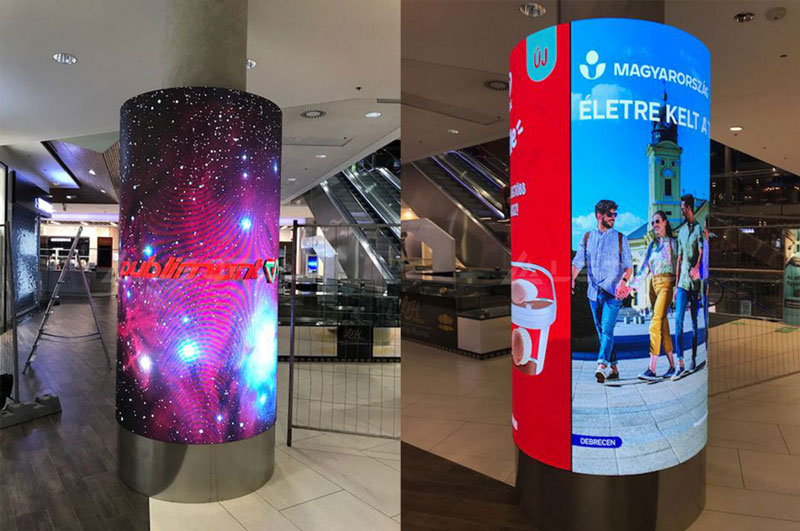

Case 1 : Cylinder Round column case at Shopping mall in Hungary

LEDFUL Appreciation of relevant cases

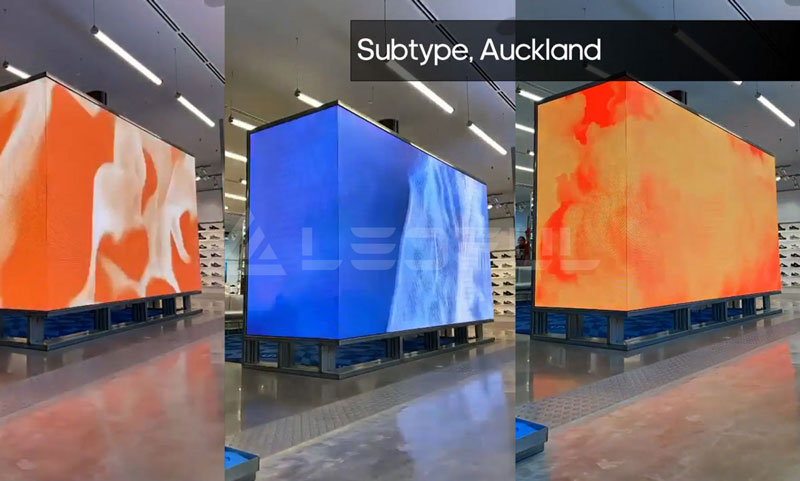

Case 2 : Square Column Rectangle 90° case at Auckland Airport in New Zealand

LEDFUL Appreciation of relevant cases
