Face-shaped Series

Flexible and Creative LED Display

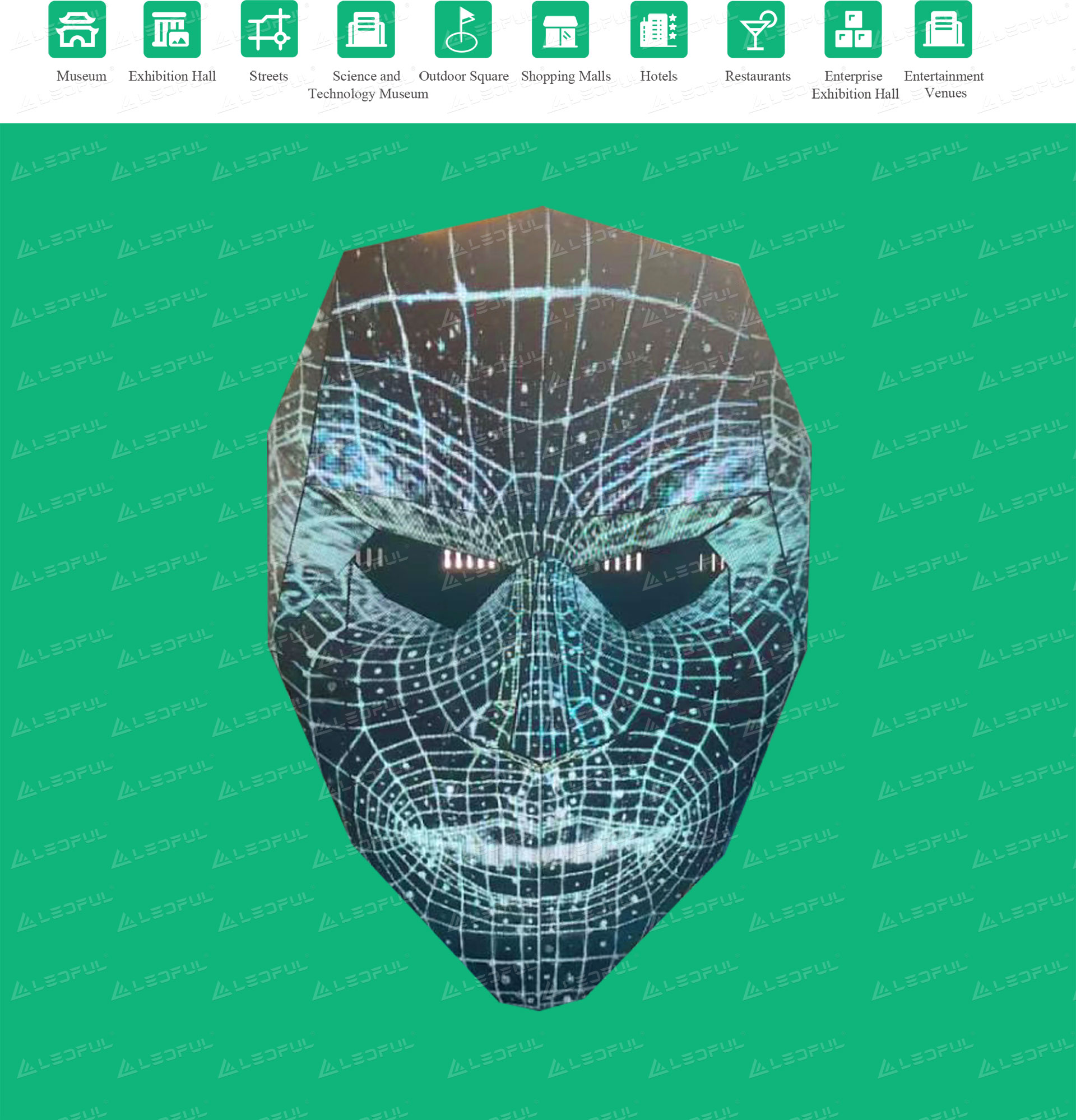

Applications
Applications
Specification
Model P4
Pixel Pitch 4mm
Pixel Configuration SMD2121
Pixel Matrix Per Sqm. 62500dots/㎡
Scan 1/16
Module Dimension Customized
Viewing Angle (H/V) H/160,V/140
Grey Scale (bit) 16 bit, 8192steps
Refresh Rate (HZ) ≥1920HZ
Service Access Front
Cabinet Material Iron
Input Voltage (AC) 100V or 240V
Power Con. (Max) 2100w
Operation Temperature -25℃ to +70℃
IP Rate IP31
Input Way DVI HDMI Or WIFI  USB

* Specifications and photos are subject to change without prior notice.

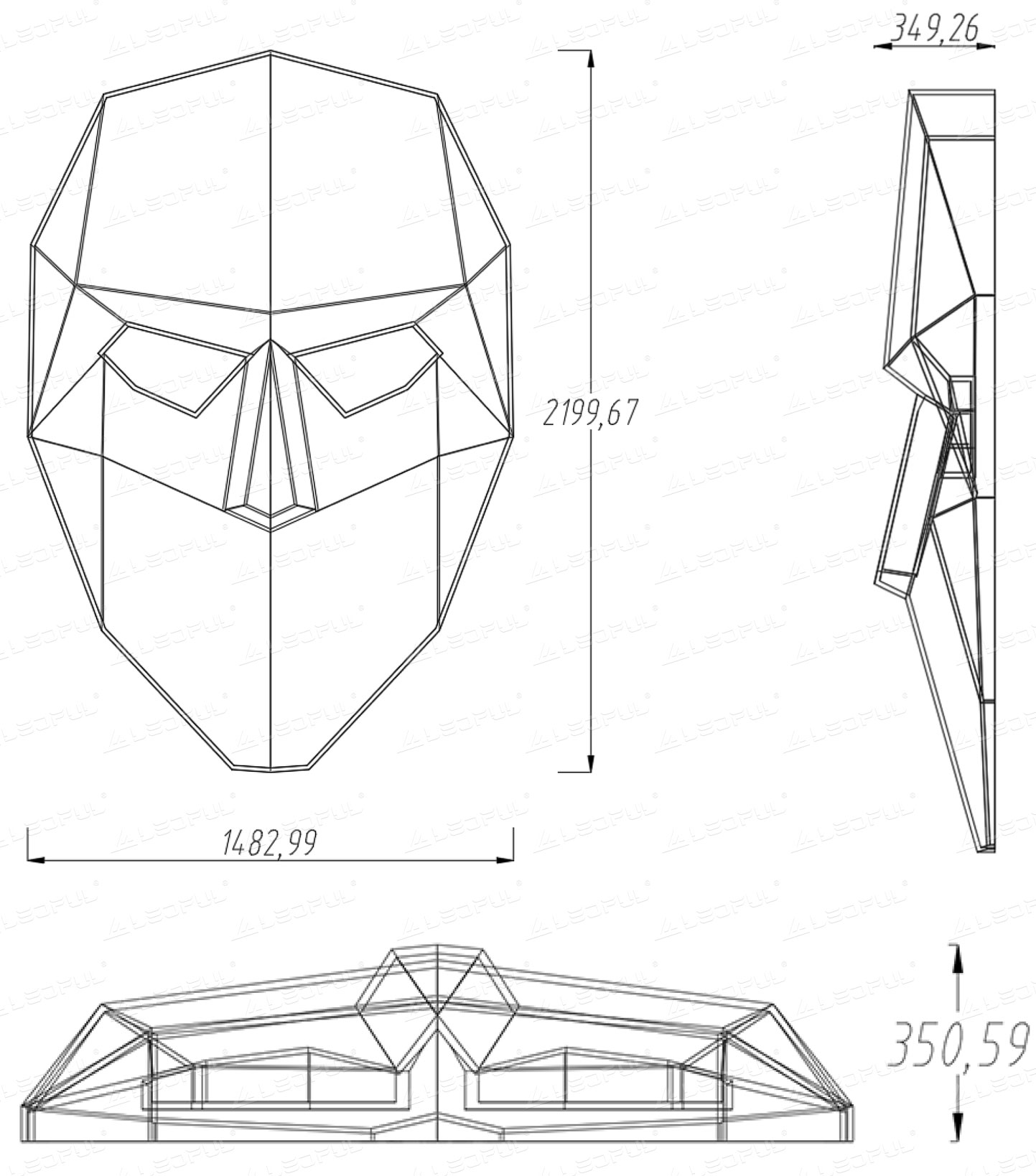

Creative Face Design with Customized Diameter
Creative Face Design with Customized Diameter

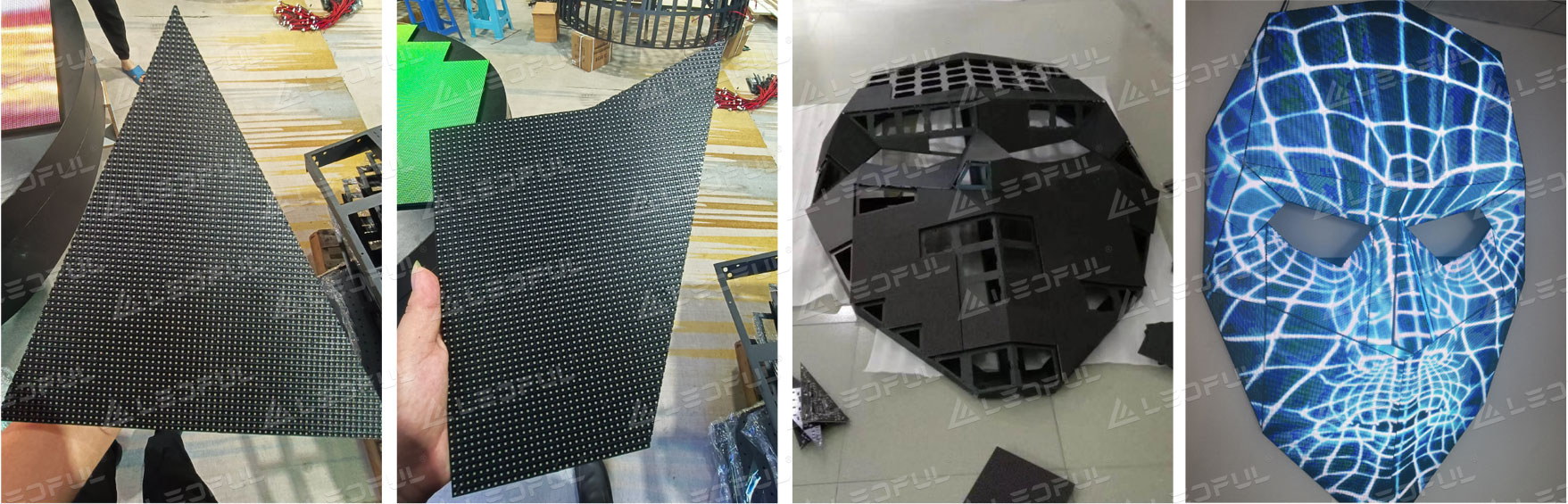

Different Modules Compose of the Face-Shape
Different Modules Compose of the Face-Shape

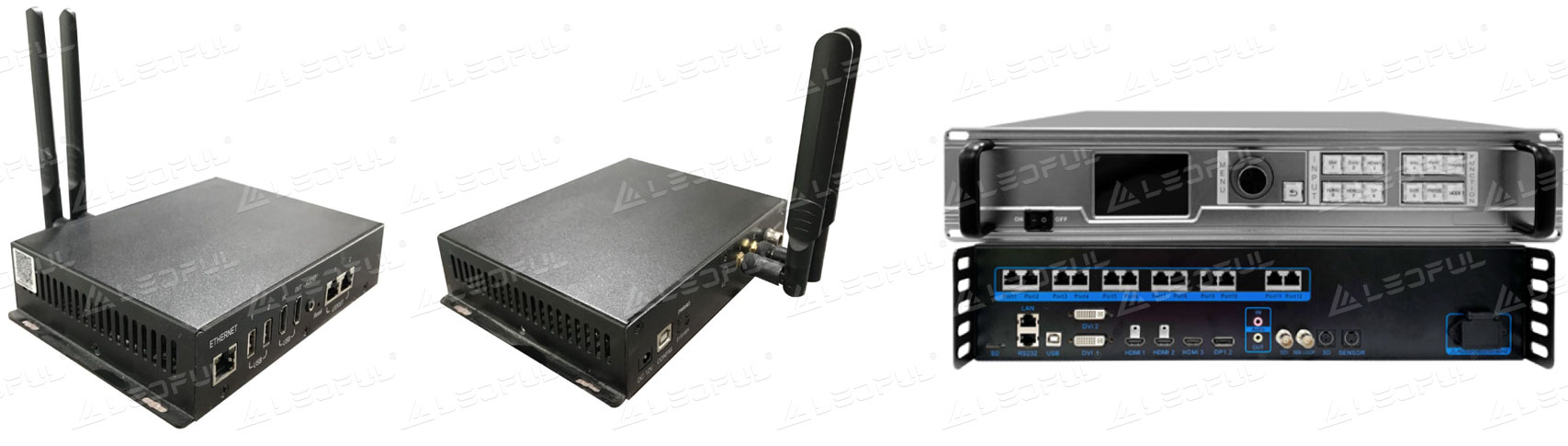

Control System
Control System

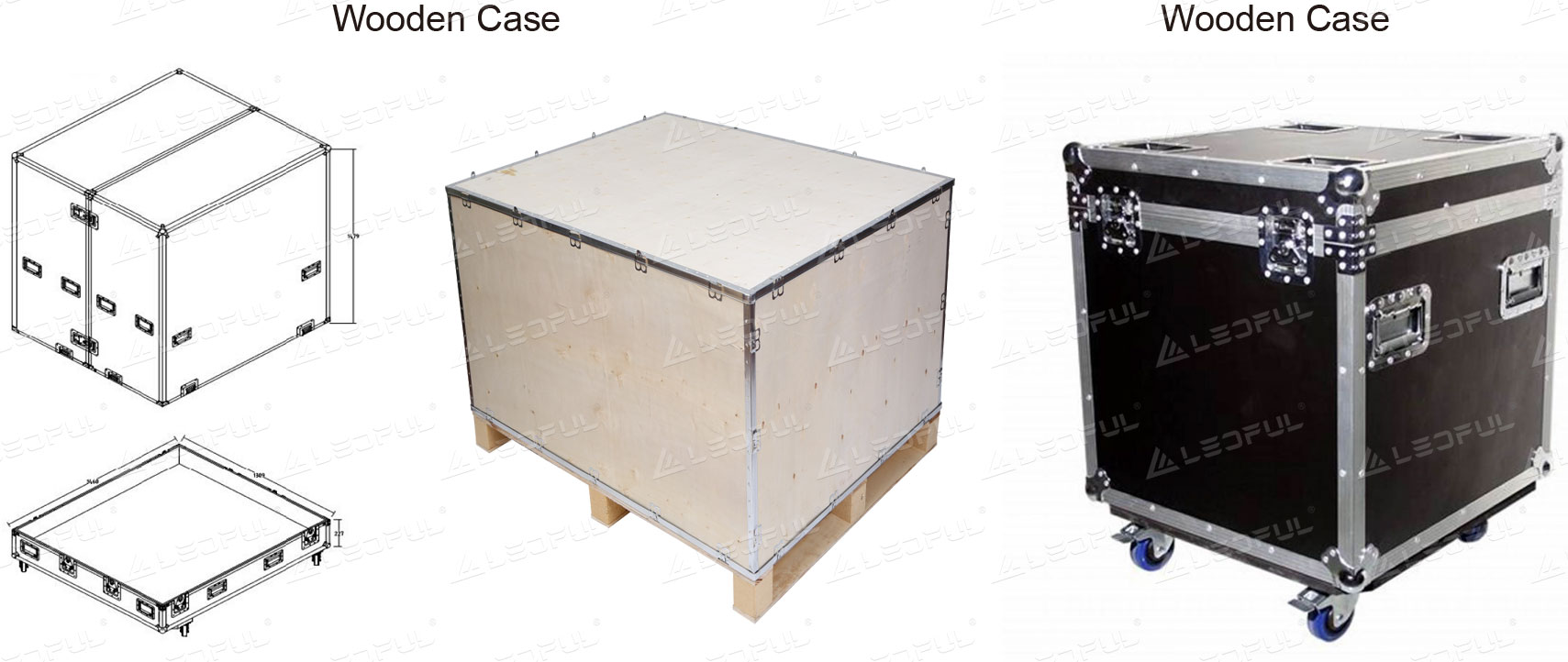

Different Kinds of Package for Goods
Different Kinds of Package for Goods

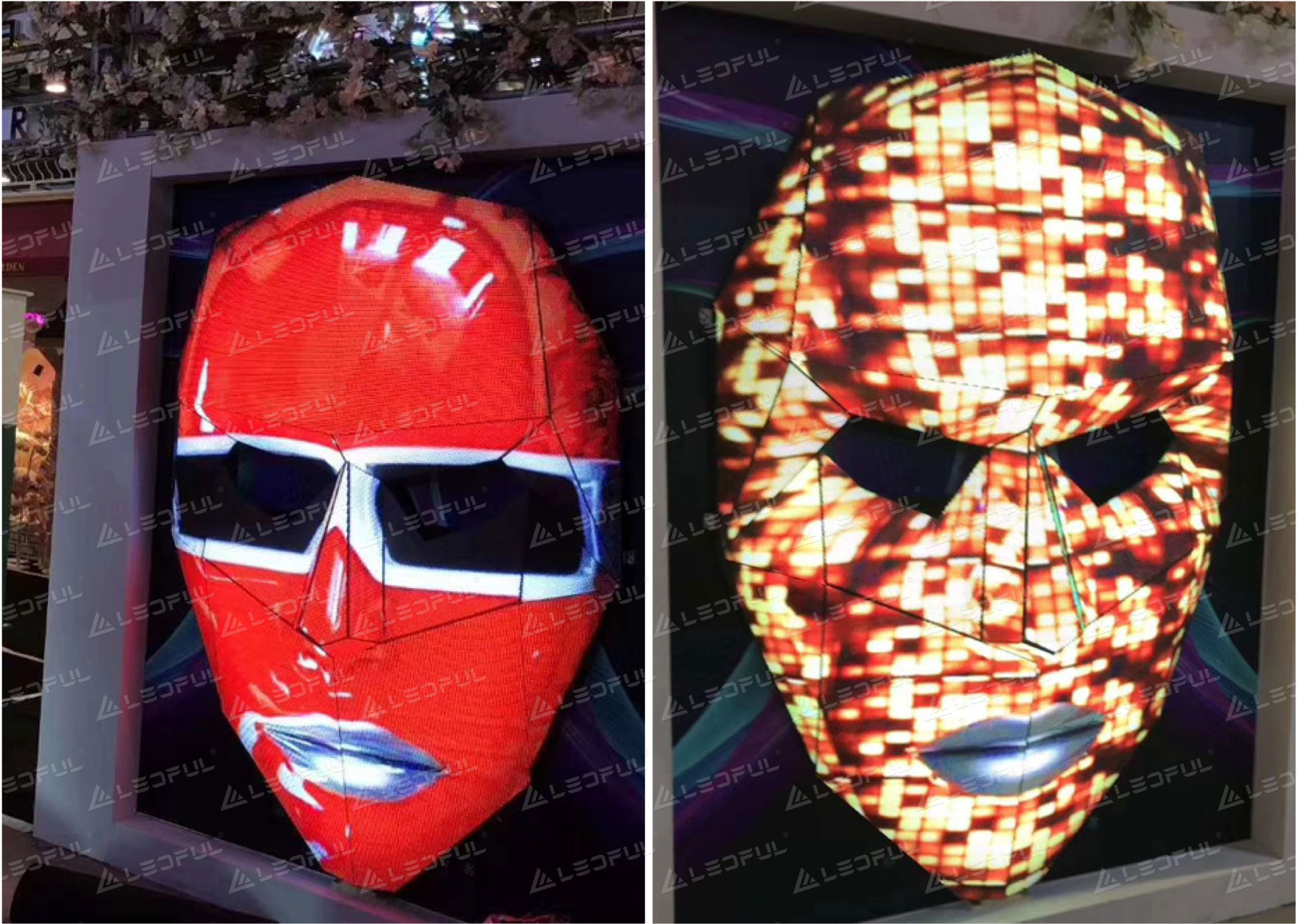

Typical Project
Typical Project
Features
Features
