TPoster Series

Transparent Poster Window LED Display

Applications
Applications
Parameter
Model TPoster1.9-1800 TPoster1.9-3000 TPoster2.8 TPoster3.1 TPoster3.9-3500 TPoster3.9-5500
Pixel Pitch(mm) H1.9-V3.9 H1.9-V3.9 H2.8-V5.6 H3.1-V3.1 H3.9-V7.8 H3.9-V7.8
Pixel Matrix Per Sq.m 129,024 129,024 61,952 104,058 32,768 32,768
Pixel Configuration SMD1515 SMD1415 SMD1921 SMD1921 SMD1921 SMD1921
Brightness (nits) 1800 3000 4500 4500 3500 5500
Scan 1/14 1/14 1/16 1/16 1/8 1/8
Module Dimension 500x125mm
 / 1.64x0.41ft
500x125mm
 / 1.64x0.41ft
500x125mm
 / 1.64x0.41ft
500x125mm
 / 1.64x0.41ft
500x125mm
 / 1.64x0.41ft
500x125mm
 / 1.64x0.41ft
Screen Dimension 1000x2000mm
/ 3.28x6.56ft
1000x2000mm
/ 3.28x6.56ft
1000x2000mm
/ 3.28x6.56ft
1000x2000mm
/ 3.28x6.56ft
1000x2000mm
/ 3.28x6.56ft
1000x2000mm
/ 3.28x6.56ft
Cabinet Resolution 504x128 504x128 352x88 320x320 256x64 256x64
Transparency 30% 30% 50% 60% 70% 70%
Cabinet Material CNC Aluminum CNC Aluminum CNC Aluminum CNC Aluminum CNC Aluminum CNC Aluminum
Cabinet Weight 30kg 30kg 30kg 30kg 30kg 30kg
Power Con. (Max / Avg) 800 / 360 w/sqm 800 / 360 w/sqm 1600 / 720 w/sqm 1600 / 720 w/sqm 800 / 360 w/sqm 1600 / 720 w/sqm
Service Access Front & Back Front & Back Front & Back Front & Back Front & Back Front & Back
Refresh Rate (HZ) 1920 1920 1920 1920 1920 1920
Viewing Angle (H/V) 160 / 160 160 / 160 160 / 160 160 / 160 160 / 160 160 / 160
IP Rate IP24 IP24 IP24 IP24 IP24 IP24
Operation Temperature -40° ~ 45° -40° ~ 45° -40° ~ 45° -40° ~ 45° -40° ~ 45° -40° ~ 45°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V

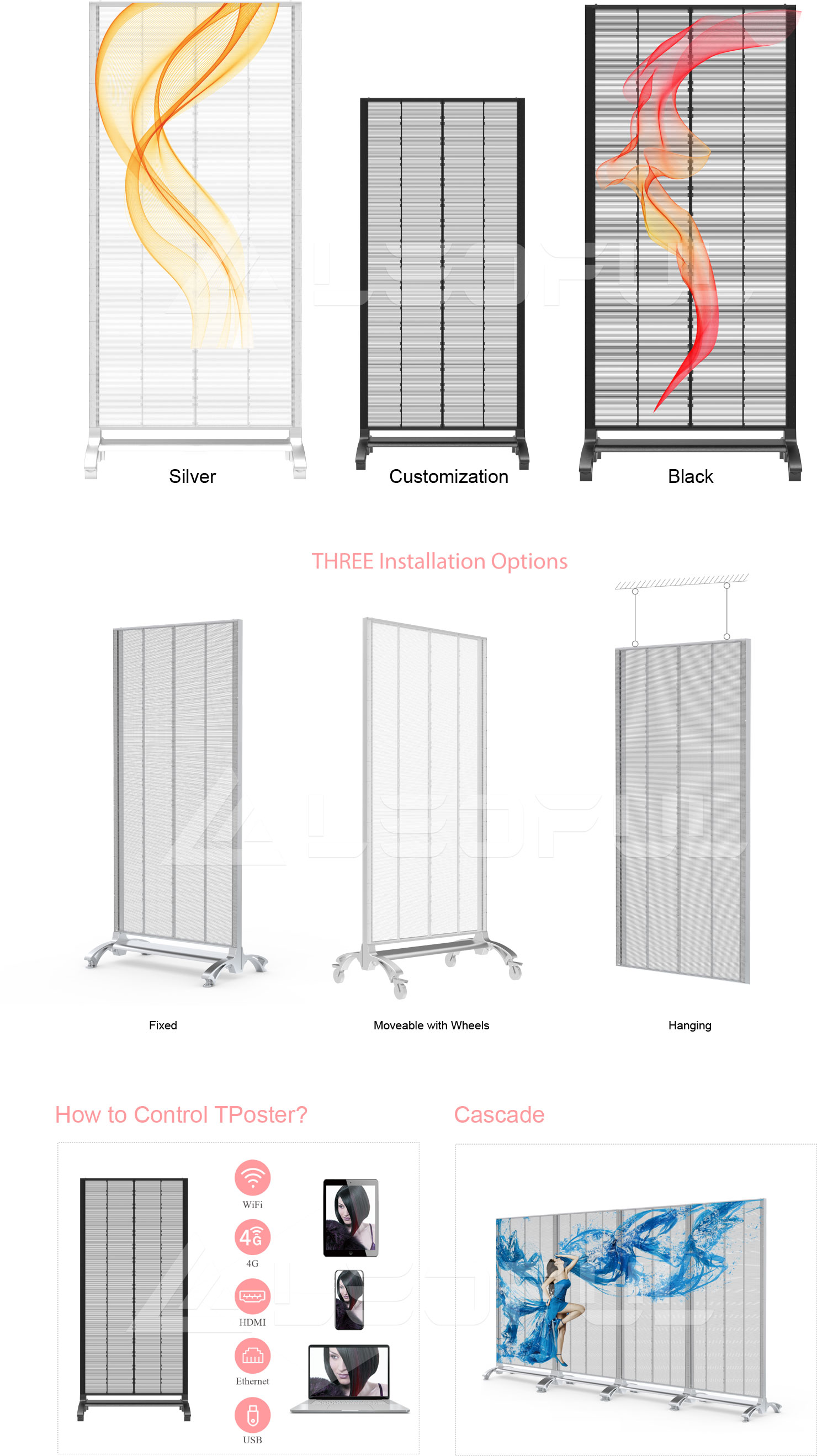

Color Options & Dimension Options
Color Options & Dimension Options

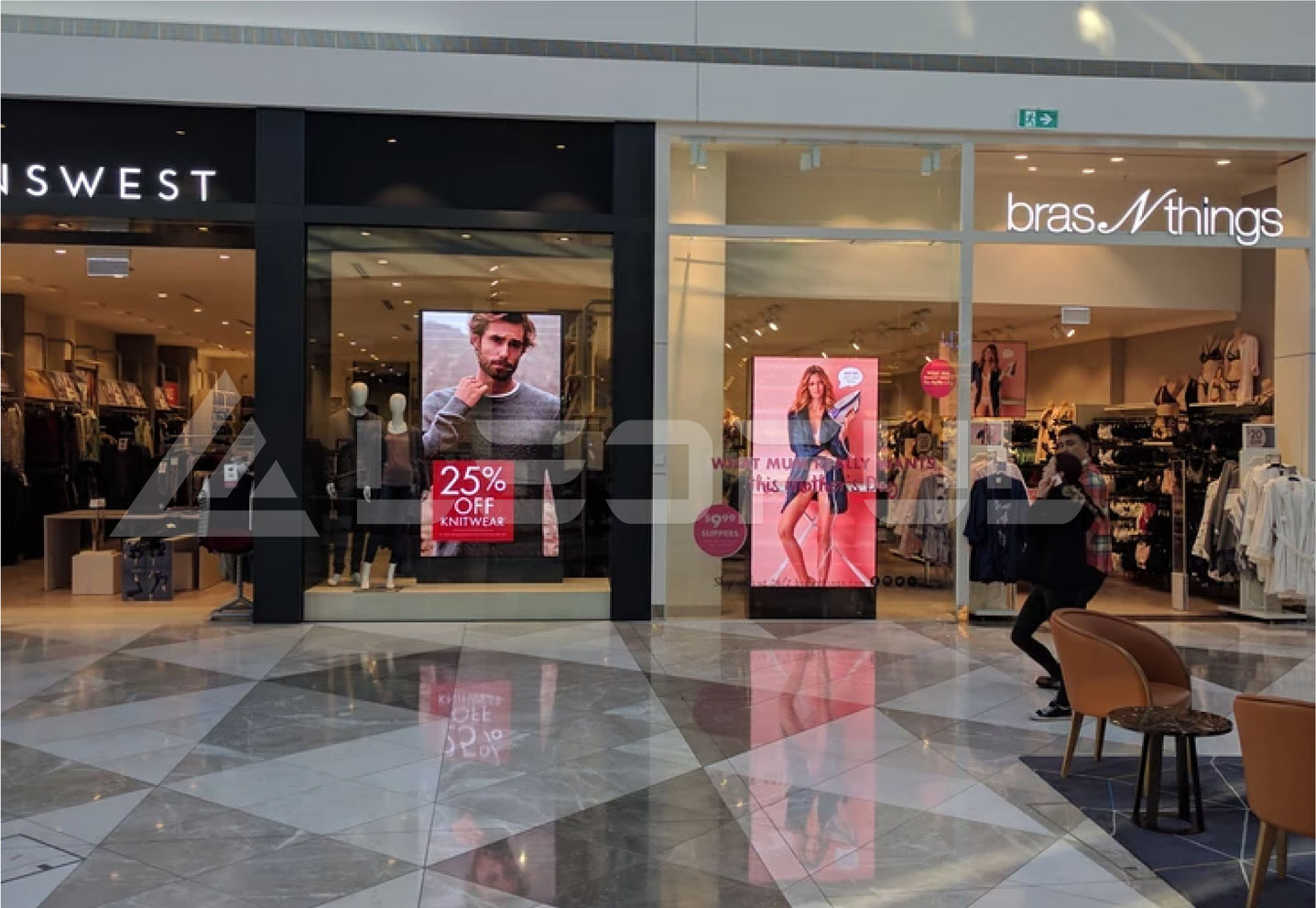

Project Case
Project Case
Features
Features
