BM Series

Indoor Full Front Service LED display

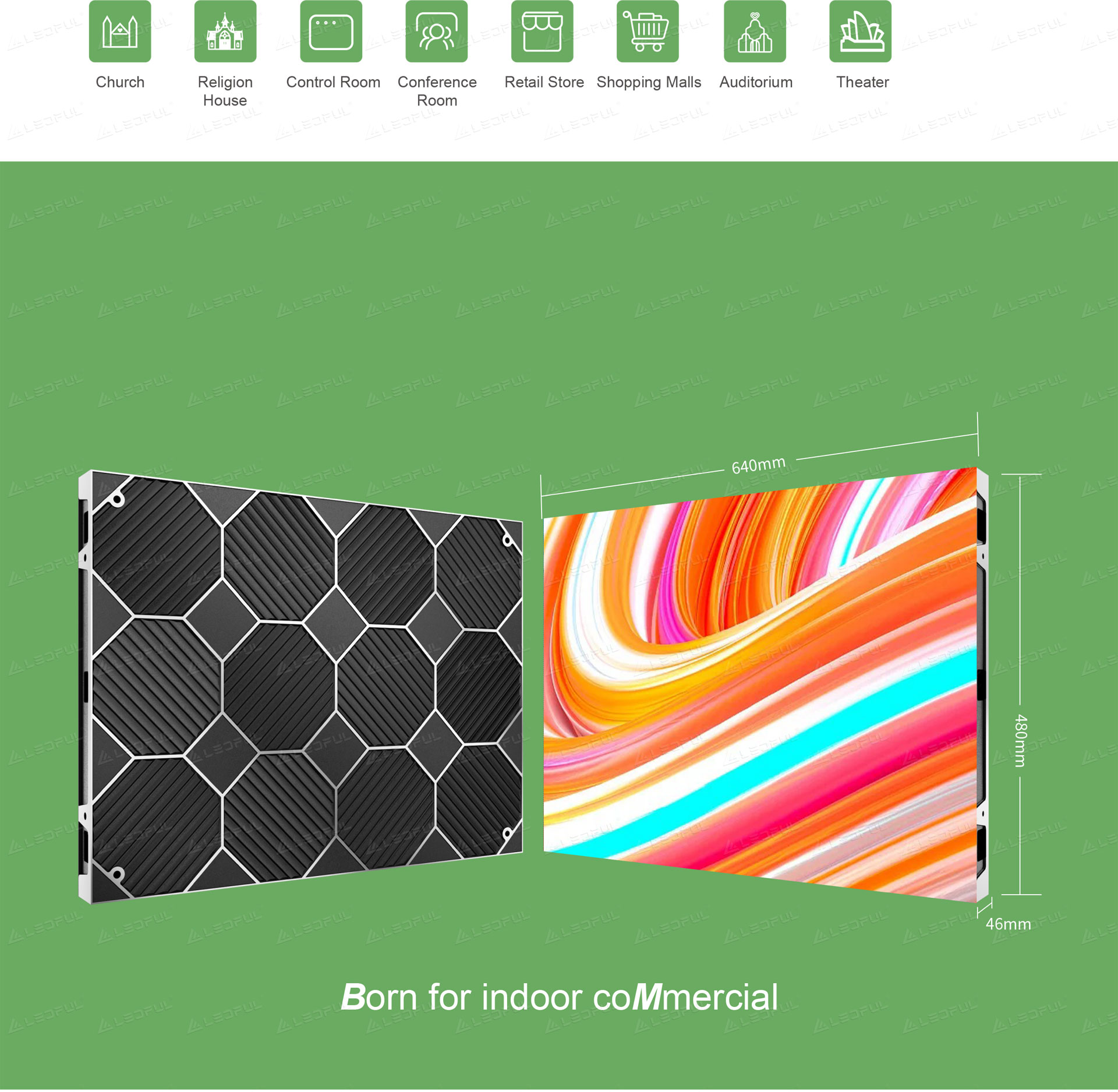

Applications
Applications Applications
Specification
Model BM1.2 BM1.5 BM1.6 BM1.8 BM2 BM2.5 BM3 BM4
Pixel Pitch(mm) 1.25 1.53 1.66 1.66 2 2.5 3 4
Pixel Matrix Per Sq.m 640000 422500 360000 360000 250000 160000 90000 62500
Pixel Configuration SMD1010 SMD1212 SMD1212 SMD1212 SMD1515 SMD1515 SMD2121 SMD2121
Brightness (cd/㎡) 500-900 500-900 500-900 500-900 500-900 500-900 500-900 500-900
Scan 1/64 1/52 1/48 1/48 1/40 1/32 1/24 1/20
Module Dimension 320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
320x160mm
/ 1.05x0.53ft
Cabinet Dimension 640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
640x480mm
/ 2.10x1.57ft
Cabinet Resolution 512x384 415x312 384x288 344x258 320x240 256x192 192x144 160x120
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum / Die Casting Aluminum
Cabinet Weight 7KG 7KG 7KG 7KG 7KG 7KG 7KG 7KG
Power Con.(W/㎡)
(Max / Avg)
600W/200W 600W/200W 600W/200W 580W/ 180W 580W/180W 550W/160W 450W/160W 450W/160W
Service Access Front Front Front Front Front Front Front Front
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥1920 ≥1920 ≥1920
Grey Scale (bit) 14 14 14 14 14 14 14 14
Viewing Angle (H/V) 160°/160° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
IP Rate IP45 IP45 IP45 IP45 IP45 IP45 IP45 IP45
Operation Temperature -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃ -20℃ ~ +80℃
Input Voltage (AC) 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V 110V / 220V

* Specifications and photos are subject to change without prior notice.

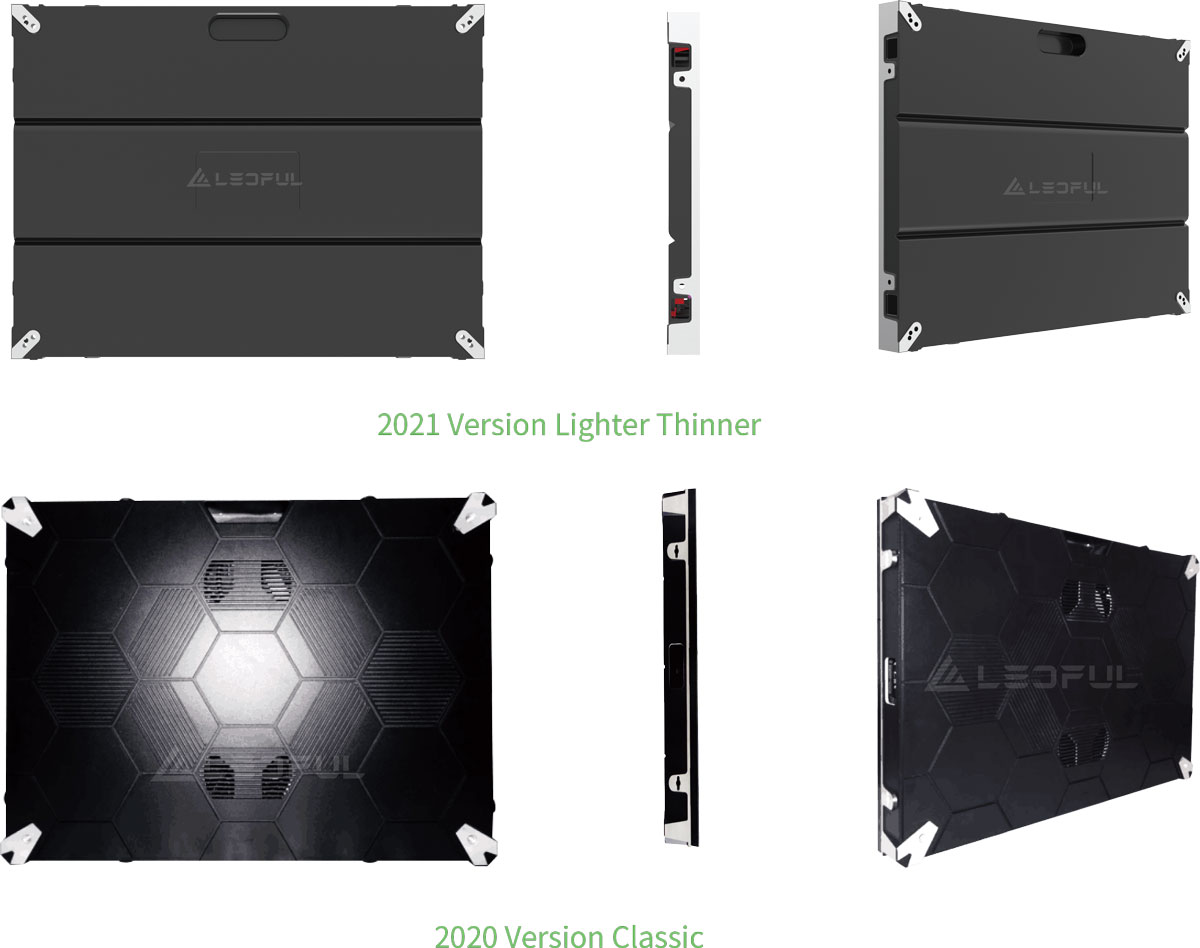

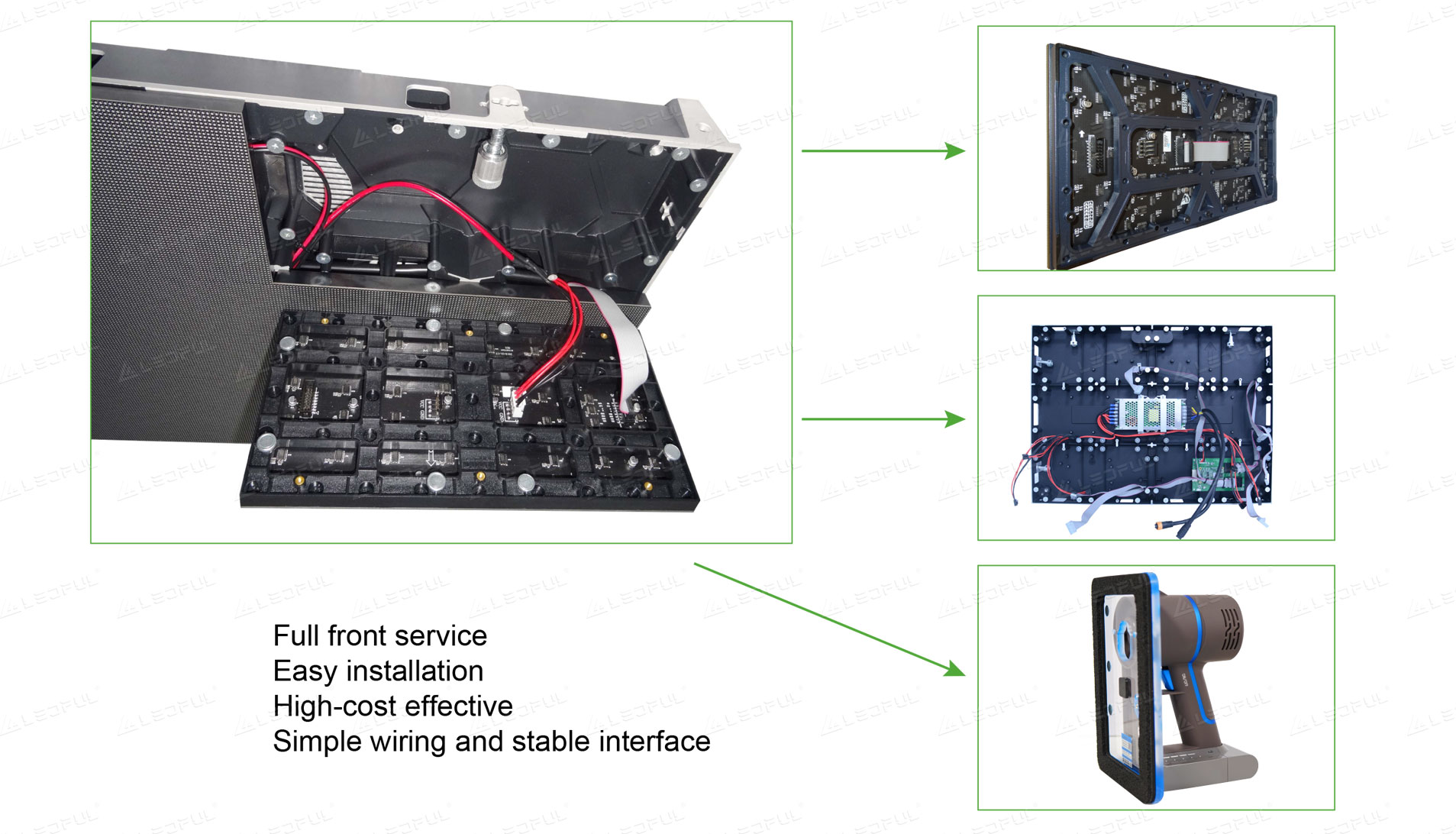

Different Cabinets Design
Different Cabinets Design

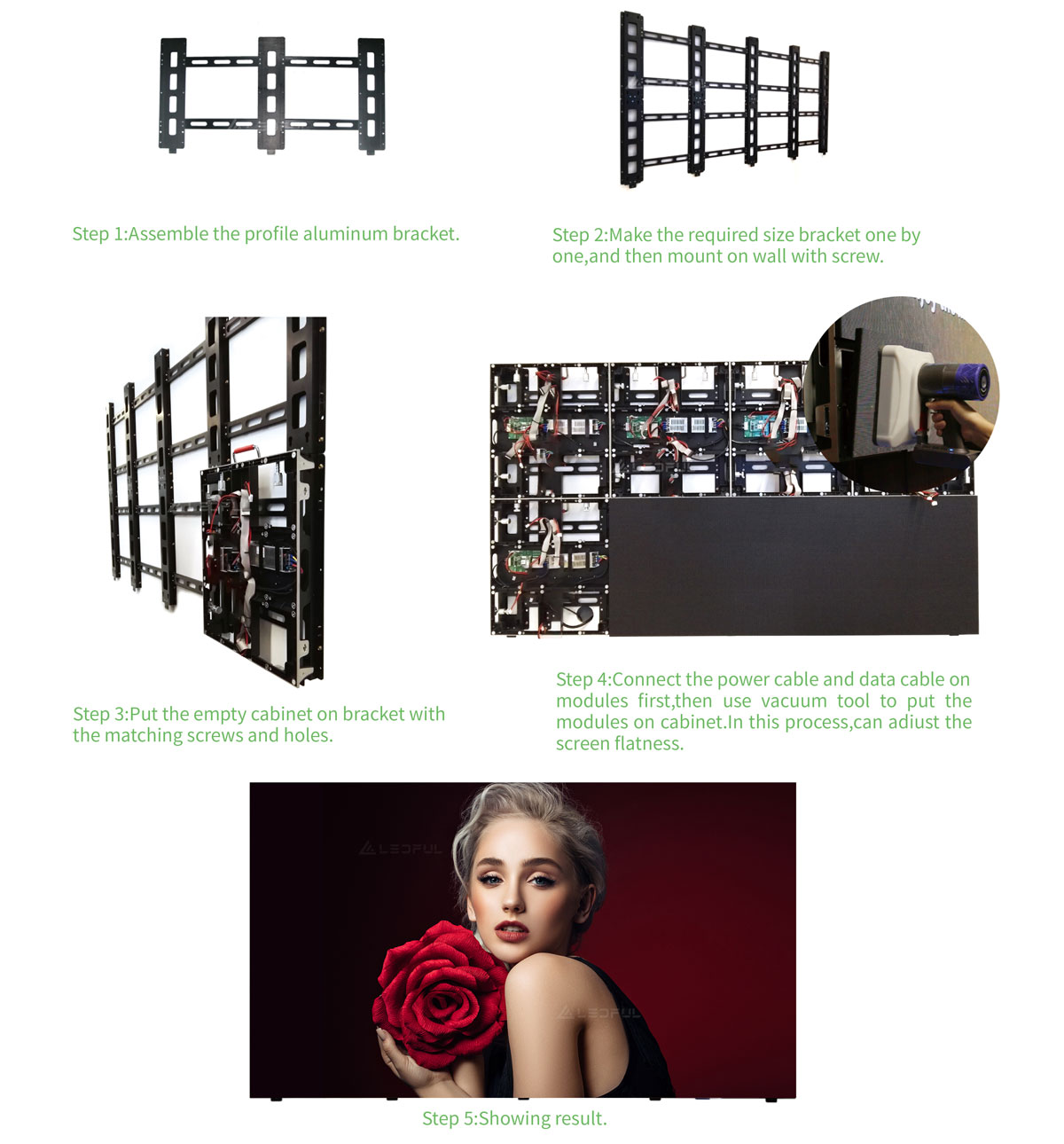

Easy Installation with LEDFUL Customized Bracket
Say NO to Local Structure

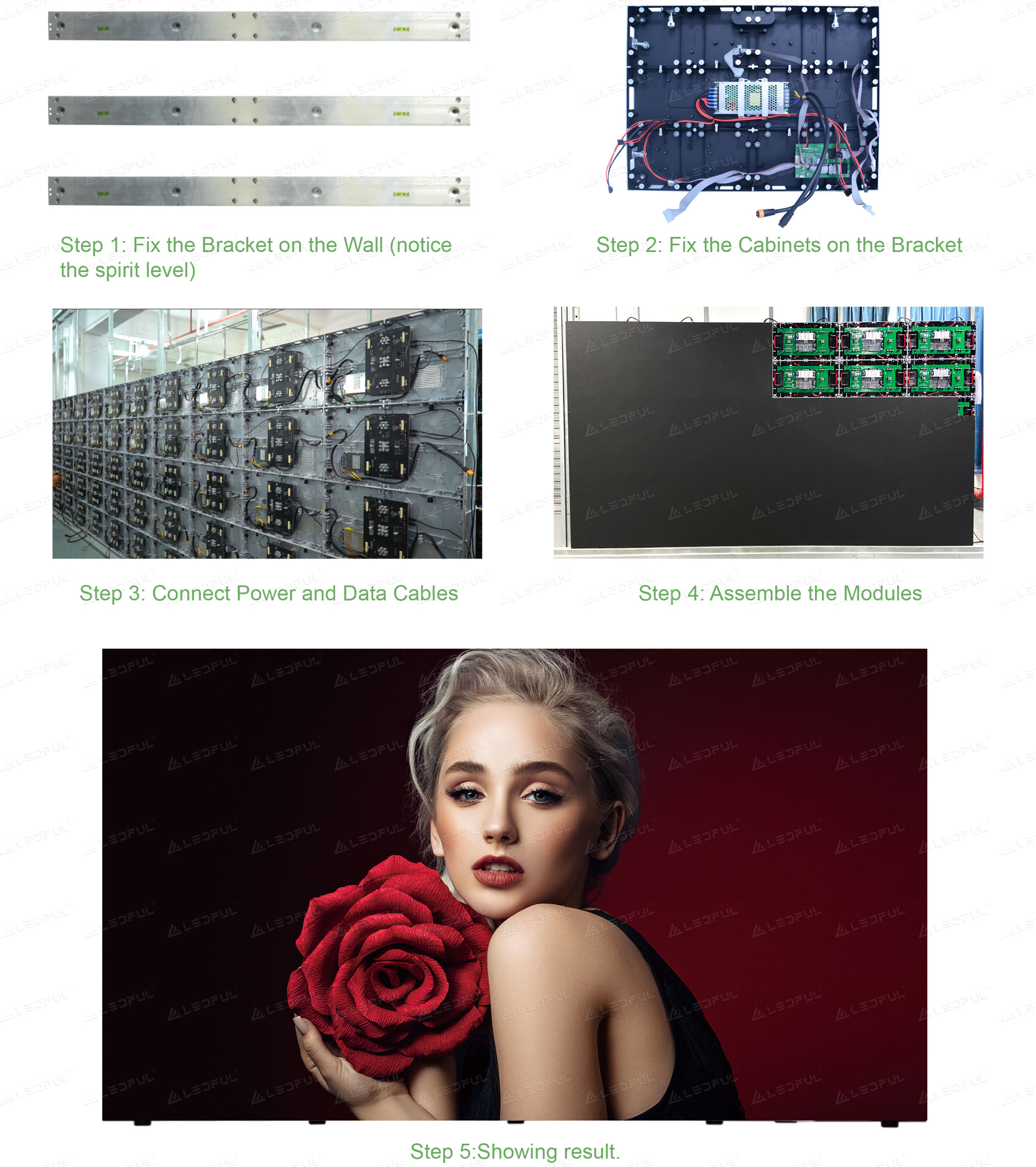

Easy Installation with LEDFUL Customized Bracket</br>Say NO to Local Structure

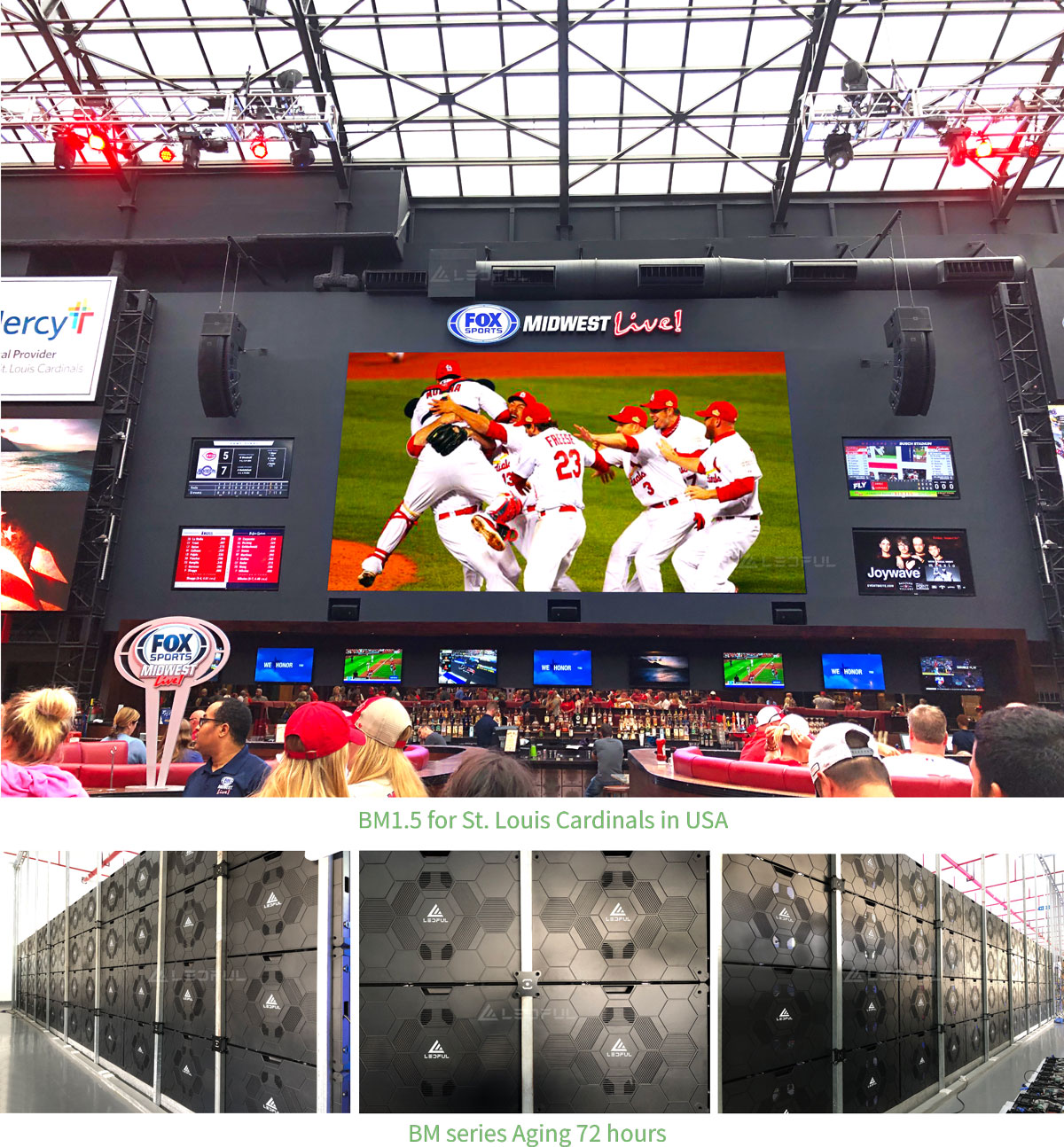

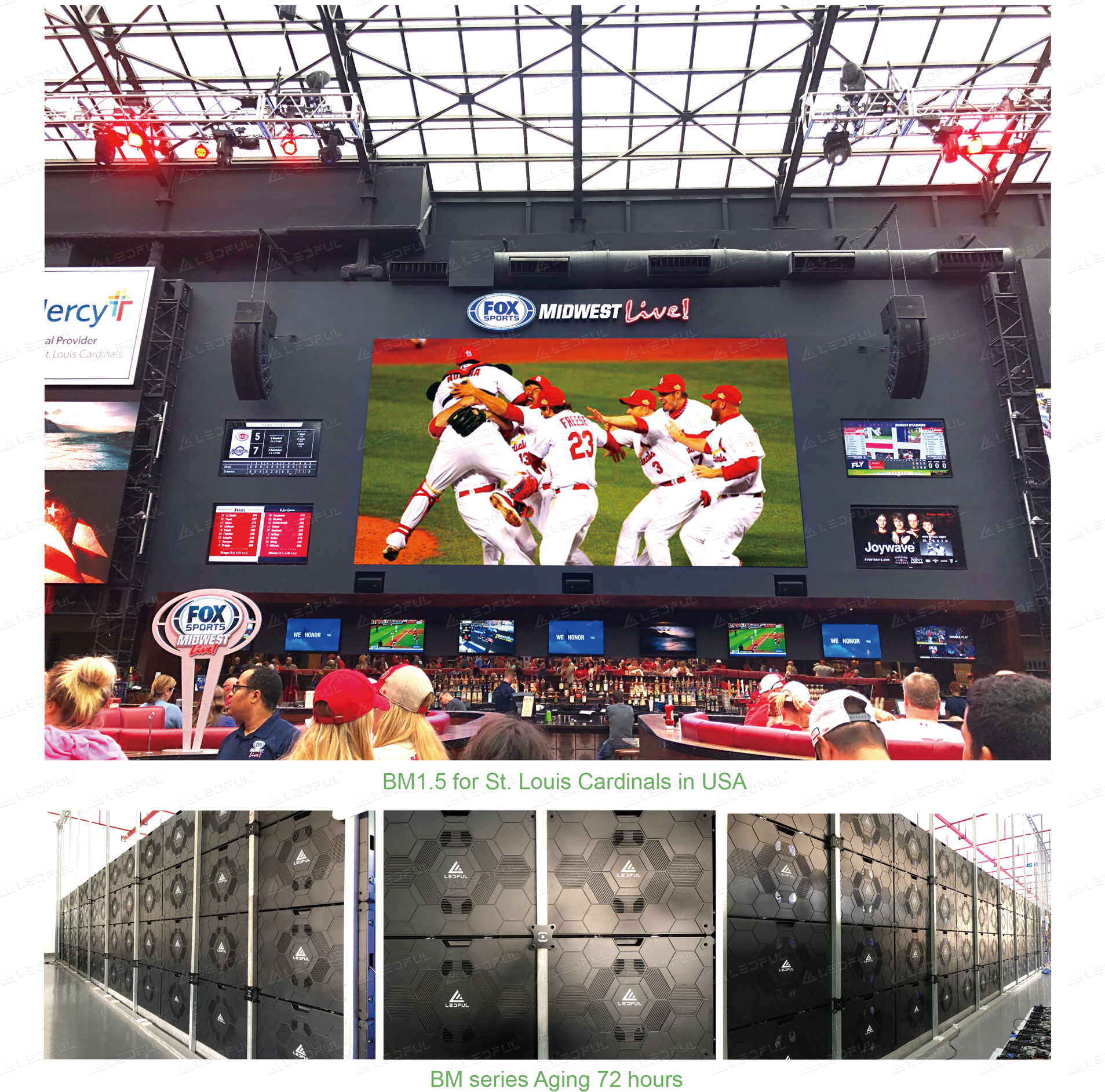

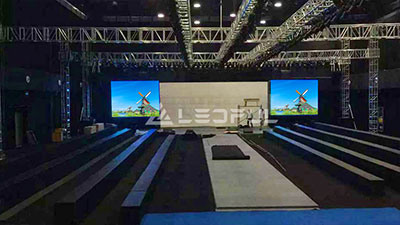

Typical Project
Typical Project
Features
Features
