FOOTBALL Series

Flexible and Creative LED Display

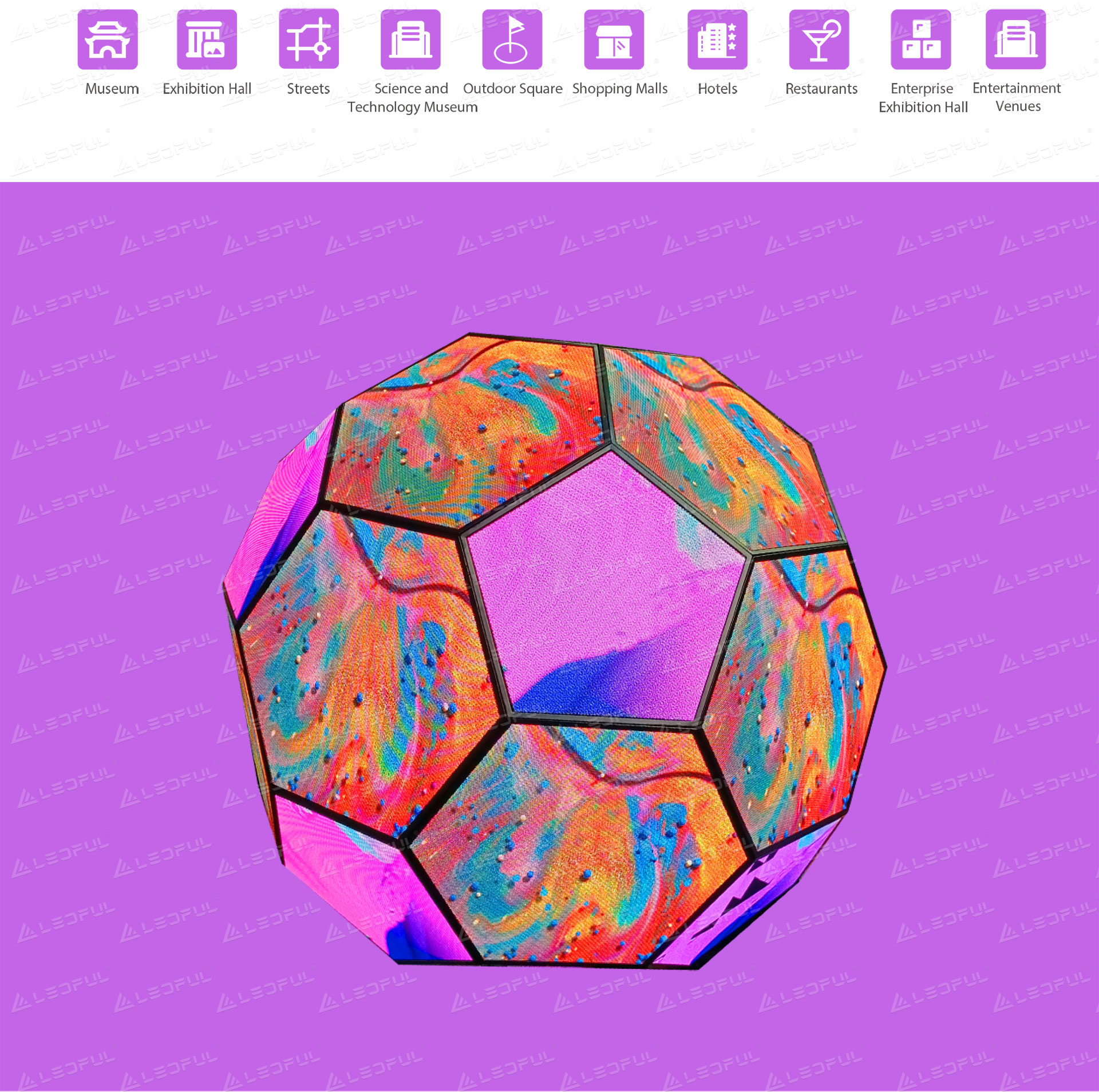

Applications
Applications
Specification
Model Indoor P2-FOOTBALL Outdoor P4-FOOTBALL Indoor P5-FOOTBALL
Pixel Pitch(mm) 2 4 5
Pixel Configuration SMD1515 SMD1921 SMD1921
Pixel Density(dots/m2) 250,000 62,500 40,000
Diameter (m) 2 Customzied 2.7
Best Viewing Distance 2-100m 4-100m 4-100m
Max. Consumption (KW) 2.1 4.5 2.1
Scan 1/40 1/16 1/16
Brightness (nits) 800 5000 900
Service Access Front Front Front
Cabinet Material  Iron Iron Iron
Viewing Angle (H/V) 160 / 140 120 / 120 160 / 140
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840
Grey Scale (Steps) 8192 16384 8192
IP Rate IP31 IP65 IP31
Operation Temperature -20° ~ 70° -20° ~ 60° -20° ~ 70°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V

* Specifications and photos are subject to change without prior notice.

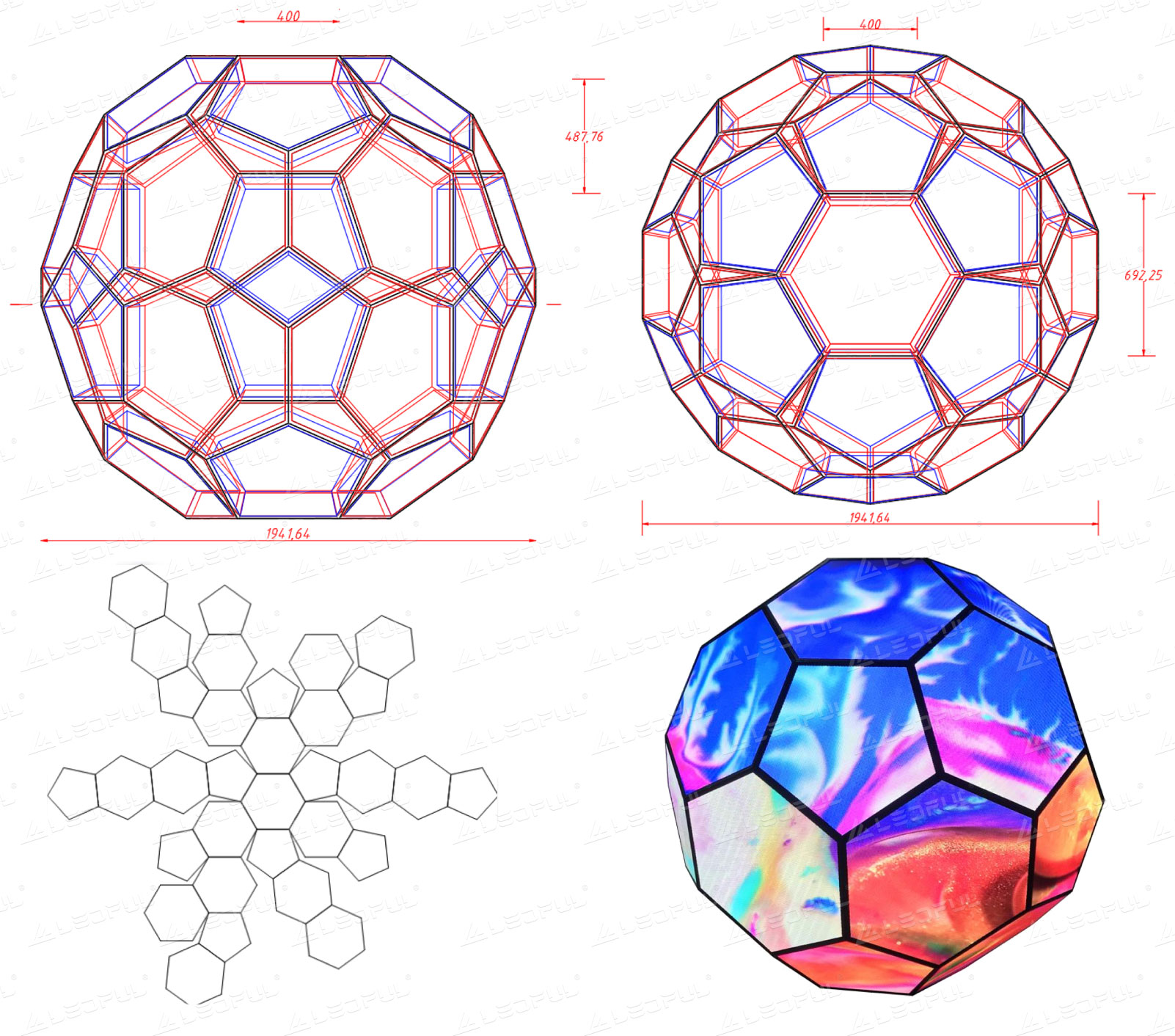

Creative Football Design with Customized Diameter
Creative Football Design with Customized Diameter

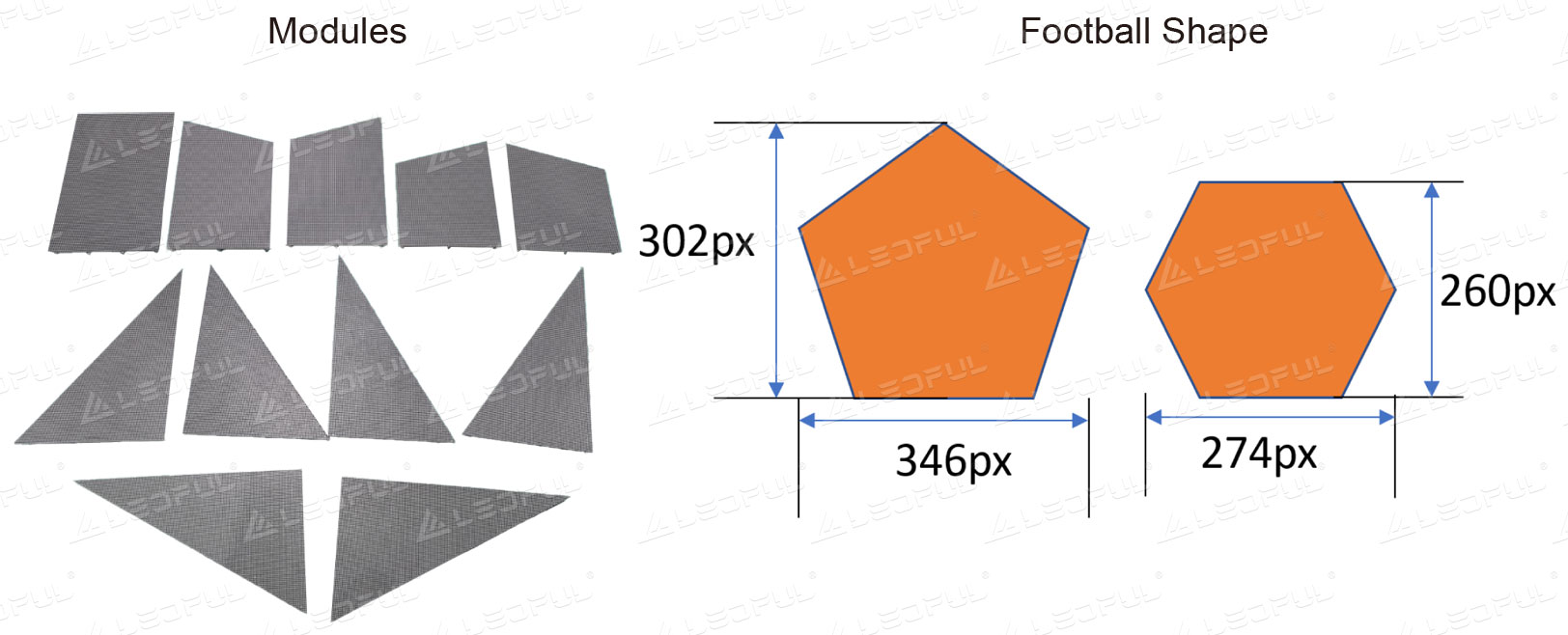

Different Modules Compose of the Football Shape
Different Modules Compose of the Football Shape
Different Kinds of Package for Goods
Different Kinds of Package for Goods

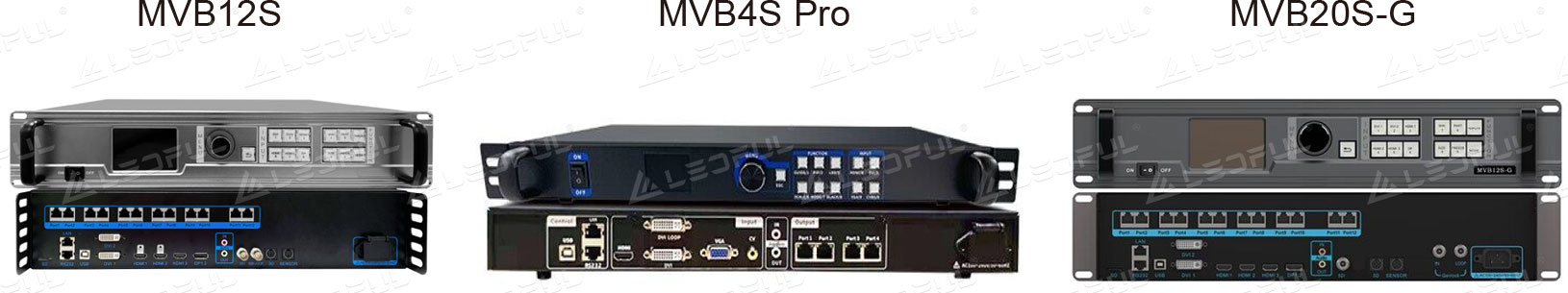

Control System - from Mooncell
Control System - from Mooncell

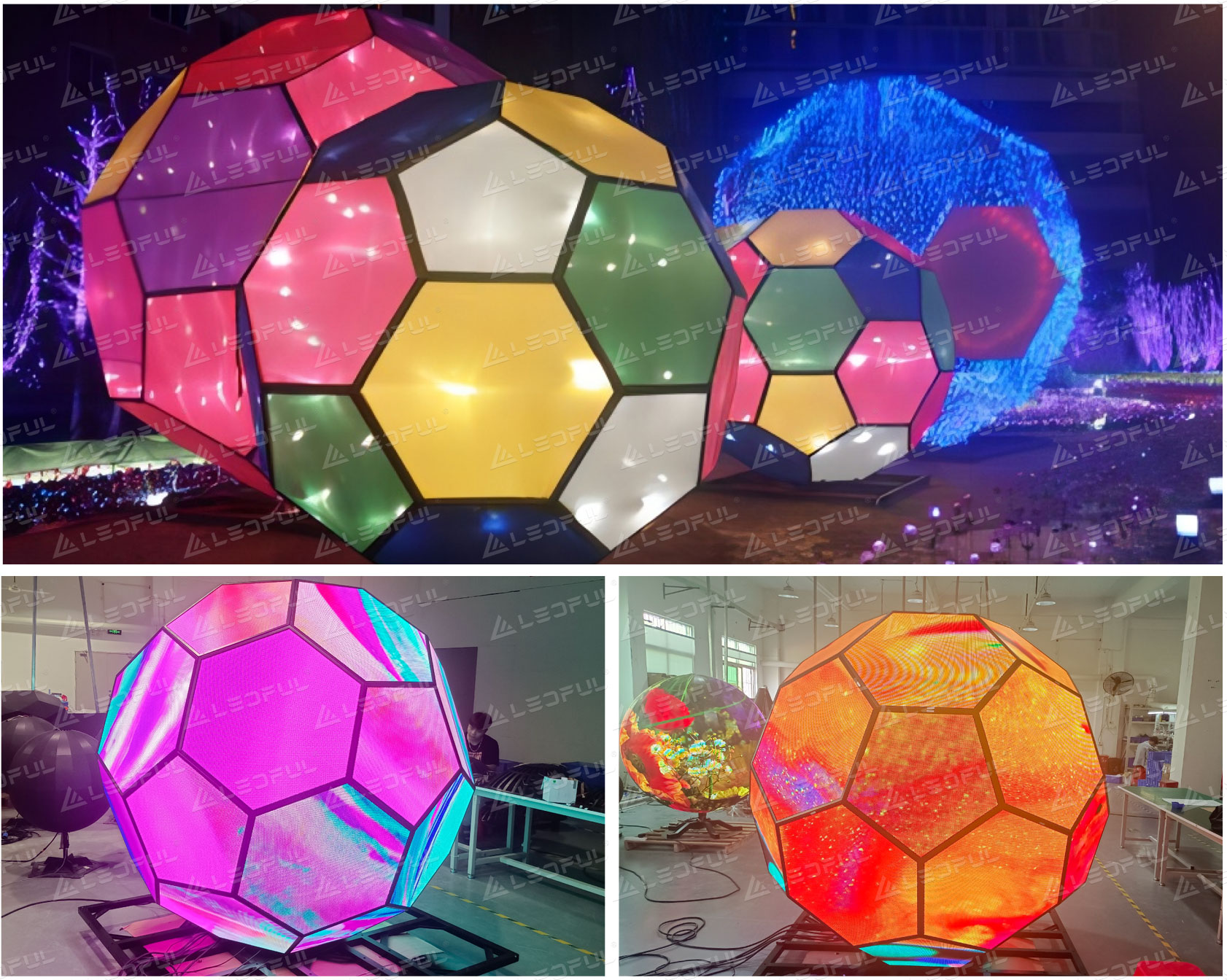

Typical Project
Typical Project
Features
Features
